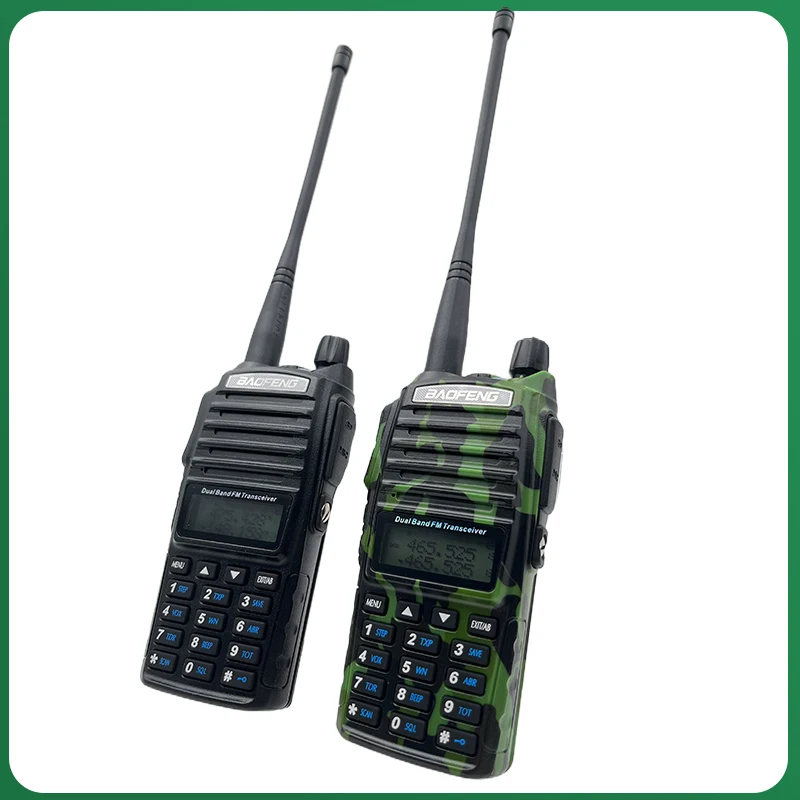

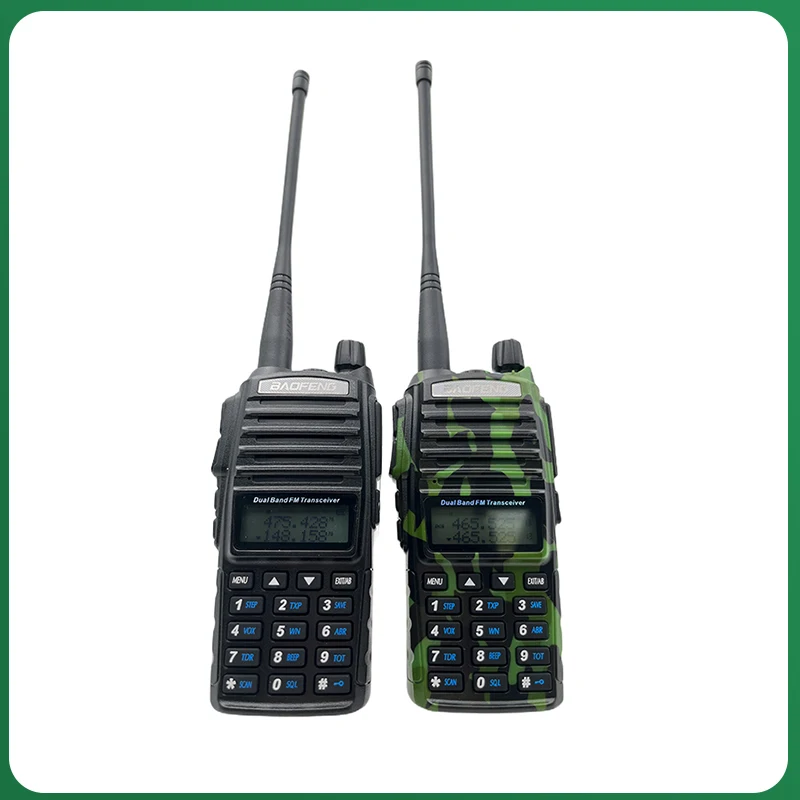

8W Version of Baofeng UV-82
Baofeng Original
VHF/UHF 136-174MHZ / 400-520MHZ
Description:
Upgrade 8Watts Version of UV-82 Baofeng Radio
Dual-band hand held transceiver with display function menu on the display
Frequency Mode,Channel Mode
DTMF encoded
CTCSS&DCS Scanning,Direct input
Function VOX
Alarm function
Broadband,narrow band selectable
Function beep on the keyboard
Dual Standby,Dual Reception
Cross band reception,transmission
Function OFFSET
Frequency reverse
Battery saving function SAVE
Programmable by PC
Built-in key lock
General
Frequency Range: VHF 136-174MHZ and UHF 400-520MHZ (TX/RX)
Channel: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band
Antenna Impedance: 50Ω
Operating Voltage DC 7.4V <2800MAH MAX
Mode of operation Simple or semi-duplex
Antenna: SMA -Female
Earpiece/Mic type: K-Plug Type
Dimension(W x H x D): 132* 60 *35 mm (size without antenna)
Weight: About 220g (including battery and antenna)
Power Adapter Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA
Transmitter
8W Output power: 8W/ 4W/1W (Max 8W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ≤10%
A Standard Package Included:
1 X UV-82 body
1 X Antenna
1 X 7.4V/2800mAh BL-8 Battery
1 X Li-ion Charger
1 X Belt Clip
1 X Hand Strap
1 X English User’s manual
You can select other accessories according to the pictures and your requirements.
