ESC250D Field Mountable Optical Fiber Quick Connector FTTH SC APC Fast Connector Single Mode Low Insertion Loss ≤ 0.3dB

SKU: 1005004763281367

Original price was: $18.34.Current price is: $5.24.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

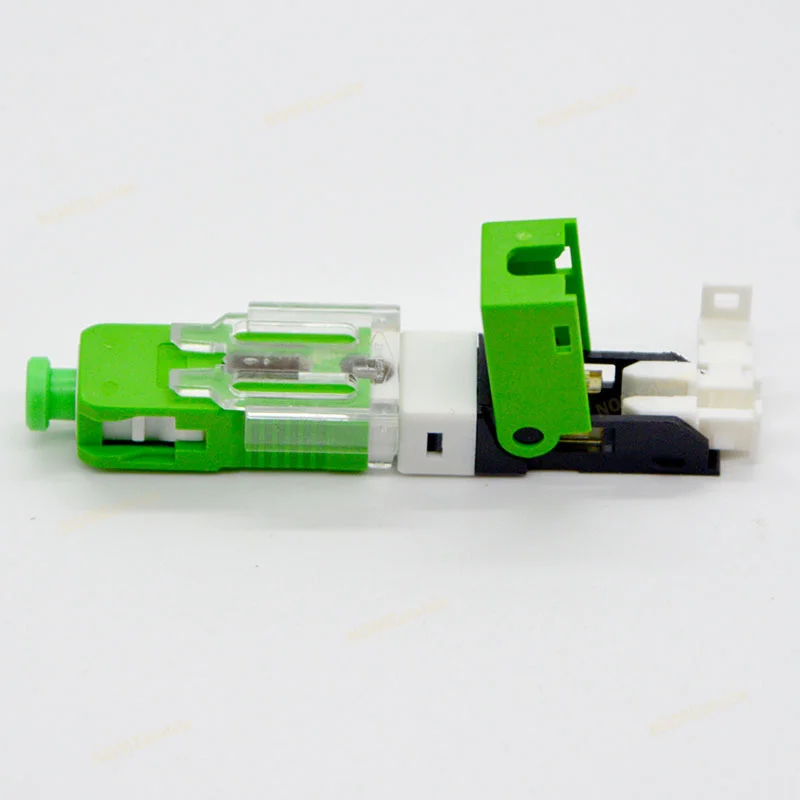

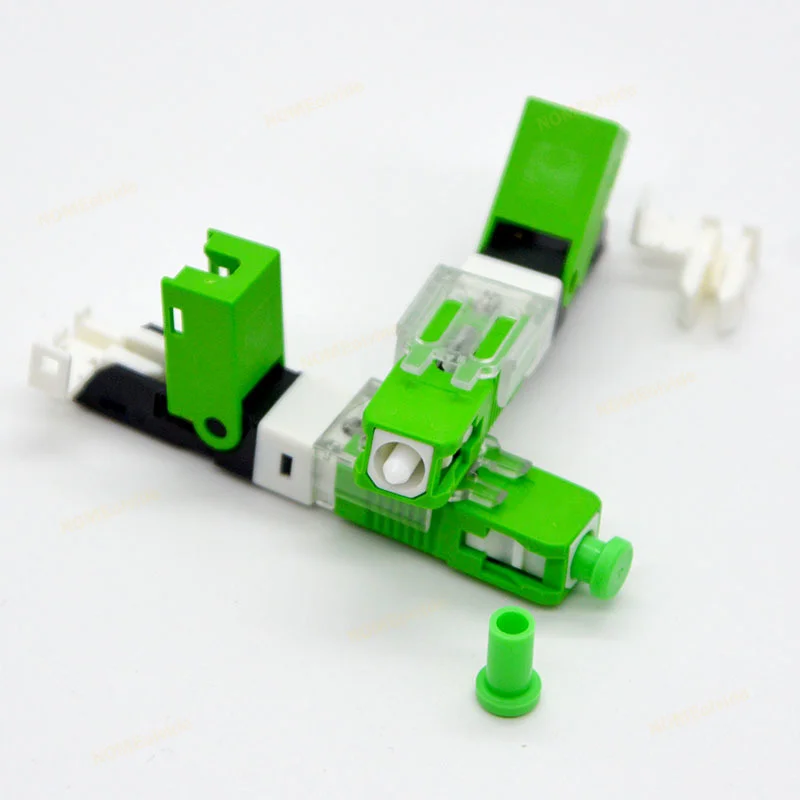

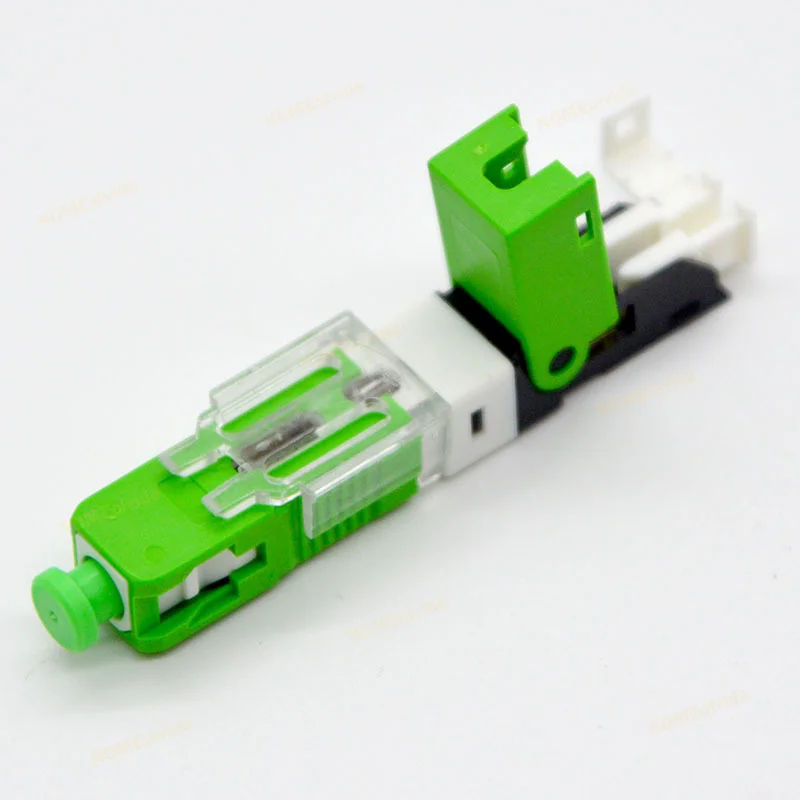

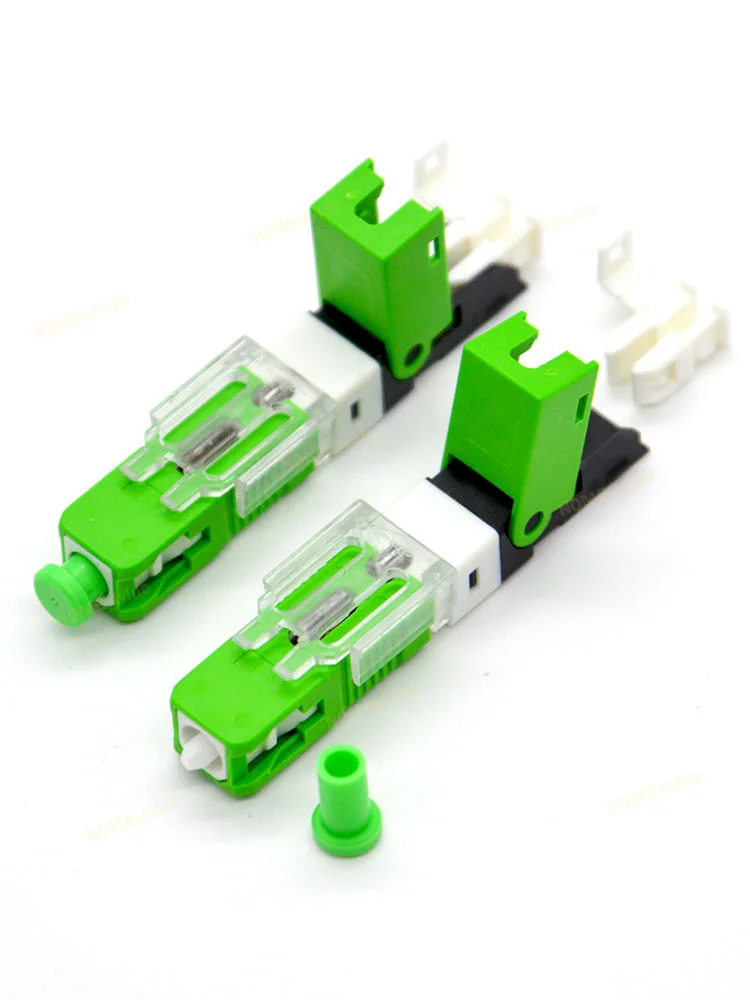

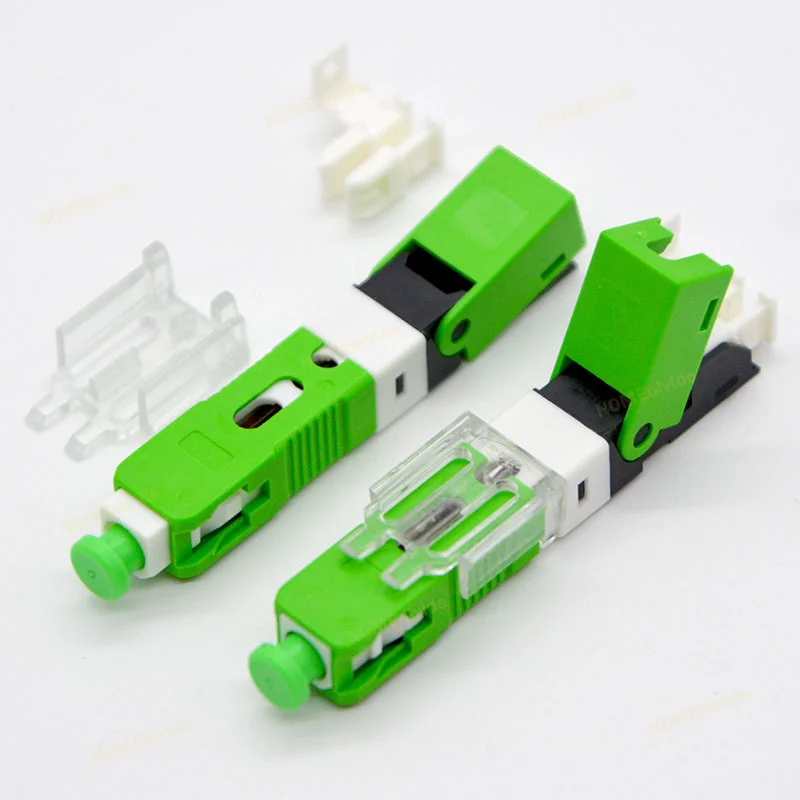

New ESC250D Field Mountable Optical Fiber Quick Connector FTTH SC APC SingleMode Fast Connector Low Insertion Loss ≤ 0.3dB

SC Embedded fiber optic connector quick connector cold, using tricyclic class A ferrule insertion loss, operability / reuse / stable performance, low cost, fast installation and so on.
parameter:
Product Name: Embedded fiber optic connector quick connector cold
Model: SC / APC
The average insertion loss: ≤0.3db
Return loss: ≥50db
Temperature cycle: -40 ~ + 85  / 168h
Variation: ≤0.2db
Rally: ≥50N
Torque: ≥35N
Repeat assembly: ≥25 times
Variation: ≤0.2db

Carrier grade high-quality optical fiber fast connector, imported plug, to ensure that every connector meets the quality standards, low insertion loss, high return loss!

Buy more than 100cs, enjoy 25% discount! At the same time, special tools are presented: fixed length peeling coating tool 4pcs!
