Product parameters
Product Name: P60 Mesh Edition

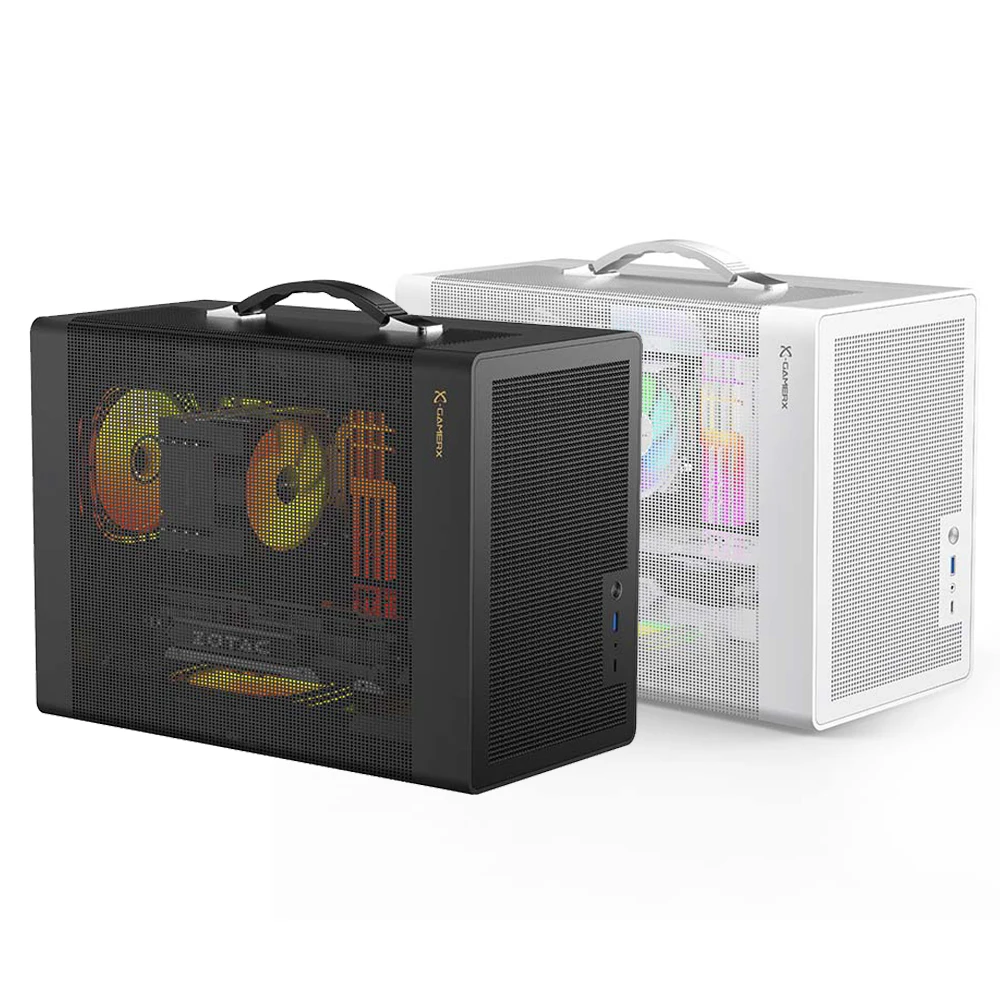

Chassis color: Black/White

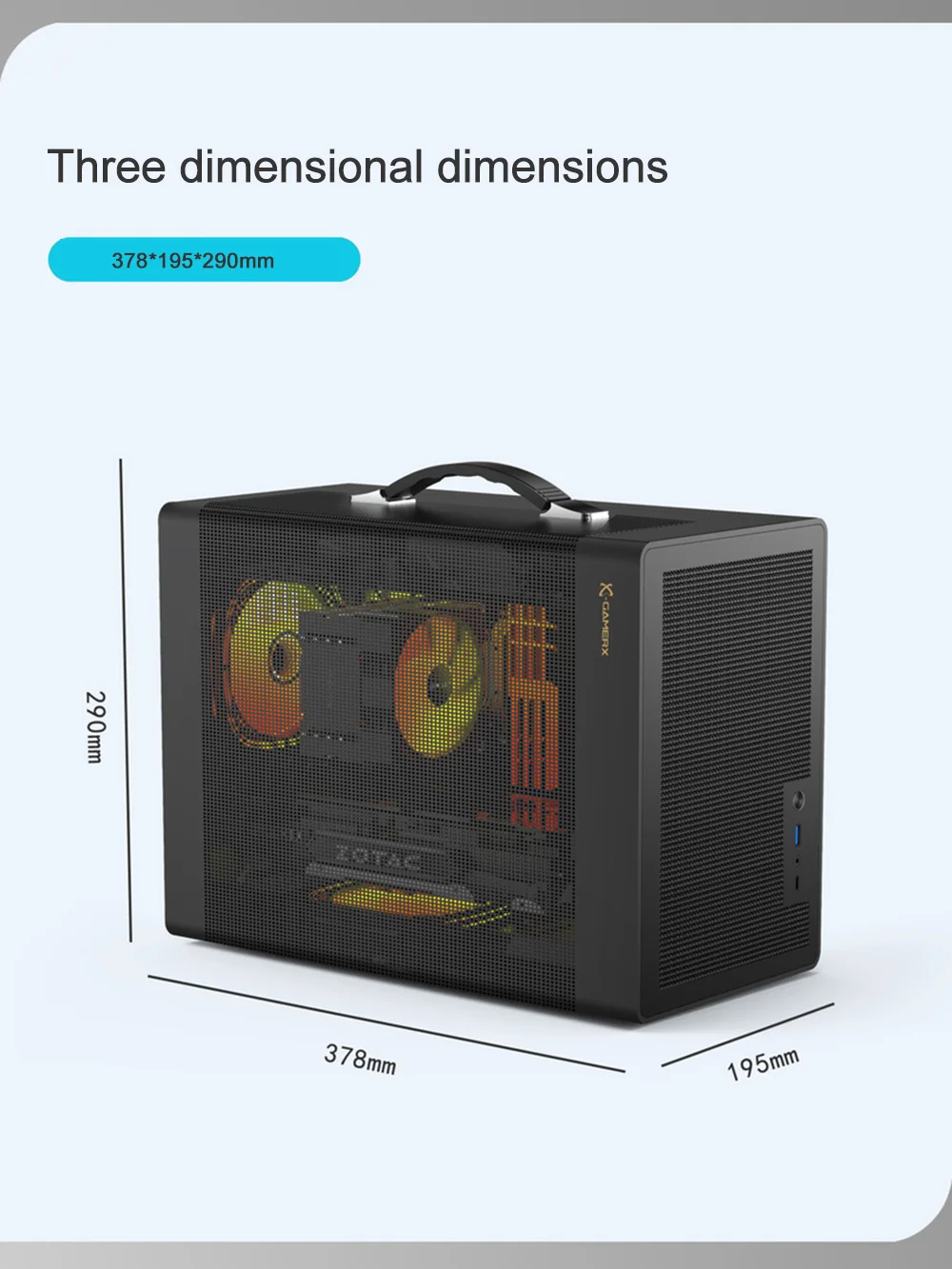

Product size: 378 * 195 * 290mm

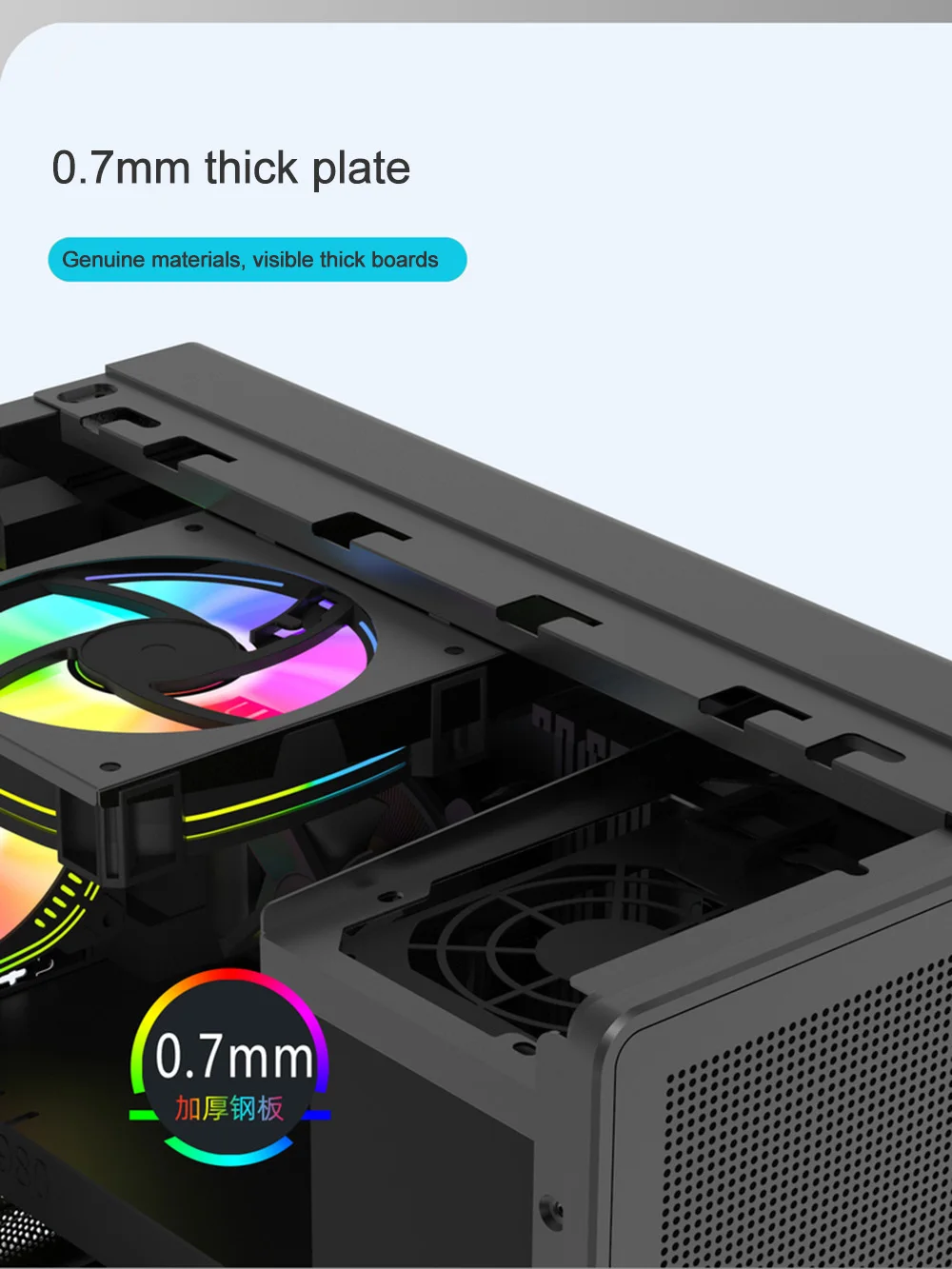

Material thickness: SPCC (baked paint) 0.7mm thick power supply length:
ATX power supply (150 * 140 * 86mm)
SFX power supply (125 * 100 * 64mm)
CPU heatsink: height limit 168mm

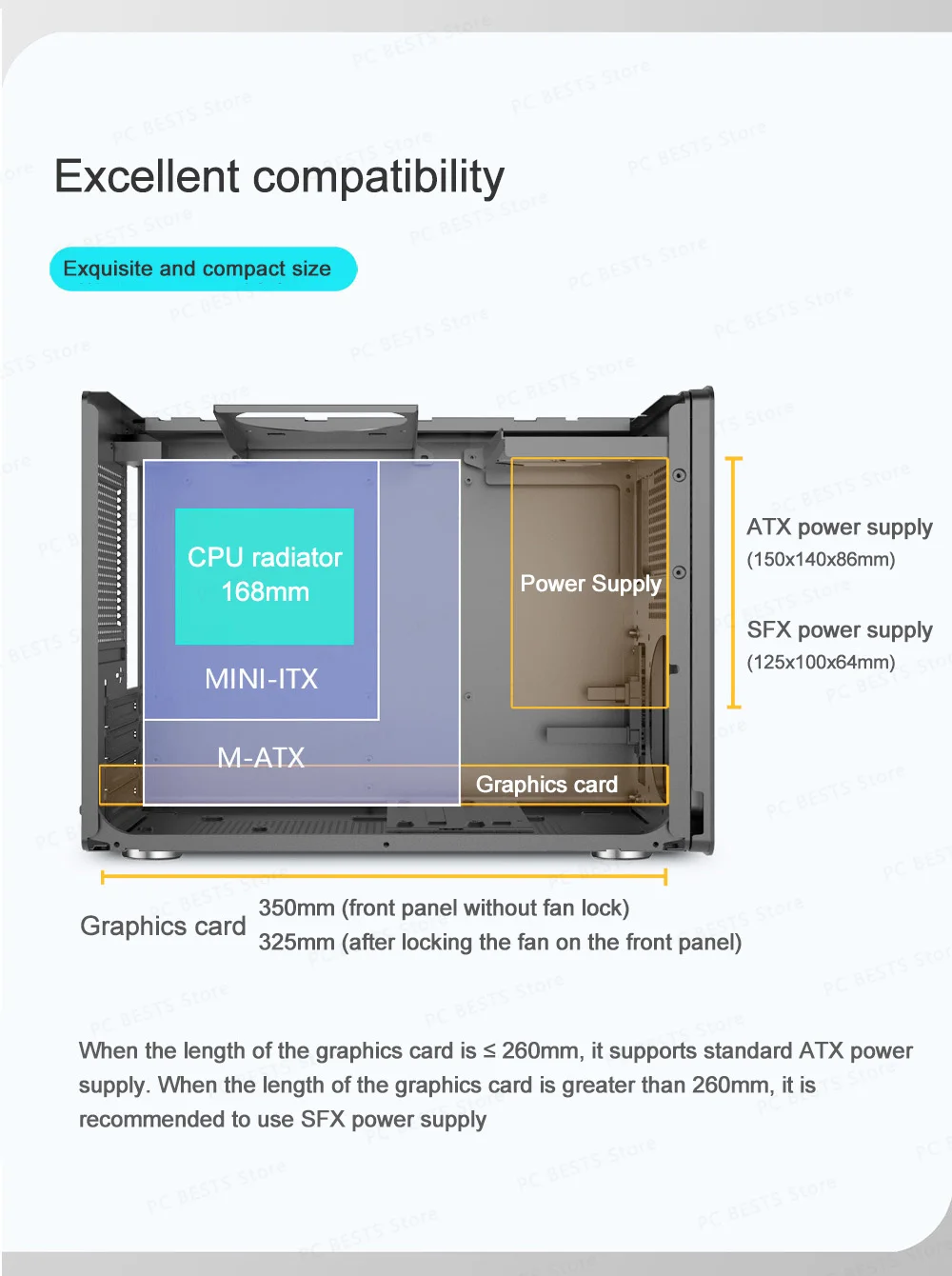

Graphics card length limit:
350mm (front panel without fan lock)
335mm (after locking the fan on the front panel)
Applicable motherboards: Micro ATX/Mini ITX

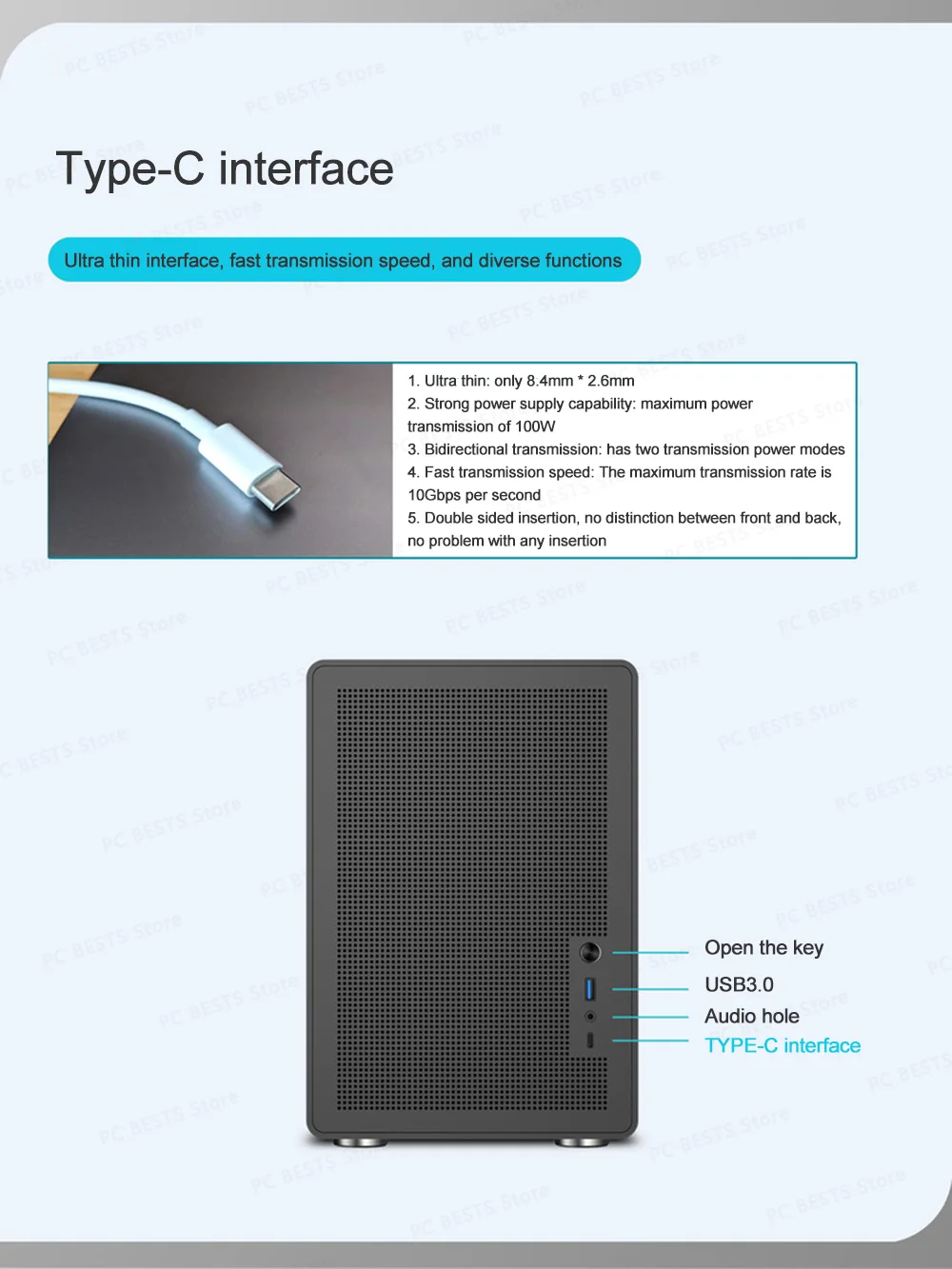

Panel interface: USB 3.0, Type-C, HDAUDIO
Extended Drive:
3.5 "HDD * 1, 2.5" SSD * 2 or 3.5 "HDD * 1, 2.5" SSD * 1 with fan locked at the bottom

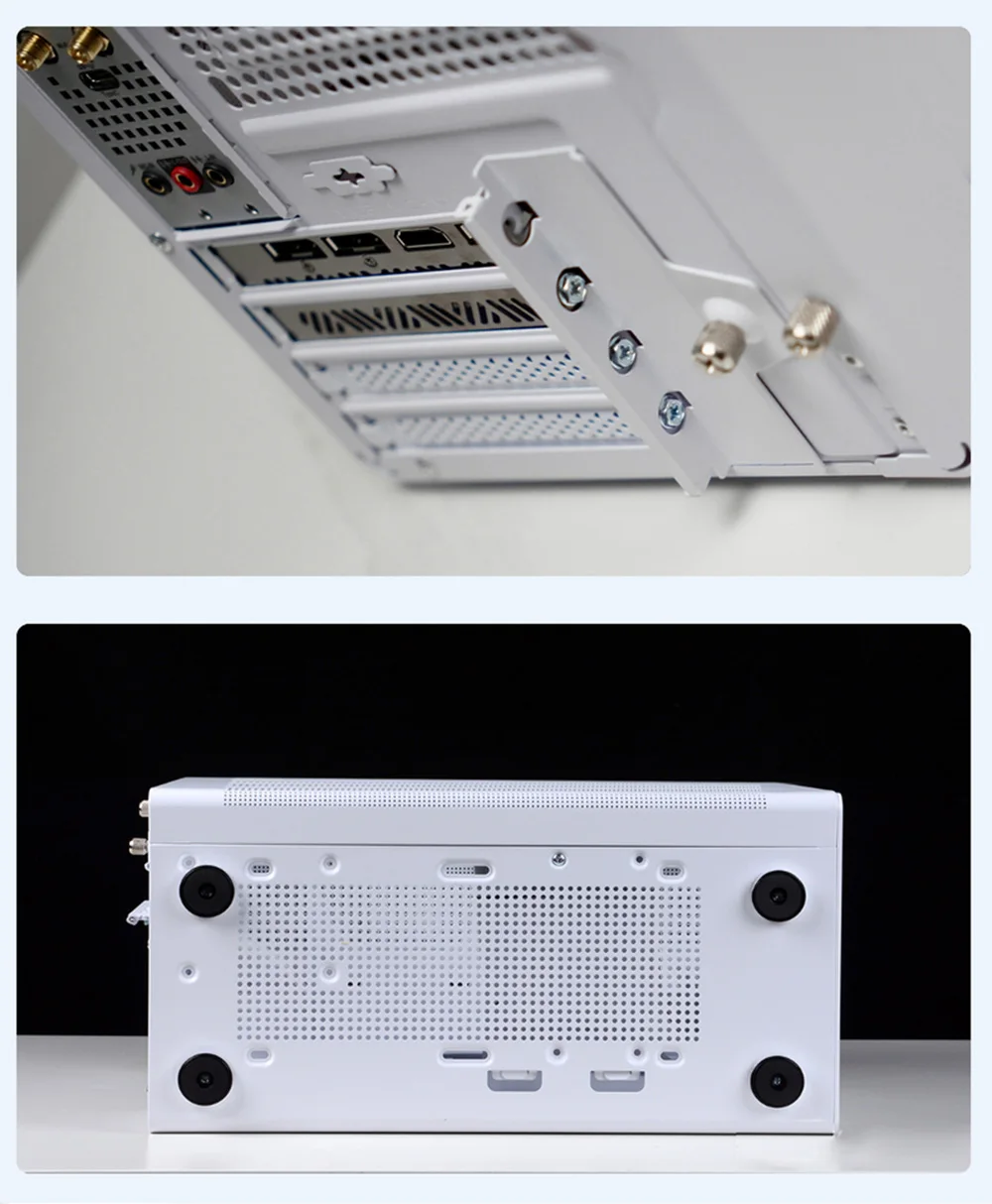

PCI slots: 4
Tempered glass: Left side tempered glass

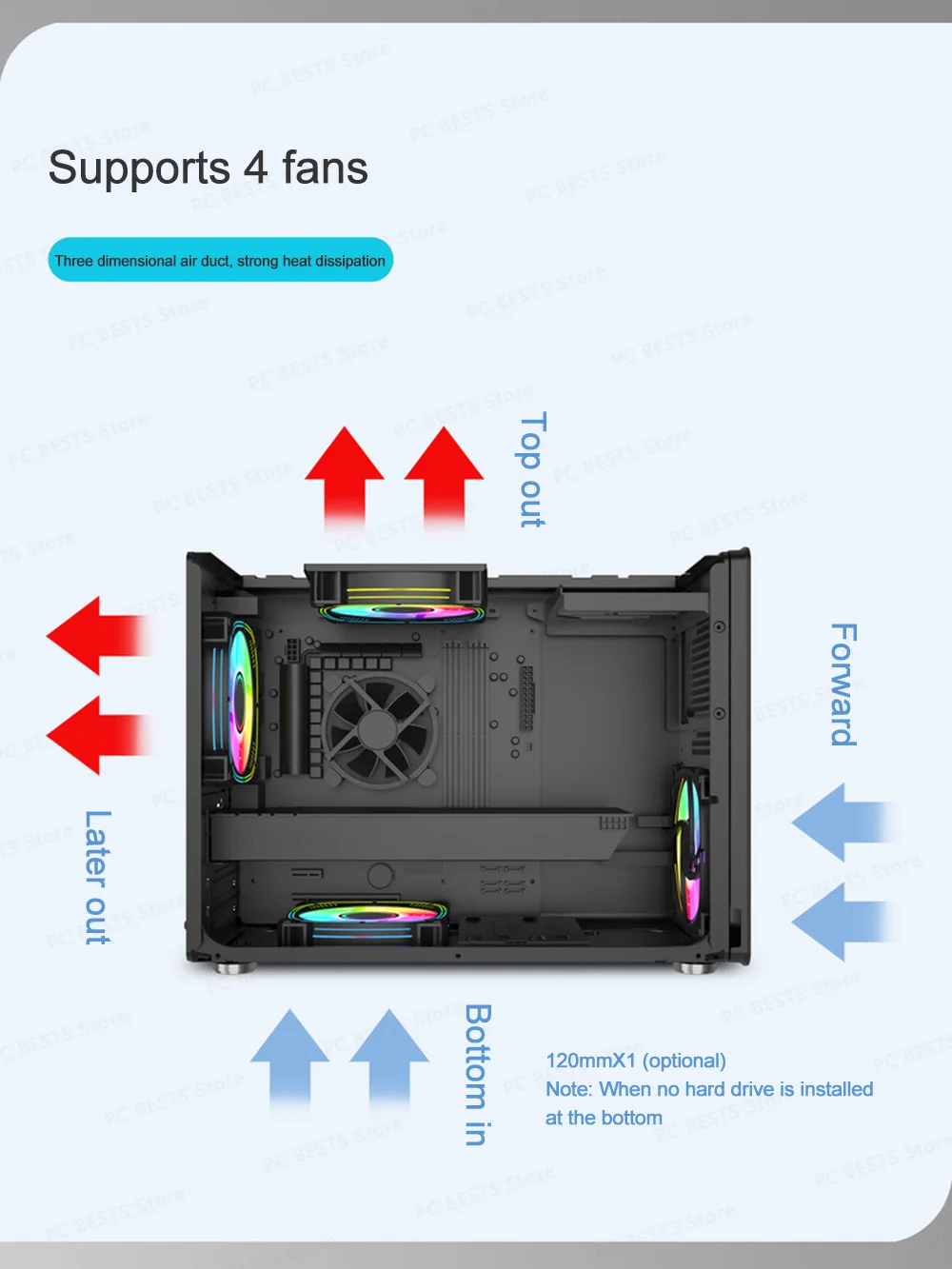

Cooling system
Front: 120mm fan * 1
Rear: 120mm fan * 1
Top: 120mm fan * 1 (requires fan bracket)
Bottom: 120mm fan * 1 (optional)
