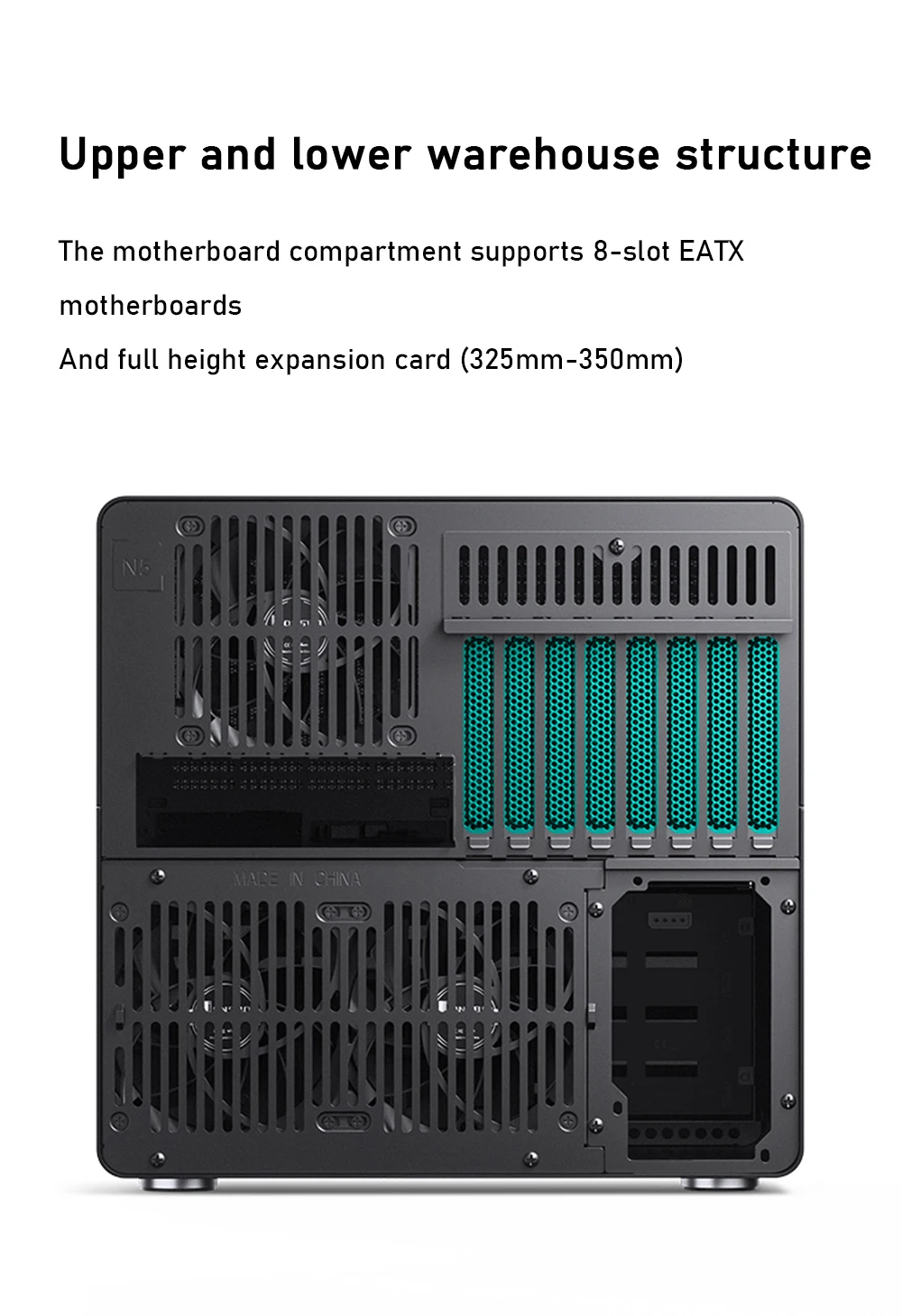

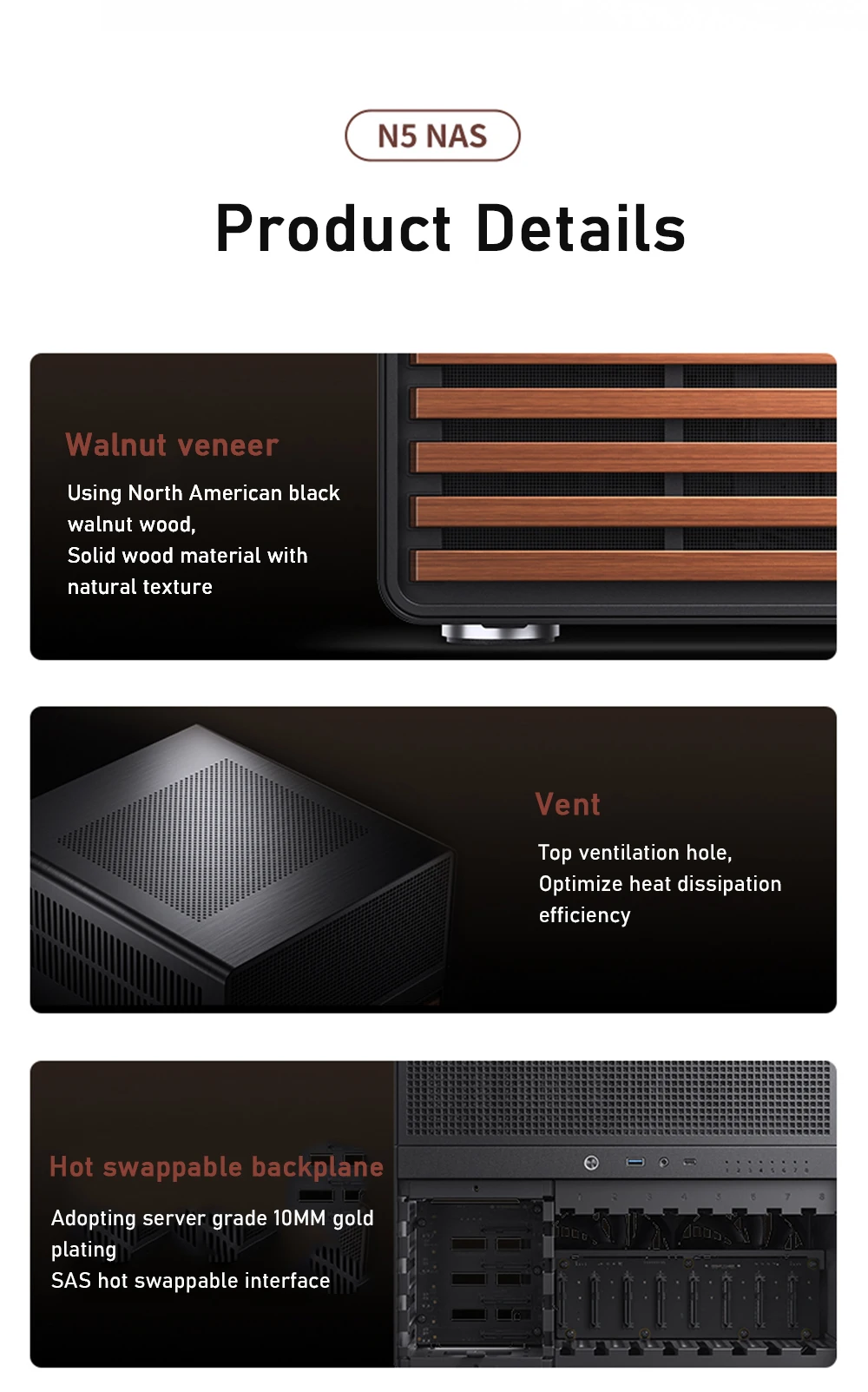

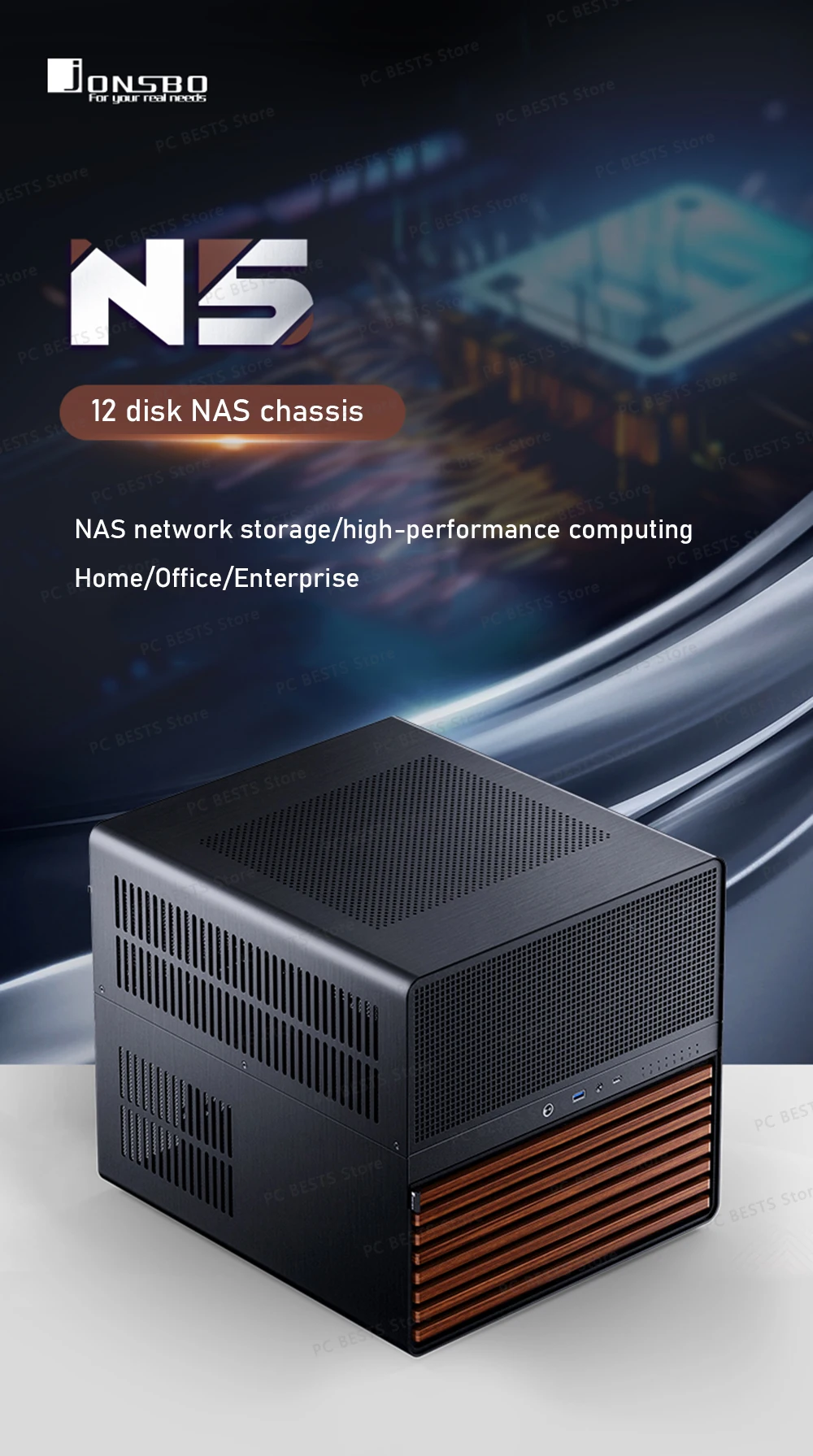

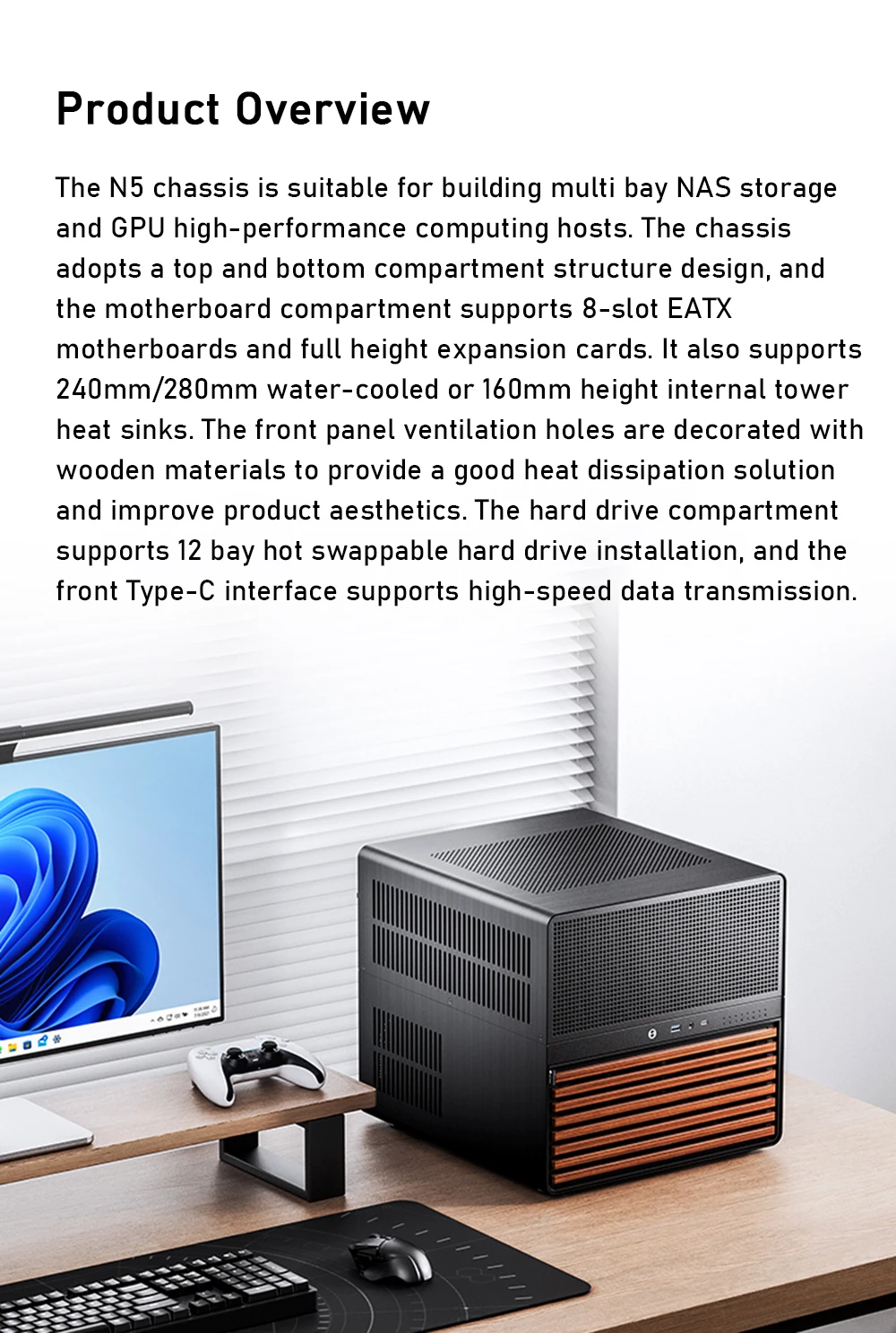

The N5 chassis is suitable for building multi bay NAS storage and GPU high-performance computing hosts. The chassis adopts a top and bottom compartment structure design, and the motherboard compartment supports 8-slot EATX motherboards and full height expansion cards. It also supports 240mm/280mm water-cooled or 160mm height internal tower heat sinks. The front panel ventilation holes are decorated with wooden materials to provide a good heat dissipation solution and improve product aesthetics. The hard drive compartment supports 12 bay hot swappable hard drive installation, and the front Type-C interface supports high-speed data transmission.
Product parameter
Model：N5
Color：Black

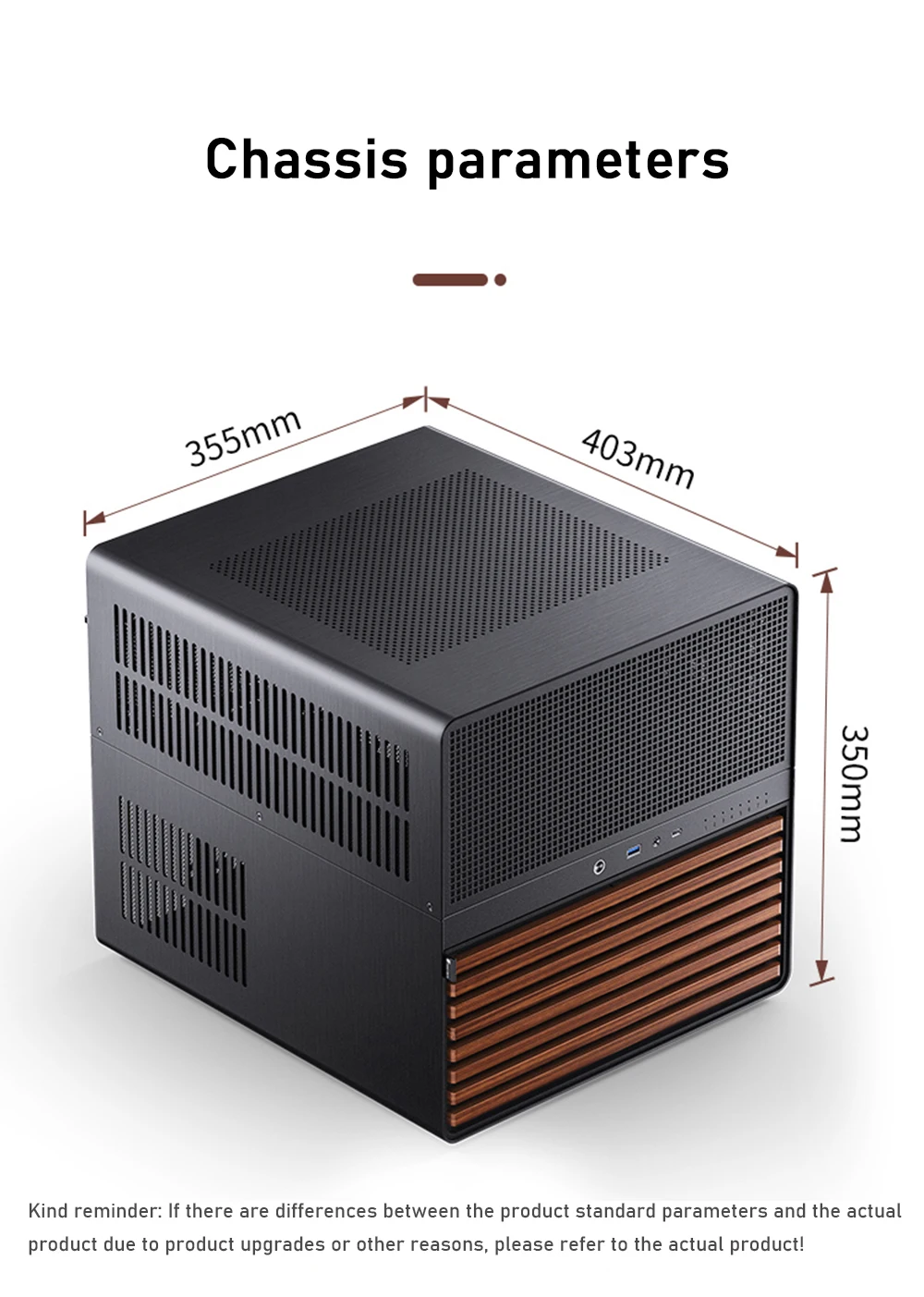

Dimension：355mm(W)*403mm(D)*350mm(H) (Includes 6mm tall base)

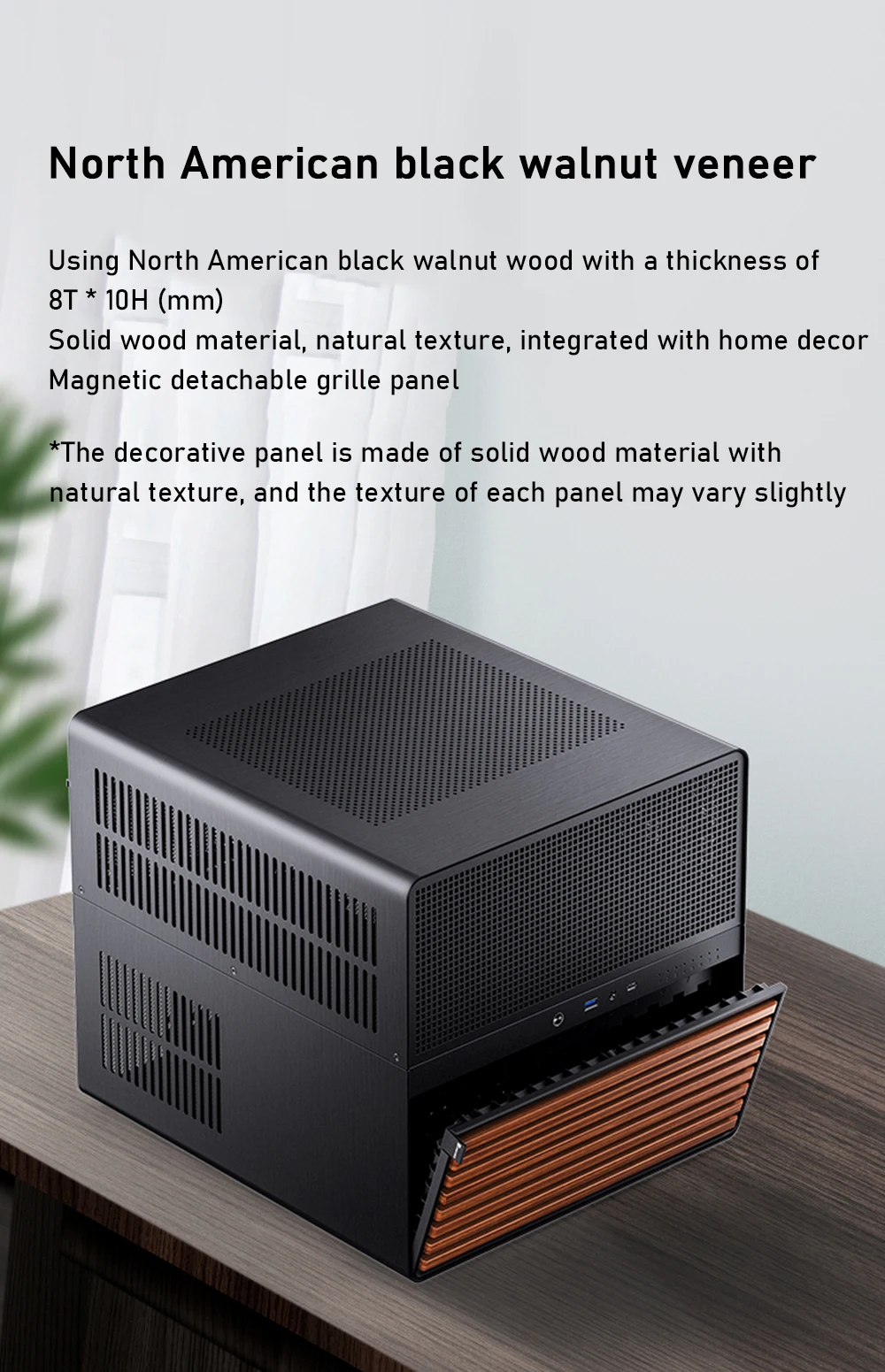

Material：1mm Steel+2.0mm Aluminum alloy+8mm Wood

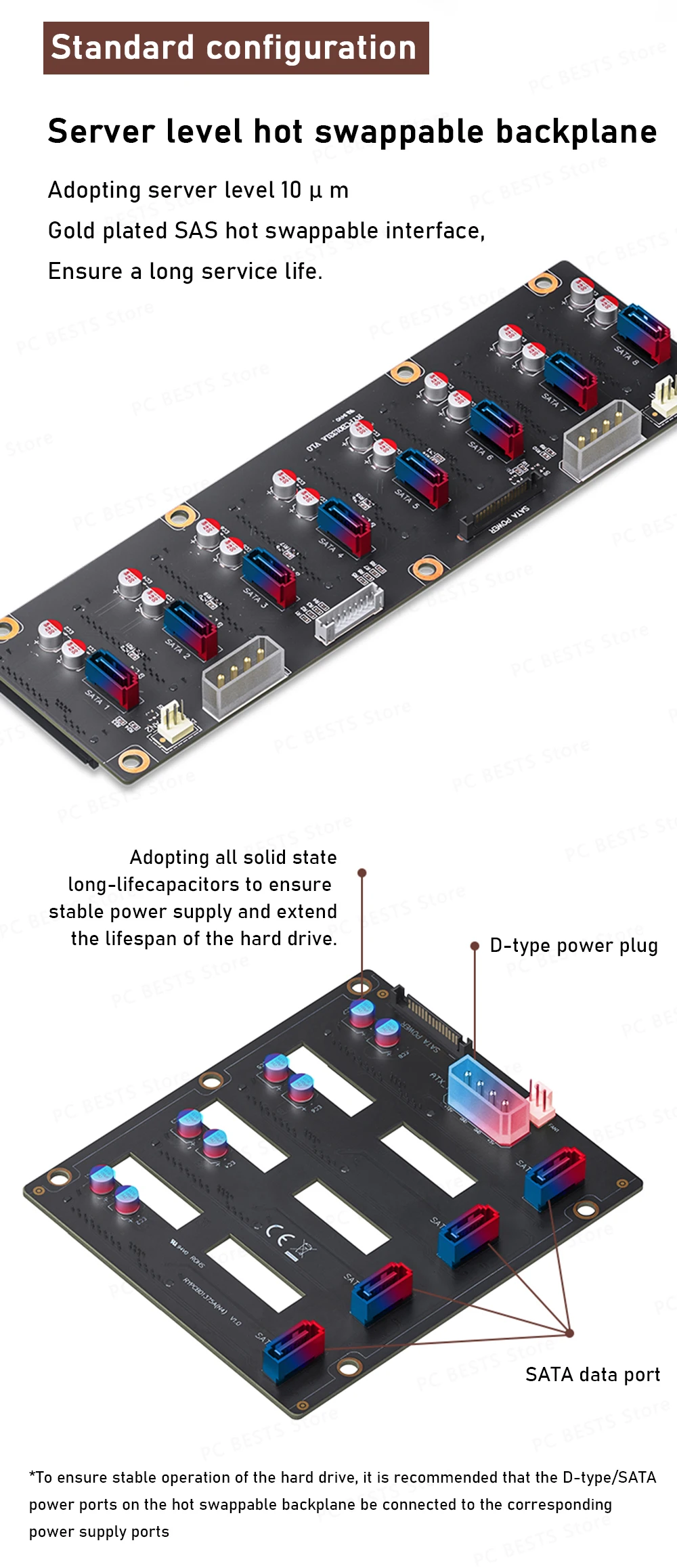

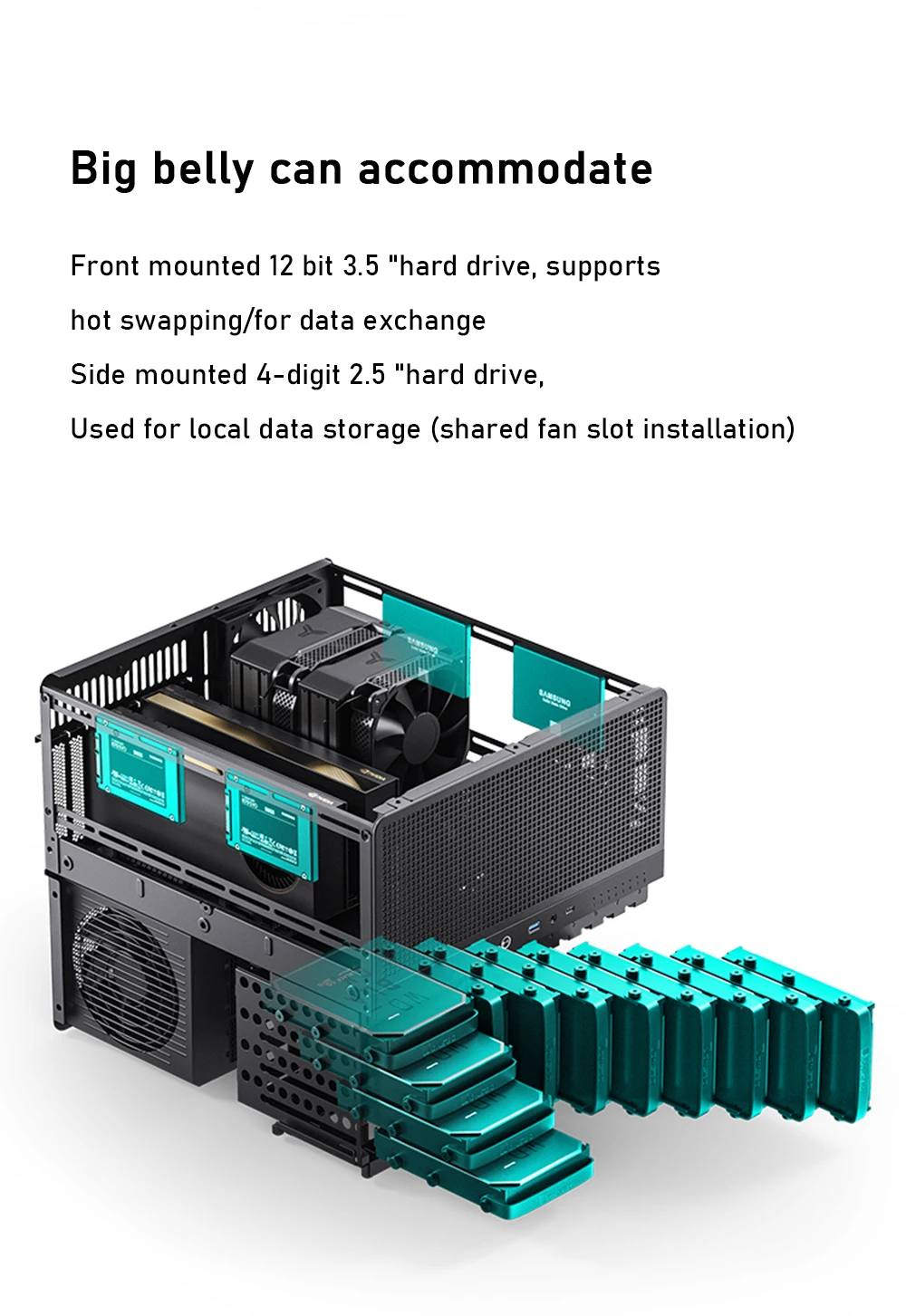

Drive Bay：2.5〞SSD*2 or 2.5〞SSD*4 / 3.5〞HDD*12

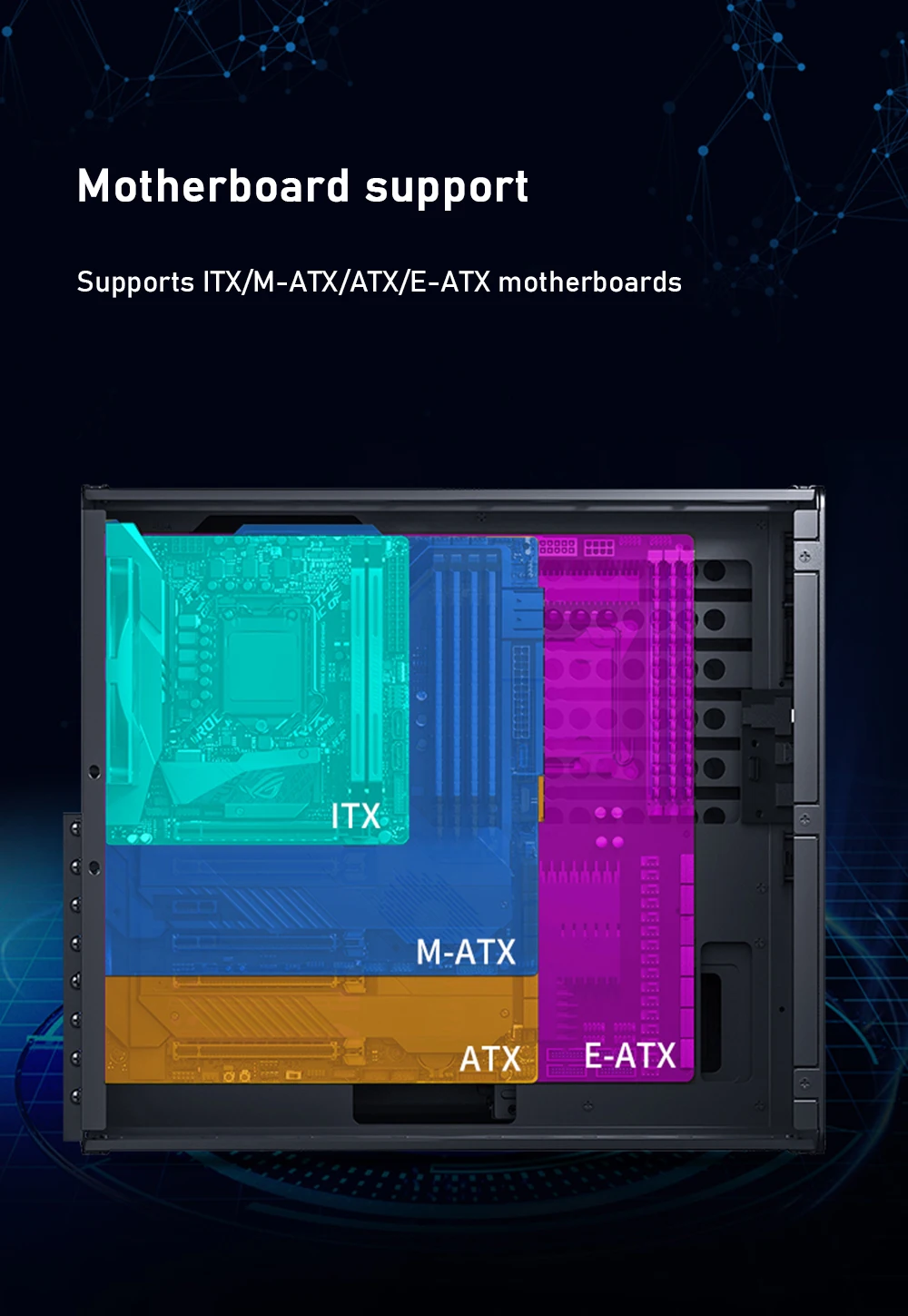

Motherboard：ITX / M-ATX / ATX / E-ATX
PCI Expansion Slot: 8

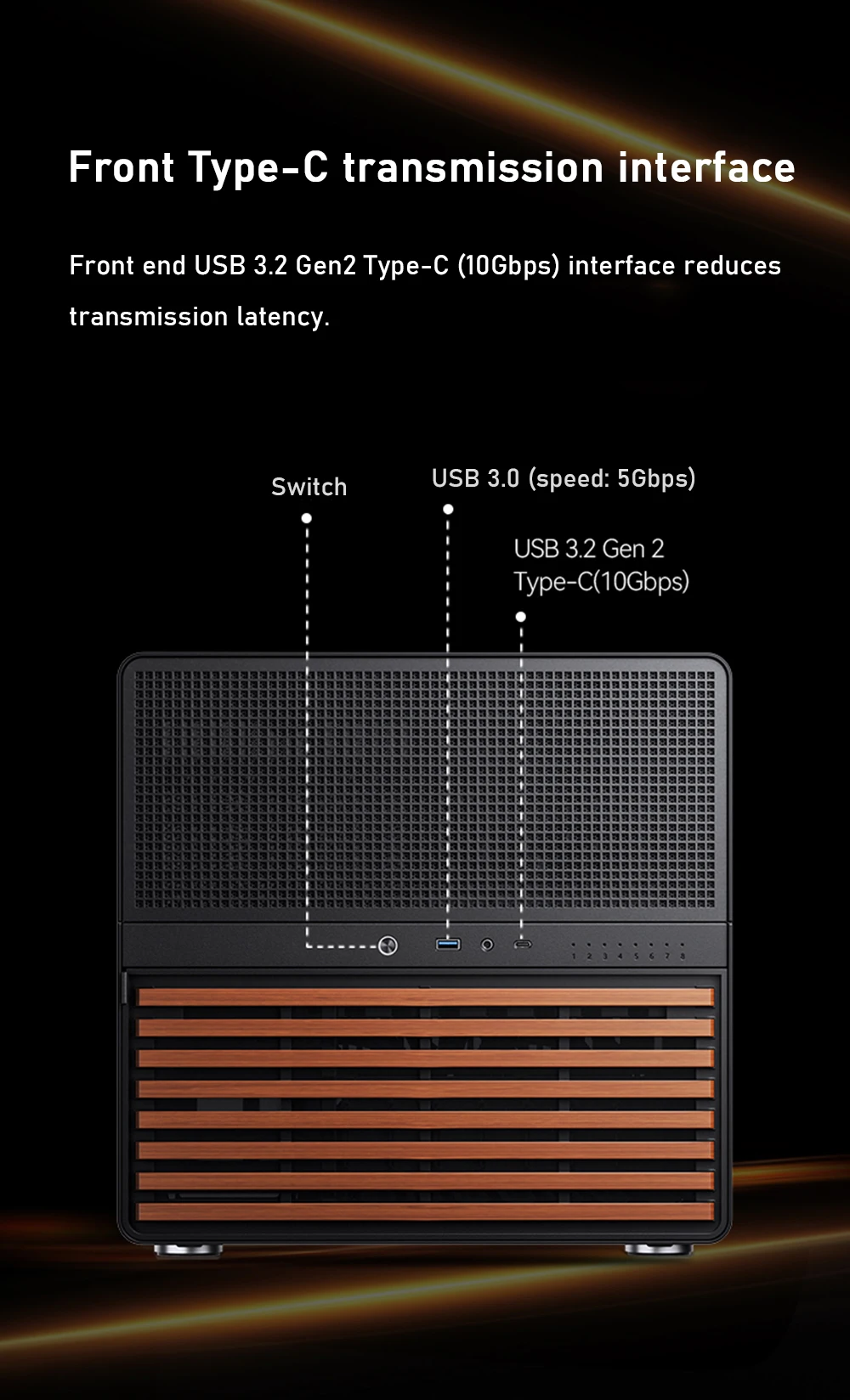

Front I/O Port：USB3.2 Gen2 Type-C*1/USB3.0*1/AUDIO*1 (Headset+mic combined)

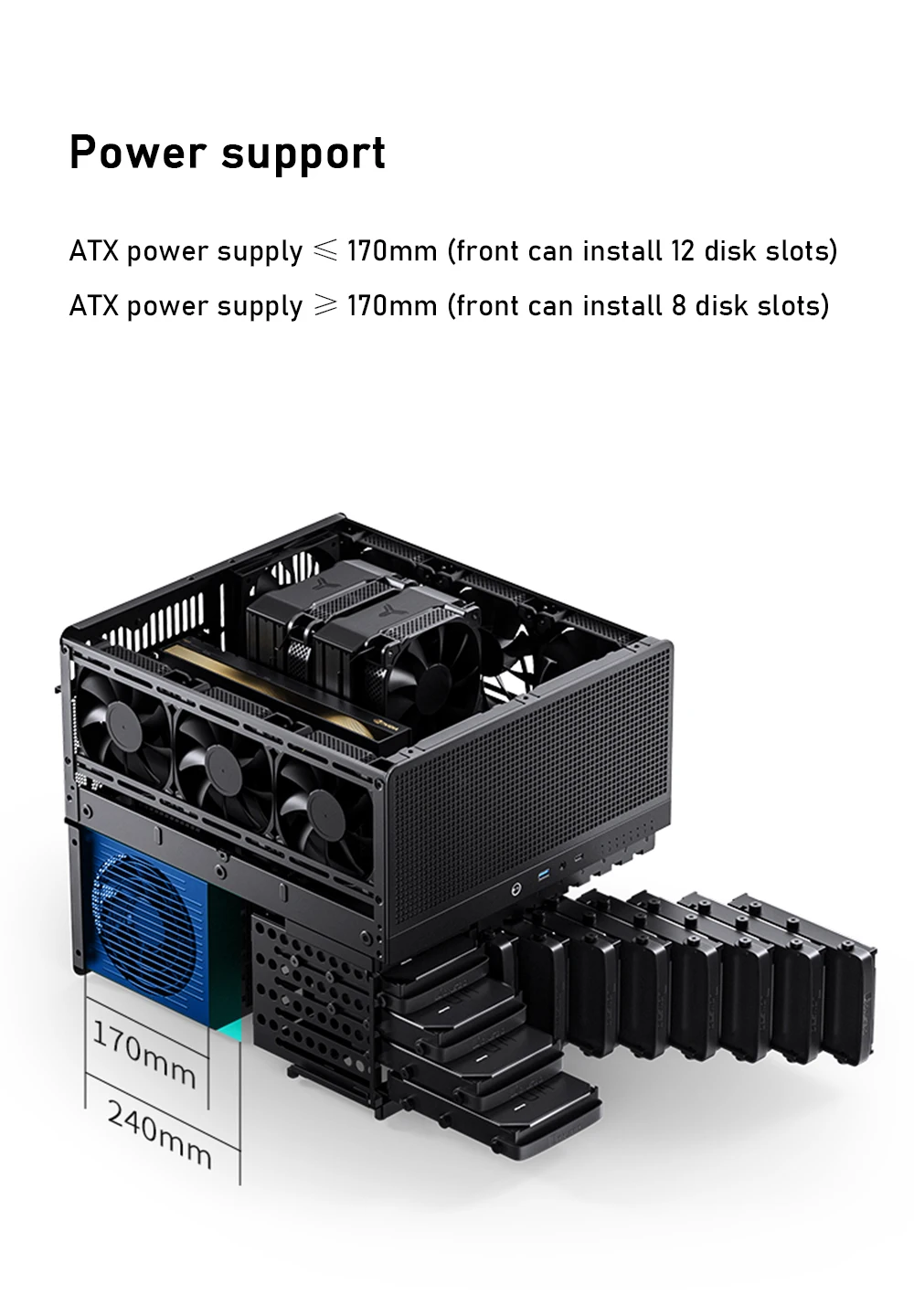

PSU Support: ATX≤170-240mm
Max. CPU Cooler Height: ≤160mm

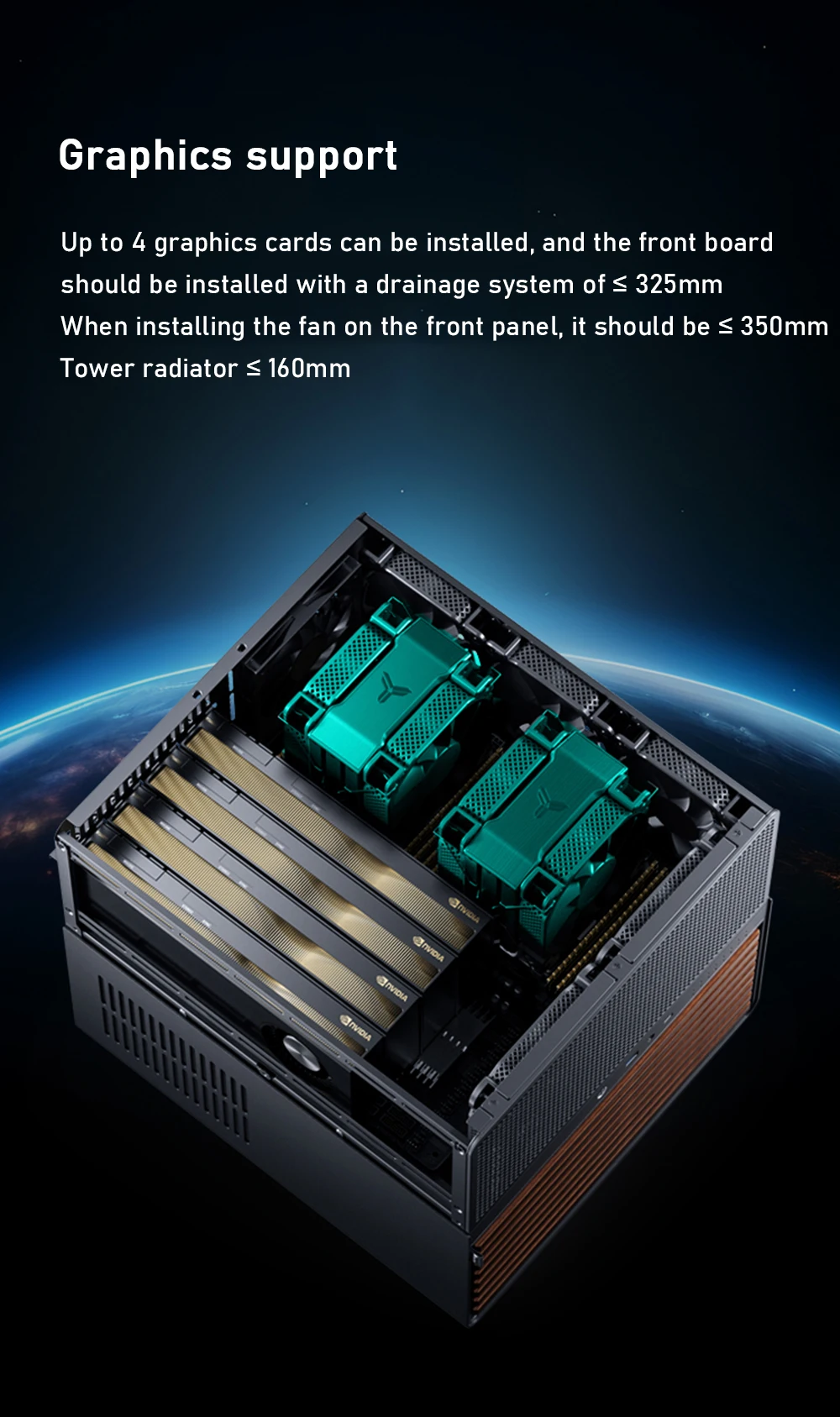

Max. Display Card Length: ≤325mm-350mm

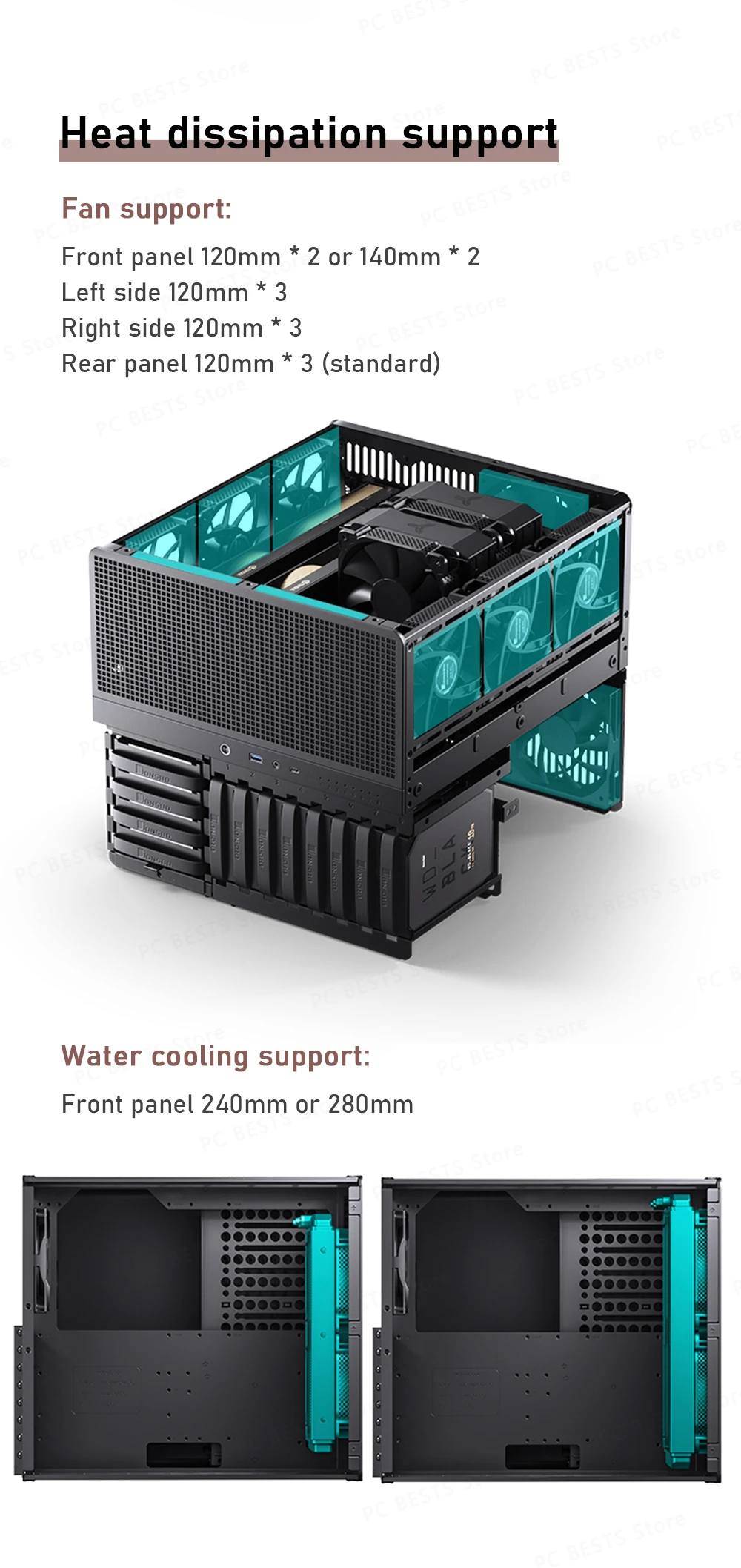

Cooling System:
Front 120mm*2 or 140mm*2
Left 120mm*3
Right 120mm*3

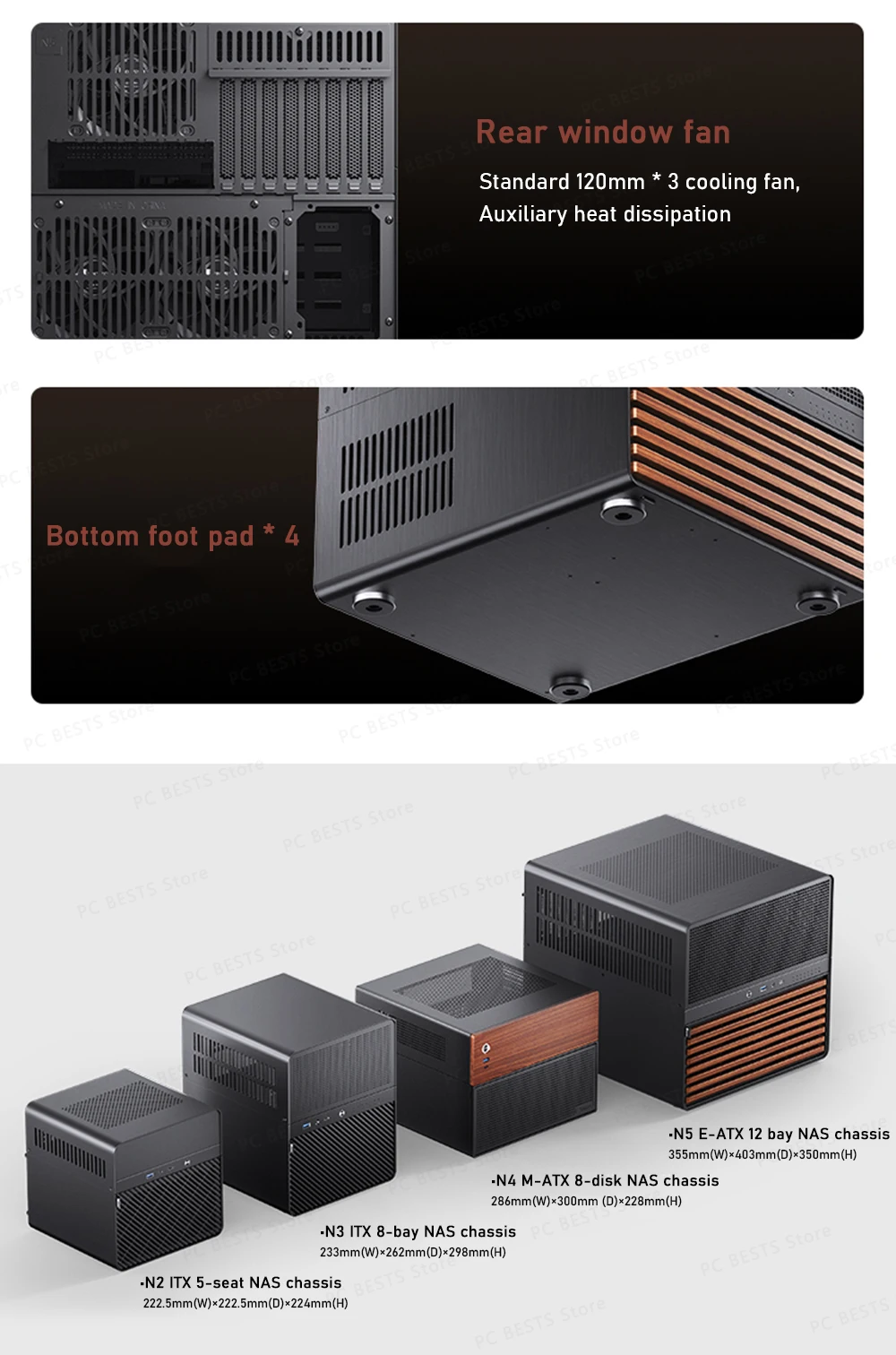

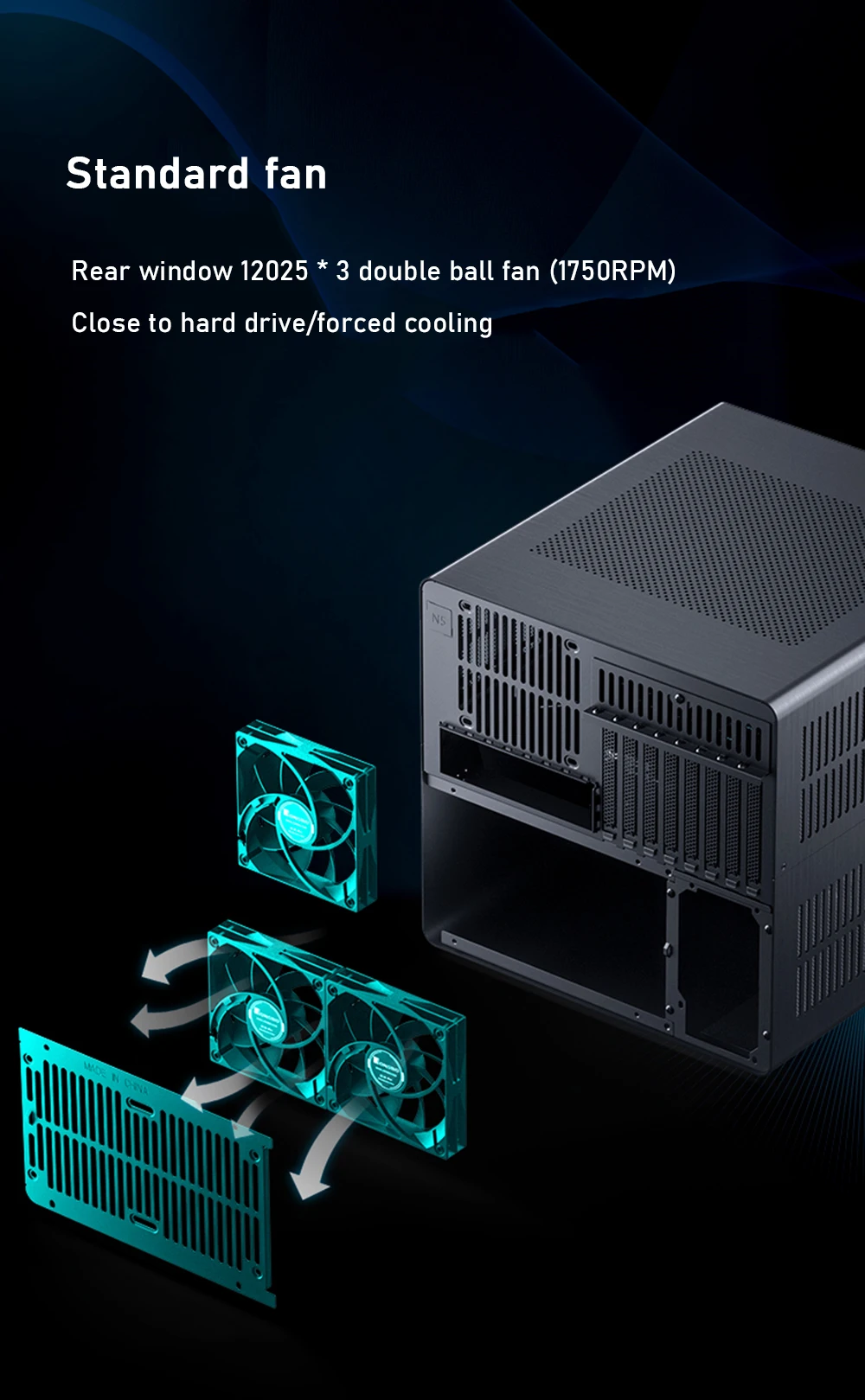

Rear 120mm*3 (built-in)
AIO Support: Front 240mm*1 or 280mm*1
Weight: Net 7.5kg
