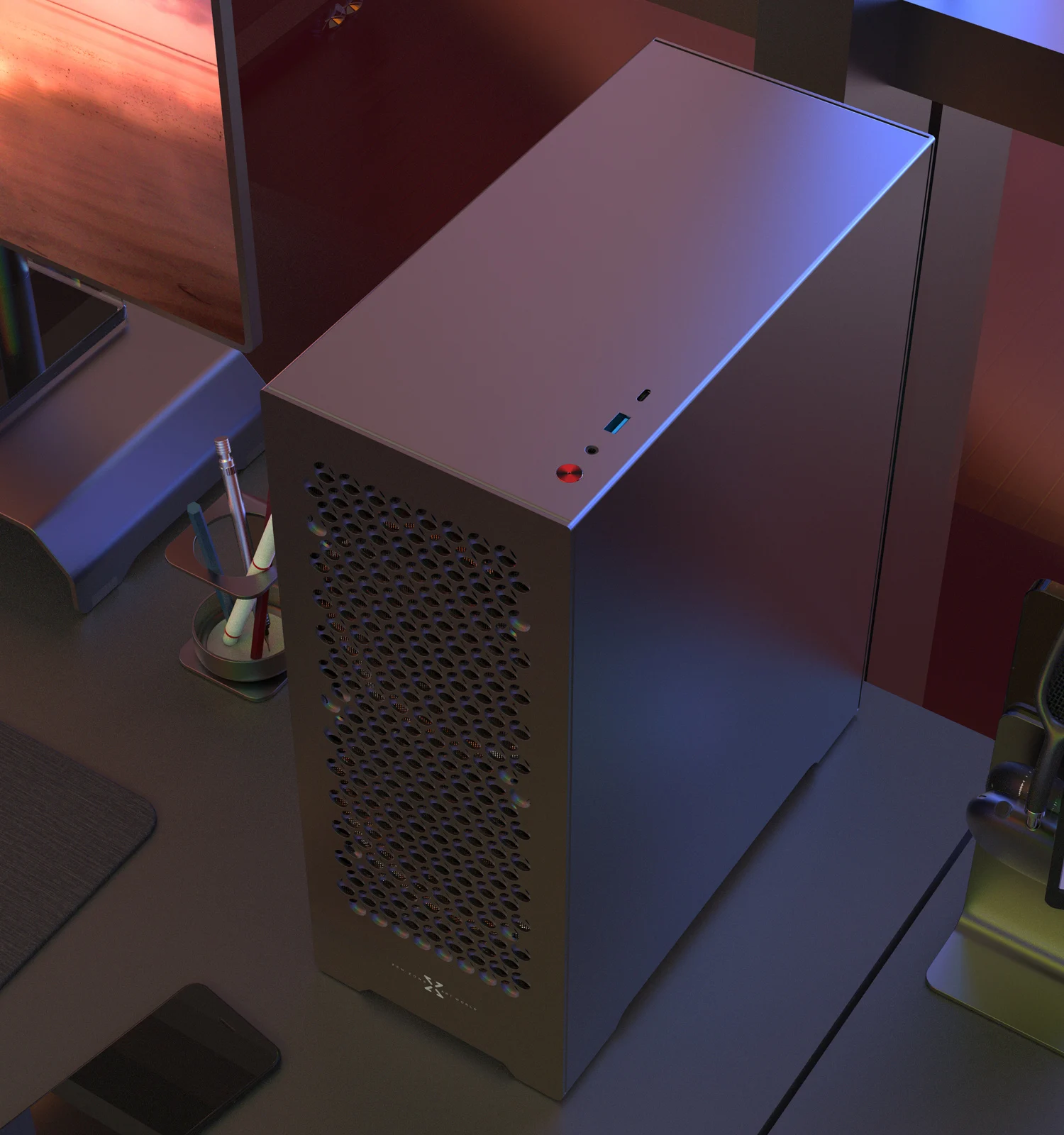

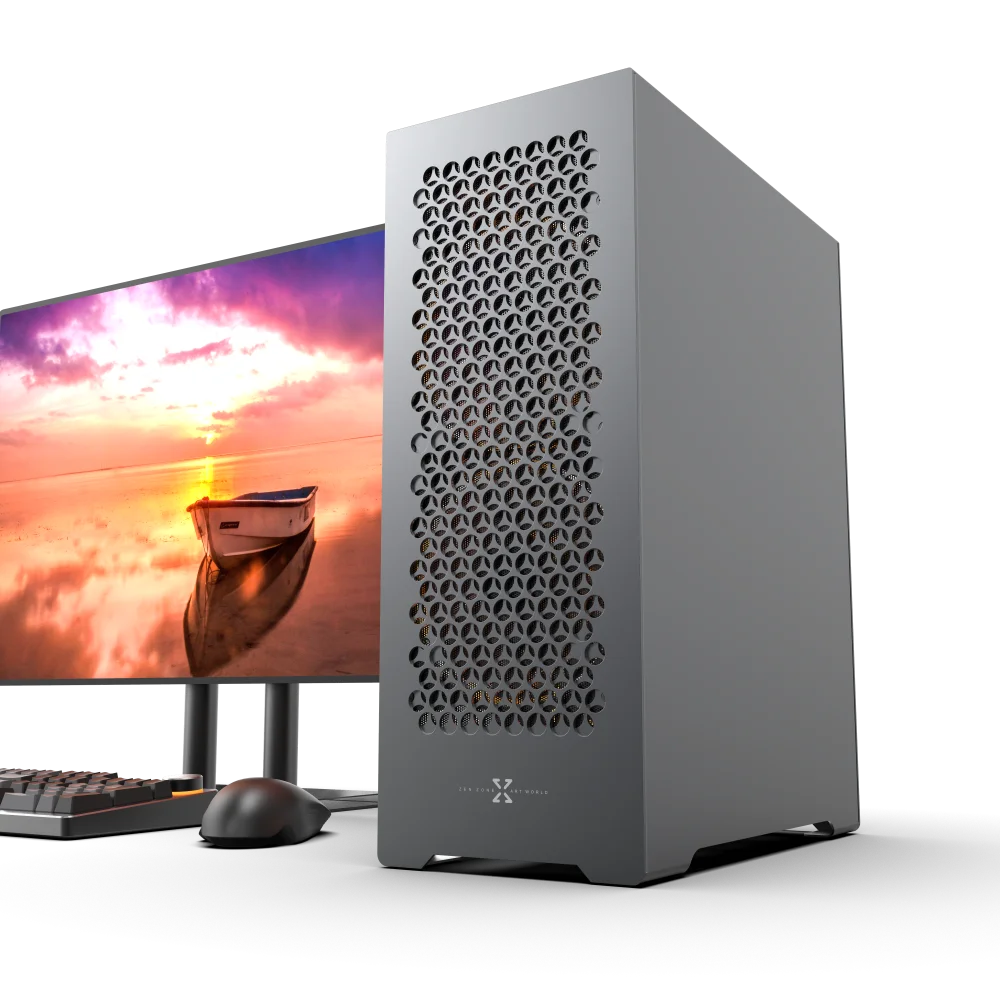

Case Parameter
1. Case Capacity: 23.8L

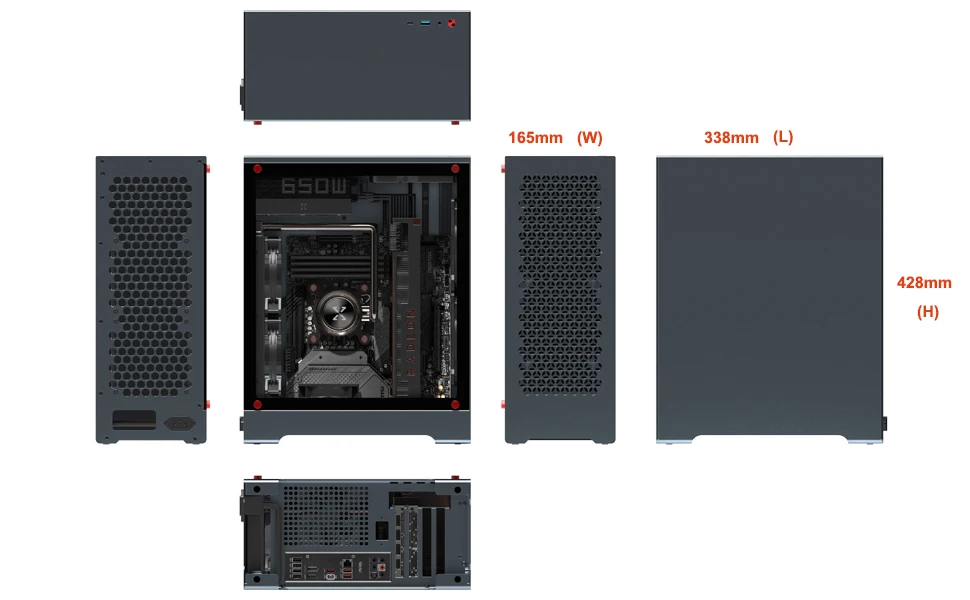

2. Product size:338*165*428mm
3. Body Material: Magnesium Aluminum Alloy, 2mmaluminum alloy frame, 1.5mm aluminum other accessories
4. Side panel: 3mm thicknesstempered glass
5. Color: anodizeddark gray

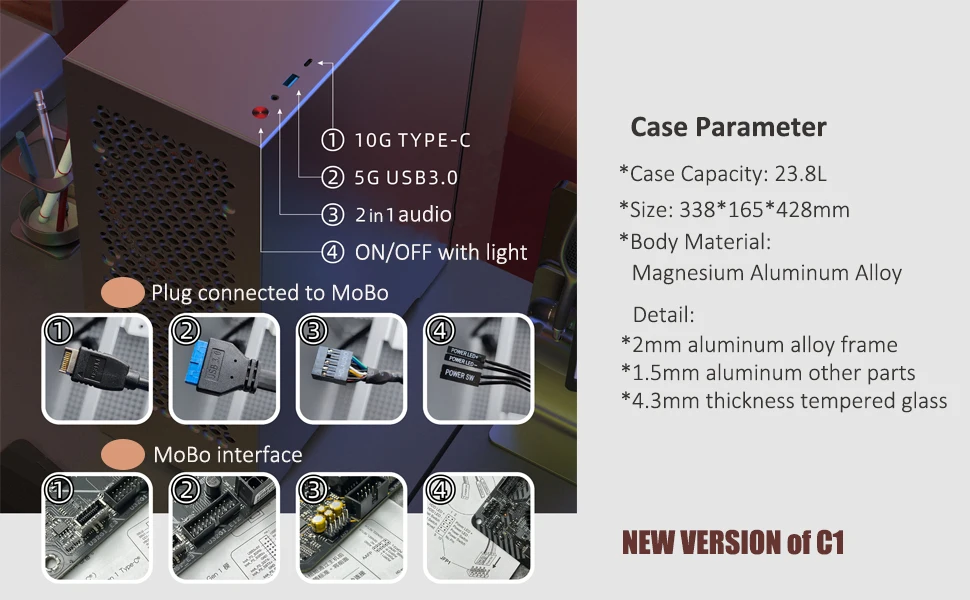

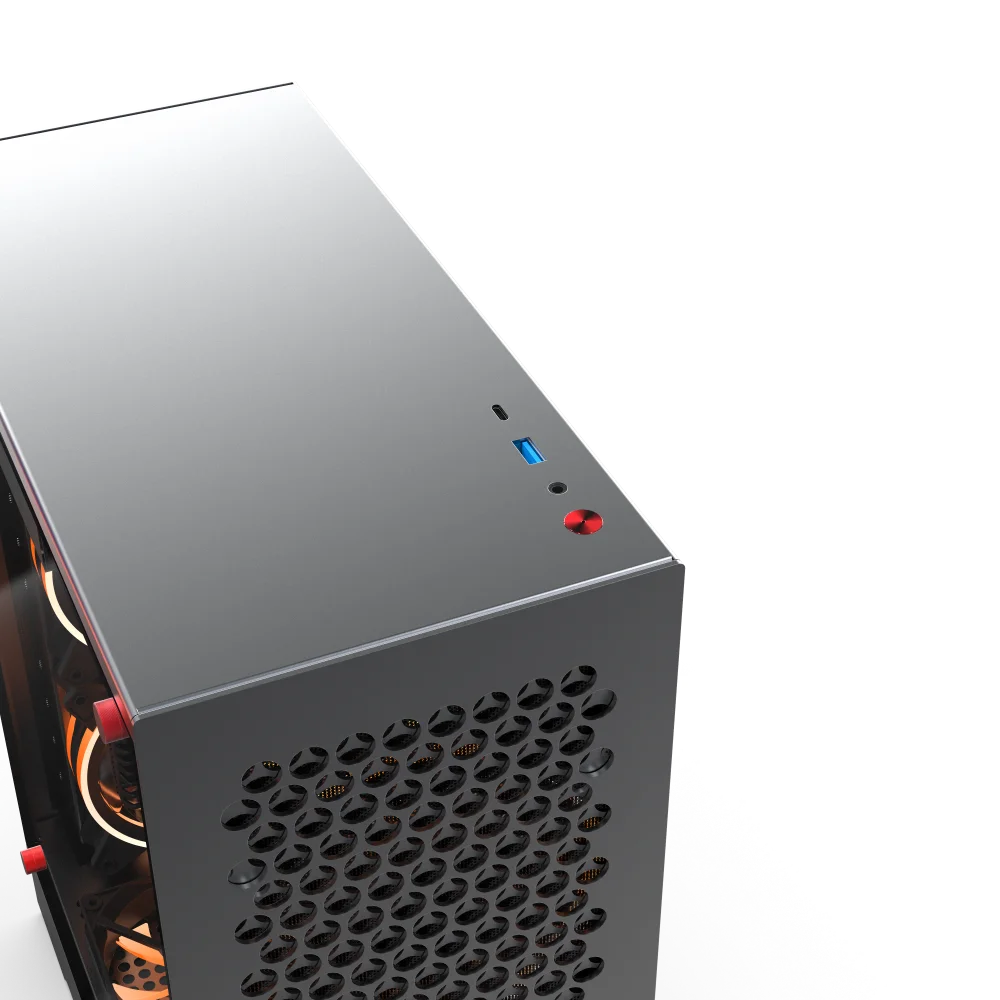

6. Expansion: Type-C*1+ USB3.0*1+2 in 1 3.5 Audio*1
7. Net weight: 2.9KG
8. Gross weight: 4.0KG(including package)
9. Packing size:240*380*510mm
Hardware Supporting:
1. Support mATX/dtx/itx motherboard within 240*240mm
2. Support graphics card within size 340*143*80mm
3. Support ATX/SFX-L/SFX power supply(length ≤200mm)
4. Support 3.5’’*2 HDD+2.5’’*2 SSD
5. Support CPU heat dissipation: air cooling and water cooling
6. Support 6fans max
Detail Specifications:
1. Motherboard: MATX (Size: 244*244mm/245*245mm), compatible with DTX(Size: 170*190mm) and ITX motherboards(Size: 170*170 mm)
2. Graphics cardsize 322* 143*83m(shoulder length 37mm, and width 143mm including wire)
A. The length of the GPU, the top hard disk and the power supply affect each other
B. The longest length of the GPU can be 340mm
C. The length of 322mm of GPU is recommended

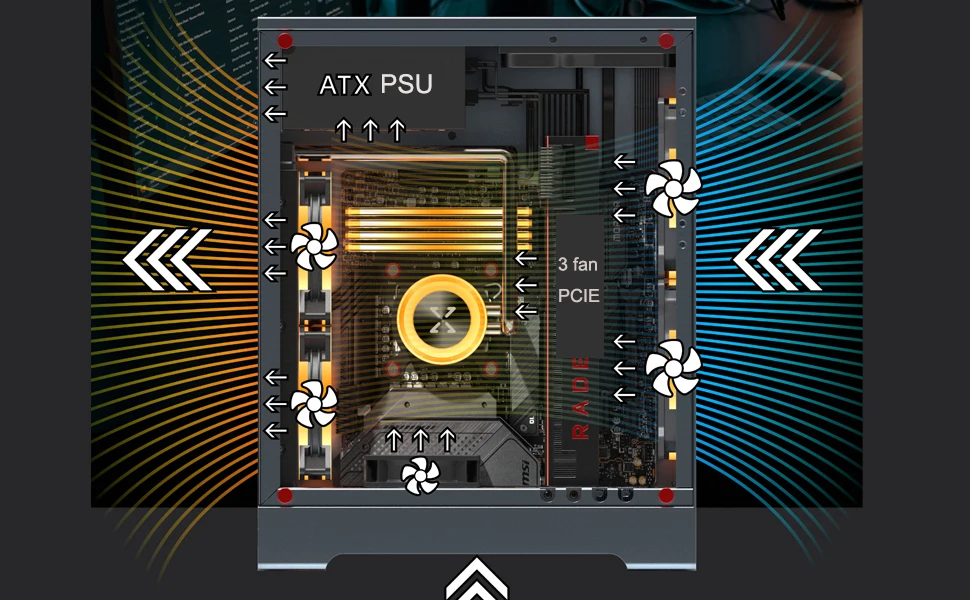

3. Fan:
Bottom-9025 fan*1
Back- 12025 fan*2 or 240 water cooling*1
Front-14025 fan*2 or 12025 fan*2

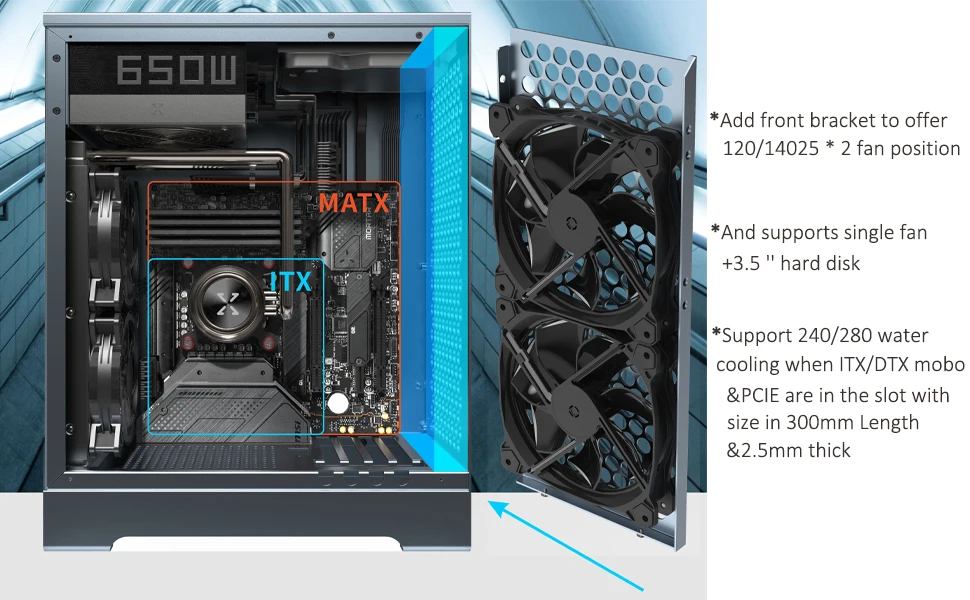

*The front bracket can support 240 or 280 water cooling*1
*Front-mounted water-cooled motherboard is limited to ITX/DTX, graphics card is recommended300mm and the thickness is limited to 2.5mmin the groove
4. CPU radiator height limit 138mm (from the surface of the CPU)
*Support 240 water cooling
5. Power supply: Support ATX standardpower supply(140*150*86mm), compatible with SFX-L/SFX small power supply (Built in power extension cable and ATX, SFX dual-mode power supply bracket)
A. The PSU is limited to 140mm length, when 3.5’’HDD placed on the top
B. The PSU is limited to 170mm when no 3.5’’HDD placed and GPU is longer than 275mm
C. The PSU is limited to 200mm when no 3.5’’HDD placed and GPU is shorter than 275mm
6. Hard Disk: Support 2.5’’SSD*1+3.5’’*1 on the top, Bottom bracket support 3.5’’*1+2.5’’*1 or 2.5’’*2
A. When choose 2.5’’*2 SSD, GPU length should be less than 340*170mm
B. Front bracket can support 3.5HDD*1(replace fan*1)
Package Including:
1* C1 MATX Case
1* Switch Wire
1* Black PVC dustproof net for the back of the front panel
1* Black protective cover for the outlet hole of the rear plate

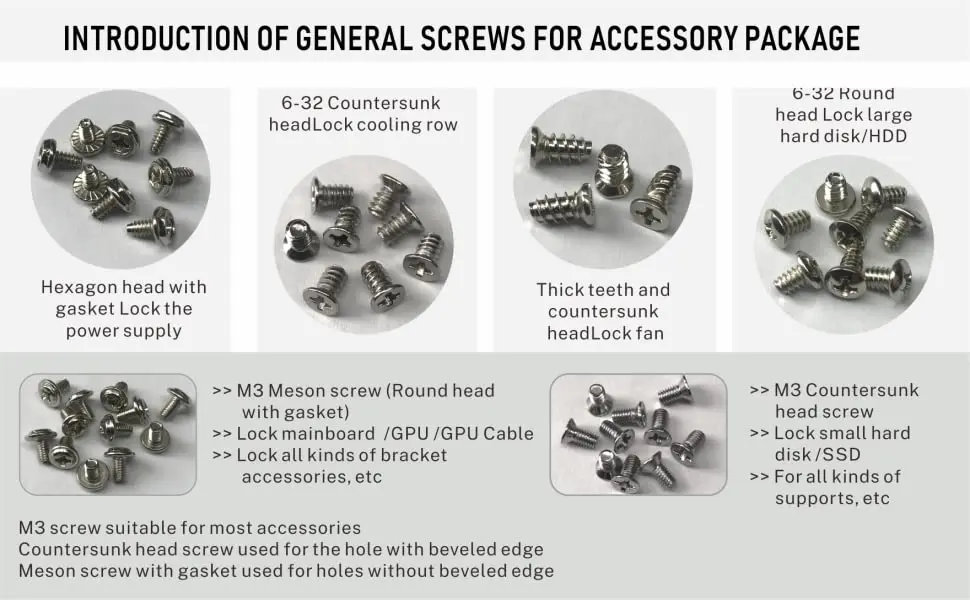

1* Accessories Bag
Installation Guide：
