Description

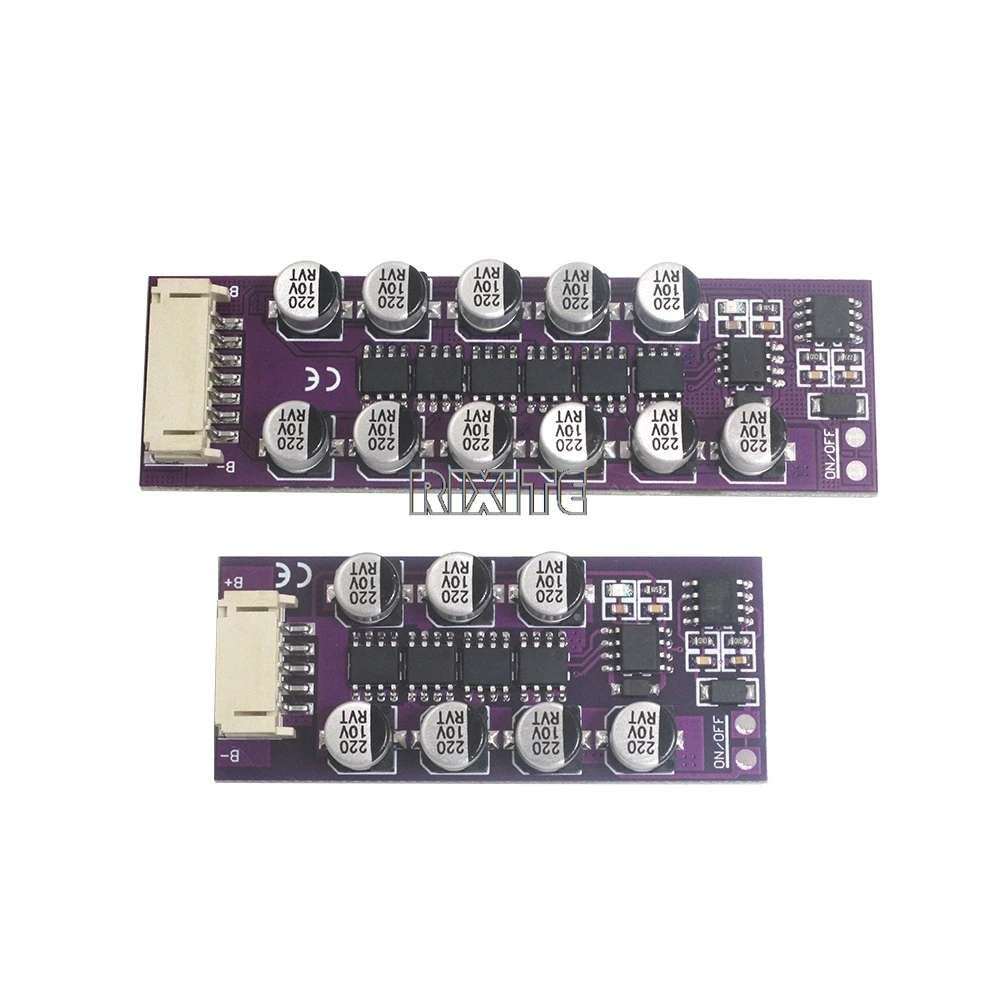

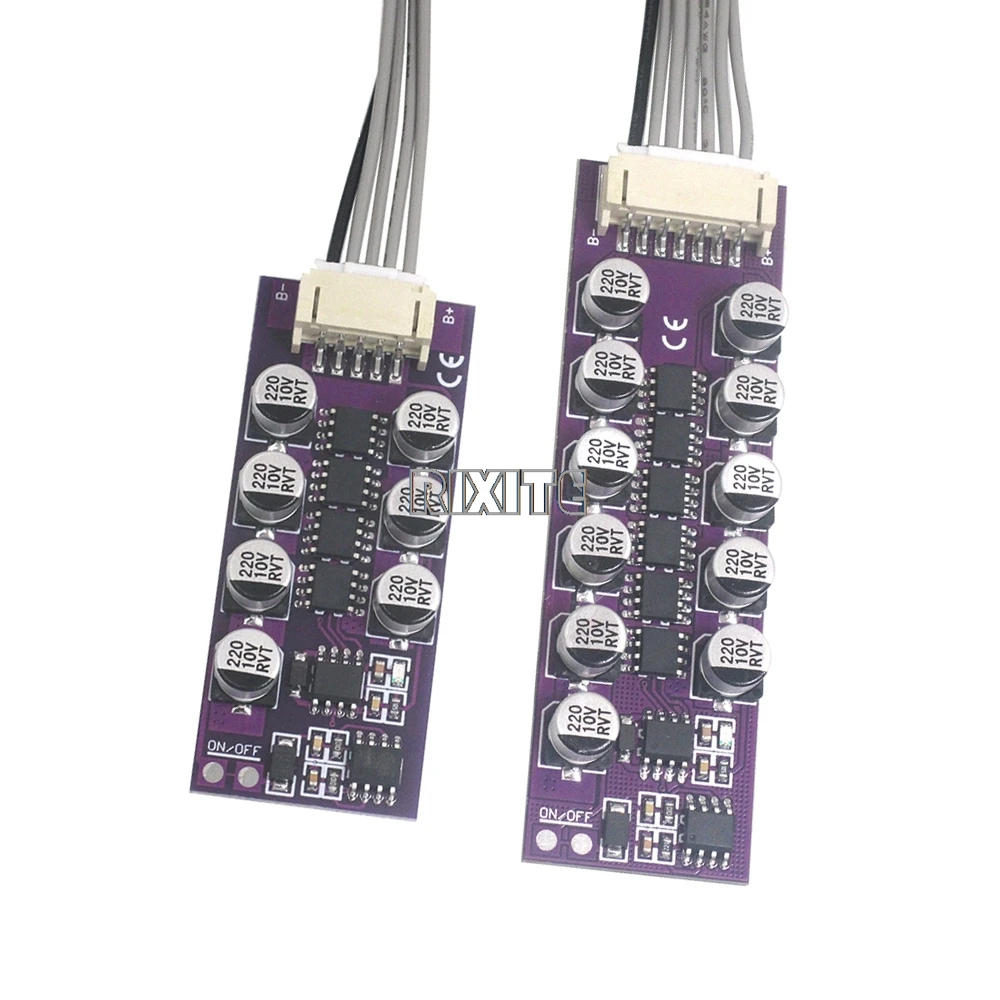

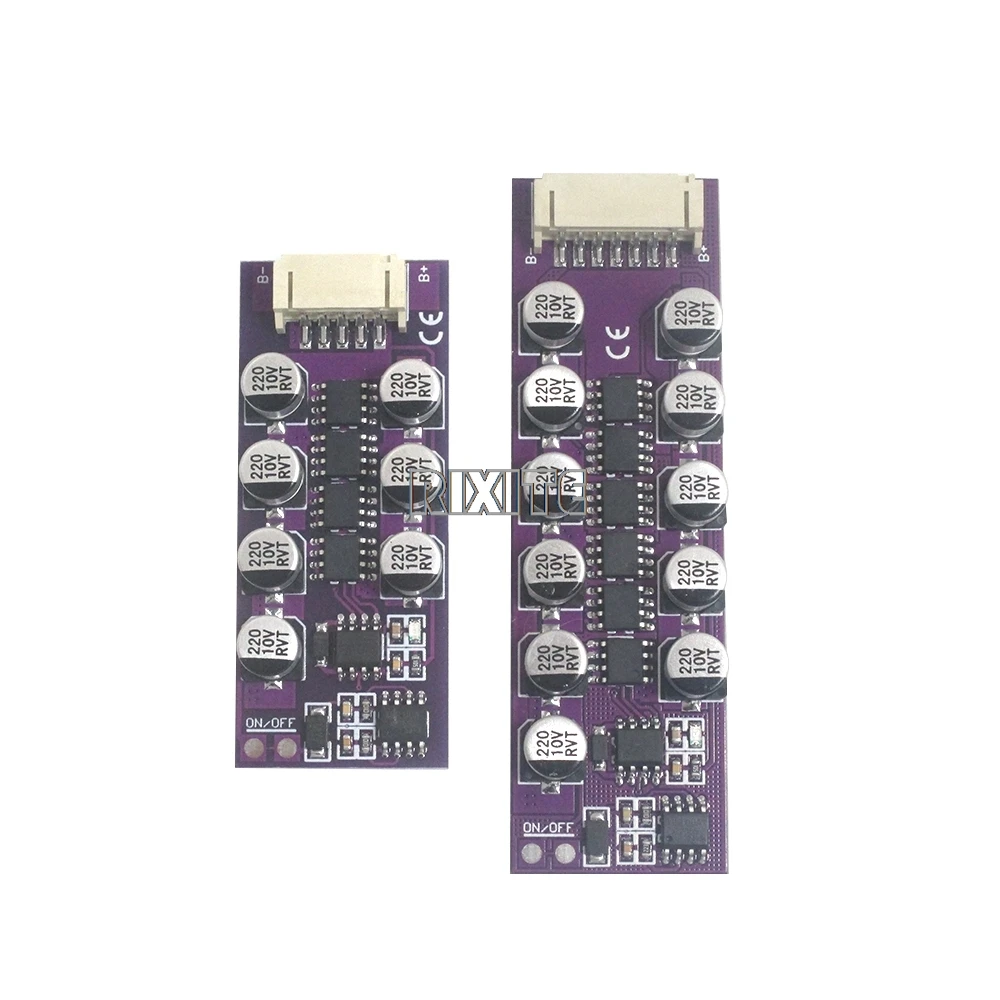

The product is used for voltage equalization between lithium battery packs and operates independently with the protection board without affecting each other. The balancing current is as high as 1200ma and the accuracy is higher than 0.03V. It is suitable for battery pack PACK maintenance and DIY battery pack use.
Performance parameters
Suitable batteries: Lithium iron phosphate, ternary lithium universal

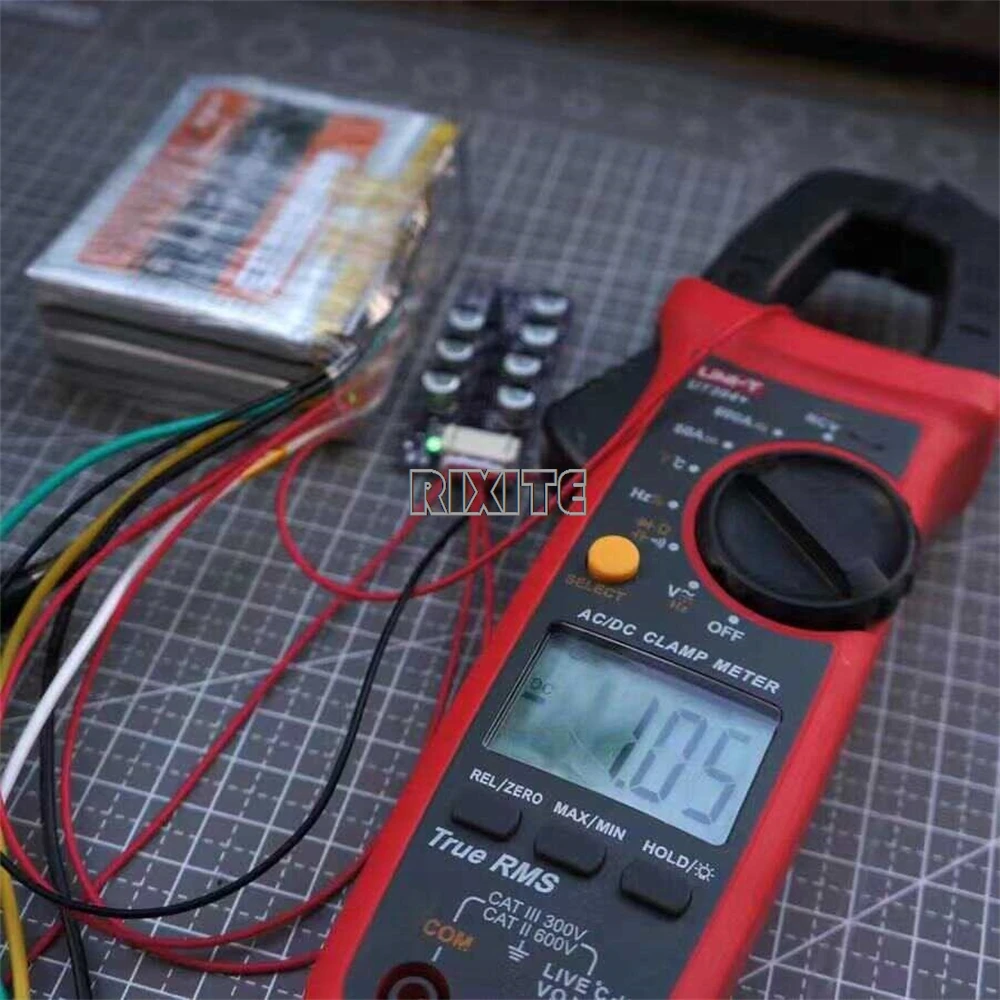

Balanced current: Maximum 1.2A (different from voltage difference, internal resistance, line resistance, etc.)
Equalization accuracy: 3mV

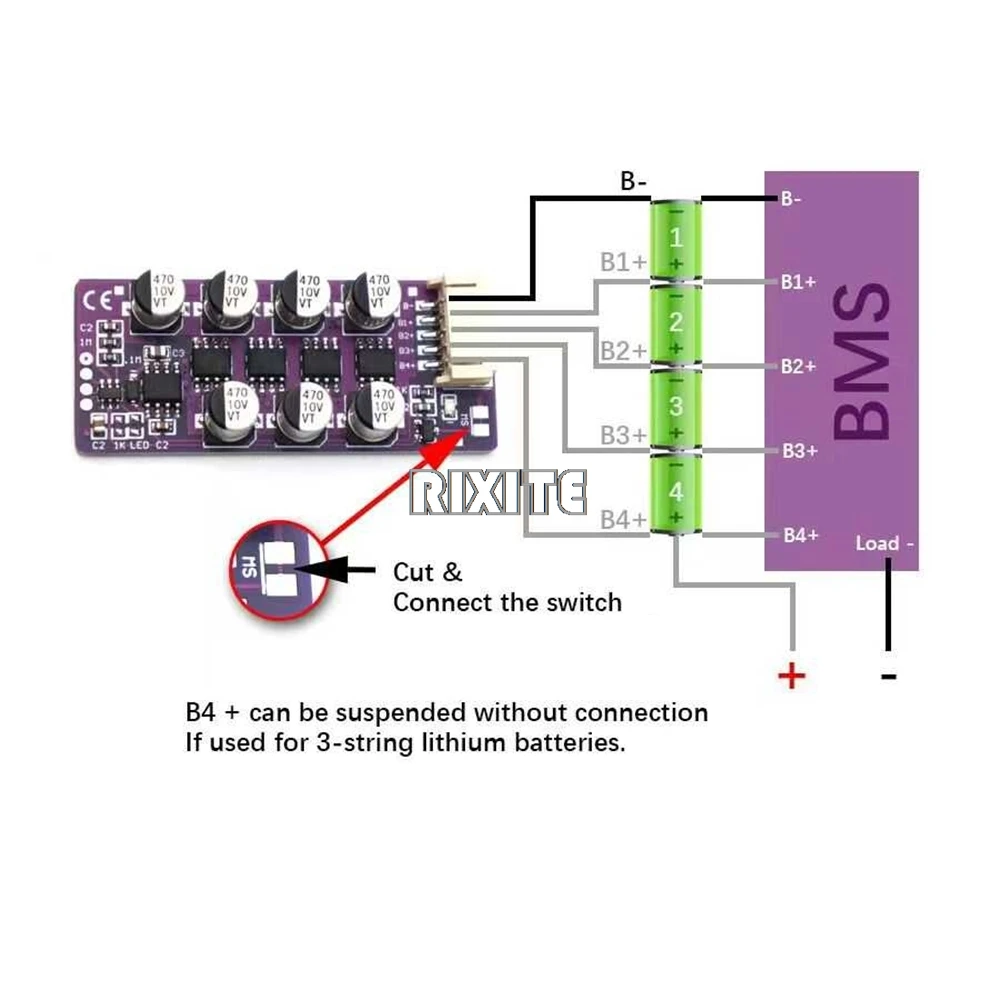

Different from passive balancing, the product is more efficient and generates lower heat through energy transfer. The general temperature is about 30-45 degrees Celsius, the balancing current is as high as 1200ma, the power consumption is as low as 1.5mA, and the battery cell automatically sleeps when it is lower than 2.5V. Can be built into the battery pack for a long time. Be careful when wiring. Wrong order, reverse polarity, or short circuit will cause burns.

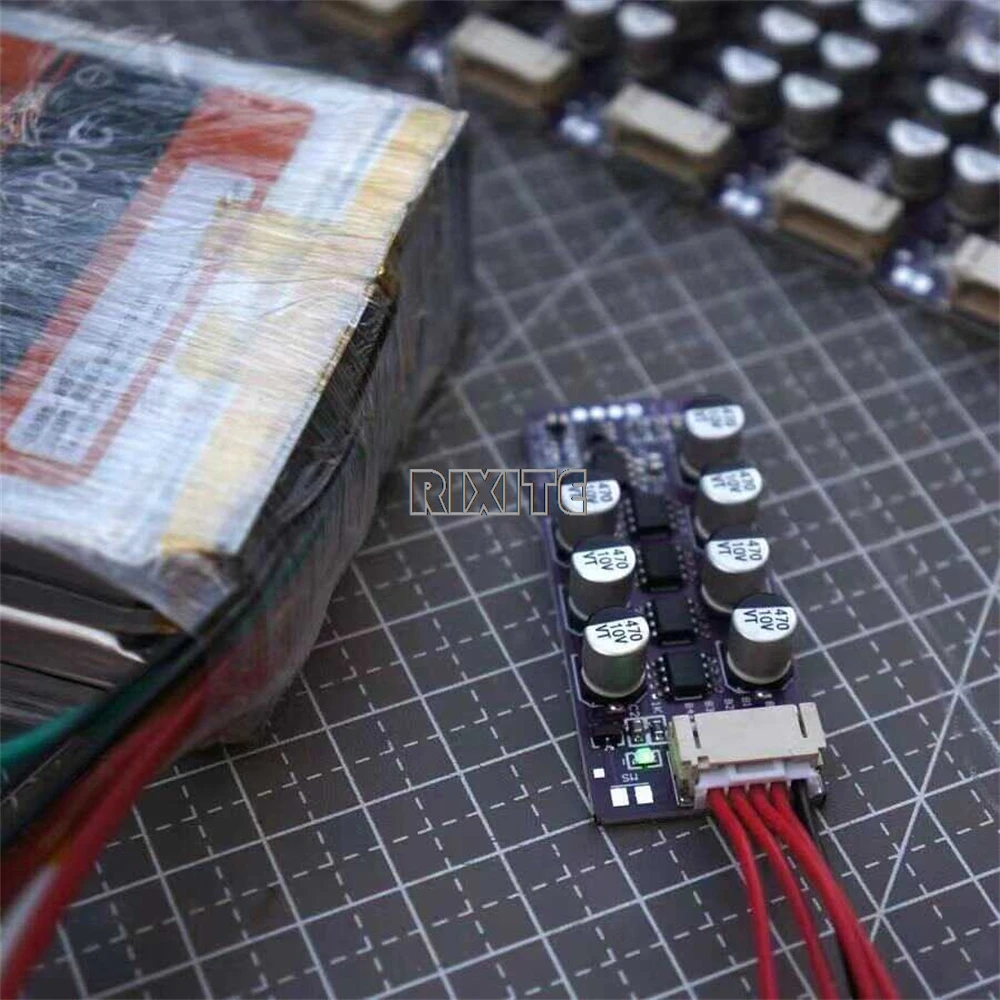

The balancing board is used to balance the voltage between series-connected battery packs to make the voltage of each battery as consistent as possible. It is used in conjunction with the protection board, but it cannot replace the protection board.
