1/2Pcs Baofeng BF-888S Wireless Copy Frequency Walkie Talkie Portable Radio Station Amateur Two-Way Receiver Transceiver
Functions
-50 CTCSS/105 CDCSS
-VOX Function
-Voice Prompt
-PC Programming
-Emergency Alarm
-Intelligent Charging
-Battery Save
-Low Voltage Alert
-Time-out Timer
-Torch Light
Specifications
Model: Baofeg BF-888S
Frequency Range UHF 400-470MHz
Channel Capacity: 16
Channel Spacing: 25 KHz
Operated Voltage: 3.7 V
Battery: 1500MAh Li-ion
Battery Life(5-5-90 duty cycle) About 8 hours
Frequency Stability: plusmn2.5ppm
Operated Temperature: -30degc-+60degc
Antenna Impedance: 50Omega
Dimensions (LtimesWtimesH) (with battery, without antenna) 120times58times33 mm
Weight (with battery/antenna) 175g
FM function: NO
Scrambler:No
Standard Package included :
BF-888S Radio Main
3.7V 1500mAh Li-ion Battery .
Antenna (400-470MHz).
Belt Clip.
Charger
User Manual.
Note: All accessories are subject to the accessories option pictures , this is only standard parcel

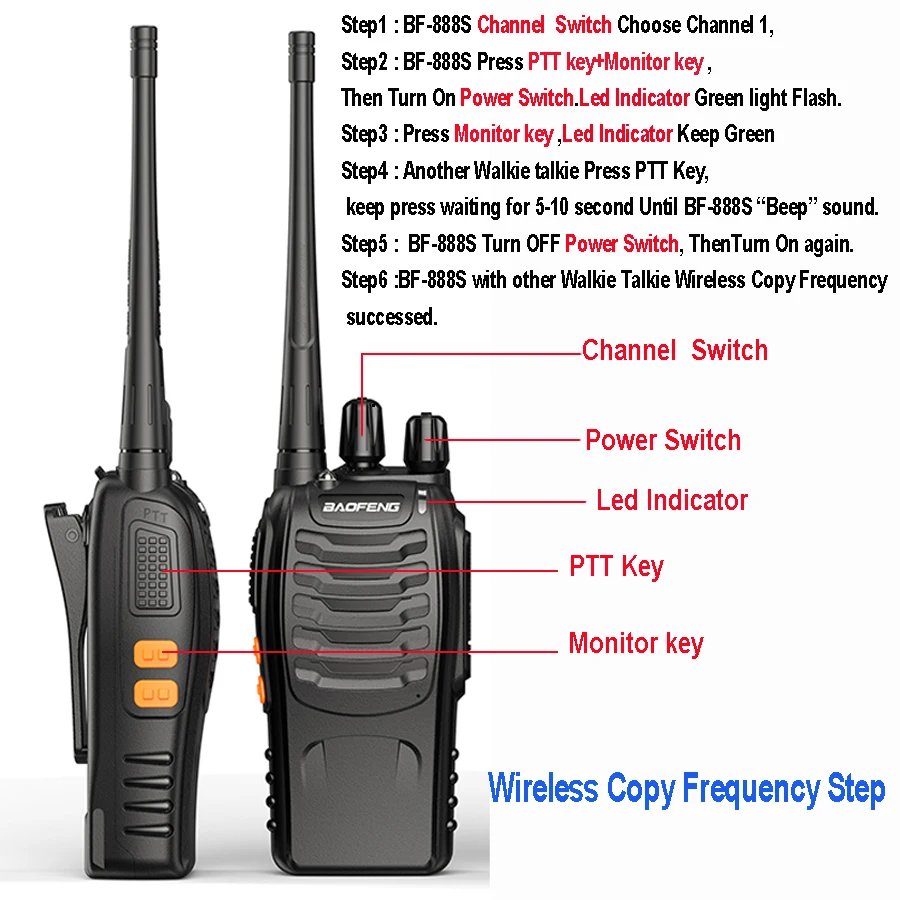

Wireless Copy Frequency Step
☆ 1. Rotate the channel knob to Channel 1CH.Then Press and hold [PTT] and [Minitor] key to turn on the radio.The voice will announce “Power on”to enter the sweep function and the green light will flash.
☆ 2.Press the [Minitor]key to prompt a “beep”sound and the green light remains on, and start Copying.
☆ 3.After scanning, it will be automatically stored and prompted with two beeps.The green light remains on during scanning, and the green light flashes when scanning is stopped.
☆ 4.Complete the frequency sweep task, shut down and restart to exit the frequency sweep mode, and the frequency sweep task ends.
☆ 5.Channel 1CH first ,Press and hold [PTT] and [Minitor] key to turn on the radio [you also can choose another Channels For Copy]. Choose CH1-CH16 ，then Press the [Minitor] key enter Copy function.
Note: Wireless Copy Frequency Range 400-470MHz
Factory frequency:
|
programming software
|
||
 |
||
|
|
||
