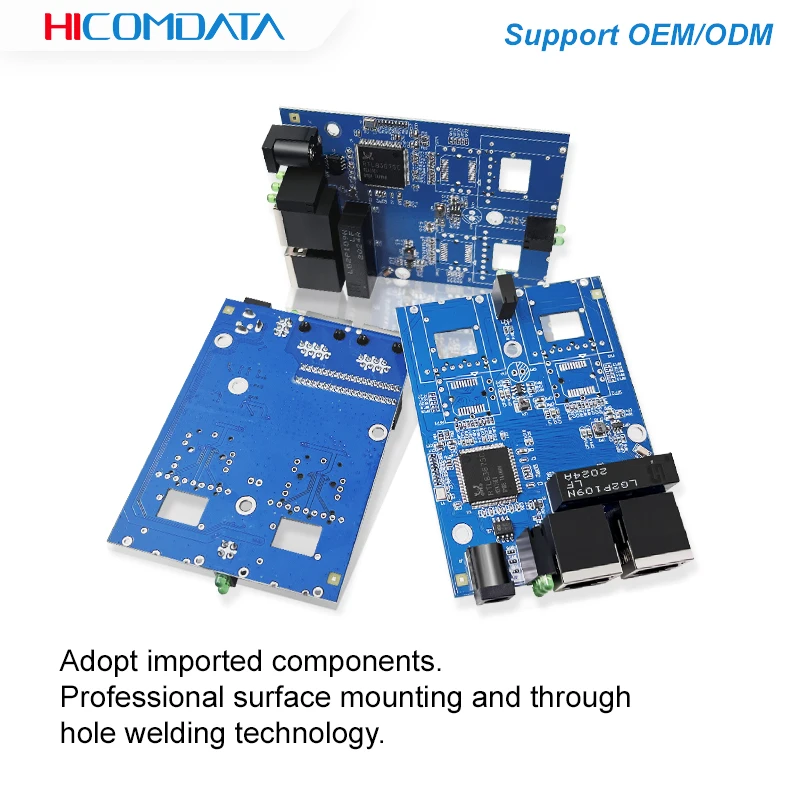

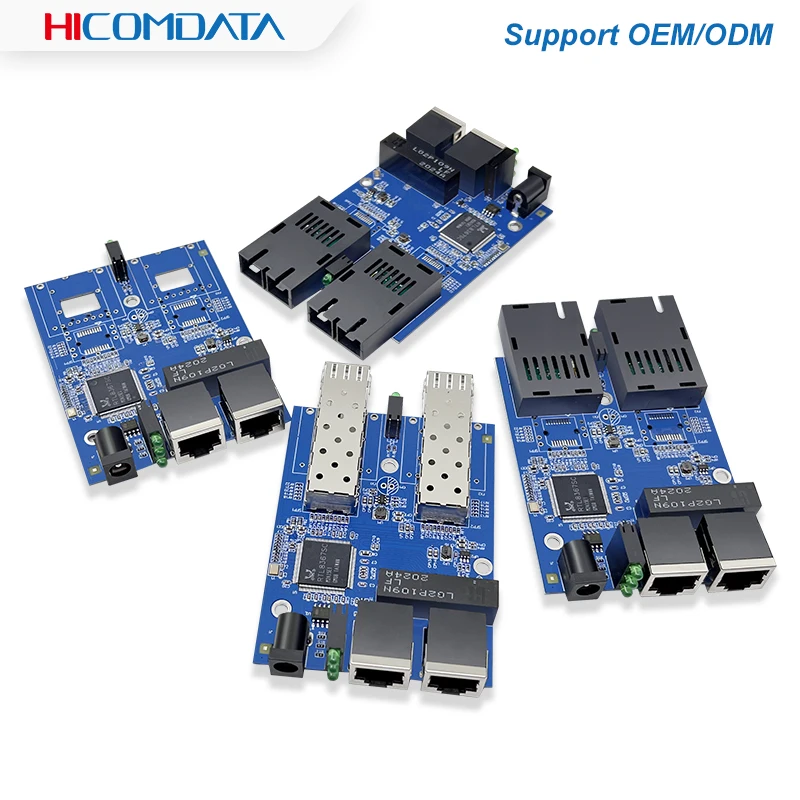

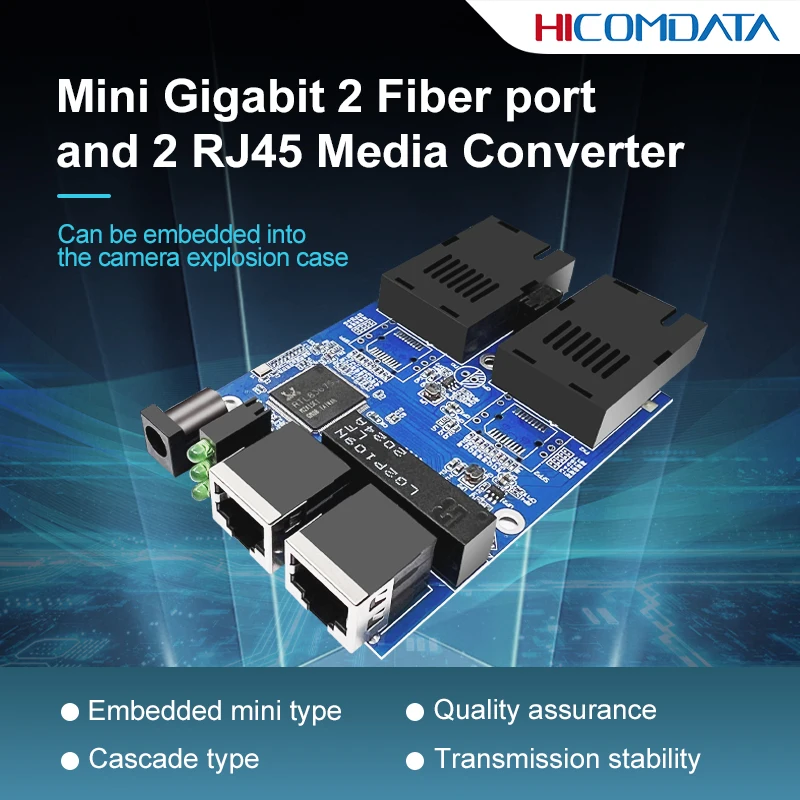

1000Mbps Media Converter Network Switch 2 Fiber 2 RJ45 SC Port 20KM Gigabit Ethernet Switch Pcba

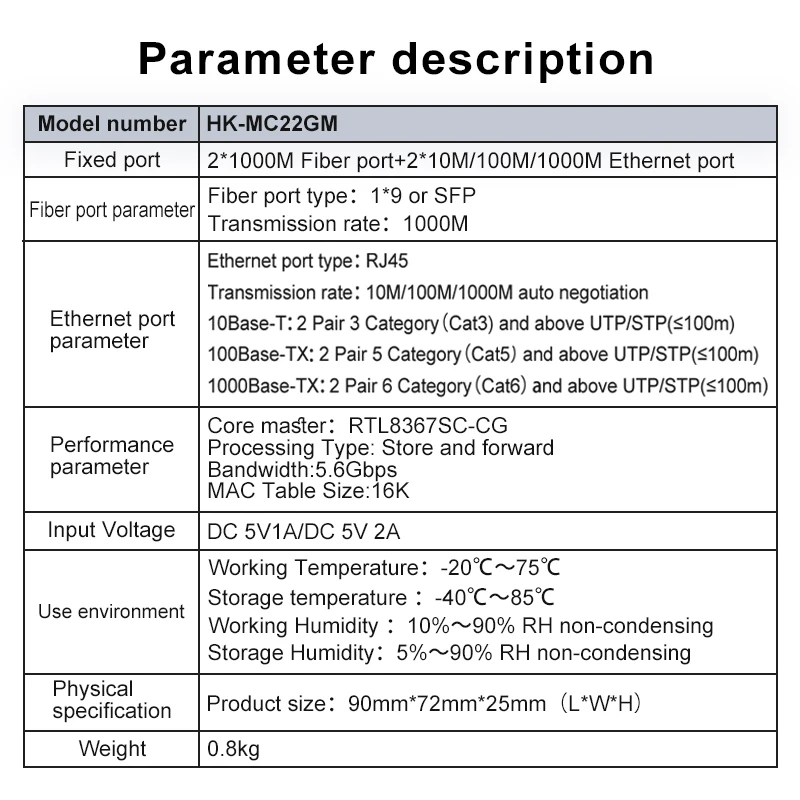

Model number

HK-MC22GM

Fixed port

2*1000M Fiber port+2*10M/100M/1000M Ethernet port

Fiber port parameter

Fiber port type:1*9 or SFP
Transmission rate:1000M

Ethernet port parameter

Ethernet port type:RJ45
Transmission rate:10M/100M/1000M auto negotiation
10Base-T: 2 Pair 3 Category(Cat3) and above UTP/STP(≤100m)
100Base-TX: 2 Pair 5 Category(Cat5)and above UTP/STP(≤100m)
1000Base-TX: 2 Pair 6 Category(Cat6)nd above UTP/STP(≤100m)

Performance parameter

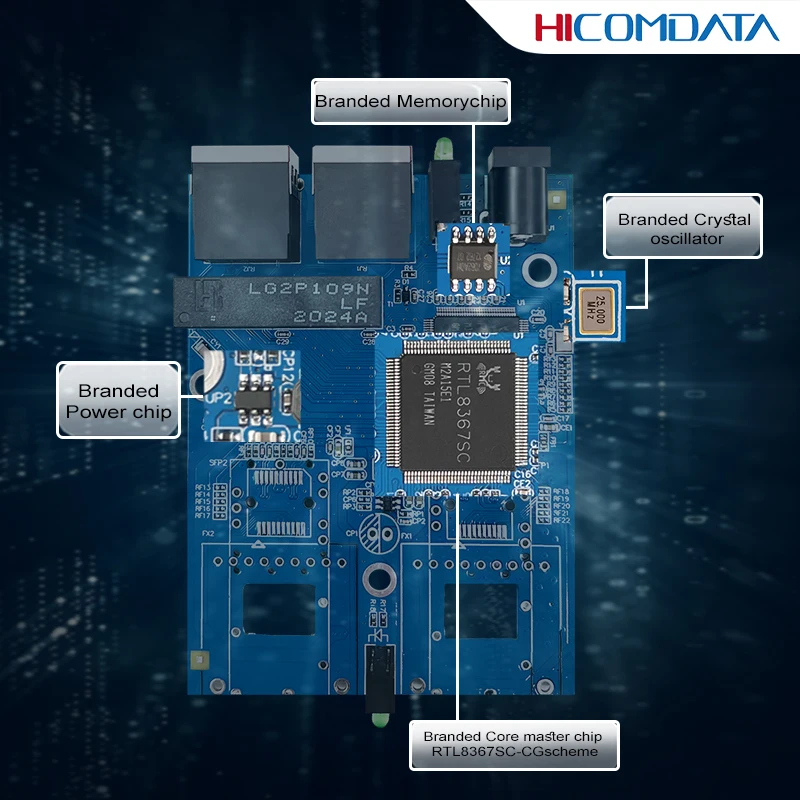

Core master:RTL8367SC-CG
Processing Type: Store and forward
Bandwidth:5.6Gbps
MAC Table Size:16K

Standard and supports

IEEE802.3 fast Ethernet standard
IEEE 802.3i 10BASE-T Ethernet standard
IEEE 802.3u 100BASE-TX fast Ethernet standard
IEEE 802.3x Flow control

Default system mode

Gigabit Media Converter

Optional system mode

Built-in crash restart function (if there is no data for 2 minutes, it will restart automatically)

Data rate

Fast Ethernet full duplex/Half duplex

Input Voltage

DC 5V1A/DC 5V 2A

Use environment

Working Temperature:-20℃～75℃

Storage temperature :-40℃～85℃

Working Humidity :10%～90% RH non-condensing

Storage Humidity:5%～90% RH non-condensing

Physical specification

Product size:90mm*72mm*25mm(L*W*H)

Weight

0.07kg
