Product Description:

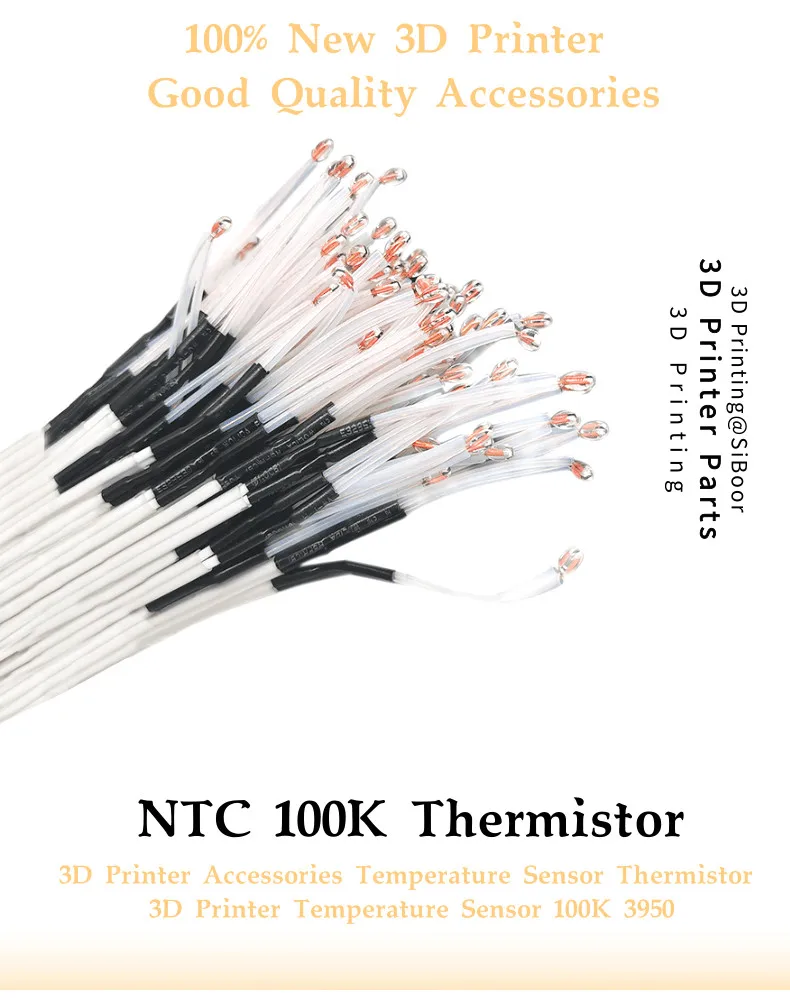

Product Name: Three-dimensional printing NTC single-ended glass-sealed thermistor temperature sensor terminal 100K 1% 3950 300 degrees
Product color: white

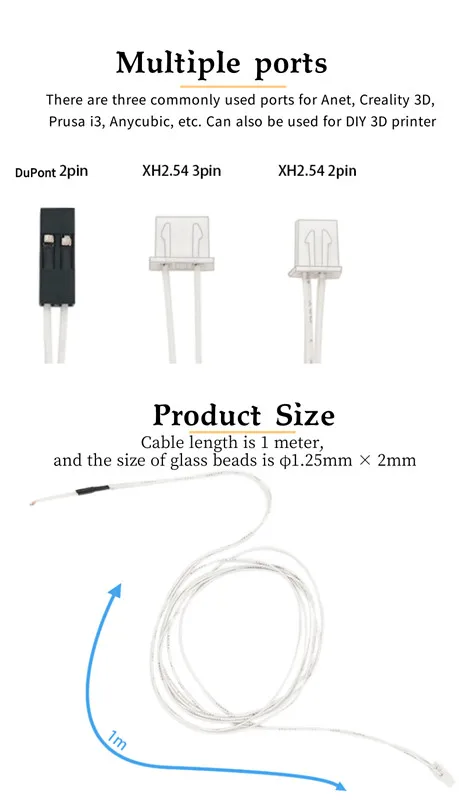

Product Specification: Glass bead size is 1.25 mm *2 mm, white high temperature resistant Teflon wire 1 m (diameter 1.05 mm) (with SMH250-2P public port)
Counting unit: PCs
Product Material: White High Temperature Resistant Teflon Line
Temperature Range: – 40 ℃~+300℃
Technology: cold-pressing end-pressing technique

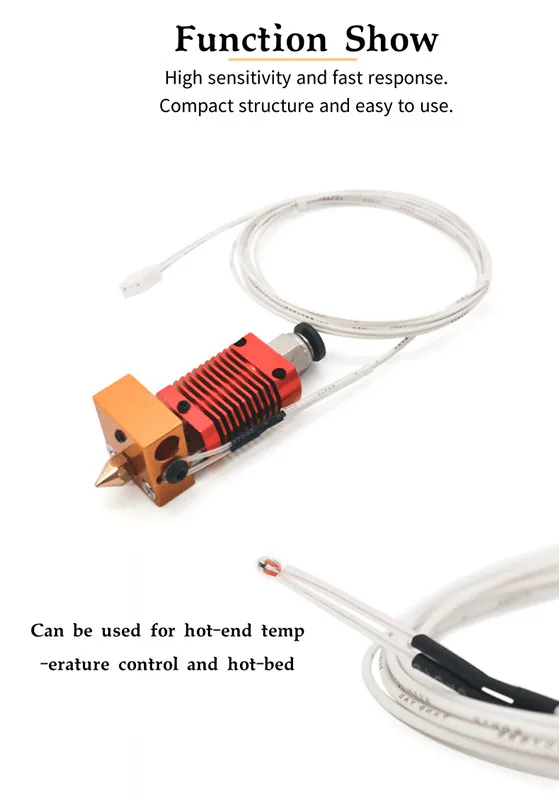

Application and Function: Hot Bed or Extrusion Hot End of REPRAP/Prusa i3/Make Bot 3D Printer
Shipment List: A Thermistor

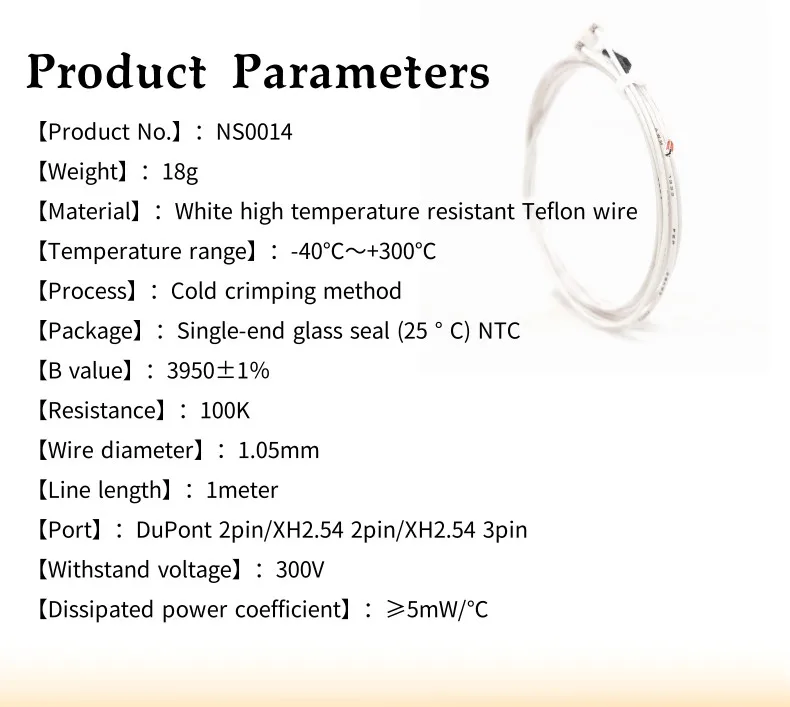

Technical parameters:
1 Package: MF58 Single End Glass Seal (25 C) NTC
Value B: 3950 + 1%
Dissipative Power Coefficient: > 5mW/ C
Resistance: 100K
Accuracy: 1%
Temperature Range: – 40 ~300
Material: White High Temperature Resistant Teflon Wire
Line diameter: 1.05mm

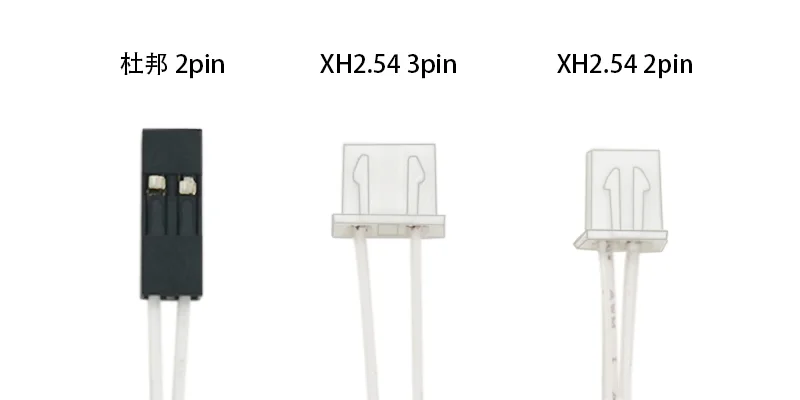

Line length 1 m (tail with SMH250-2P public port)
Voltage withstand: 300V
Product Characteristics:
1: High sensitivity and quick reaction.
2: compact structure, convenient installation
3: Wide temperature range, good stability and high reliability
