Type: Optic Extension Wire
Working Wavelength: 1310nm/1550nm
Tensile Strength: 5kg
Connector A: APC SC
Connector B: APC SC
Light attenuation: ≤0.3dB
Interchangeability: ≤0.2dB
Insertion and Removal Times: >500
Working Temperature: -40~85℃
Cable Length: 20M/30M/40M/50M/60M/70M
-
100Meters,Outdoor Armored Cable,9/125,SC/UPC-SC/UPC,Duplex,Singlemode
-
Great flexibility and durability with the a metal sheathing housed in a robust outer jacket over the glass fiber
-
Compatible with all standard fibre optic equipment and connectors
-
Ceramic connectors ensure low signal loss, and high reliability,All our products are 100% new fiber optic cable of carrier-class quality ,and 100% test before delivery.
-
Note:This cable is with weatherproof cover for sunshine and rain, but we donot recommend to bury or line overhead directly

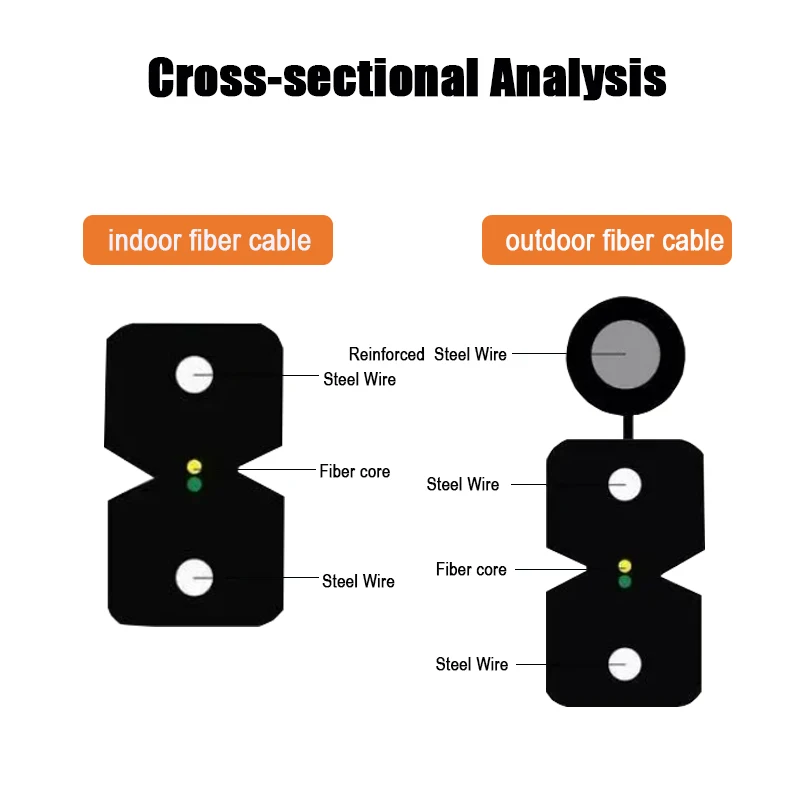

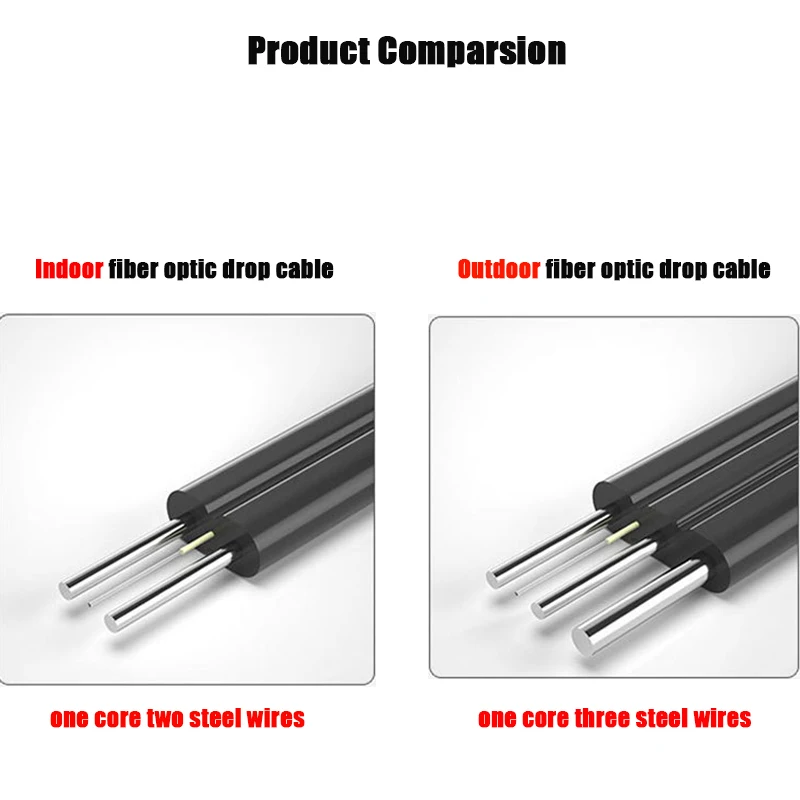

1. The outdoor fiber optic drop cable has one core and three steel wires; the indoor fiber optic drop has one core and two steel wires;
2. The weight of outdoor fiber optic drop cable is heavier than that of indoor fiber optic drop cable.
3. Outdoor fiber optic drop cables has a wider application range. Indoorfiber optic drop cables are suitable for local area networks, data centers, airports, railways and other fields;
Outdoor fiber optic drop cables are suitable for optical cable channels, urban pipelines, etc.
4. Outdoor fiber optic drop cable has stronger corrosion resistance
5 outdoor covering wire. Higher tensile and bending strength. A reinforced phosphated steel wire is added to the outdoor covering line.
6. Other connectors can be customized for both outdoor and indoor fiber optic drop cables. For example, FC, LC, SC and other connectors
