10g-rj45 45-sfp/2.5G-RJ45 45-sfp

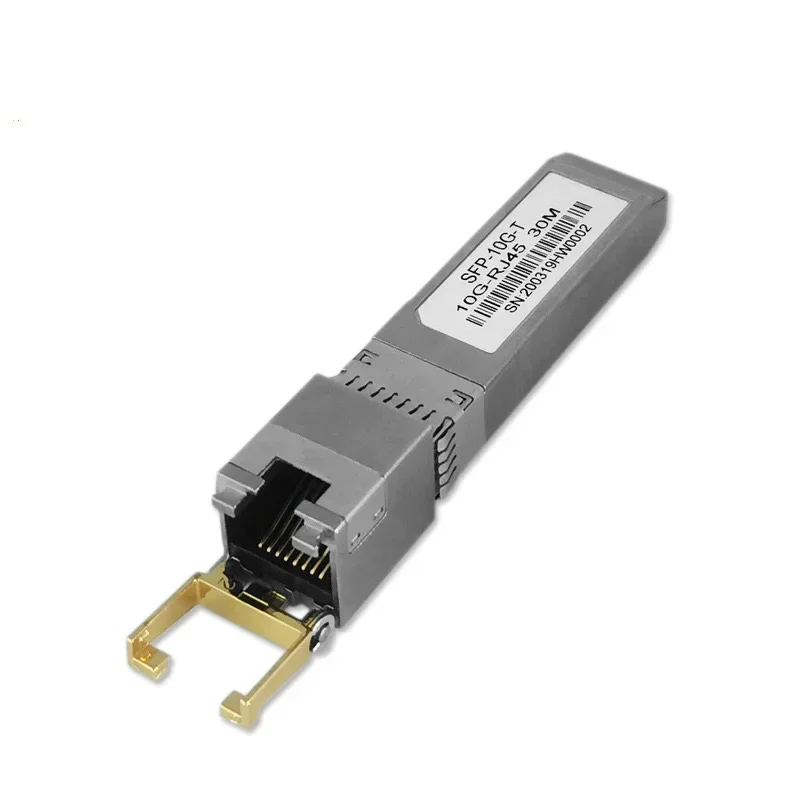

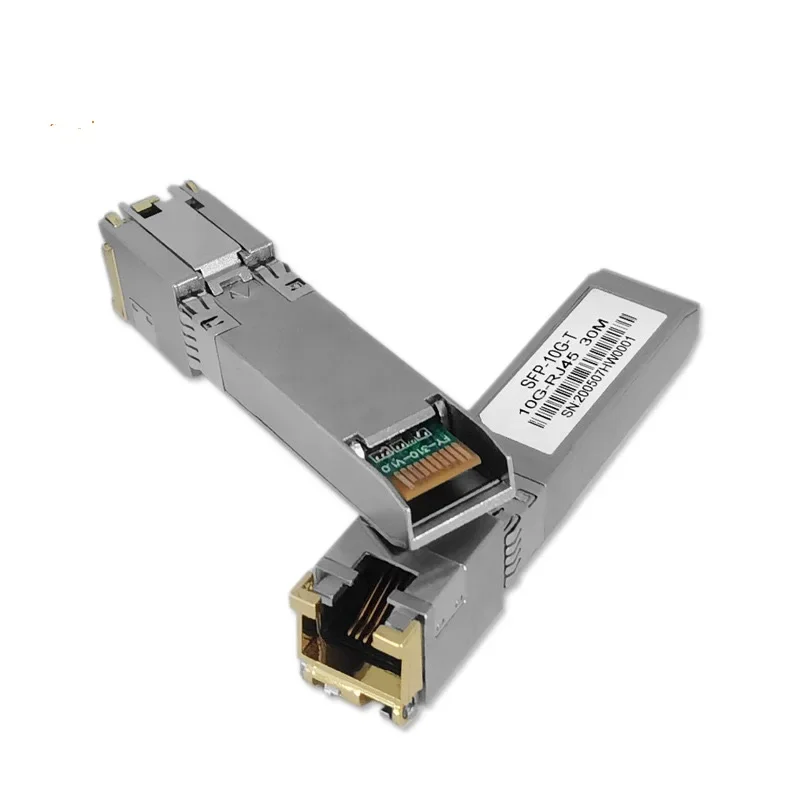

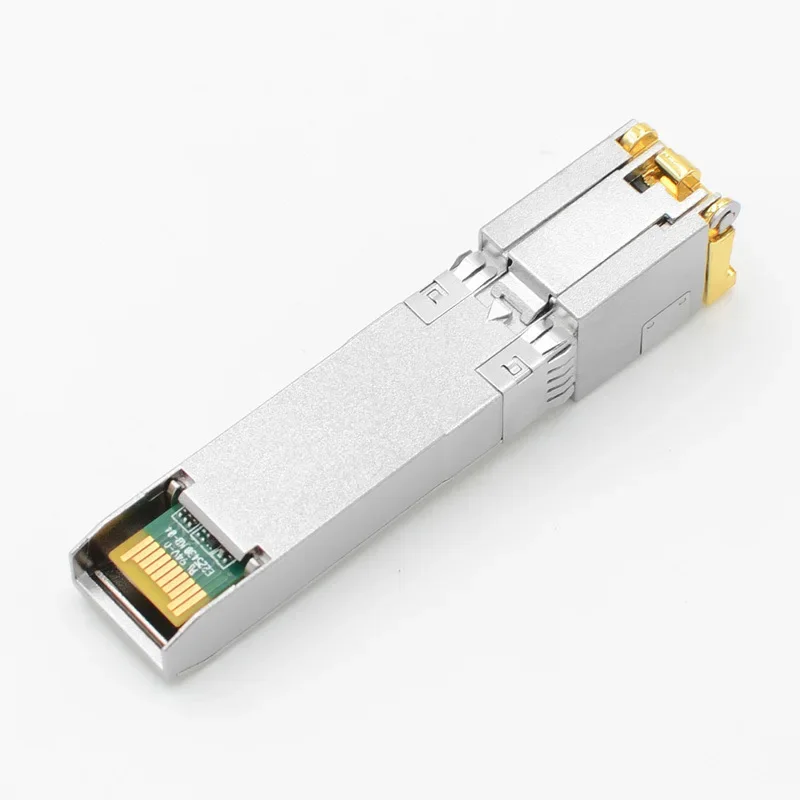

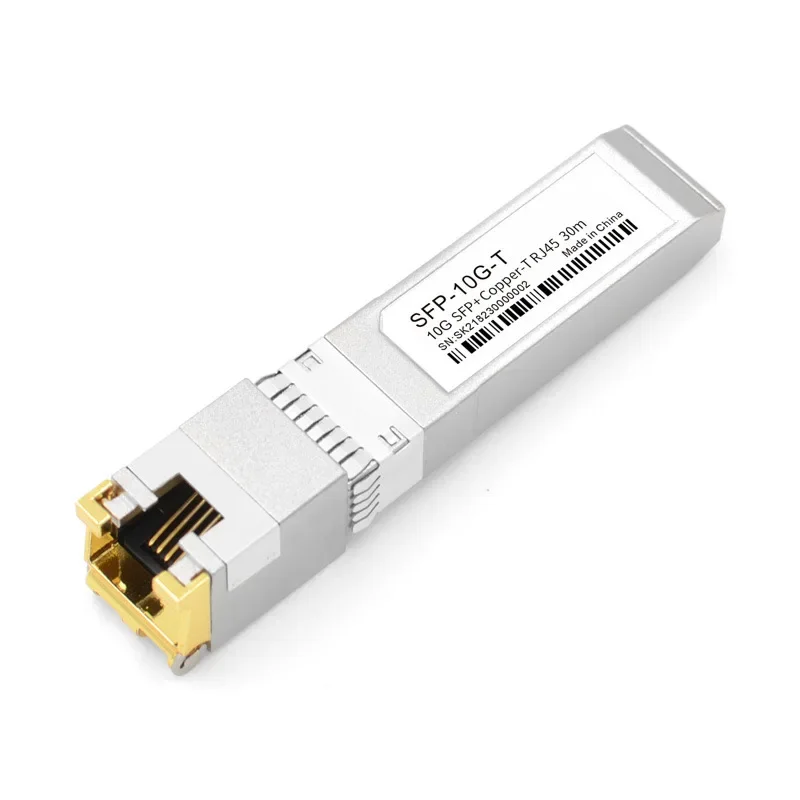

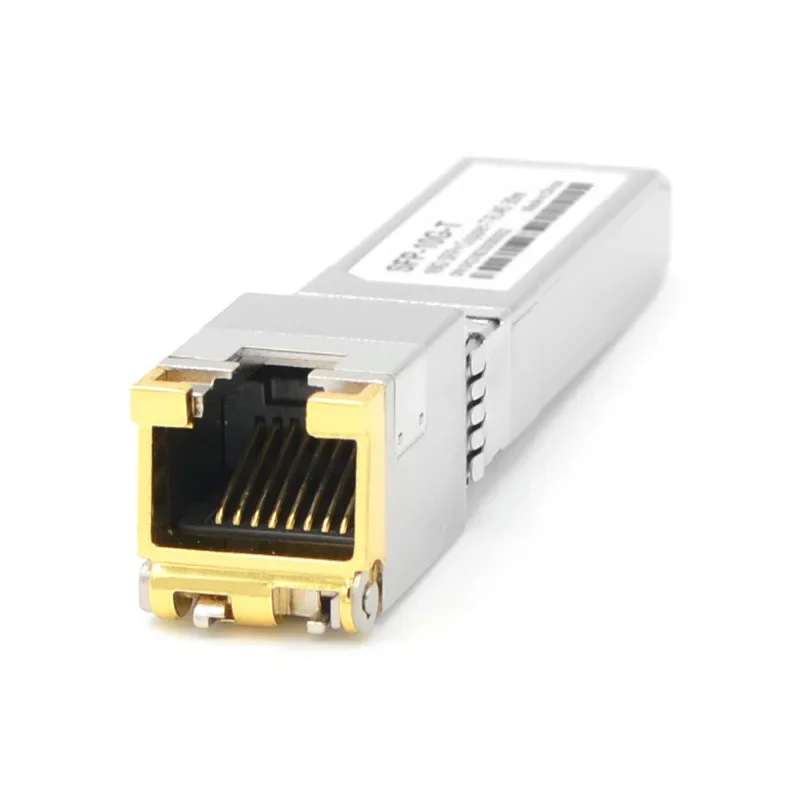

The 10G-RJ45-SFP copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10 Gb/s communication over this type of media. 100% compatible with major brands.Please note that if it is not compatible with Huawei,HP,H3C brands，This link module is not compatible with HP, Huawei, and H3C brands. Please do not purchase! the link compatible with Huawei models is another link

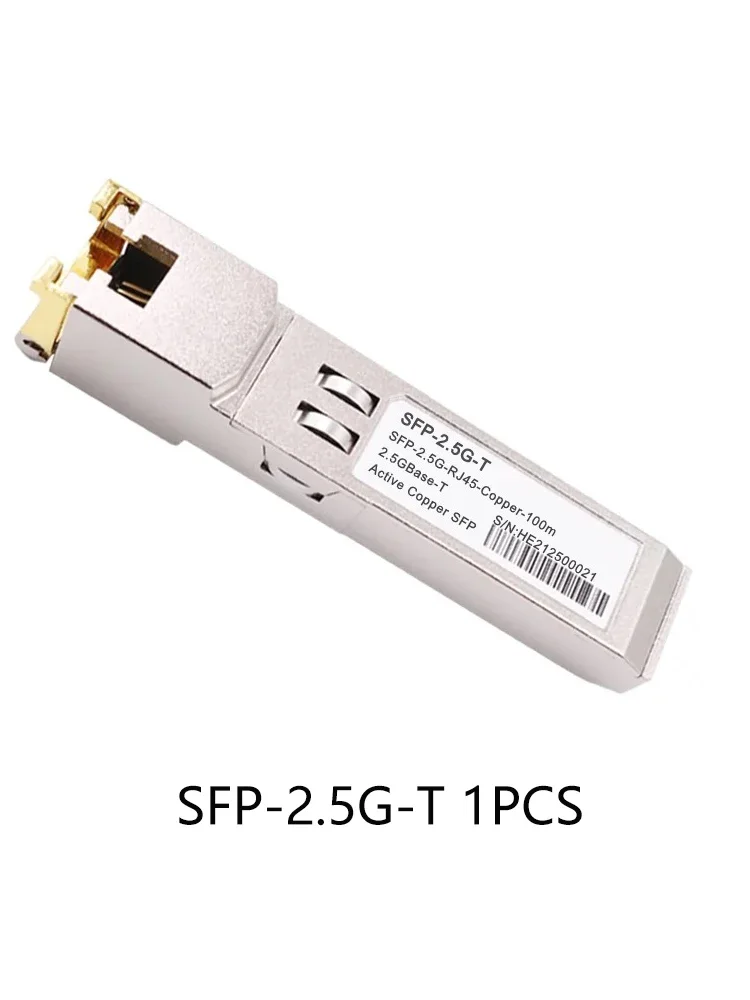

TIP:Please pay attention to the use of 2.5G electrical interface module. Recently, some users directly plug the 2.5G module into SFP 10G interface. Please be careful not to use the 2.5G module in the 10G SFP interface of the switch, because 2.5G needs to run and work at the rate of 2.5G, and it cannot run and work at the rate of 10G. Please plug it into SFP 2.5G interface before you buy 2.5G., And check and confirm that the speed of the switched switch is 2.5G, so that it can operate normally. If your switch only has SFP 10G interface, please don’t buy a 2.5G module and plug it into 10G SFP interface, it won’t work, because the speed of 2.5G reaching 2.5g cannot reach 10G.
If you buy the 2.5G module, please pay attention to check whether your switch has been manually switched to the 2.5G rate. If you have switched to the 2.5G rate, you will be able to use the 2.5G module and buy it.
For 10G:The running speed of 10G modules is very fast, so the high temperature during operation is a phenomenon of going into the sea, usually around 60 degrees, so if you think it is hot, running 10G SFP at this speed is normal. If you mind the temperature issue, please do not purchase it. Thank you very much!
Features:
Supports Links up to 30m using Cat 6a/7 Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3az Compliant
Low Power Consumption (2.5W MAX @ 30m)
Fast Retrain EMI Cancellation Algorithm
Low EMI Emissions
I2C 2-Wire Interface for Serial ID and PHY Register Access
Auto-negotiates with other 10GBase-T PHYs
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link: Cable Length Measurements; Opens/Shorts
Robust Die Cast Housing
Bail Latch Style ejector mechanism
Unshielded and Shielded cable support
