ApplicationsÂ
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
FeaturesÂ
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Characteristics
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

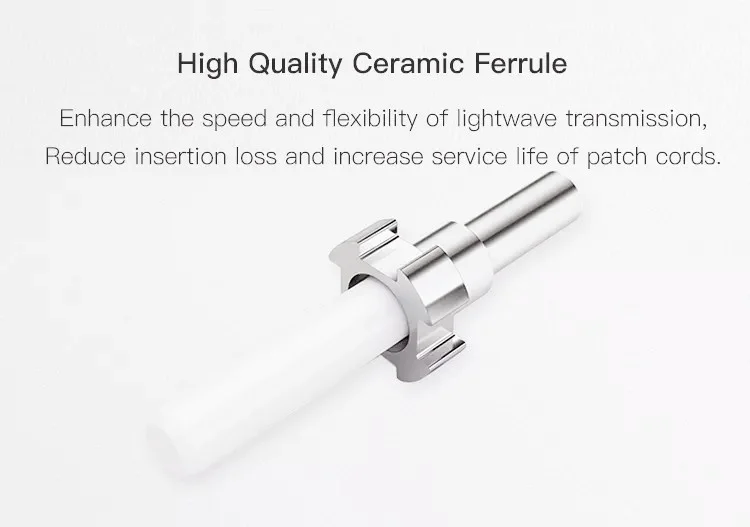

2. Ferrule End-face: PC, UPCAPCÂ
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)Â
4. Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores…
5. Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6. Cable Length: 1, 2, 3 meter or customized

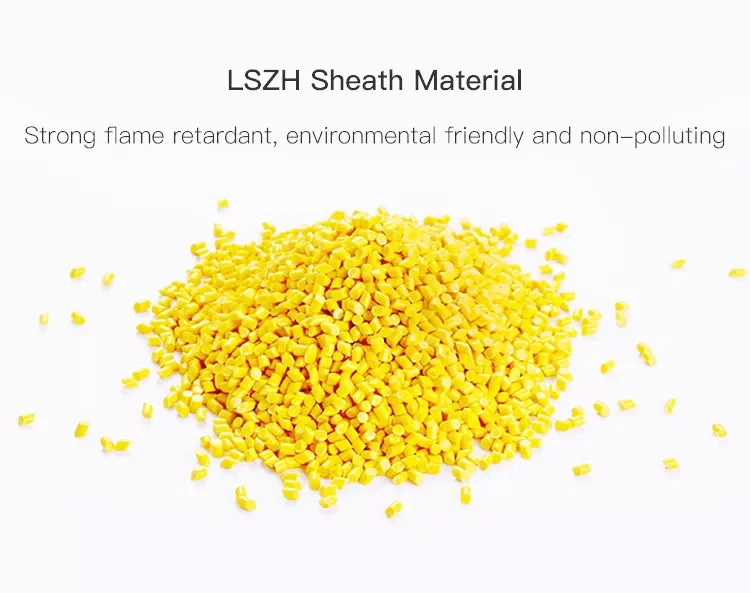

7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Â
Â
How to Choose The Right Fiber Optic Cable Type?
Â
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|
Designation
|
Fiber Dia.(μm)
|
Type
|
Fast Ethernet 100BASE-FX
|
1 Gigabit Ethernet 1000BASE-SX
|
1 Gigabit Ethernet 1000BASE-LX
|
10Gbps Ethernet 10GBASE
|
40Gbps Ethernet 40GBASE SR4
|
100Gbps Ethernet 100GBASE SR4
|
|
OM1
|
62.5/125
|
Multimode
|
2000M
|
275M
|
550M
|
33M
|
Not supported
|
Not supported
|
|
OM2
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
82M
|
Not supported
|
Not supported
|
|
OM3(Laser Optimized)
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
300M
|
100M(SR4)
|
100M(SR4)
|
|
OM4(Laser Optimized)
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
400M
|
150M(SR4)
|
150M(SR4)
|
|
Singlemode
|
9/125
|
Singlemode
|
2000M
|
5km at 1310nm
|
5km at 1310nm
|
10km at 1310nm
|
N/A
|
N/A
|

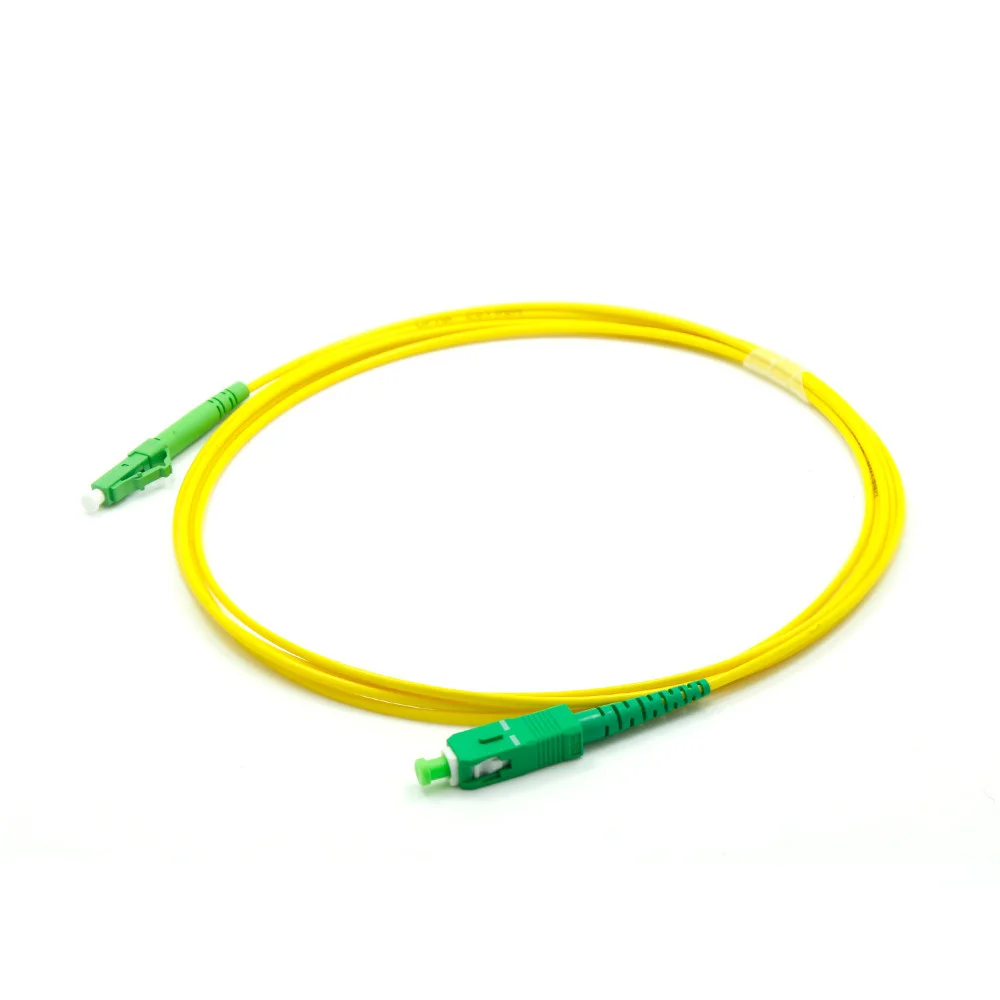

Optical Fiber Cord Main Interface type
We supply customized variety of Optical Patch cord, the link is for LC-LC connector. If you need other interface type, please feel free to contact customer service for details.
