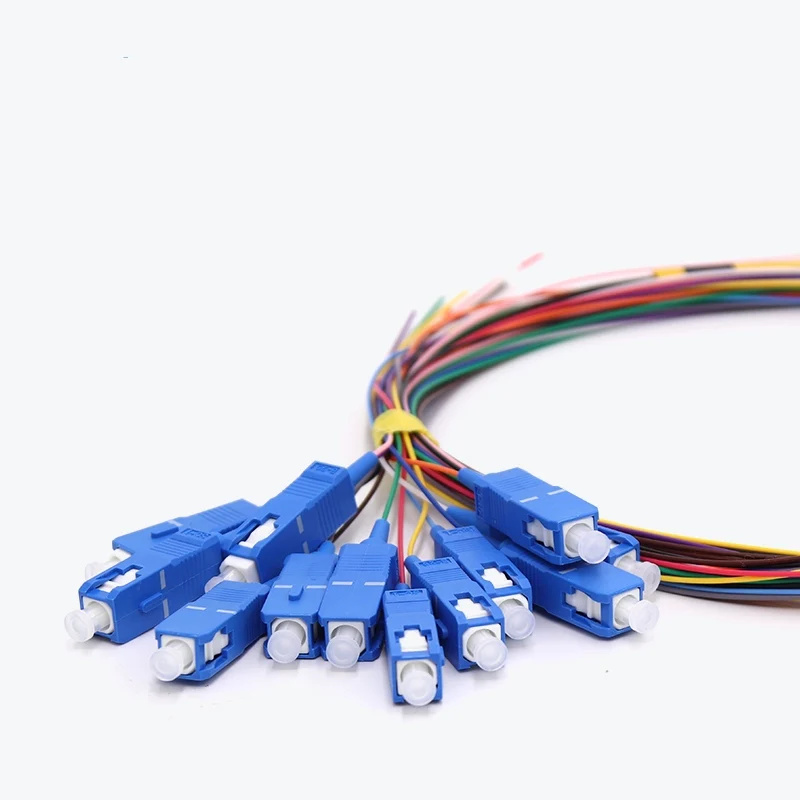

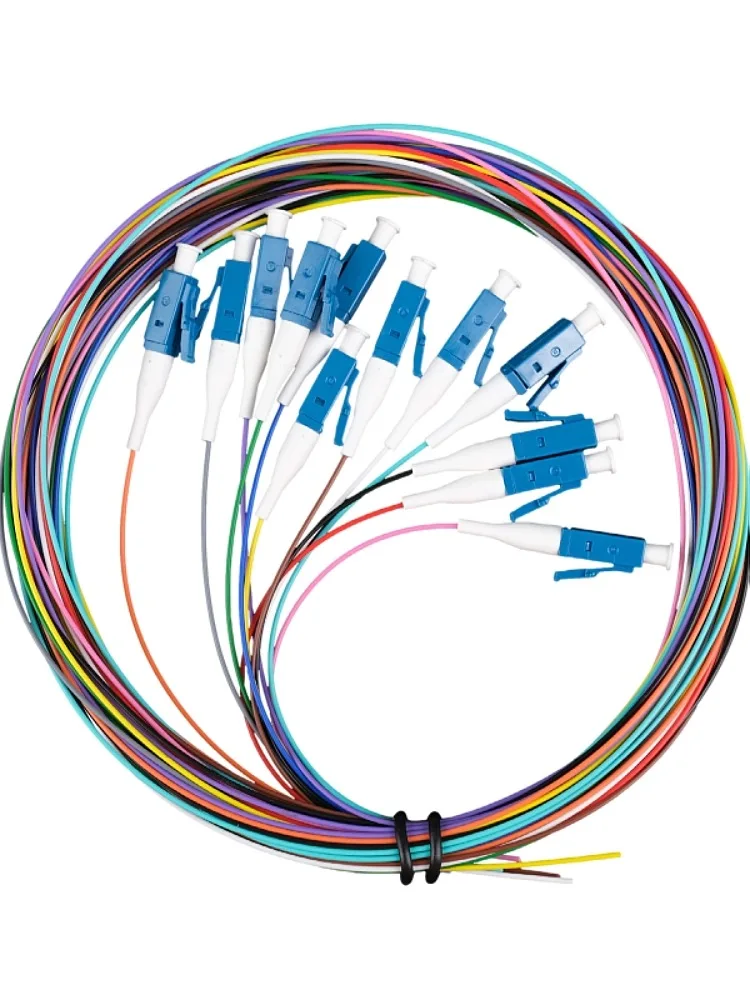

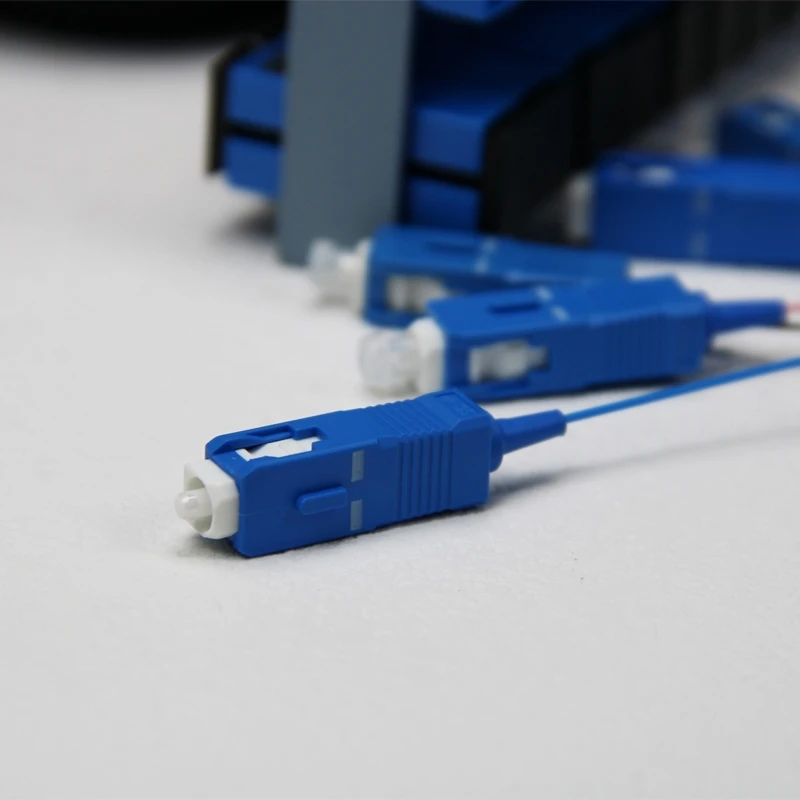

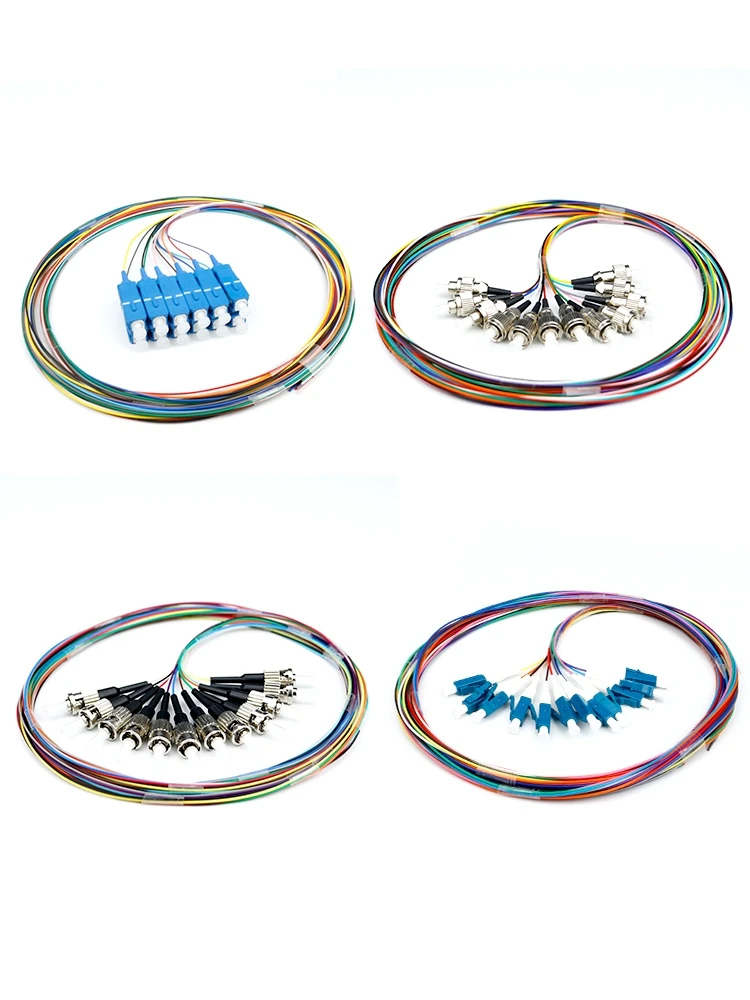

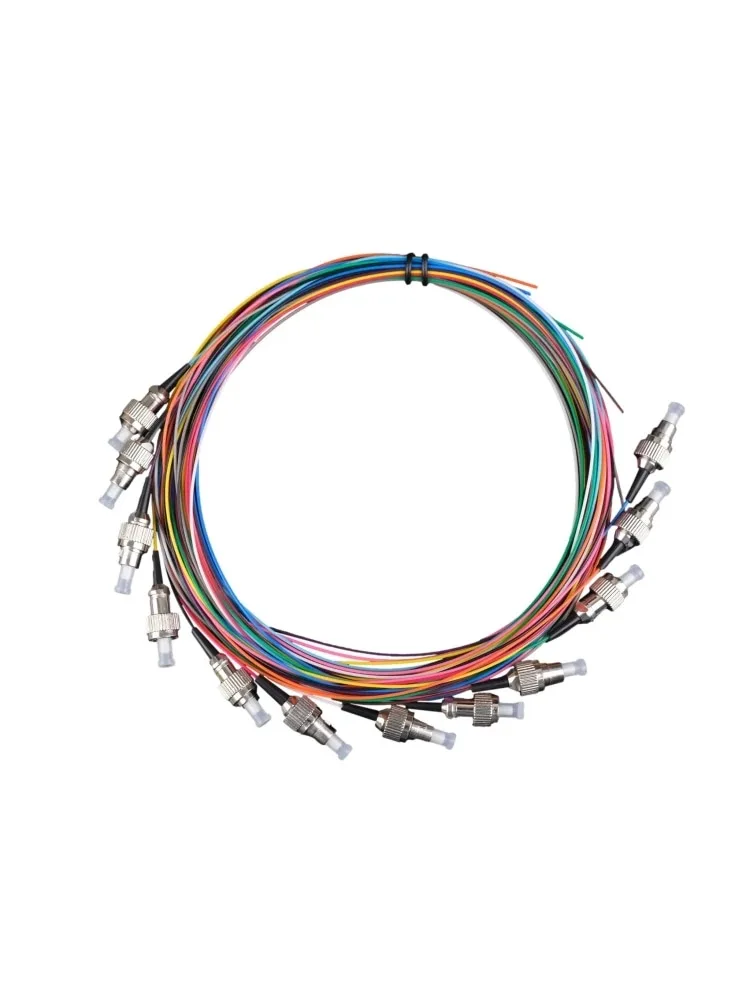

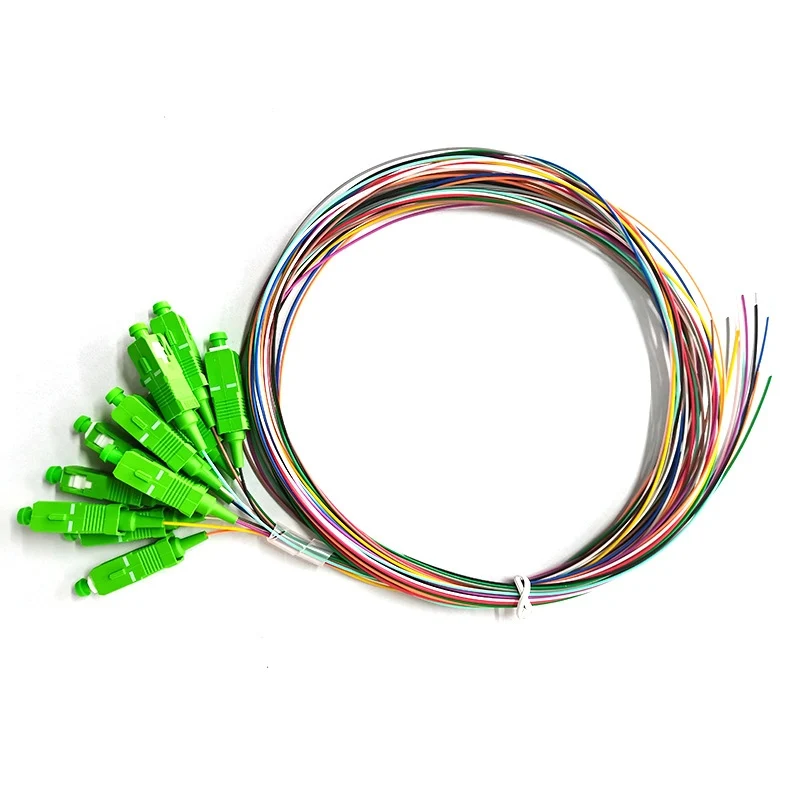

LC/UPC SC/UPC SC/APC FC/UPC  12Croes Pigtail 1.5m Optic Cable Jumper Optical Patch Cord Fiber Jumper Durable Cable Simplex Single Mode 0.9mm
Features:
1.Low insertion and back reflection loss
2.Good exchangeability
3.Good durability
4.High temperature stability
5.Standard:TelcordiaGR-326-CORE
Applications:
1.CATV; Active device termination;
2.Telecommunication networks;
3. Metro;
4.Local Area Networks;
5.Data processing networks;
6. Test equipment;
7.Premise installation;
8. Wide Area Networks;
Specification:
Type :              SM/UPC         SM/APC
Insertion Loss:   ≤0.3dB                                 ≤0.2dB
Return Loss:       ≥50dB                                  ≥60dB
Storage Te mperature:-40℃ to +90℃
Working Te mperature-40℃ to +85℃
Singlemode cable:G657A1
Repeatabilit y of IL: ≤0.1dB
Service life:1000 mate/demate cycles
Fiber Core:9/125um
Optical Connector:SC/LC/FC
Jacket Color:12 Color
Connector End Face:UPC / APC
Jacket Diameter:0.9mm
Work Environment:Indoor
Jacket Material:LSZH
