         Automotive current tester Truck Voltage Circuit Tester Power Probe LED Digital Display Auto Repair
Features:
-
100% brand new and high quality
-
Easy to use
-
Ideal for fault finding on automotive or commercial vehicle electrical circuit
-
Quick measurement and high accuracy
-
Measurement range: 0.01A~19.99A
-
Max Load：20A/48Vdc for max.10 secs
-
Accuracelectrical circuity:  ±(2% of reading + 2 digits)
-
Fuse Type Power Supply：Standard
-
Power Supply:12V 23A(Including)
-
Operating Condition:Temperature 0°C~40°C
                             Relative Humidity:<75% -
Storage Condition:Temperature -10°C~50°C
                          Relative Humidity<80% -
Color:Black+Red
-
Material : Plastic
-

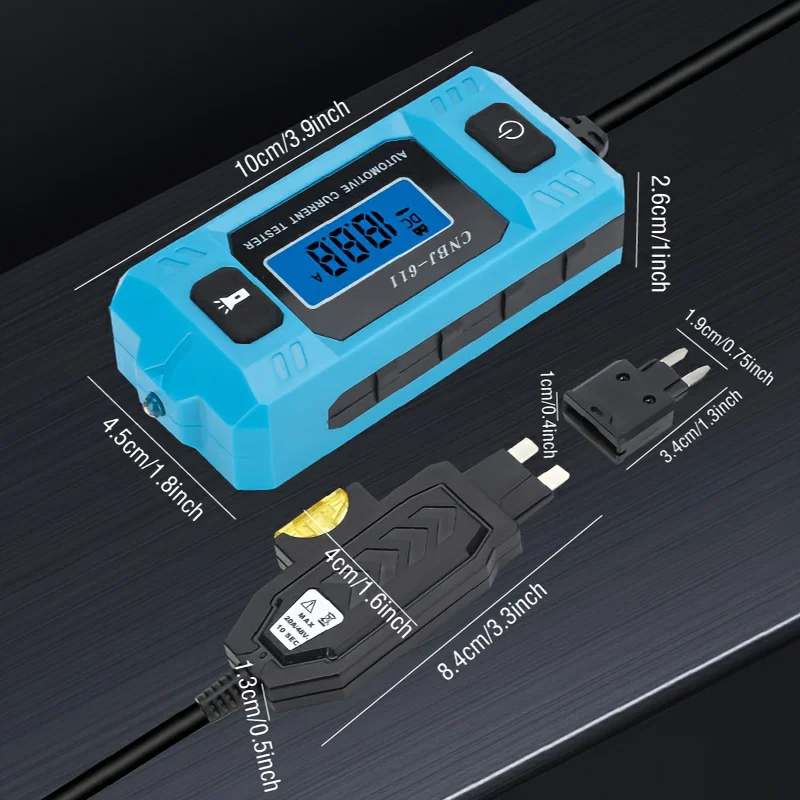

Size:As Picture

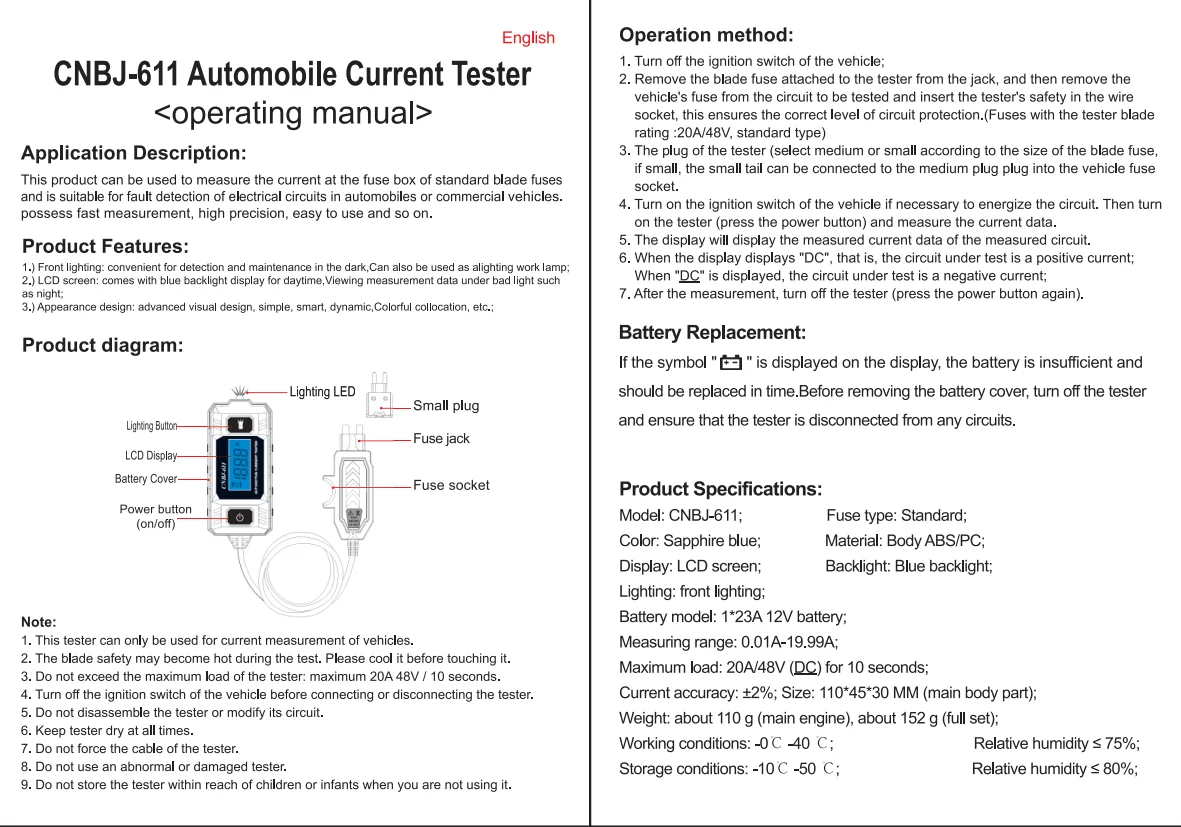

Operation Instruction:
-
Turn off the vehicles' engine
-
Take out the fuse and put it in slot of the AE150. Please make sure the circuit protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
-
Insert the plug of the tester into the vehicle fuse socket
-
 If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
-
Under test, operate the circuit and the display will show the measured current
-
Turn off the tester by pressing the power button again when you finish the measurement
Package Included:
-
1 set x Car Auto Current Tester
