Product specification for 15.6 inch Wall mounted Android PoE tablet pc with LED indicator HEXA core, 2GB DDR3, 16GB flash, BT, wifi, BT, bracket included
System
We have 2 version, Â Rockchip 3566 and Rockchip 3399
Version 1
CPU: RK3566, Quad core cortex A55, 1.8G
RAM: 2GB DDR3
Internal memory: 16GB
Operation system: Android 11
Version 2
CPU: RK3399 Â Dual-core A72+quad-core A53
RAM: 2GB DDR3
Internal memory: 16GB
Operation system: Android 10
Display
Touch screen: 10-Point capacitive touch
Panel: 15.6 inch LCD IPS panel
Screen resolution: 1920*1080
Display mode: Normally black ,IPS
Viewing angle: 85/85/85/85(L/R/U/D)
Contrast ratio: 800:1
Luminance: 280cd/m2
Aspect Ratio: 16:9
Network
WiFi: 802.11b/g/n
Ethernet: 100M/1000M ethernet
Buletooth: 4.0

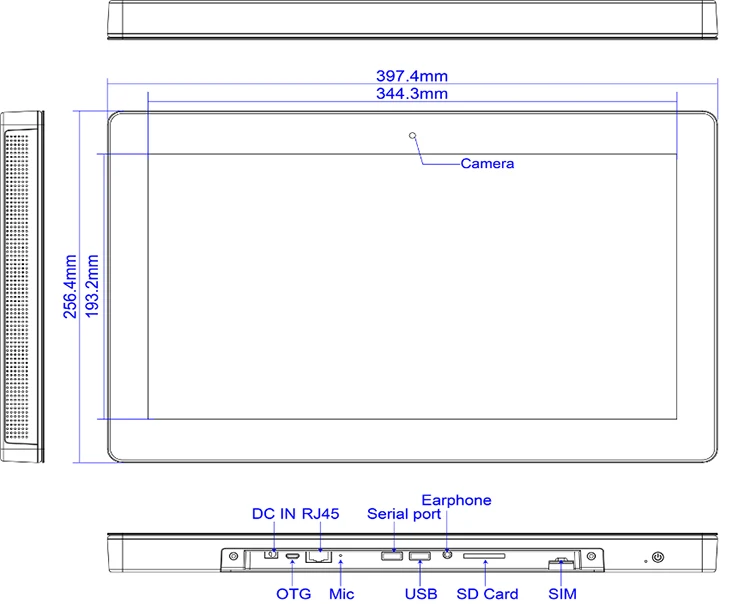

Interface
Card slot: SD card
USB: USB host*1, USB OTG*1
Serial port*1
RJ45 with POE
POE: IEEE802.3at
Power jack: DC power input
Earphone: 3.5mm earphone
Media format
video format: MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K
Audio format: MP3/WMA/AAC etc.
Picture format: jpeg
Others

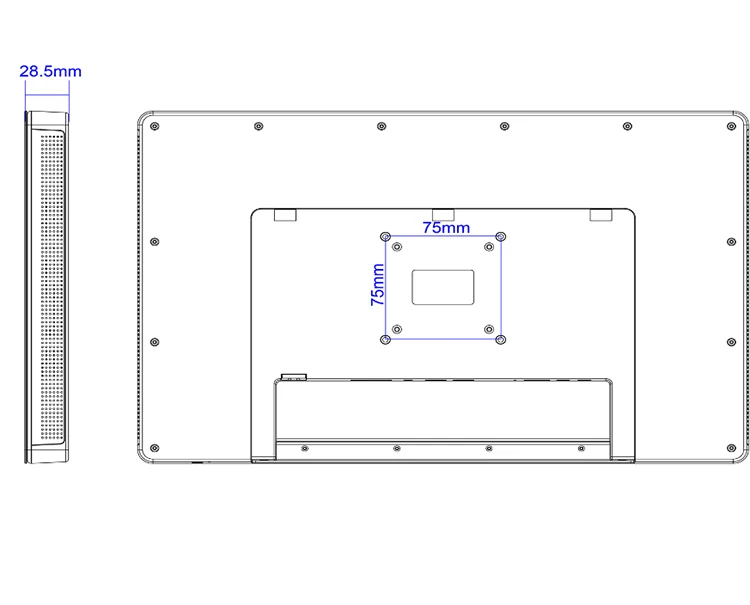

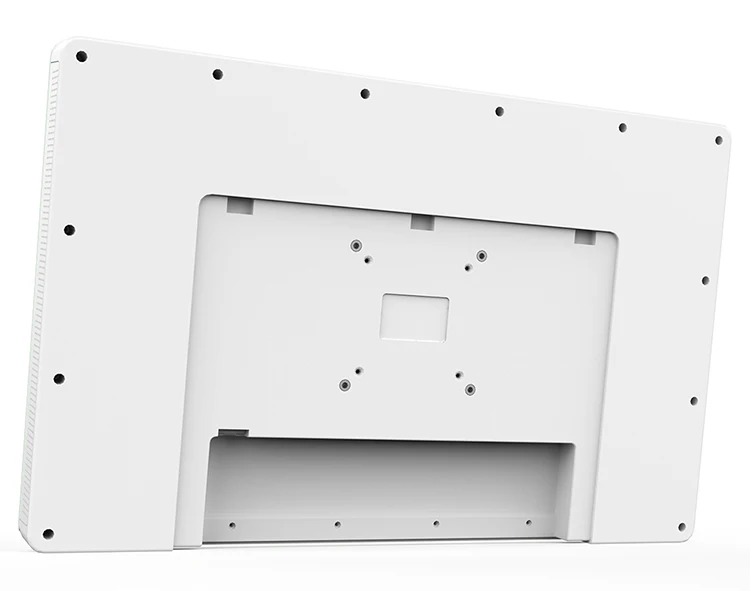

VESA-204.5mm
Camera: 2.0M/P, Front camera
Microphone:
Speaker: 2*1.5W
LED Light bar: Multi colors
Working temp. 0-40 degree
Language: Multi-languages
Product details of this Updated-15.6 inch Wall mounted Android PoE tablet pc with LED indicator HEXA core, 2GB DDR3, 16GB flash, BT, wifi, BT, bracket included



Highlights 1-LED bars on 4 sides of this tablet
With LED bars on 4 sides of this tablet, changing colors of Green, blue, red, it is make it even more visible.

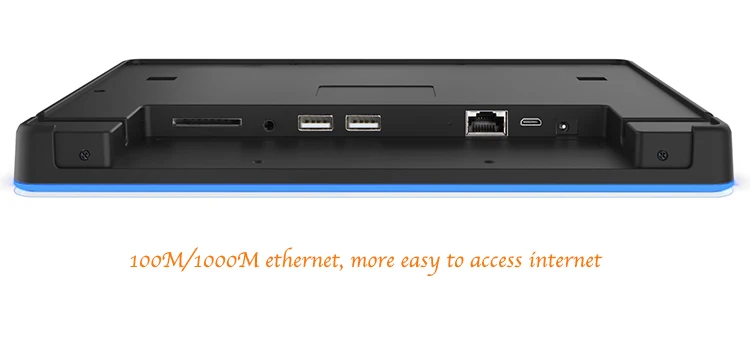

Highlights 2-100M/1000M ethernet, POE compatible
with 100M/1000M ethernet, POE compatible, it is more easy to access the internet

Customized wall bracket/screws included



features of this 15.6 inch Wall mounted Android PoE tablet pc with LED indicator HEXA core, 2GB DDR3, 16GB flash, BT, wifi, BT, bracket included
10 points capacitive touch screen
Timer power on/off
Ideal for room conference, booking system
Android, IPS screen, integrated micphone, speaker, camera, wifi/ethernet for internet connection

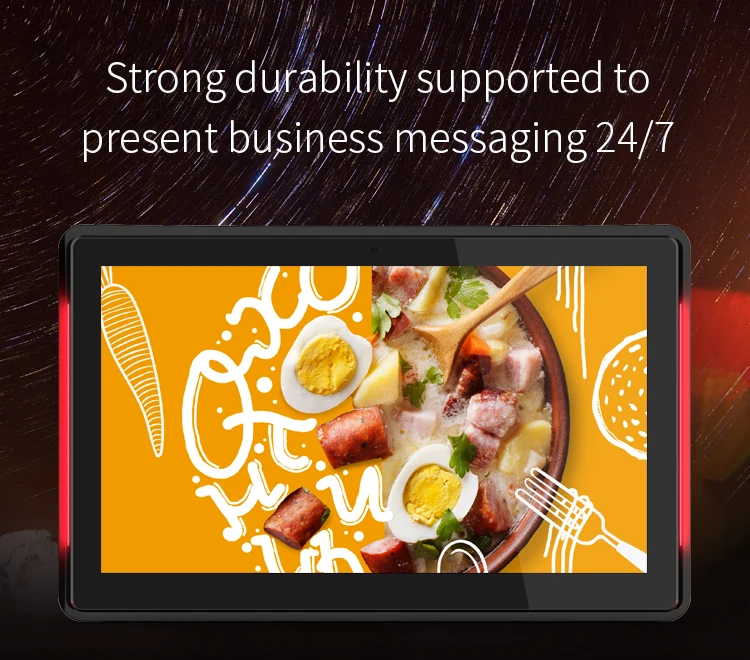

24 hours 7 days continuously working
Below pictures are just for your reference









Applications for 15.6 inch Wall mounted Android PoE tablet pc with LED indicator HEXA core, 2GB DDR3, 16GB flash, BT, wifi, BT, bracket included

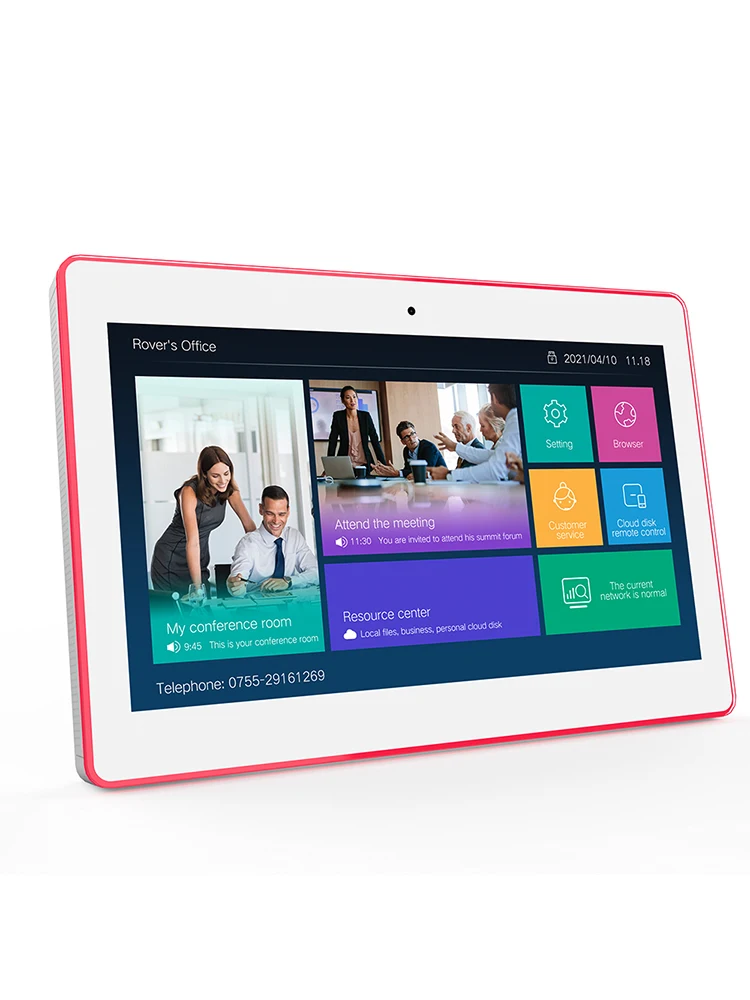

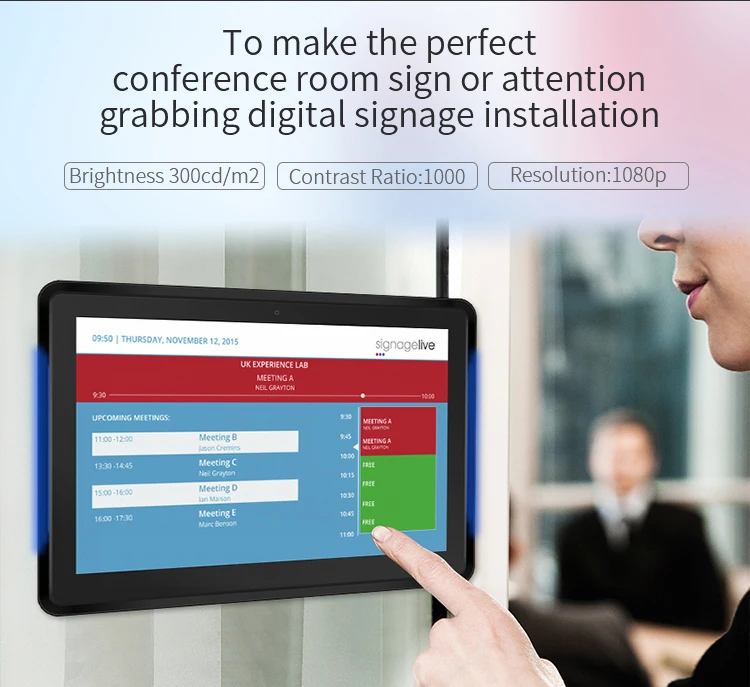

1-for room conference booking

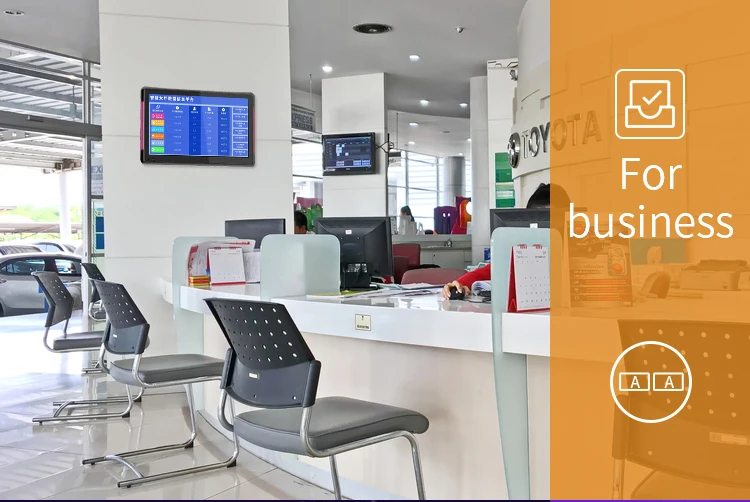

2-For business
3-For entertainment

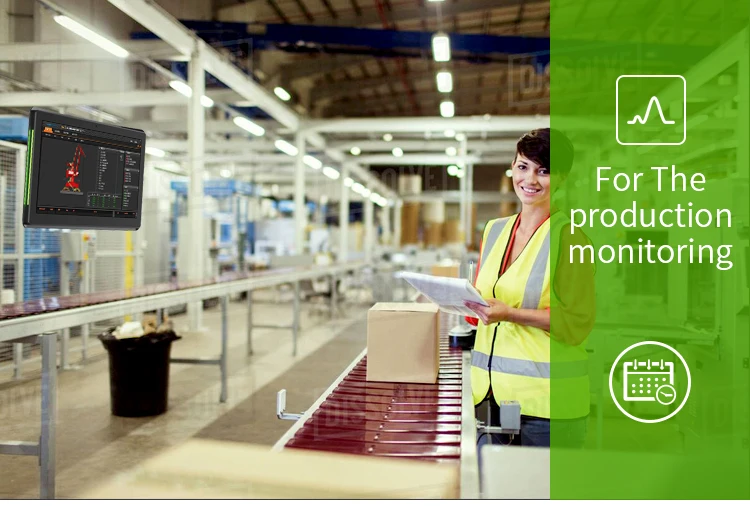

4-For the production monitoring




Product process

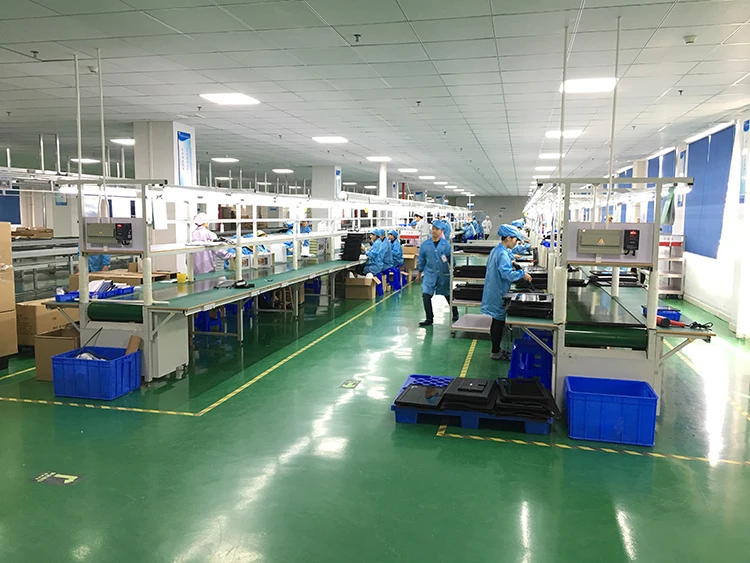

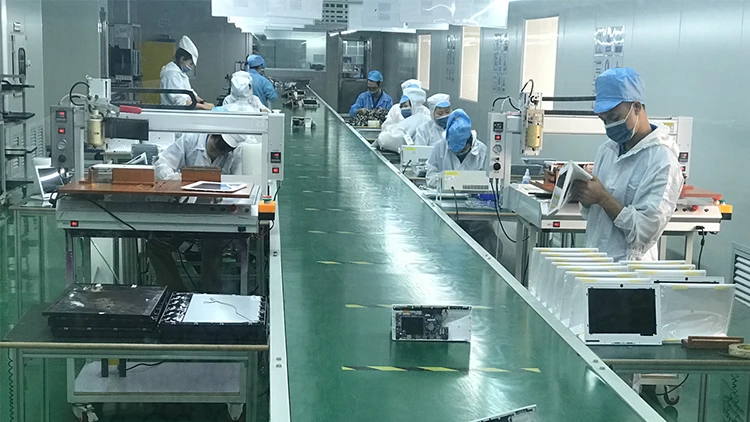

Neat semi-automatic production line

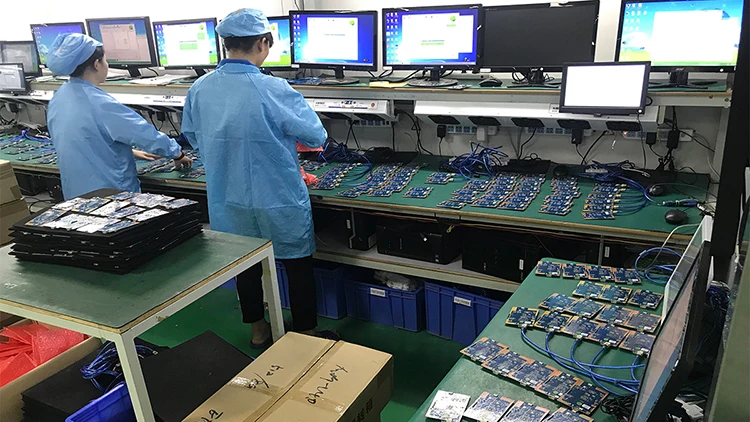

pcba test

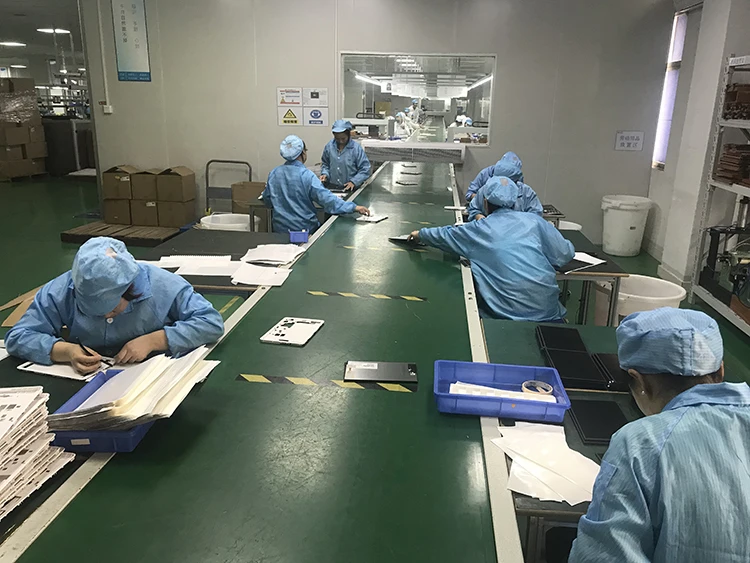

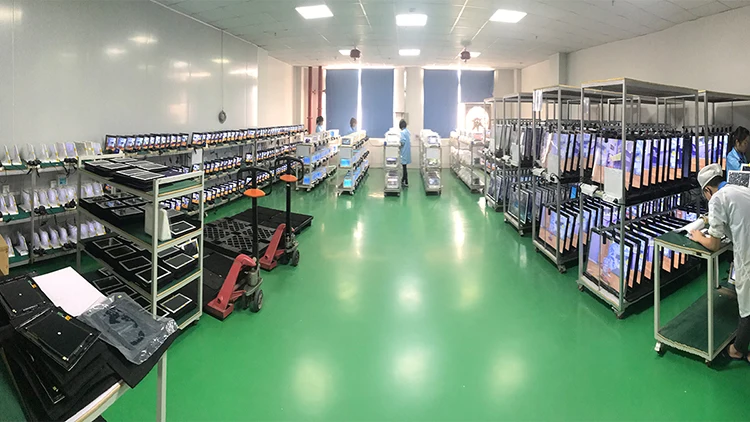

All lcd product go to no dust production line
72 hours age testing

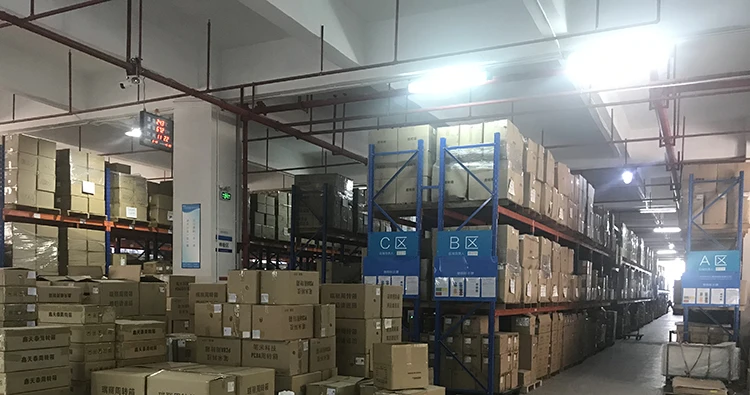

Dispatch to customers from our warehouse







We will send the correct plug adapter which is suitable for you according with the shipping address.
