16-core plastic optical fiber distribution boxes, 16-core plastic optical fiber distribution boxes, 24-core plastic optical fiber distribution boxes, 32-core plastic optical fiber distribution boxes, 48-core plastic optical fiber distribution boxes, fiber optic corridor boxes, fiber distribution boxes, light splitter box.
  ty-GFX07 series of sub-fiber optical cable boxes suitable for optical fiber access network in the armored cable and use the home covered wire cable junction points. Box with wall or pole mounting, suitable for both indoor and outdoor scenes use; by SC fiber optic connector adapter and quick connect and scheduling between the cable and the home covered wire cable External wire armored.
Second, performance indicators
Operating temperature: -40 Â ~ + 70 ;
Storage temperature: -40 Â ~ + 70 ;
Humidity: ≤90% (+ 30  when);
Atmospheric pressure: 62Kpa ~ 106Kpa;
Insulation resistance: insulation resistance grounding device and the housing is not less than the gold artifacts 2X104MΩ / 500V (DC);
Withstanding voltage: Withstanding voltage grounding device and the box of gold artifacts is not less than 3000V (DC) / 1min;
Insertion loss: IL≤0.3dB (PC type); IL≤0.3dB (APCtype);
Return loss: RL≥40dB (PC type); RL≥50dB (UPC type); RL≥60dB (APCtype);
Interchangeability: ≤0.2dB.
Third, the function

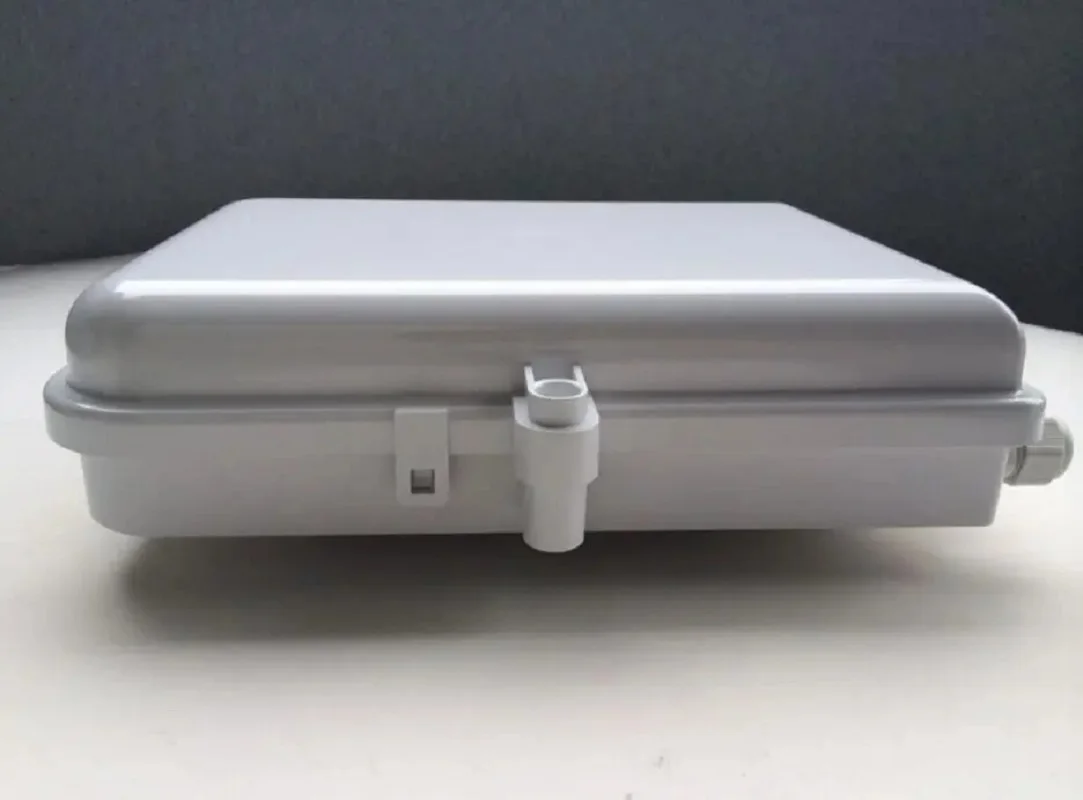

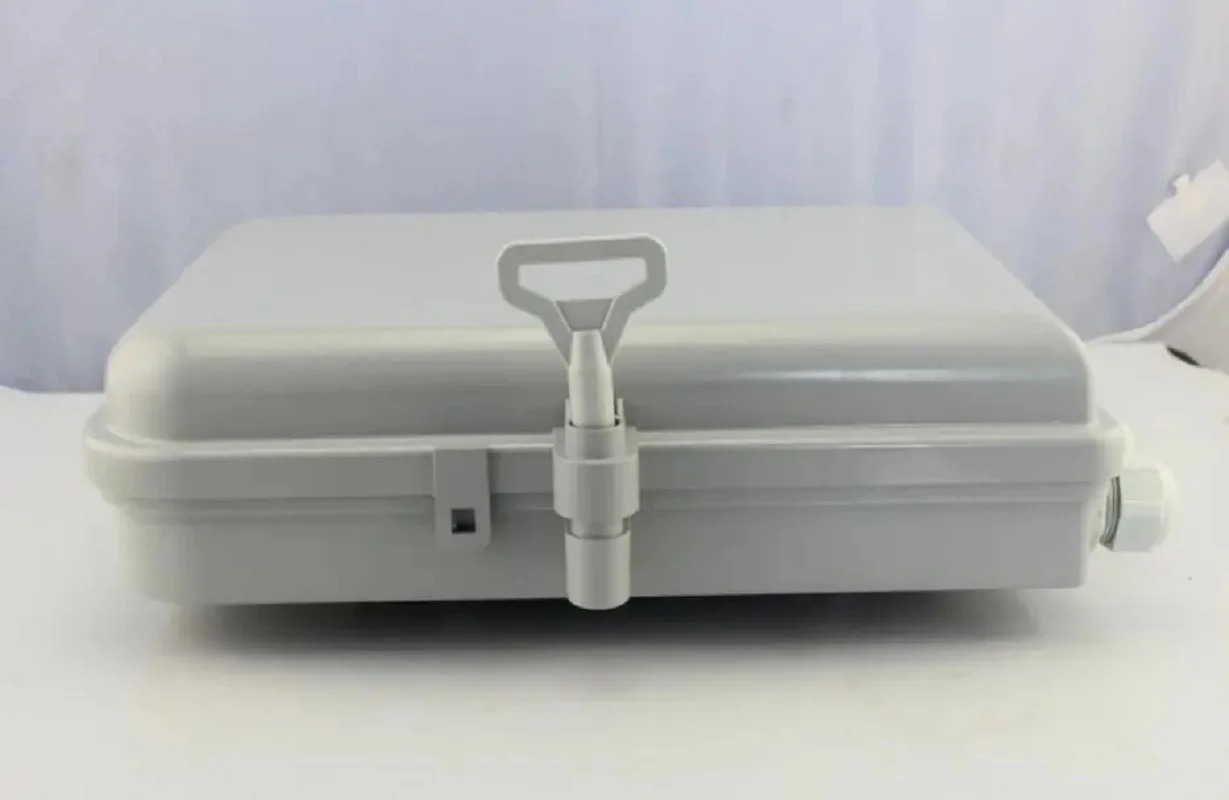

Box of high quality engineering plastics, have good sealing performance and weather resistance, suitable for indoor and outdoor wall, pole installation, IP55 protection grade level;
Private covered wire cable fixed position, fixed guarantee covered wire cable pull-out force not less than 20N;
A dedicated quick coupler crossing hole, covered wire cable termination quick connector can be in the box, the quick connector terminating the operation more convenient;
Introducing reliable armored cable, fixed, stripping protection and grounding devices, fixed up to four outdoor armored cable, the equivalent of 2 integrated into two cable connector box;
Multifunctional splice protector housing to meet 48 core splice protection sleeve positioned or 24 core Splice Placement of demand;

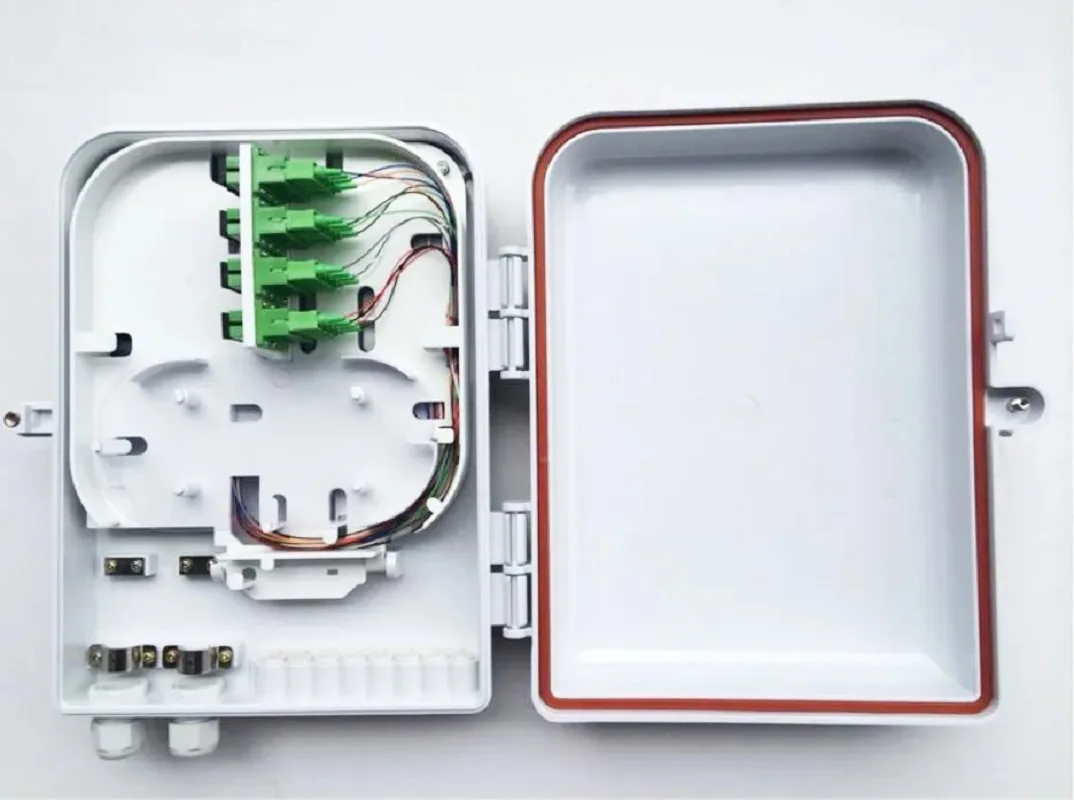

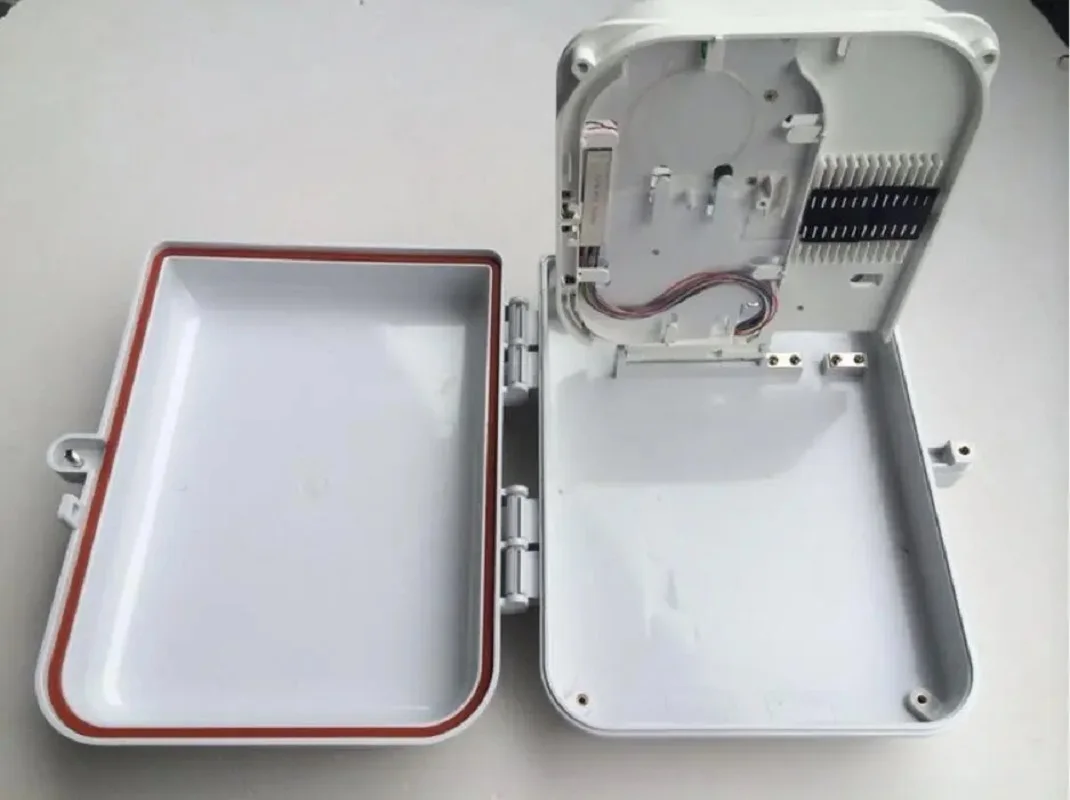

Flap design, adequate and reasonable use of cabinet space, full to ensure adequate fiber bend radius, more user-friendly set aside appropriate redundant optical fiber and reasonable walking routes;
Ty-GFX07 series of products using the same box, by adjusting the configuration to meet different functional requirements.
