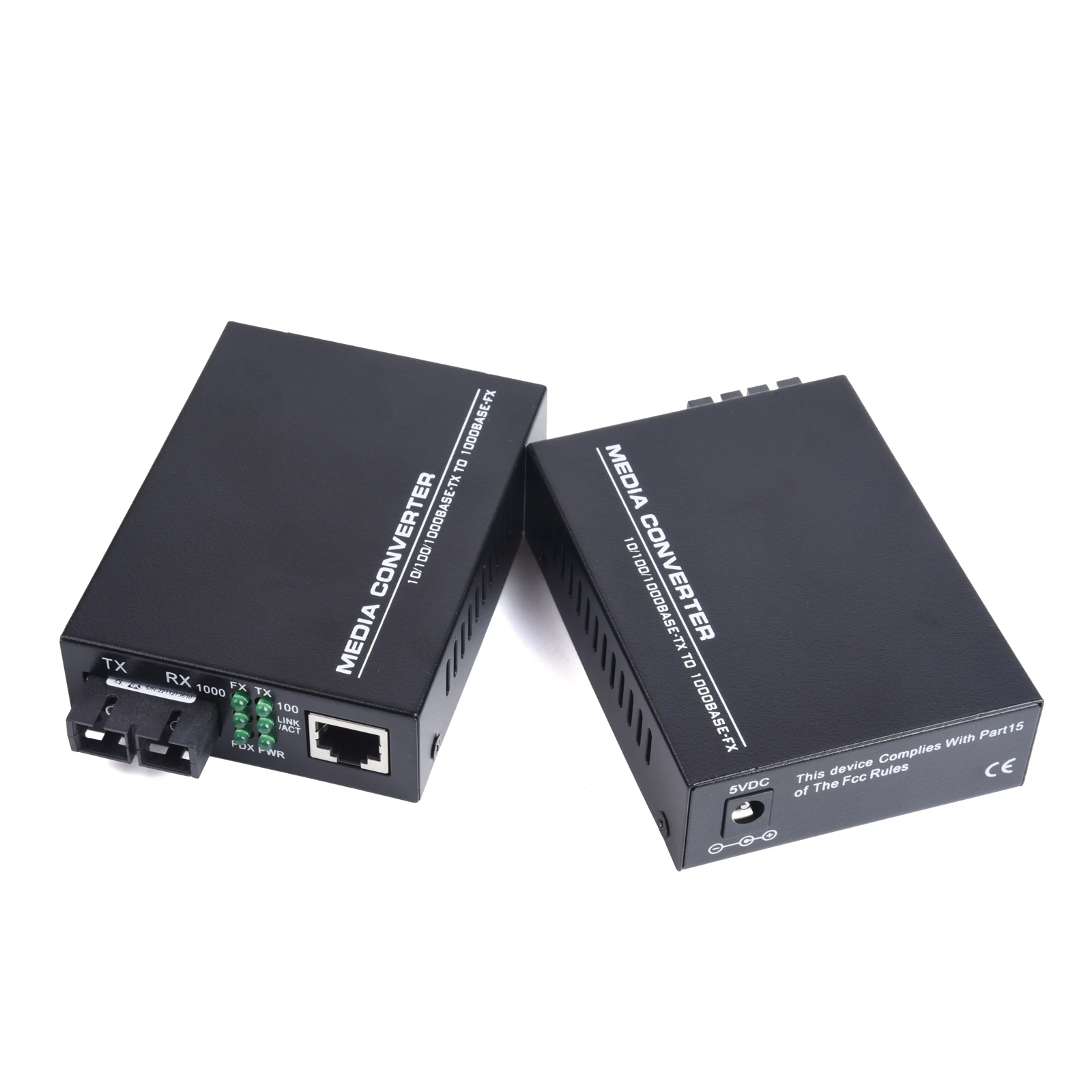

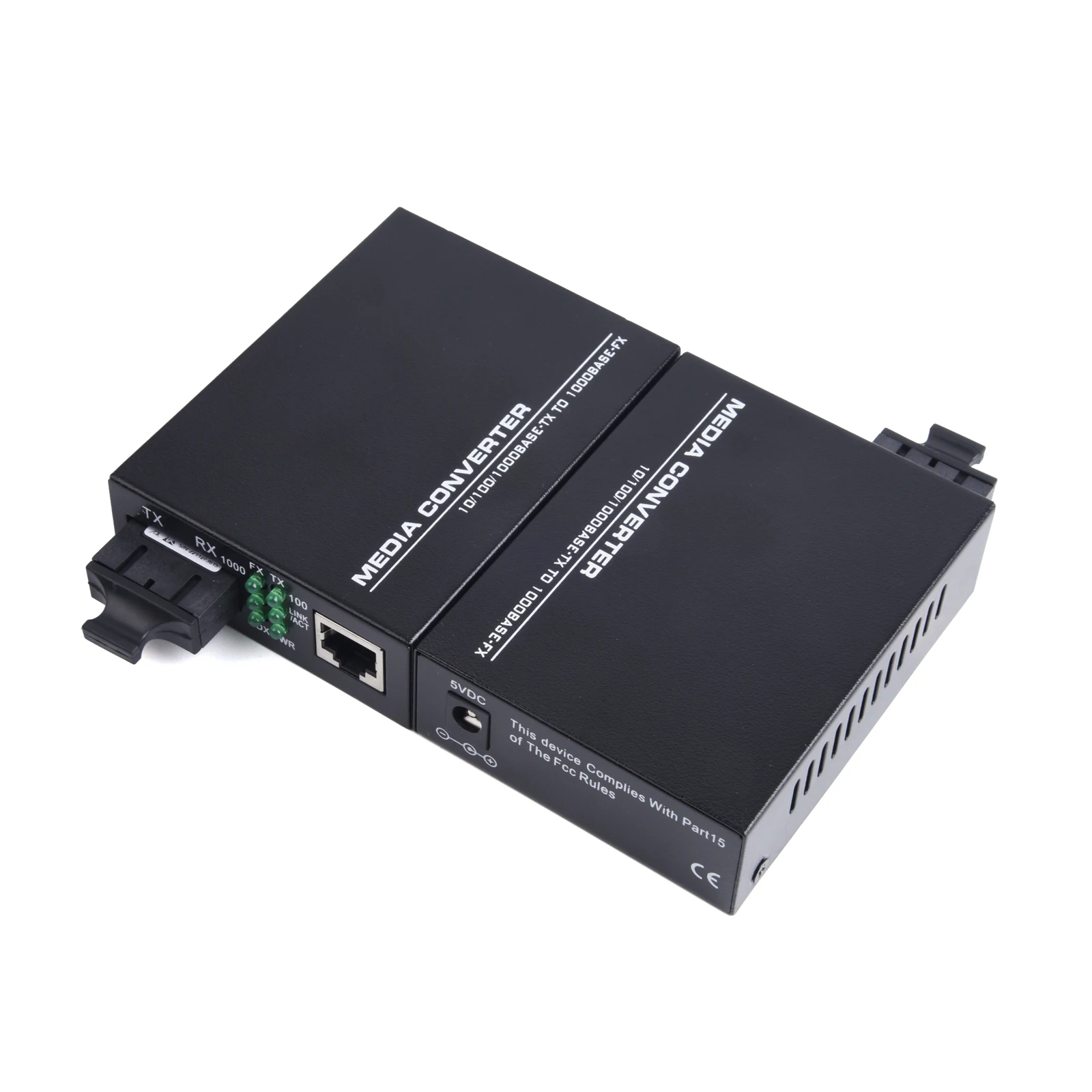

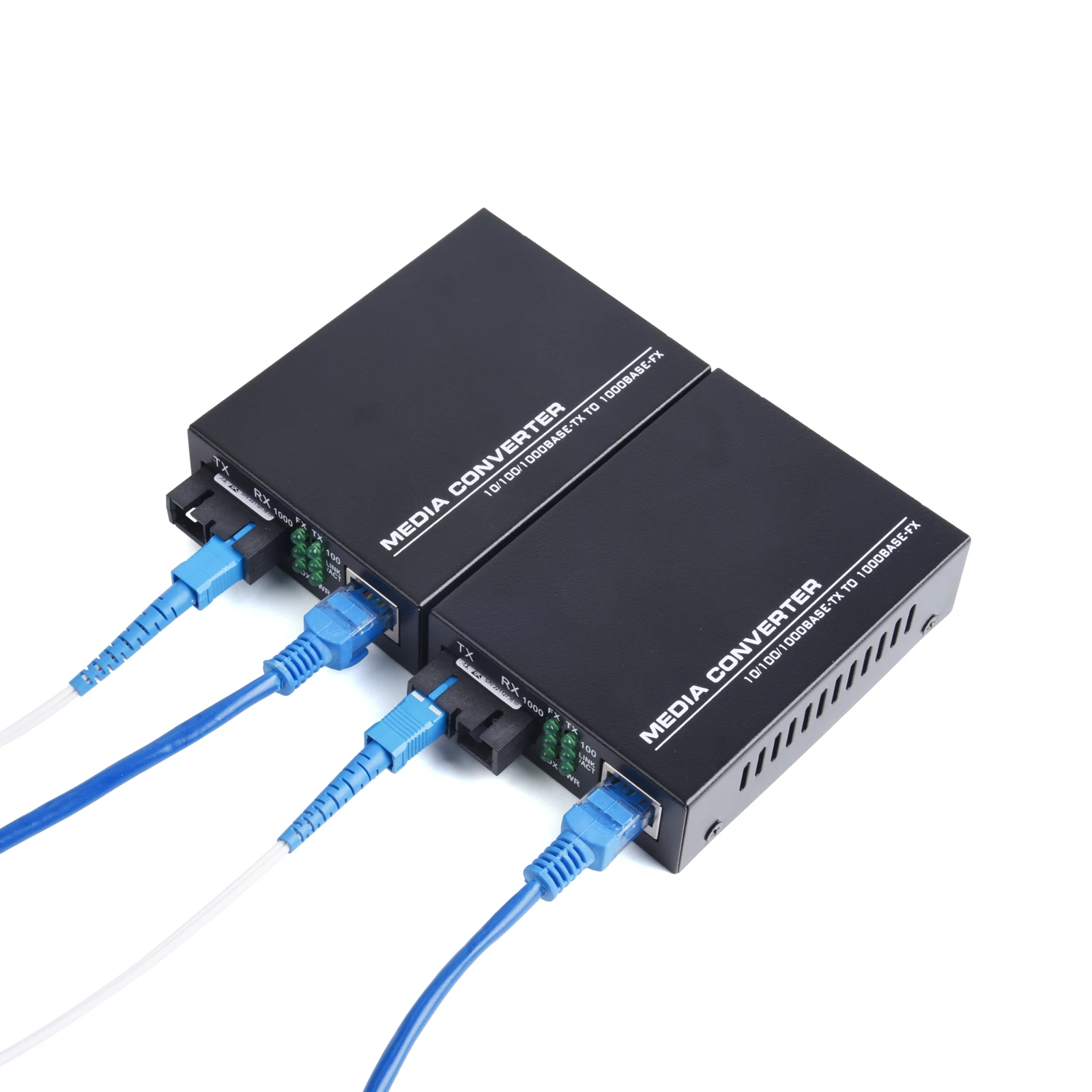

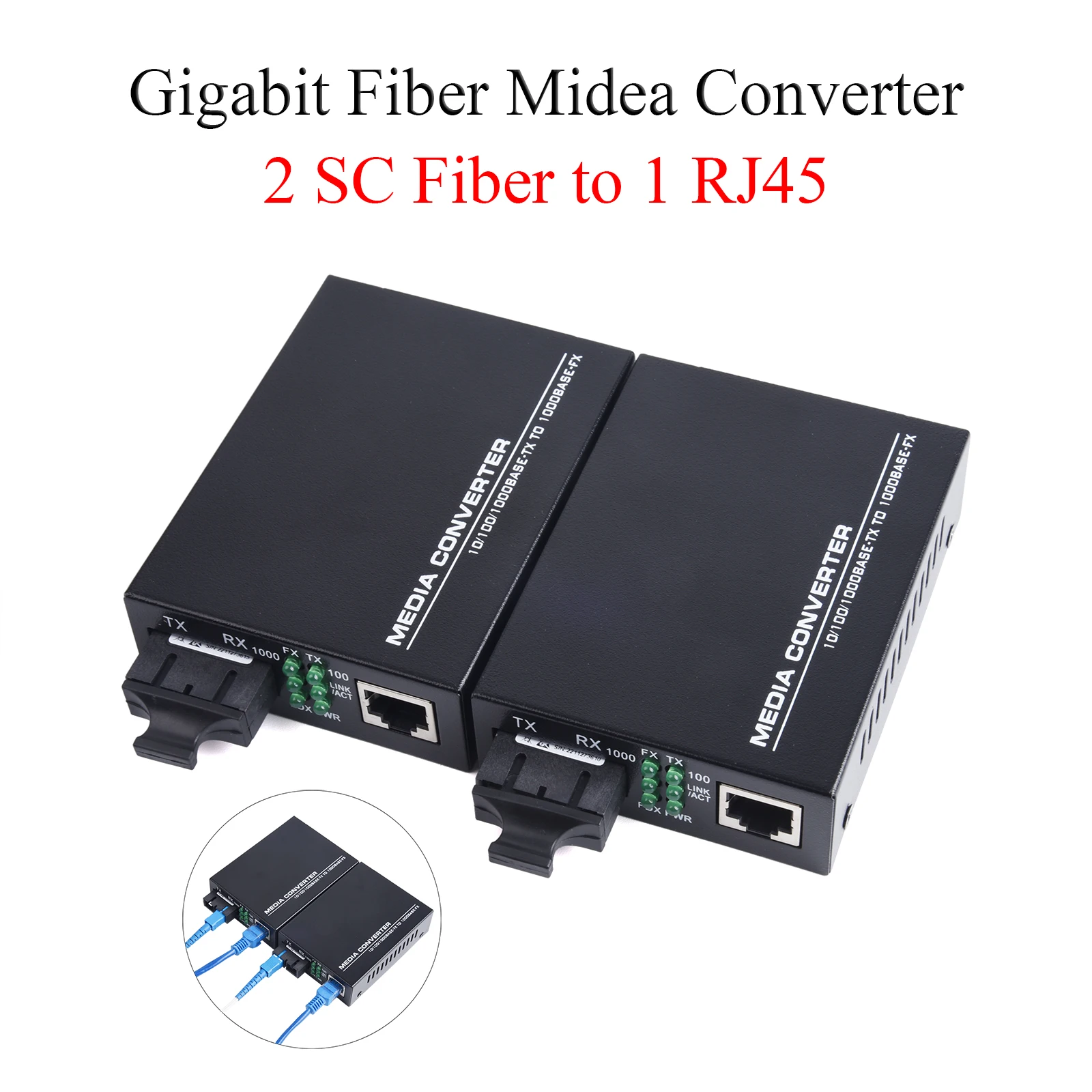

1 Pair Gigabit Fiber Optical Media Converter Switch 100/1000M Single Mode Multimode UPC/APC 2 SC-Port to 1 RJ45 Fiber Transceiver Kit
Type: Fiber Optic Converter
Transmission Distance: Single-mode up to 20km, Multimode up to 2km
Fiber Optic Connector: 2 UPC/APC SC Port
Ethernet Connector: 1 RJ45 Port
Ethernet Rate: 10/100/1000Mbps
Fiber Port Speed: 1.25G
Wavelength: 1310nm / 1550nm

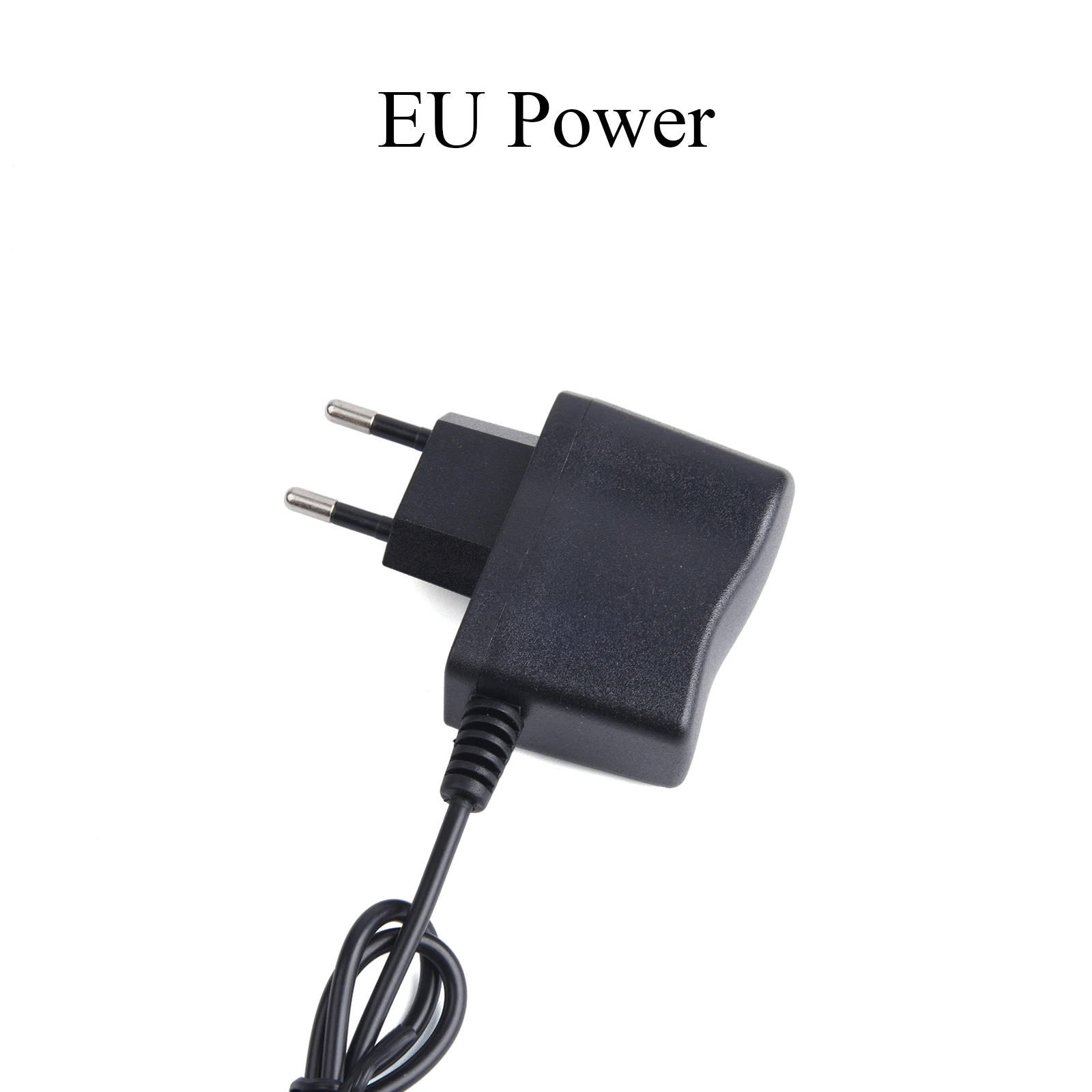

Power Plug: EU Plug
Instruction
The Gigabit Ethernet Media Converters with an external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber.
The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments.
The optical interface operates at a 1000Mbps Ethernet rate.
Both are environmentally hardened to operate in extreme temperatures.

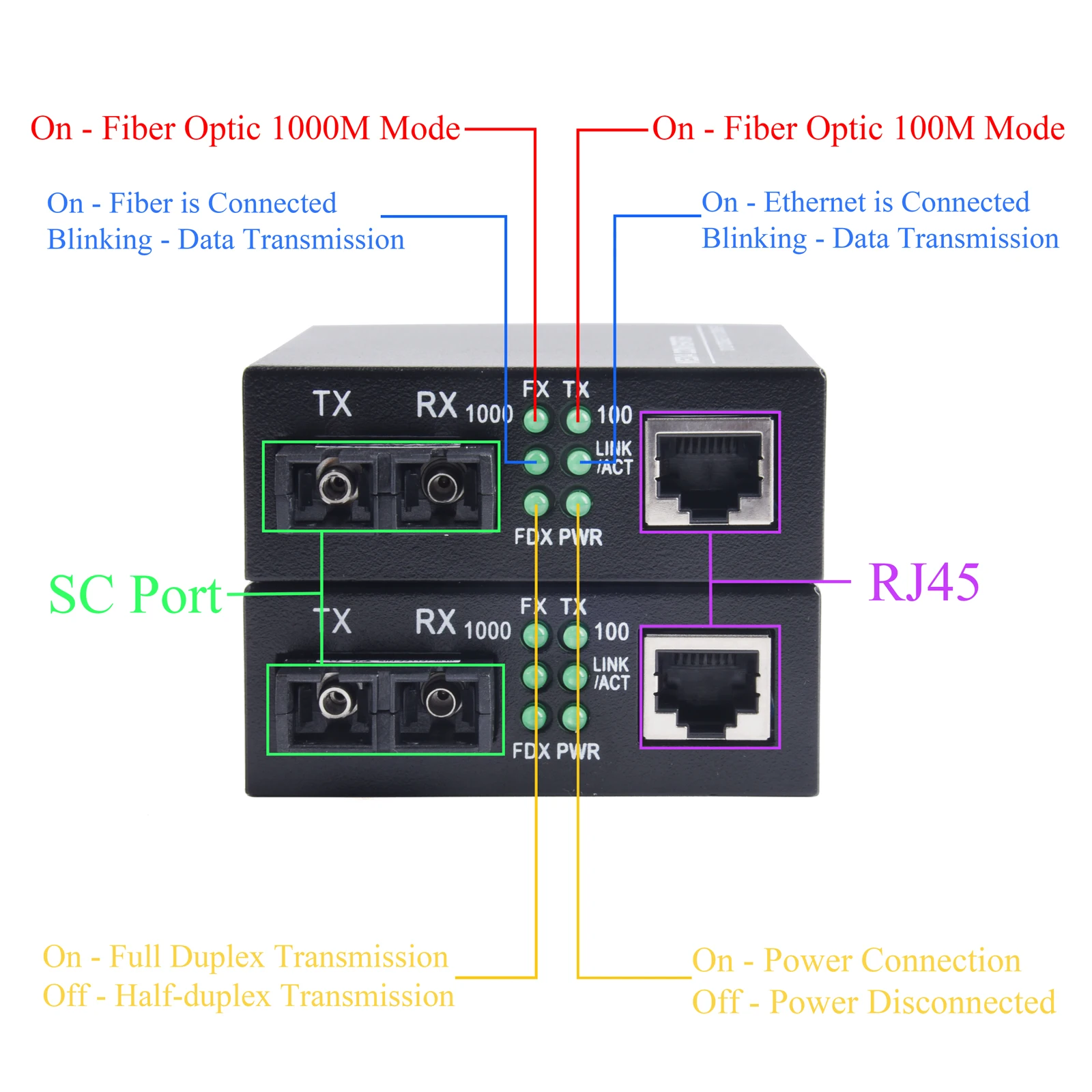

LED indicators are provided for confirming equipment operating status.
Feature
2 1.25Gbps full-duplex fiber port and 1 1000M Ethernet port.
Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.

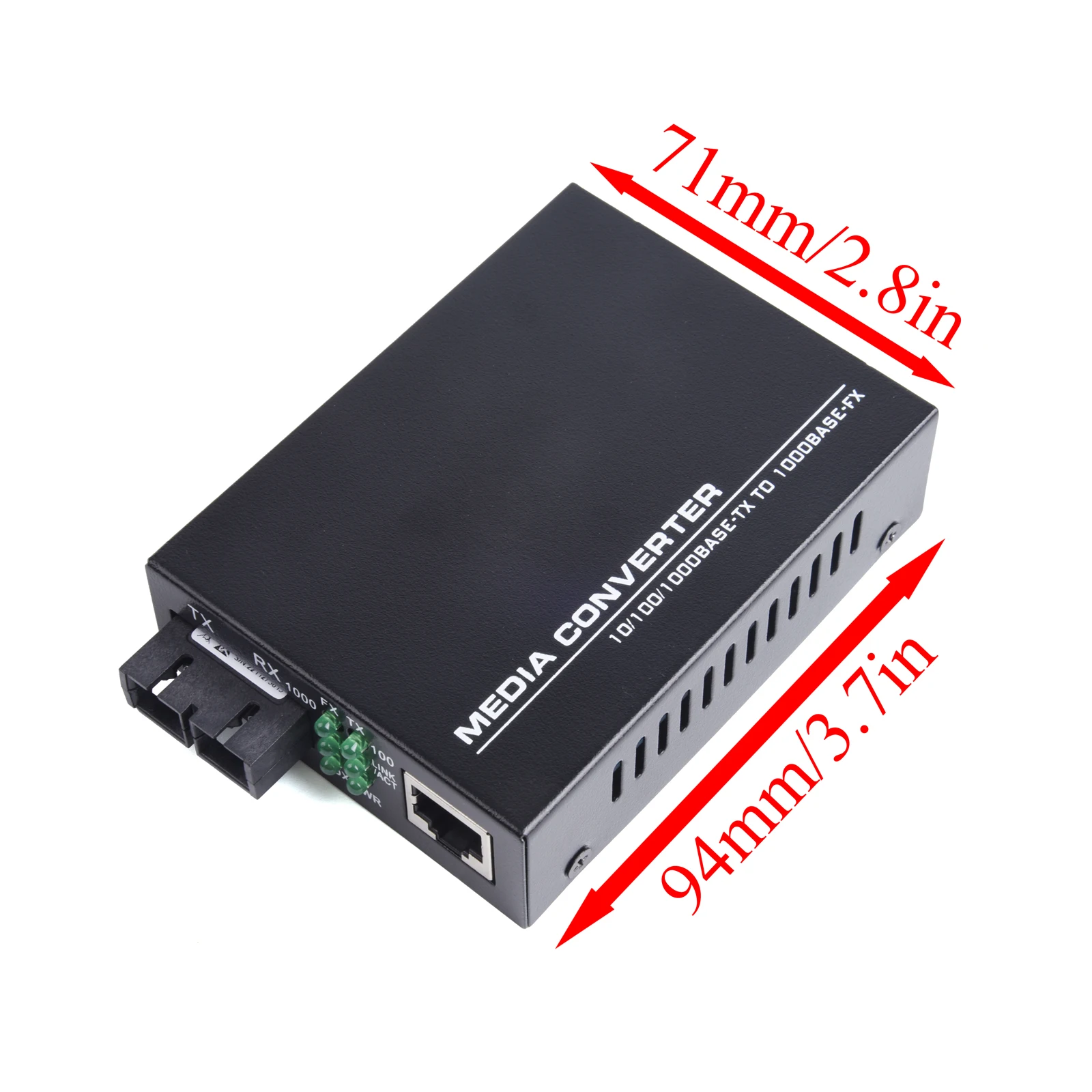

Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
100% Brand New and High Quality.
Shape & Color: Same as the picture show
The Type As Your Choice!!
The Quantity As Your Choice!!
Thanks for your visit & Happy cooperation!!
Note: Due to the nature and measurement tools, coupled with the purely manual measurement and cutting of the cable, it may cause a length error of 1%-5%.
