1PCs Car Combustion Leak Tester Tool Detector For Cylinder Head Gasket Combustion Gas Leaks Engine Checks Diagnostic Tools

• Fast, economical and accurate method to test for combustion gas leaks
• Works on Petrol, Diesel and LPG engines
• Sure diagnosis within a few minutes
• Positive proof that a leak is present when the tester fluid changes colour on detection of CO₂ gas – if there is a hairline crack in the cylinder head, engine block or damage to the cylinder head gasket, the test fluid turns RED.
• Ideal for routine checks and scheduled maintenance work
• Ideal for engine checks on used cars
• 50ml test fluid, enough for 25 applications (2ml per test)

Specifications:
Volume: 50ml
Material: Polypropylene

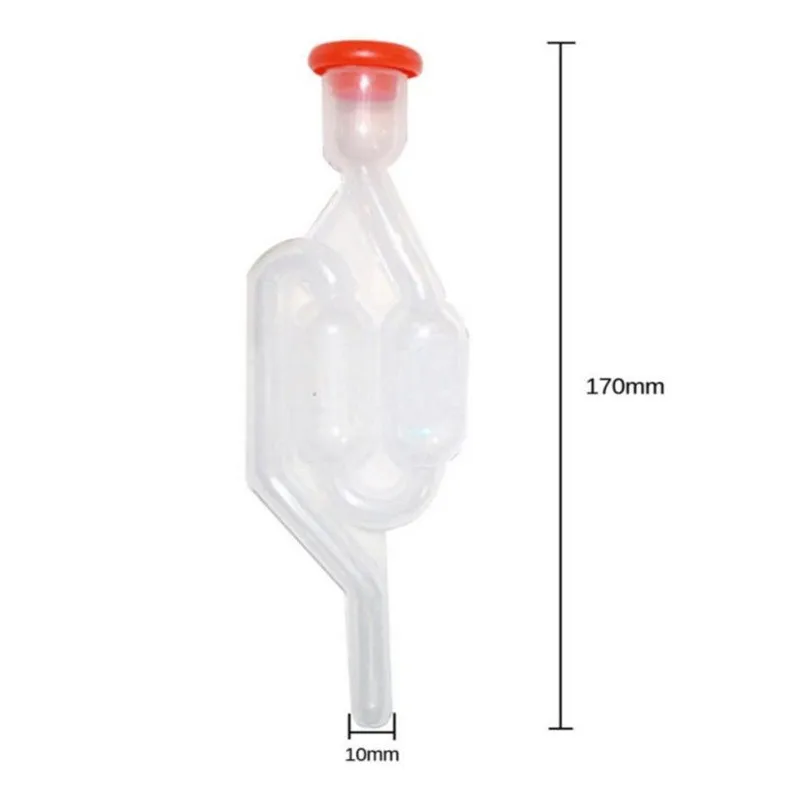

Size : 5.5*17CM
Color: White
Type: Head Gasket & Block Tester KIT
How does it work?
In the case of a damaged gasket under the head or the head itself, part of the combustion gases containing CO₂ goes to the cooling system, at this point they react with the liquid and change its colour.

Performing the test:
1. Fill the device with reaction fluid to the level just below the chambers (approx. 2ml), as shown in the photo.

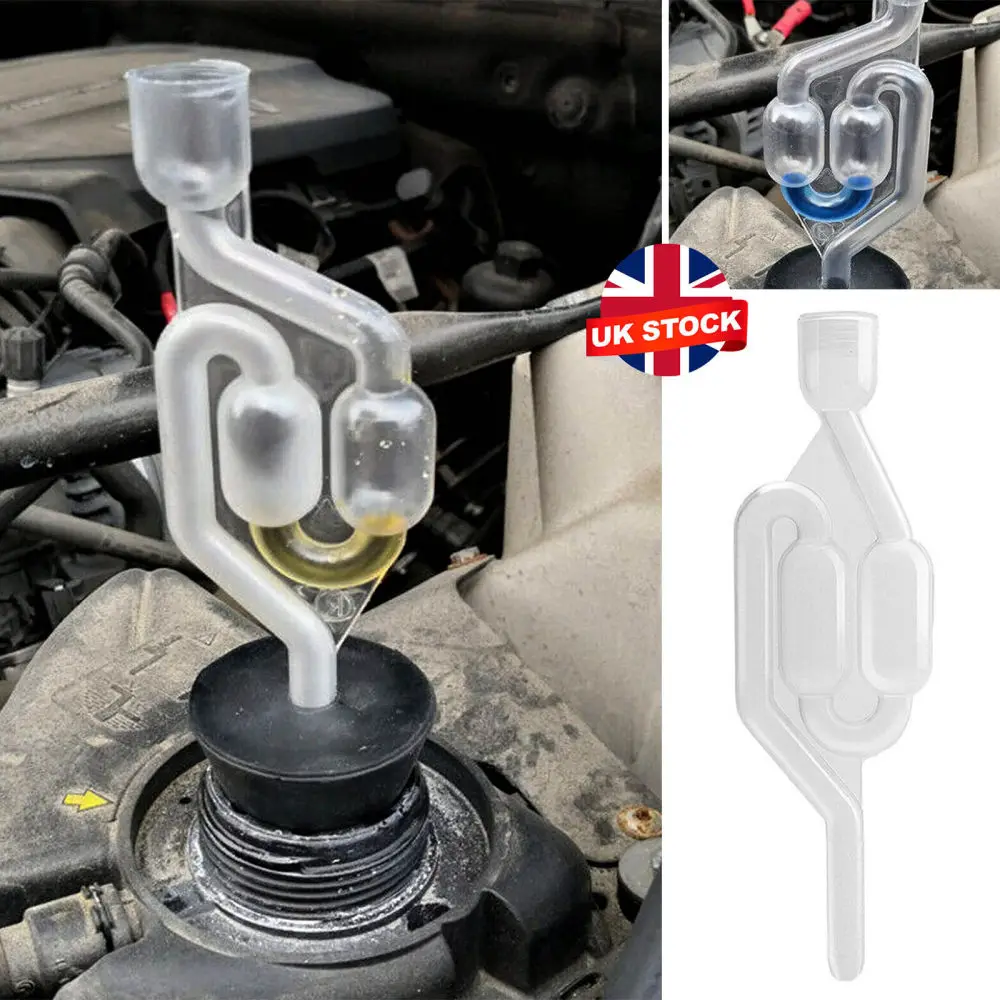

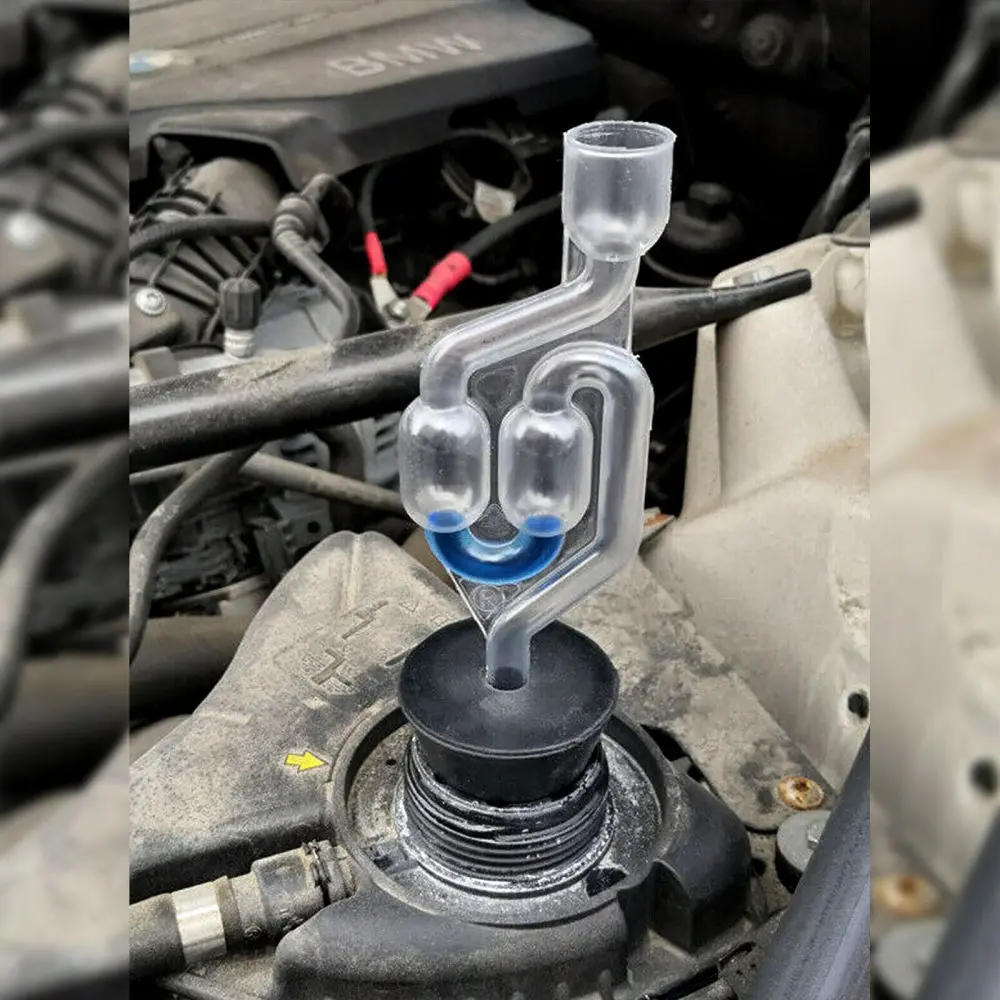

2. Connect the tester to the opening of the expansion tank or radiator.
3. Start the engine (preferably already warm), bring it to a higher speed to obtain a higher combustion pressure.
4. Let the engine run at a slightly increased speed and observe the behaviour of the reaction fluid.

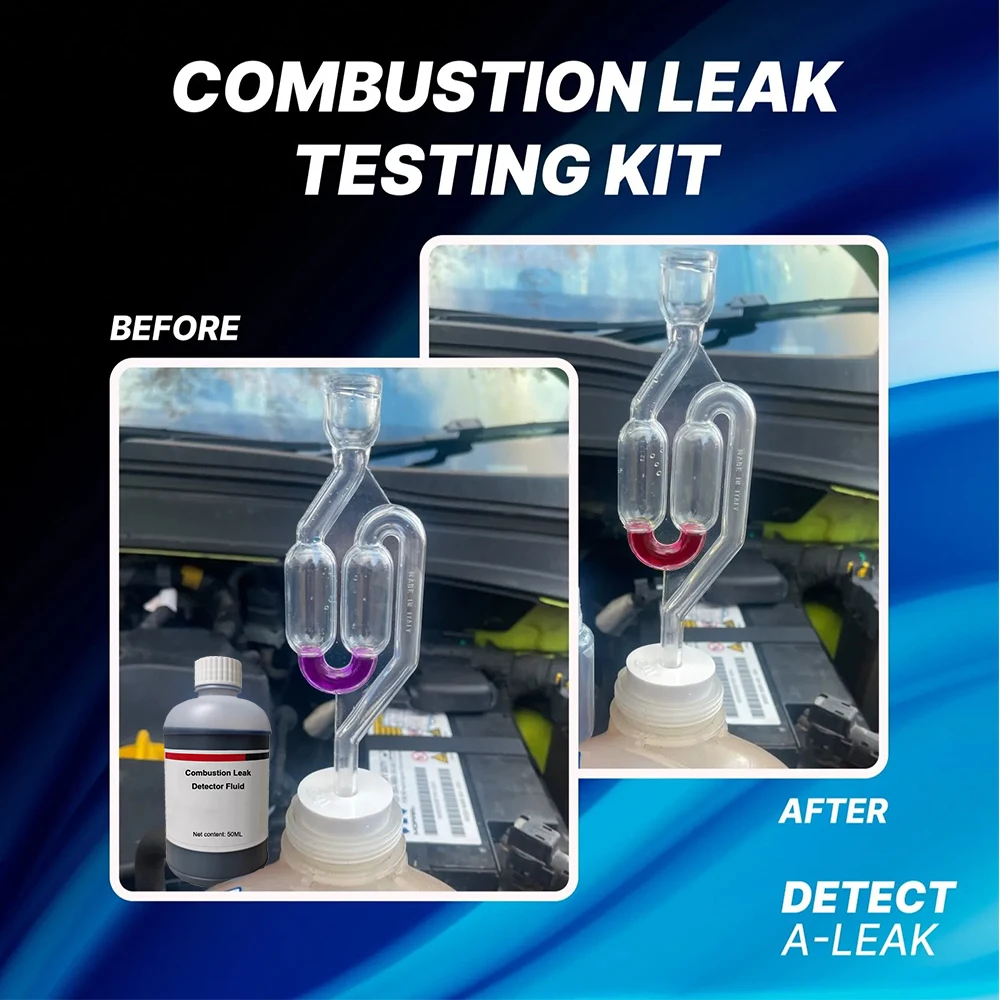

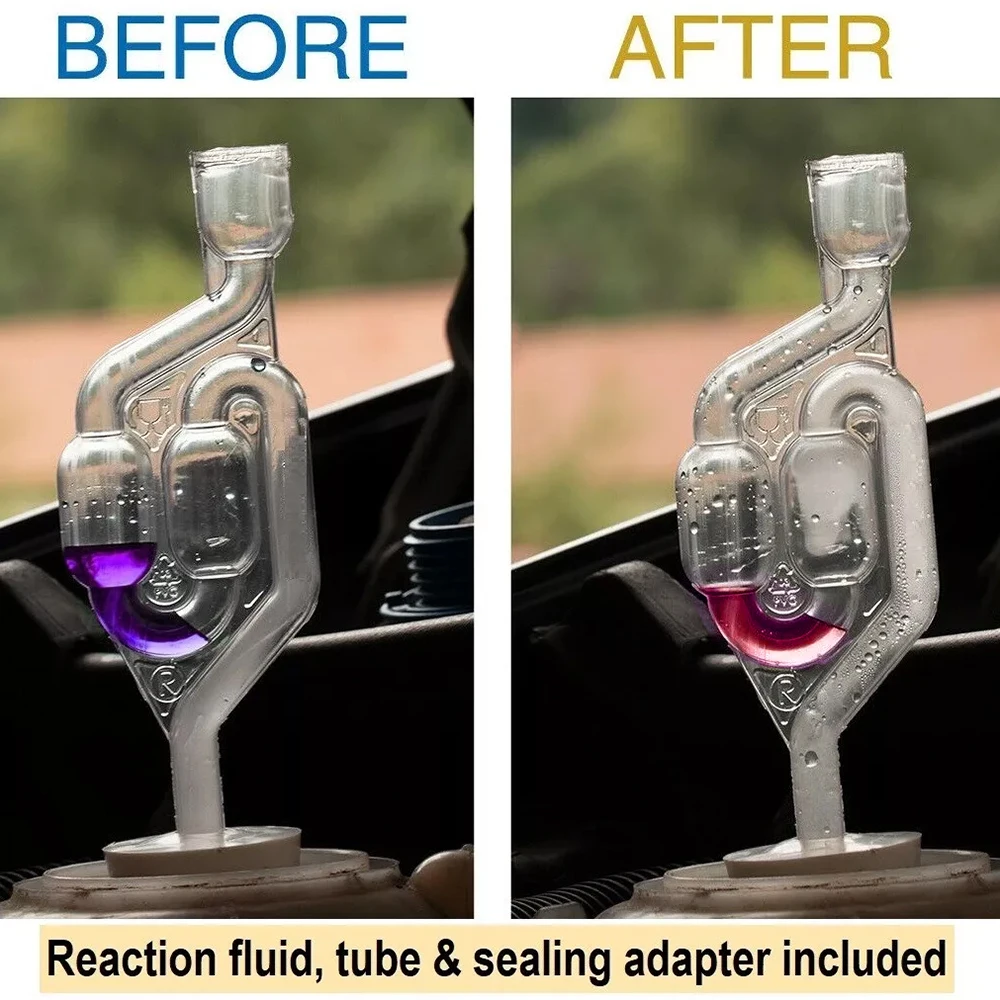

5. Changing the colour of the reaction fluid to red within a few minutes indicates a damaged gasket under the head or damage to the head itself.
6. After the test has been completed, carefully remove the device. The used test fluid should be disposed of, even if the test result was negative. (We would never recommend using any combustion leak detector fluid twice, as this may affect the accuracy of the test).

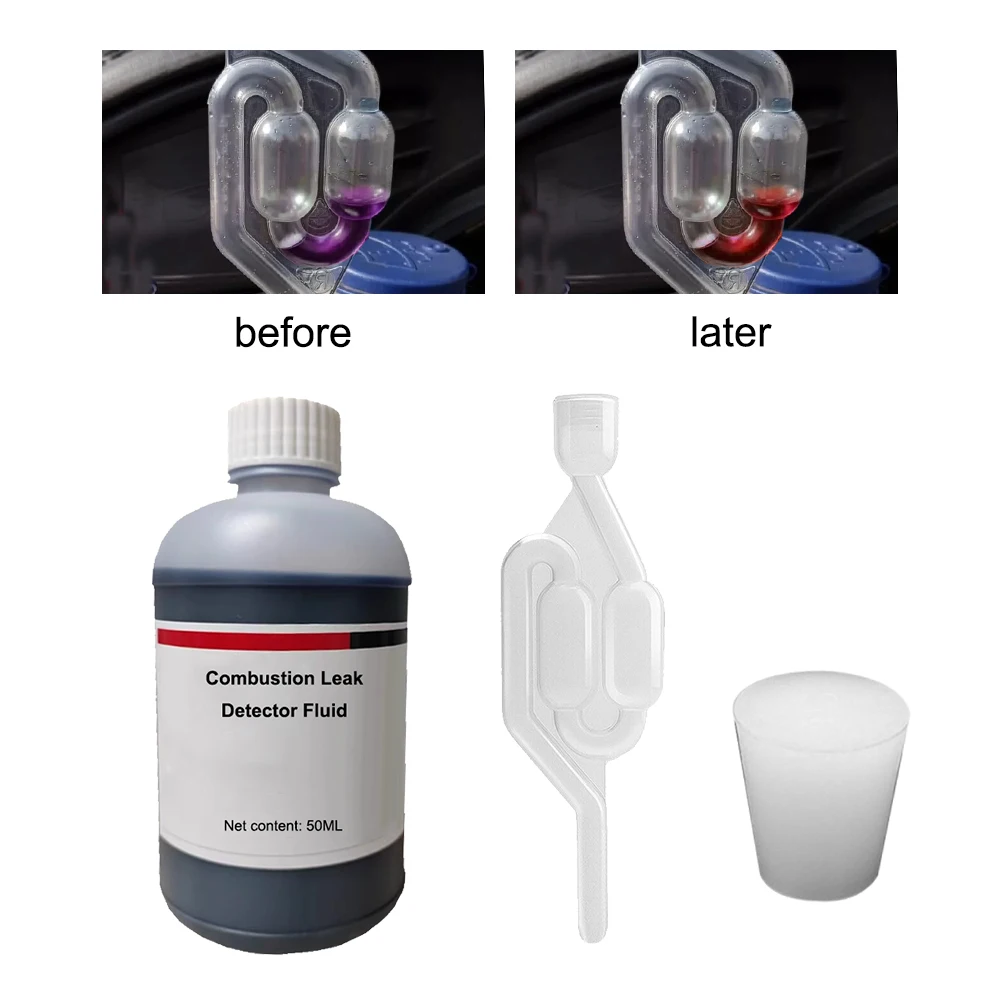

Package Included:

• CO₂ reaction fluid – 50ml

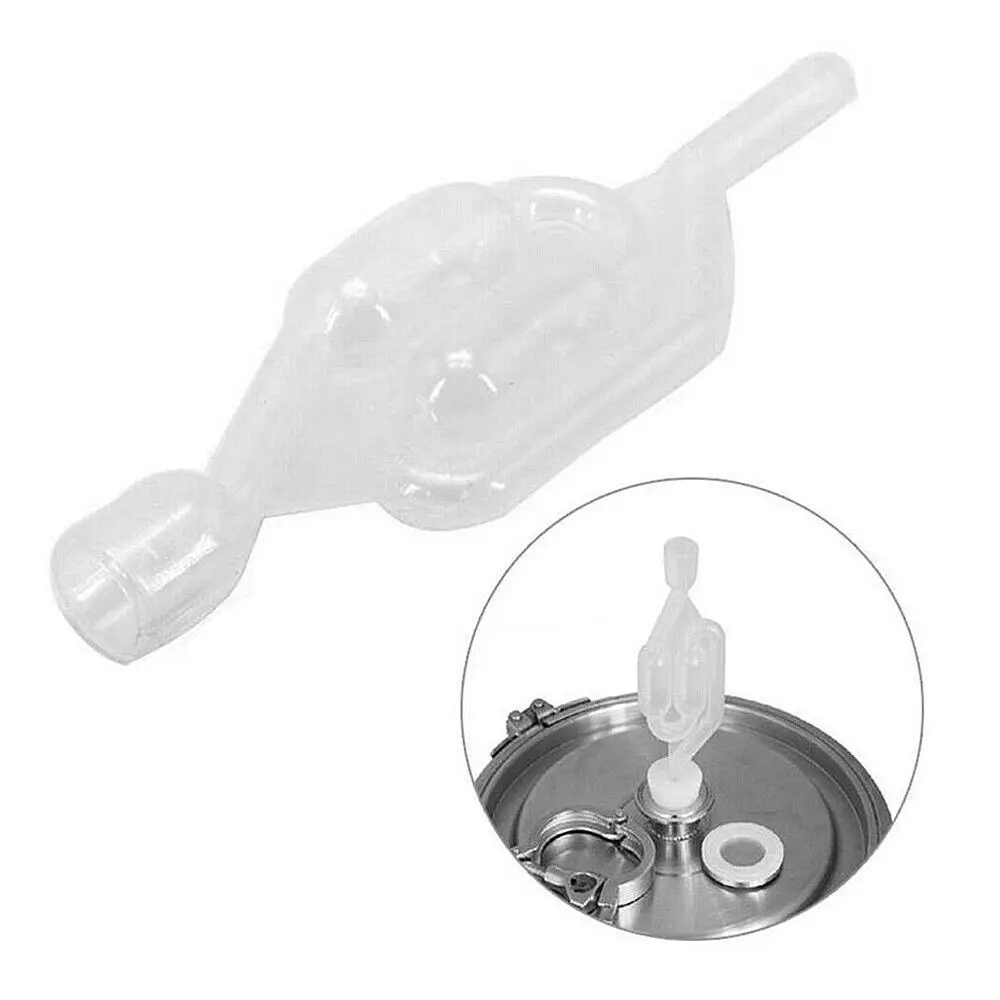

• Test tube
• Sealing adapter
•
