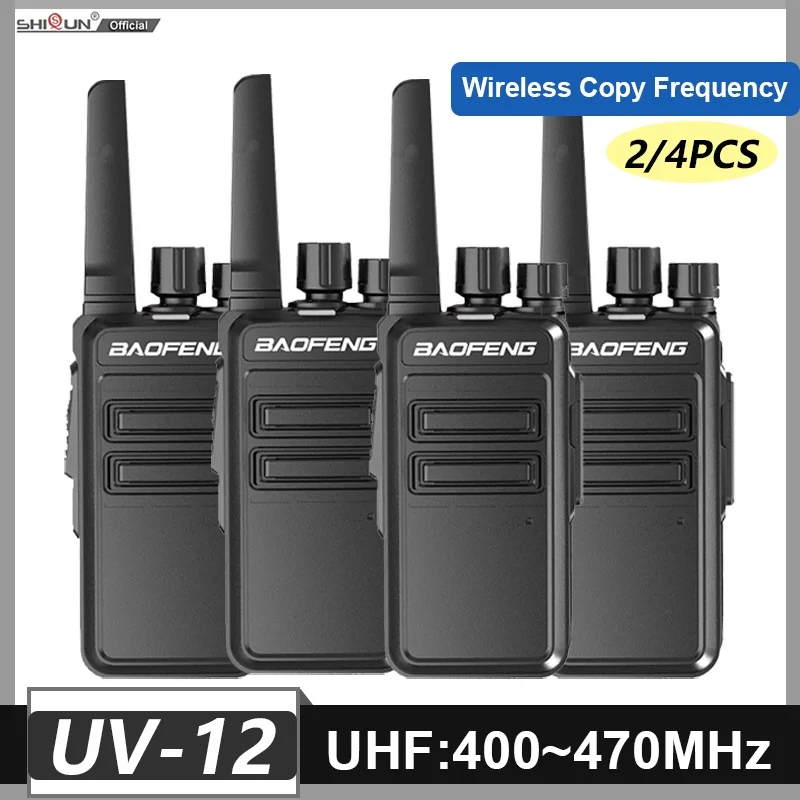

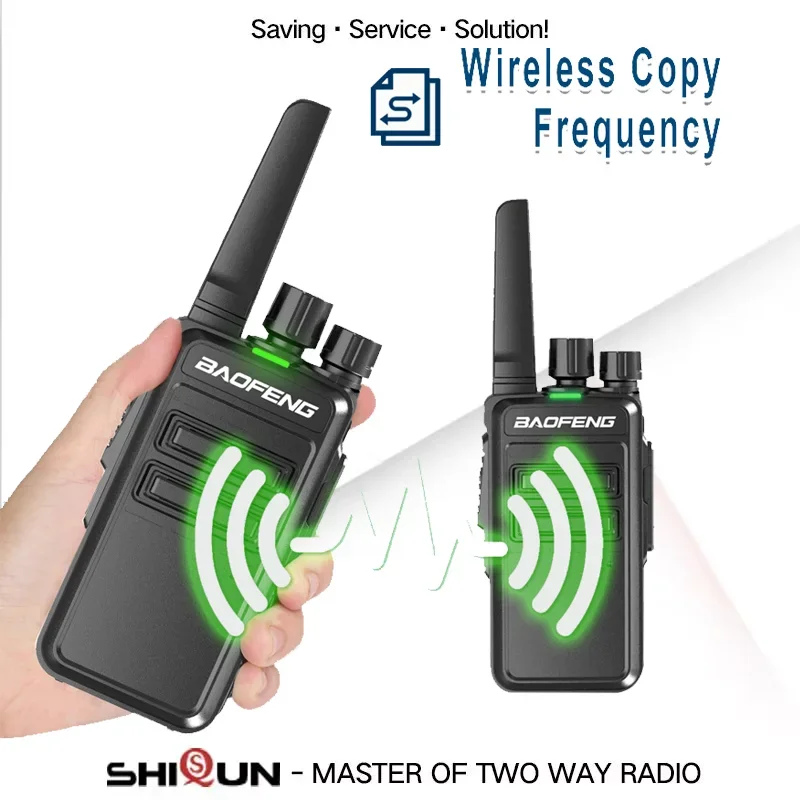

2/4PCS Baofeng UV-12 Walkie Talkies Wireless Copy Frequency AR-12 Type-C Charge Long Range High Capacity UV-12A Two Way Radio

Function Operation
*SWITCHING POWER ON/OFF
Tum the power switches/volume control clockwise. You will hear a
channel number, indicating the radio is ON.
*ADJUSTING THE VOLUME
Hold MONI button down to listen to audio level while rotating the Power
switch/olume control.Rotate clockwise to increase volume and
counterclockwise to decrease volume.
*SELECTING THE CHANNEL
Turn the channel switch to select your desired channel.NO.16 is Scanning Channel


Battery Charging
1. Take out the charger,plug the AC(100-240V)50/60Hz, then Green
LED flashes;
2.Plug the battery or the radio with battery on the charger; make sure
the battery is connected with the charger.
3. The charging process initiates when the red LED lights, the charging
time based on the battery capacity. The green LED lights indicating
the battery is fully charged.
4. Use the USB cable to plug to the radio, orange LED lights when  charging,
The light off indicates that the fully charge d.

A.LED Indicator: Green LED flashes when receive the signal,Red LED
flashes when transmission.
B.Channel knob: Rotate the knob to choose the channel (CH1-CH15),
CH16 is scan channel.
C.ON/OFF knob/olume knob: Rotate the knob clockwise to turn on the
radio, anticlockwise to tum off the radio. By rotating to control the volume.
D.PTT switch: Press PTT and speak to the microphone to call, listen
when release.
E.Monitor: When press Monitor key, the squelch opened and the
background noise comes out; the squelch close when release the
monitor key.
F.USB Rapid charge plug.
G.Speaker/Microphone rubber plug: Please cover when not use the speaker and microphone.H. Insert loudspeaker. J.Microphone

【 Multi Functional to Meet Y our Various Needs】

  Up to 16 channels can be stored for communication with other radio devices of the same frequency.

【 Long Range Walkie Talkies】

   When the walkie talkie is in good condition and in a wide environment, it can reach a communication distance of 3 miles.Tip:The actual communication distance depends on the current environment

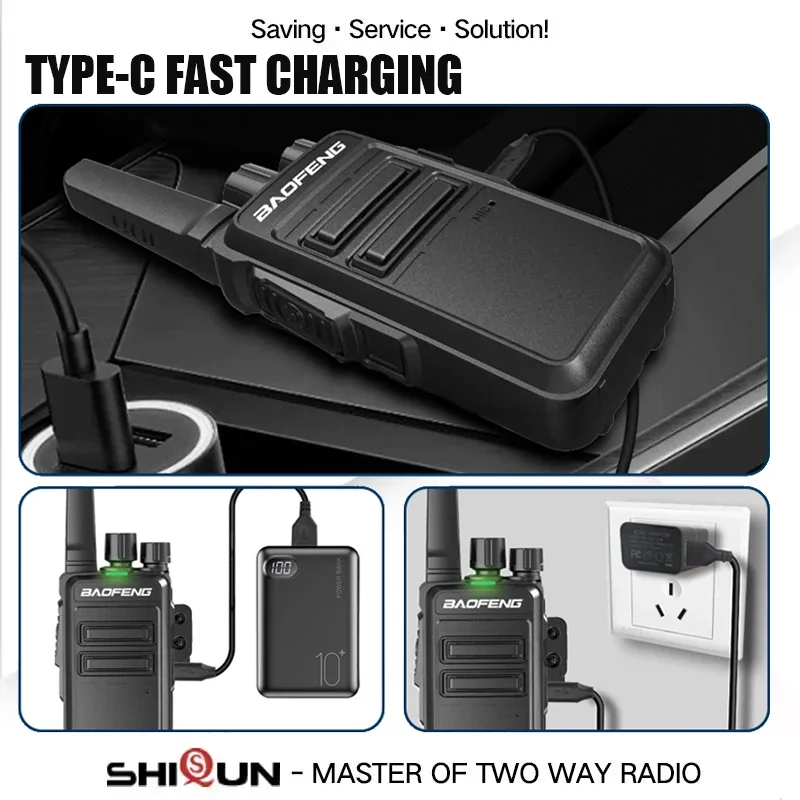

【USB-C Charger】

   Provide a more convenient charging method, allowing you to easily charge on any USB port, such as a computer, power bank, car, etc;Long battery life, uninterrupted communication

【Hands-Free Operation】

   When you turn on the vox function,you can easily communicate to others without constantly holding the walkie talkie.Especially for Camping,Cycling,Hiking,Fishing,Hunting or some business such as Hotels and Restaurant

  ◆Frequency
   UHF: 400- 470 MHZ (RX/TX)
  ◆Up to 16 Channels
  ◆50 Groups CTCSS, 105 Groups of standard DCS
  ◆Time-out timer(TOT)
  ◆Battery saving function
  ◆Alarm function
  ◆USB rapid charge
  ◆Programmable by PC

General
Frequency range:UHF 400-470MHz
Memory channels:16
Operation voltage:3.7V DC
Frequency stability:+2.5ppm
Operation temperature:-20℃-+50C
Mode of operation:Simplex
Antenna impedance:50Ω

Transmitter
RF Power:<5W
Maximum deviation(W/N):≤5KHz/≤2.5KHz
Spurious emission:≤7.5uW
Adjacent channel power:≤-65dB/≤-60dB
SNR(W/N):≥-45dB/2-40dB
QT/DQT(W/N):0.7±0.1KHz/0.4±0.1KHz
Modulation sensitivity:8-12mV
Transmission current:≤1.2A

Receiver
Sensitivity:-122dBm (12dB SINAD)
Audio power:0.4W (8R Load)
Audio distortion:≤10%.
Intermediation(W/N):≥65dB/≥ 60dB
Adjacent channel selectivity(W/N):≥65dB/≥ 60dB
Clutter suppression:65dB
Receiver current:≤380mA

Note: The above specifications/technical instructions are for reference
only because of the continuous improvement of the technology.Please refer to the physical object.

 2/4*Radio

 2/4*Battery

 1/2*2in1USB-C

 1/2*Plug(No Charging Stand)

 2/4*Lanyard

 1*Manual
【Note】
 1.Other Accessories Depend on Your Choice
 2.Please allow 1-2 CM differences due to manual measurement, thanks.
