Specifications

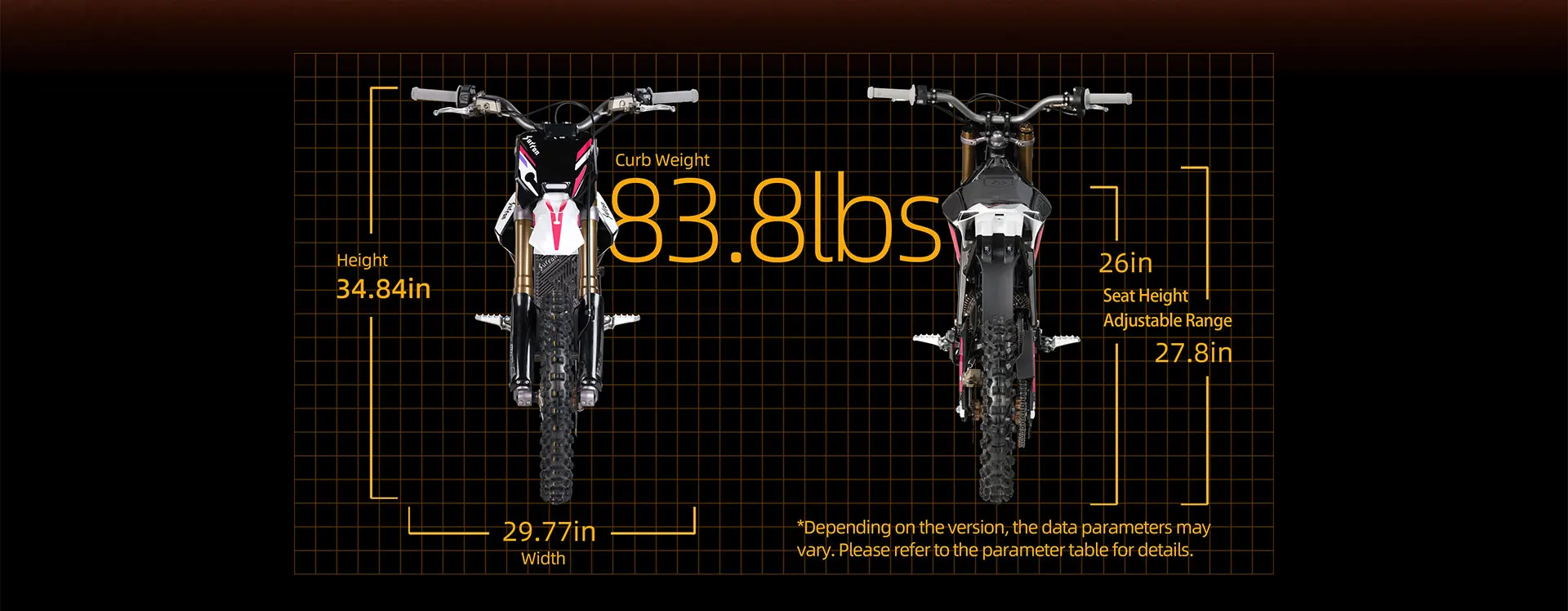

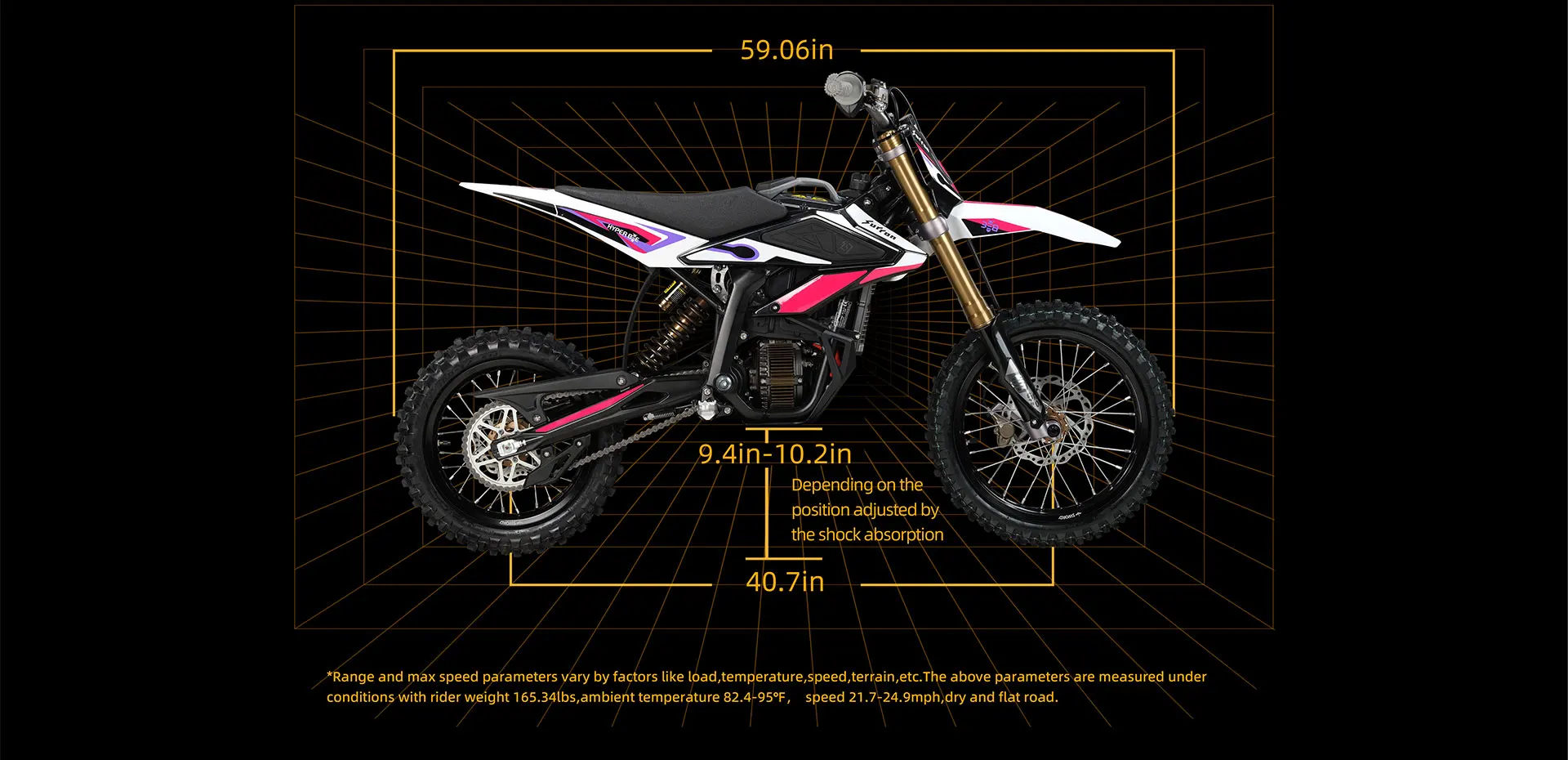

Dimension 59.06inx29.77inx34.84in

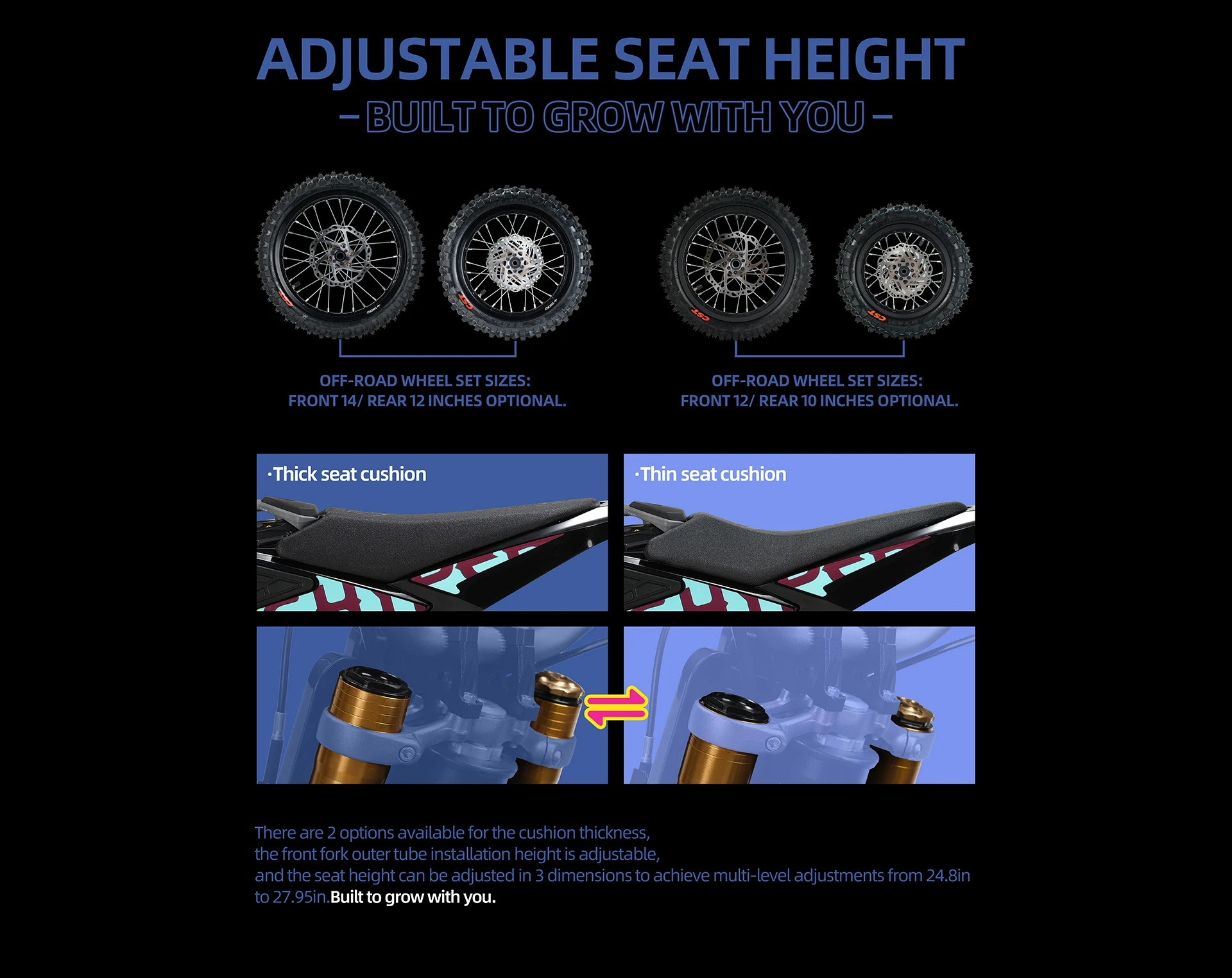

Seat Height 26.9in
adjustable range 26in-27.8in
Curb Weight 85.9lbs
Ground Clearance 9.4in-10.2in Depending on the position adjusted by the shock absorption
Max. Torque （on wheel) 117ft-lbs

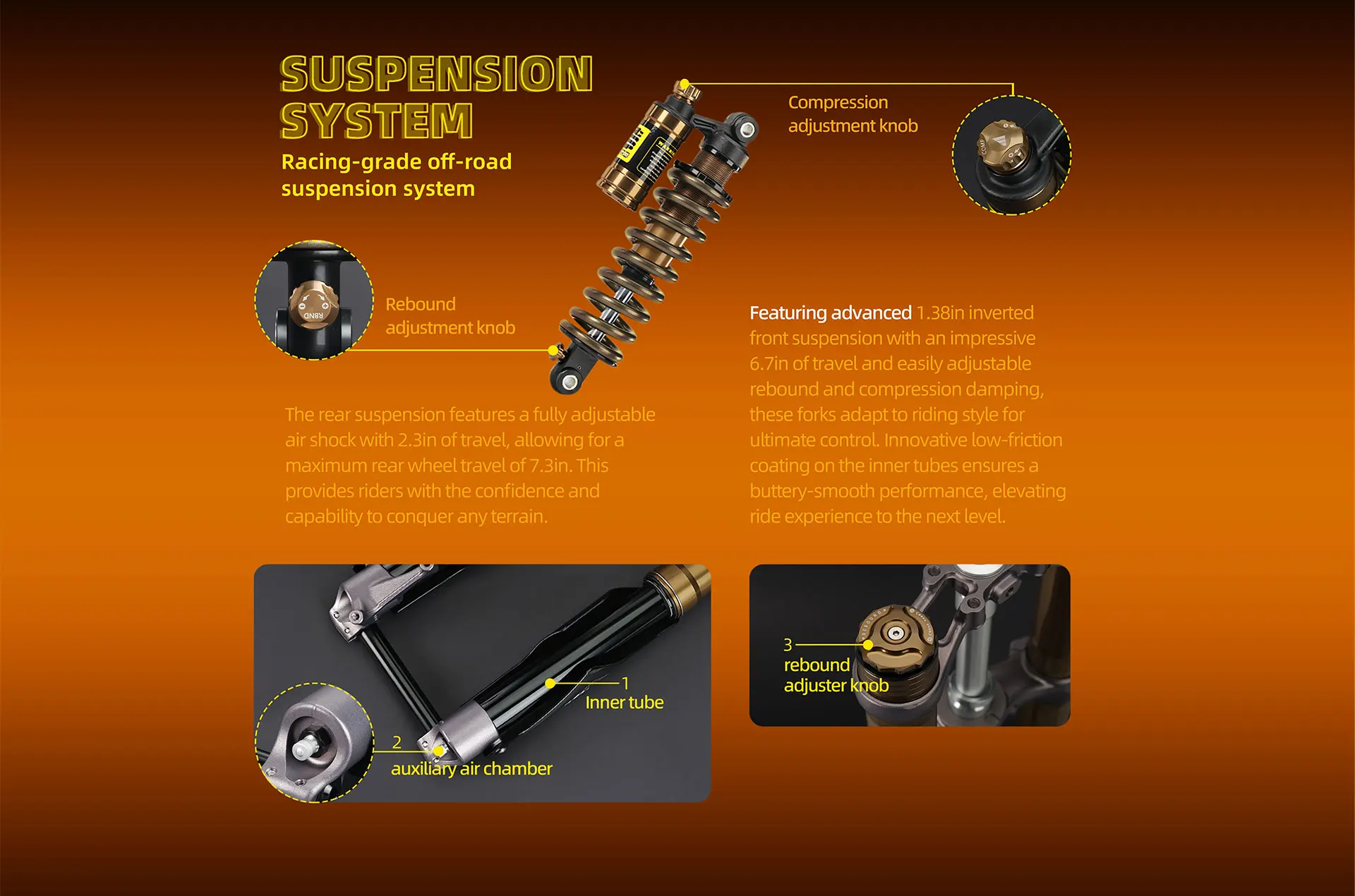

Front suspension system 1.4in inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 24.6in, stroke 6.7in
Rear suspension system
Airbag type adjustable 9in single rear shock 2.3in/7.3in
Wheel Base 40.7in
Carrying Capacity 143.3lbs

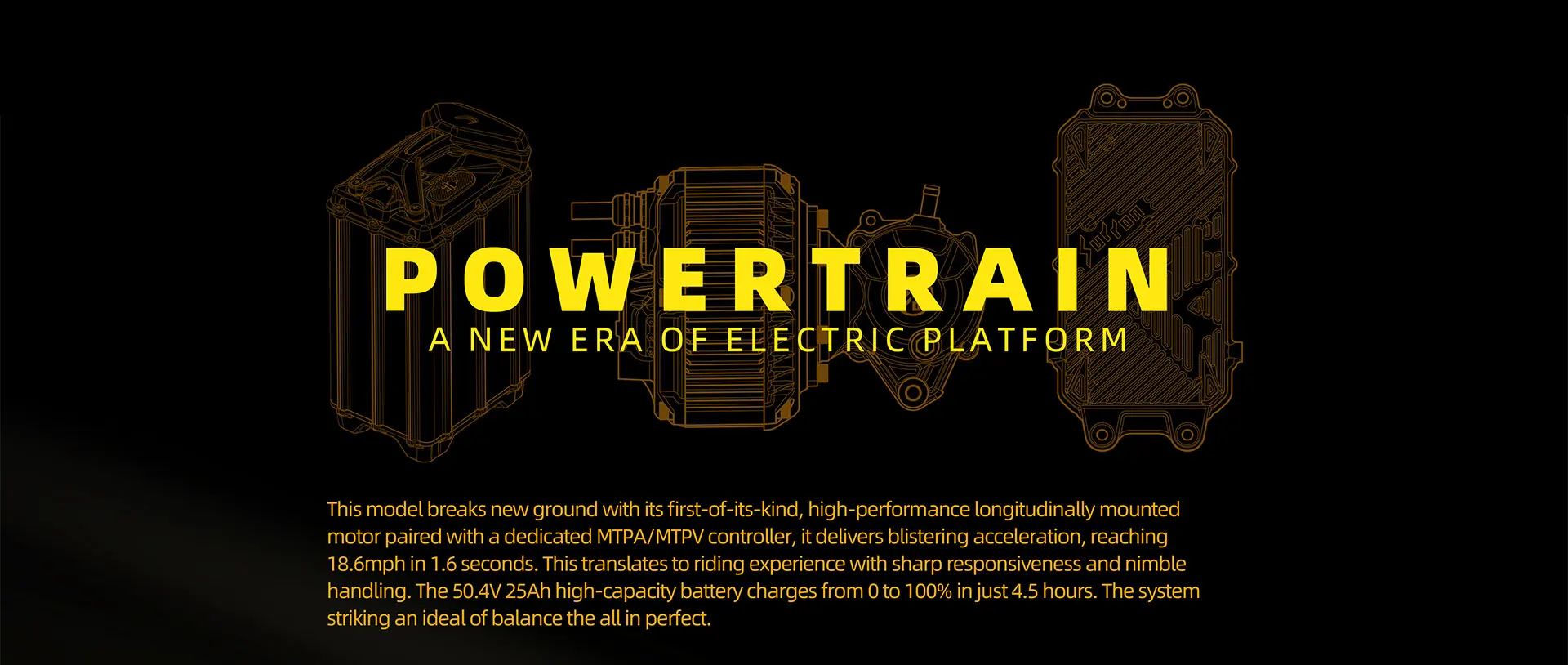

Power System
Power System

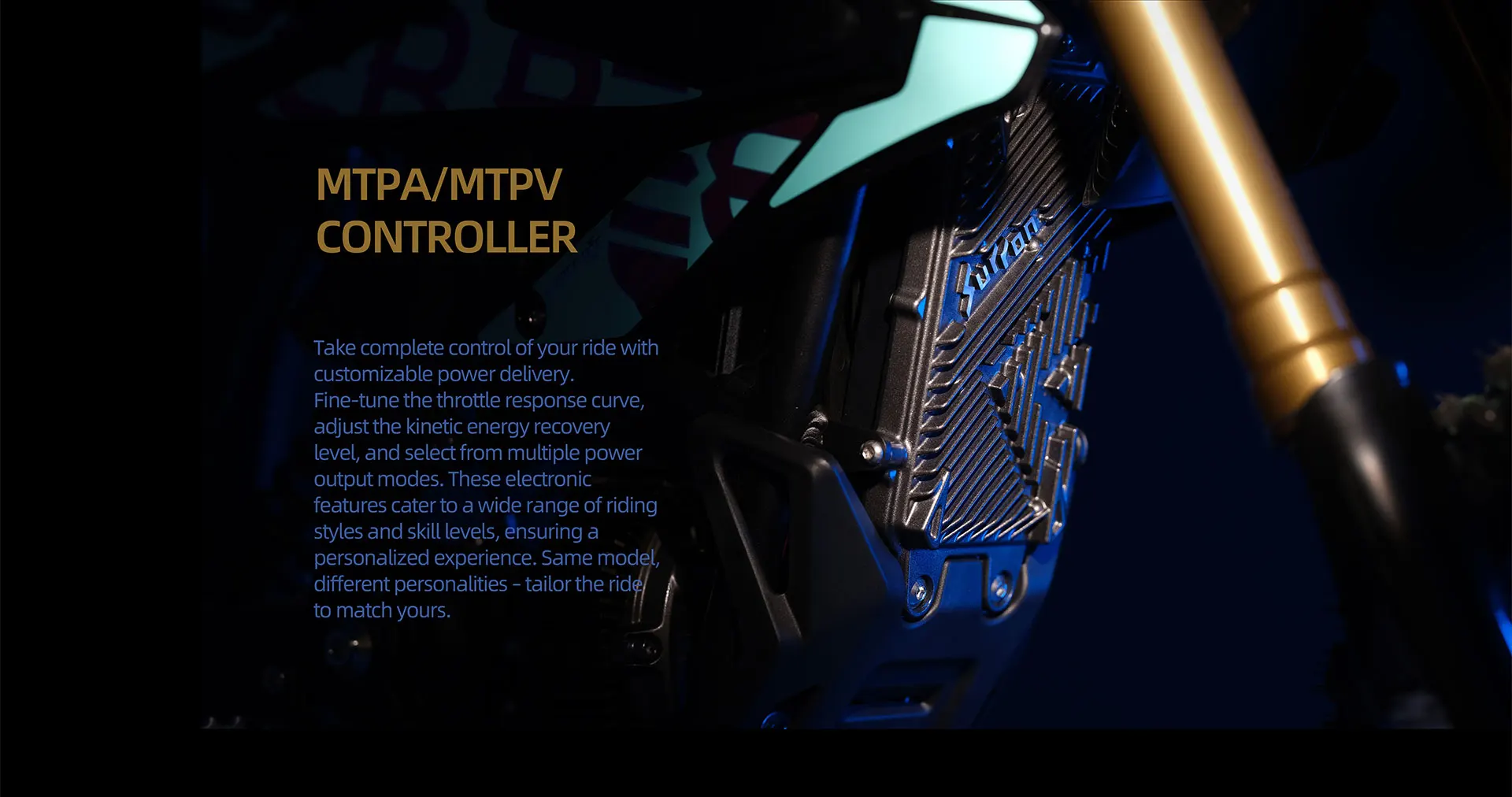

PMSM, MTPA/MTPV Controller
Maximum Power(Motor) 5kw
Riding Mode 1/2/3/Reverse R
Assistance Functions
Sliding energy recovery with three-level adjustable levels

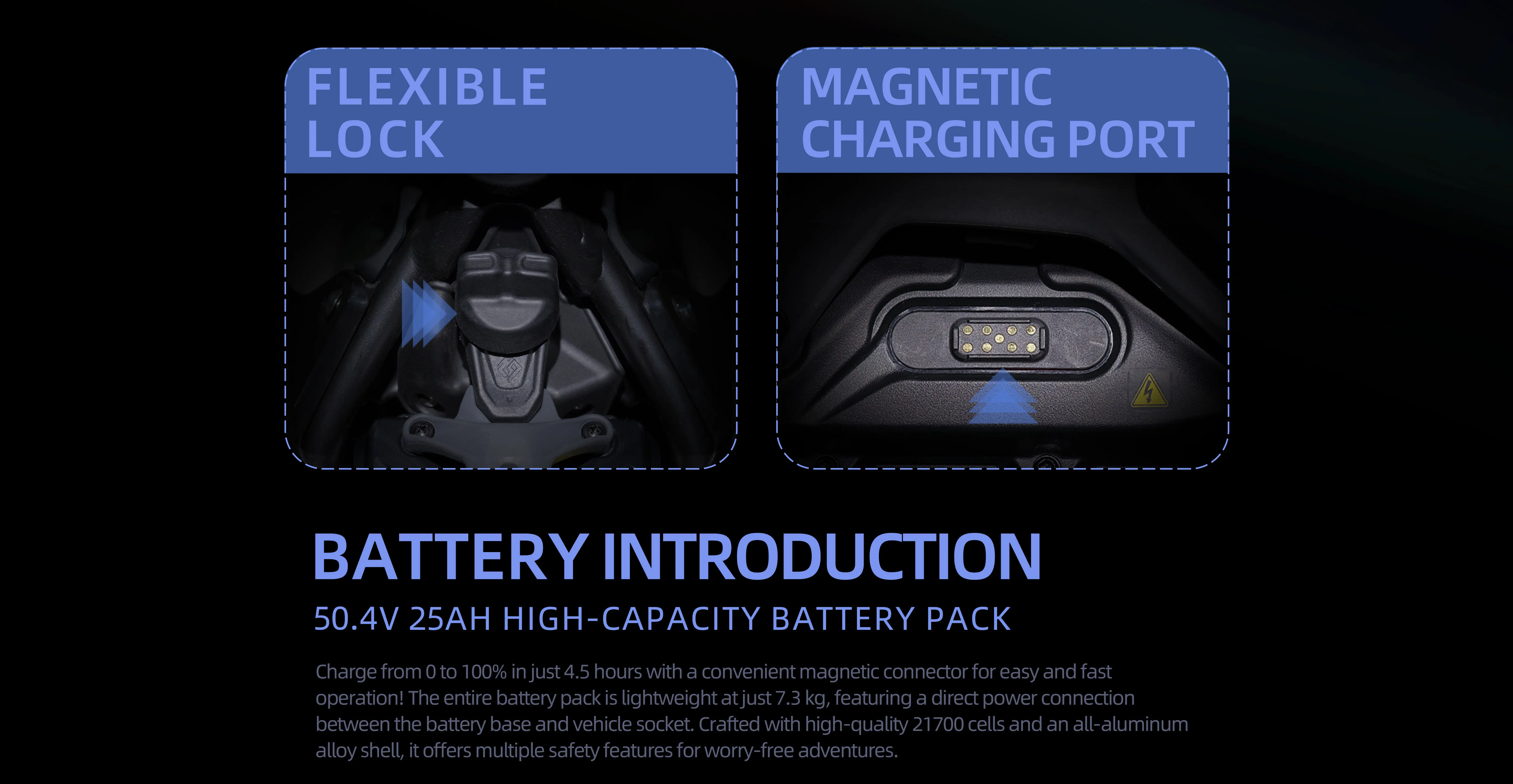

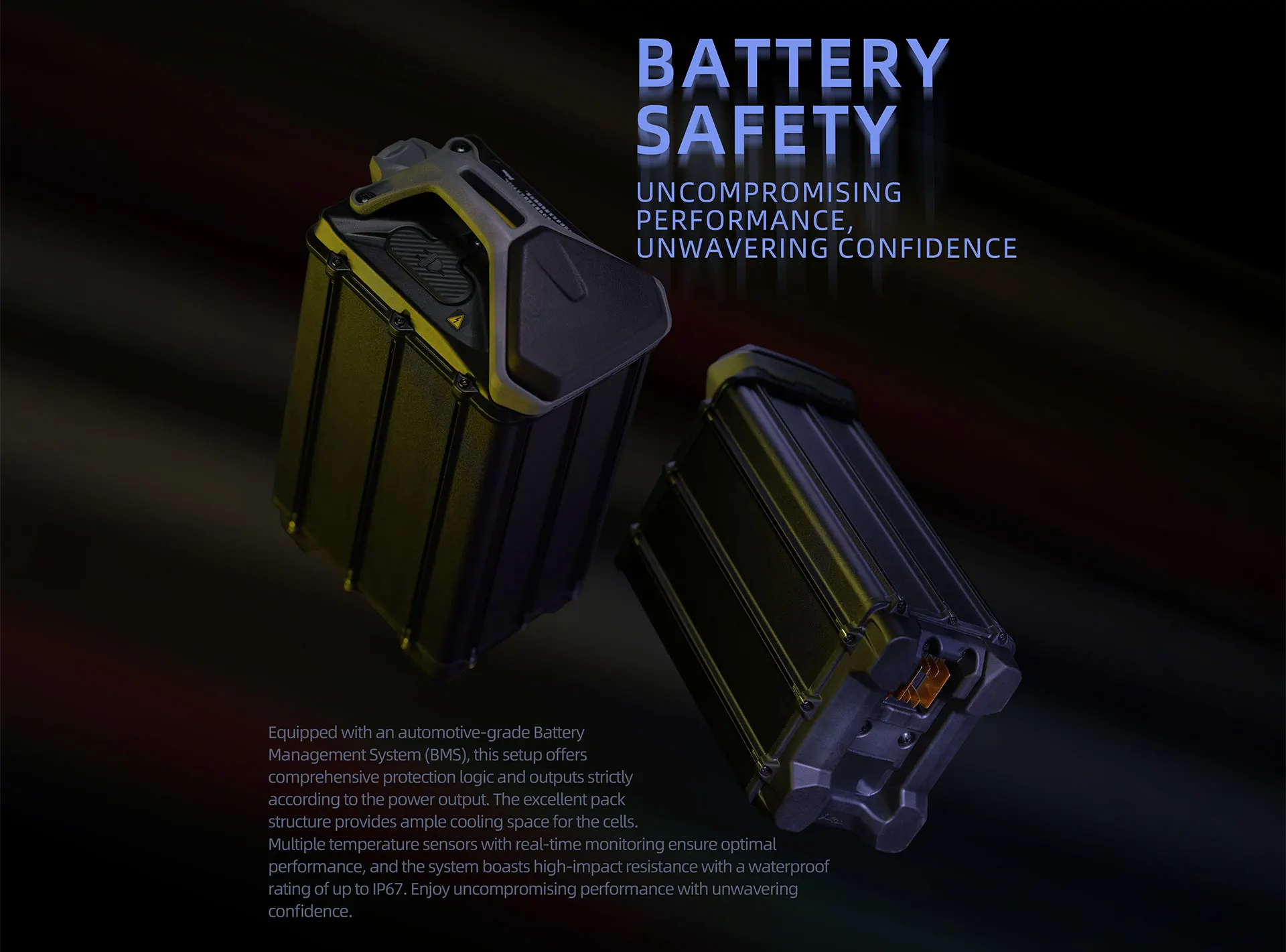

Battery Type 50.4V/25AH Lithium-ion Battery pack
Throttle Curve Three-stage Adjustable
Primary Belt System

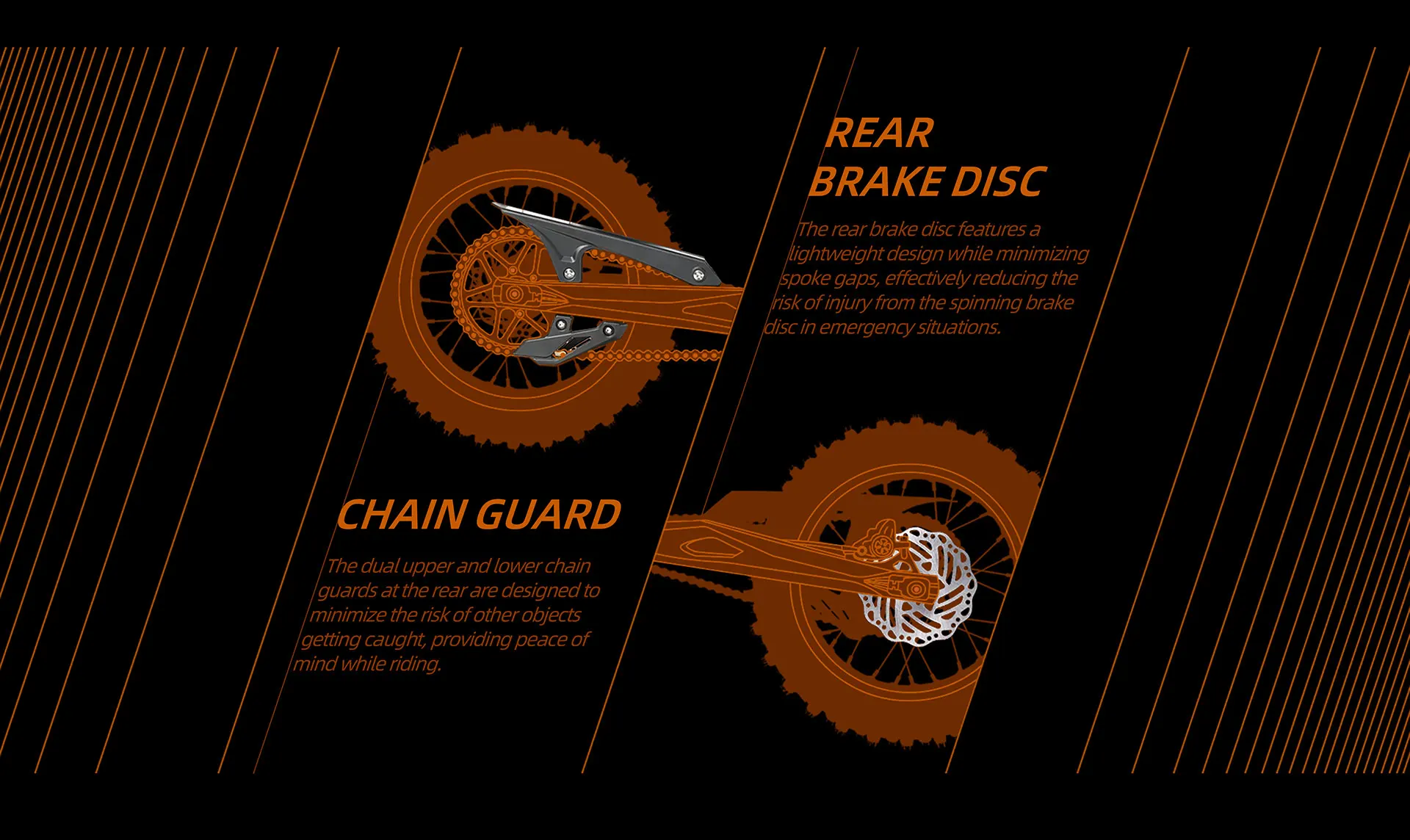

Primary gear drive + second chain drive
Charging Parameter
Portable charger-magnetic charging-fully sealed
Performance
Top Speed 34mph
WMTC road
Charge Time（20%-80%）2.5h
Frame&Tire
Tires Type
Front-60/100-14 Off-Road
Rear-70/100-12 Off-Road
Frame Material
Frame Material Forged aluminium alloy

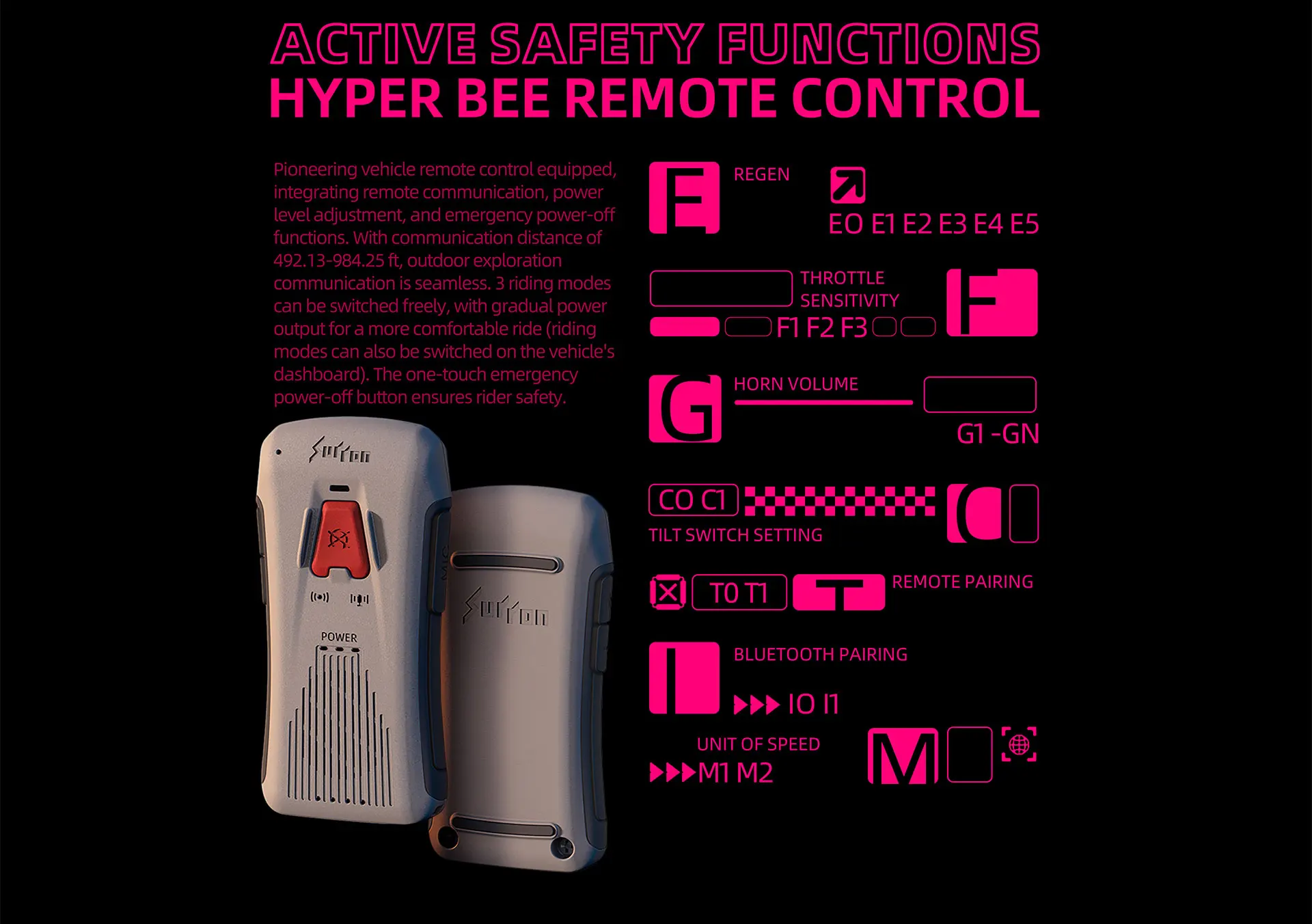

Assistant Functions Remote control function
Intercom function｜Power mode setting
Safety function
Magnetic emergency switch｜Remote emergency power off function
Tilt Protection
Gyroscope sensor(Can be turned off in feature setting mode)
*Range and max speed parameters vary by factors like load,temperature,speed,terrain,etc.The above parameters are measured under conditions with rider weight 165lbs,ambient temperature 28-35℃，speed @25mph,dry and flat road.
