Read in front:
1.Choose the number of racks according to the size of your gate.
2.Choose metal rack or nylon rack according to the material of your gate. The metal rack can be welded and fixed with screws. Nylon rack needs to be punched and fixed with screws.Heavy gate choose steel racks.
3.The products are divided into motors and rack accessories. The weight of the motor is 13kgs and the rack is 2kg per meter. The shipping cost depends on the weight of the goods, if you need more, please contact the seller for the sea shipping price.
4.Choose accessories according to your needs.
5.Communication is very necessary, if you are not sure, please email or message the seller.

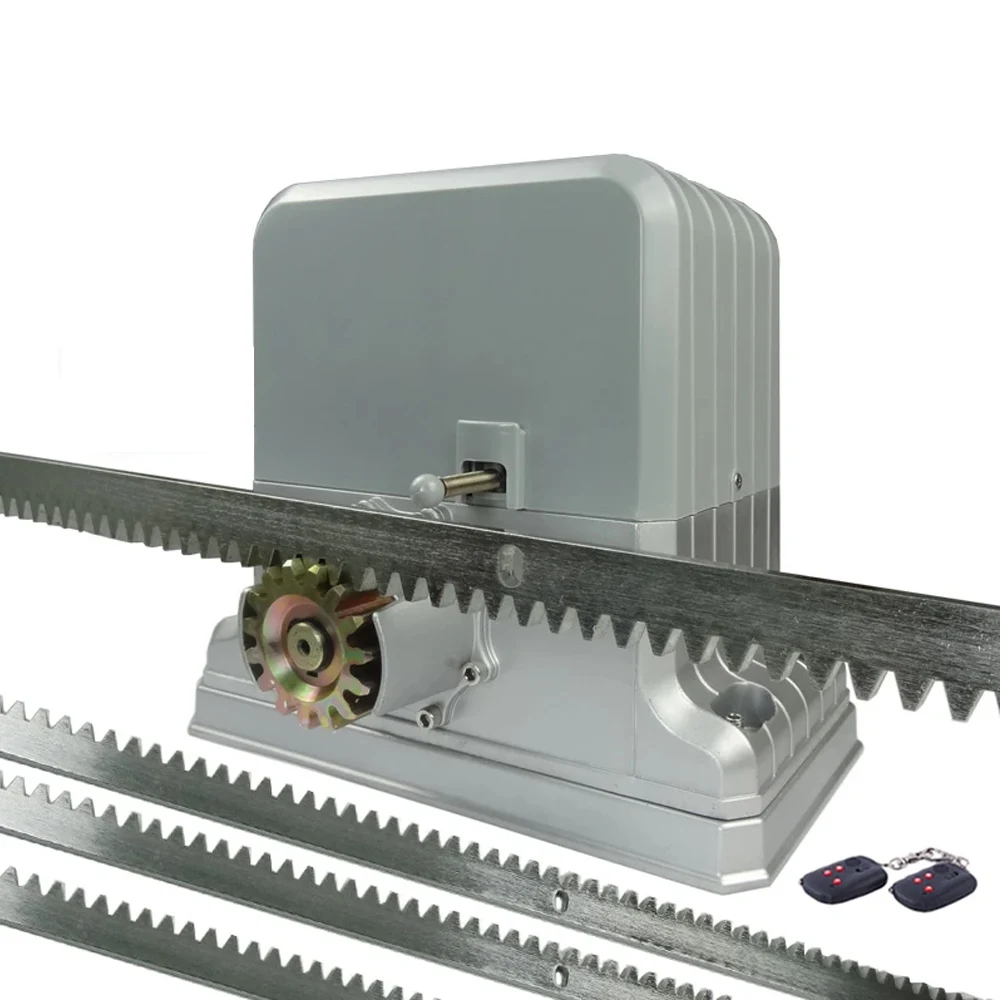

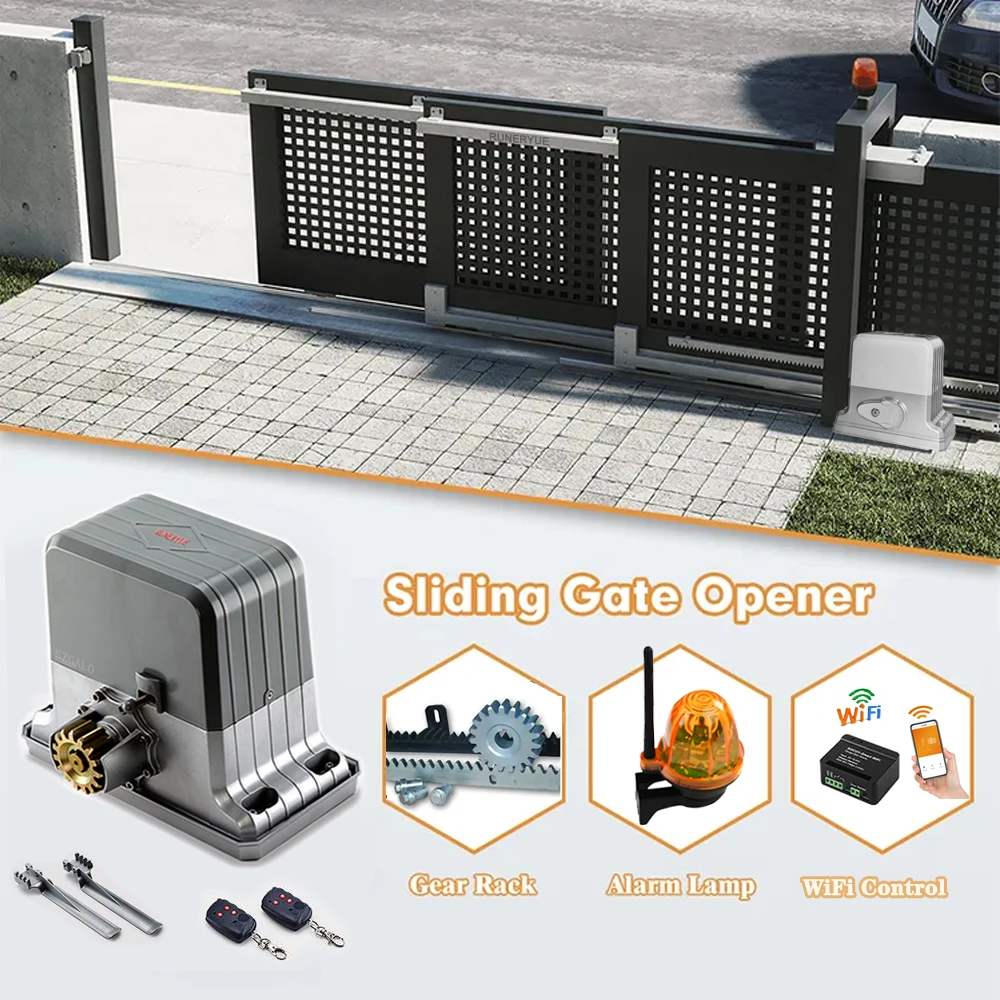

220V Automatic Electric Slide Gate Opener Operator Motor Sliding Door Gate Close 1800kg with 4m 5m 6m Gear Rack Rails KITS
â… :Summary
This is a brand-new design sliding gate operator, With all the functions and safety of door openers.brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.
â…¡:Parameters
1. Working temperature of motor-40°C～ +55°C
2. Working humidity≤90%
3. Power supply220VAC±10%/110VAC±10% 50Hz/60Hz
4. Rated power350W
5. Output gear moduleM=4
6. Capacitor60μf +14μf
7.Output torgue:35N.m
8. Open(close) speedv= 13.2/min
9. Rated speed 1620RPM
10. Manual Release:yes
11. Maximum load1800KG /4000LBS
12. Net weight13KG ,Nylon rack 1.5KG/PCS,Steel Rack 2KG/PCS
13.Remote control distance : ≤50m wifi control support 2.4G,No distance limit.
14.Packing : In carton(Please note that if you choose the Kit, they will be divided into at least two packages, please check the import in advance)

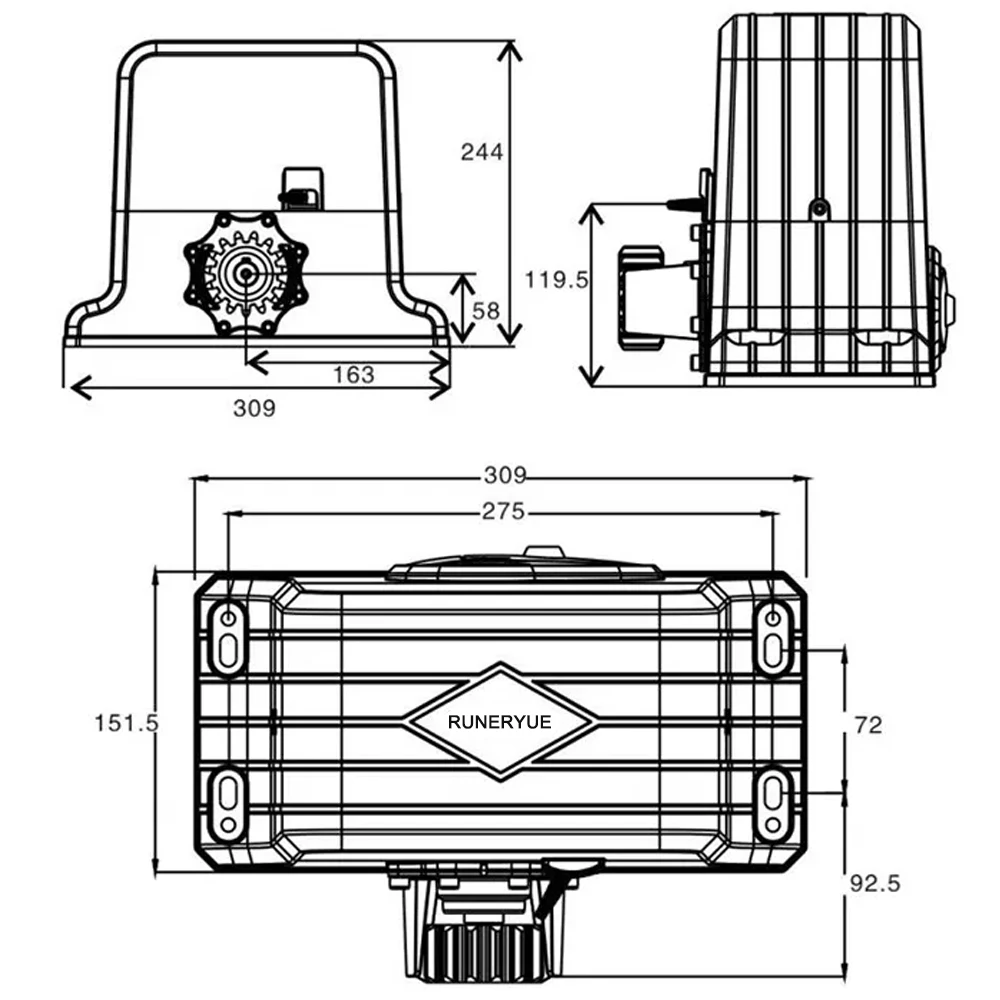

â…¢:Appearance and size
Installation diagram:
Note: If it is dual gate, you need two motors

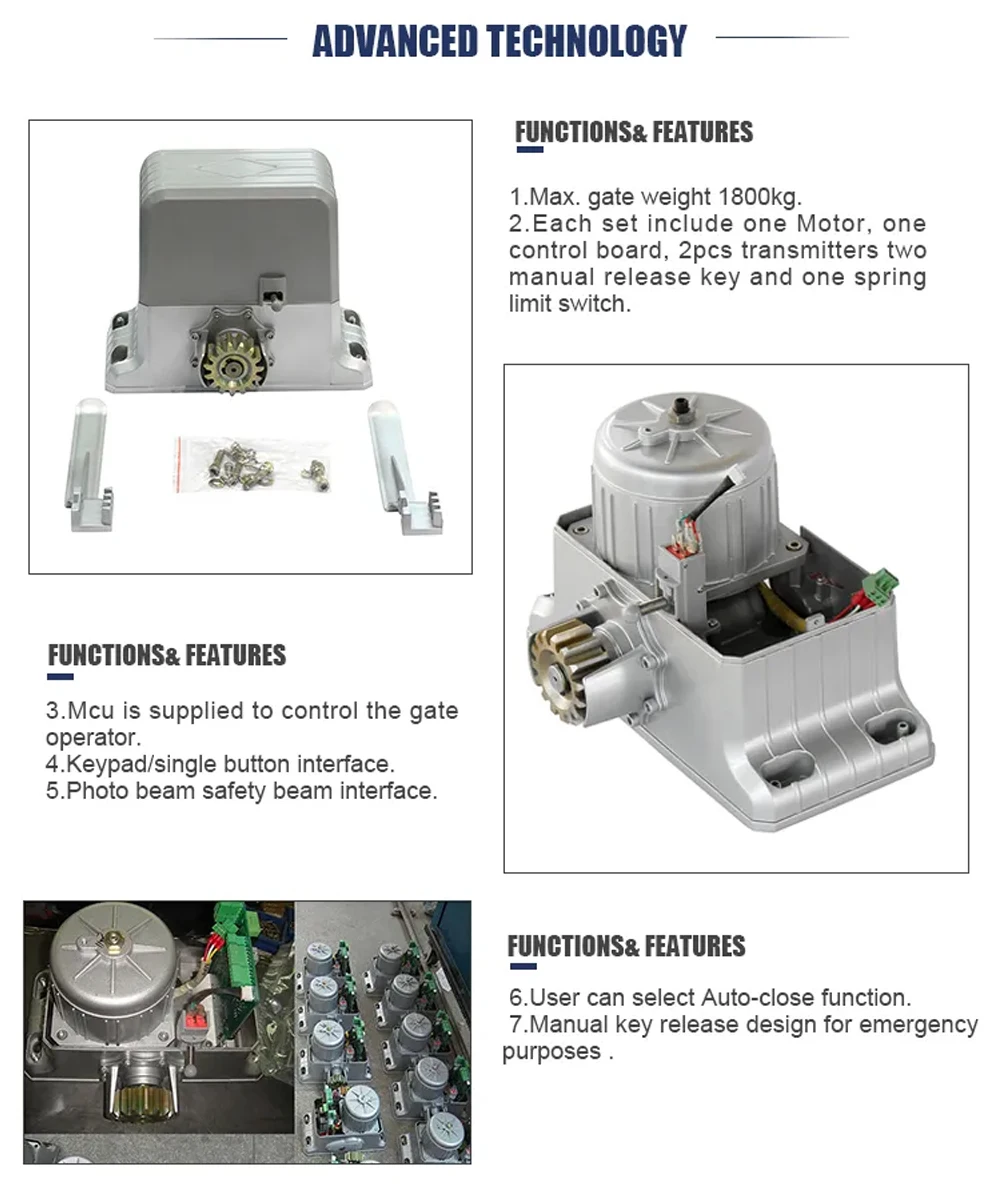

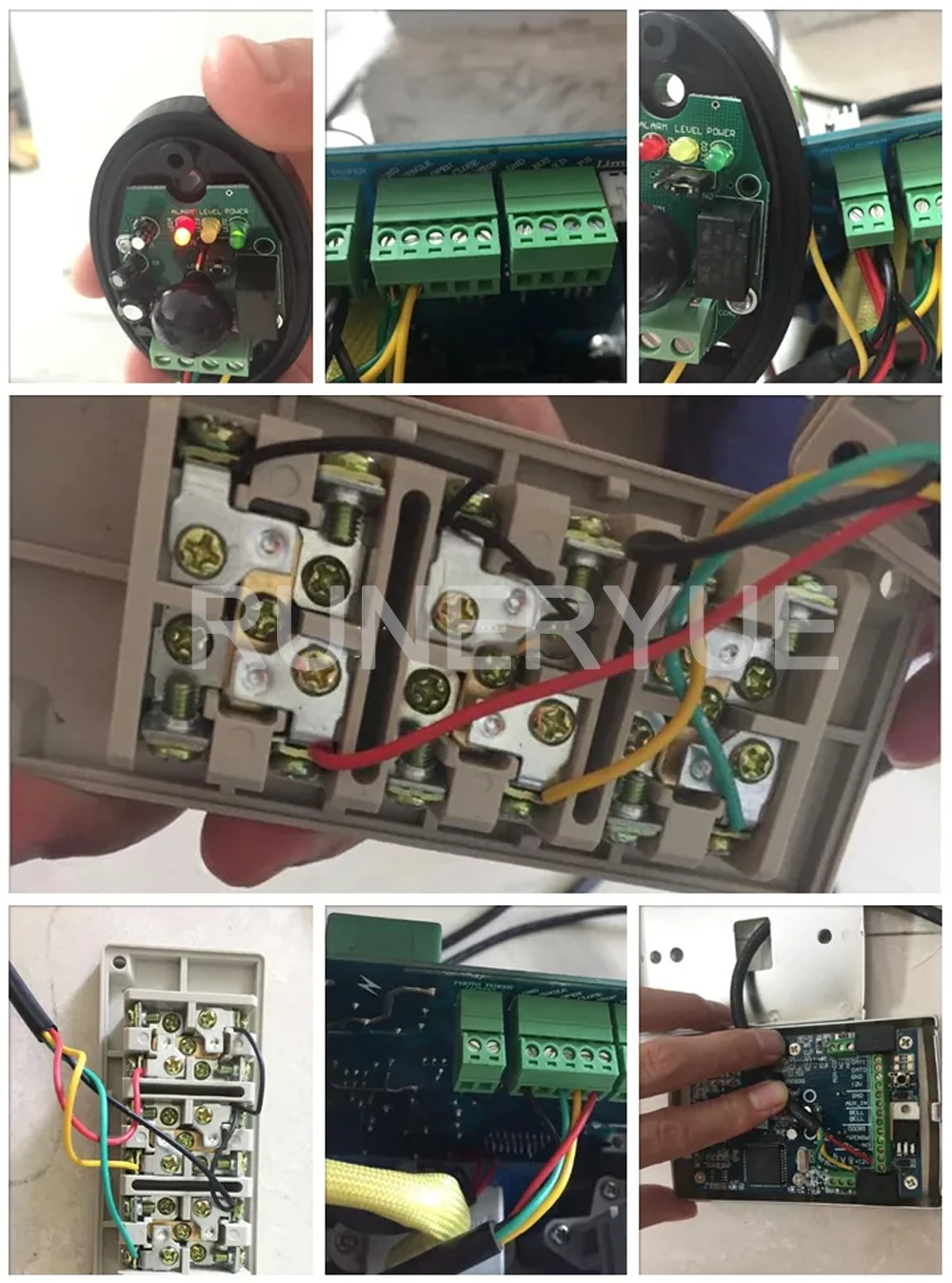

Internal structure display:
This sliding gate opener has many features such as: Strong traction, high quality, high-grade waterproof design, smart safety control system
1)Spring limit switch.
2)Super strong, high speed pure copper motor.
3)Intelligent control board. For electronic installation manual, please contact the seller, Email: [email protected]

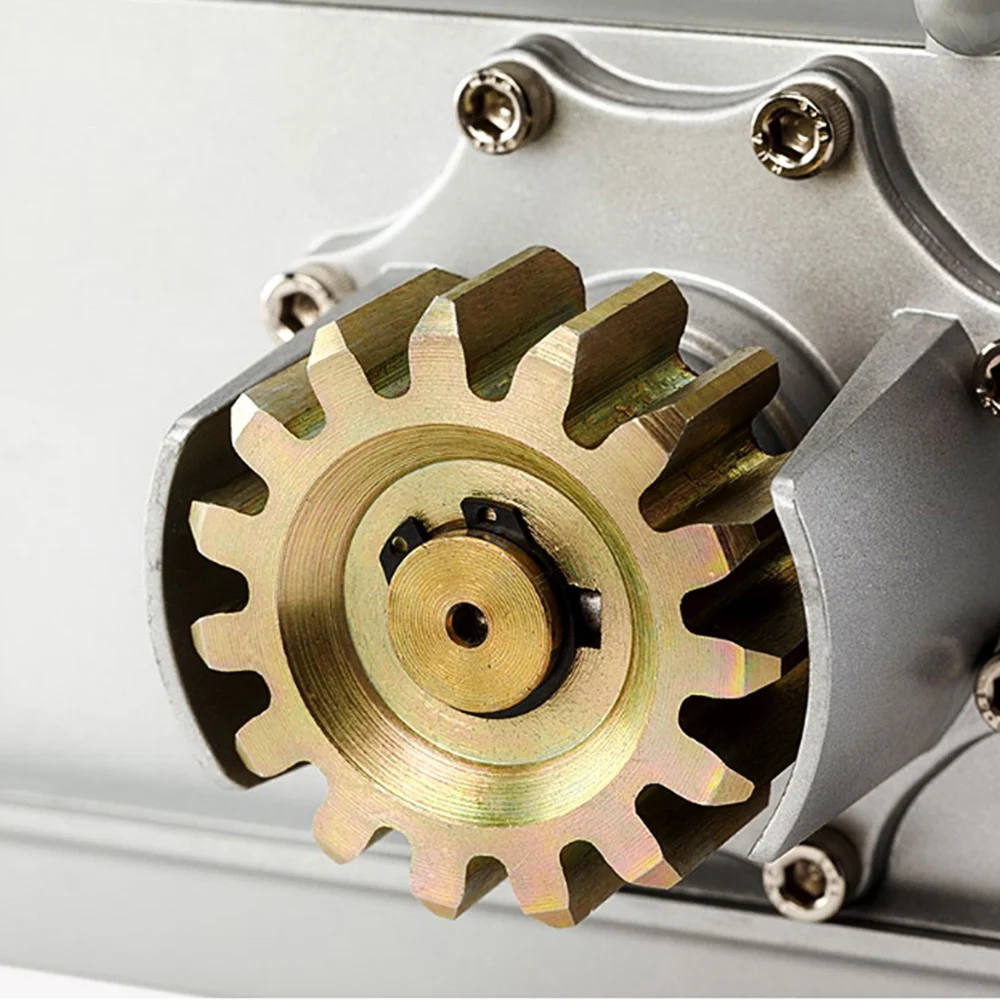

Rustless gear
If your gate is a light gate or PVC gate, wooden gate, you can choose nylon rack, they will be quieter. If you are heavy duty gates, I recommend the metal rack

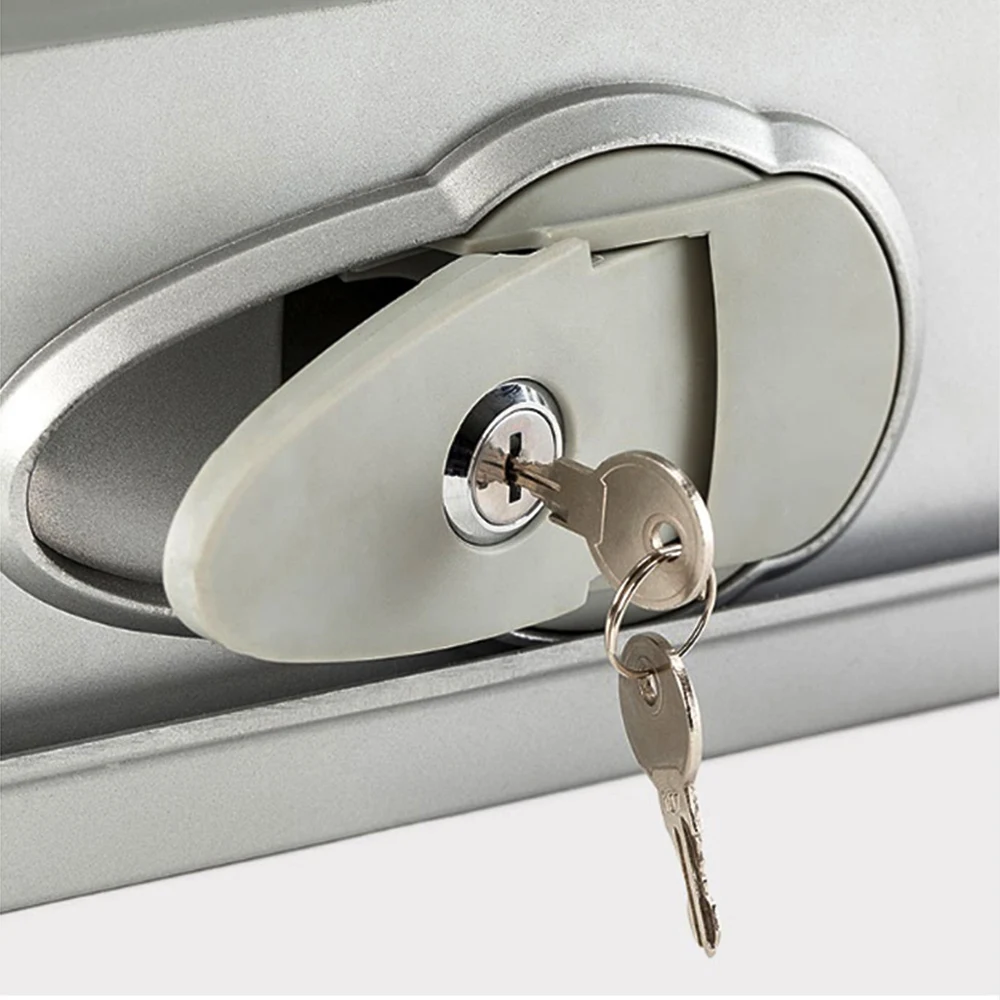

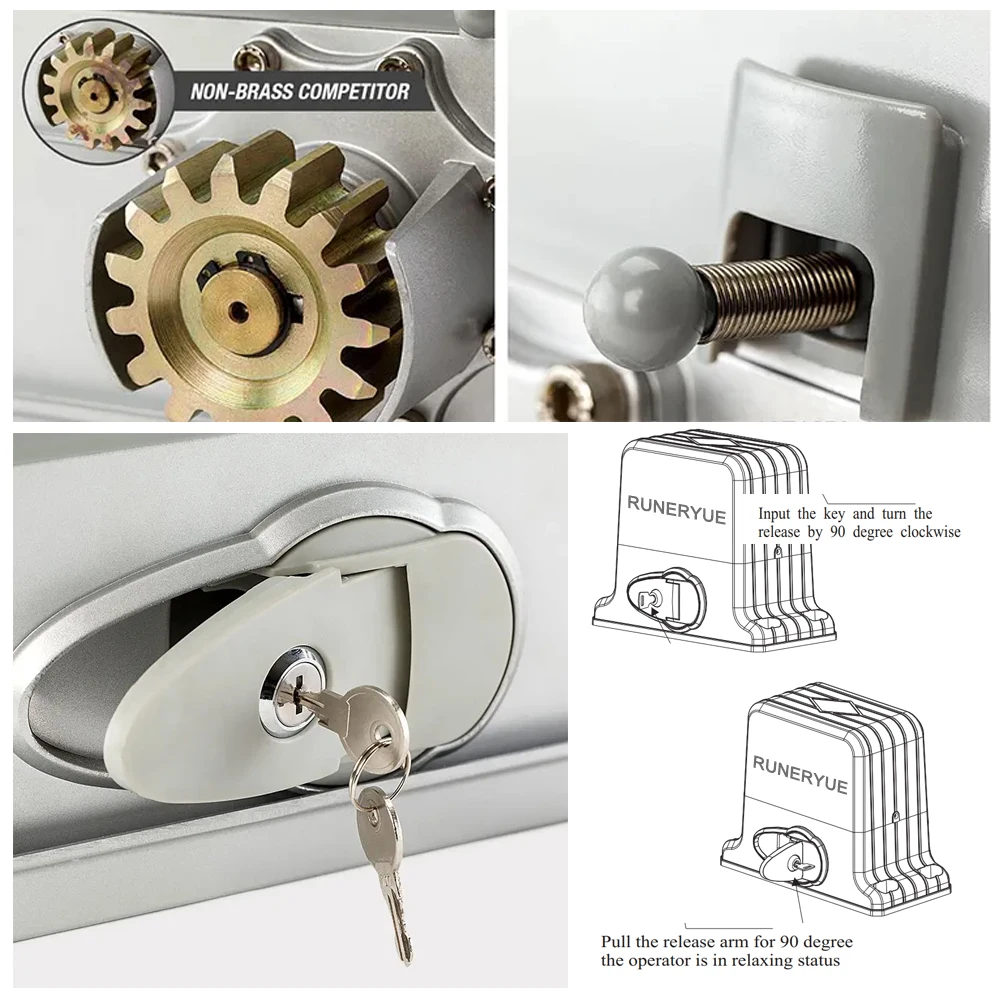

Traditional clutch, open the door after power off
Don't worry about being unable to open the door due to power failure. The metal key can open the clutch and open the gate manually.

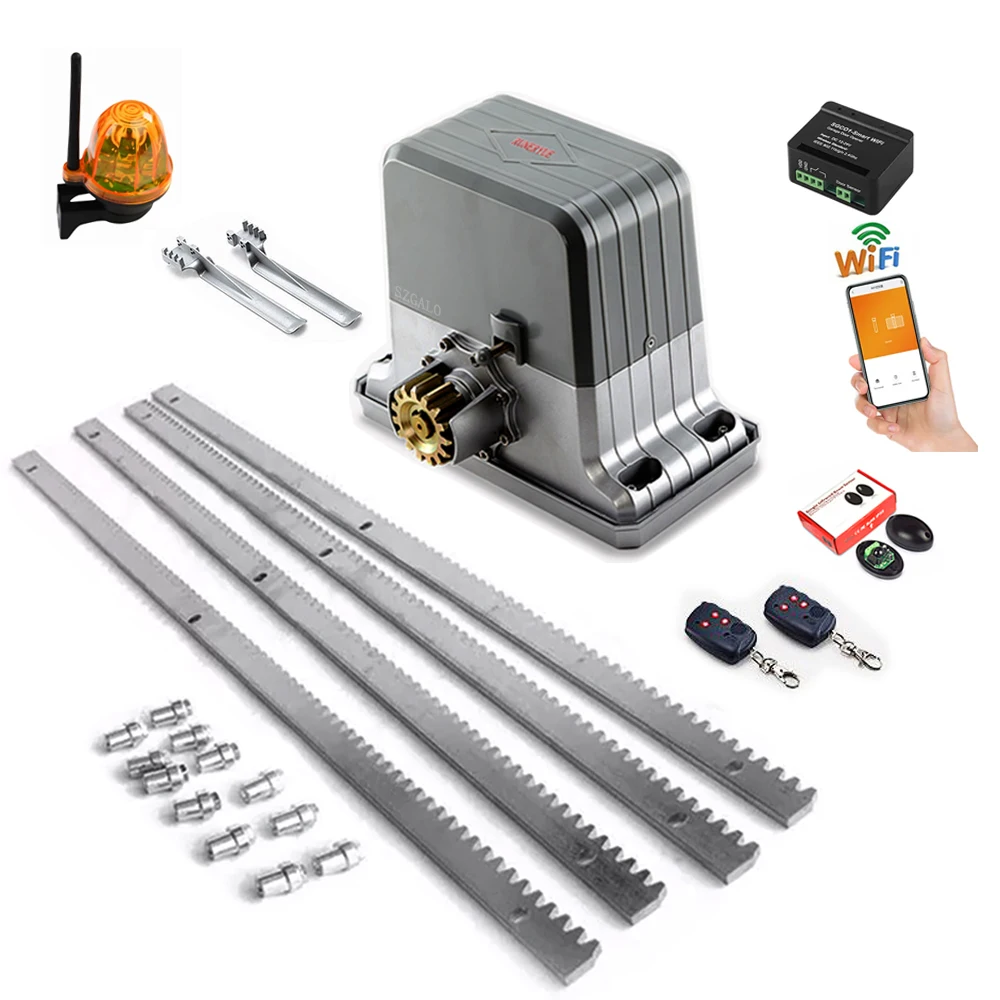

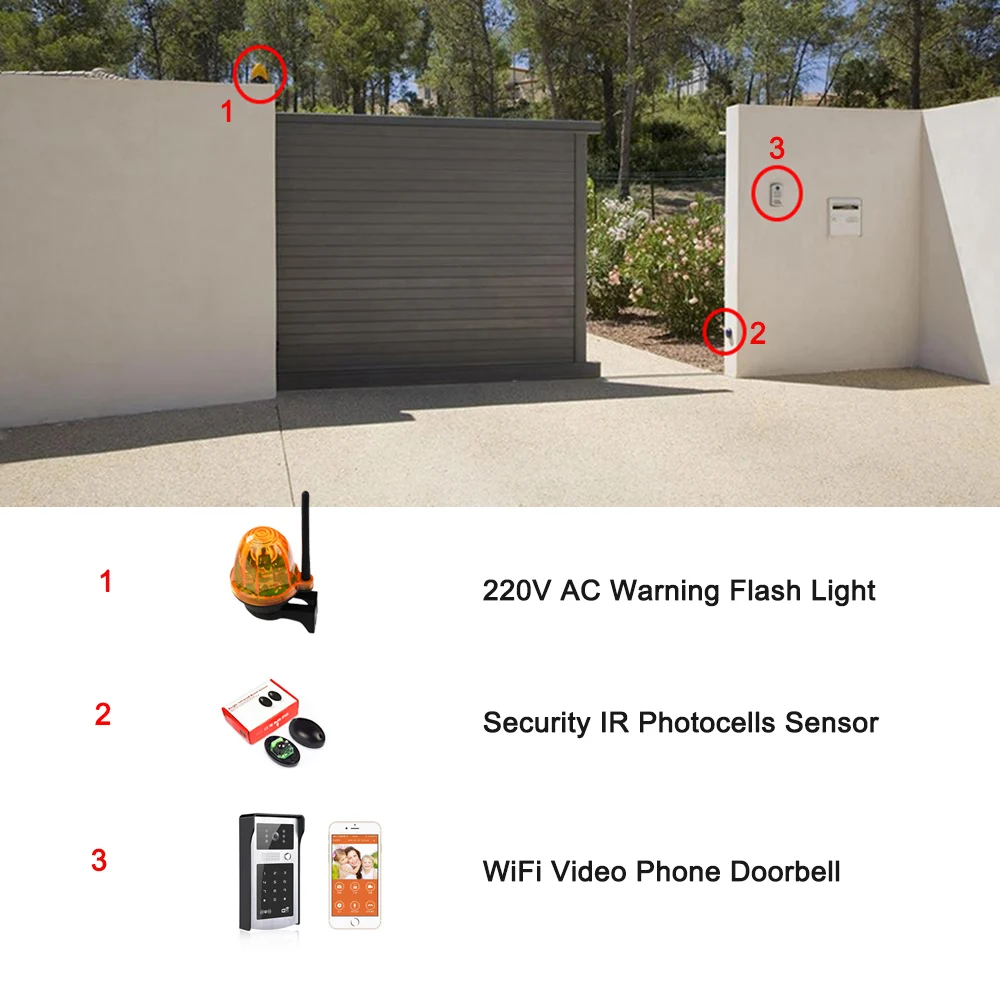

Optional accessories
You can choose metal rack, nylon rack, flashing warning light, safety photocells sensor, wifi controller according to your needs.
Support wifi phone control
Smart wifi controller

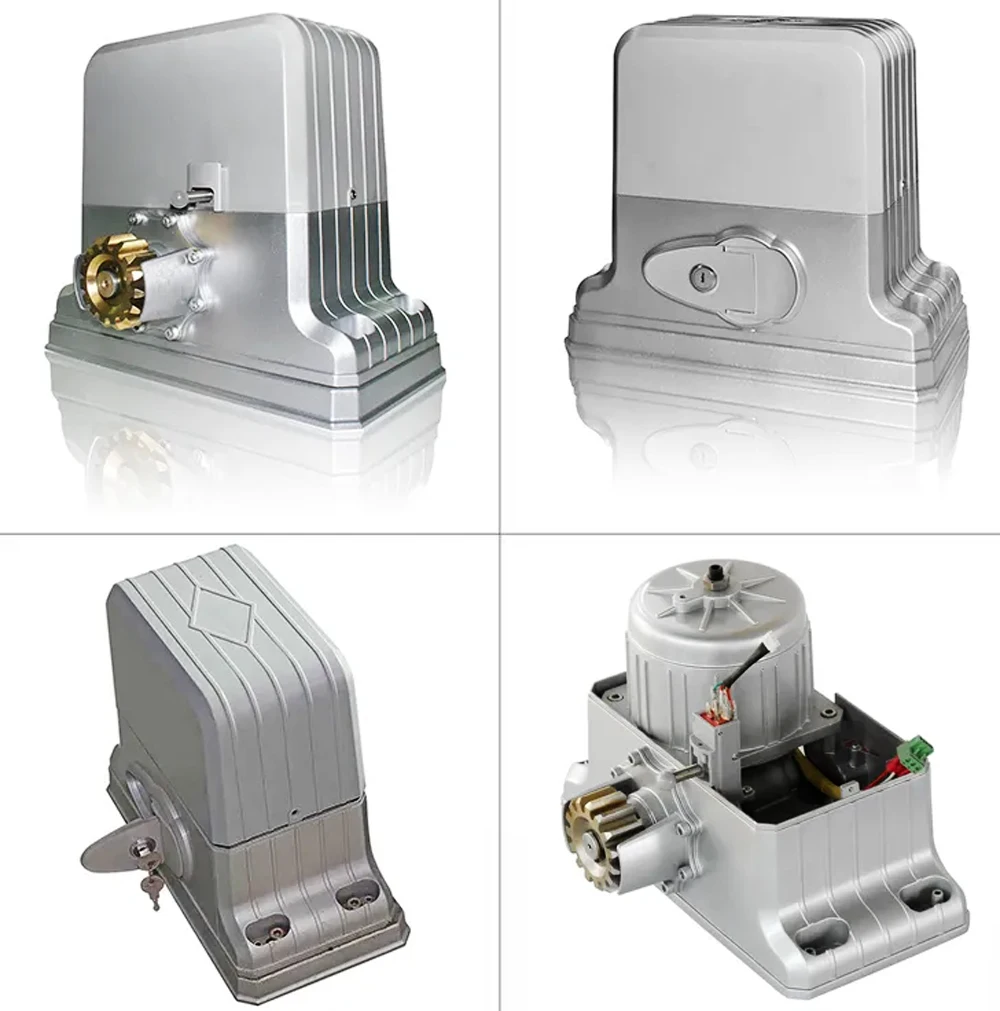

Product details display

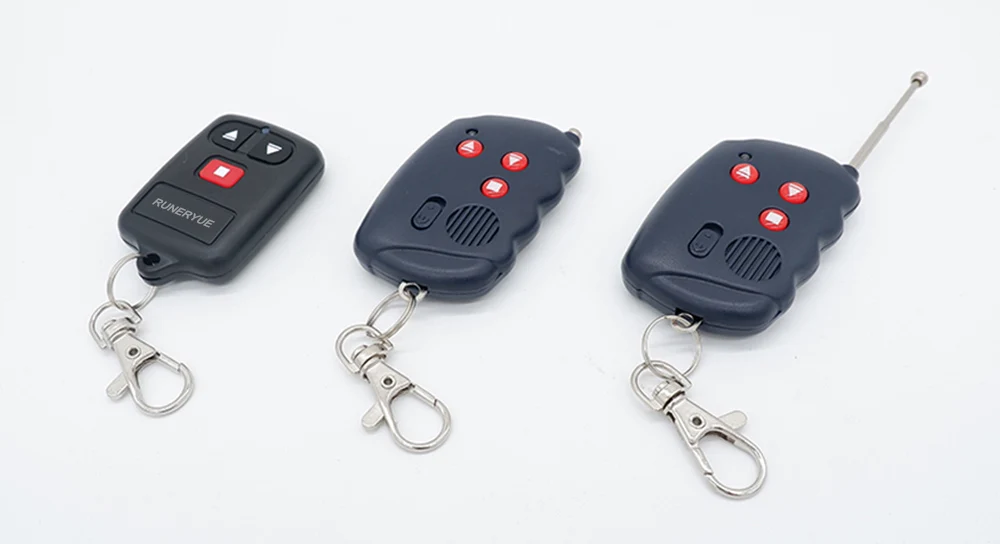

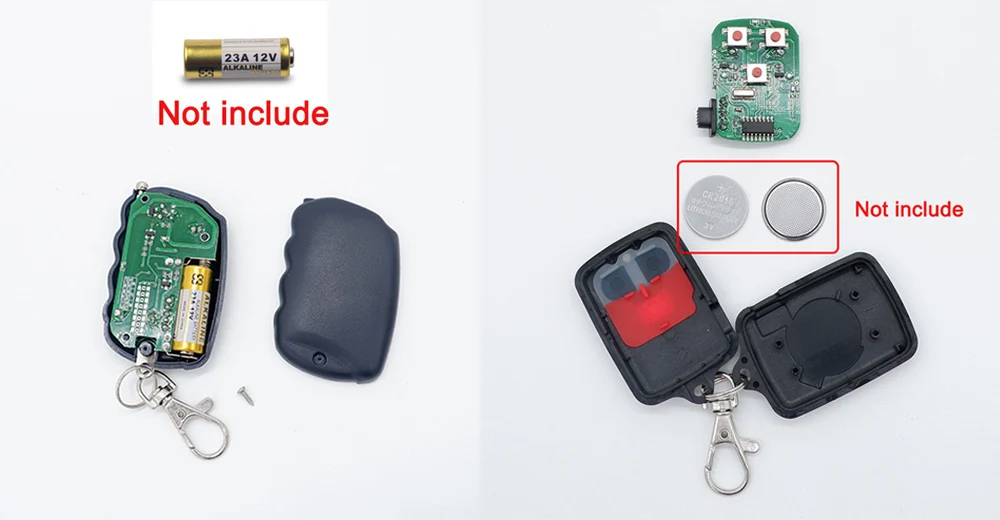

Two Type Remote Control
There have 2 type remote control,418MHZ Welding use.You can choose the remote control with antenna, use 12V23A battery.The other is a built-in antenna, using a 3V button battery. The function of the remote control is the same as the distance. If there is no requirement, we will choose the type of remote control sent randomly.If the express is by air, we will remove the battery.

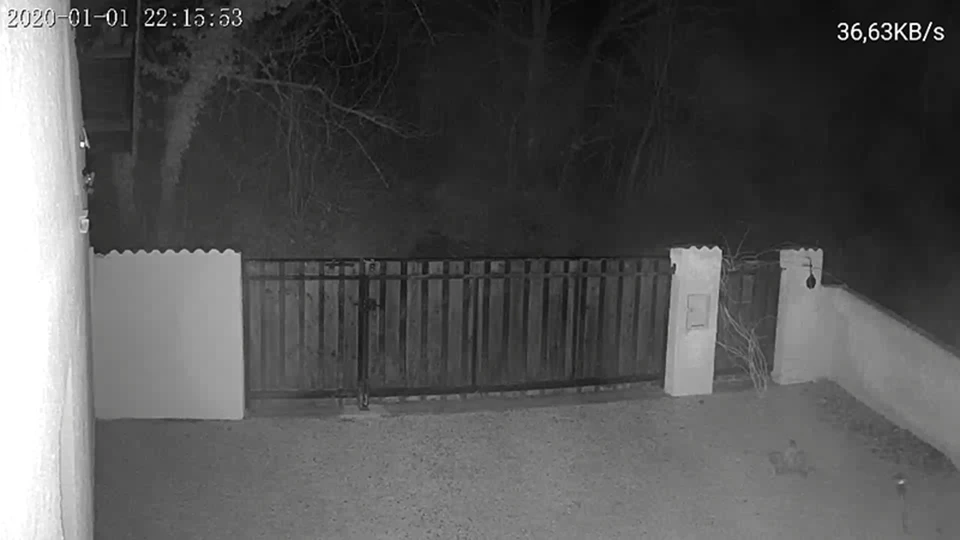

Recommend to use outdoor camera
The motor supports wifi control, you can open the door on the phone, if you have a camera, then you can clearly see that it is working, even if you are not at home, you can operate on the phone

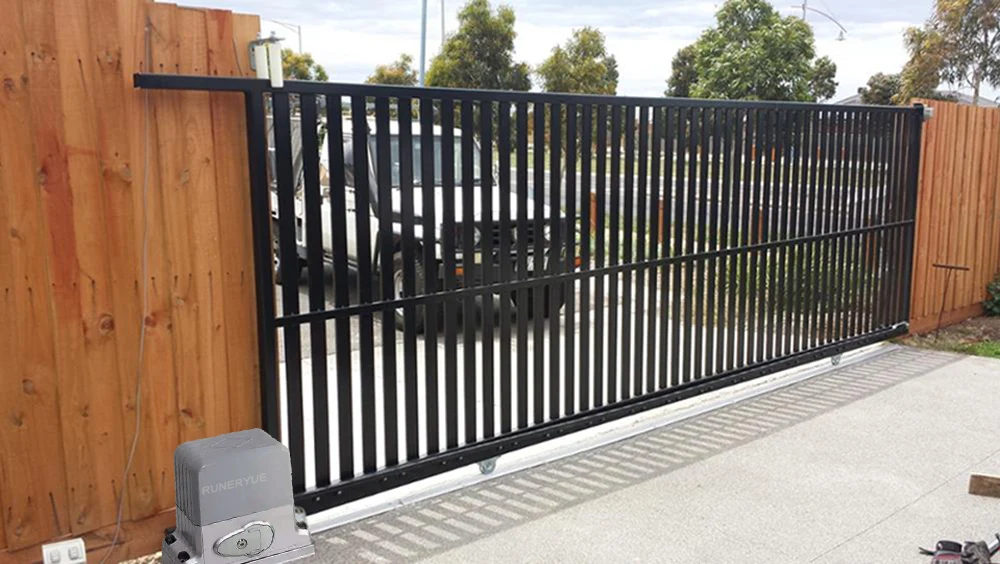

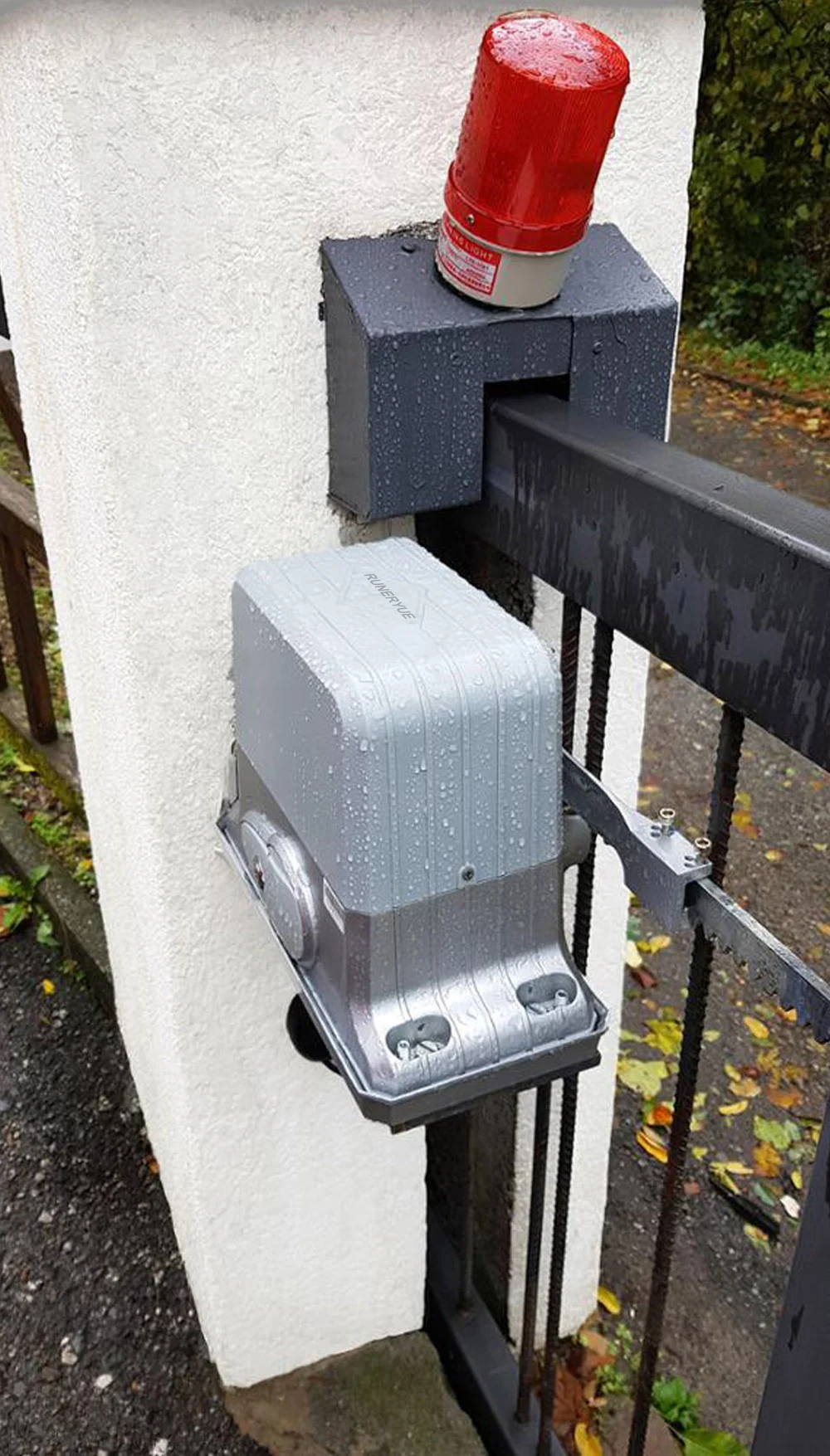

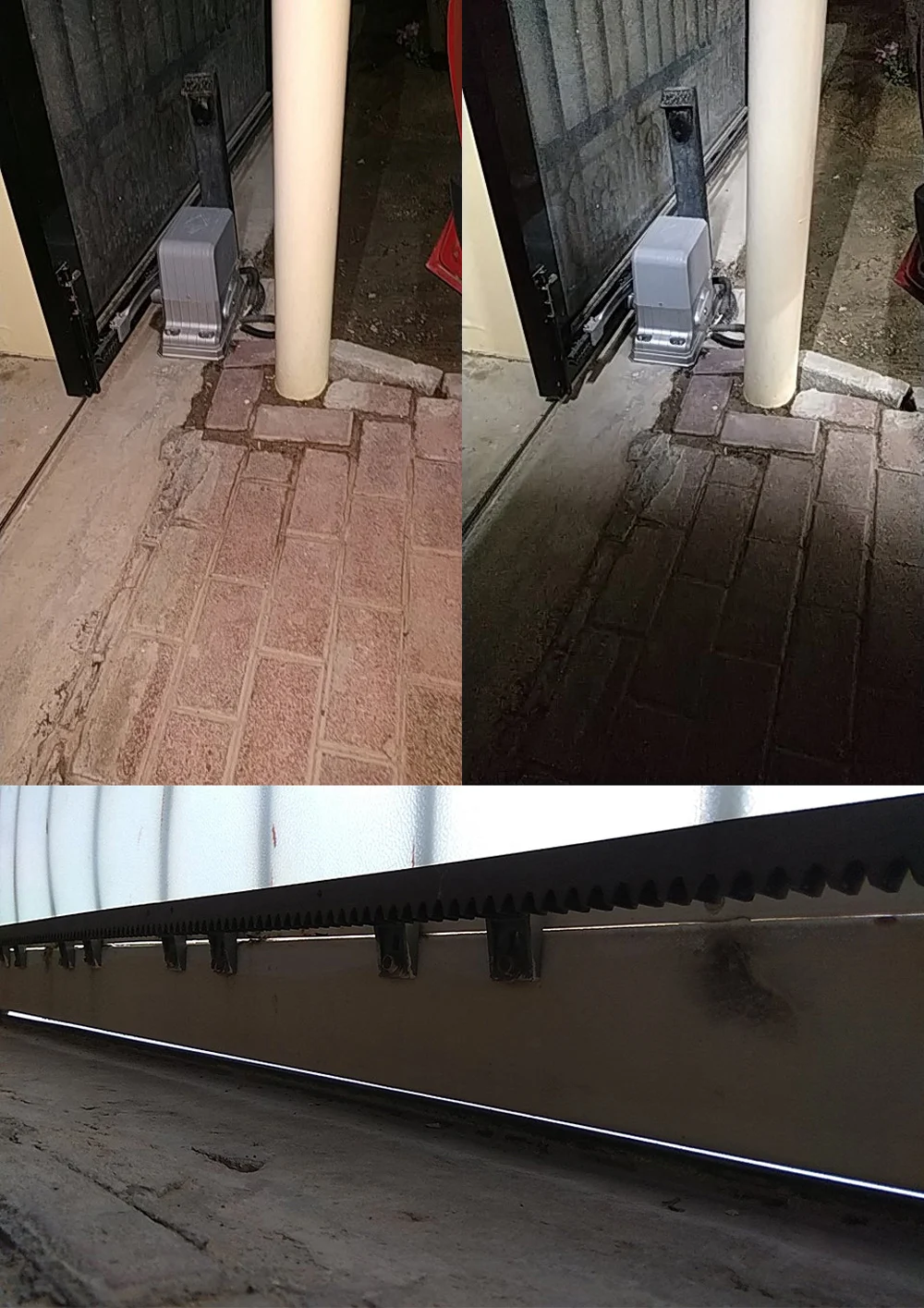

Real scene shooting and installation photo

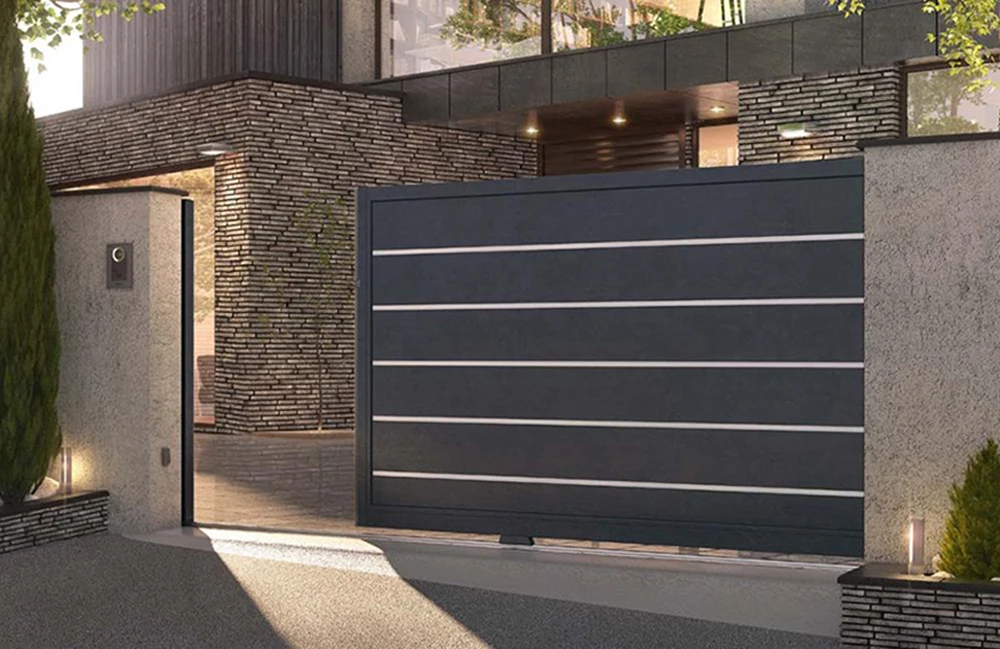

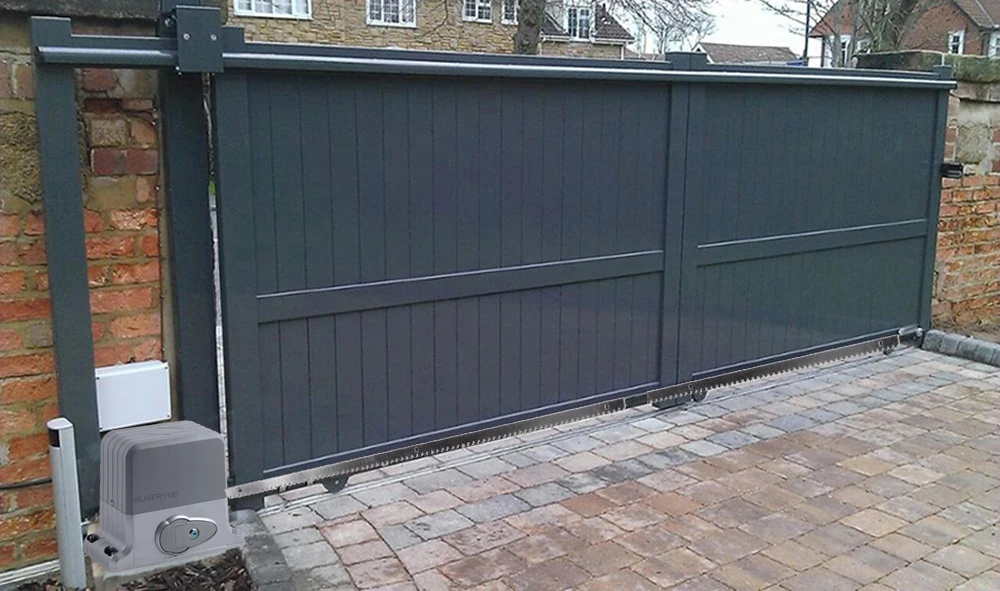

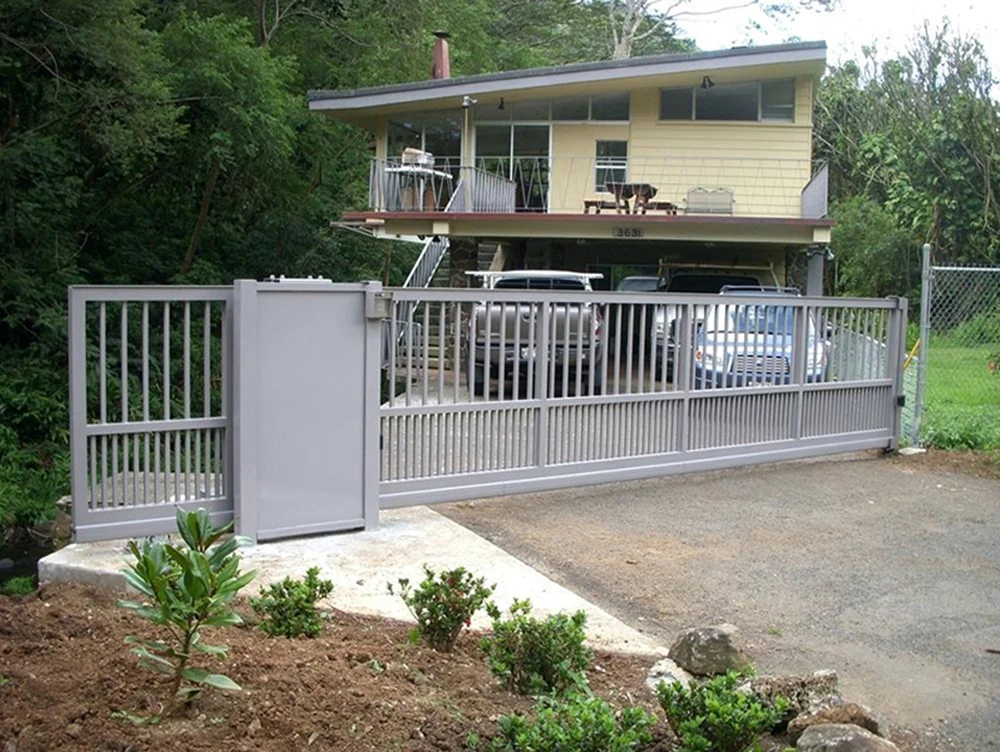

Scene application, displayed after installation
