Features:
1. The reading is clear and the warning value is particularly clear to protect your safety
2. Cylindrical measuring rod, more accurate test
Usage:
1. Push the probe all the way up
2. Then put the black flat seat on the tread of the tire
3. Then push the size down to the bottom and read whether the value is normal.

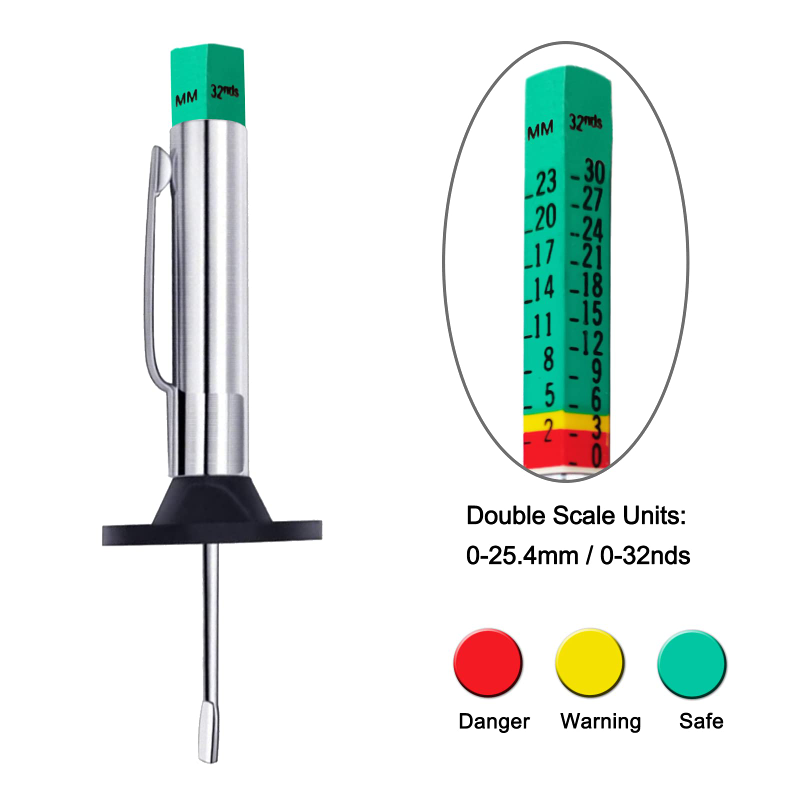

Red zone representative: replace the tire; Representative of yellow area: warning that it is about to be replaced; Green area: normal use
Depth range: 1-25mm
Red area: 0-3mm & 0-3 / 32
Yellow area: 3-5mm & 4-32 “- 5 / 32”
Green area: 5-25mm & 6 / 32 “- 1”
Specification:
Product name: Tire tread depth ruler 0-25mm
Product model: Pc-3624 monochrome / 0-32nds 0-25mm , Pc-3625 two color / 0-32nds 0-25mm
Product color: white
Product size: about 9×2 5cm
Product material: stainless steel, ABS
Product weight: about 10g
Product packaging: 1pcs / opp
Product box gauge: 37*27*32cm
Input quantity of outer box: 1000 pcs / CTN (10 inner boxes) × 100pcs)

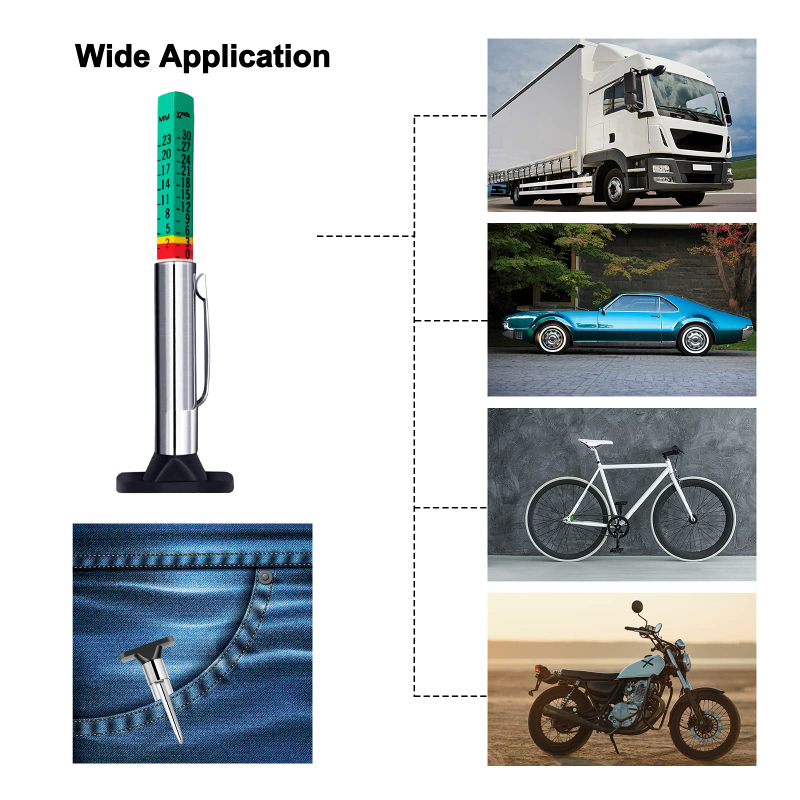

Applicable model: general type
