Baofeng UV-5RX Walkie Talkie 8W
2PCS
Upgrade Version of UV-5R
【8W High Power】
The UV-5RX 8W is an upgraded version of the UV-5R , which has higher power compared to the UV-5R model. including 3 power low, medium, and high power levels that can be adjusted according to usage needs. This product is more flexible and provides convenience for long-range communication, which bringing users a better user experience.
【One Key Frequency Match】
The one key frequency matching function of the Walkie talkie has improved its convenience and simplified the frequency matching process, allowing users to quickly complete frequency matching and achieve communication by simply pressing the frequency matching button.

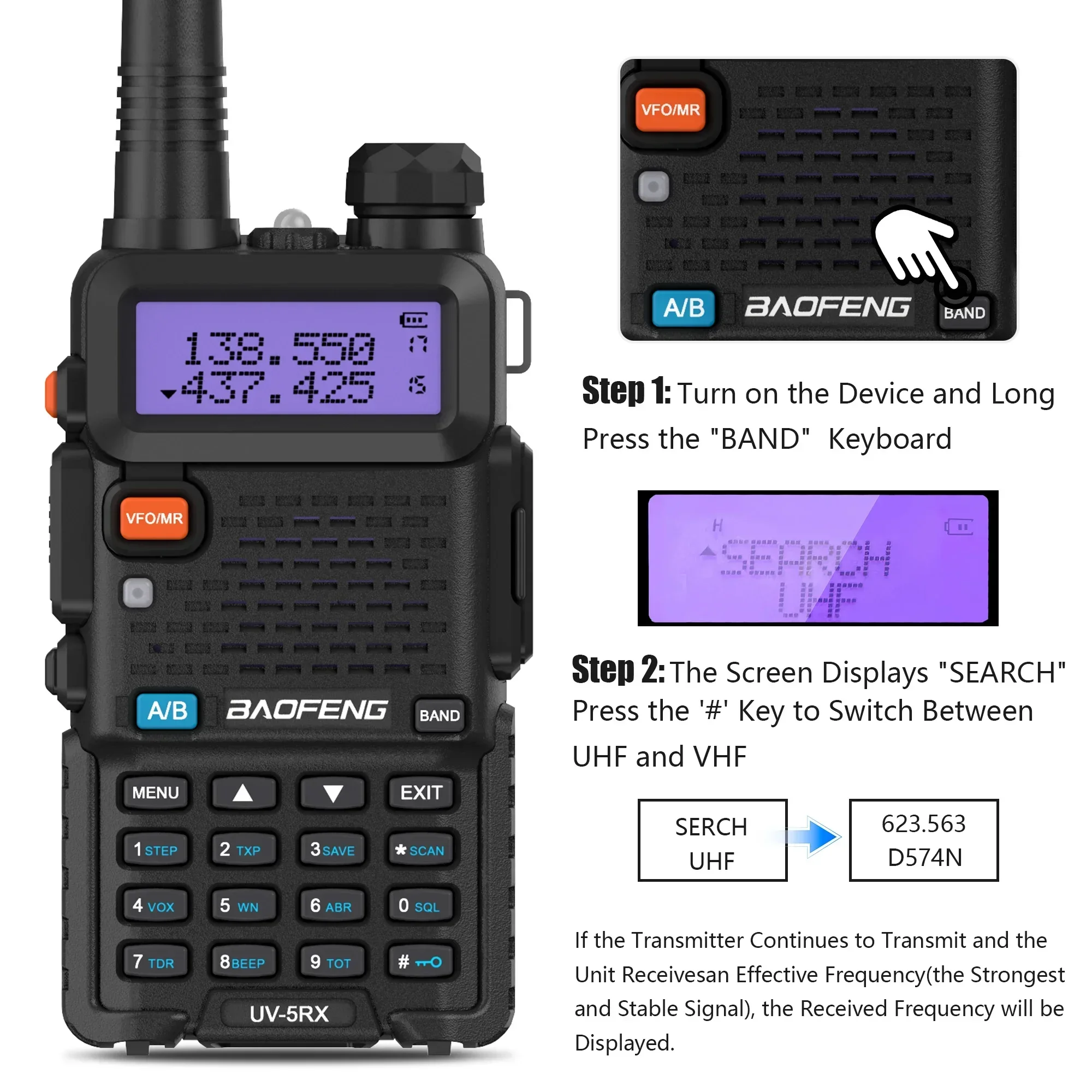

Step 1:Turn on the Device and long press the “BAND” keyboard
Step 2:The Screen Displays “SEARCH” Press the “#” key to Switch Between UHF and VHF

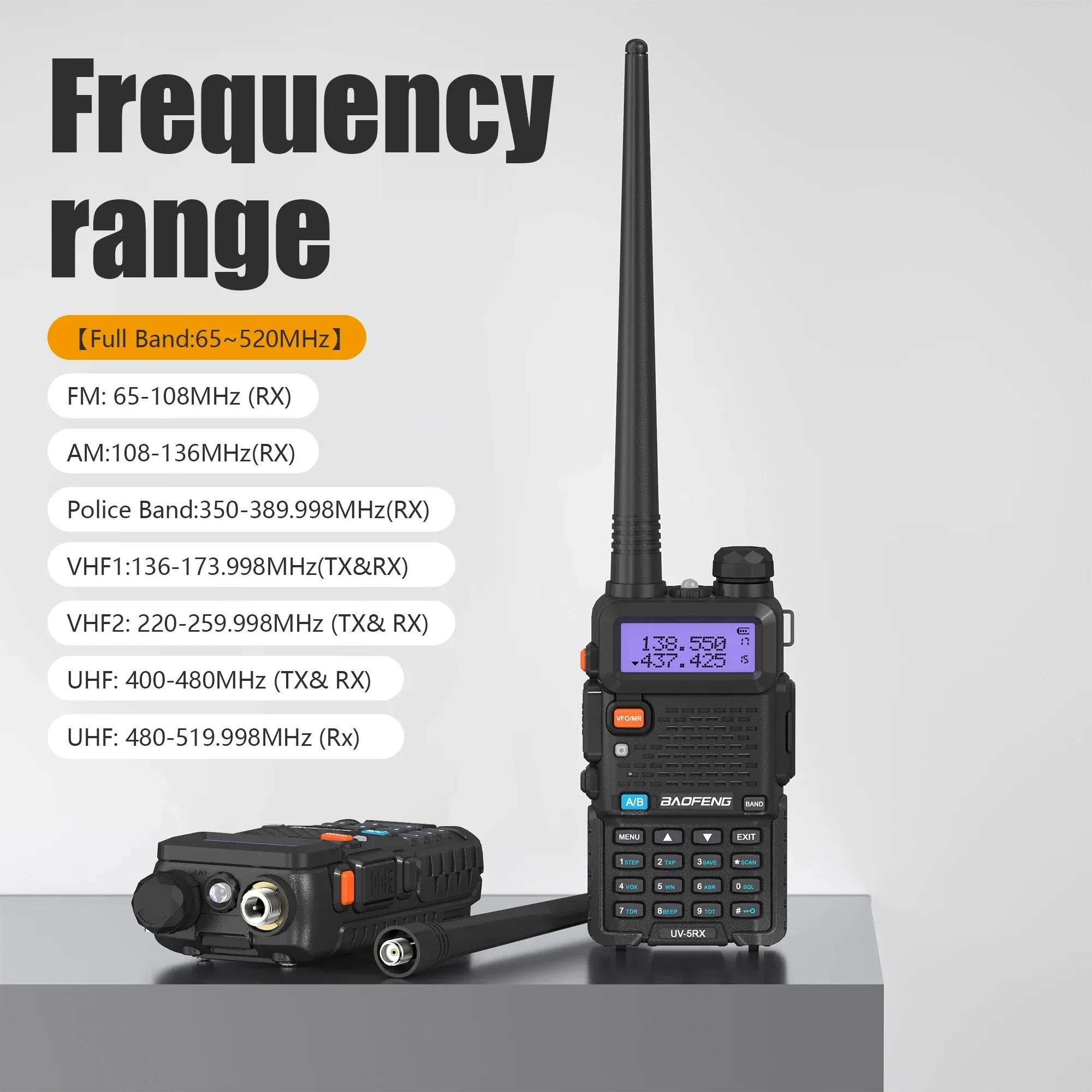

【Multi Band】
FM:65-108MHz(RX)

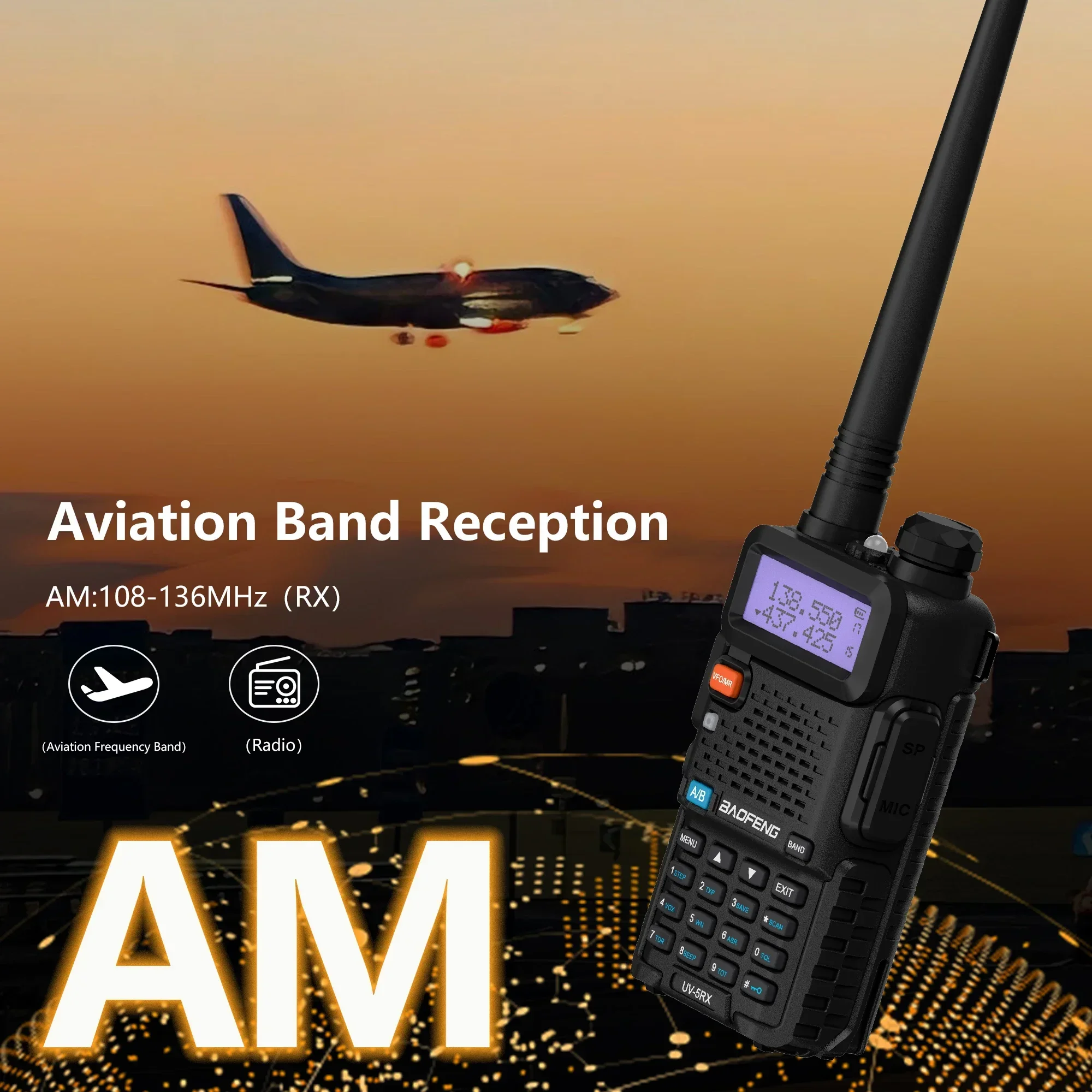

AM:108-136MHz(RX)
Police:350-389.998MHz(RX)
VHF1:136-173.998MHz(TX&RX)
VHF2:220-259.998MHz(TX&RX)
UHF:400-480MHz(TX&RX)
UHF:480-519.998MHz(RX)

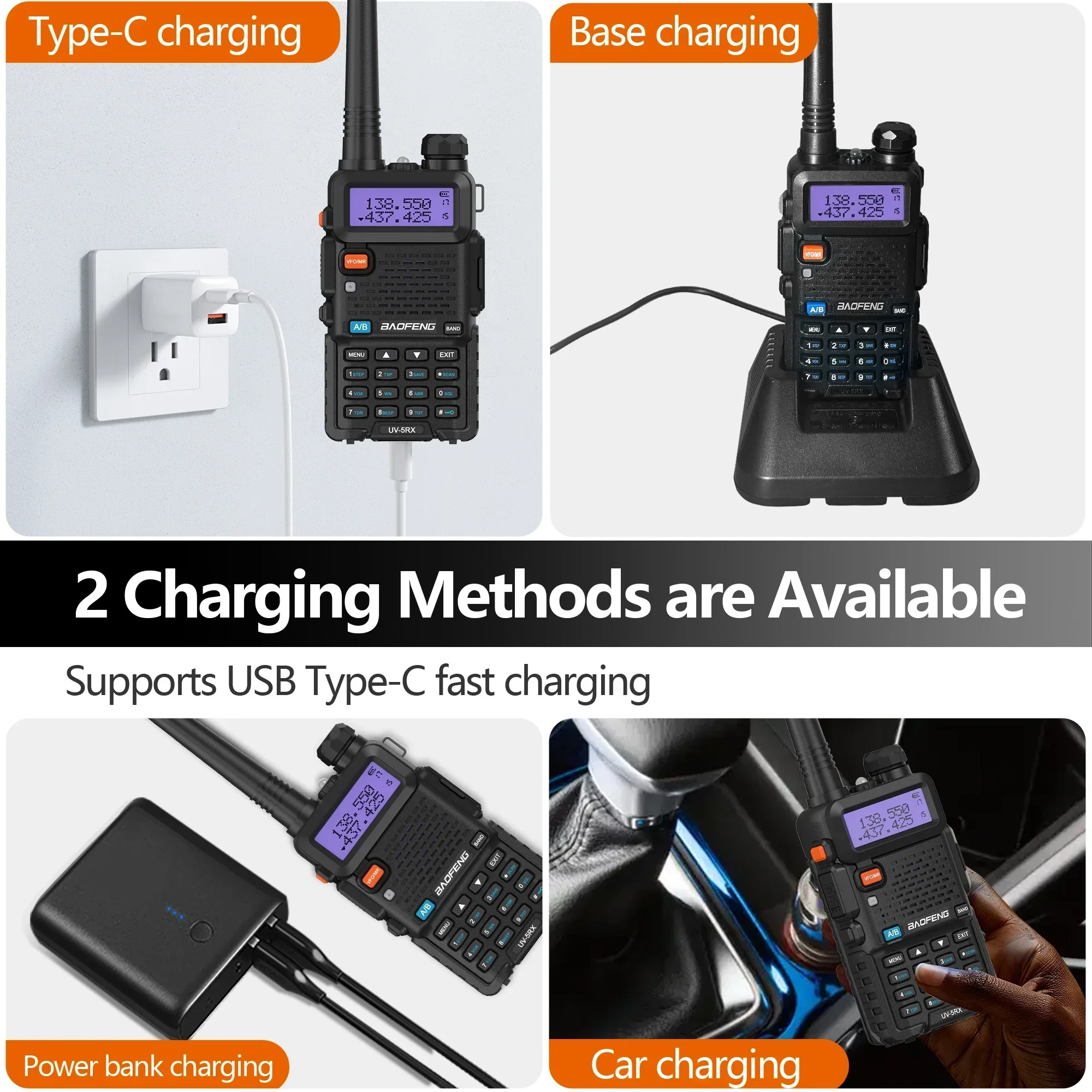

2 Charging Method:Type-C Charging and Base Charging
AM:108-136MHz(RX)

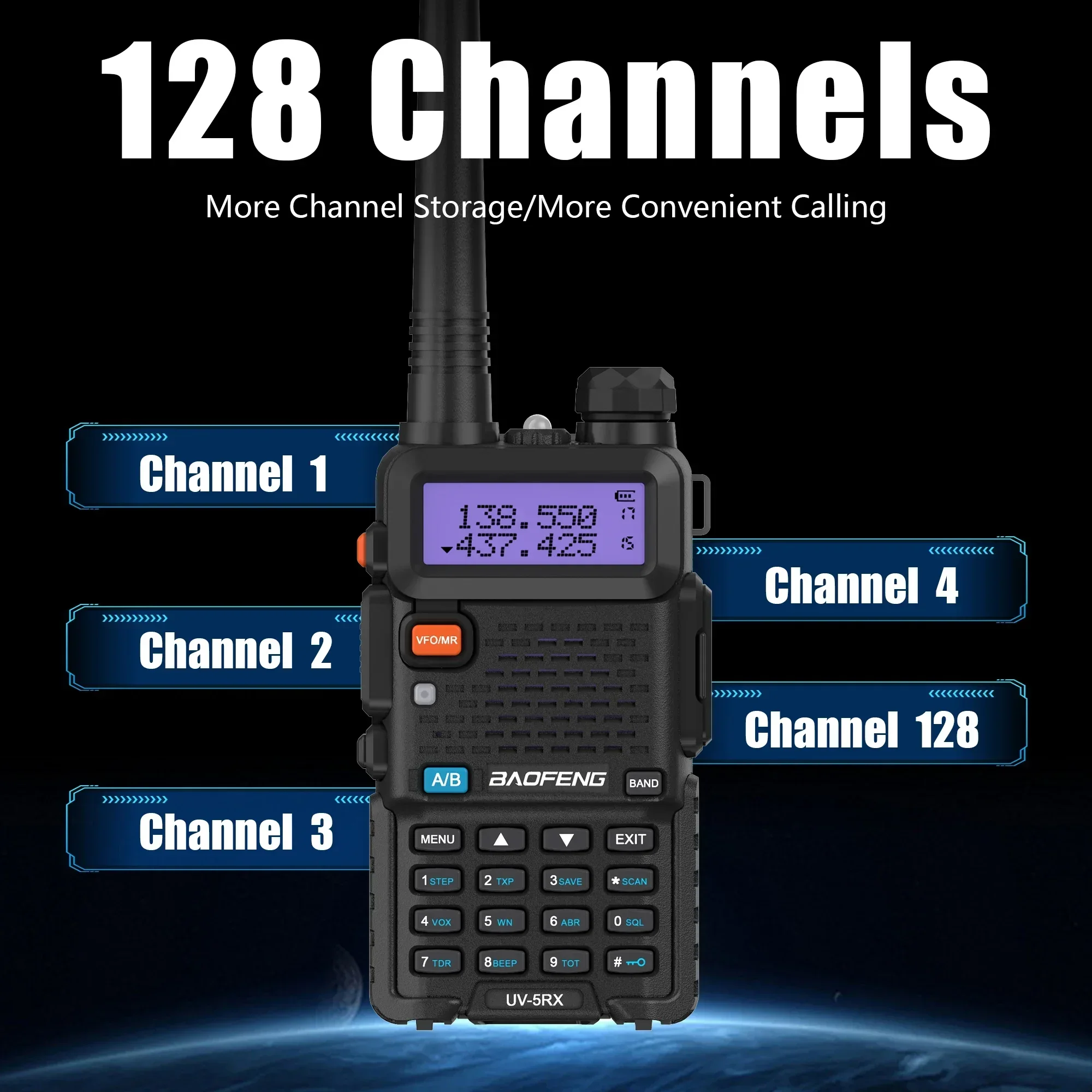

128 Channels:More Channel Storage
Strong Flashlight:Best Choice in Dark Environment,Suitable for Camping…
Long Range:1-8KM
●Multi-Band
FM:65-108MHz(RX)
AM:108-136MHz(RX)
Police:350-389.998MHz(RX)
VHF1:136-173.998MHz(TX&RX)
VHF2:220-259.998MHz(TX&RX)
UHF:400-480MHz(TX&RX)
UHF:480-519.998MHz(RX)
●【One Key Frequency Match】
The one key frequency matching function of the Walkie talkie has improved its convenience and simplified the frequency matching process, allowing users to quickly complete frequency matching and achieve communication by simply pressing the frequency matching button.
【8W High Power】
The UV-5RX 8W is an upgraded version of the UV-5R , which has higher power compared to the UV-5R model. battery capacity is 3800mAH,including 3 power low, medium, and high power levels that can be adjusted according to usage needs. This product is more flexible and provides convenience for long-range communication, which bringing users a better user experience.
【Type-C Charger 】
This product supports USB charging while retaining the battery charging method. USB charging makes the charging method more convenient and greatly improves the user experience
【Multiple frequency modulation methods】
① Program Manually In VFO Mode:Press “VFO/MR”to switch into Frequency mode,Without being bound by the computer,you can input frequency by keyboard,select CTCSS and store it.
② Program by PC :You can use our programming soft to program your walkie-talkie with PC, easy to operate, suitable for novices, and provide technical guidance.Work with CHIRP!
【Perfect for Outdoor Adventures】With a lightweight and compact size, the weather solar radio easily fits in your backpack, and the included wrist strap ensures it won’t get lost, ideal as a must survival kit for any outdoor adventure.
Features:
-Up to 128 memory channels
-Squelch adjustable in 9 levels
-50 CTCSS tones and 210 DCS codes
-1750Hz tone for repeaters
-SOS Emergency function
-LCD display with backlight adjustable in 3 colors
-FM radio receiver (65-108MHz)
-VOX, Scan, Dual Watch functions
-Channel or frequency mode selection
-Power Save
-TOT (Time out timer)
-DTMF function
-Reverse function
-Alarm function
-CTCSS and DCS codes research
-Setting and storing of channel names
-Busy Channel Lockout function(BCL)
-Tri-Pwer selection
-Repeater shift
-Frequency step:2.5/5/6.25/10/12.5/25KHz
-2pin Kenwood accessory jack
-VOICE: vocal indication of the function selected
-Keypad lock
-Li-lon battery pack
Rated Voltage:7.4VDC±10%
Battery type:Li-ion battery
Working temperature:-10~+45°C
Antenna Impedance:50ohm
Weight:255g
Dimension(LXWXH):58X32X110mm(No Antenna)
Frequency stability:±2.5ppm
Carierwave tolerance:5ppm
Modulation:16K Ø F3E/11K Ø F3E
Max frequency deviation:<5kHz(Wide)/<2.5kHz(Narrow)
Modulation character:6dBperfoldfrequencypatch
Emission current:<1.6A(5W)
CTCSS/DCS: 0.5±0.1kHz(Wide)/0.3±0.1kHz(Narrow)
Sensitivity:<0.16µV(12dBSINAD)
Silent sensitivity:<0.2µV
Inter mediation Distortion:<10%
Inter modulation:8-12mv
Adjacent channel selectivity(wide/narrow):<-65dB(Wide)<-60dB(Narrow)
2× Radio
2× Battery
2× Antenna
2× Belt Clip
2× English Manual
2× Charger
2× Handstrap
(other Accessories depend on your choice)
