Description:
It can easily puncture the cable sheath for testing without cutting the cable sheath. It is widely used in cable repair, power testing, industrial field testing and other cable non-destructive testing.
Parameters:
Metal material: main body copper, stainless steel
Surface treatment: nickel plating
Molded shell material: nylon
color: red， black
Quantity: 2pcs/set
Electrical parameters: CATIII 1000V/Max.10A

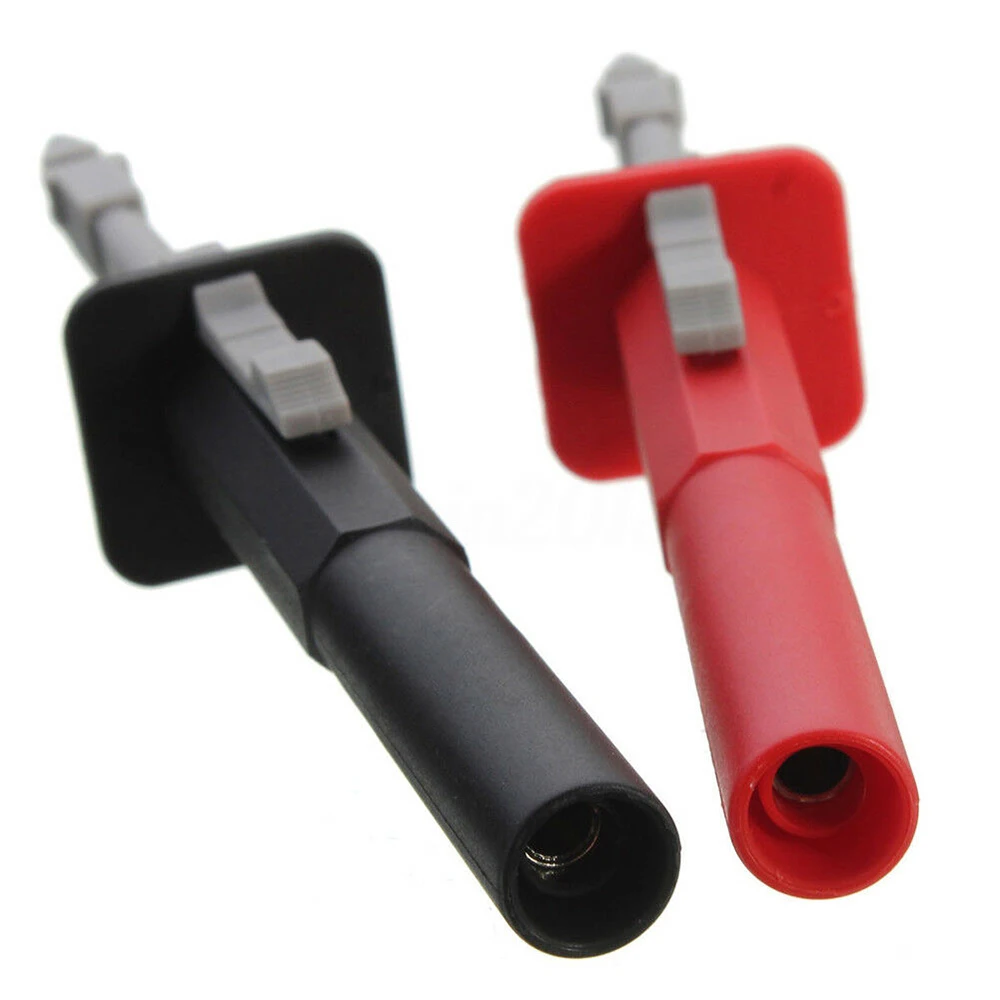

Connection method: comes with 4 mm socket
Use:

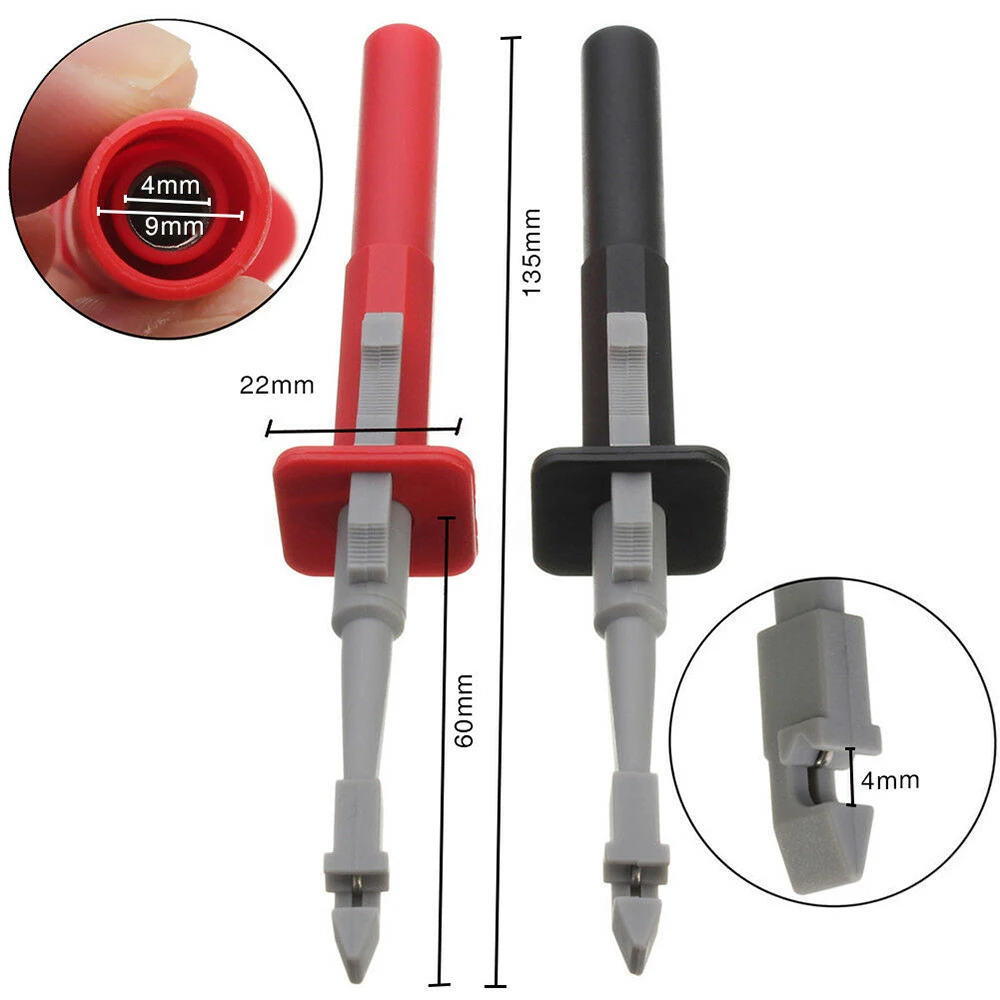

– press the end of the test tool, the test cable (about 4mm in diameter) into the test tool

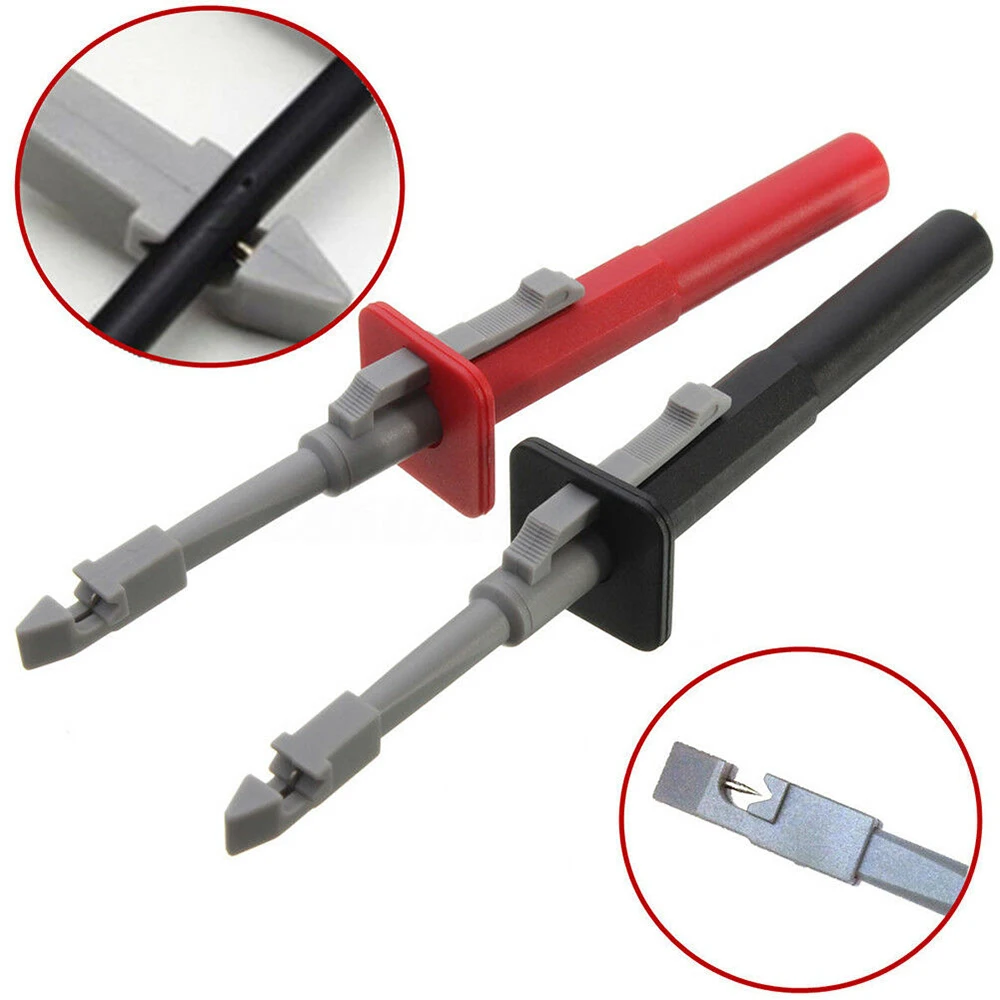

-release the button and test tools within the very fine probe can pierce the cable jacket
direct and conductor, thus to cable signal for nondestructive testing.
-unique V type line groove design, to ensure that the position of the barbed wire is in the
middle of the cable, the efficiency is very high.
– after testing, release the button to remove the wire, cable sheath unscathed
Package include:
1xblack test clip
1xred test clip
