【Multi-Band】
FM65- 108MHz
AM108- 136MHZ(Rx)
350-390MHz(Rx)
136-174MHz(Rx/Tx)
220-260MH(Rx/Tx)
400- 520MHz(Rx/Tx)
【One Key Frequency Match】
The one key frequency matching function of the Walkie talkie has improved its convenience and simplified the frequency matching process, allowing users to quickly complete frequency matching and achieve communication by simply pressing the frequency matching button.
【8W High Power】

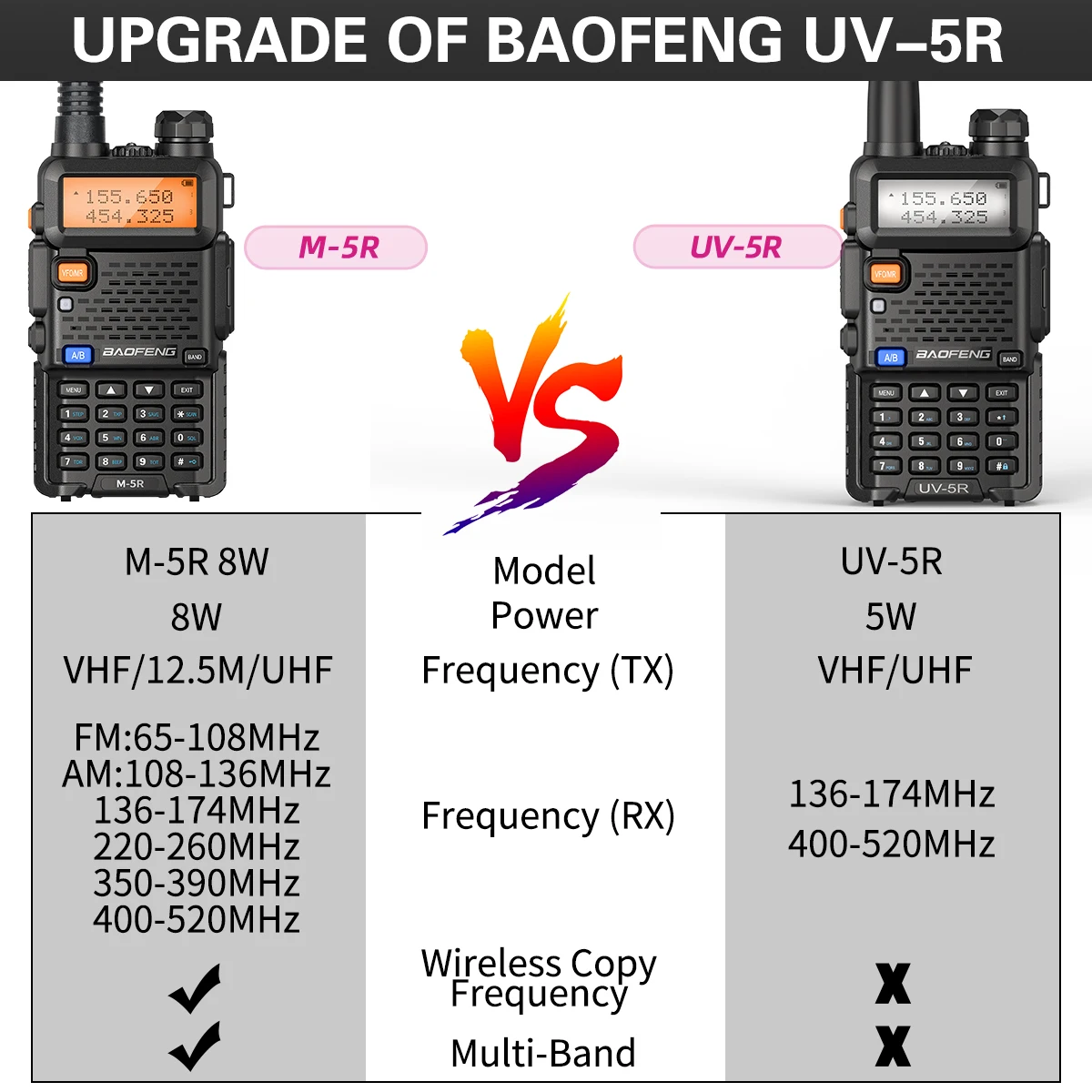

The M-5R 8W is an upgraded version of the UV-5R , which has higher power compared to the UV-5R model. His battery capacity is 1800mAH,including 3 power low, medium, and high power levels that can be adjusted according to usage needs. This product is more flexible and provides convenience for long-range communication, which bringing users a better user experience.
【Type-C Charger 】
This product supports USB charging while retaining the battery charging method. USB charging makes the charging method more convenient and greatly improves the user experience
【Multiple frequency modulation methods】
① Program Manually In VFO Mode:Press "VFO/MR"to switch into Frequency mode,Without being bound by the computer,you can input frequency by keyboard,select CTCSS and store it.
② Program by PC :You can use our programming soft to program your walkie-talkie with PC, easy to operate, suitable for novices, and provide technical guidance.Work with CHIRP!
【Perfect for Outdoor Adventures】With a lightweight and compact size, the weather solar radio easily fits in your backpack, and the included wrist strap ensures it won't get lost, ideal as a must survival kit for any outdoor adventure.
【Package Included】1XRadio;1XBattery;1X15CMAntenna;1XUSB-C Charging Cable;1X Base Charger;1XBelt;1XLanyard;1XManual.(Kindly Tips:If you need programming software you can contact our after-sales service, we will actively cooperate with you)
|
AllofouritemsareBrandNew |
||
|
Model |
Baofeng M-5R 8W |
|
|
Multi-Band |
FM65- 108MHz AM108- 136MHZ(Rx) 350-390MHz(Rx) 136-174MHz(Rx/Tx) 220-260MHZ(Rx/Tx)400-520MHZ(Rx/Tx) |
|
|
128groupschannelsstorage |
Shortcutmenuoperationmode |
|
|
VFO&Memorychannelsscan |
EmergencyAlarm |
|
|
Time-outTimer(TOT) |
0~9gradesVOXselectable |
|
|
PTT&ANIID |
FMradioand25stationsstorage |
|
|
Voicecompanding |
50CTCSS/104DCS |
|
|
High/LowTXpowerselectable |
Busychannellock-out(BCLO) |
|
|
DTMFfunction |
OFFSETfunction |
|
|
Wide/NarrowBand(25kHz/12.5kHz) |
Yes |
|
|
VOXfunction |
Yes |
|
|
Busylockoutfunction |
Yes |
|
|
Scanningfunction |
Yes |
|
|
Monitorfunction |
Yes |
|
|
Time-outTimer(TOT)function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Batteryvoltagedisplayfunction |
Yes |
|
|
Channelnamedisplayandeditingfunctions |
Yes |
|
|
Signalstrengthindicator |
Yes |
|
|
Keypadlockfunction |
Yes |
|
|
Built-inLedtorch |
Yes |
|
|
FMradio |
Yes |
|
|
Wireclonefunction |
Yes |
|
|
Emergencyalarmfunction |
Yes |
|
|
Lowbatteryalarm |
Yes |
|
|
Powersavingfunction |
Yes |
|
|
High/Middle/LowTXpowerselectable |
Yes |
8W/5W/1W |
|
ROGERSET |
YesYes |
|
|
ChineseandEnglishvoiceprompt |
Yes |
|
|
PCsoftwareprogrammable |
Yes |
|
|
RatedVoltage |
7.4VDC±10% |
|
|
Outputpower |
<=5W |
|
|
Batterytype |
Li-ionbattery |
|
|
Batterycapacity |
1800mAh |
|
|
Workingtemperature |
-20~+50°C |
|
|
AntennaImpedance |
50ohm |
|
|
Weight |
255g |
|
|
Dimension(LXWXH) |
58X32X110mm(NotAntenna) |
|
|
Frequencystability |
±2.5ppm |
|
|
Carierwavetolerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Maxfrequencydeviation |
<5kHz(Wide) |
|
|
Modulationcharacter |
6dBperfoldfrequencypatch |
|
|
Emissioncurrent |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
<0.16µV(12dBSINAD) |
|
|
Silentsensitivity |
<0.2µV |
|
|
IntermediationDistortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacentchannelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|
PackageInclude:
1XPortableradio
1XBattery
1X 15CM Antenna
1XUSB-C Charging Cable
1XBase charger
1XBeltclip
