JILONG Visual Fault Locator, Fiber Optic Cable Tester test 10-30Km VFL
Buyer Attention
1. VFL Rechangeable?
No, The VFL not rechargeable type.
Available for 2 pcs AAA battery. Â The produc's package without batteries, becase the airline not allow put in battery.
2. How many operating modes?
2 modes.Constantly shines & flashing
3. Handing time & delivery time?
Usually we will send out wihtin 24 hours, except the holiday and weekend. Delivery time:15-20 days to worldwide
1. Strong and stable light source, strong penetrating power.

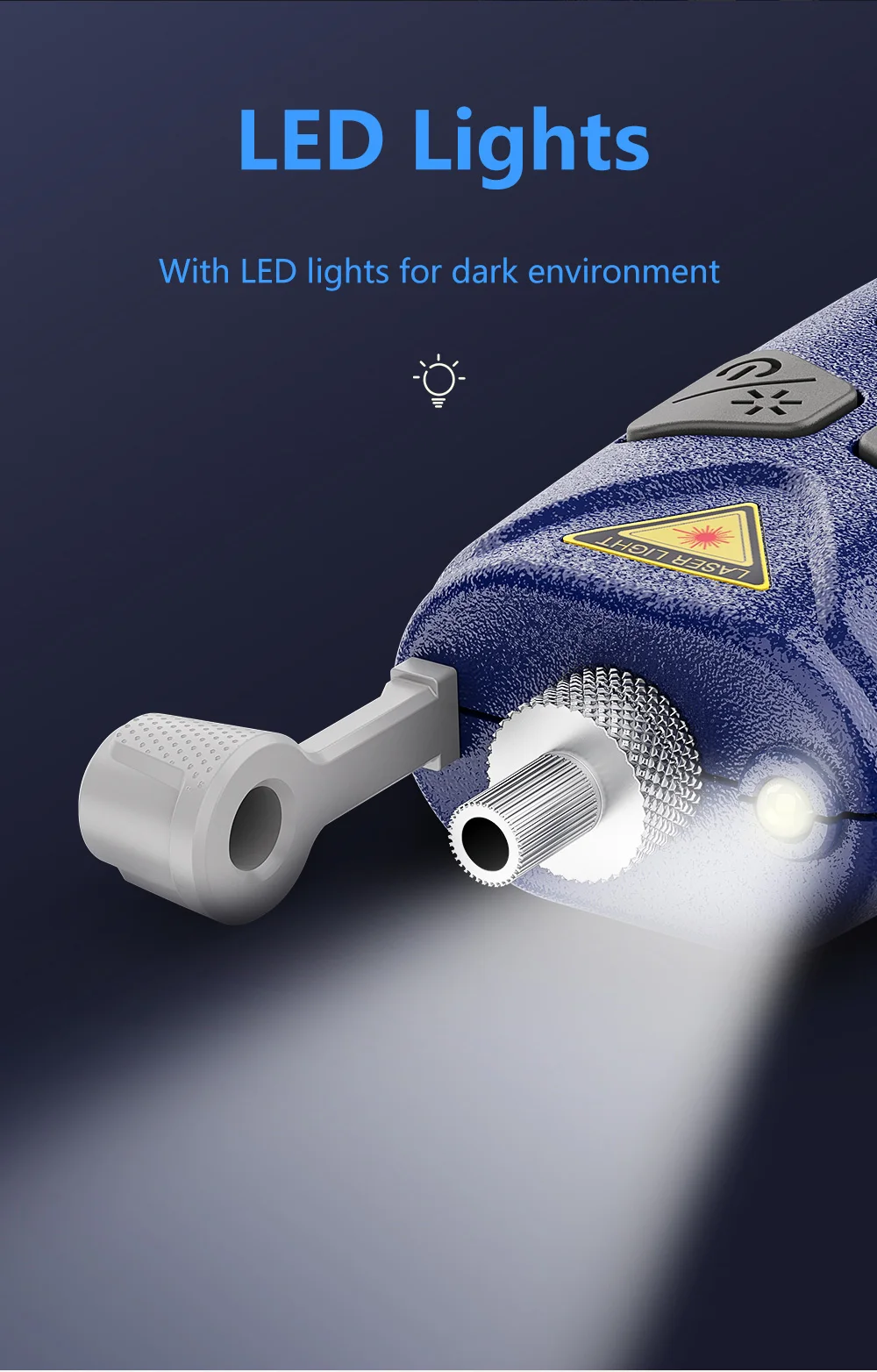

2. Be equipped with LED light, more convenient to work in the dark.
3. Pocket size design, mini and compact.
4. Testing distance is up to 25km, high stability.

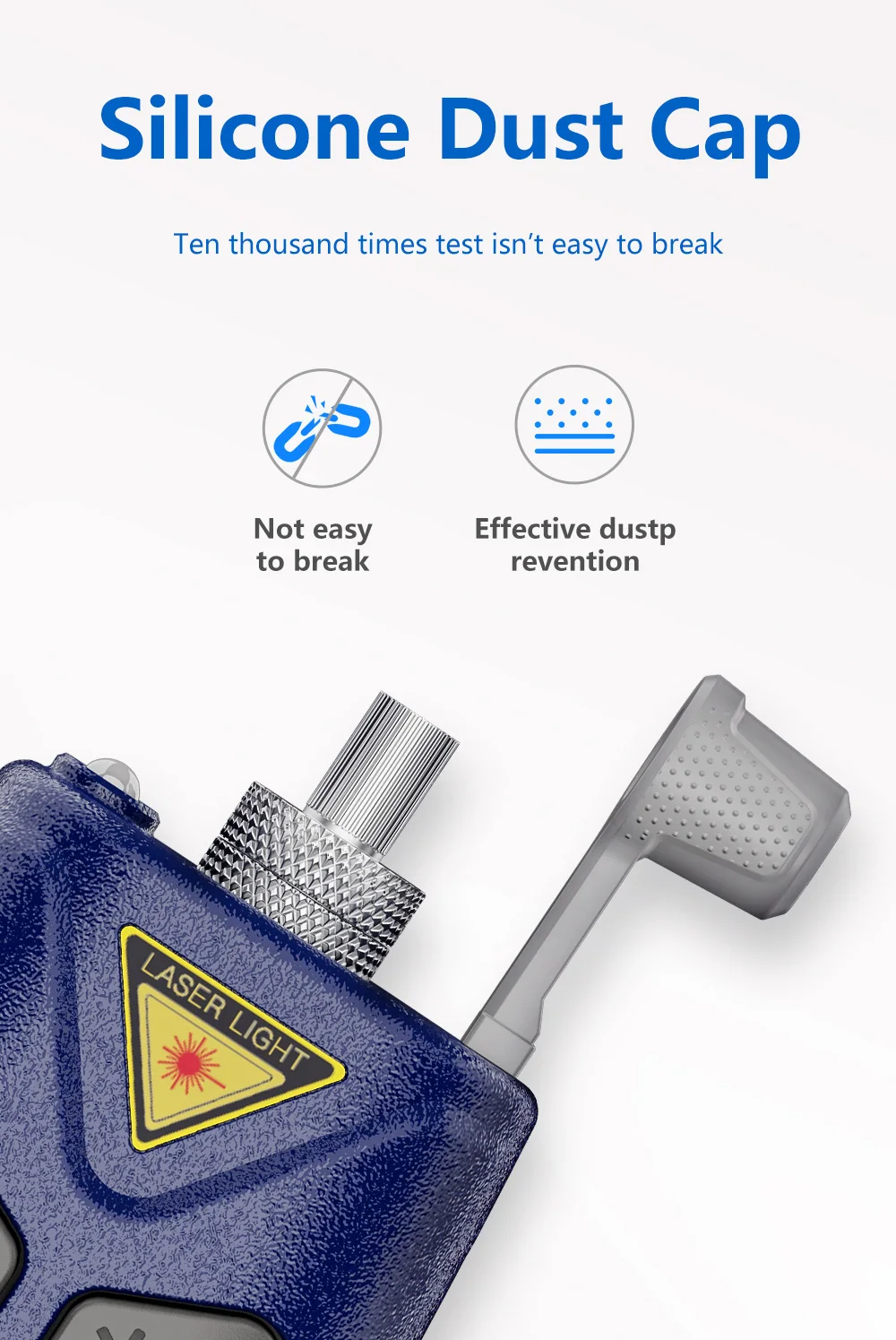

5. Rubber dustproof cover.

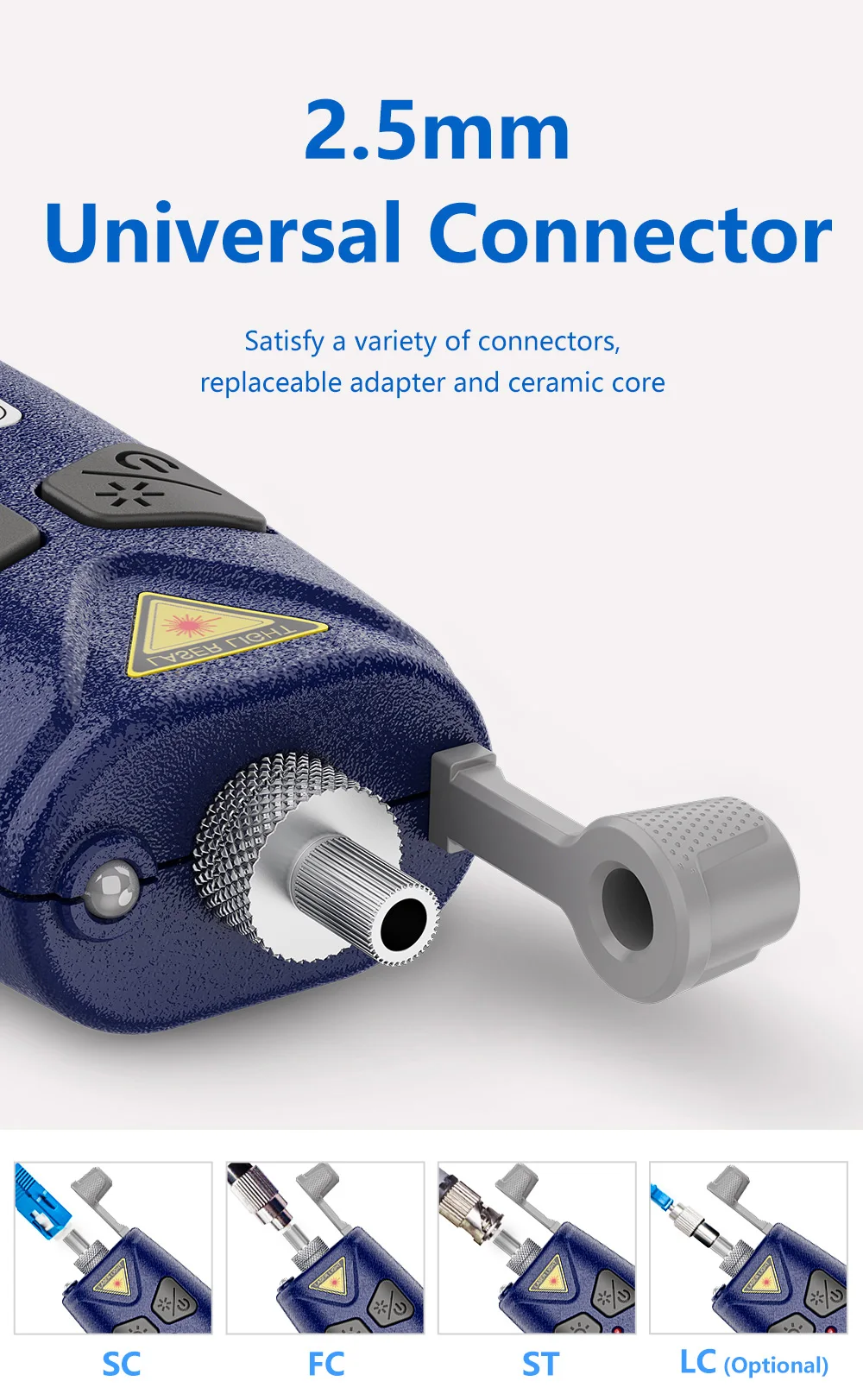

6. 2.5mm universal connector, suitable for SC/ST/FC connector, LC connector is optional
|
Model |
VFL-22M-10 |
VFL-22M-20 |
VFL-22M-30 |
|
|
Output power |
10mW |
20mW |
30mW |
|
|
Detection distance |
8-10km |
15-20km |
25-30km |
|
|
Wavelength |
650nm |
|||
|
Laser type |
LD |
|||
|
Modulation frequency |
CW / 2Hz |
|||
|
Operating temperature |
-20 ~ +60 (℃) |
|||
|
LED |
Support |
|||
|
Power |
AAA 1.5V battey x 2 (package not include battery) |
|||
|

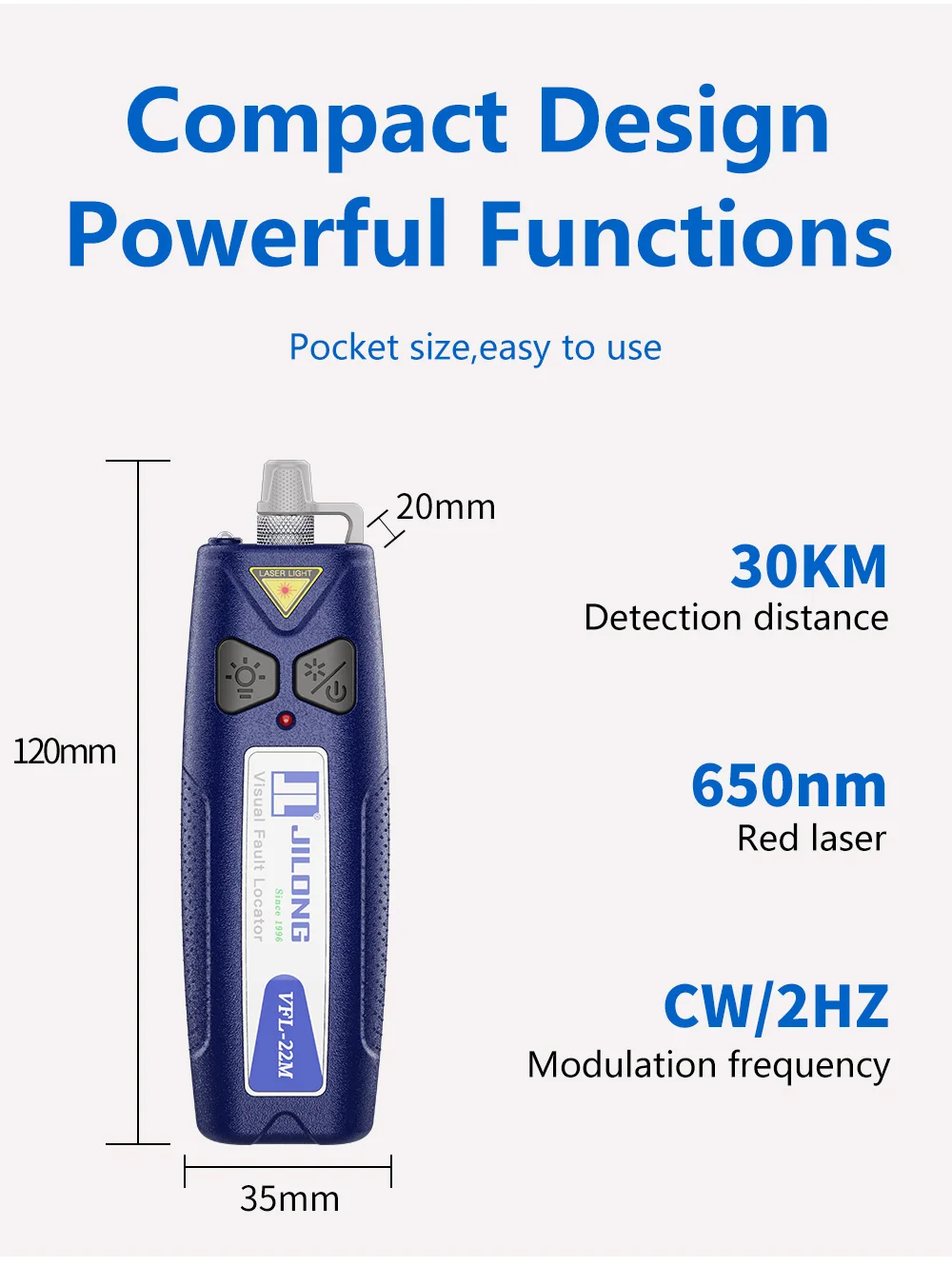

Dimensions |
120 x 35 x 20 (mm) |
|||
