315 / 433 Mhz RF Transmitter Remote Controls Wireless Remote Control Switch DC12V 1CH Relay Receiver Module for Access Control

Please Note: We will send 315MHz frequency model by default, if you want 433MHz model, please leave a massage to us.

This is a remote control device for door access control system. After you connect it to the power supply, then you can press the remote control to open the door remotely, no matter when you are inside or outside. The distance can reach up to 50 meters.

Product Features

• Made of high quality ABS plastic material, durable and wear resistant.

• Wireless remote control with 1 receiver and 1,2,3,4,5,6,7,8,9,10 transmitter to open the door.

• Applicable to telescopic door, automatic door, gate, doorbell, access control system, etc.

• Small and compact size with slide cover and key ring for easy carrying and storage.

• Convenient to operate and easy to use.

• Stable performance and low-power consumption, long service life.
  The wireless signal can pass through walls, floors and doors.

Product Specification:

Condition: Brand New

Material: Metal + Plastic

Color: Shown as Picture

Working Voltage: DC12V/23A

Receiving Frequency: 315MHZ

Receiving Sensitivity: -95DB

Working Current: <10 mA

Contact Output: NO/NC/COM

Effective Distance: 50m

Delay Function: NO

Size: Shown as Picture

Application: telescopic door, automatic door, gate, doorbell, access control system, etc.

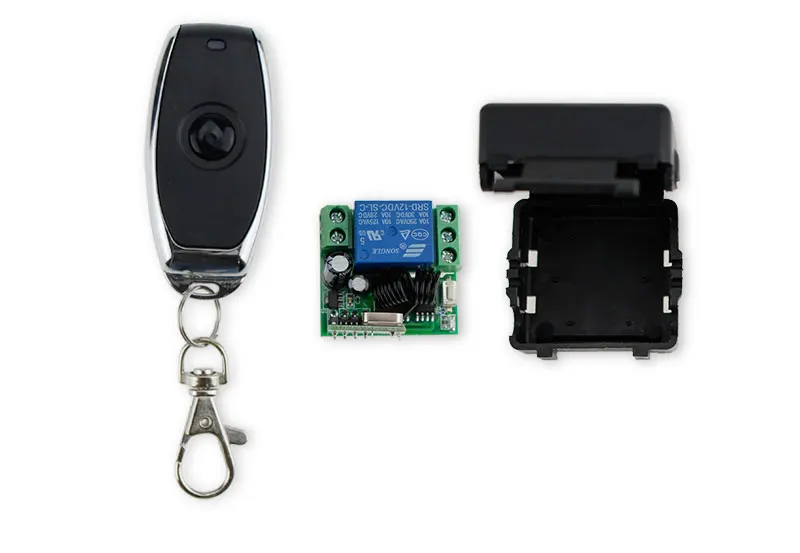

Product Including:
Remote Sender ( Optional )
1* Remote Receiver

1* Remote Box

Learning Pair Code

It can work with any remote control with the same frequency.
So you needn't worry about losing remote control any more.
(If the remote control is lost, buy one and pair with the PCB board is OK.)

Learn Code Method: Press the button on the module and the remote sender at the same time. Then release the button of the module first, After the indicator light flashes, the pairing is successful.

Support Wide Range

up to 50 meters

Very suitable for Door Access Control System

(This package including remote control only, not including power supply, access controller, lock etc)

Wiring Diagram
Remote Control    TO     Power Supply
"DC+"                  TO            "+12V"
"DC- "                  TO            "GND"
"C"                       TO            "GND
"NO"                    TO            "PUSH"
