3m DC OR AC PNP or NPN Photoelectric Switch Obstacle Avoidance Garage Gate Opener Motion Sensor Motor Trigger Diffuse Photocell

3m adjustable detective distance Diffusive switch

Product Name:Infrared diffusive photoelectric switch (No mirror needed)

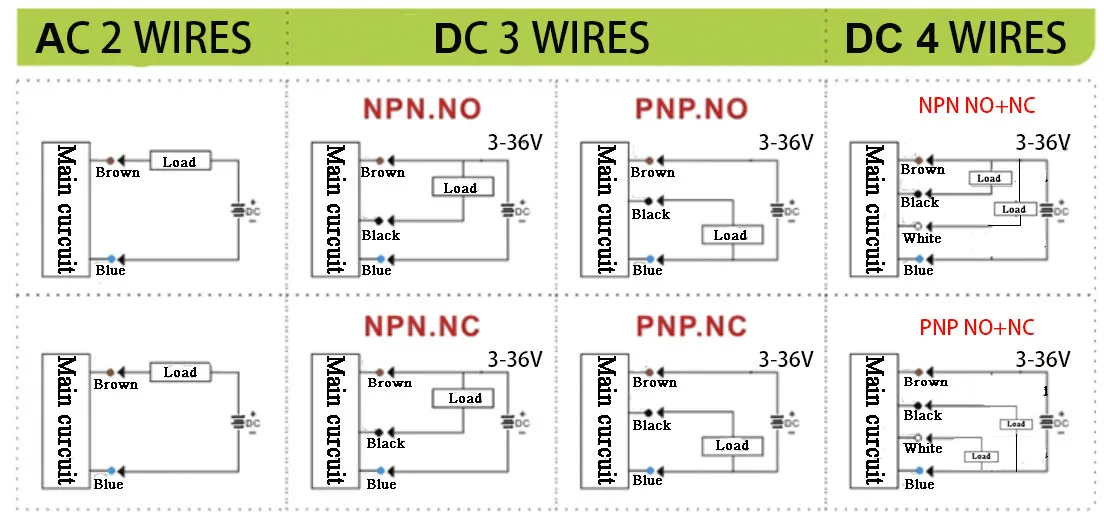

Wire Type:3 Wire(Brown, Blue, Black) or 2 wires or 4 wires
Output Type: PNP NO OR PNP NC OR NPN NO OR NPN NC OR PNP NO+NC OR PNP NO+NC or AC

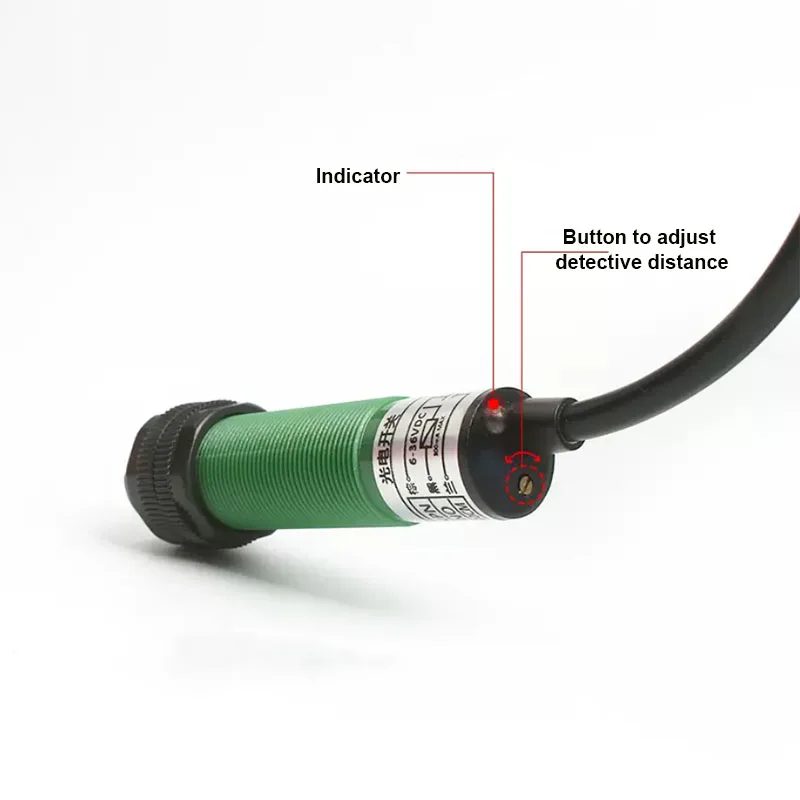

Detecting Distance:10-300cm Adjustable
Detection method: Diffuse type
Detectable object: Any Reflective Object (detective distance could change along with object color. themore bright, the more sensitive)
Supply Voltage:6-36V DC or AC
Output Current: 80-300mA
Response Time:2ms
Cable Length:1.2M/3.5Ft
Case Material ABS Plastic

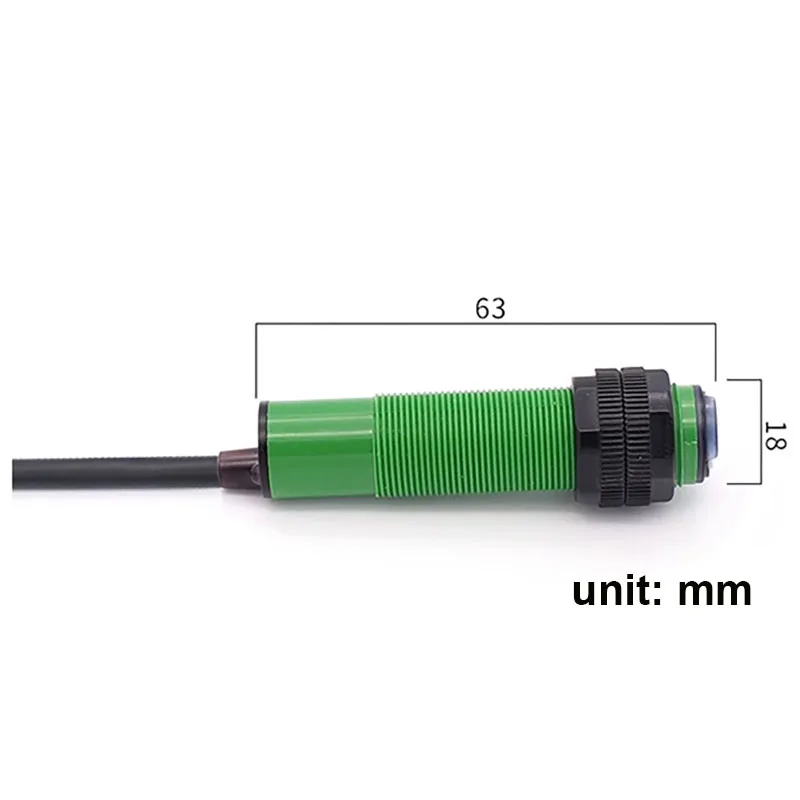

Probe diameter: 18 mm
Probe Length: 68 mm

Item description
