Features:
1.Using high quality materials, product quality is guaranteed

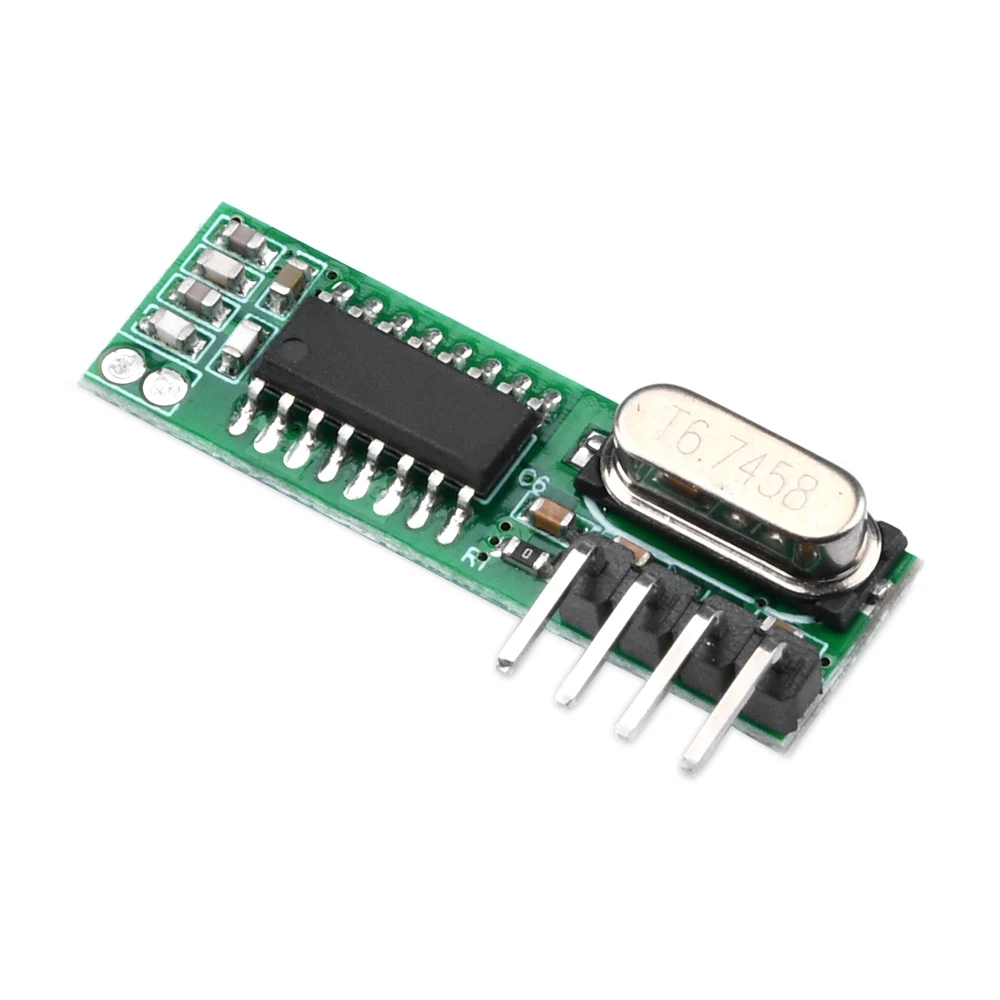

2.RX470 receiver module is a UHF ASK receiver demodulator, support ASK and OOK modulation mode
3. The receiver module has high sensitivity (-108dBm), low power consumption performance, and at the same time has a high dynamic range (greater than 60dB)
4. The module uses a highly integrated chip, built-in front-end low-noise amplifier, mixer, filter, frequency synthesizer and other circuits, the signal can be optimized to the greatest extent possible
5. Good radiation suppression capability of the local oscillation, multiple receiver modules can work together (i.e., single-emitter multi-receiver) and will not interfere with each other, together with the use of not affecting the receiving distance
6. Wide range of applications, suitable for wireless power switches, sockets, remote control curtains, access control, electric vehicles, security, monitoring systems, hotel room control, smart home products and so on.
Parameter:
Support ASK/OOK modulation, receiving sensitivity reaches -108dBm.

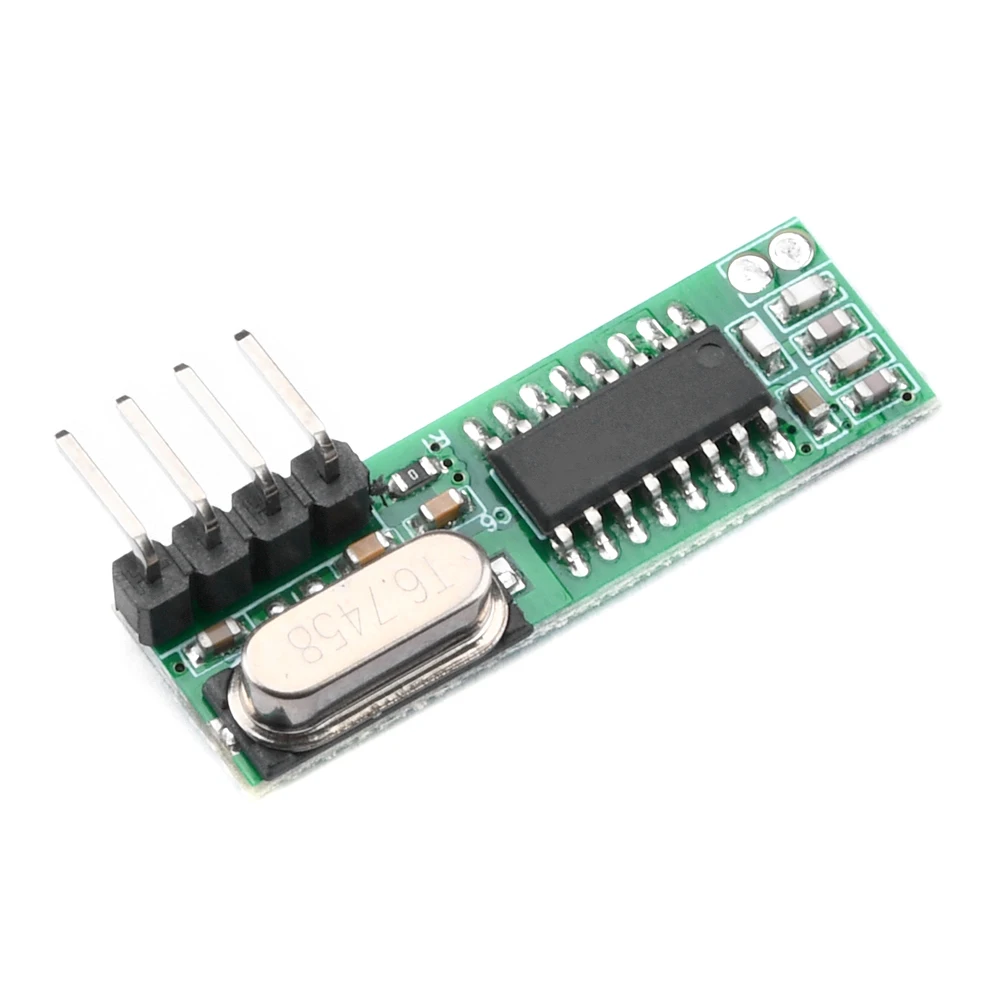

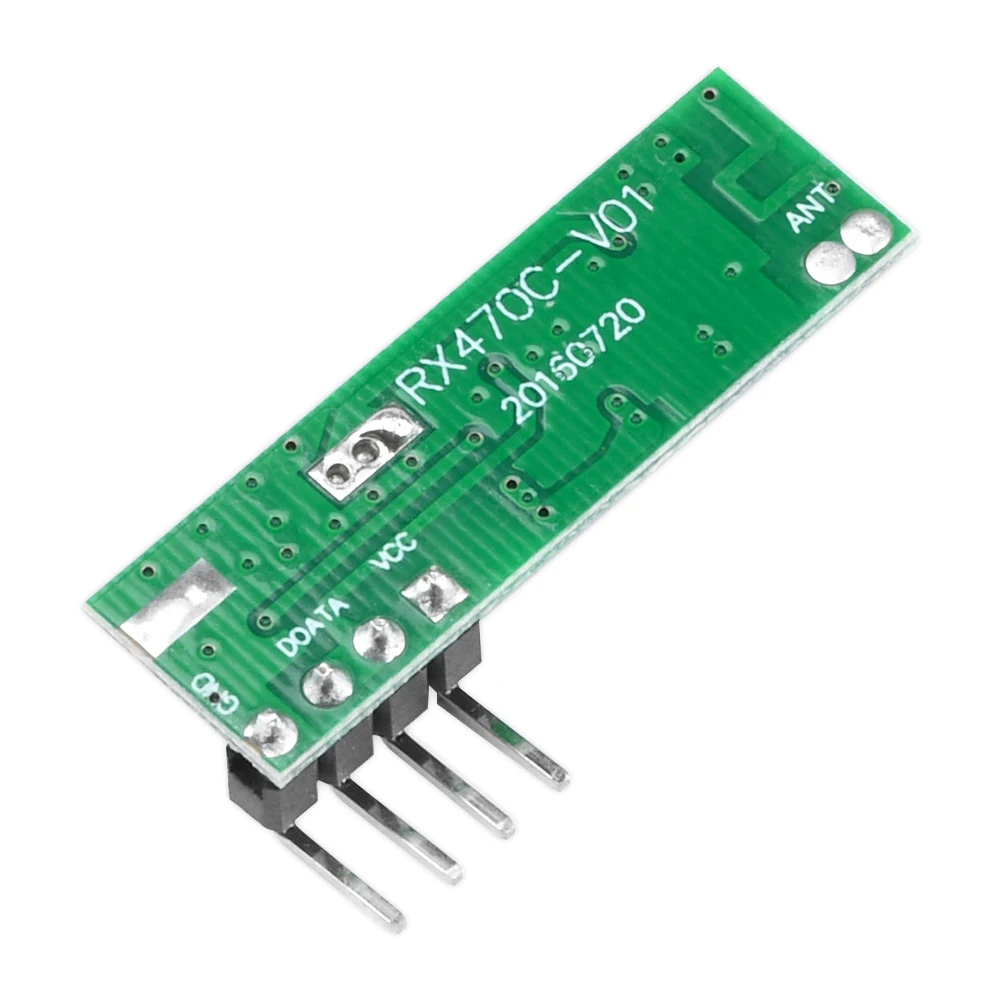

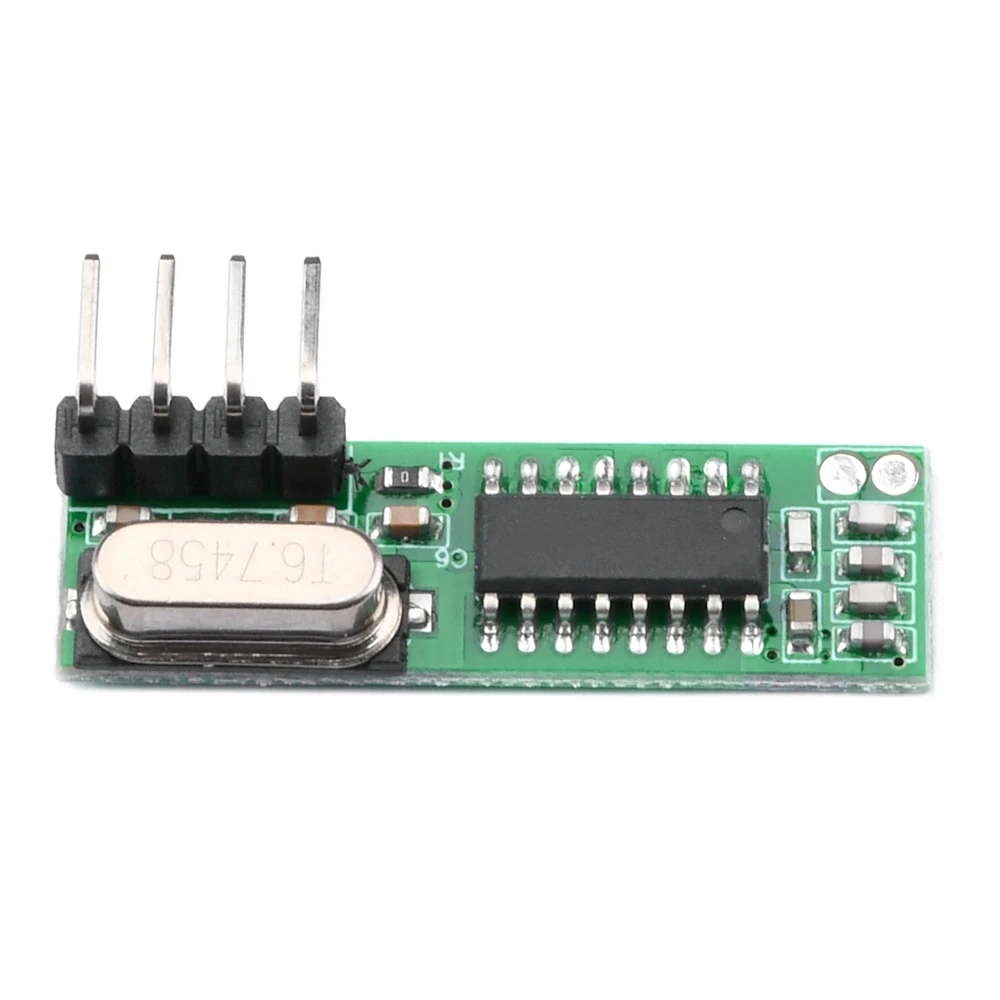

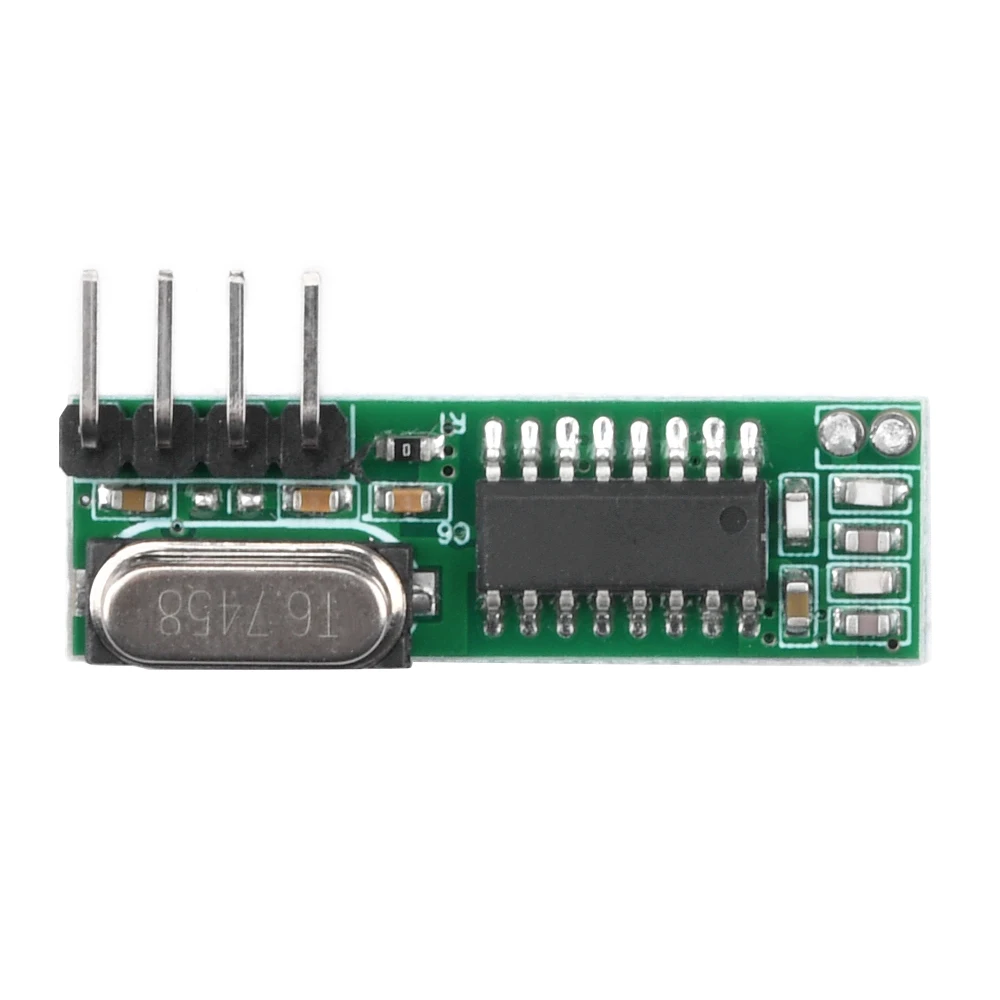

Receiving module:
Operating frequency: 433.92MHz, bandwidth about ± 150KHz
Power supply voltage input range: 2.2V-5.0V
Temperature range: -40-85 ℃ even in harsh ambient temperatures can work normally

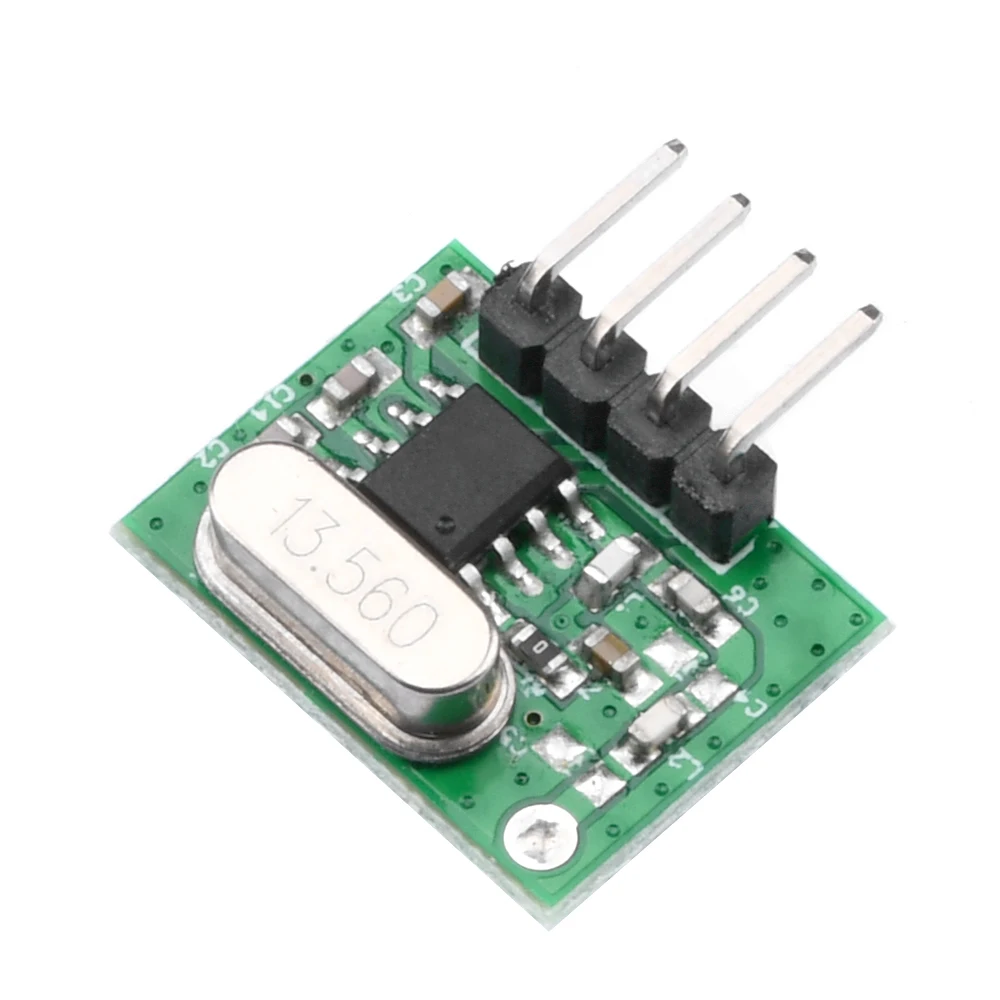

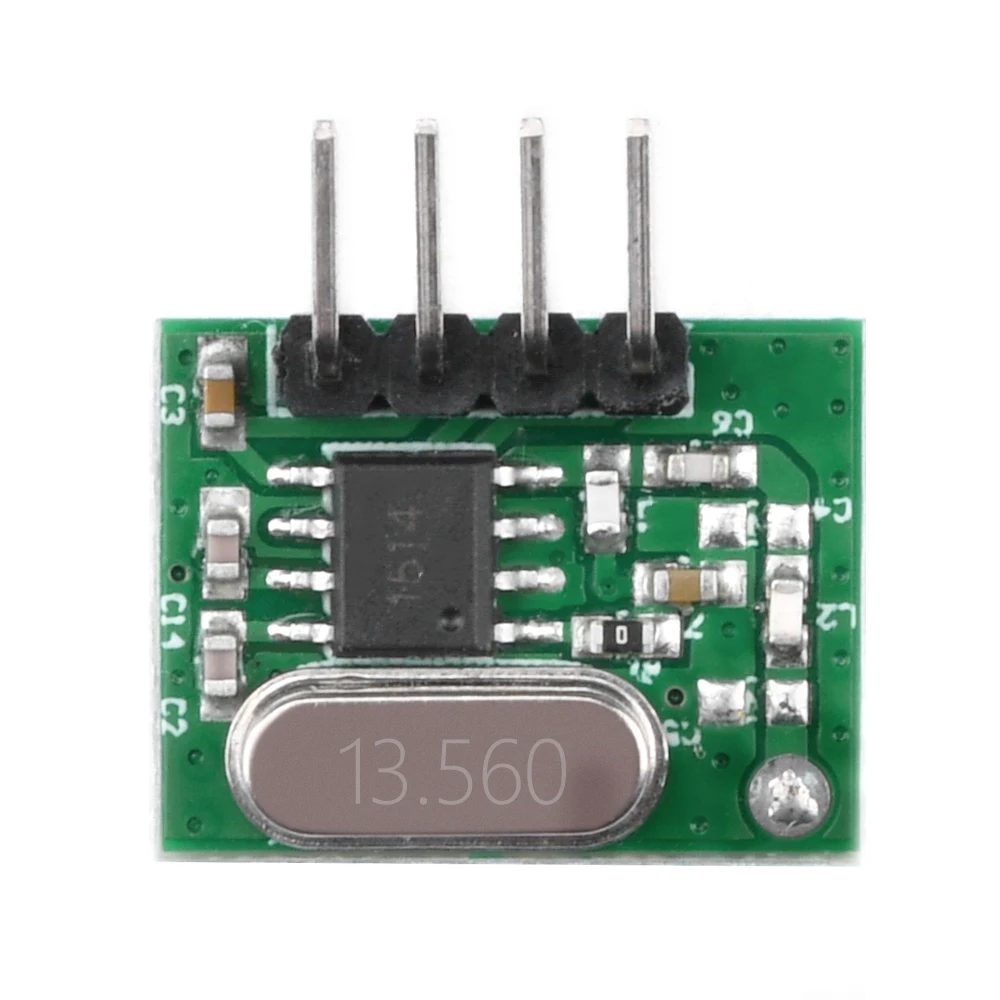

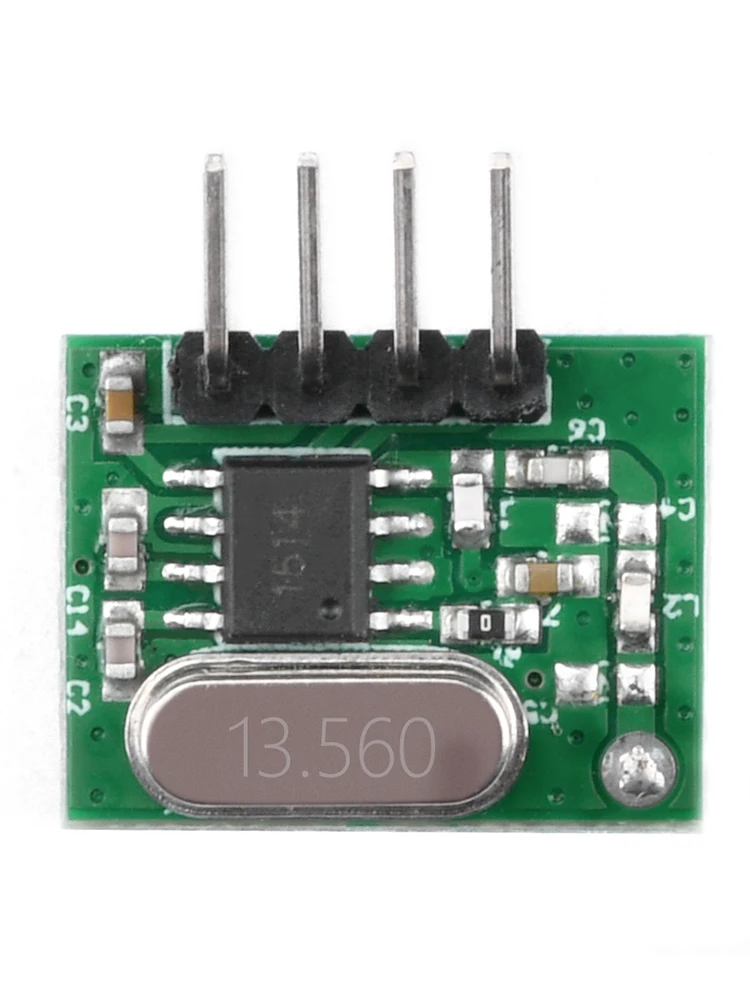

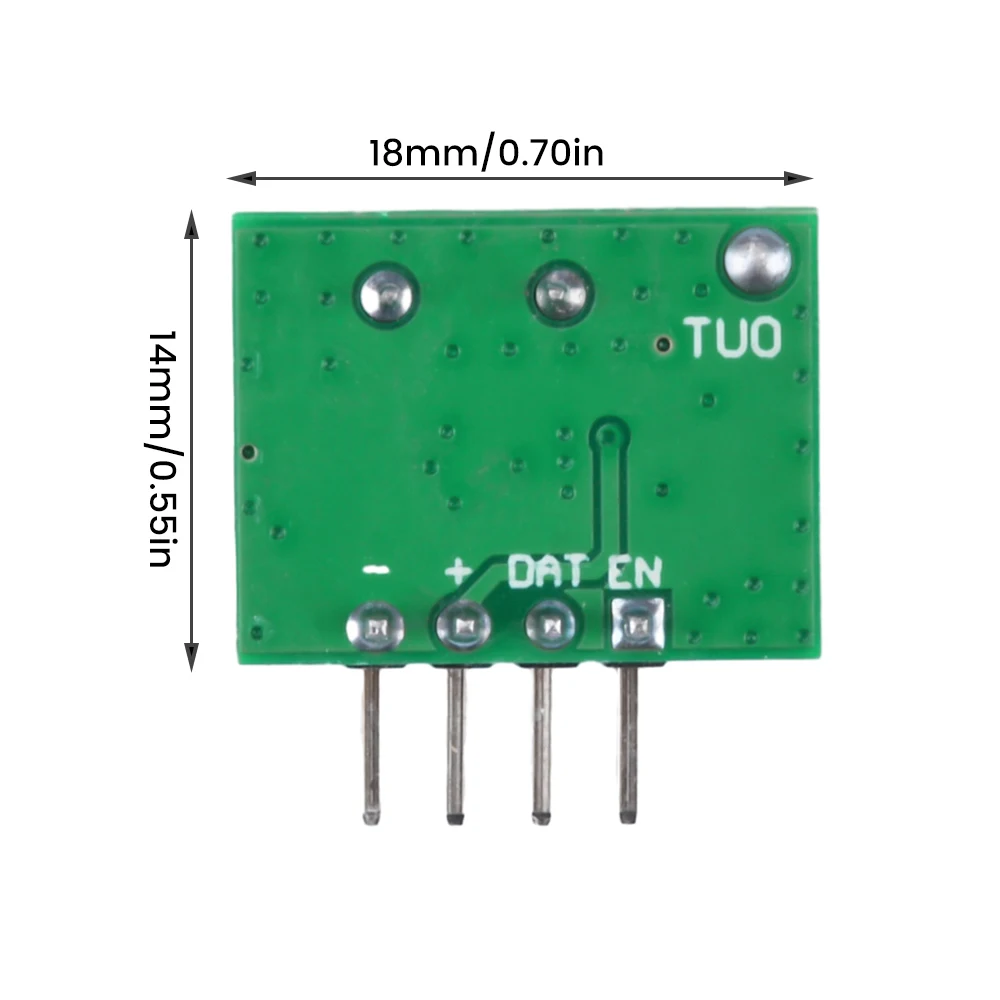

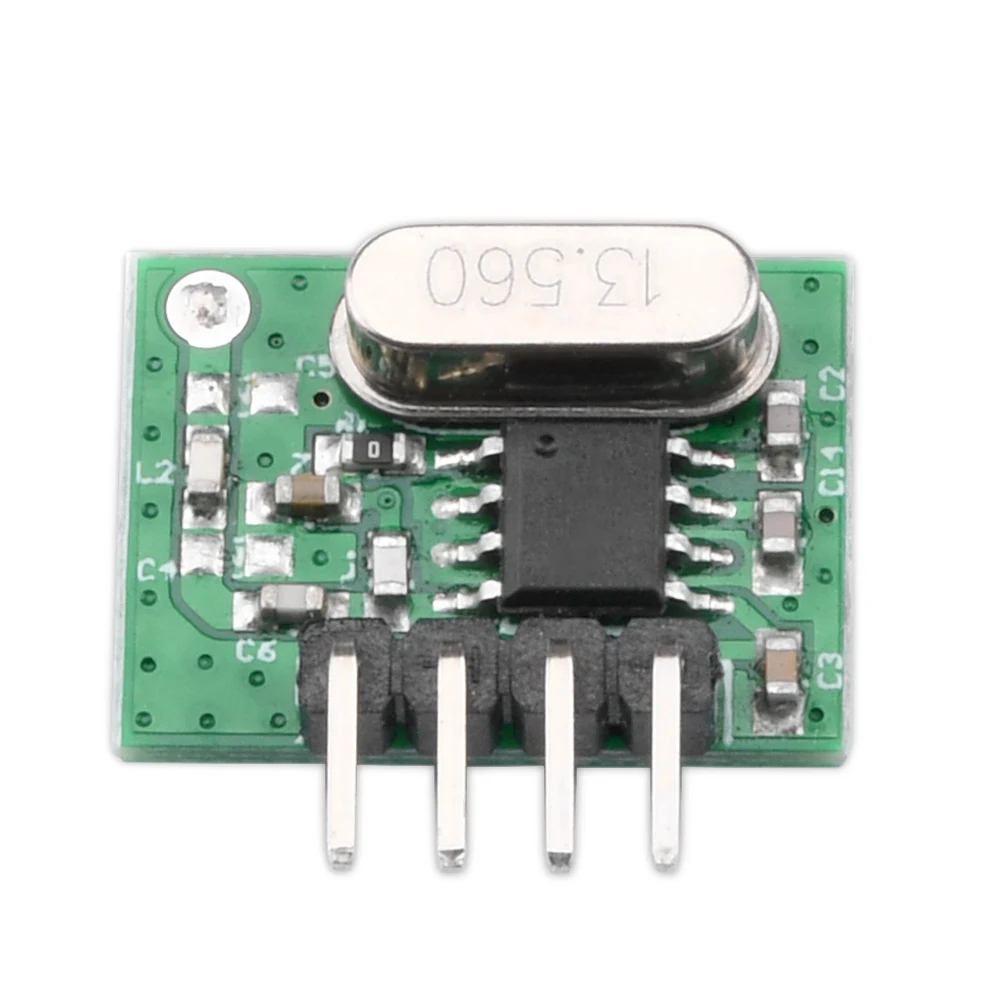

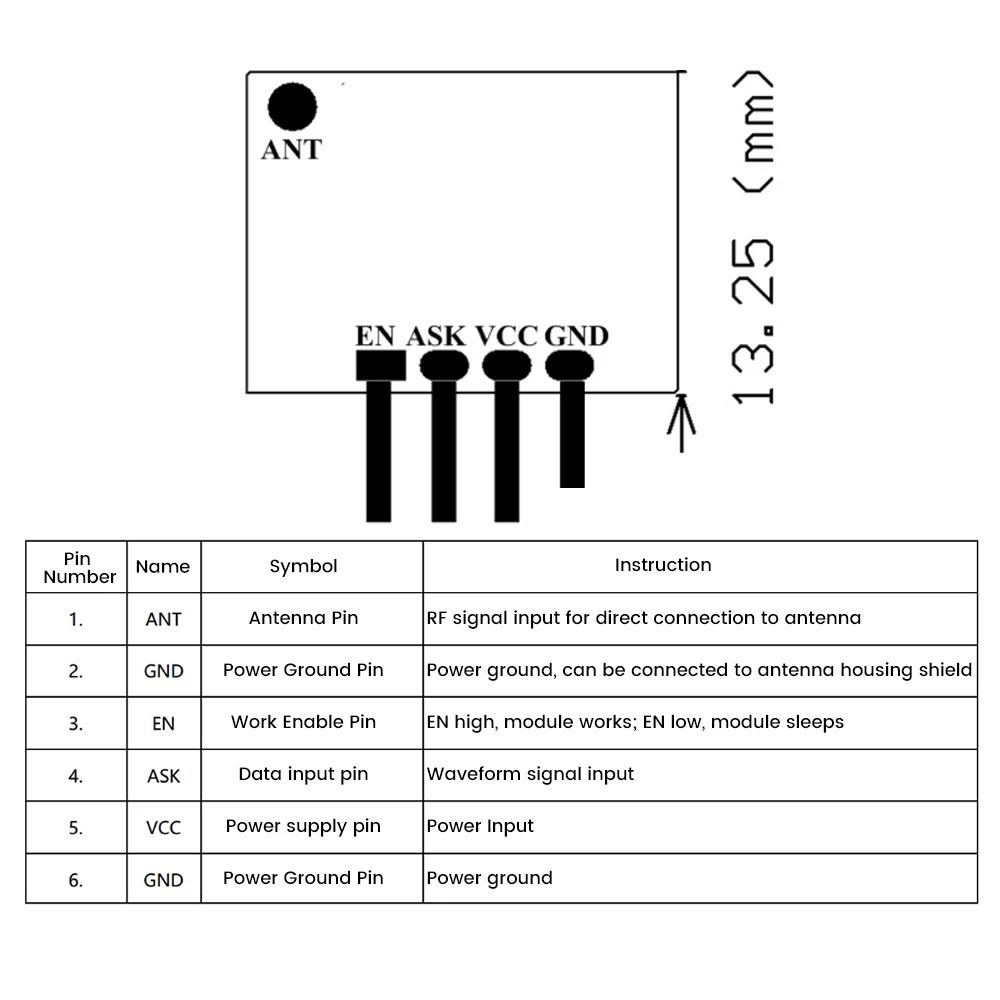

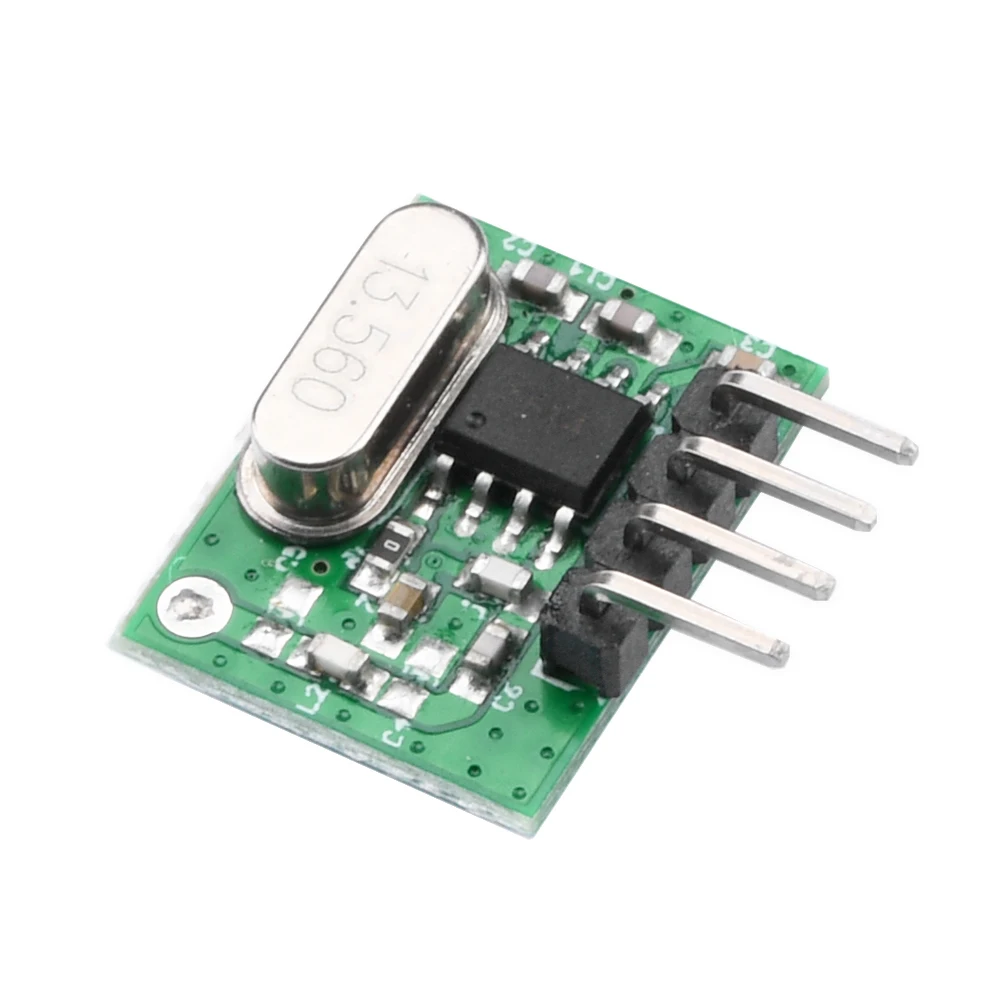

Transmitter module:
Operating frequency: 433.92 MHz
Supply voltage input range: 2.0V-3.6V
Low supply power consumption, shutdown mode current less than 1uA
Transmission rate up to 20Kbps
Temperature range: -45-85 ℃ even in harsh ambient temperatures can work normally

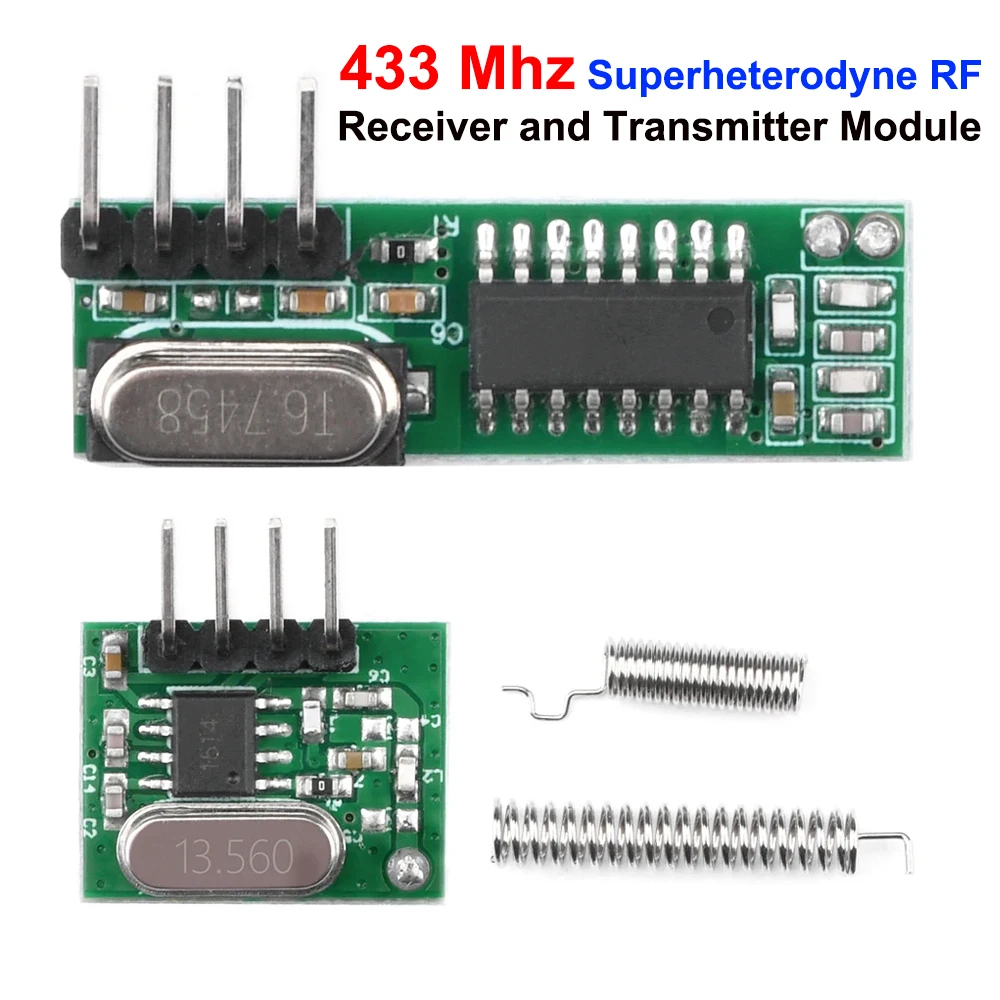

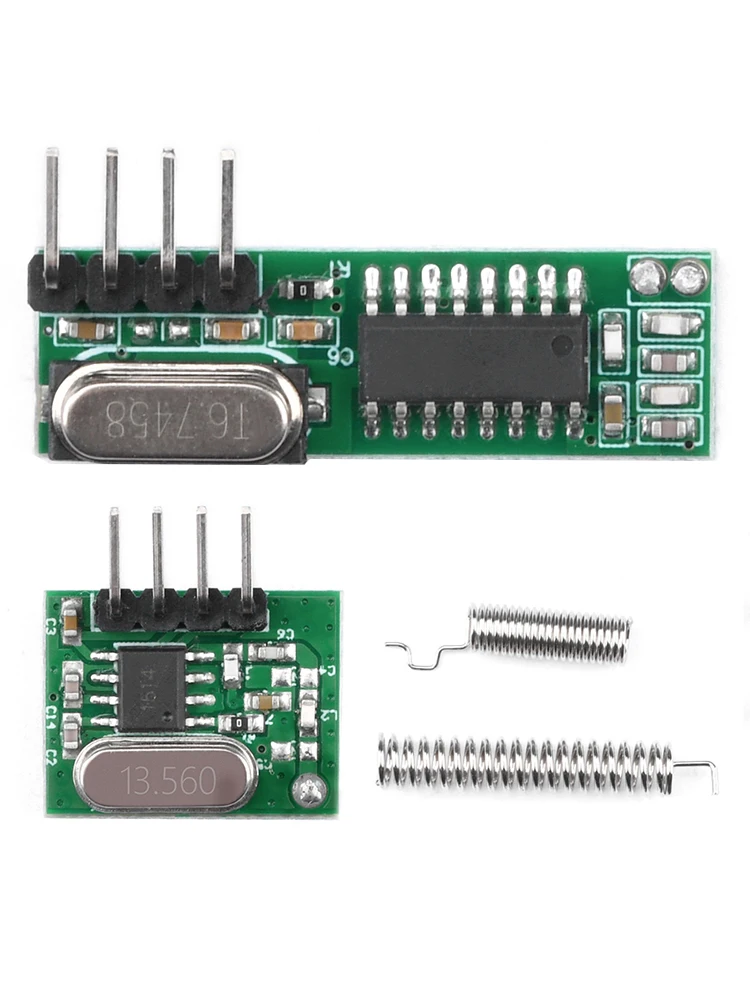

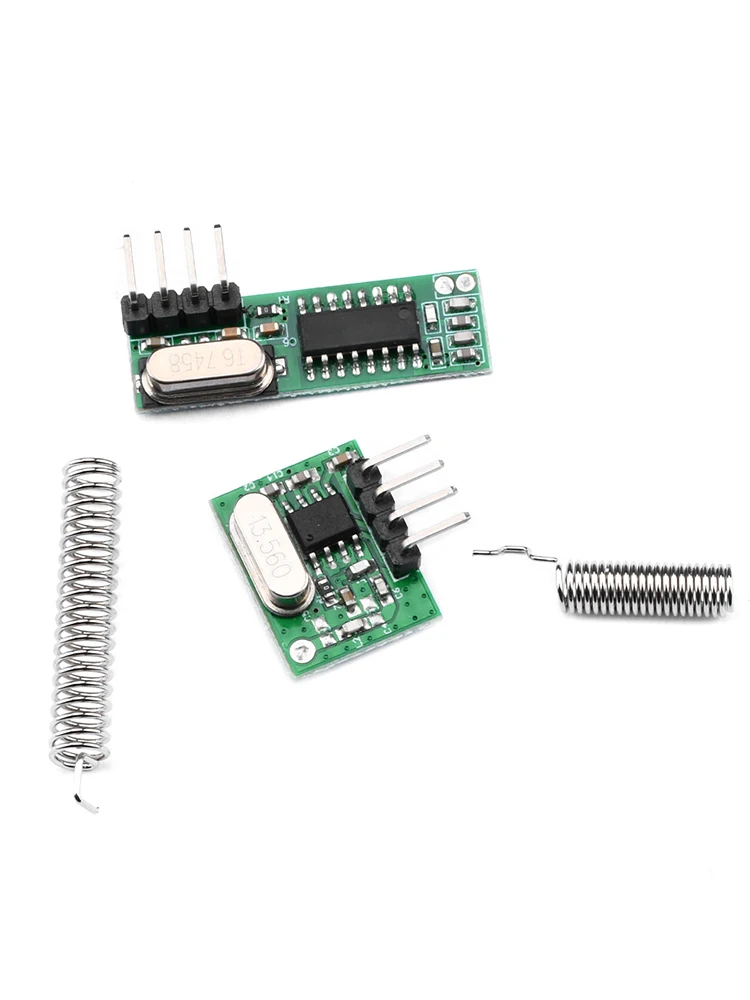

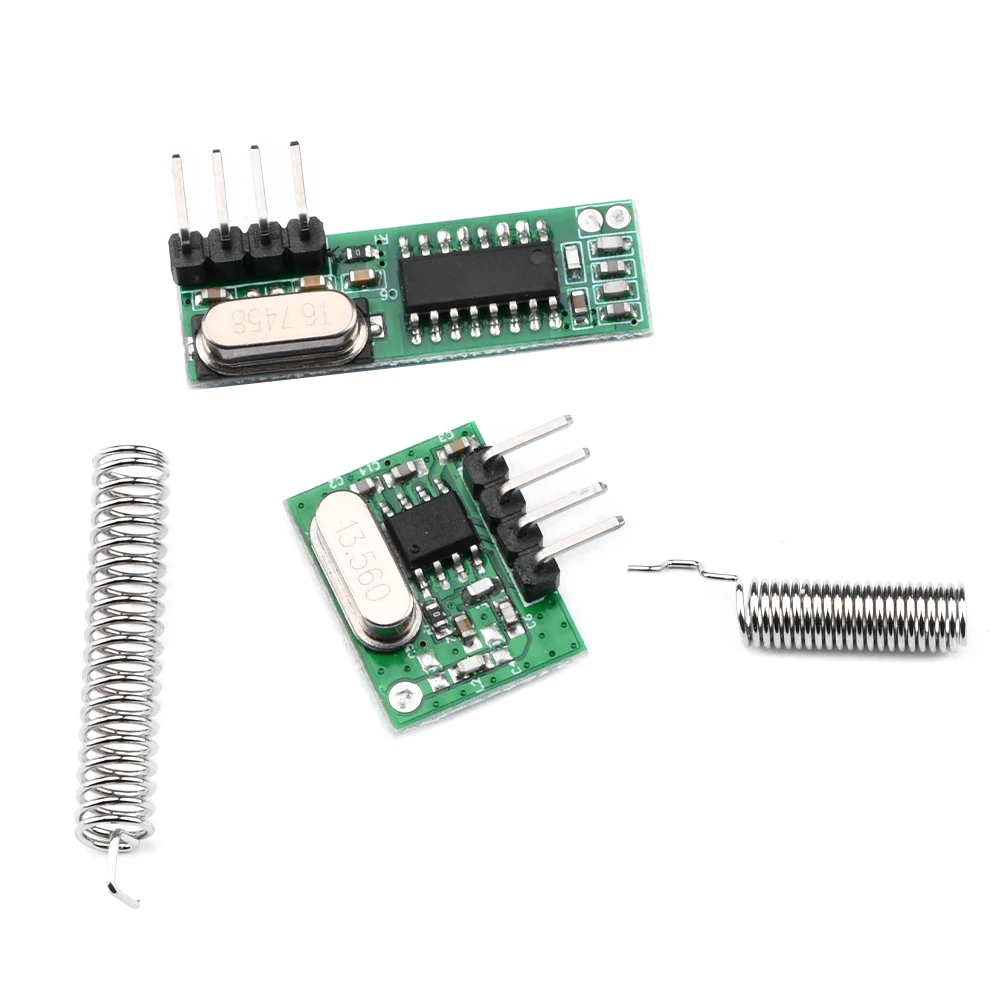

Package include:
Receiver module *1
Transmitter module*1

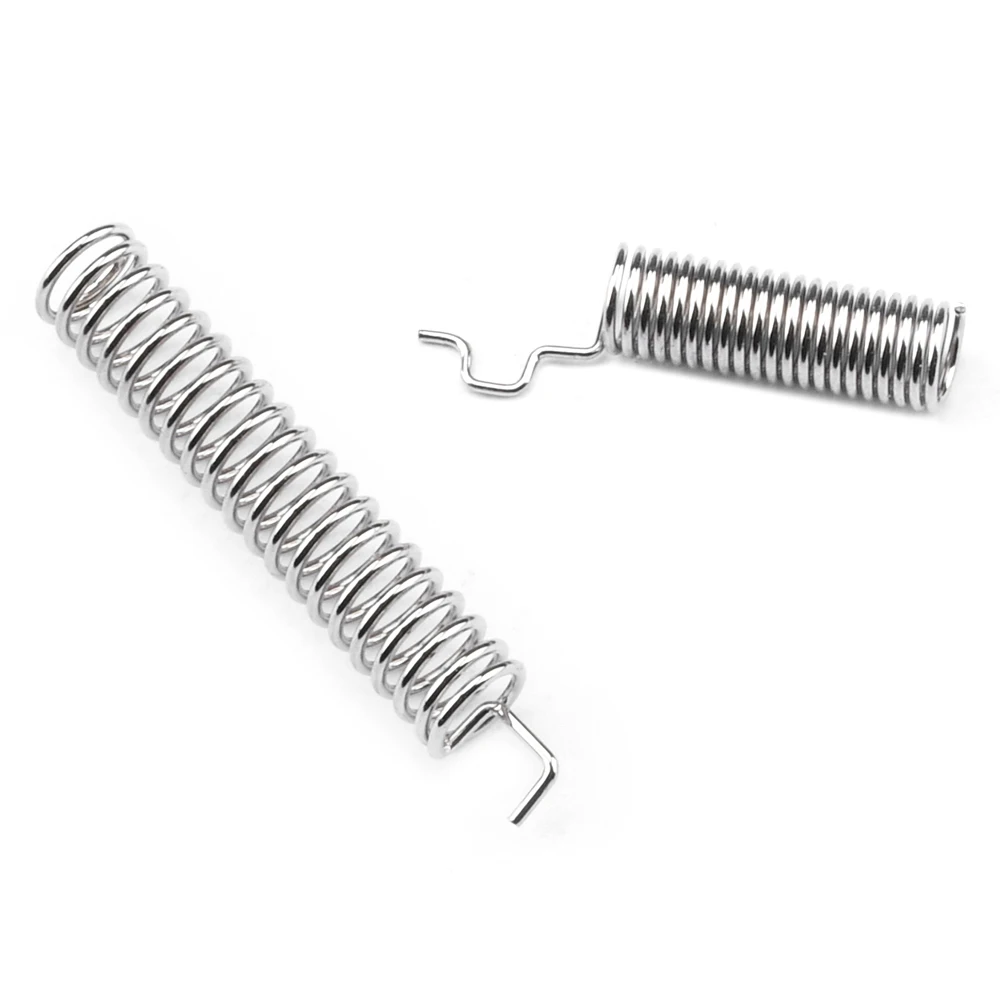

Antenna*2
