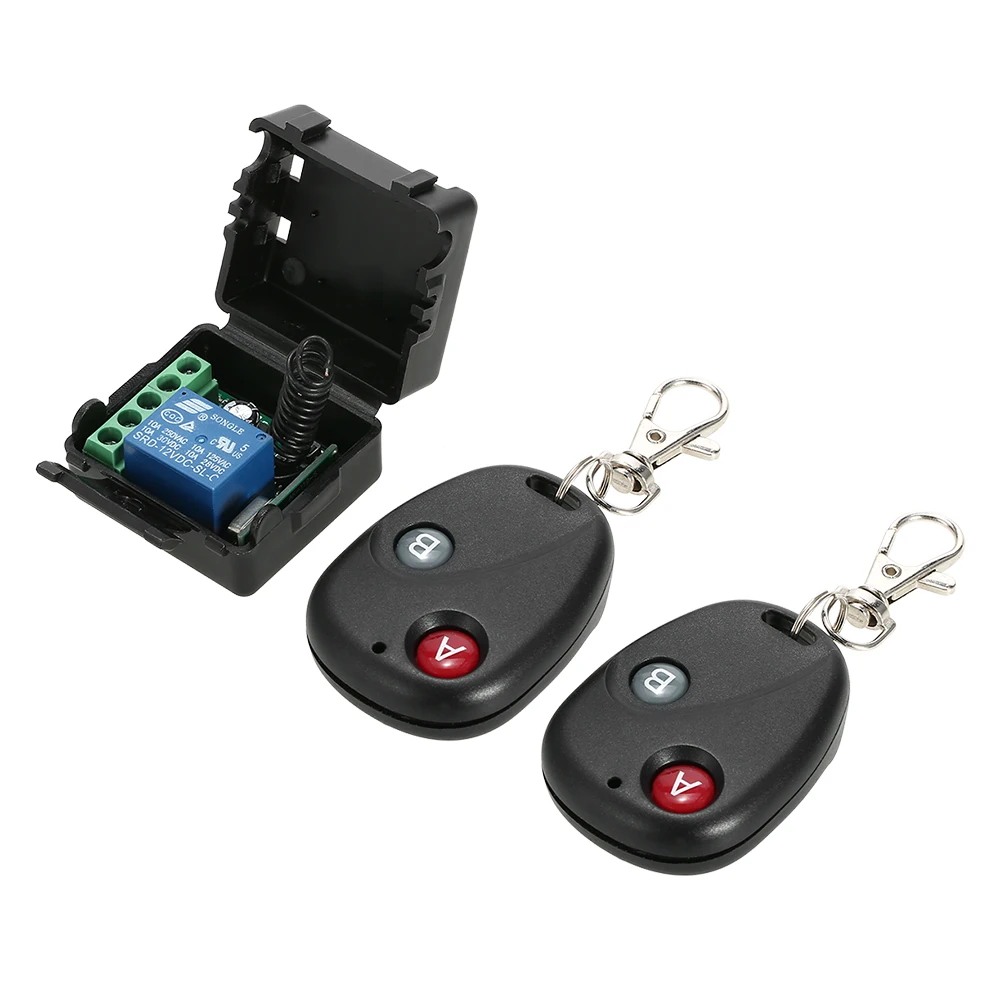

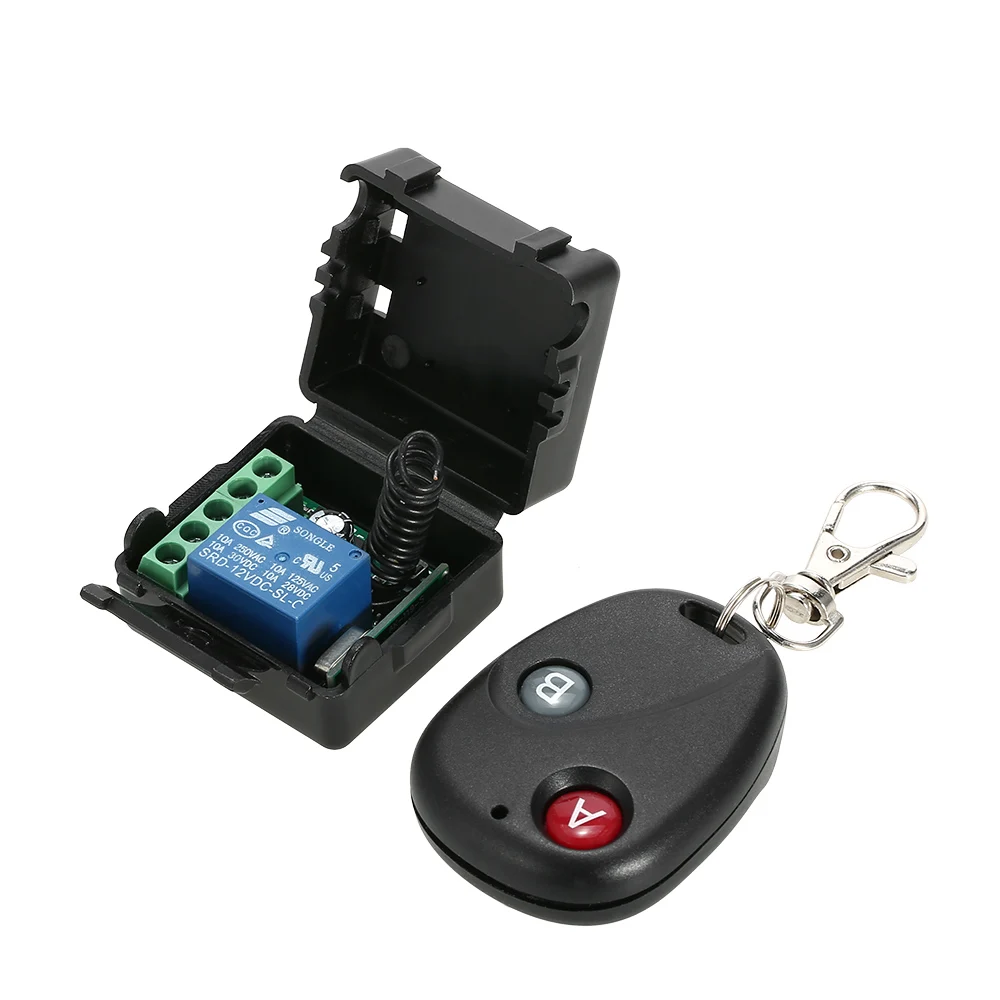

433Mhz Universal DC 12V 23A Relay Wireless Switch Control Remote Switch Module RF433Mhz Transmitter Remote Controls
Features:

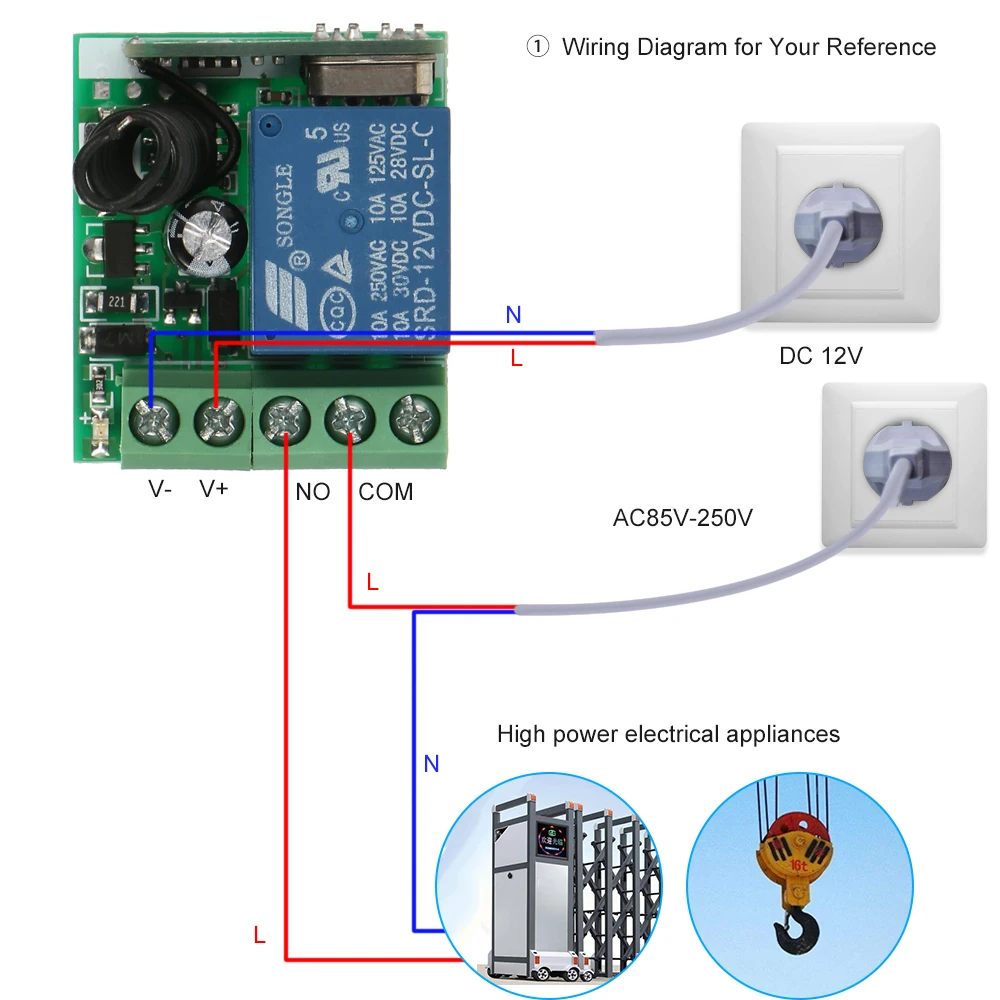

*Very convenient to use, simple wiring diagram connection way.Â
*Support remote control up to 19 pieces. It can connect to the electronic control lock, light, electric curtain, etc. So that it can remote unlock the door, close the light, open or close the curtain, etc.Â
*Super small body, and it occupies less space. The receiver board size is only about 3.5*3*3cm.

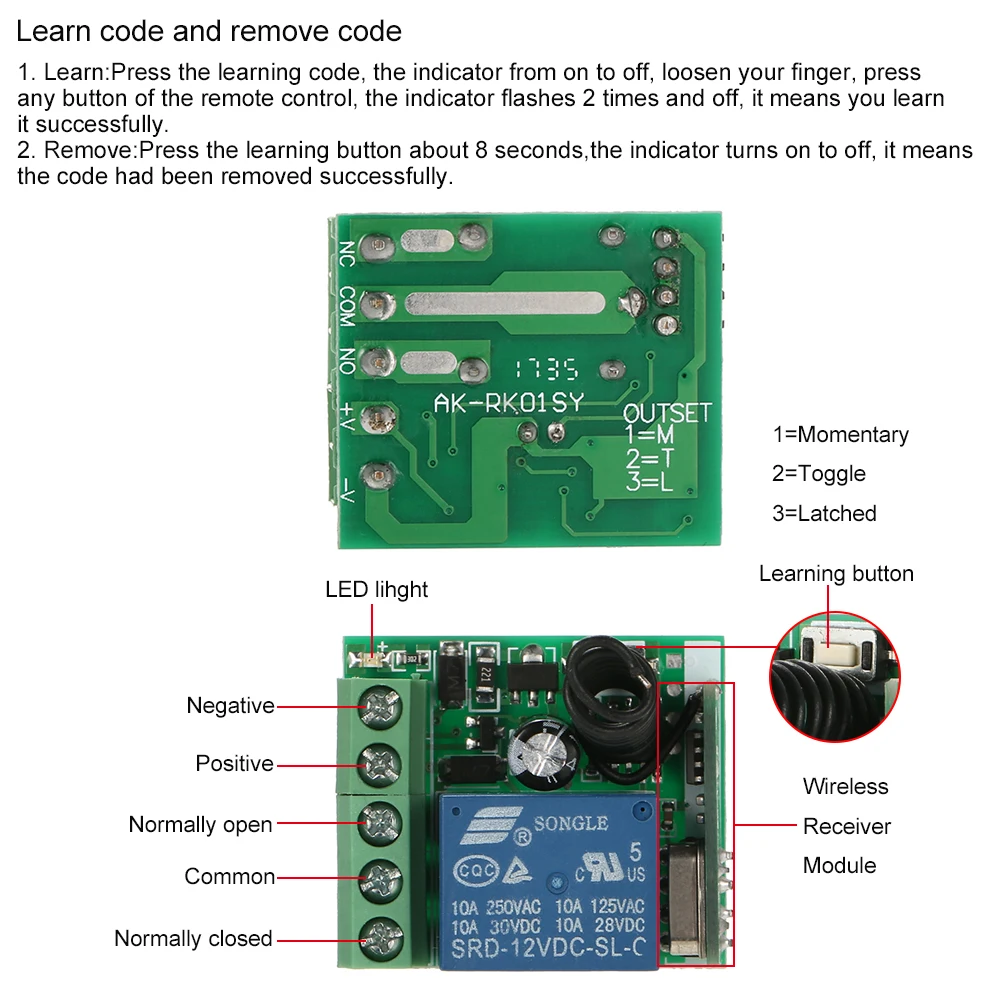

*The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.
*Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)
Specifications:
Input Power: DC10V-14V
Standby Current: <5MA
RF Frequency: 433MHz
RF working mode: superheterodyne reception
Receive sensitivity: -108dbm
Transmitting distance: 100m (open area)
Decoding mode: MCU software decodingÂ
Remote control storage: up to 19 PCS
Working mode: Momentary, Toggle, LatchingÂ
Wiring type: fixed terminal

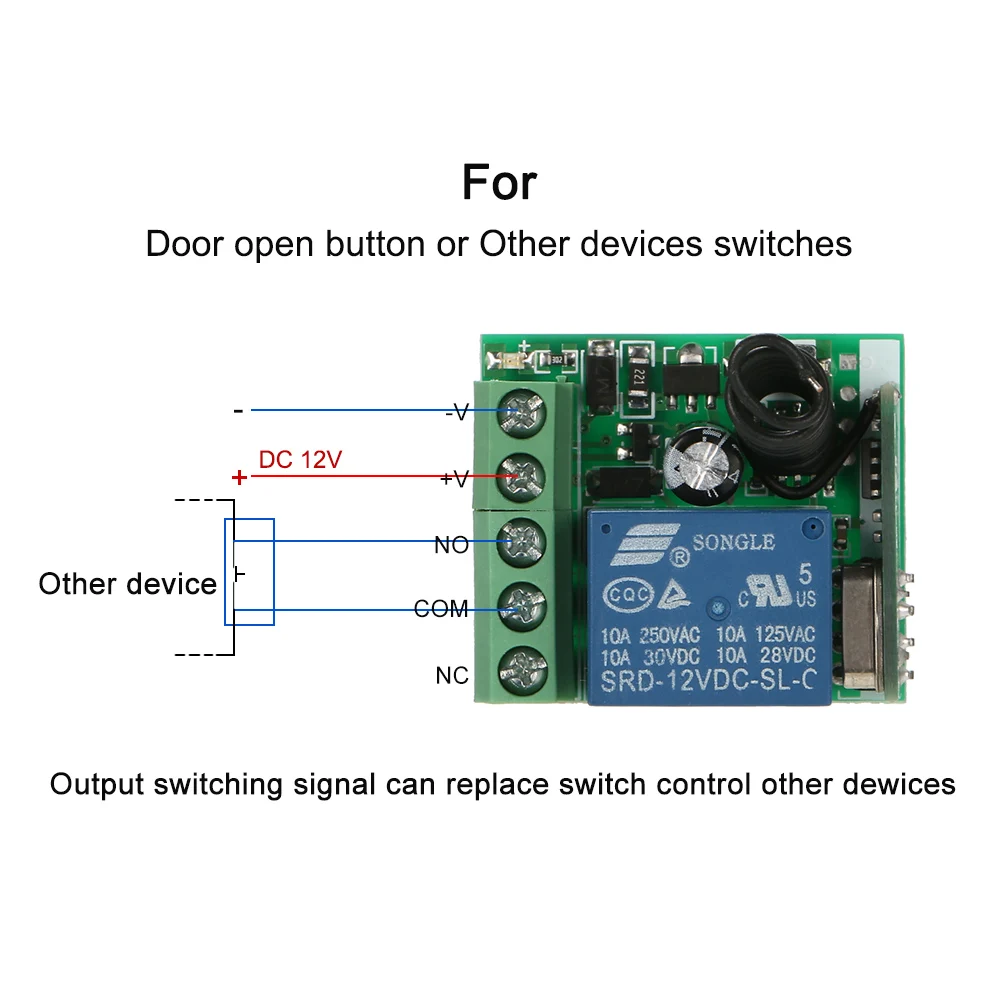

Output Terminal: NO , NC , COM
Remote Control battery: 1*12V 23A (included)
Supporting Remote Control Type: learning code (1527 chip) ; fixed codeÂ
Receiver Board Size: Approx. 3.5*3*3cm/1.37*1.18*1.18in
Fuse Box Size: 4*3.7*2.7cm/1.57*1.45*1.06in
Package Information:
Package Size: Approx. 13*9*3cm/5.12*3.54*1.18in
Package Weight: Approx. 47g/1.66oz     Â

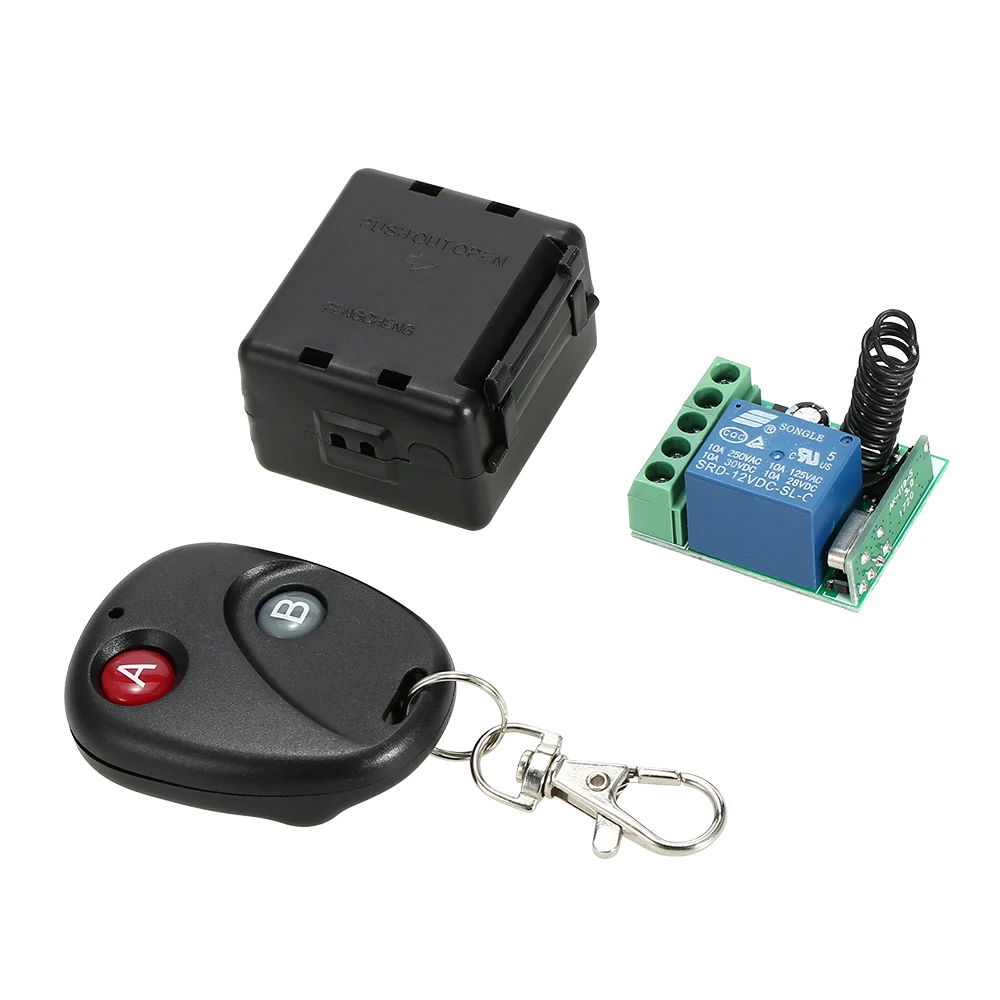

Package List:

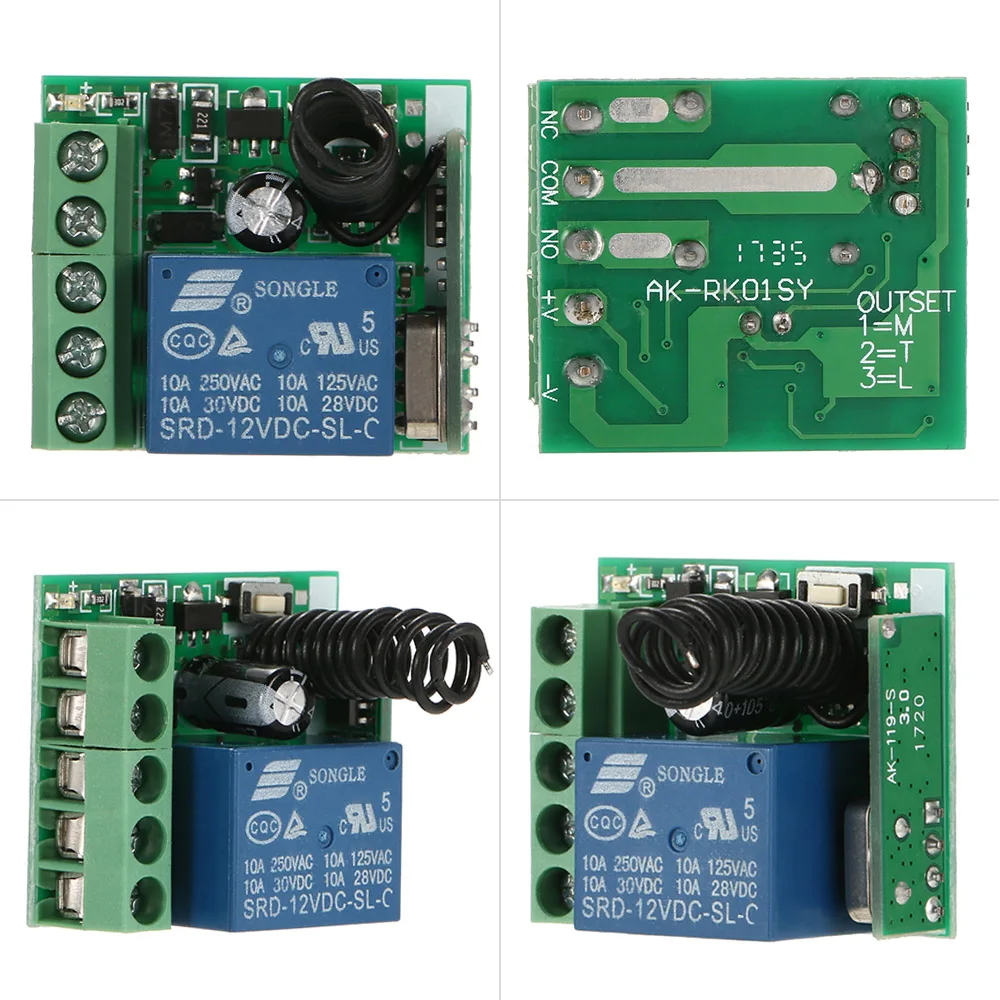

1* Receiver Board
1* Fuse BoxÂ

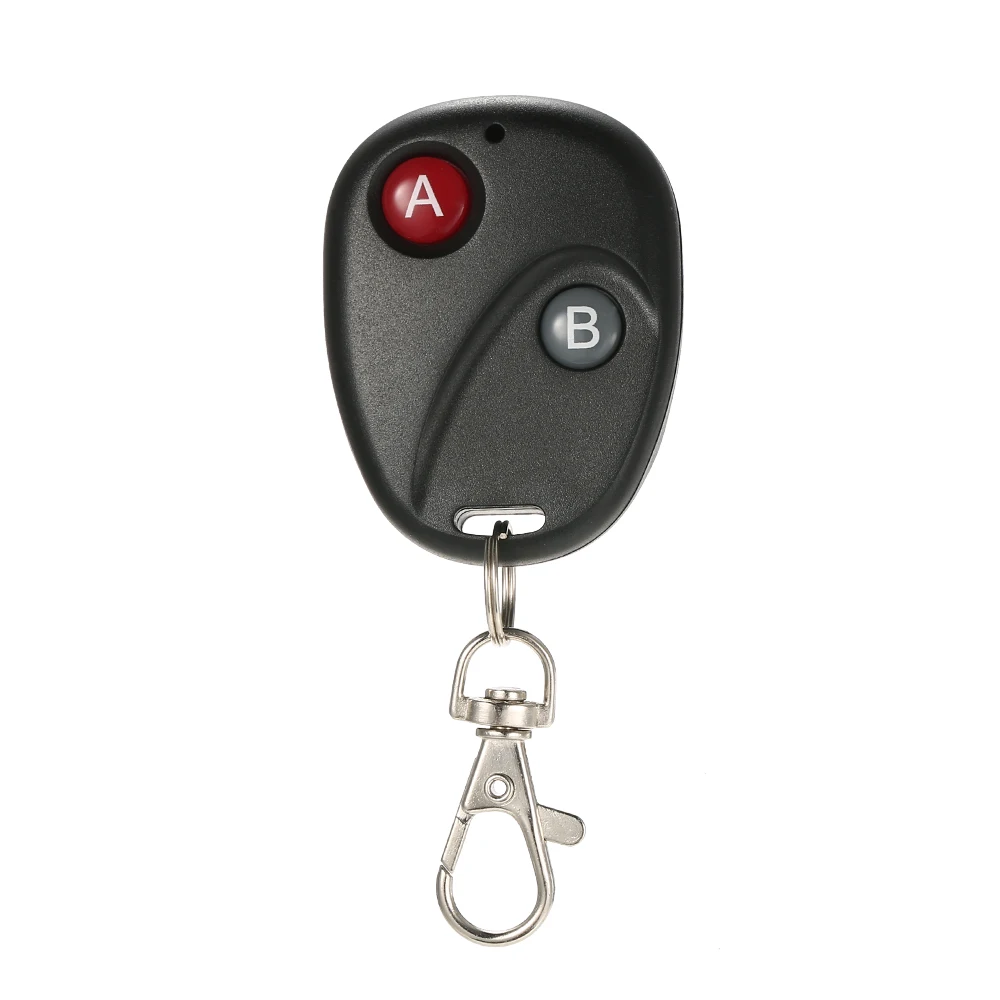

1* Remote Control
