Functions of sliding gate motors:

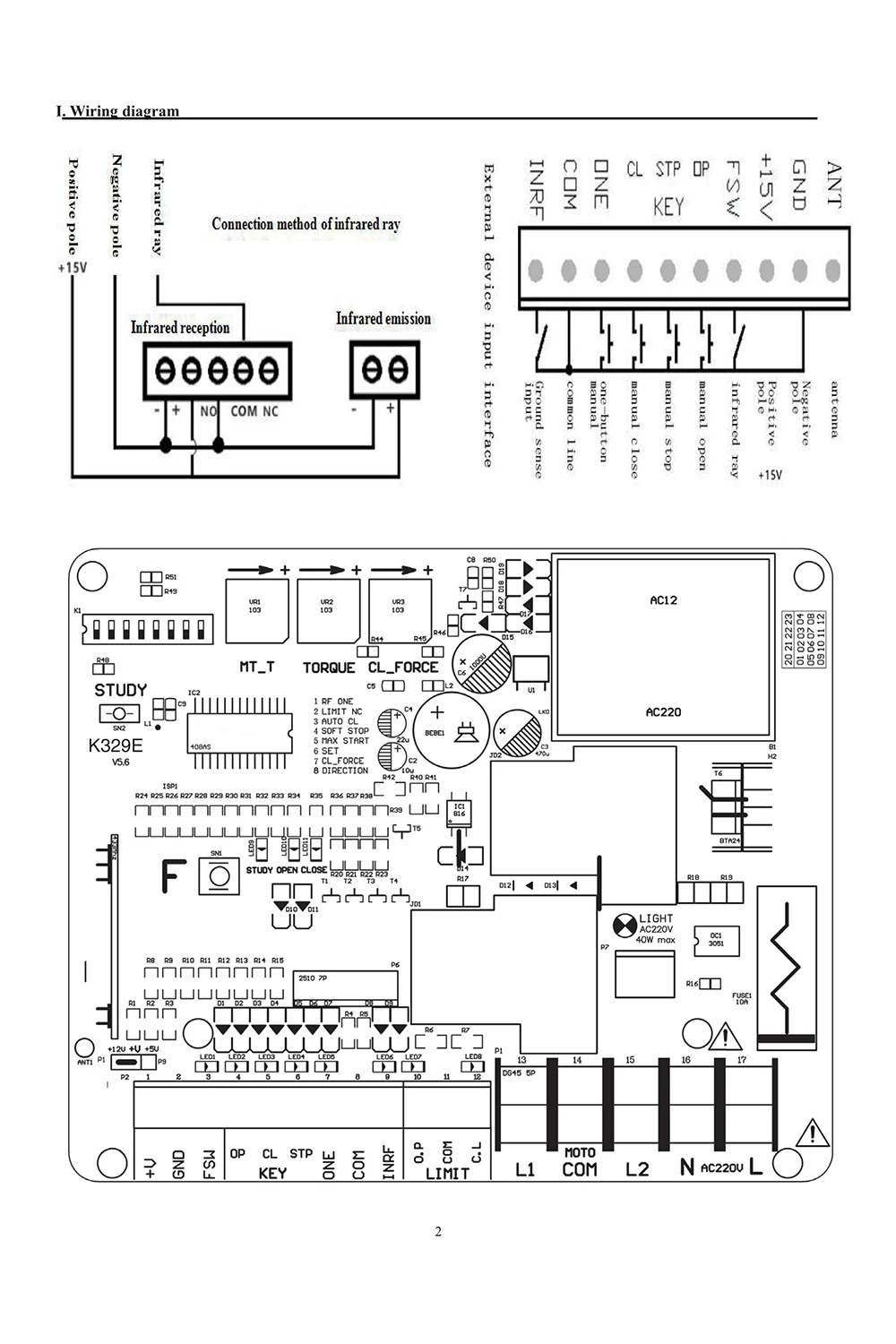

1. Totally integrated electrical mechanical system (Quantity of racks optional ).
2. Control board interface for optional impact-proof infrared photocells.

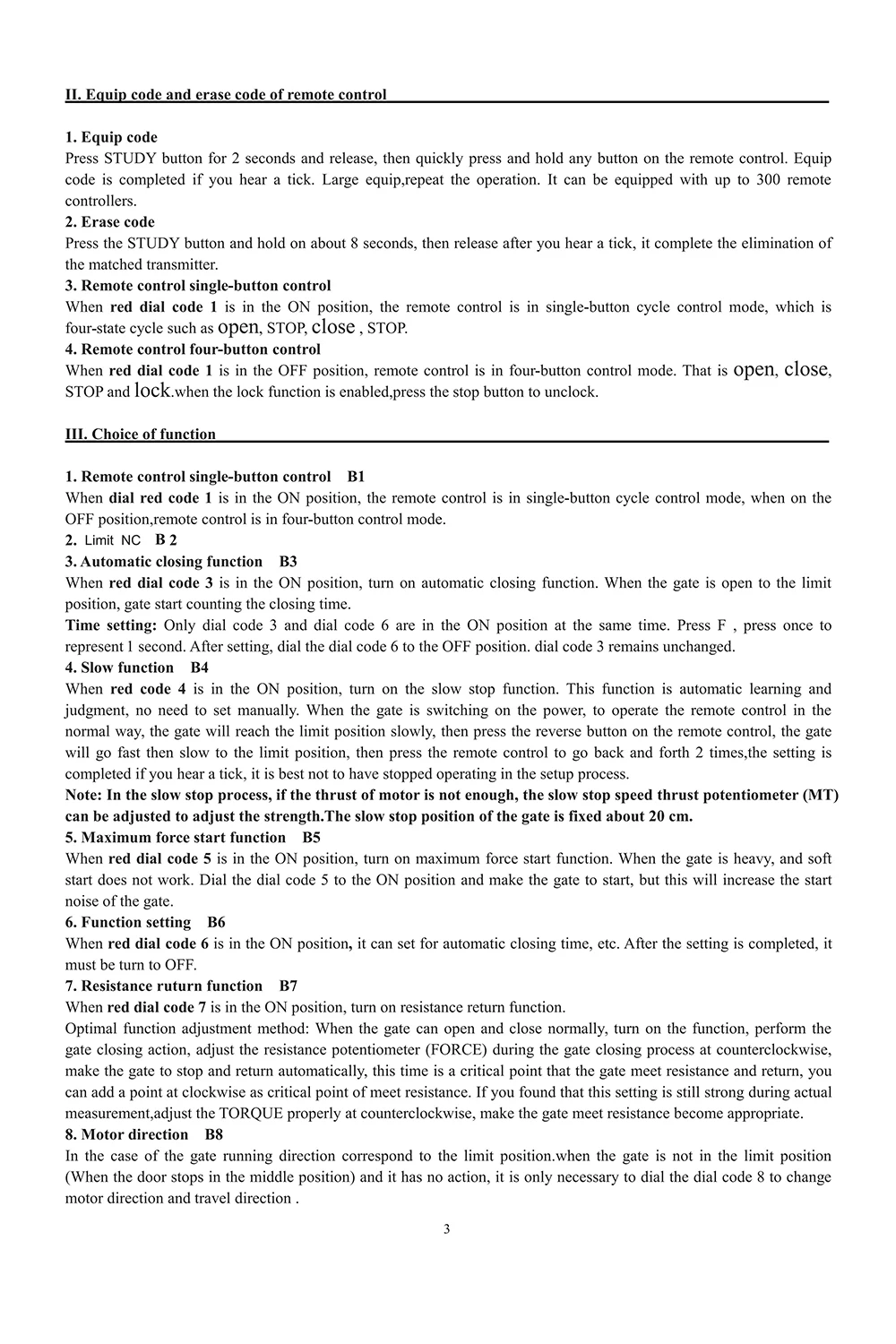

3. Can connect flashing light and keypad and electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto gate stop and re-open when an obstacle is encountered.
7. Wireless remote control or wired remote control are optional.

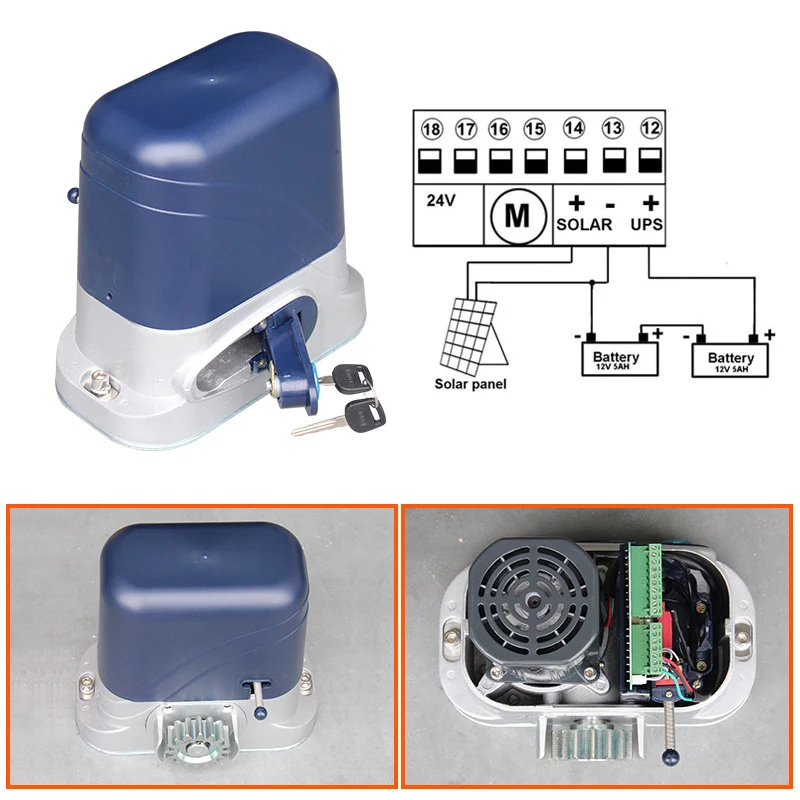

8. 24VDC sliding gate opener can connect transformer and back up battery.

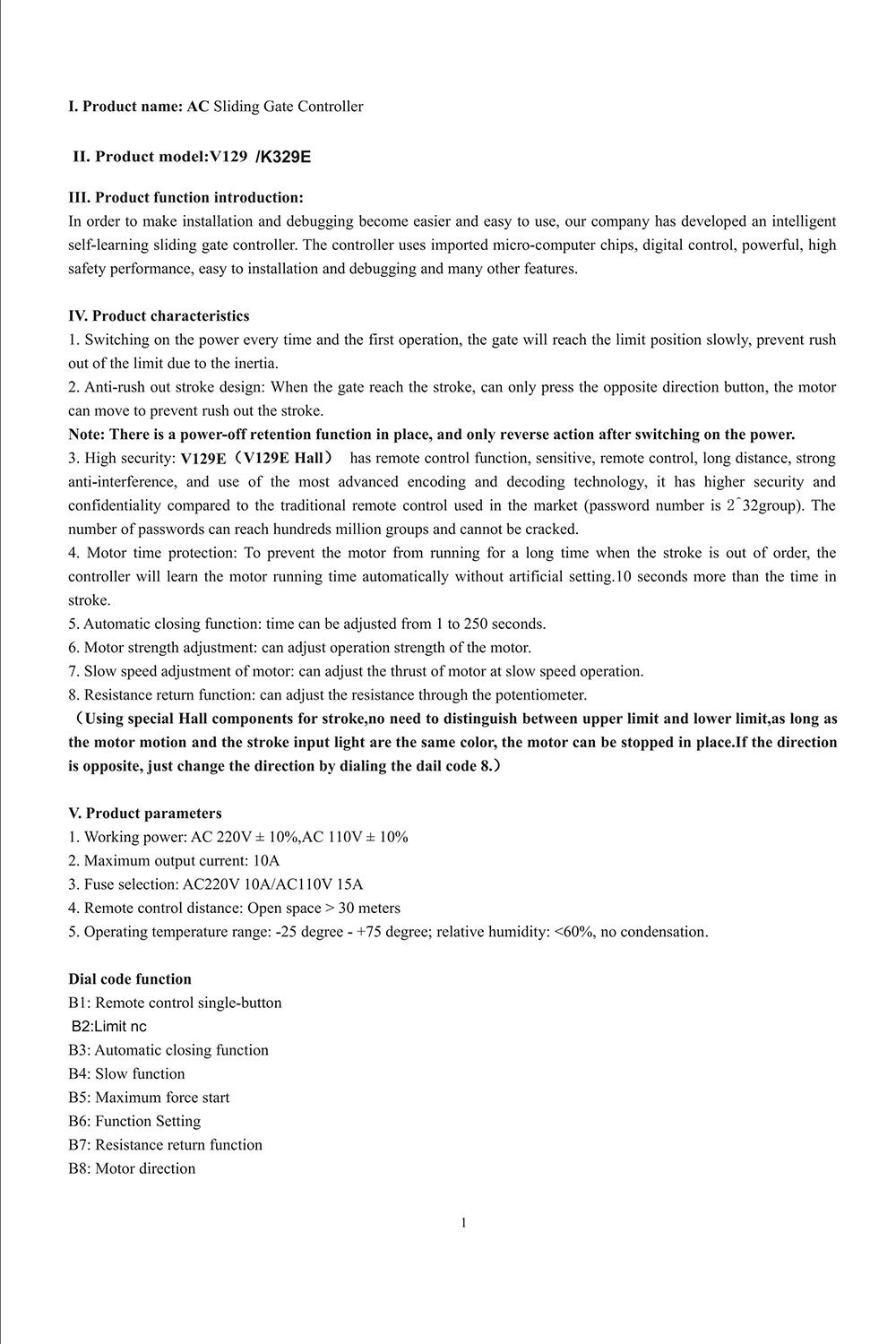

Parameters:
1. Working temperature of motor: -25°C～ +55°C
2. Working humidity: ≤85%
3. Power supply: 24DC±10% (AC110V AC220V ±10%,Need to connect the converter) 50Hz/60Hz
4. Motor voltage: 24VDC
5. Rated power: 200W

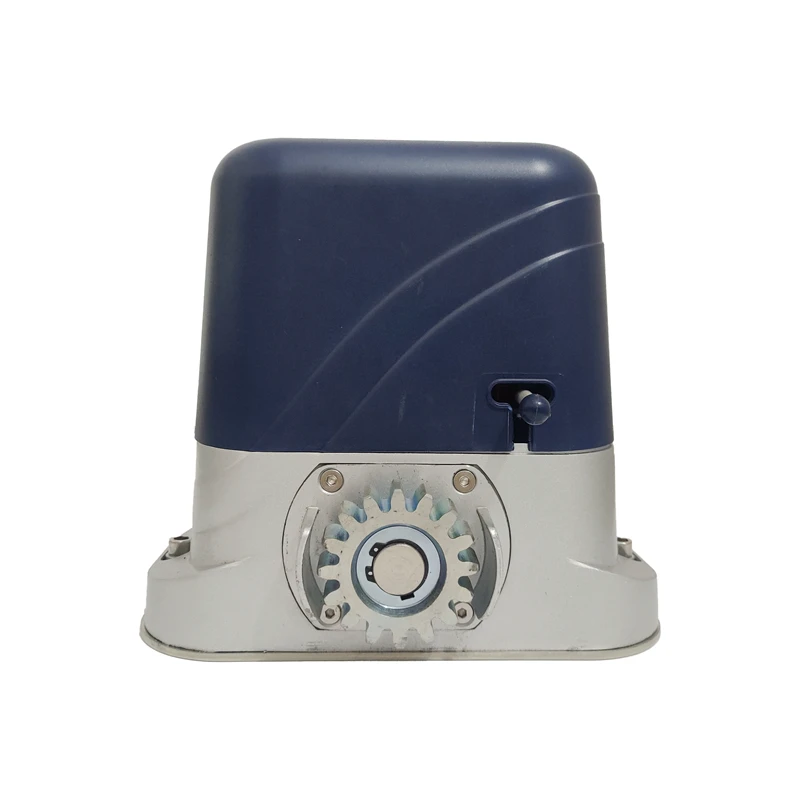

6. Output gear module: M=4
7. Output gear number: Z=16
8. Open(close) speed: V=12m/min
9. Rated speed: 1400RPM
10. Maximum pull: 1100N
11. Maximum load: 500kg
12. Net weight: 10KG
13.Remote control distance: ≤50meter
14.Packing: In a carton
Warm tips:
1. About the remote control,we delivery it without battery.Because it's sensitive product,it's airline control. you could buy it easy in your local.
2. About the shipping cost,if you think it's incredible high,you could ask the seller for discount. we always give our customer best price.
3. If you choose a kit package, please rest assured that all the products inside the kit package will send youk.
4. In the shopping process you have any questions, or price and shipping problems can send me an e-mail message,I will receive the information in the first time with you discuss the best solution,and wish you a happy shopping, thank you.
Notes:
1. Please install leakage power switch on the main power.
2. please cut off the main power when connecting.
3. Electric products should be grounded.
4. High voltage is dangerous,if you are non-professionals,please do not dismantle and repair
