512HZ High quality of depth sonde &receiver for pipe locator 512Hz locator for underground pipe inspection 512hz recriver

SKU: 1005003424188503

Original price was: $196.56.Current price is: $56.16.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

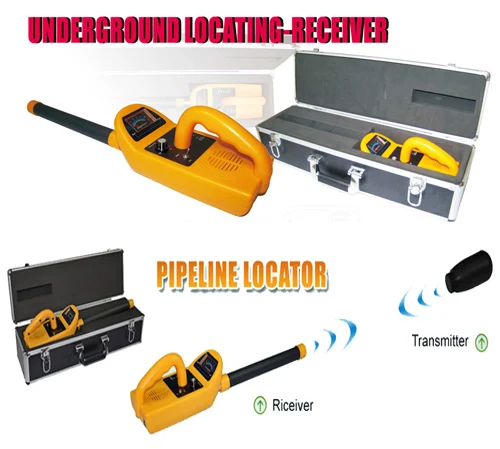

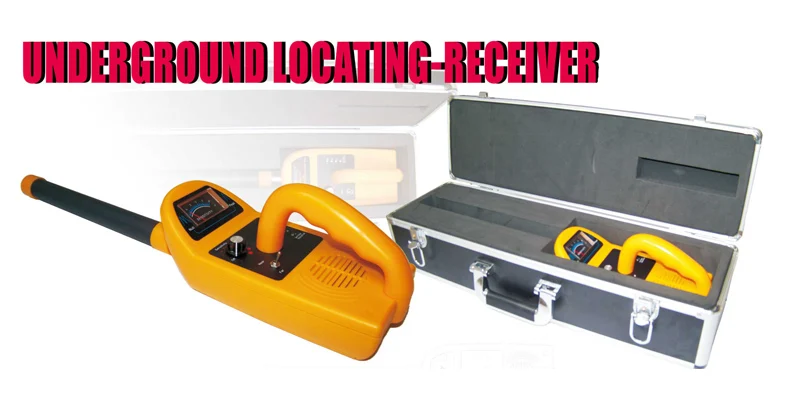

Brand New Sewer Pipe Drain Pipe Locator

Analog 512HZ Sonda Receiver

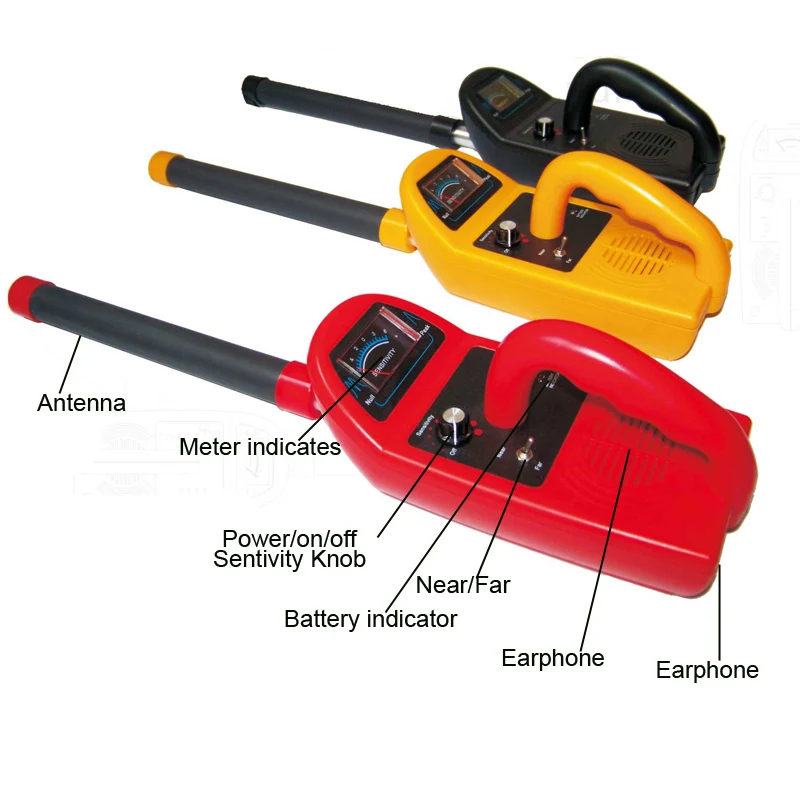

Sensitivity and Far / Near Adjustable

Direction of the pipe line

Signal Strength Meter Indicator

Battery Indicator

Speaker and earphone output

Operated on 6 AA Alkaline Batteries(not included)

Carrying Box

1 Year Australian Warranty

This item is for 512HZ Sonda receiver only, you need a transmitter to work with it. If you don’t have a transmitter, please check our store for the transmitter.



Specification:



Frequency

512HZ

Power source

6 AA Alkaline Batteries

Battery life:

30-40 hours

Size

512X110X118mm

Controls

On-Off/Sensitivity,Near/Far toggle switch

Outputs

Signal strength meter,speaker,earphone,battery indicator


Getting to Know your Tools

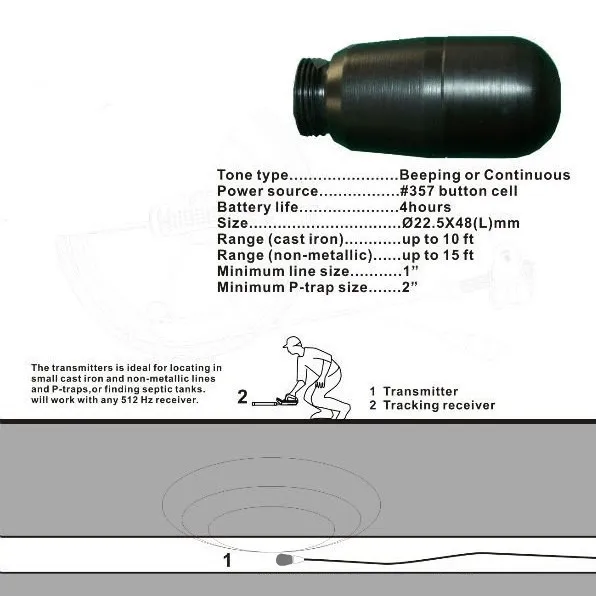

The best place to practice is above ground where you can see how the receiver responds to the location and position of the transmitter. You may be surprised at what you see. Better to be surprised when you have plenty of time to learn and nothing is at stake!
Do your practicing in a place where you have plenty of room to move around-inside in a large room, or outside on the ground. Turn on a transmitter and toss it on the ground. Walk away from it further than its range and turn on the receiver. Set the switch to”Far”and turn the sensitivity up all the way clockwise. You may hear some noise but the meter should sit at the far left with no distinct signal.

First lets take a look at the battery indicator.
Now walk around randomly, holding the receiver level,at waist height, toward the general direction of the transmitter, slowly sweeping the receiver back and forth. As you point toward the direction of the transmitter,the signal will get louder and the meter will begin to rise. Try to maintain a meter reading in the center of the scale.Turn the sensitivity down as needed to keep it in this range as you get closer. When youre unable to keep the meter below full scale, flip the switch
to “Near”.keep moving
in the direction that makes
he signal stronger.When you
have reached
the point that the signal
seems to be strongest,
and any direction you
move makes it weaker,
mark that spot) directly below the center of the antenna rod). Move to another place and seek this peak signal again and see if you always come back to the same spot. You should find yourself right over the transmitter each time. If you dont, keep practicing until you get consistent results.
also this setting is a camera for following style
Pipe detector,  Industrial endoscope,Pipeline endoscope,Duct detector
Auto Repair Instrument,Life detectors,Pipeline endoscopic
Sewer detection system,Tube wall detection system,Pipeline inspection system
Wall inner wall detection system,Pipeline operating equipment
Pipeline   experts  Pipe detector,Industrial endoscope,Pipeline endoscope
Duct detector,Auto Repair Instrument,Life detectors,Pipeline endoscopic
Sewer detection system,Tube wall detection system
Pipeline inspection system,Wall inner wall detection system
Pipeline operating equipment,Pipeline experts










we have some cheaper shipping way for clients,

All europe country,especially EU country like Belarus, Russian,Ukraine.

Allnorth American country,especiallyMexico, Canada, United States,

Most Asian countries,likeSouth korea,Vietnam,Israel,Kazakhstan,

Some African countries likeNigeria,South Africa,

other country like Australia, island countryplease contact with us for shipping way first,you can save big cost!
