Product parameters

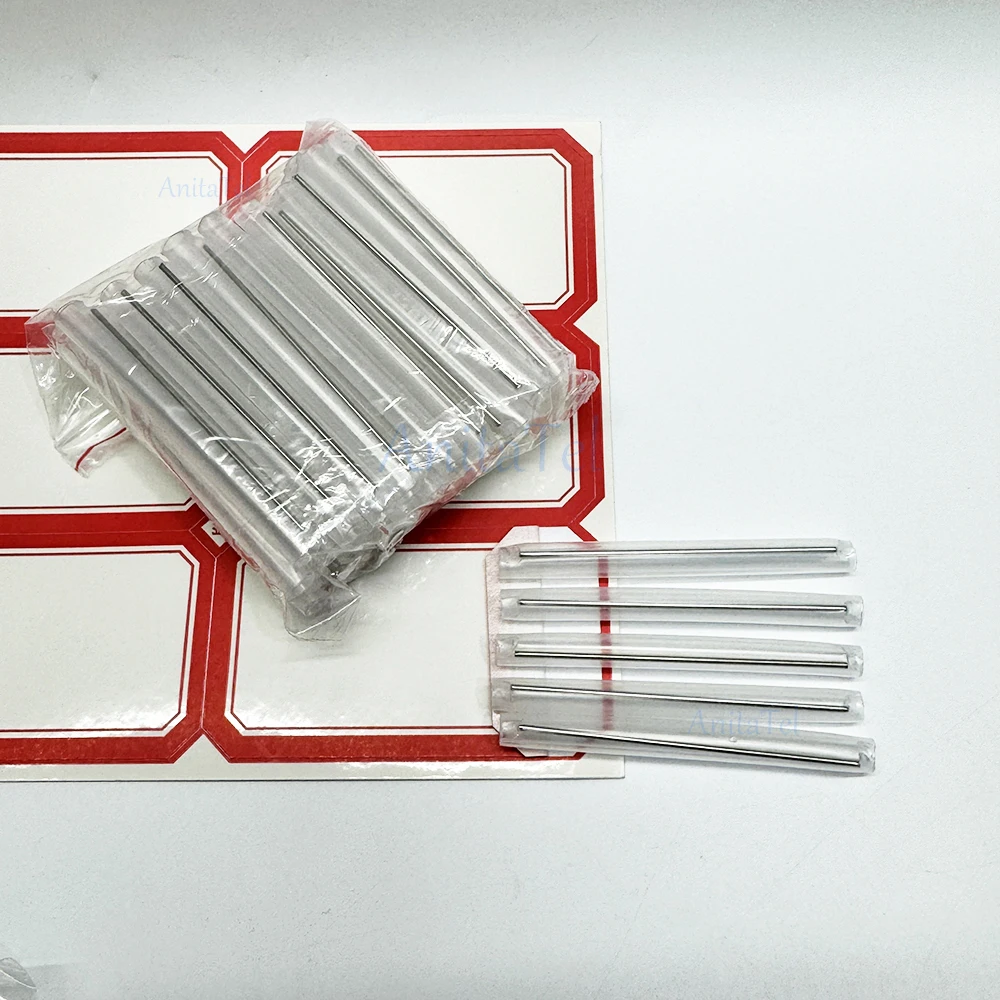

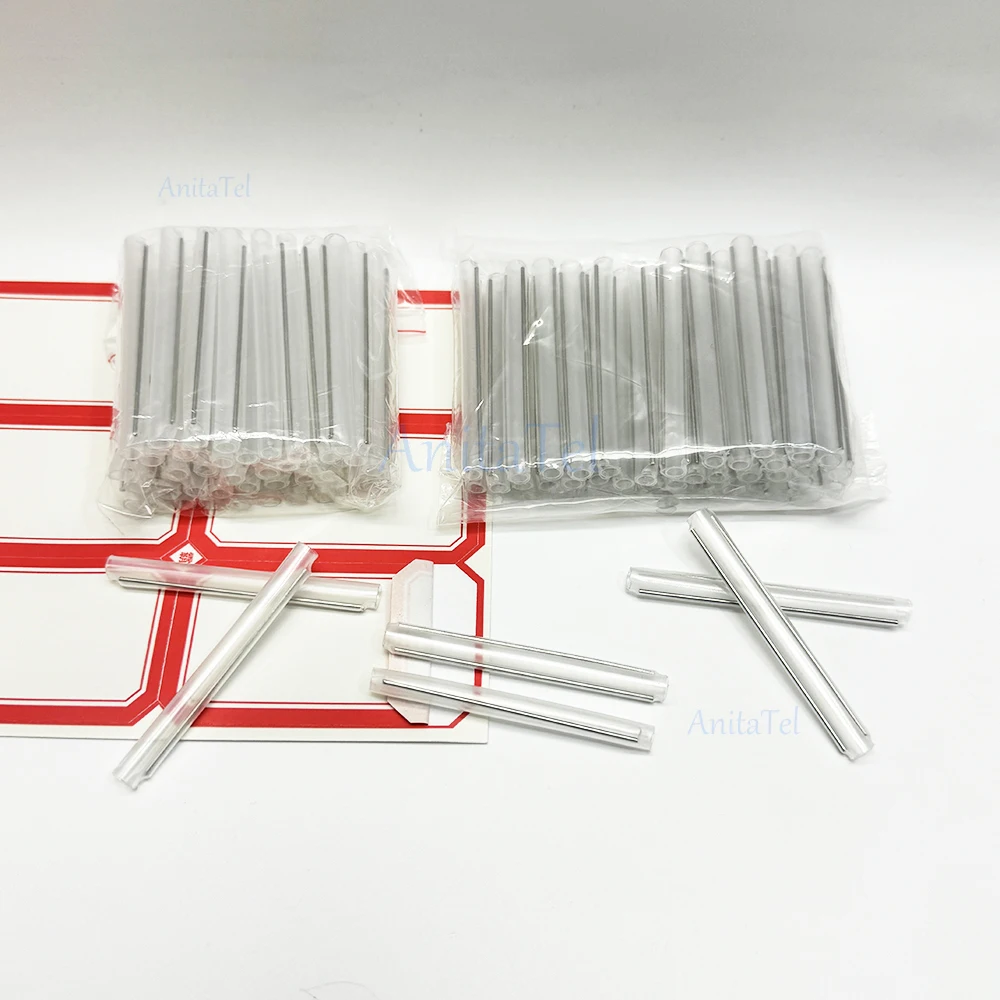

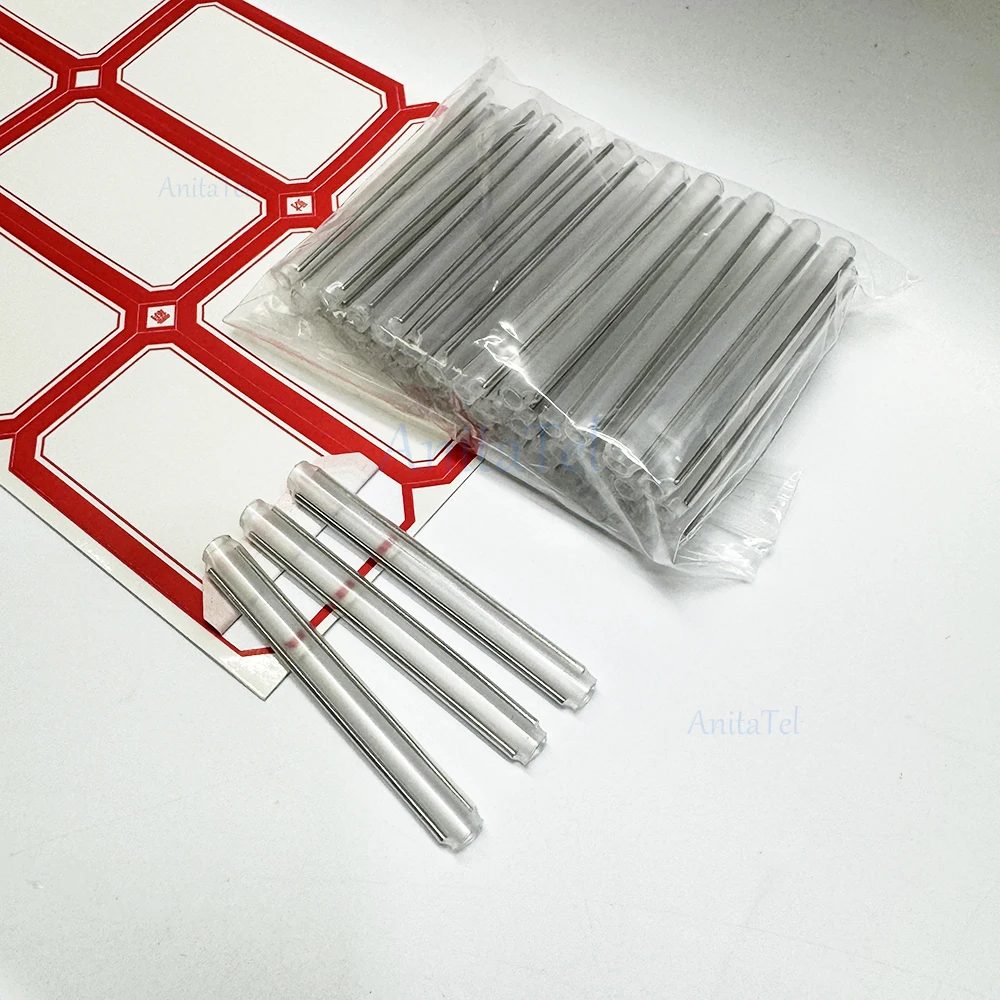

Name: Double-pins optical fiber heat shrinkable tube
Steel needle material: 304 stainless steel
Steel needle specifications: diameter 1.0, 1.2mm, length 55mm
Outer skin quality: environmentally friendly PE material
Working temperature: -55~105°C
Scope of application: fiber fusion splicing part
Conventional packaging: 50, 100pcs/pack
Length dimension: 60mm
Product color: transparent
Highlights
Better protect the optical fiber, extend the service life of the optical fiber, seal the hot head at both ends, high-quality 304 stainless steel, environmentally friendly PE material
Effectively protect the splicing part without affecting the optical fiber transmission loss
304 stainless steel positioning pin
High strength, light weight, high temperature resistance, long service life
Sealing at both ends
Both ends of the heat shrinkable tube adopt a lock design
Effectively prevent the steel needle from falling off

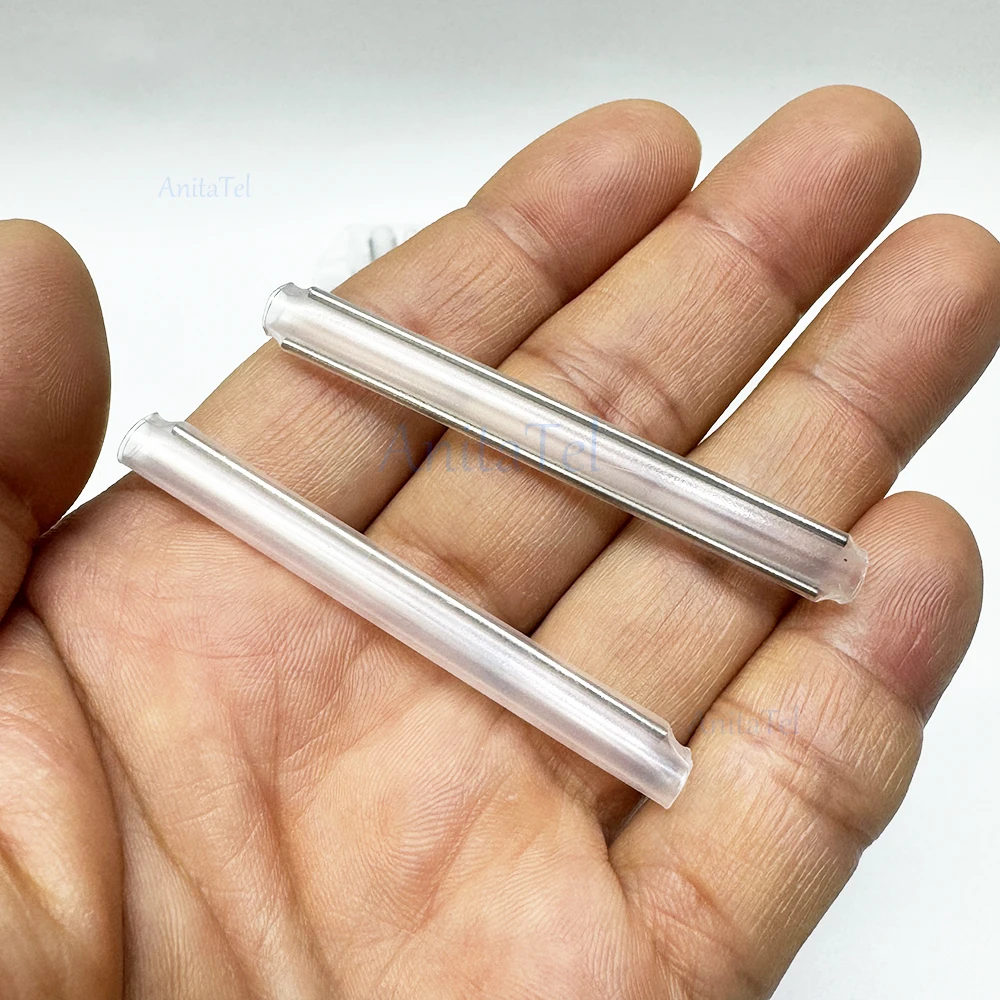

Optical fiber heat shrinkable tube
Better protect the optical fiber, extend the service life of the optical fiber
Product quality visible
PE environmental protection cover
Lock design

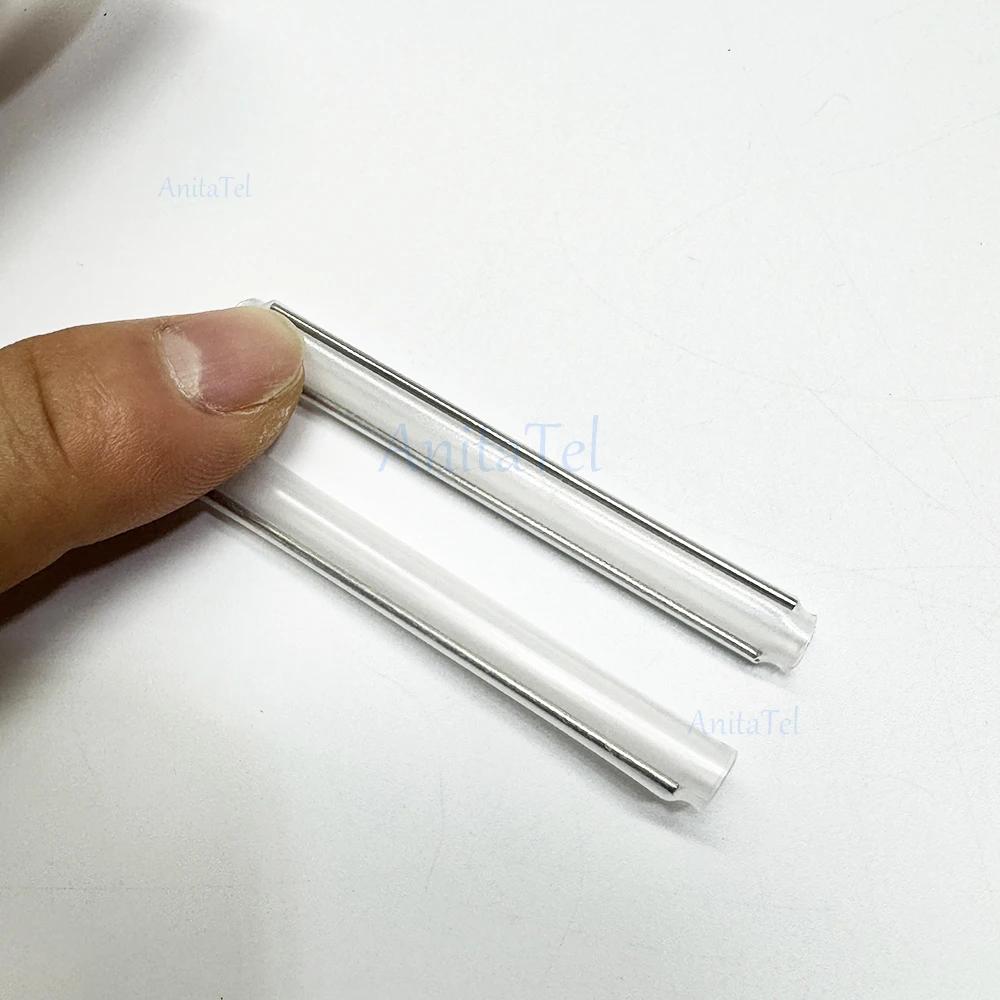

1.0,1.2mm steel needle
Structure introduction
Optical fiber protection element composed of heat shrinkable tube, hot melt tube and stainless steel
1. Steel needle 2. Steel needle 3. Hot melt tube 4. Heat shrinkable tube
