Notice
Voltage is divided into AC110 AC220V
Please leave a message to the seller for the required voltage when placing an order
â… :Summary

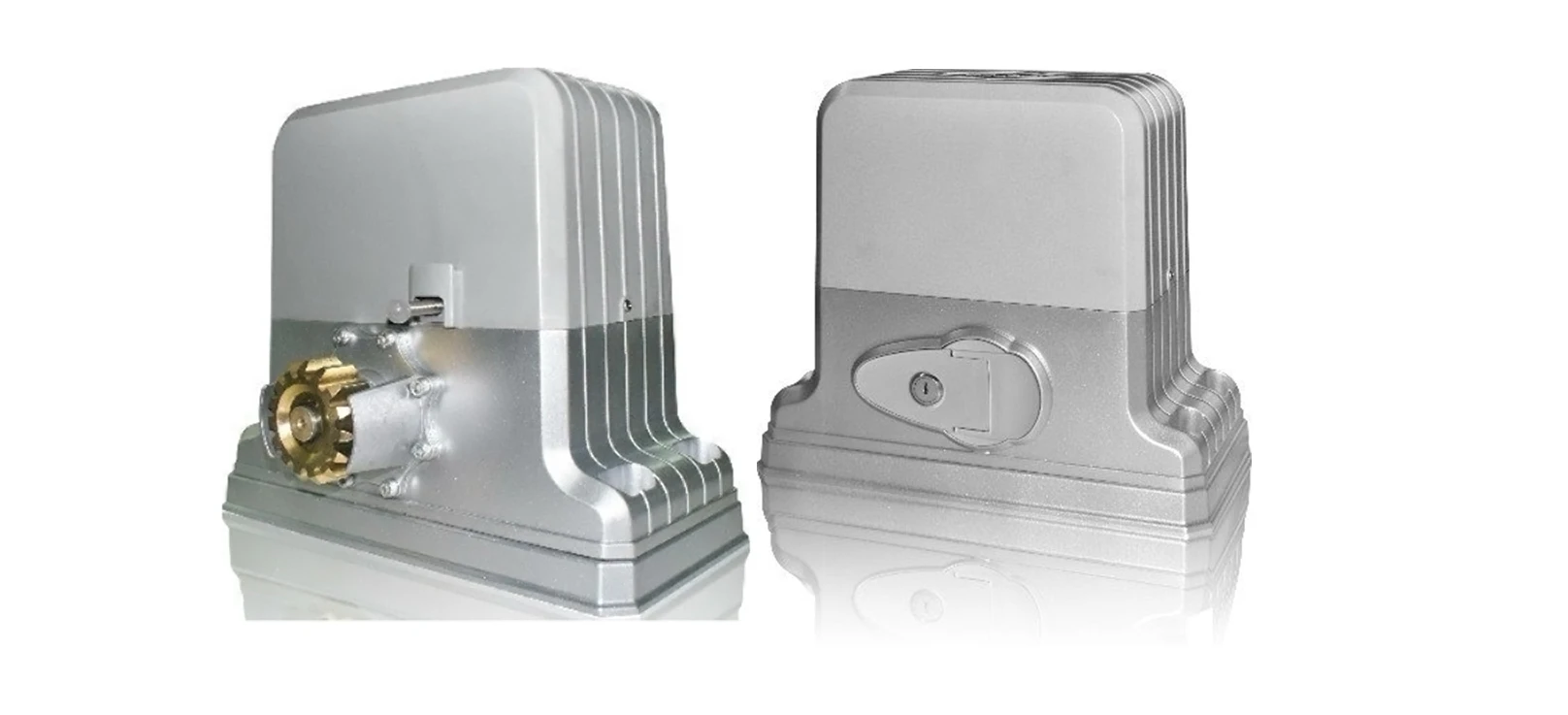

This equipment is one of the auto gate openers launched by our company
adopting a new design and integrated control system. Our new sliding gate opener has
many features such as: low noise, light weight, powerful starting torque, stability,
reliability and is compact and stylish. The motor will still work for a short period of
time using lower voltage. The control board has overload protection. When there is

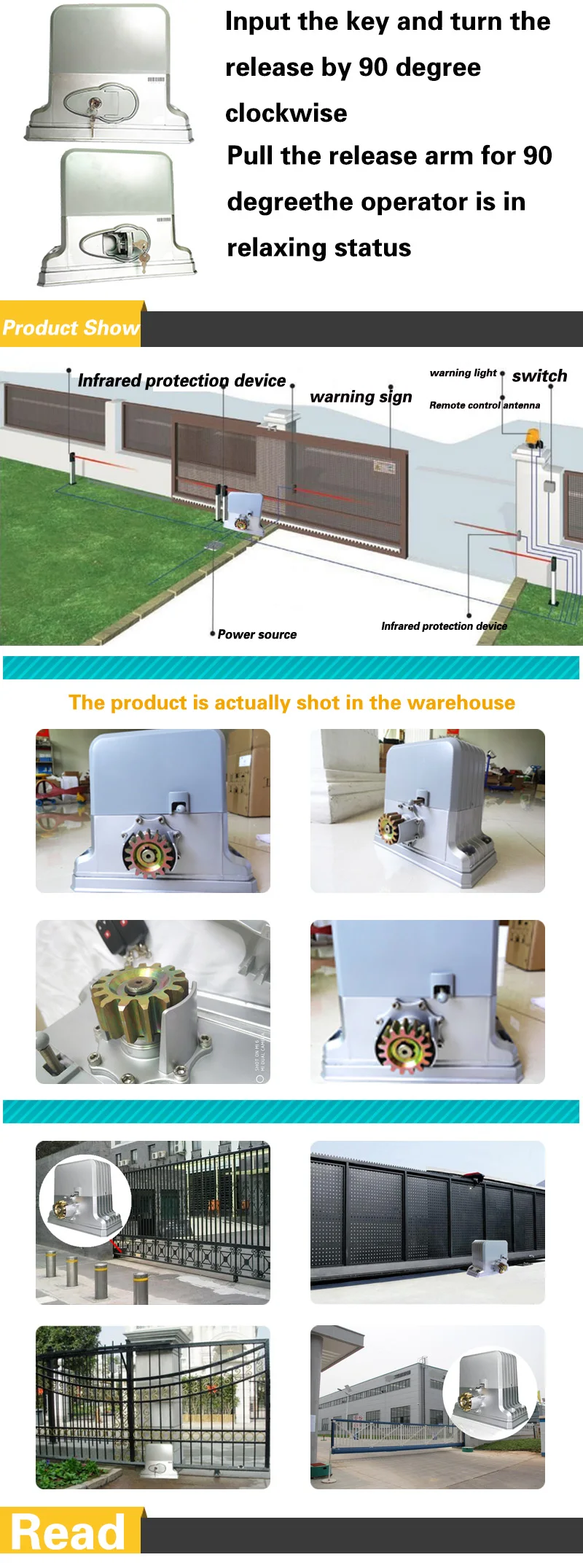

a power failure, the motor drive can be separated by the use of the clutch, by using the
specified key the user has the ability to disconnect the clutch enabling the gate to be
opened or closed manually. Using the optional infrared photocells the gate will
automatically stop and re-open if an obstacle is sensed.
â…¡:Parameters
1. Working temperature of motor：-40°C～ +55°C
2. Working humidity：≤90%
3. Power supply：220VAC±10%/110VAC±10% 50Hz/60Hz
4. Rated power：350W
5. Output gear module：M=4
6. Capacitor：60μf +14μf
7.Output torgue:35N.m
8. Open(close) speed：v= 13.2/min
9. Rated speed ： 1620RPM
10. Manual Release:yes
11. Maximum load：1800KG
12. Net weight：20KG(include racks)
13.Remote control distance : ≥30m
14.Packing : In carton

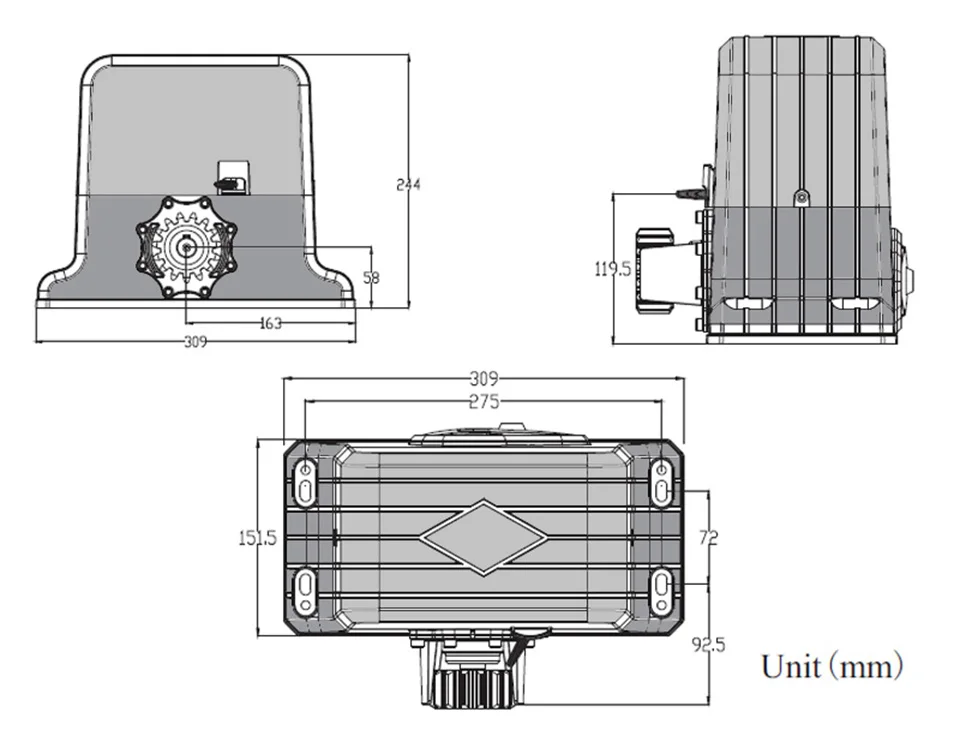

â…¢:Appearance and dimensions
