Note:
If you don’t have a Zigbee gateway,please choose WiFi version!
[WiFi remote] (basic function):
Download “Tuya Smart” from the software market, install and register, power off the module and restart it, open the APP, and click the + sign in the upper right corner to add devices.

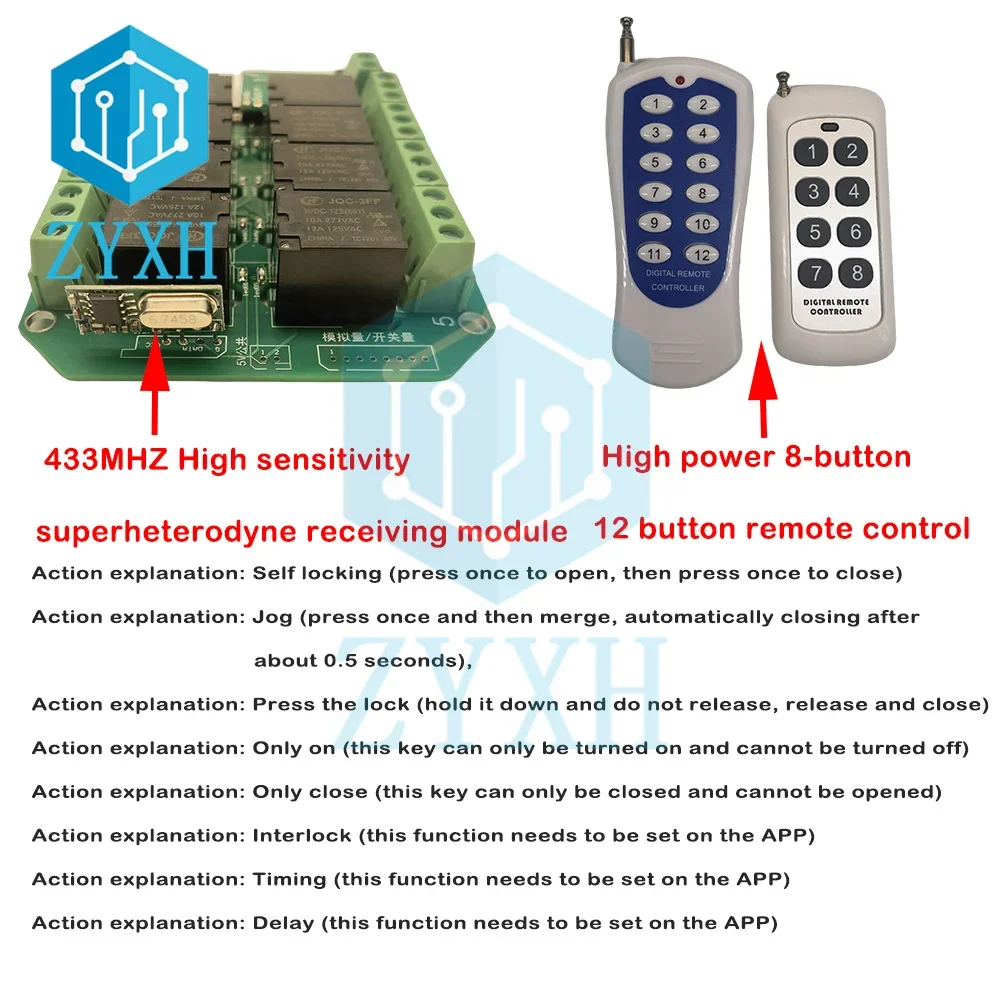

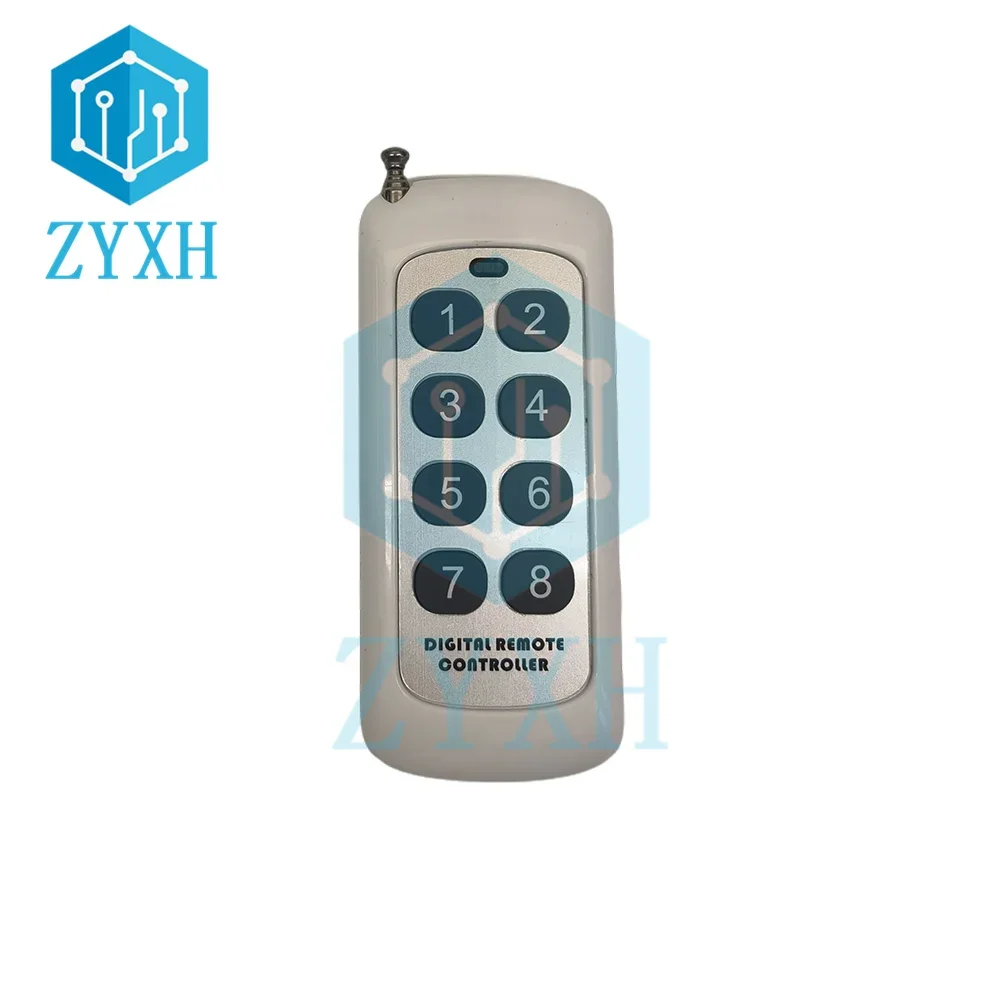

【Remote control】Only supported if you have purchased a remote control) (If there is a flash that does not meet the steps during the operation, please turn off the power and try again),
Note: Power off and restart, wait for the indicator light to finish flashing before operating.
Action explanation: self-locking (press once to open, press again to close)
Action explanation: jog (click and turn on and off automatically after about 0.5 seconds),
Action explanation: Press the lock (press and hold it, release it and close it)
Action explanation: only open (this key can only be opened, cannot be closed)
Action explanation: only close (this key can only be closed, not open)
Action explanation: interlock (this function needs to be set on the APP)
Action explanation: Timing (this function needs to be set on the APP)
Action explanation: delay (this function needs to be set on the APP)

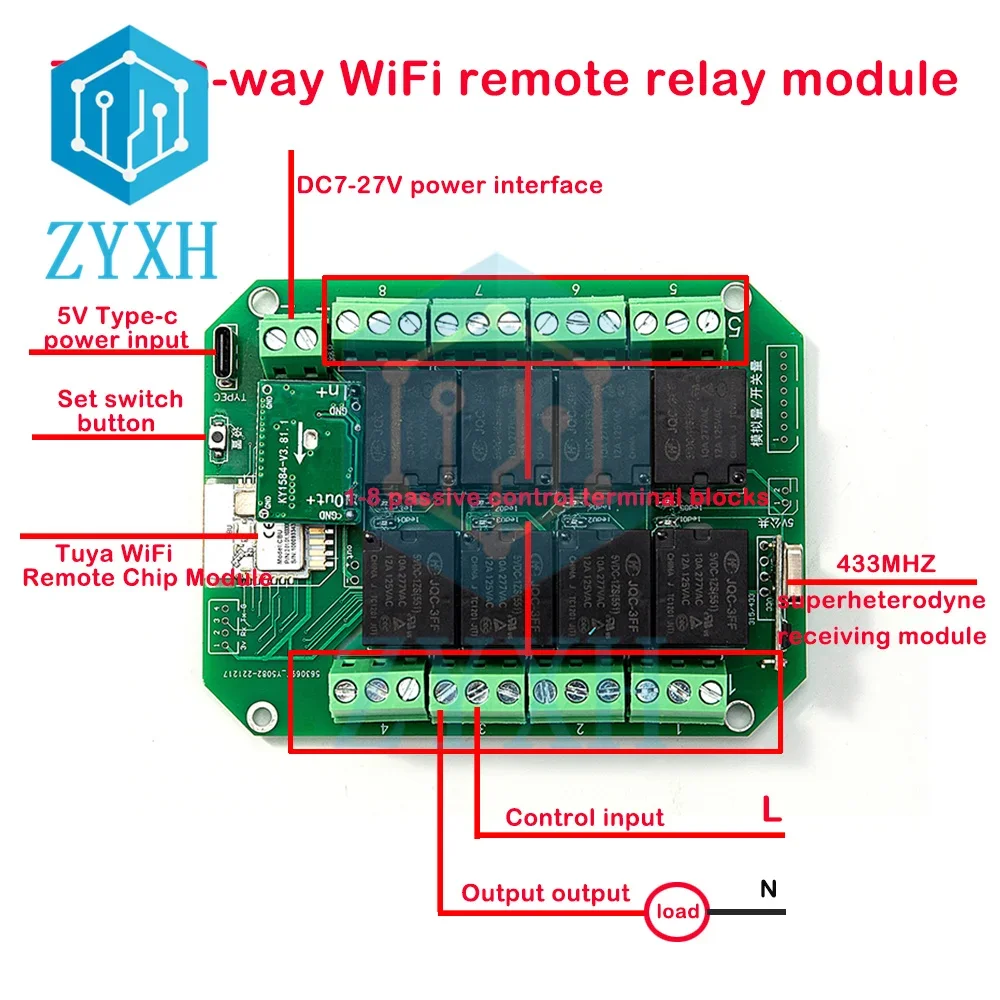

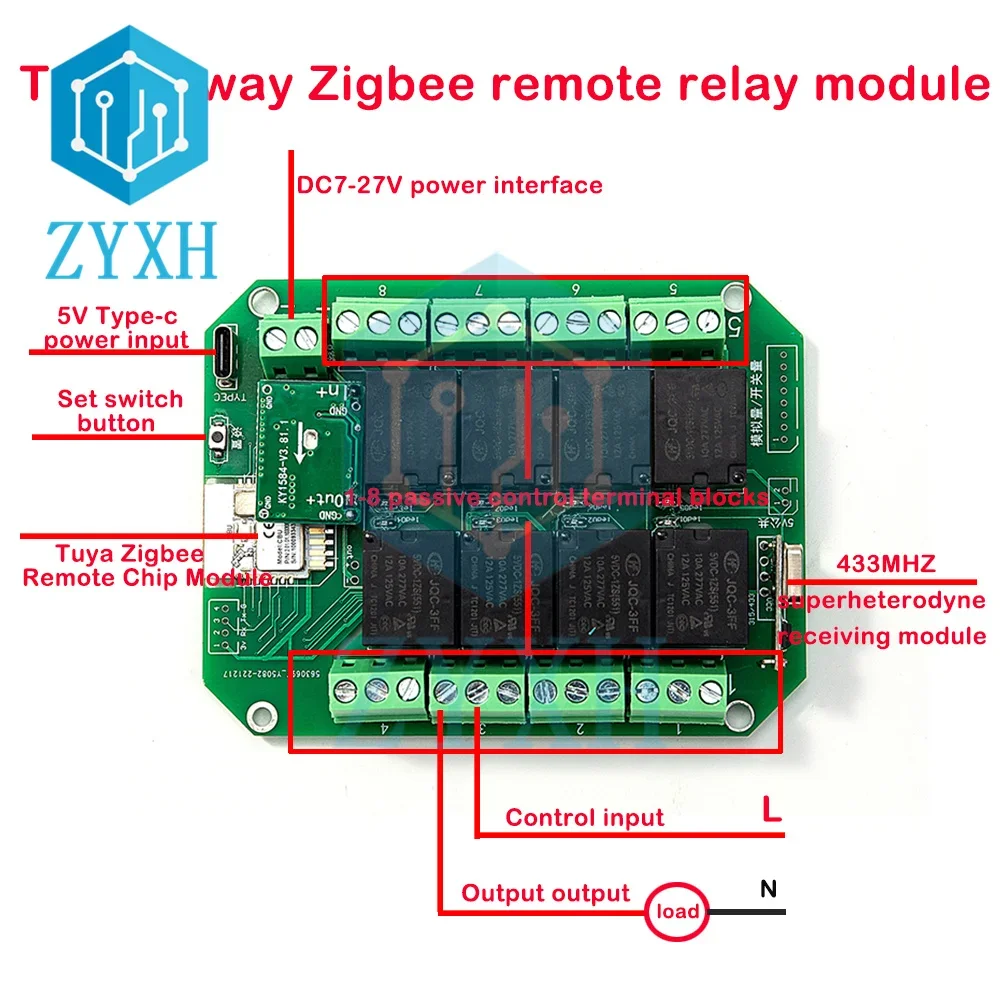

The circuit board setting button setting method supports remote control and 433mhz remote control as follows:
(Learning self-locking) Quickly press the “Setting” button 5 times, relay 1 flashes, (click the setting button to change the learning
relay number), at this time, long press a key on the remote control to learn a key, you can continue to press all the keys, after the operation, you need to power off and restart;
(Learn to move) Quickly press the “Setting” button 6 times, the relay 1 will flash, (click the first button to change the setting to learn
dimensional electric number). At this time, press and hold 1 key of the remote control to learn 1 key, you can continue to press all the keys, and you need to power off and restart after the operation;
(Learn to press the lock) Quickly press the “Setting” button 7 times, the relay 1 will flash internally, (click the Setting button to change the learning
relay number), at this time, long press a key on the remote control to learn a key, you can continue to press all the keys, after the operation, you need to power off and restart;
(Study is fully open) Quickly press the “Settings” button 8 times, and relays 1 and 2 will flash at the same time. At this time, the learning of one key of the long-control remote control is fully open and completed;
(Learning all off) Quickly press the “Setting” button 9 times, relays 1, 2, and 3 will flash at the same time, at this time, long-control the 1 key of the remote control to learn all off, and it is completed;
(Learning only open) Quickly press the “Setting” button 8 times, relay 1 and 2 flash at the same time, press the “Setting” button once, and relay 1 flashes (continue to click the setting button to change the relay number to be learned) At this time, long press 1 key learning of the remote control is completed;
(Learning only off) Quickly press the “Setting” button 9 times, and Weiwei Electric 1, 2, and 3 will flash at the same time. ), at this time long press 1 key on the remote control to complete the learning;
(Single key control multiple channels) For example: 1 button on the remote control controls relays 2, 3, 8 at the same time: quickly press the “Setting” button 5 times, relay 1 flashes, press the “Setting” button once, relay 2 flashes , quickly press the “Setting” button 3 times, relay 2 and 3 flash at the same time, quickly press the “Setting” button 8 times,
The 2, 3, and 8 of Wei Electric flash at the same time. At this time, press and hold the button 1 of the remote control until the relay light changes, then let go, turn off the power and turn it on again, and it is completed.

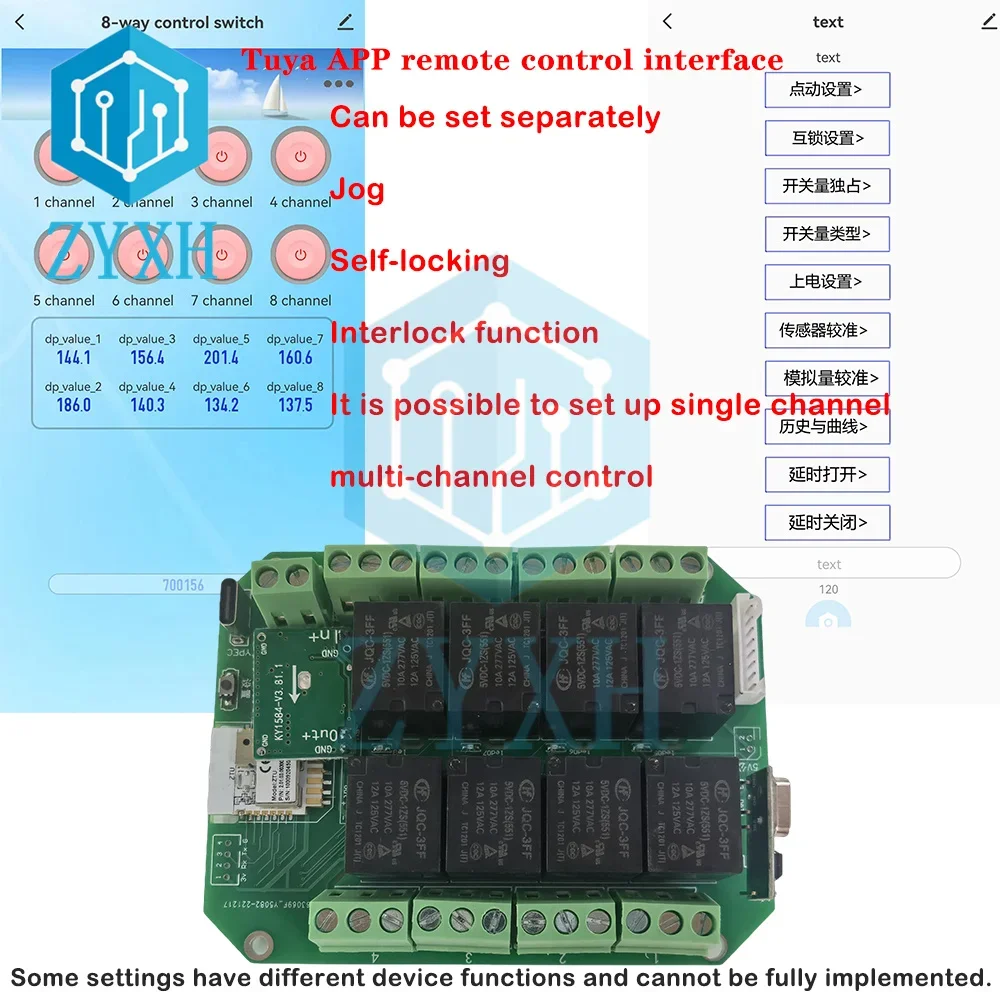

Interlock setting instructions: (requires Tuya APP setting)
●Input 2 on the top and 2 on the bottom, which means channel 1.2. Interlock
●Input 3 on the top and 3 on the bottom, which means channel 1.2.3 interlock
●Input 10 on the top and 10 on the bottom, which means interlocking channel 1.2.3.4.5.6.7.8.9.10
●Input 4 on the top and 2 on the bottom, which means channel 1.2. Interlock, 3.4. Interlock
●Input 8 at the top and 2 at the bottom, which means 1-2 interlock, 3-4 interlock, 5-6 interlock, 7-8 interlock
●Input 10 at the top and 5 at the bottom, which means channel 1.2.3.4.5 interlock, 6.7.8.9.10. interlock
●Enter 0 above and 0 below, indicating no interlock
【Jog setting】
Tuya APP setting is required, and the jogging time range is 1-999999 milliseconds.
Jog setting instructions:
●Channel number input 1, the current jog time of channel 1 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Channel number input 2, the current jog time of channel 2 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Jogging time input 0 means this channel does not jog, set other channels by analogy.
[Restore factory settings] Press and hold “Settings” for 10 seconds, let go when the indicator light flashes quickly, and it’s done.
