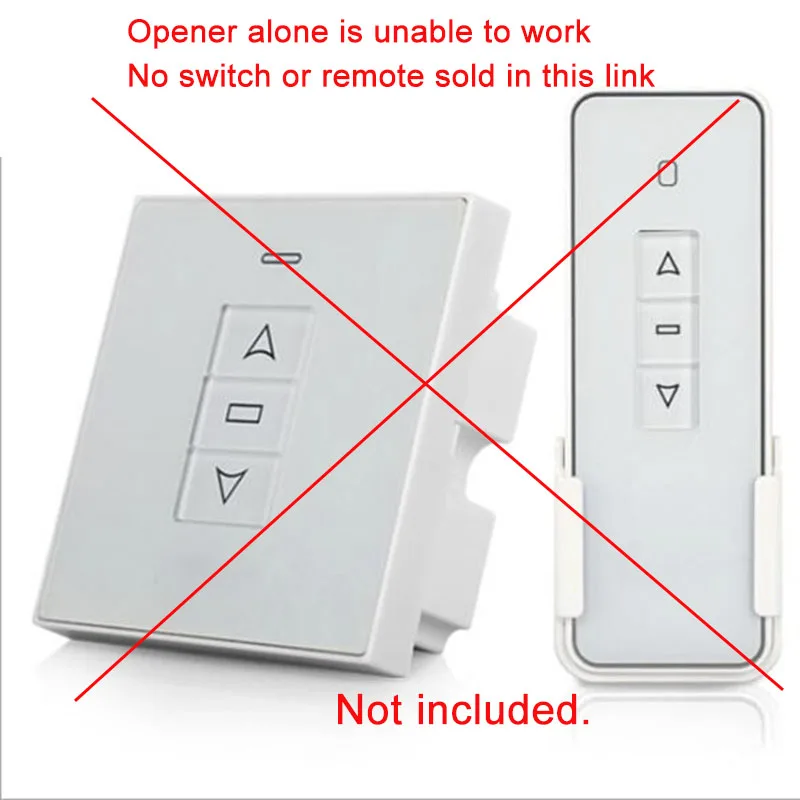

Note: Opener here is unable to work alone. No switch or remote included in this link
Item parameters

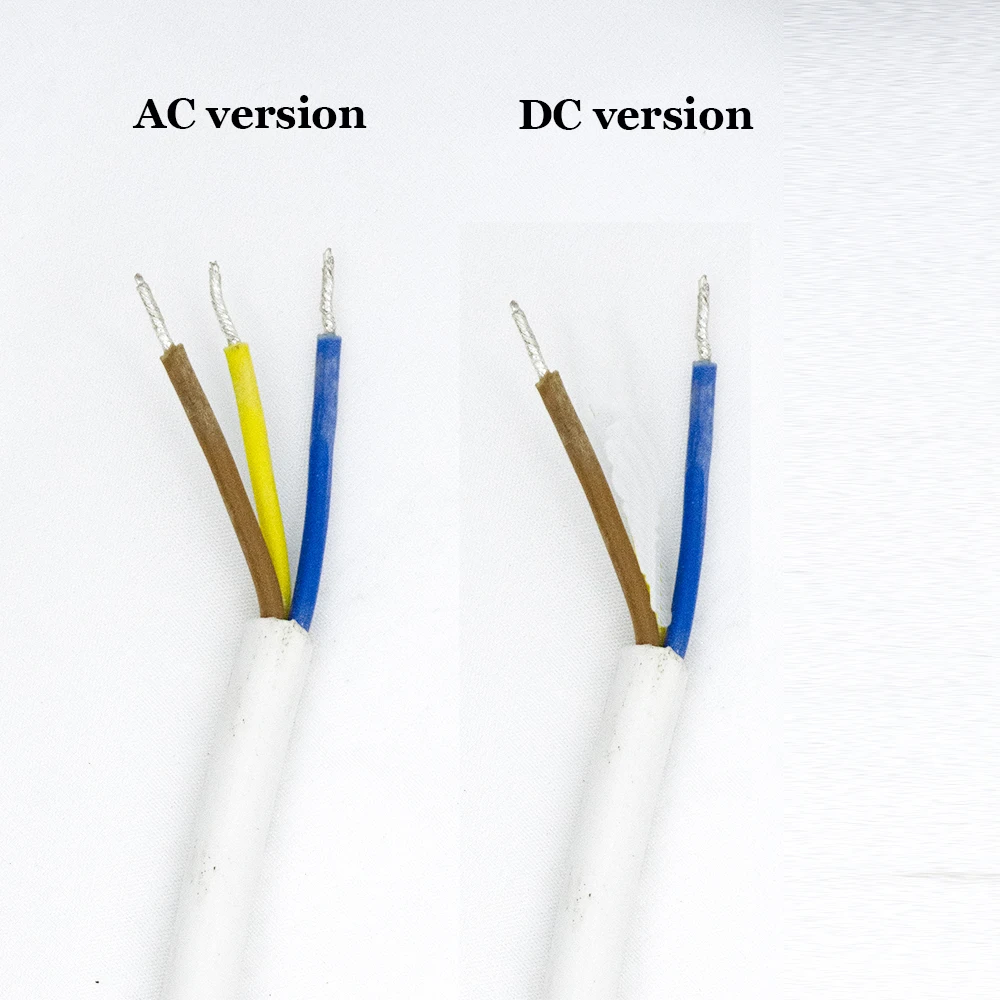

There are 2 versions of motor, DC24V motor and 220V motor. Don't connect 220V power supply to DC24V motor directly.
1. The chain can bend unidirectionally. It stretches out while open window and retract to opener inside after closing windo. Don't support close/open by pushing/puling directly.
2. Double layer chain, more durable and not easy to break off.
3. Equipped with overload protector and can open and close for 30000times.
4. Smart design with strong funciton.
5. Locking force reach 2000N. Push/Pull force 400/400N.
6. Working temperature: -20-75oC
7. Suit for multiple window types
8. Working speed 12-15mm/s

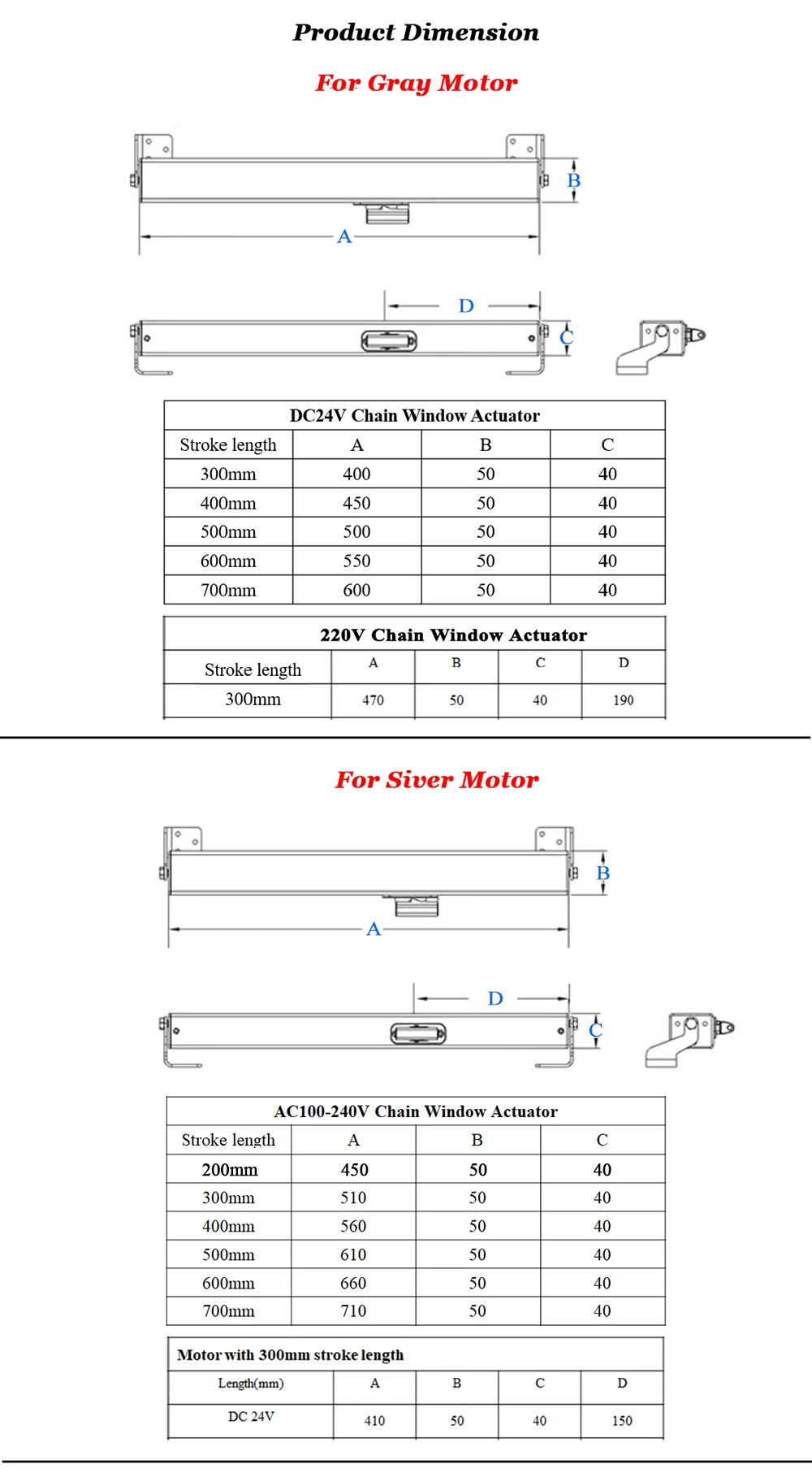

9. The travel length here is 300mm. For 400/500/600/700mm, please contact us.
10: Working current: 1.2A, Power 28W
11. IP grade: IP 32
How to install the Opener
