Features:
This RFID Proximity access controller using proximity system is one of the modern access control systems.
The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure.
It is powerful and can open the door using proximity cards, passwords, or the hybrid.
The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed.
This product offers a method for controlling access safely and automatically, qualifying it as a good equipment for businesses, offices, factories, and communities.
Electric Magnetic lock Specifications:
Lock Size: approx. 115*115*20mm
Net weight: approx. 122g
Voltage: DC+8V-15V(Standard DC12V)
Current: undrive the lock: ≤70mA; Open the lock: ≤1000mA
Working temperature: -10℃-70℃
Working humidity: 0-100%
Frequency: 125KHz(EM Card) 13.56MHz(M1 Card)
Maximum card distance: 10-15cm
Verification methods: cards, passwords
Initial programming password: 123456
Power Supply Specifications:
Net weight: approx. 290g
Size: approx. 115*68*34mm/4.52*2.67*1.33”
Input voltage: 110-240V AC
Input frequency: 50-60Hz
Output voltage: DC 12V
Output current: 3A
Push Release Button Exit Switch Specifications:
Size: approx. 85*85*35mm/3.34*3.34*1.37”
Net weight: approx. 57g
Control System keypad Specifications:
Size: approx. 170*40*22mm/6.69*1.57*0.86”
Net weight: approx. 870g
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

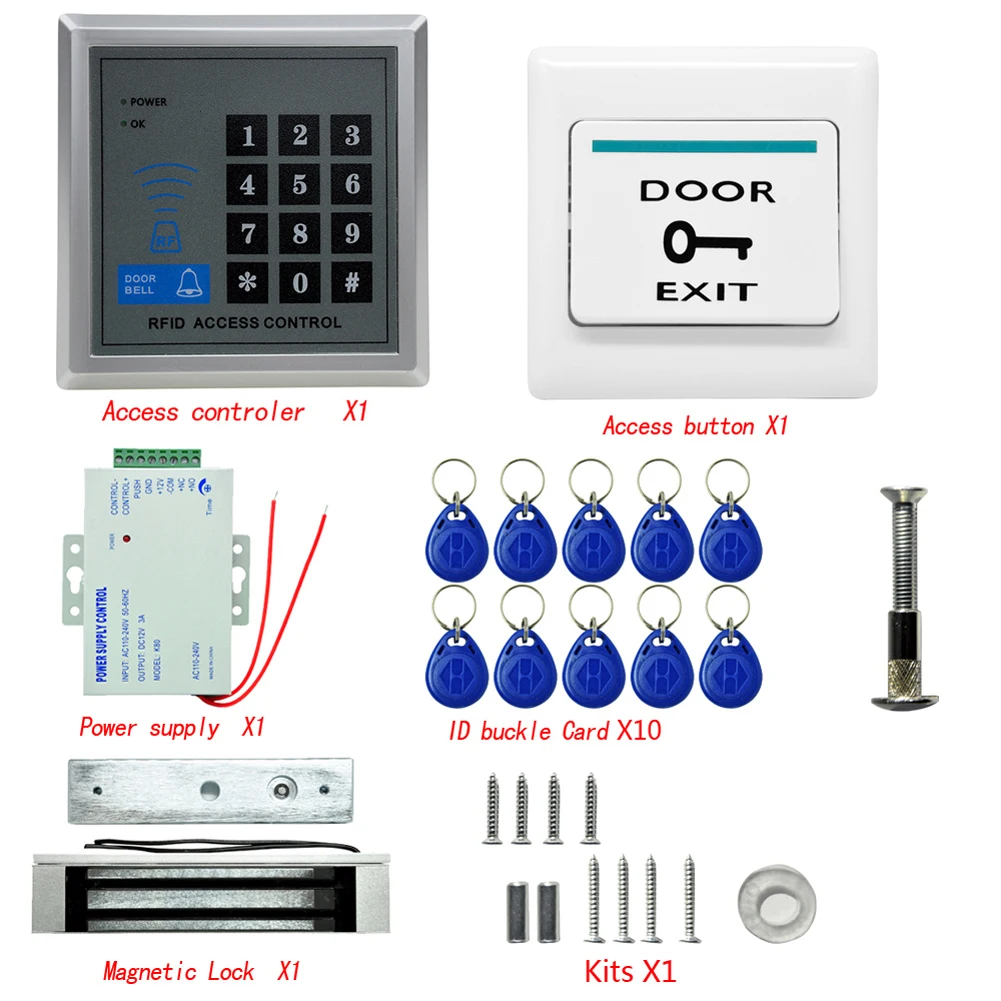

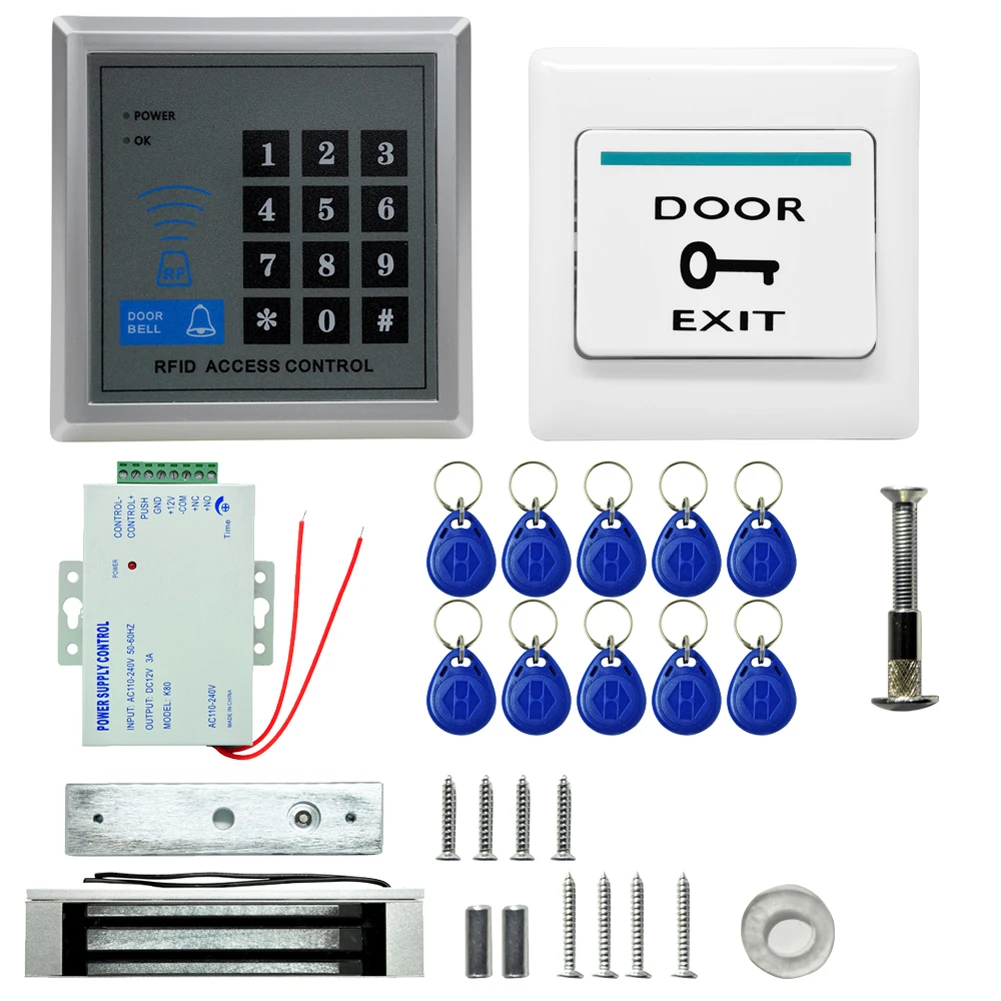

1 X Access Control Power Supply
1 X Push Release Button
1 x RFID Proximity Door Entry keypad.
10 x RFID Key Fobs
1 x CD
1 x Screws Set
