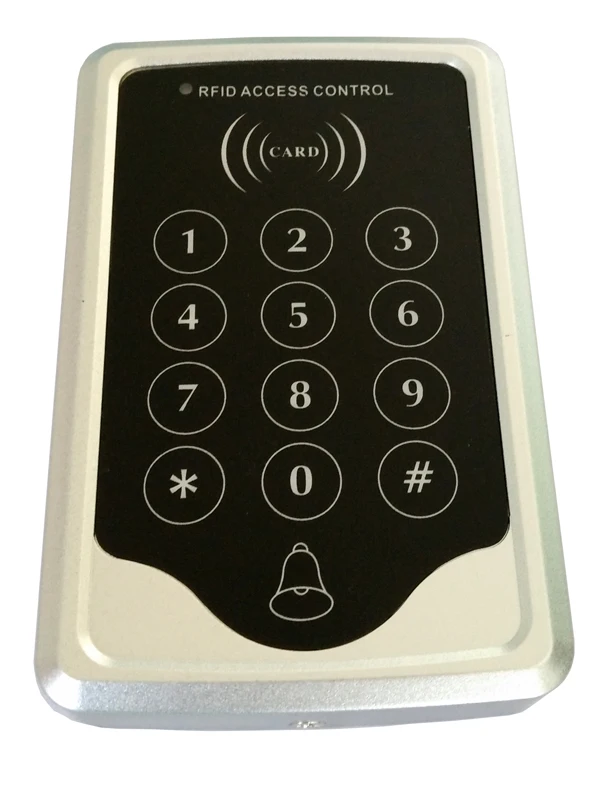

Access Control System DIY Kit + RFID ID Keypad Standalone Controller + Power Supply +Exit Button + Lock For Various Doors

1. The excellent design, keyboard , silver plating, fashion style.
2. The multi-function equipment.
3. The high and low temperature environment to use..
4. The storage capacity of 1000 user card, 1000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 30 ma.
7. Noctilucent keyboard: Be able to operate the keyboard.
8. Large capacity of  users: support 1000 users.
9. Independent password
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand output: NO
13. Delete cards: When the card lost, It is available to use the keyboard to remove, and eliminate potential safety problems.
14 The output short circuit protection: Electric lock or alarm output short circuit within the 100 mu S output will be automatically closed.

Specification:

Package List

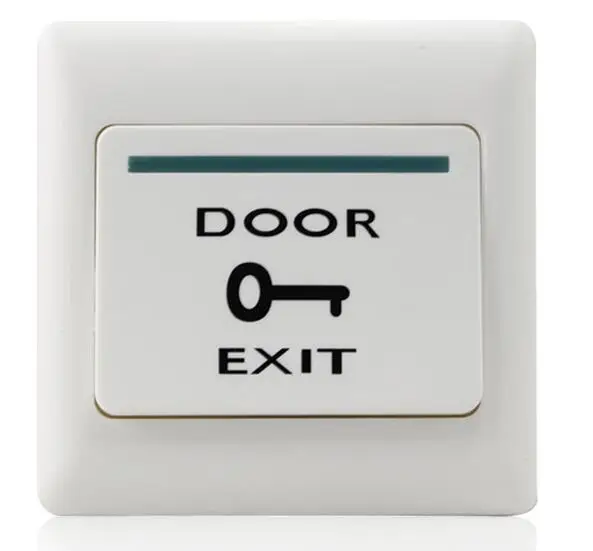

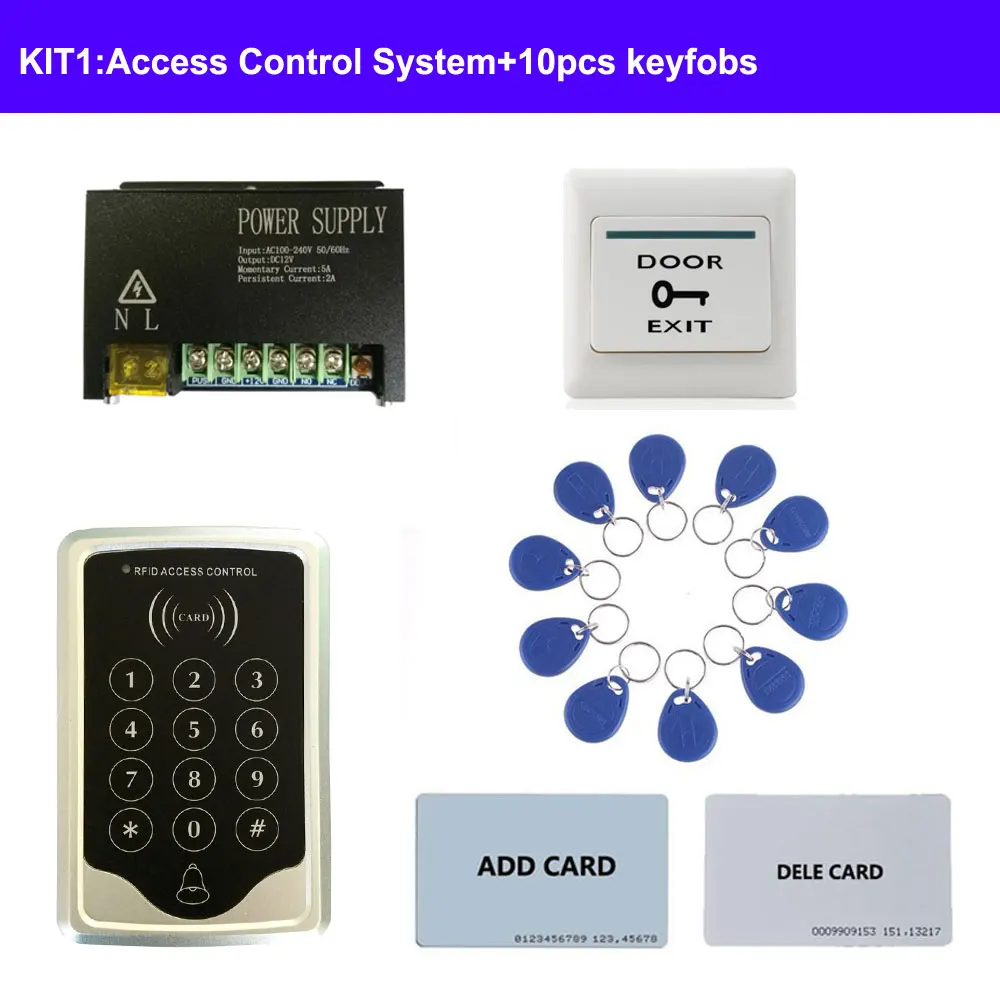

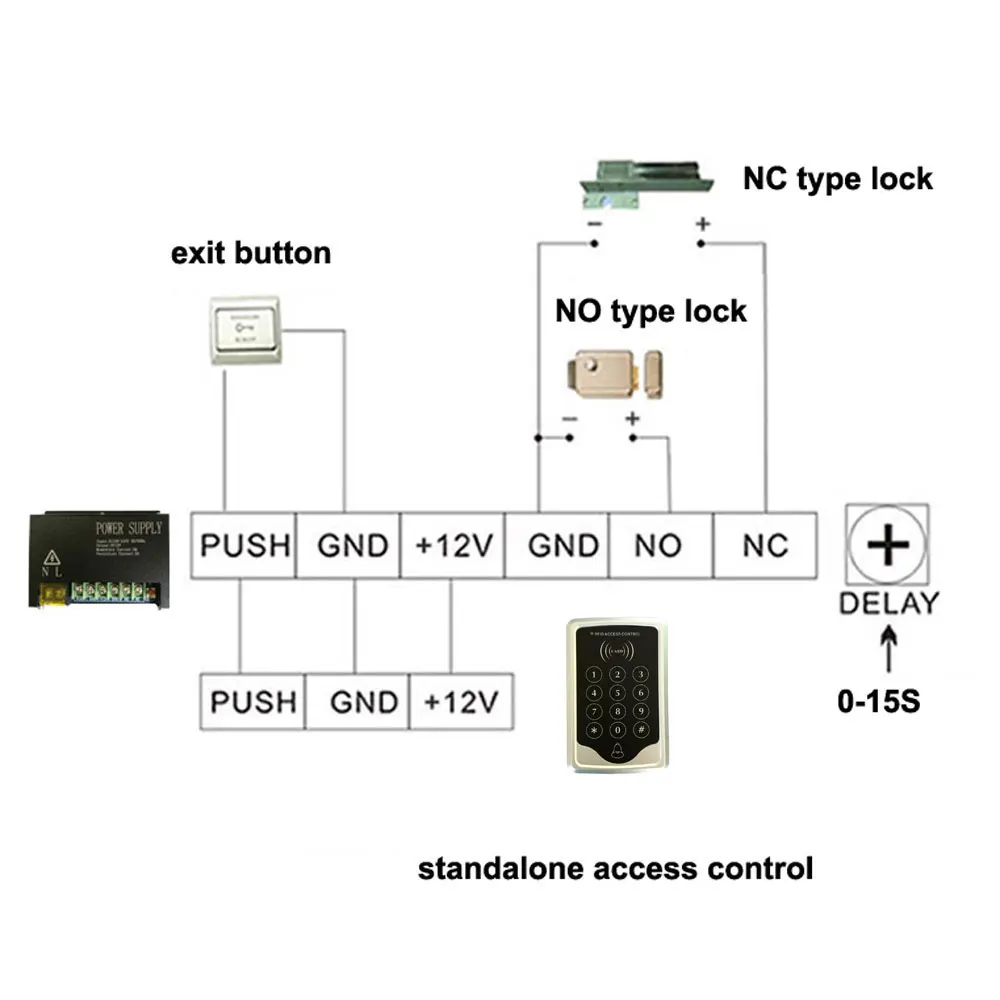

Kit1: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs

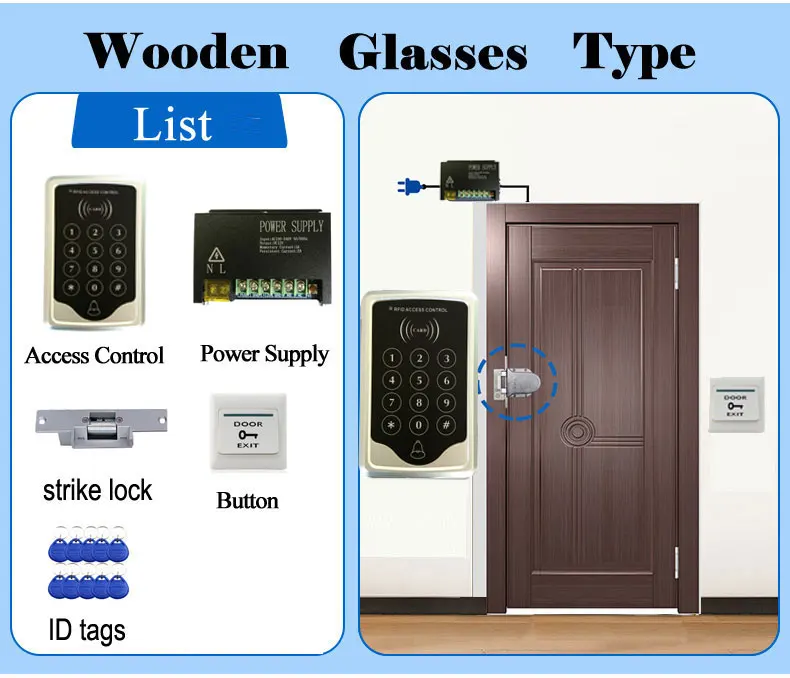

Kit2:  standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs
+NC type Electric Strike lock

Suitable for wooden door, metal door. convenient No need bracket

• Working Voltage: 12V ± 10%

• Current: 200mA – 450mA

• Holding Force: 500kg

• Surface Temperature: Lower than room temperature +20

• Working Temperature: -30-+60 Celsius Degree

• Operating Humidity: 0~90%(non-condensing)

• Feature：Fail secure (NO), Fail safe(NC)

• Material: Stainless steel

• NC type strike lock: Locked when power on, unlocked when power off

• NO type strike lock: Locked when power off, unlocked when power on

• Size: 150 x 28 × 34mm（L / W / H）

*********************************************************************************************************

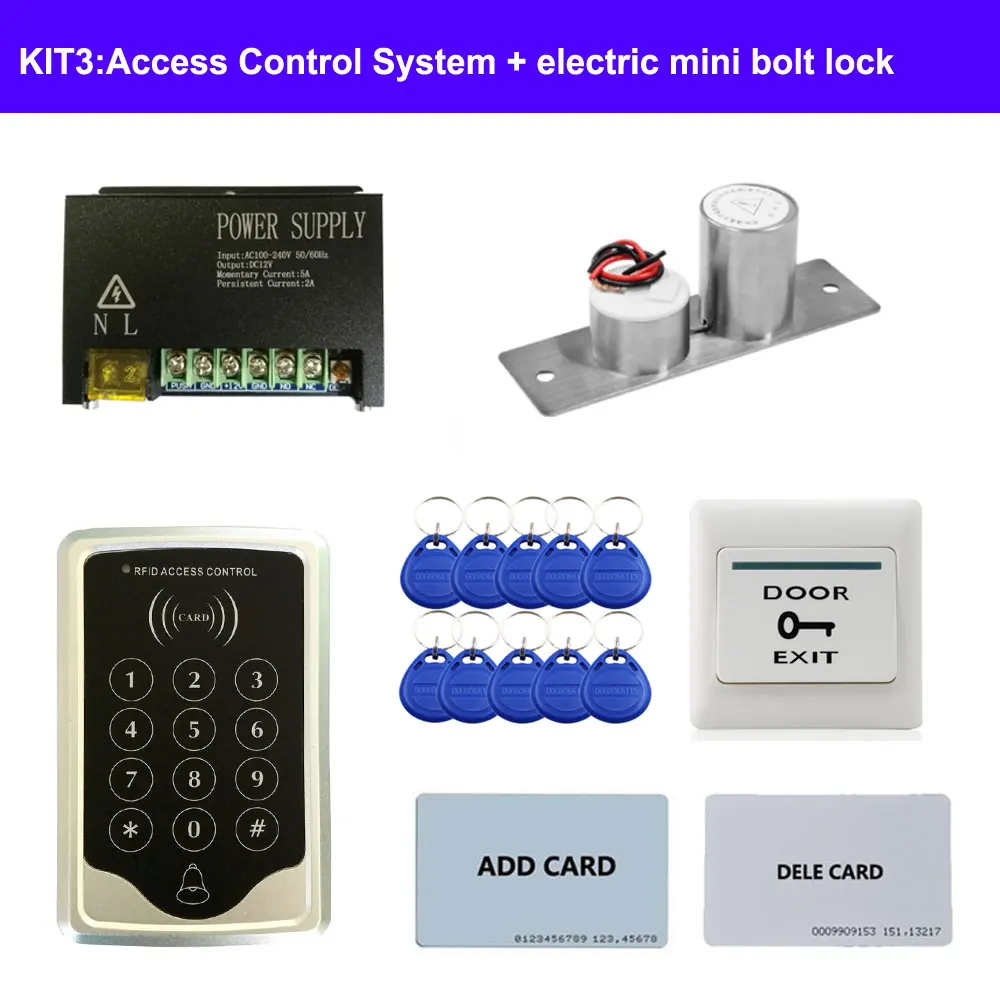

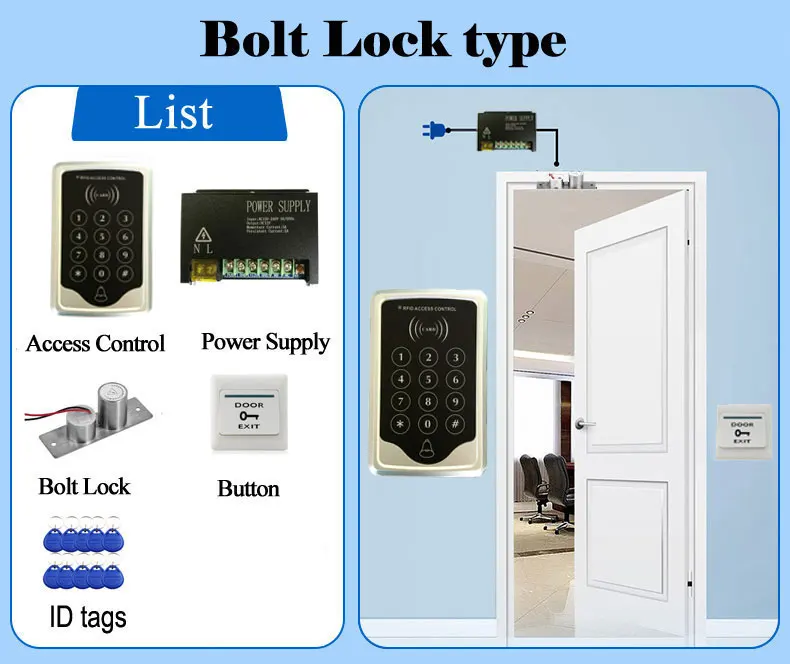

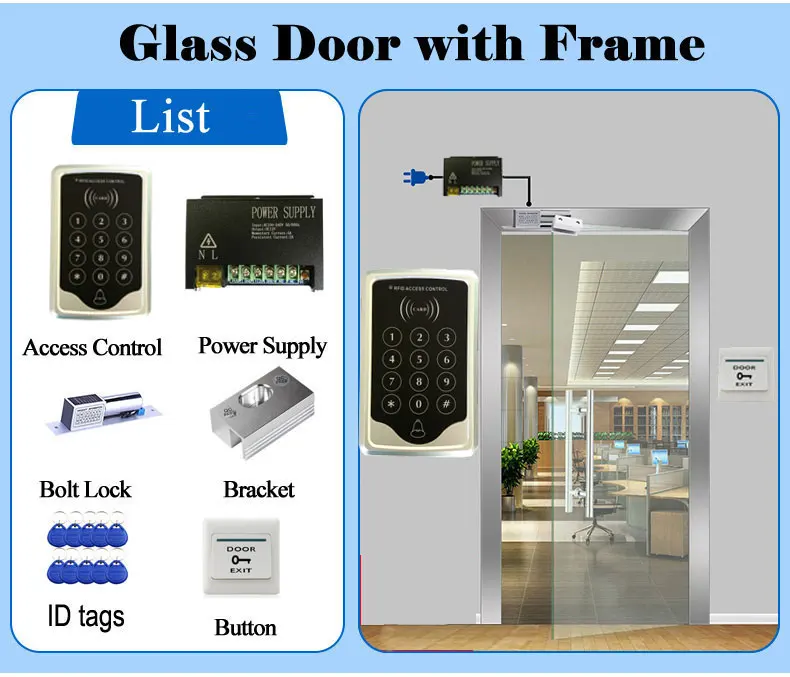

Kit3:  standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs

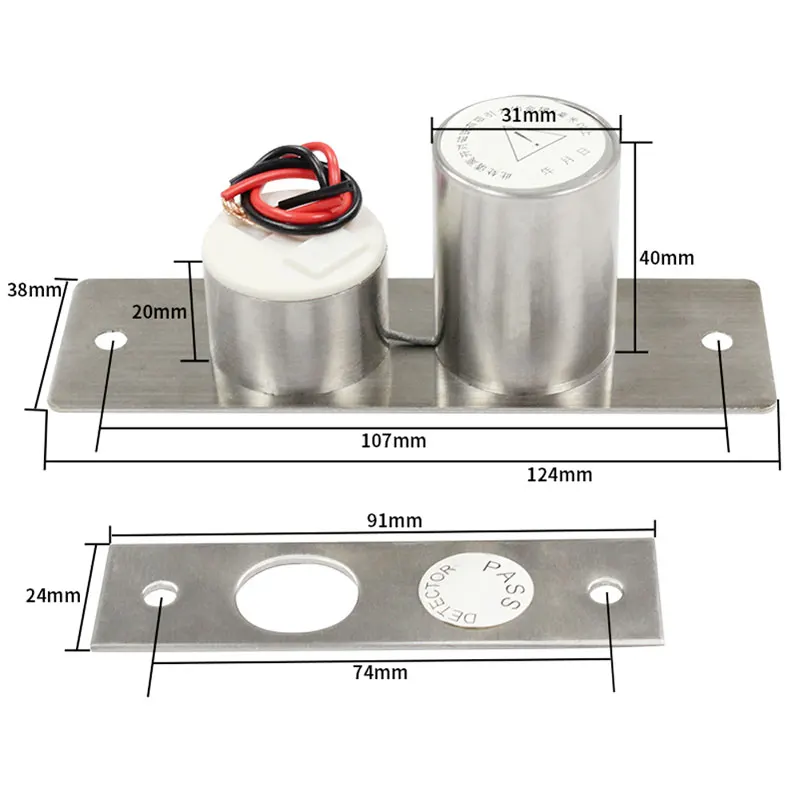

+ Small Electric Drop bolt lock

Suitable for wooden / glasses door

• strarting current:0.9A

• steady current:0.12A

• working voltage:DC 12V

• safety unlock: automatic interruption of power failure

• weight:0.26kg

• size:32mm

*********************************************************************************************************

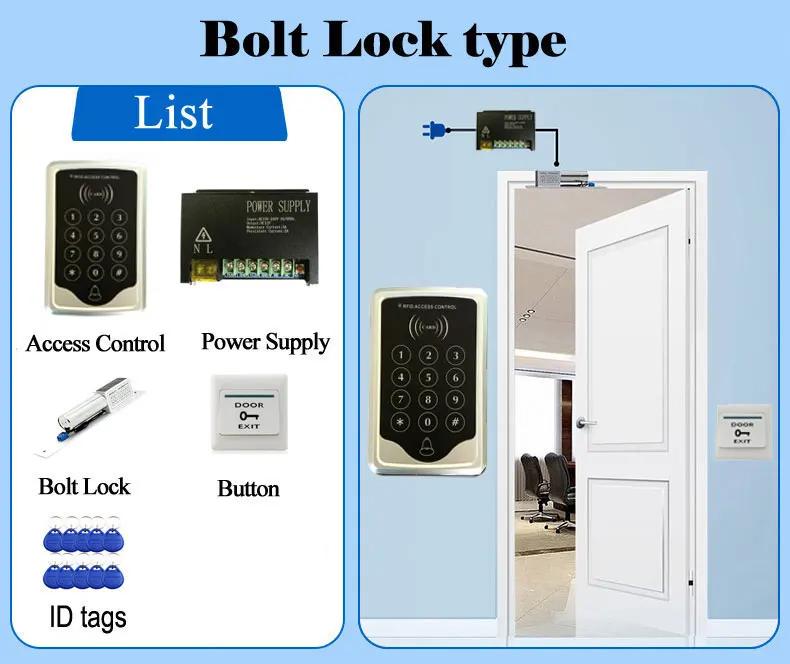

Kit4: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs
+ Electric Drop bolt lock

Suitable for wooden / glass door

• This door lock is ideal for high security applications

• It`s convenient for you to use

• It features 0, 2.5 ,6,9 second locking timer

• Refers to the pull switch to adjust the delay time; door status and lock status signal output

• Voltage: DC12V

• Current: 900mA / 200mA

• Size: 205 x 34 x 42mm / 8.07 x 1.34 x 1.65in

• Wire of the electric bolt door lock and the mounting hole

•  It made of durable and high material

*********************************************************************************************************

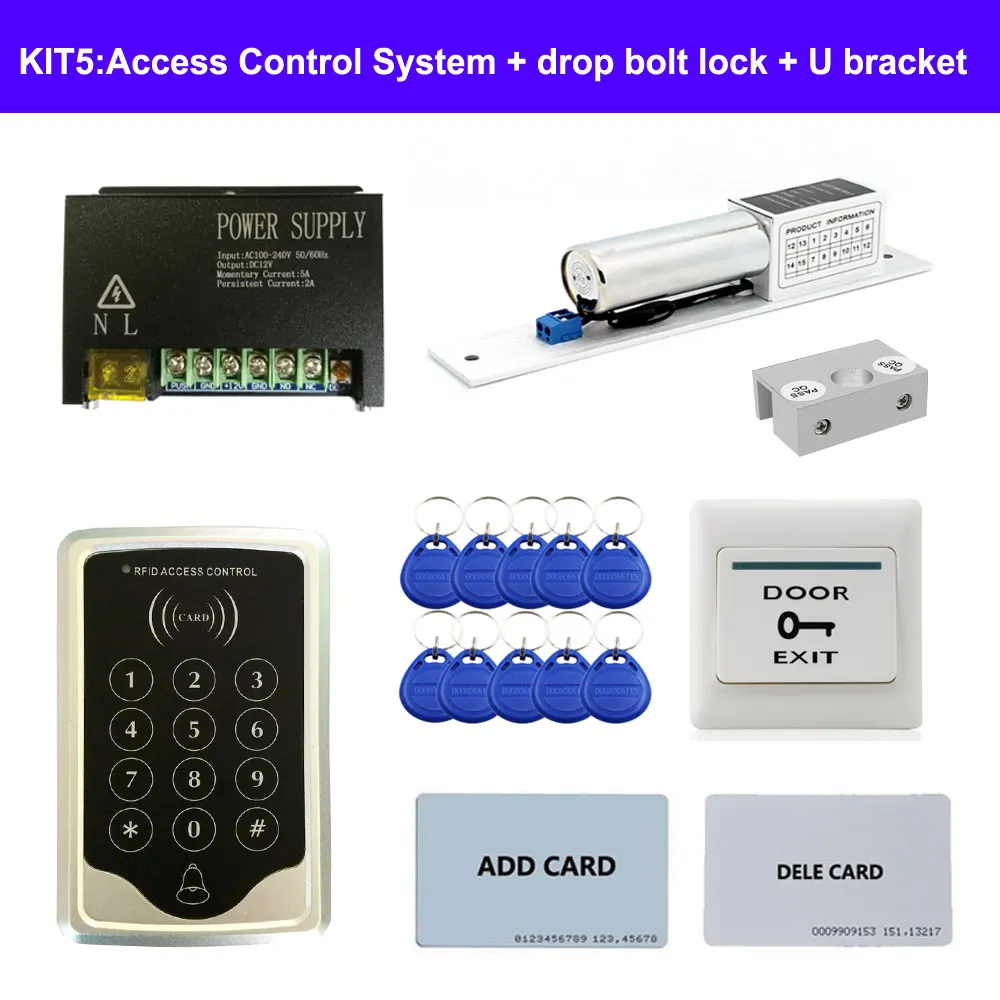

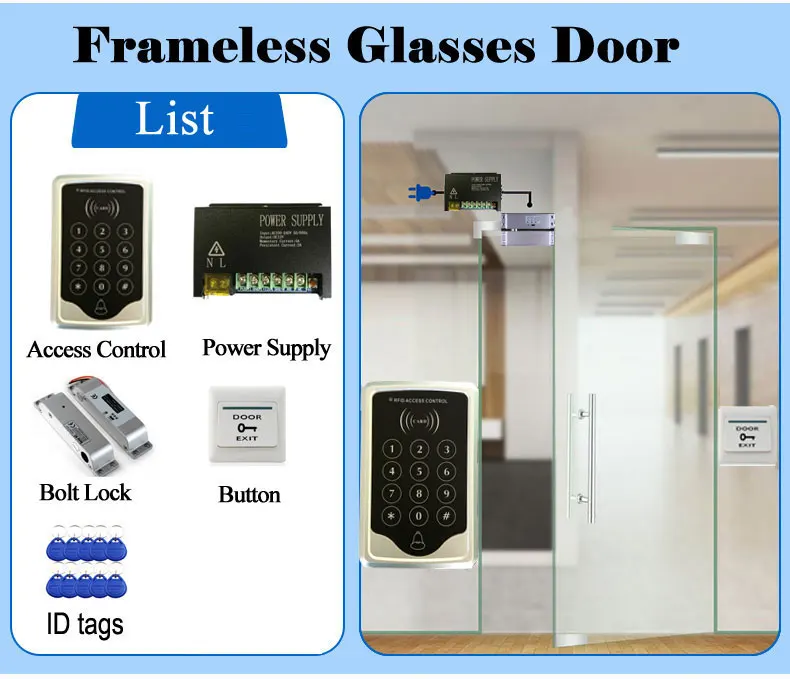

Kit5:  standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs
+ Electric Drop bolt lock + U bracket

Suitable for frameless glass door

• This door lock is ideal for high security applications

• It`s convenient for you to use

• It features 0, 2.5 ,6,9 second locking timer

• Refers to the pull switch to adjust the delay time; door status and lock status signal output

• Voltage: DC12V

• Current: 900mA / 200mA

• Size: 205 x 34 x 42mm / 8.07 x 1.34 x 1.65in

• Wire of the electric bolt door lock and the mounting hole

•  It made of durable and high material

• Lock Bracket

• Aluminum material

• frameless glass door

• 80Lx25Wx45H(mm)

*********************************************************************************************************

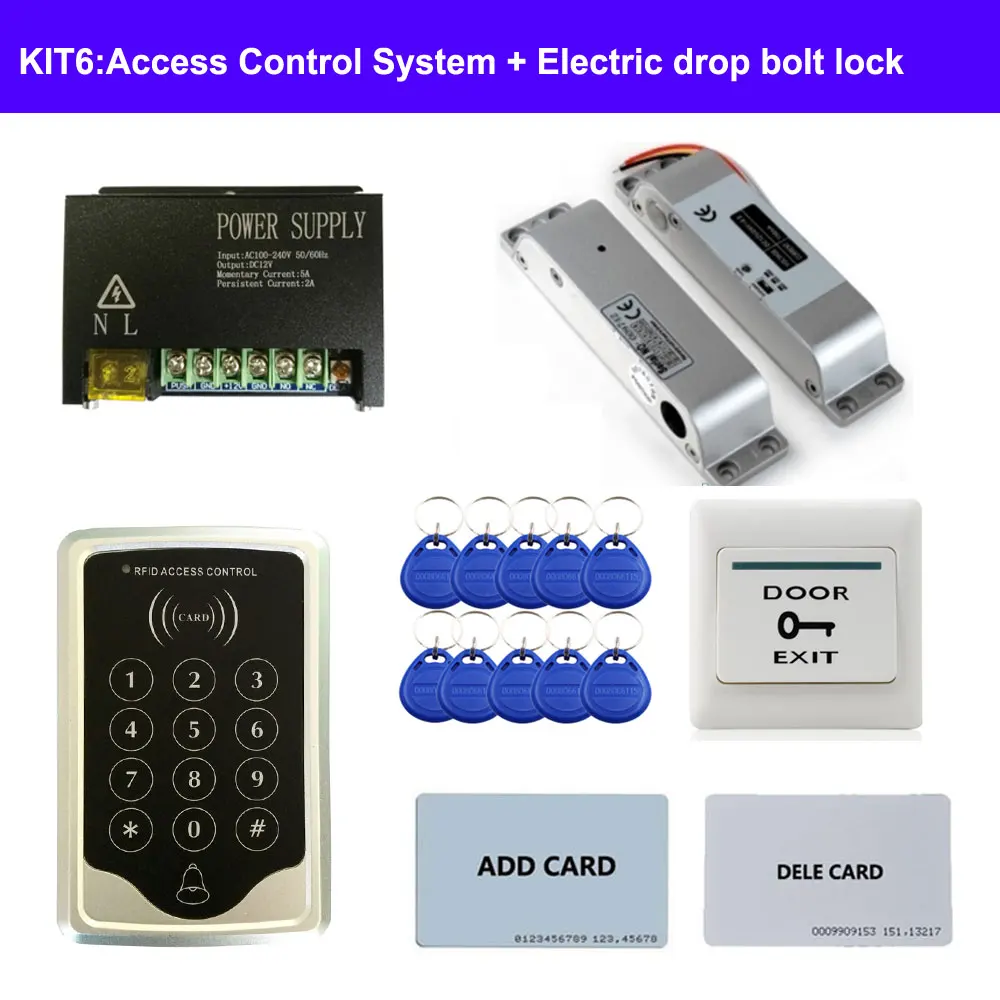

Kit6: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs

 + External Drop bolt lock

Suitable for wooden, metal and Stainless steel door. No need bracket

• Working voltage: 12V

• Time delay: 0s,3s,6s adjustable

• Working current: Start state 1.2A ; Persistent state 120mA

• Coil type: Continuous working

• Security type: Electric power lock, unlock

• Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM

• Locking mode: Magnetic induction

• Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)

• Dimension: 150X34X28( L / W / H )

*********************************************************************************************************

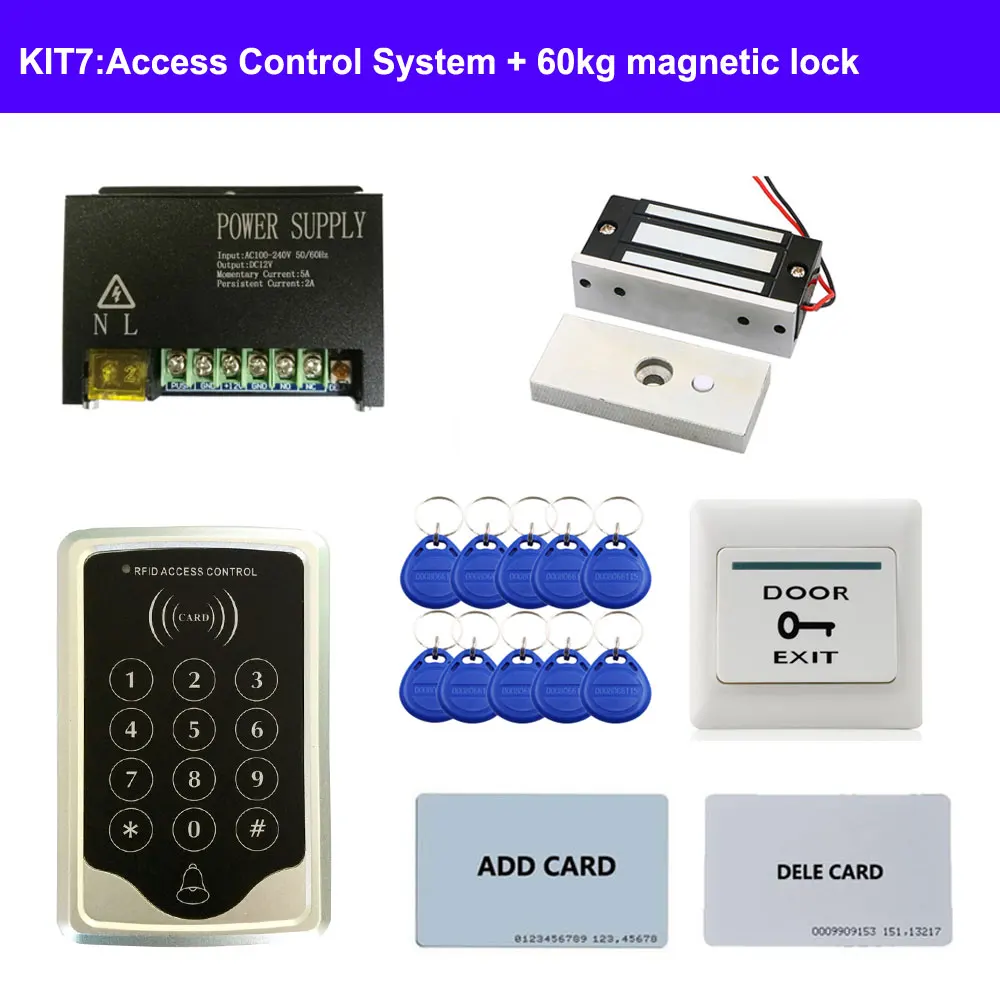

Kit7: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs

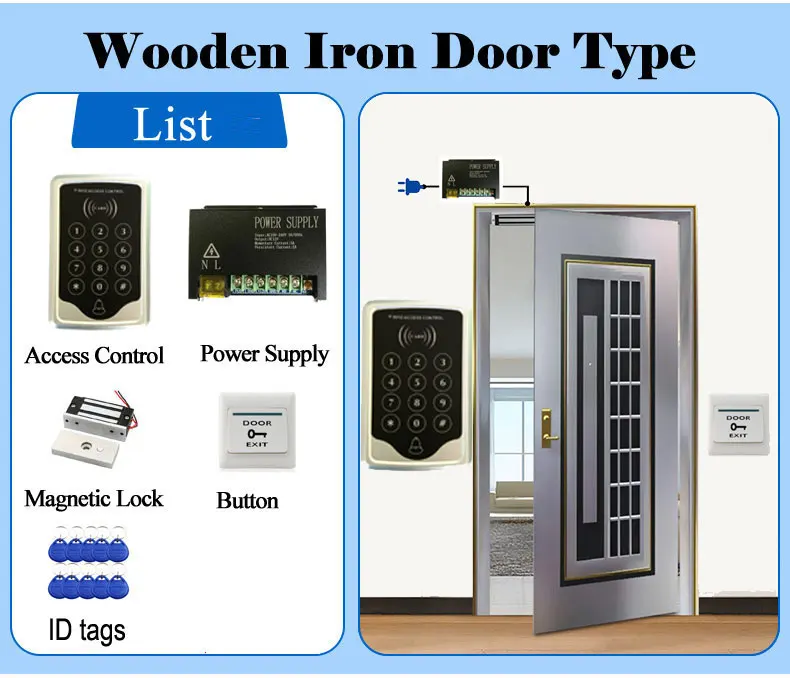

+ 60KG Electric Magnetic Lock

Suitable for wooden, metal  door

• Product: 60KG Single Door Magnetic Lock

• Lock Size: 85*38*25(mm)

• Armature plate:75*35*18(mm)

• Holding Force:60kg

• Voltage:DC12V

• Current Draw:DC12V/300mA

• Safety function: Built-in reverse current protection device (MOV)

• Suitable For:Wooden Door, Glass Door, Metal Door, Fire Proof Door

• Net Weight: 500g

*********************************************************************************************************

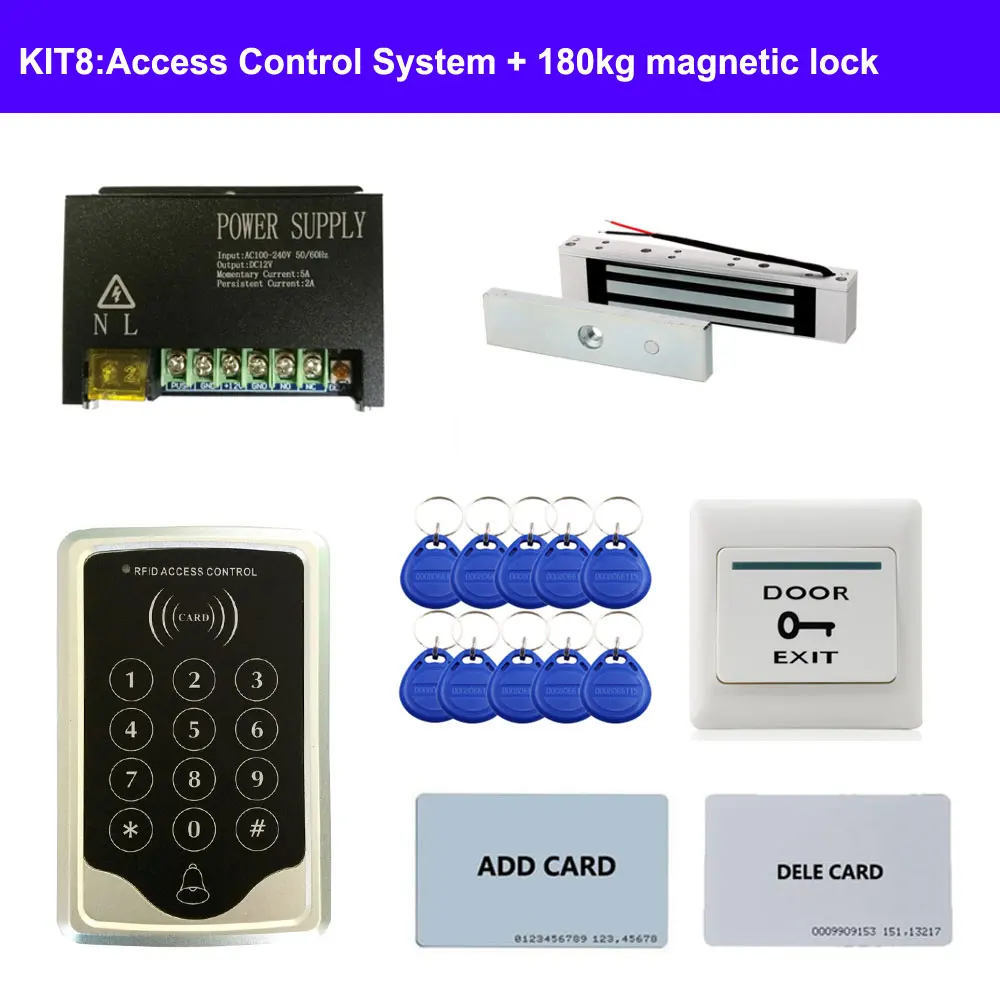

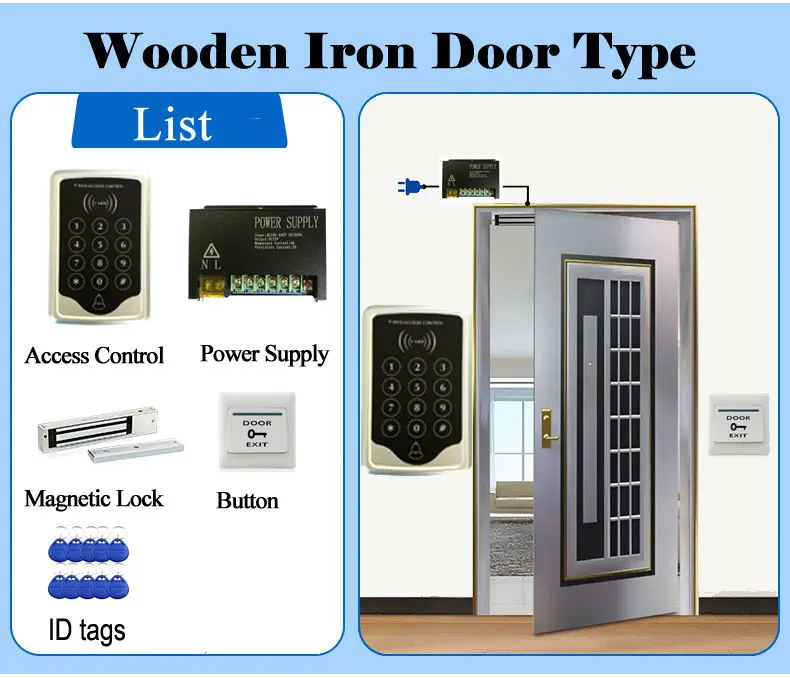

Kit8: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs
+ 180KG Electric Magnetic Lock

Suitable for wooden, metal  door

• Material: Aluminum alloy shell + iron plate

• Holding force: 180KG/350lbs

• Working Voltage: DC12V

• Working Current: 380-430mA

• Humidity: 0 to 95%

• Working Temperature: -10 to 55 Celsius degree

• Working mode: power-on to lock, power-off to unlock

• Waterproof: Yes. Can be install outside

*********************************************************************************************************

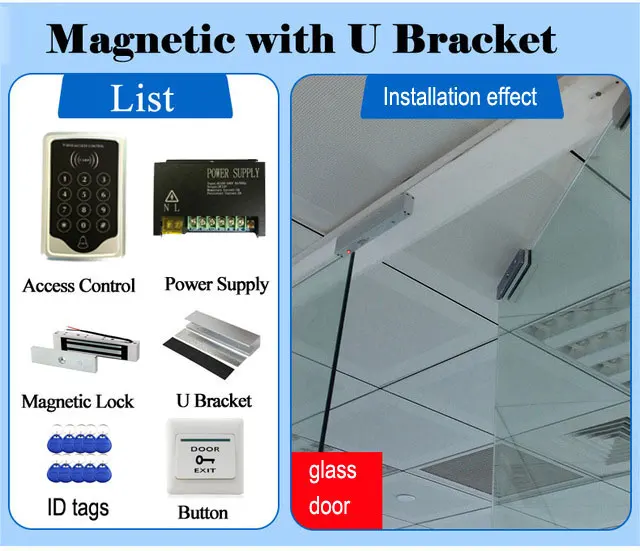

Kit9: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs
+ 180KG Electric Magnetic Lock + 180kg U bracket

180kg magnetic lock

Suitable for wooden, metal  door

• Material: Aluminum alloy shell + iron plate

• Holding force: 180KG/350lbs

• Working Voltage: DC12V

• Working Current: 380-430mA

• Humidity: 0 to 95%

• Working Temperature: -10 to 55 Celsius degree

• Working mode: power-on to lock, power-off to unlock

• Waterproof: Yes. Can be install outside

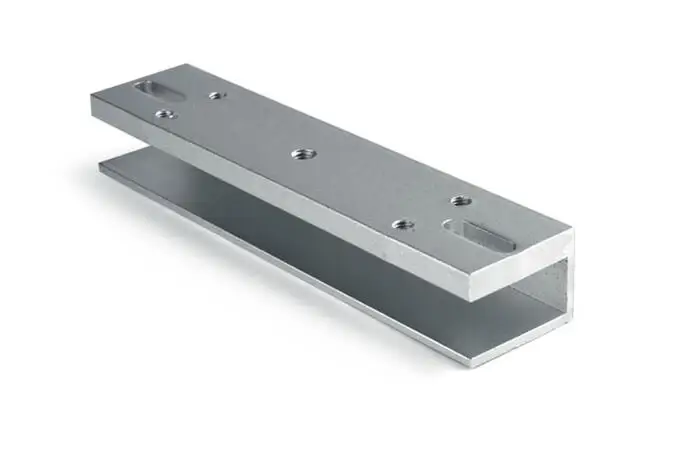

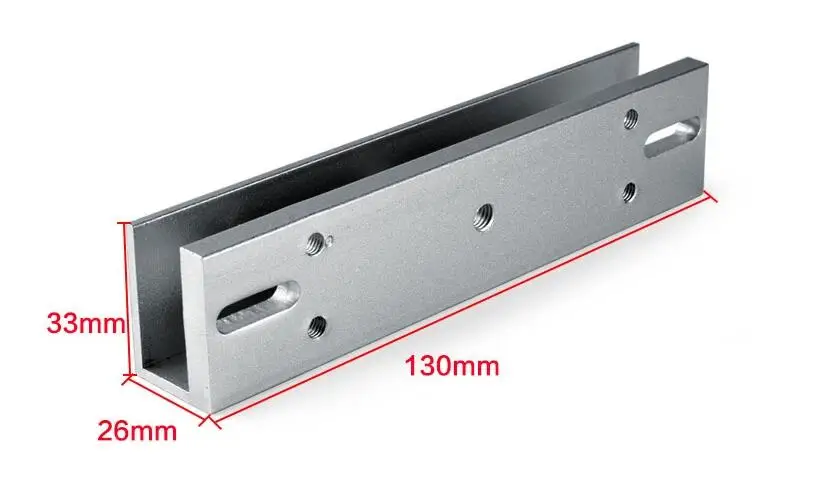

180kg U bracket

• Selection of materials: high strength aluminum alloy, the surface sandblasting.

• Applicable to door type: Frameless Glass Door.

• Glass thickness: 10-15mm glass door.

• To open the door: 90 degrees. Shell: Anodized plating.

• Applicable to the electric lock: 180KG magnetic lock.

• Size: 130MM * 33MM * 26MM

*********************************************************************************************************

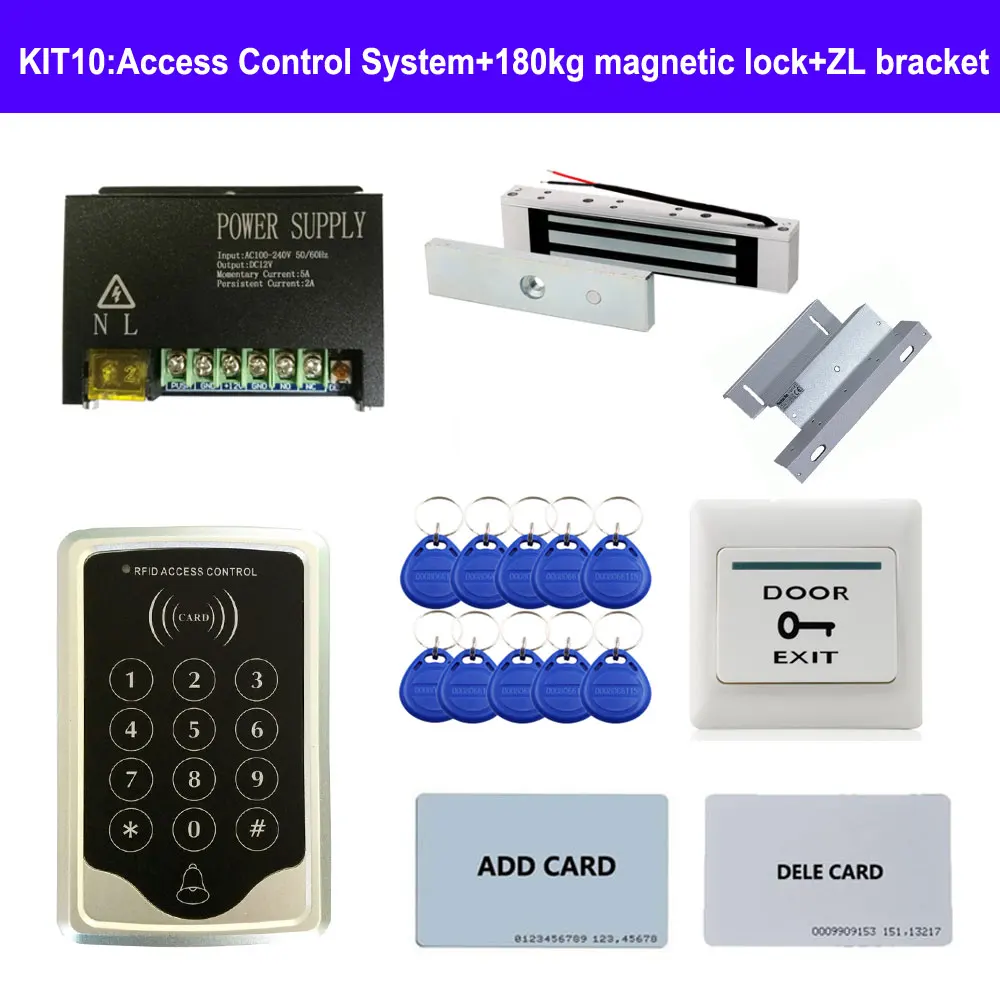

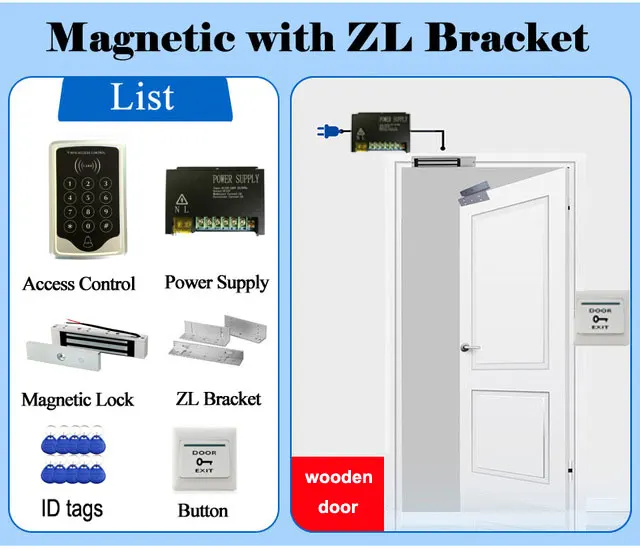

Kit10: standalone  Access control  + power supply +  Exit button + 10pcs Keyfobs

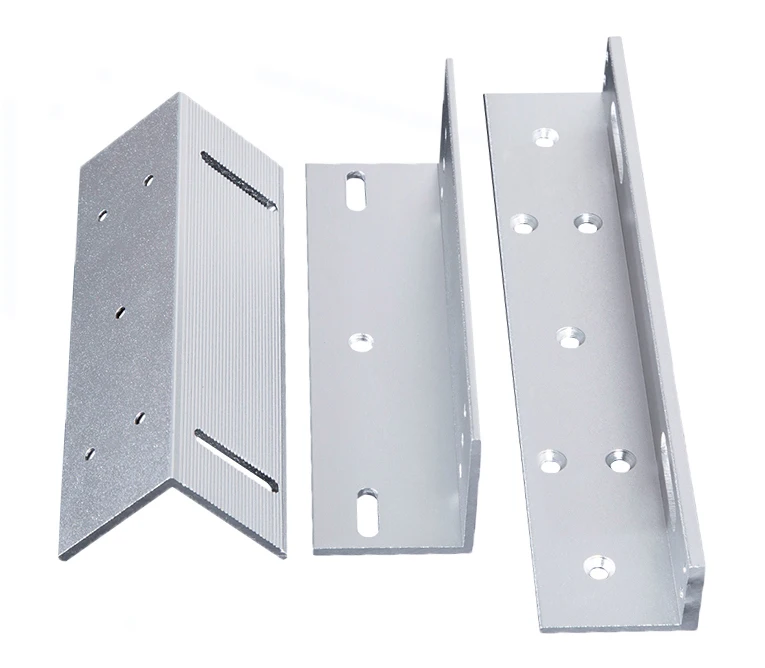

+ 180KG Electric Magnetic Lock + 180kg ZL bracket

180kg magnetic lock

Suitable for wooden, metal  door

• Material: Aluminum alloy shell + iron plate

• Holding force: 180KG/350lbs

• Working Voltage: DC12V

• Working Current: 380-430mA

• Humidity: 0 to 95%

• Working Temperature: -10 to 55 Celsius degree

• Working mode: power-on to lock, power-off to unlock

• Waterproof: Yes. Can be install outside
