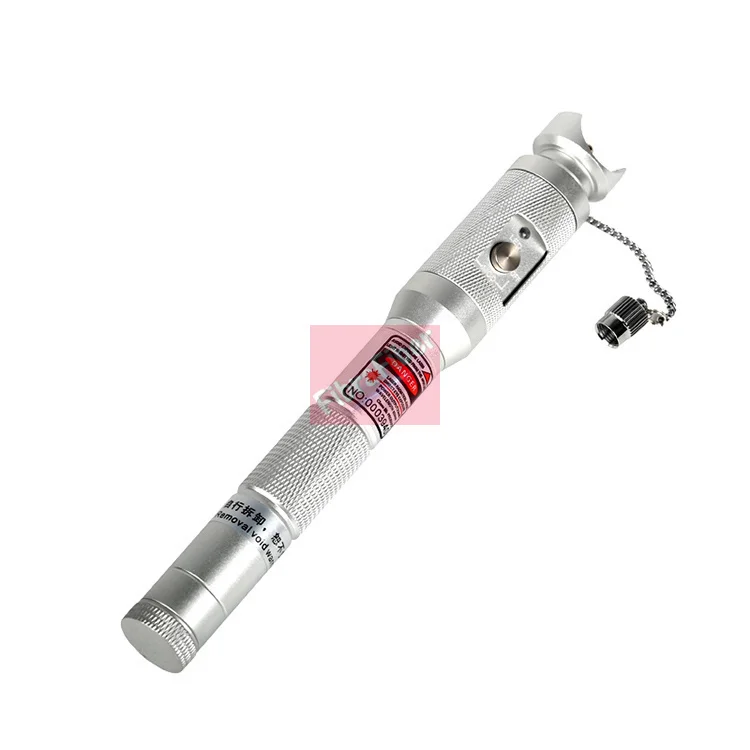

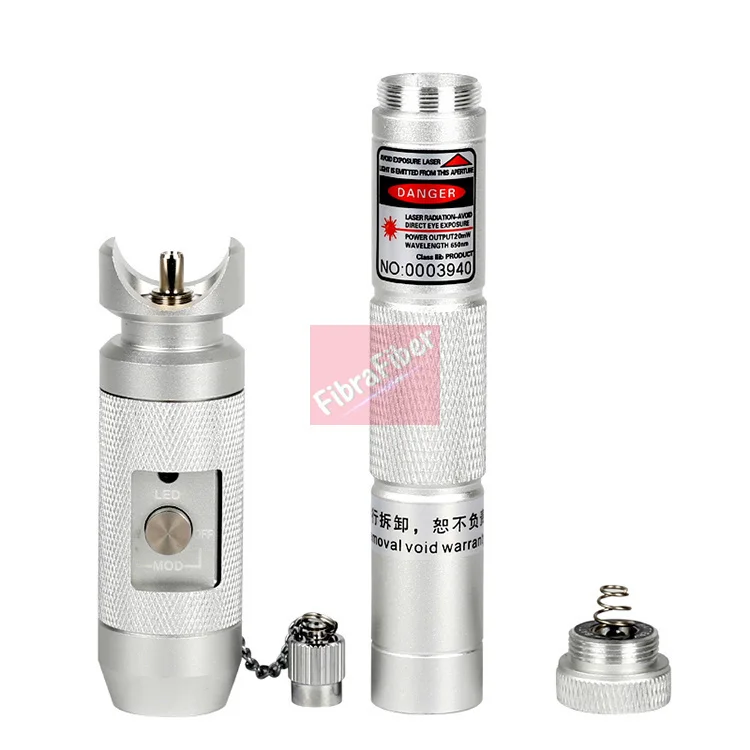

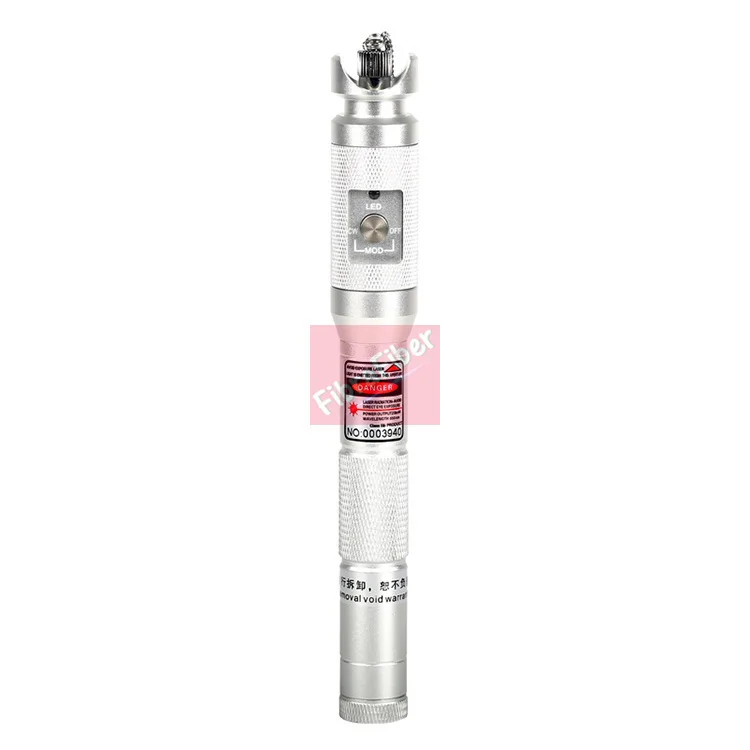

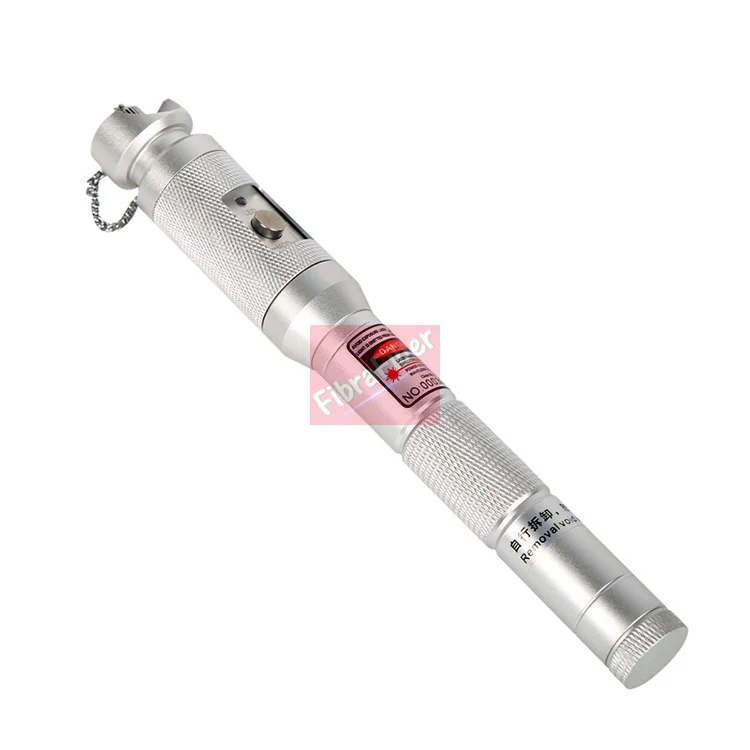

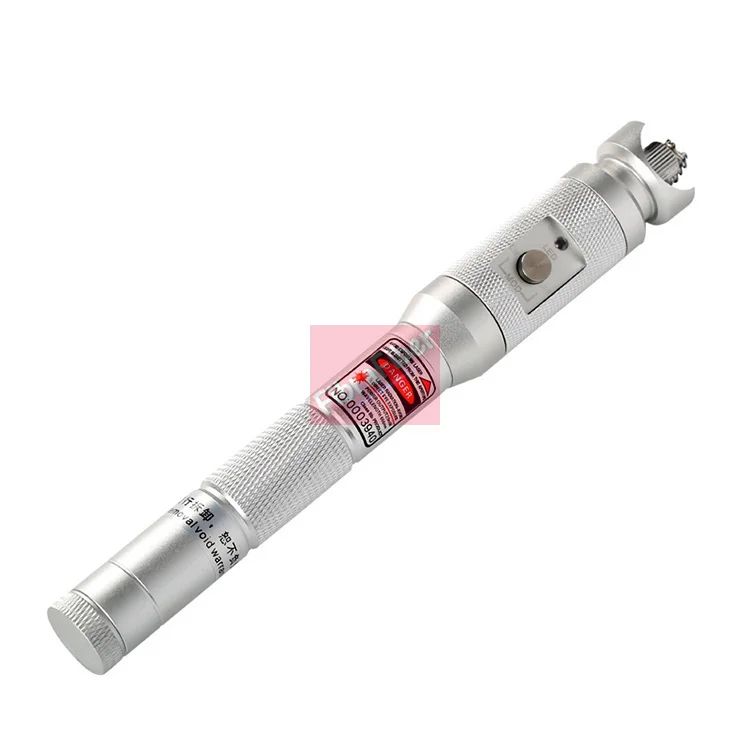

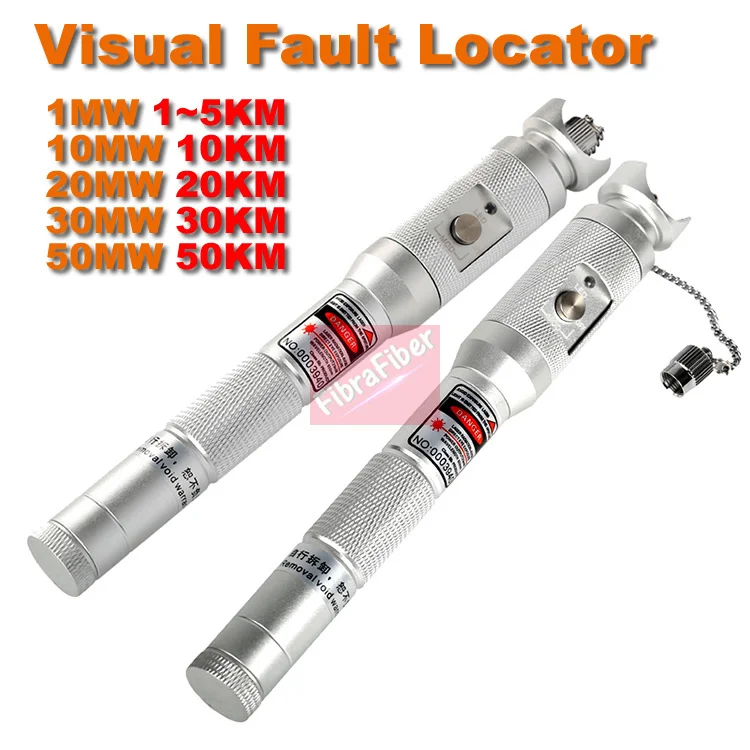

VFL Fiber Optic Laser Source Visual Fault Locator 10mw Fiber Optic Cable Tester
Applications
-
Maintenance in telecom , CATV
-
Test Lab of optical fibers
-
fiber routing and continuity checking in optical networks.
-
Other fiber optic measurements
Key Features – Pen-Type Visual Fault Locator
-
2.5mm universal connector,
-
Operates either in CW or Pulsed mode with constant output power
-
Long battery life (up to 60 hours)
-
drop-resistand and dust-proof design of source head
-
Source case ground design prevents ESD damage
-
Portable and rugged
-
Easy to use
-
Meets CE standards including EMC, EMI, ROHS
Specification
|
Model |
AUA-VFL650-2S |
|||
|
Central wavelength |
650nm±10nm (635nm is available on request) |
|||
|
Emitter type |
FP-LD |
|||
|
Output power |
5mw |
10mw |
20mw |
30mw |
|
Source Range |
≥5km |
≥10km |
≥20km |
≥30km |
|
Optical connector |
2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request |
|||
|
Operating model |
Both CW and Pulse available |
|||
|
Pulse frequency |
2Hz to 3Hz / 9Hz |
|||
|
Power supply |
2AA alkaline batteries |
|||
|
Battery |
LR6 AA alkaline battery |
|||
|
Operating temperature |
-20 to 60 |
|||
|
Storage temperature |
-40 to 85 |
|||
|
Dimension |
25x190mm |
|||
|
Weight |
122g (without battery) |
|||
