Only Compatible for Cisco, Mikrotik, Fortinet, Ubiquiti, Netgear, D-Link, Linksys, Edge-core, EMC, F5, Meraki, QTC, Supermicro, and Other Open Switches.
• 10G SFP+ to RJ45 SFP+ Transceiver :This transceiver can handle high-speed data transfer with its 10G SFP+ to RJ45 SFP+ interface.
• Ethernet Copper RJ45 to SFP Fiber Optical Module Transceiver :This transceiver can convert copper to fiber optic signals, making it suitable for long-distance transmissions.
• CAT6A/CAT7 Compatibility :This transceiver is compatible with CAT6A and CAT7 cables, ensuring reliable and fast data transfer.
• Up to 30M Range :With a range of up to 30 meters, this transceiver can handle short to medium-length transmissions.
10G BASE-T Copper SFP+ Transceiver
10G BASE-T SFP+ Copper RJ-45 30m Industrial Transceiver Module
Features:
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°C
Description:
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) .
They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 .
SFP+-10GBASE-T uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
10gt-t Cat6A/7 length hotport @ XFi: 30m
5Gbase-T/2.5Gbase-t CAT5E Length Hostport @5GBase-R/2.5GBase-X: 50m
1000base-T CAT5E Length @1000base-FX: 100m

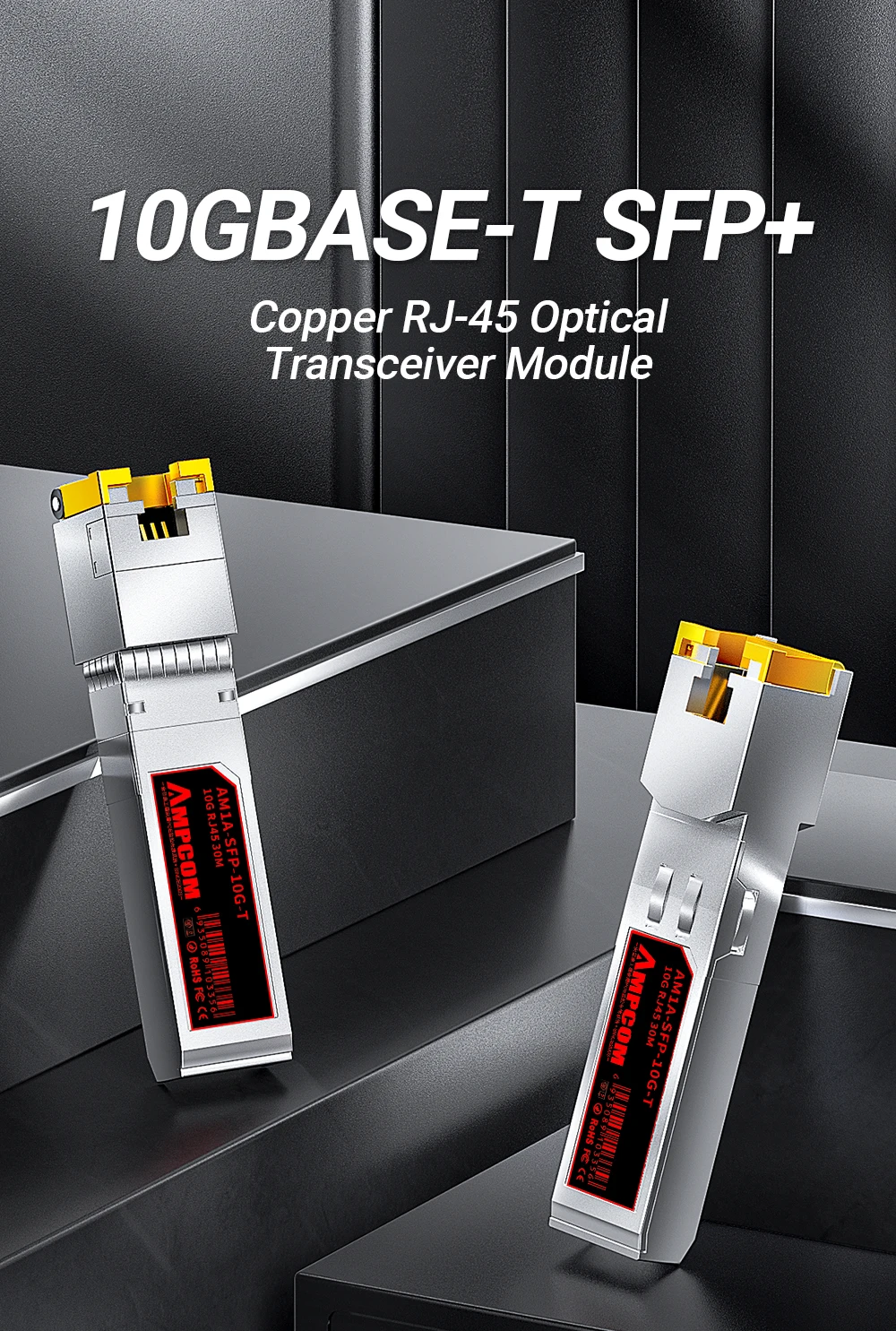

10GBASE-T SFP +
Copper RJ-45 Optical Transceiver Module

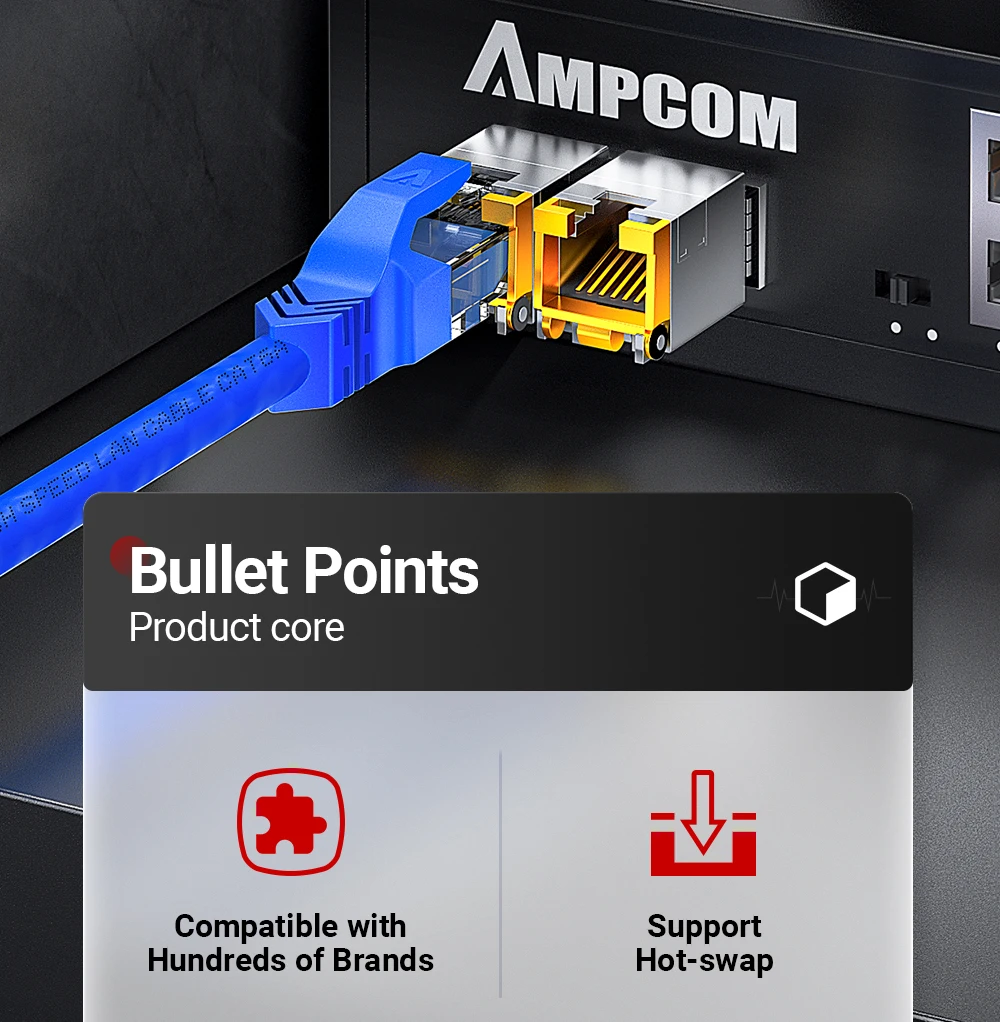

Compatible with Hundreds of Brands
Support Hot-swap
Thickened Gold-plated Contacts
High-Quality Top Rated Chip
Digital Diagnostic Monitoring Self-Diagnosis
Verified by Authoritative Testing Lab

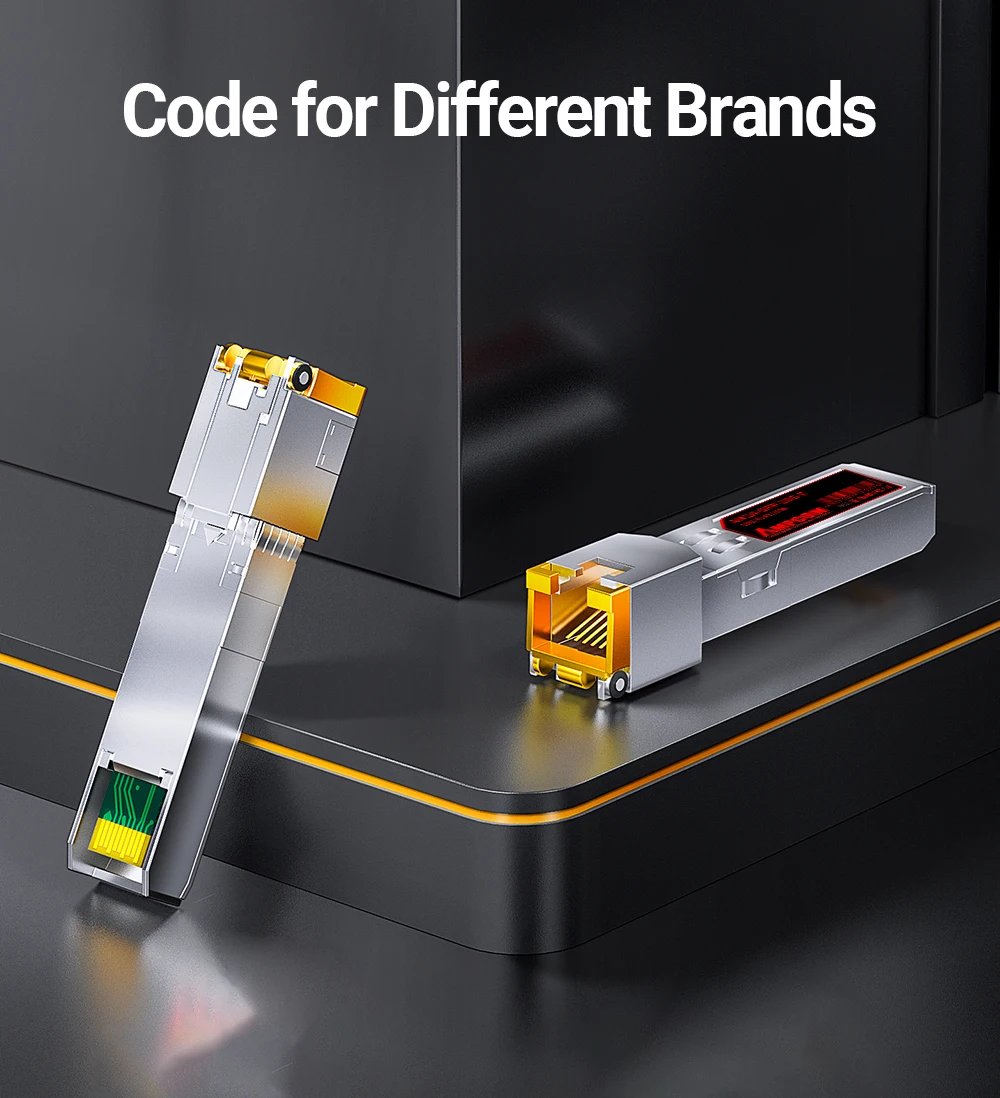

Customerized for Different Brands
Each SFP+ requires the corresponding brand-specific code to be written, as different brand codes are not mutually compatible. Product testing is performed again during the code writing process to ensure a 100% yield rate
Hot Pluggable SFP + MSA Compliant
Featured with 2.5W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.

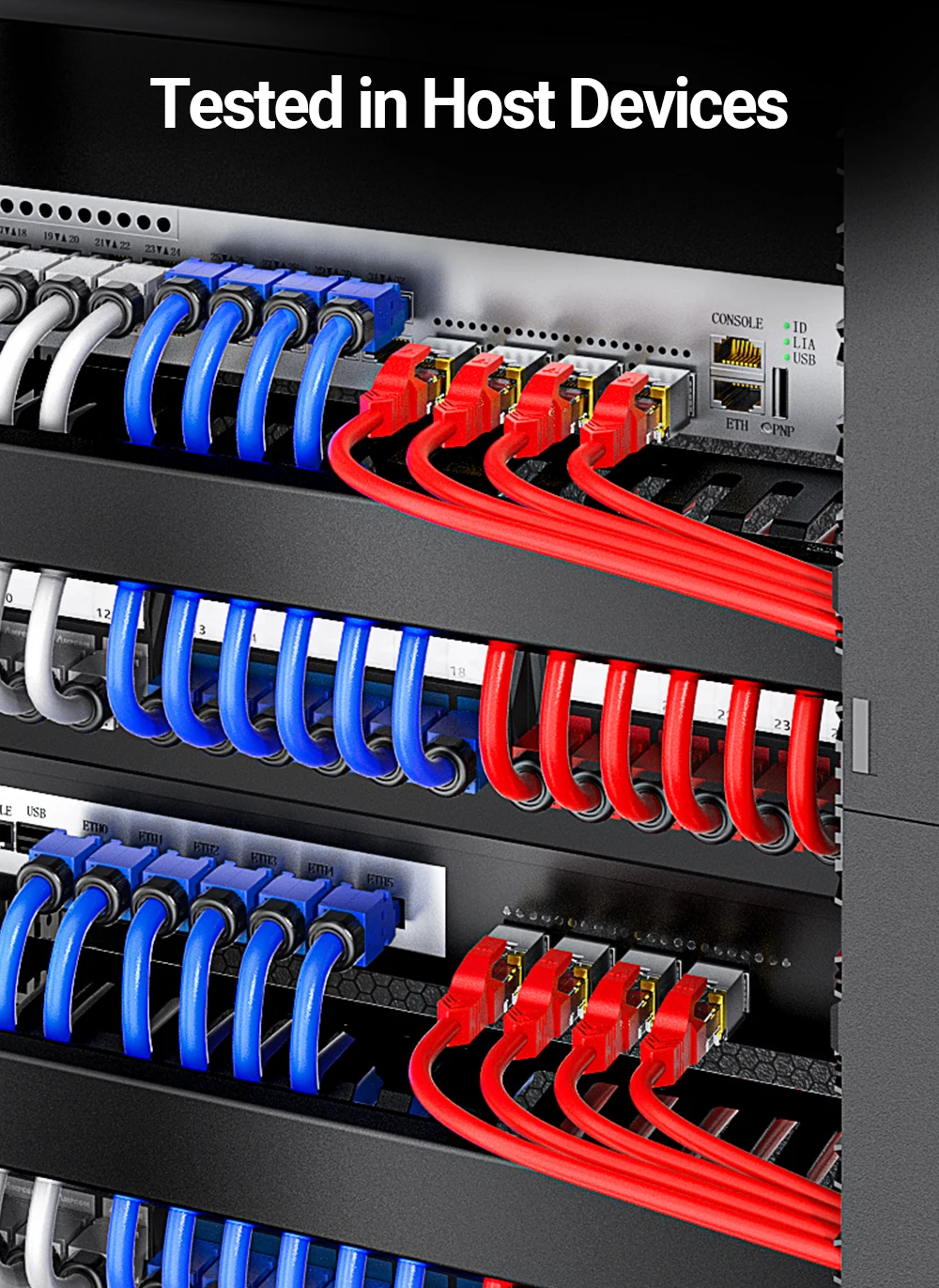

Tested in Host Devices
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

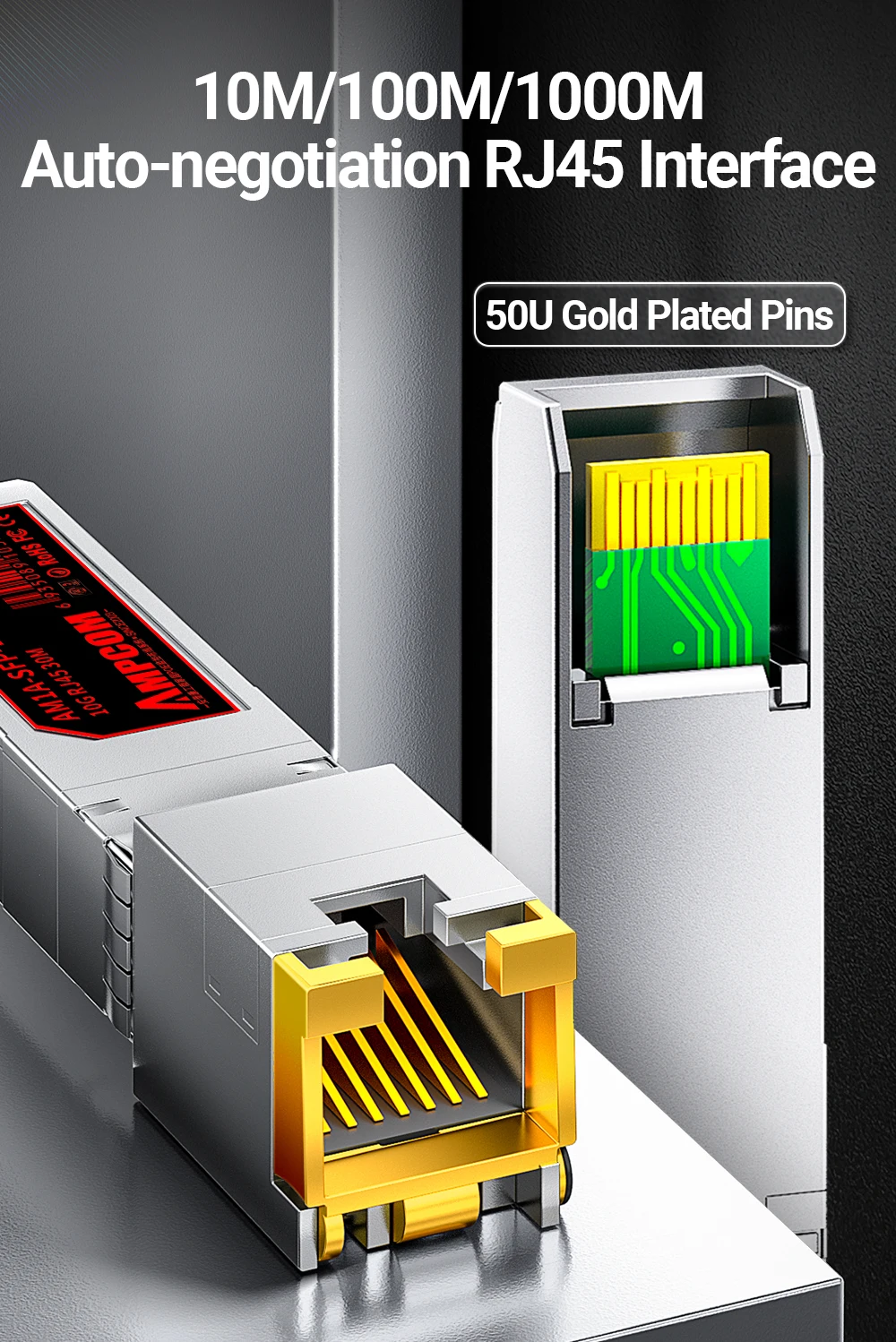

10M/100M/1000M/ 10G Auto-negotiation RJ45 Interface

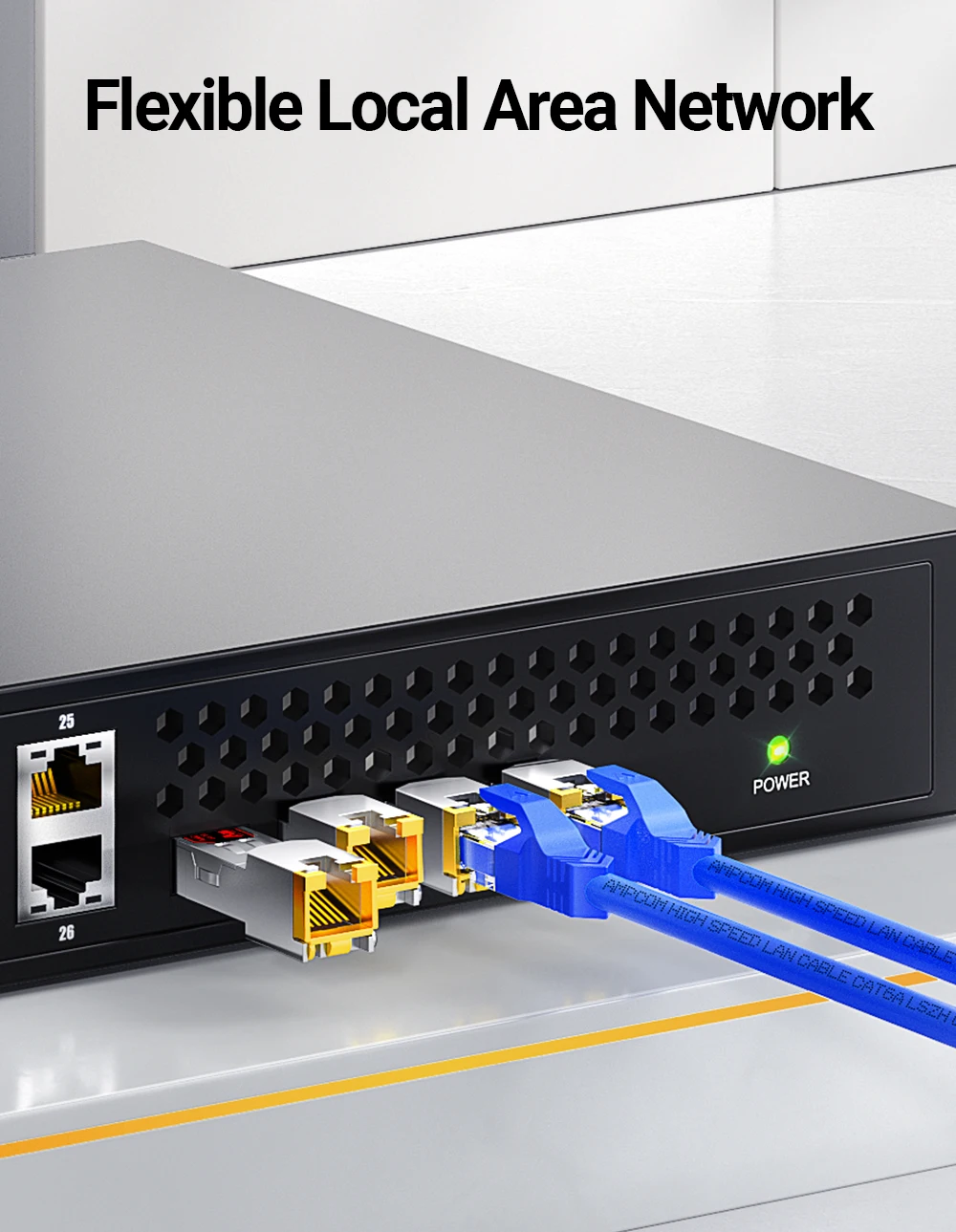

Flexible Local Area Network
It is possible to create a flexible and low-cost hot-swapable local area network using pre-installed Ethernet cables over 30 meters distances.

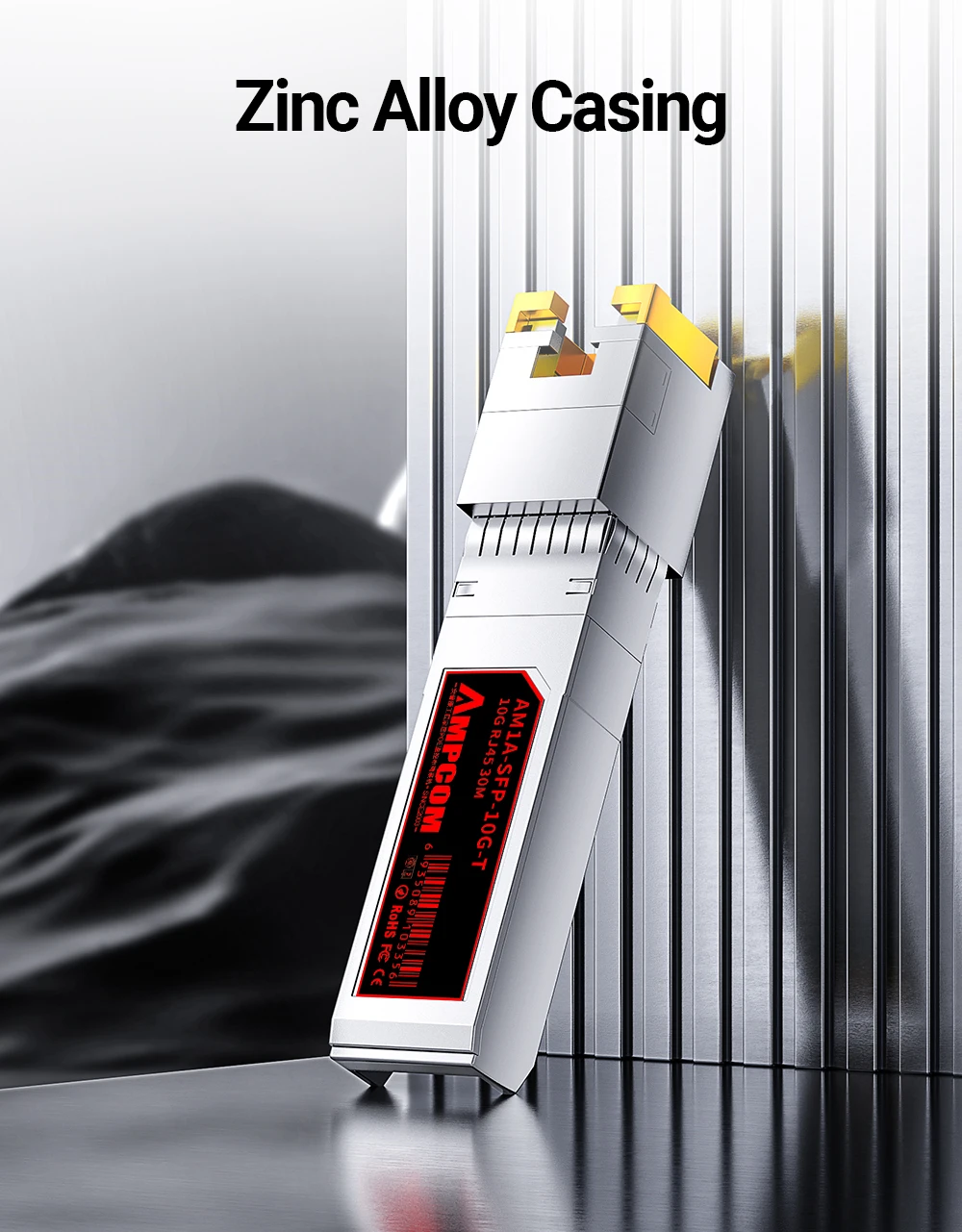

Zinc alloy case
A full metal casing effectively shields against electromagnetic interference and provides increased durability and sturdiness

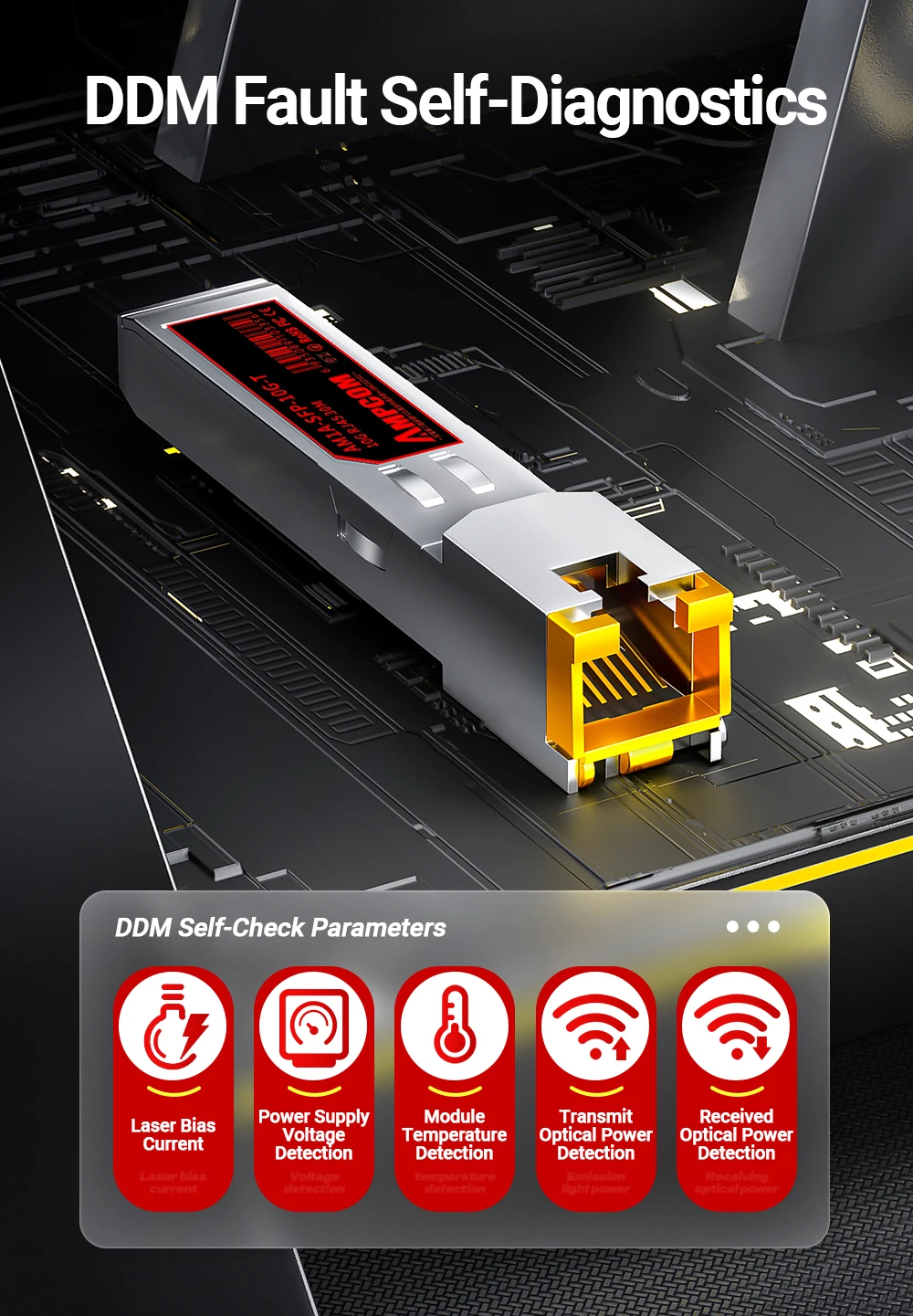

DDM Fault Self-Diagnostics
Real-time monitoring of module status, precise fault localization, optimization of maintenance processes, and ensuring work efficiency
Rigorous Testing and Manufacturing Processes
Product Assembly
Standard Production Line, Excellent Equipment, Rigorous Production Processes Ensure Stable Quality
Performance Testing
Utilizing Agilent Error Analyzer, Xirrus Tester, Rigorously Testing All Aspects of Product Performance

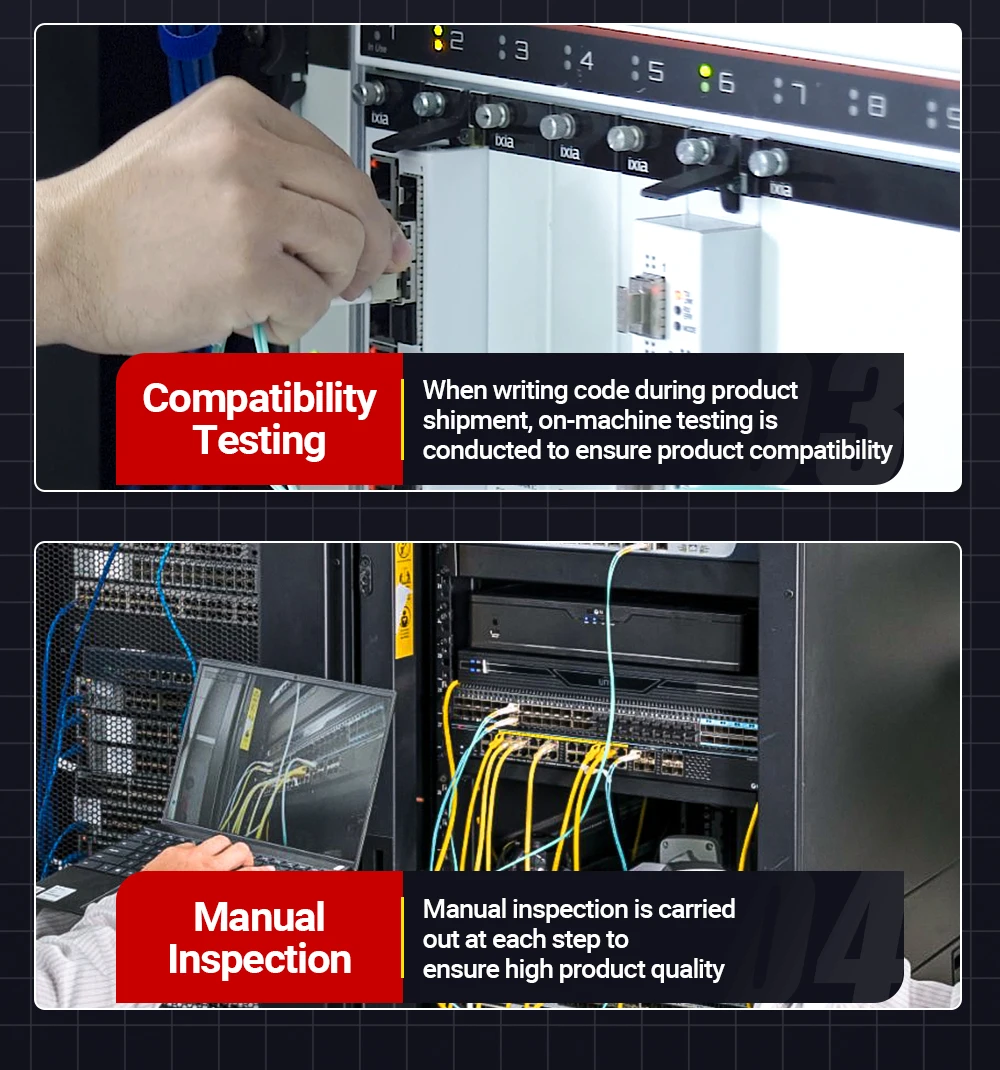

Compatibility Testing
When writing code during product shipment, on-machine testing is conducted to ensure product compatibility
Manual Inspection
Manual inspection is carried out at each step to ensure high product quality

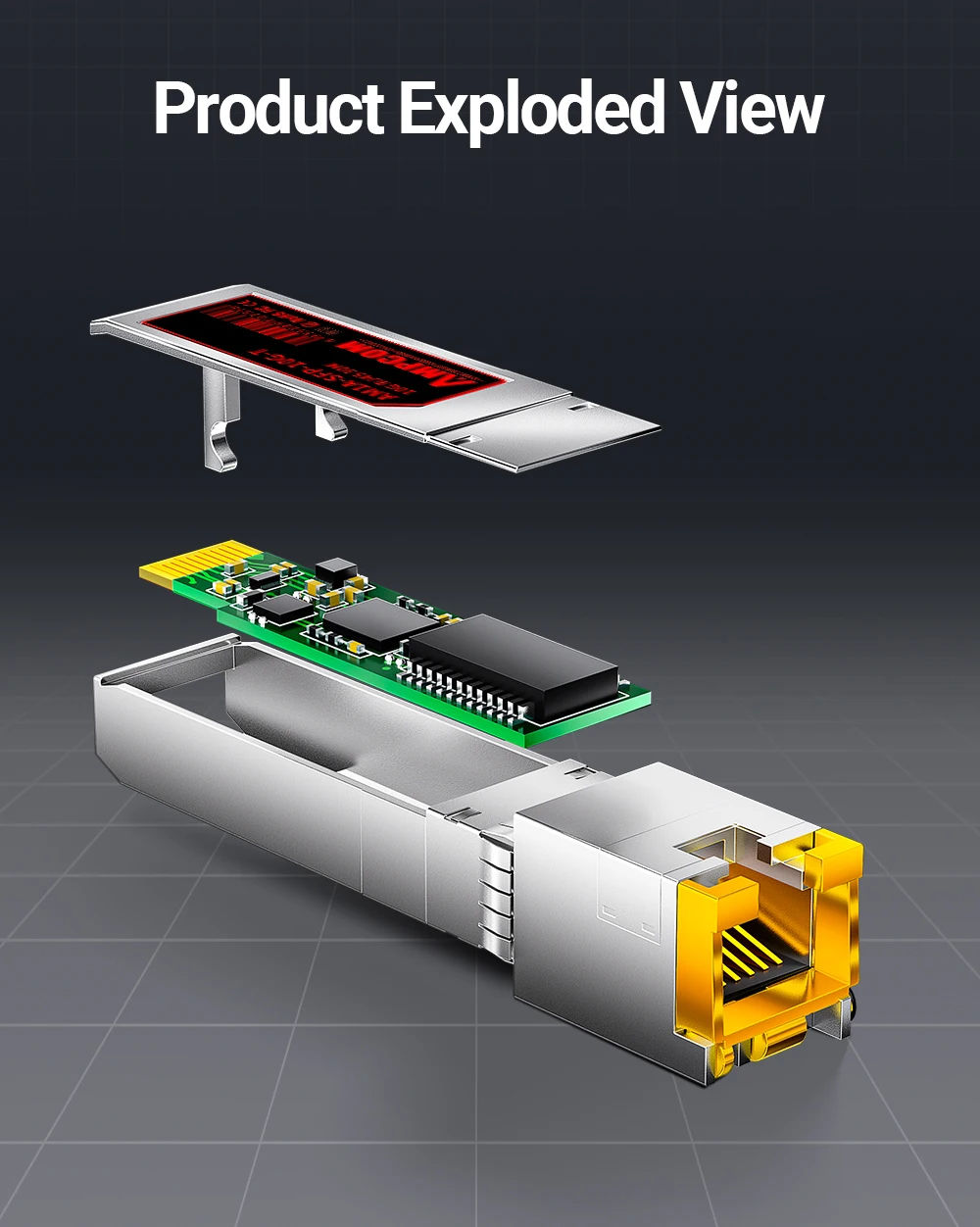

Product Exploded View

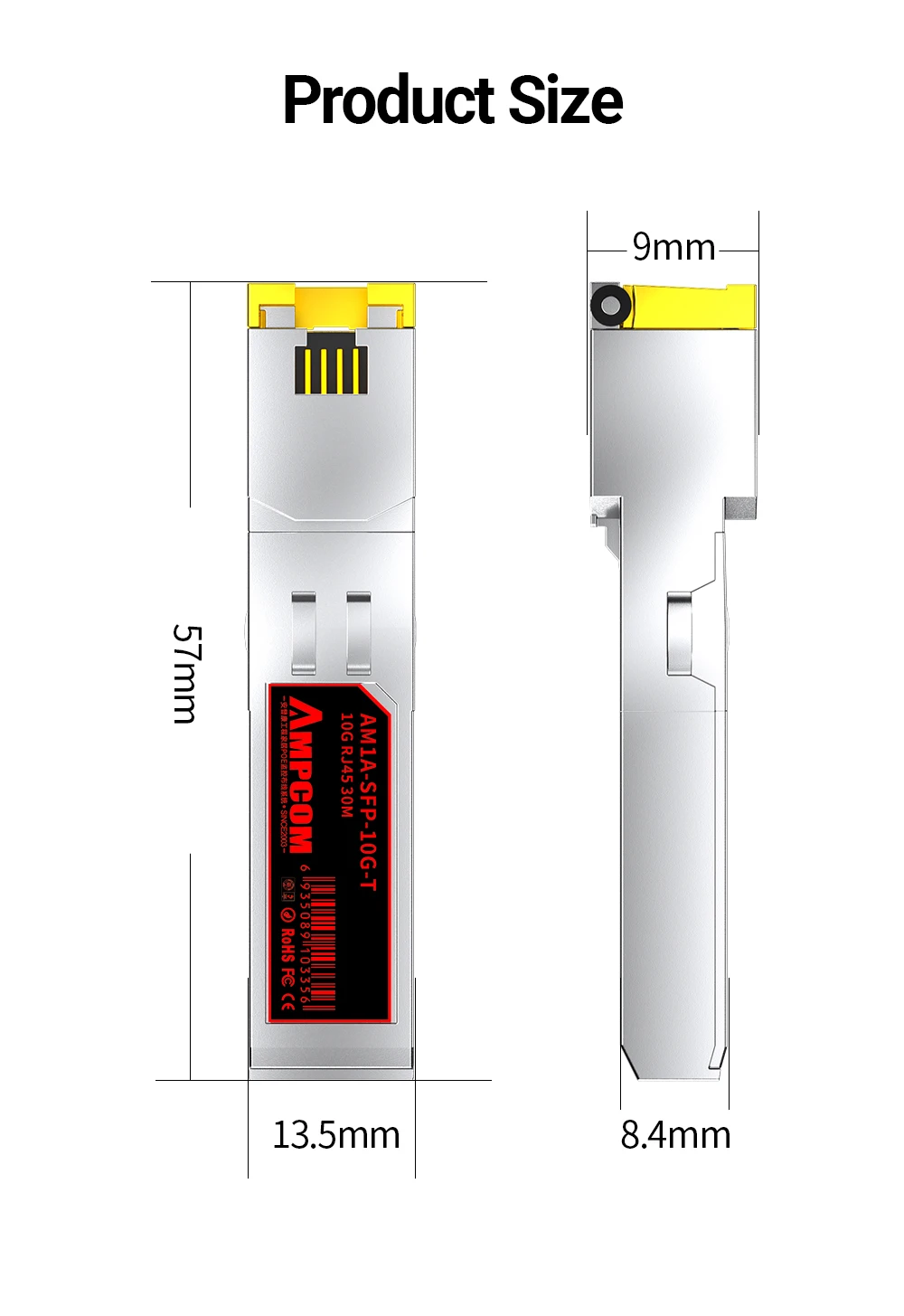

Product Size

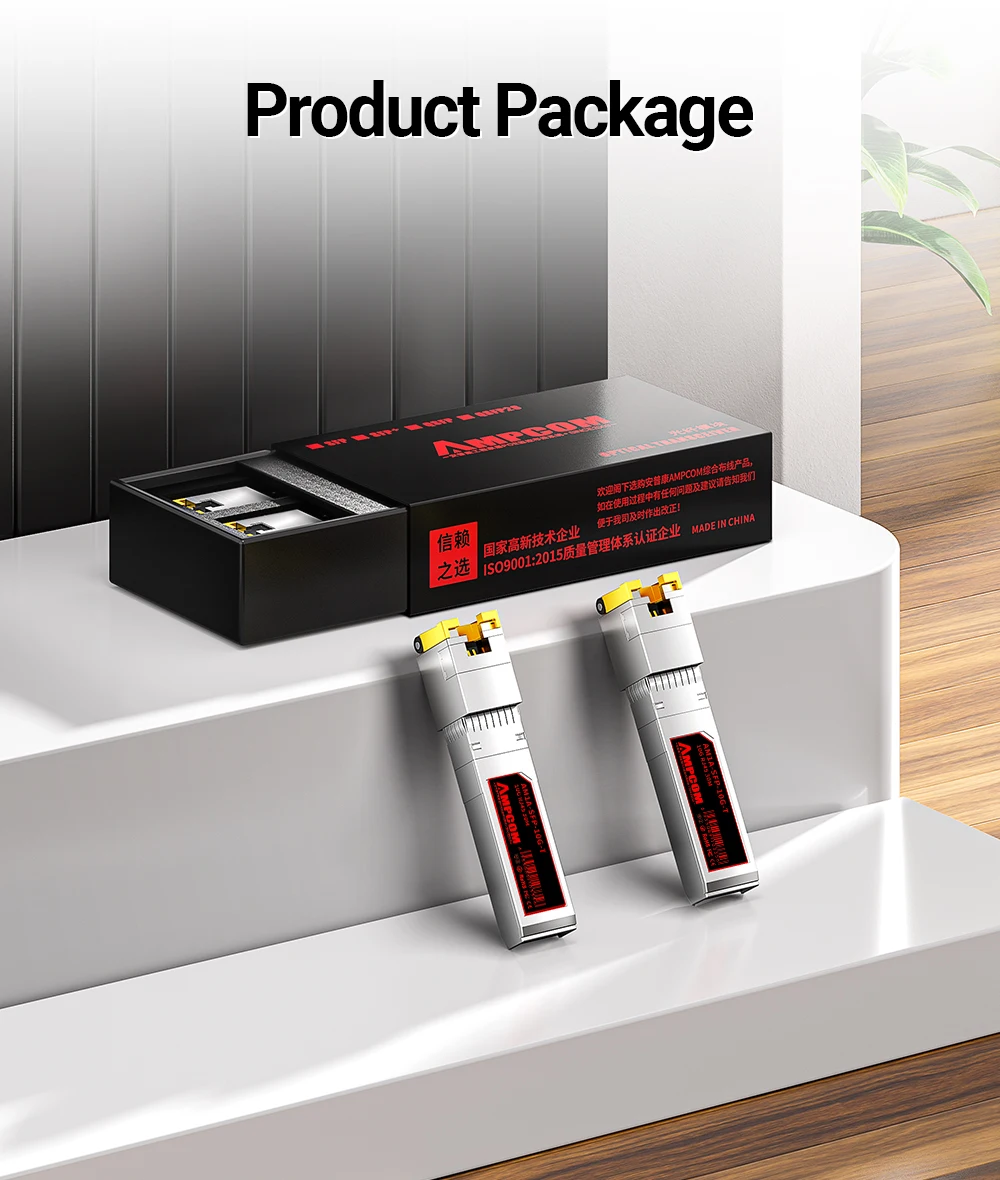

Product Package
Important Notes
Compatible with MSA compliant equipment with open source EEPROM
Compatible with Cisco, Mikrotik, Fortinet, Ubiquiti, Netgear, D-Link, Linksys, Edge-core, EMC, F5, Meraki, QTC, Supermicro, and Other Open Switches.
NOT compatible with Dell Networking / Juniper / Mellanox / HP / H3C / Arista / Dell Force10 / Extreme Networks equipment
Use anti-static protection when connecting or removing the transceivers
QA
Q: What is the minimum distance allowed on 1.25G Multimode SFP LC 550 Meter Module ?
A: The Multimode SFP LC Module has no minimum transmission distance limit. It is allowed to use 1m multimode LC patch cables.
Q: Would this work and support 2.5G in a Cisco 200-26 SFP port?
A: Yes? We have tried it in 5 different brands of switches. The Ubiquti 1G SPF+ port FAILS. Yet 2 Ciscos and a Dell have worked just fine, seem to be running on the 1.25G but provide 1G.
Q: Do these work with Chelsio cards? Specifically either the T520 or T540 cards.
A: Yes, the 10G SFP+ to RJ45 transceiver will work with Chelsio cards, including T520 or T540 cards, etc.
Q: Is it the fault of this transceiver or the MokerLink 10G080GSM switch that the two don't latch together properly?
A: To troubleshoot, we suggest that you use other 10G switches to test these transceivers or perform self-loop testing.
Q: Does it work on Juniper EX3300 switch?
A: Yes
Q: Are these compatible with dell network switches and dells servers with broadcom spf+ network cards?
A: Compatibility between the 10Gb SFP+ module and device "should" be compatible as long as the switch or card supports SFP+. Further though, the switch or card will need to support multi-gigabit ethernet if you are looking to utilize that standard. Contact the switch or card manufacturers support for any clarifications or caveats.
Q: Is this compatible with ruckus icx 6650?
A: I used it into a Unifi switch . It works fine at 10gb-s .
