AMPCOM OM5 100Gbps MMF 50/125μm Duplex Fiber Optical Patch Cable
OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.
More Length and Size
We support customizing the length and size you need, please contact us if you need

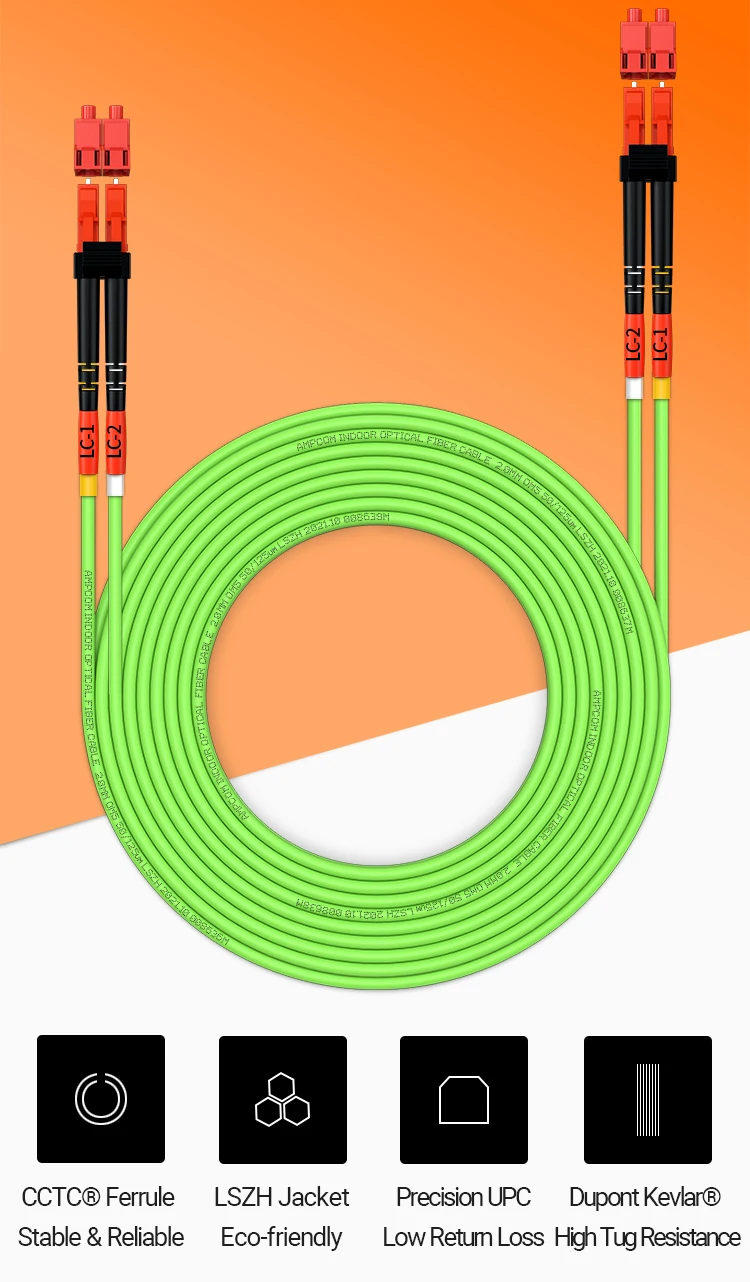

Carrier Grade LC-LC Fiber Optic Patch Cable
100Gbps MMF OM5 Duplex OD:2.0mm
Support Length Customization
Tested by Third-party Lab
Multiple tests to ensure the reliable quality
Report No. SZIN2102001541PS-CN

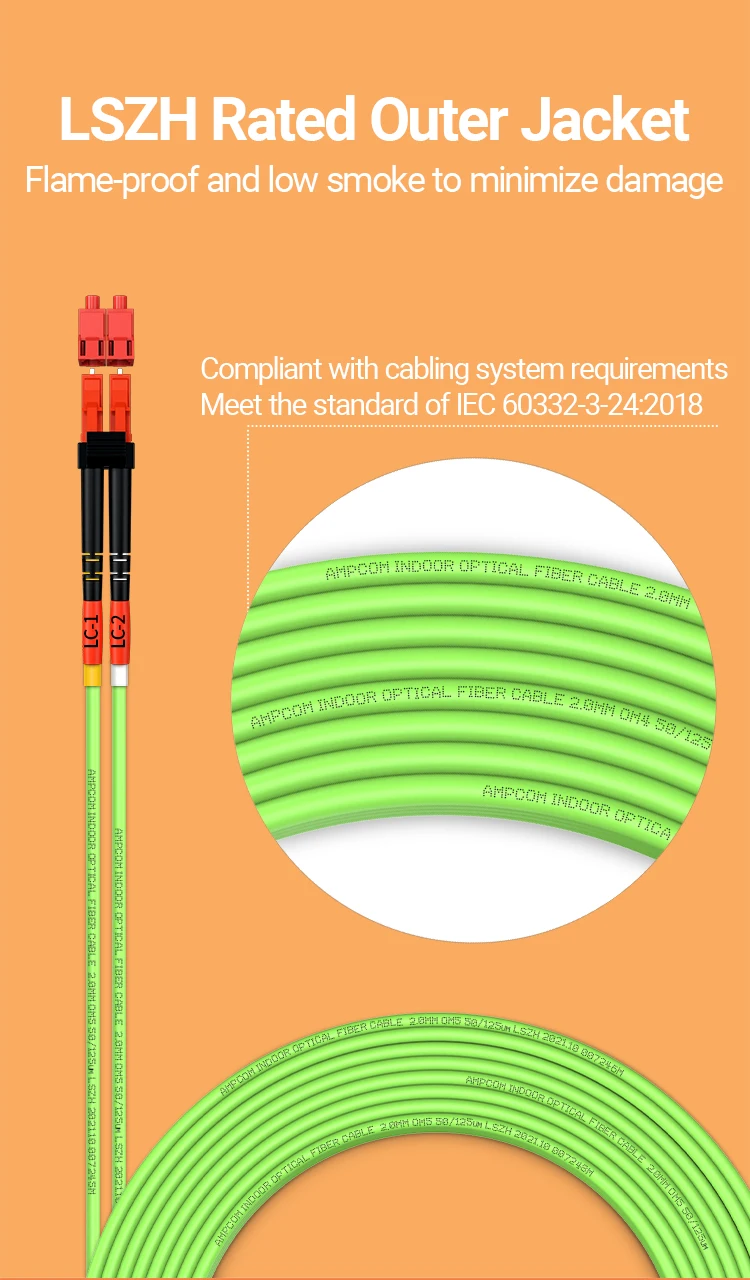

LSZH Rated Outer Jacket
Flame-proof and low smoke to minimize damage

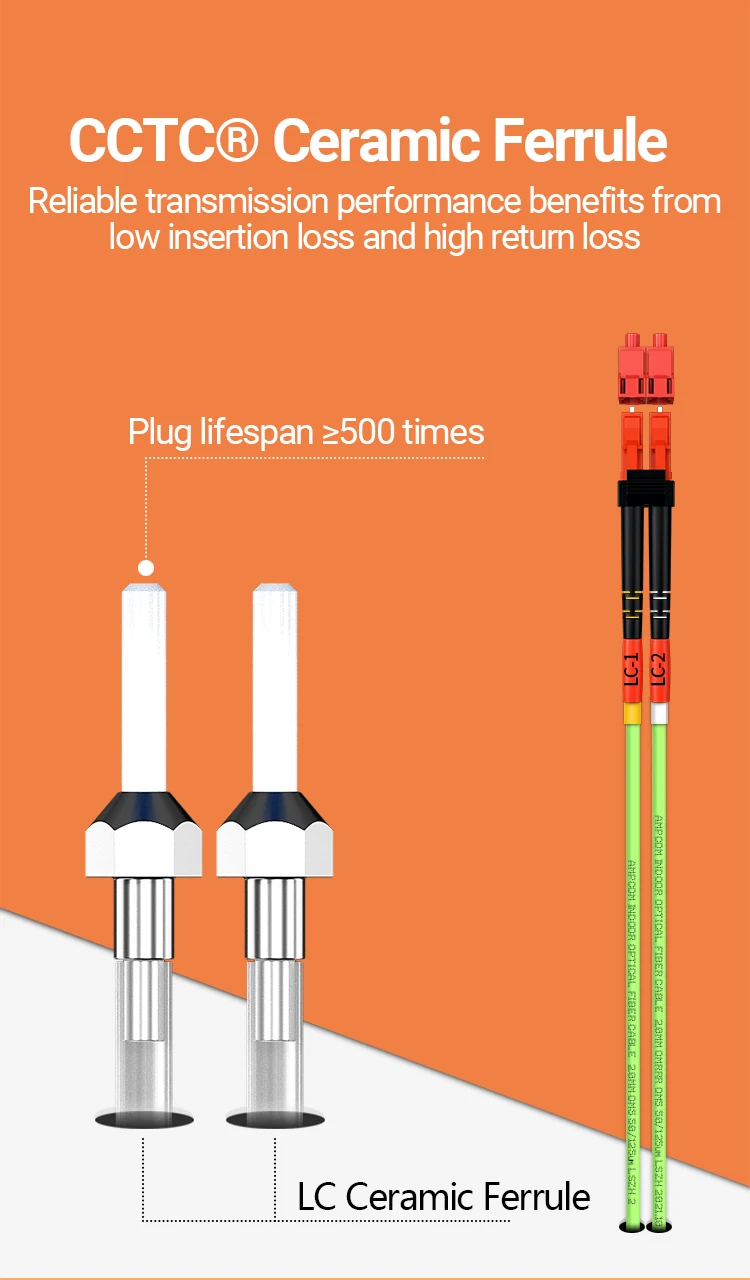

CCTC® Ceramic Ferrule
Reliable transmission performance benefits from low insertion loss and high return loss

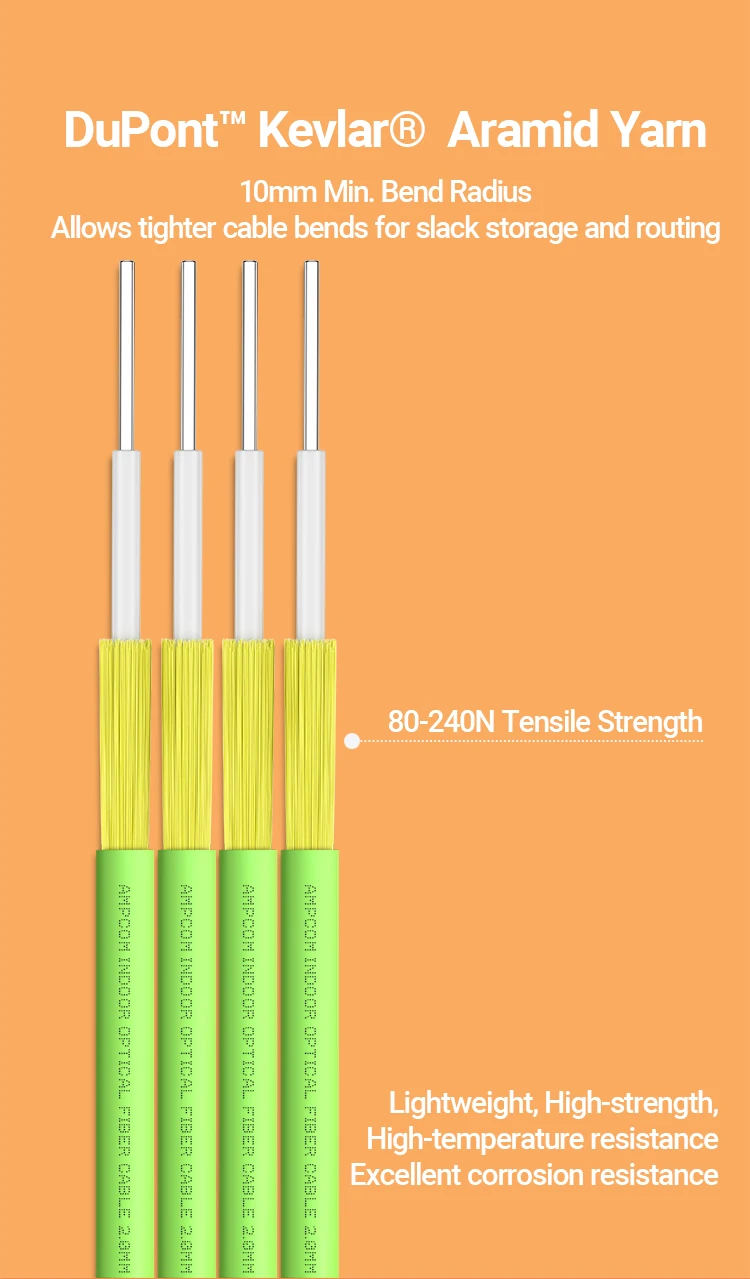

DuPont™ Kevlar® Aramid Yarn
10mm Min. Bend Radius Allows tighter cable bends for slack storage and routing

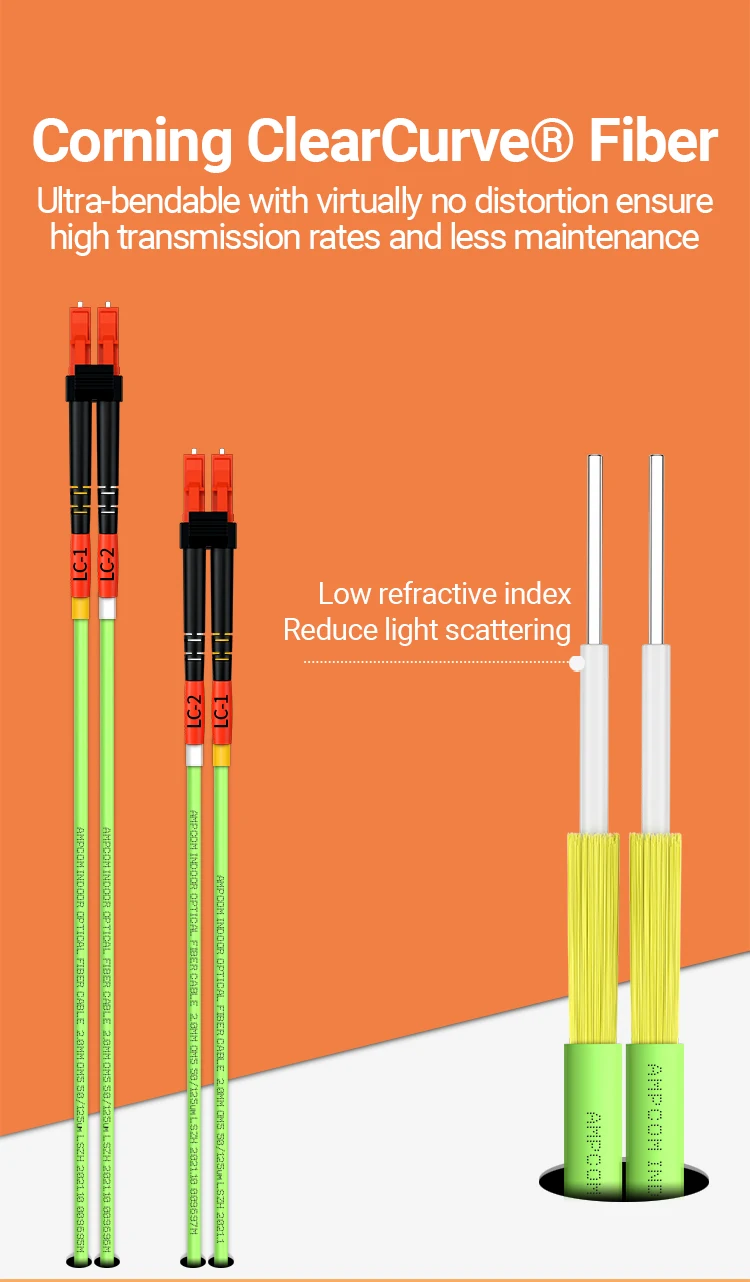

Corning ClearCurve® Fiber
Ultra-bendable with virtually no distortion ensure high transmission rates and less maintenance

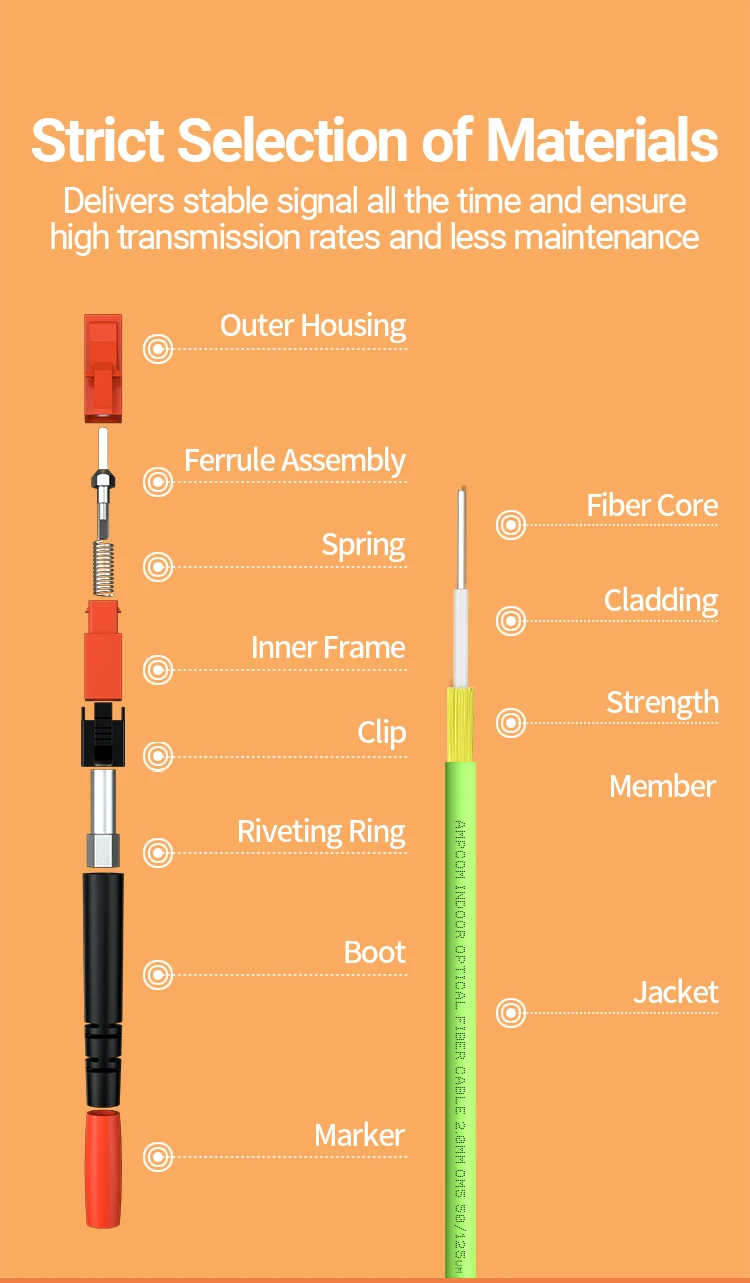

Strict Selection of Materials
Delivers stable signal all the time and ensure high transmission rates and less maintenance

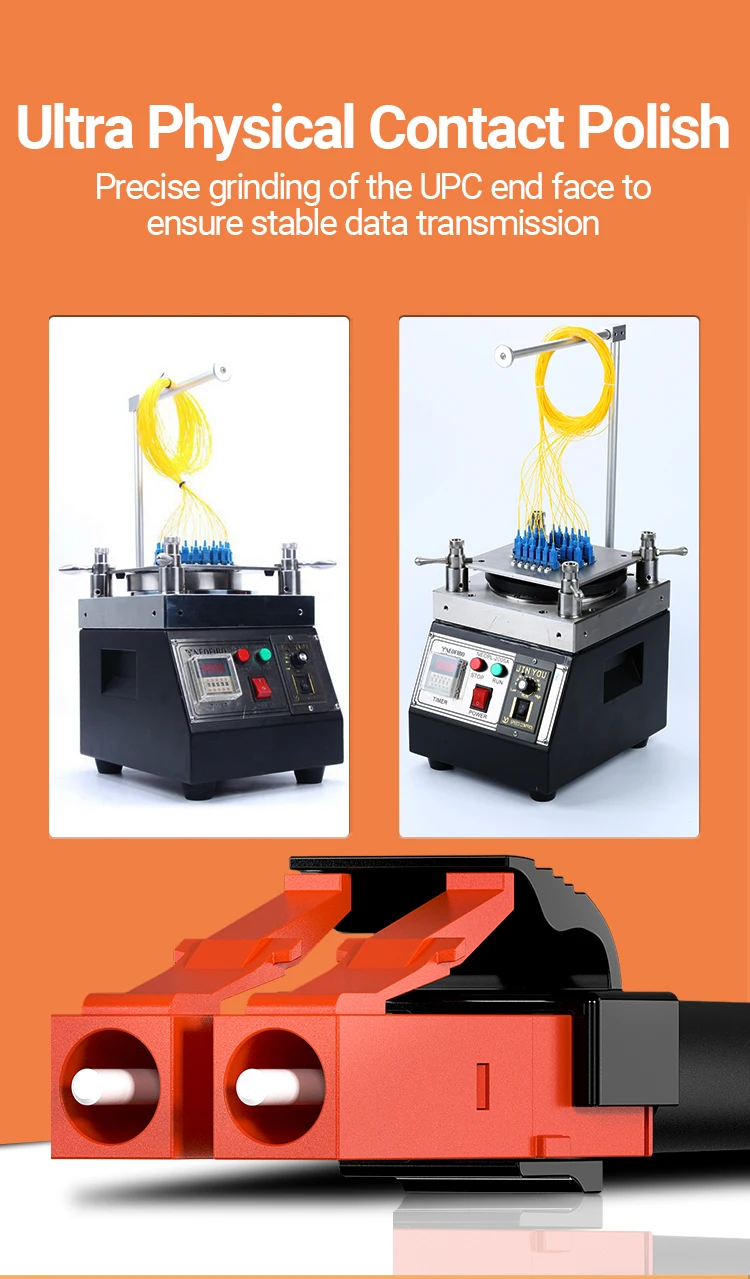

Ultra Physical Contact Polish
Precise grinding of the UPC end face to ensure stable data transmission

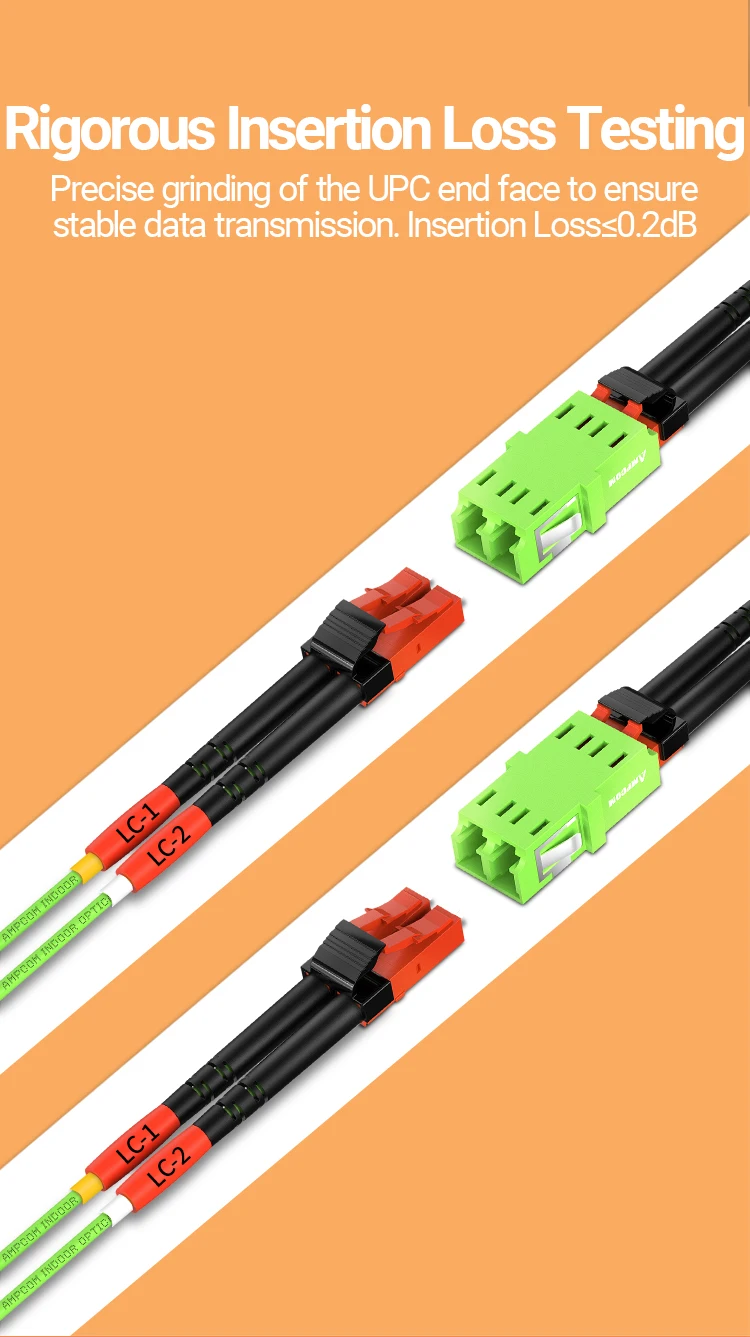

Rigorous Insertion Loss Testing
Precise grinding of the UPC end face to ensure stable data transmission. Insertion Loss≤0.2dB
Connector End-Face Inspected Rigorously
Surface scratches, pits, cracks & contamination are inspected to ensure the reliable connection

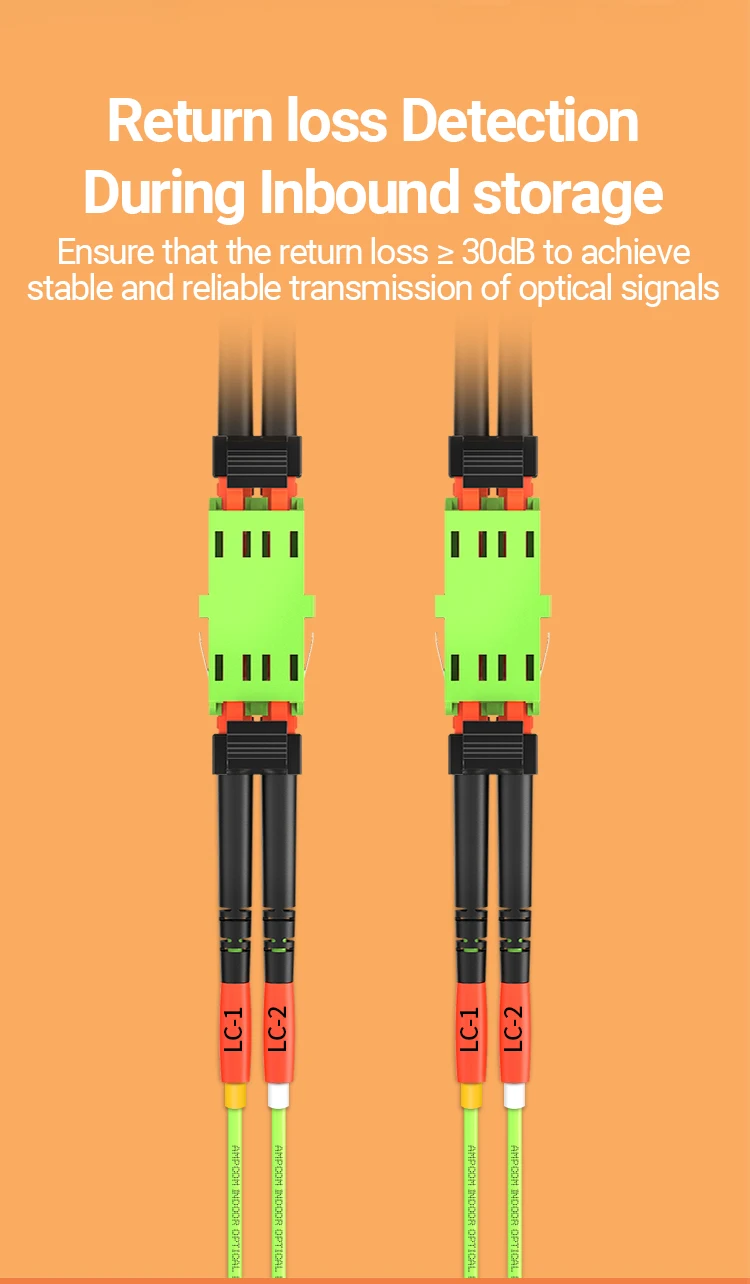

Return loss Detection During Inbound storage
Ensure that the return loss ≥ 30dB to achieve stable and reliable transmission of optical signals

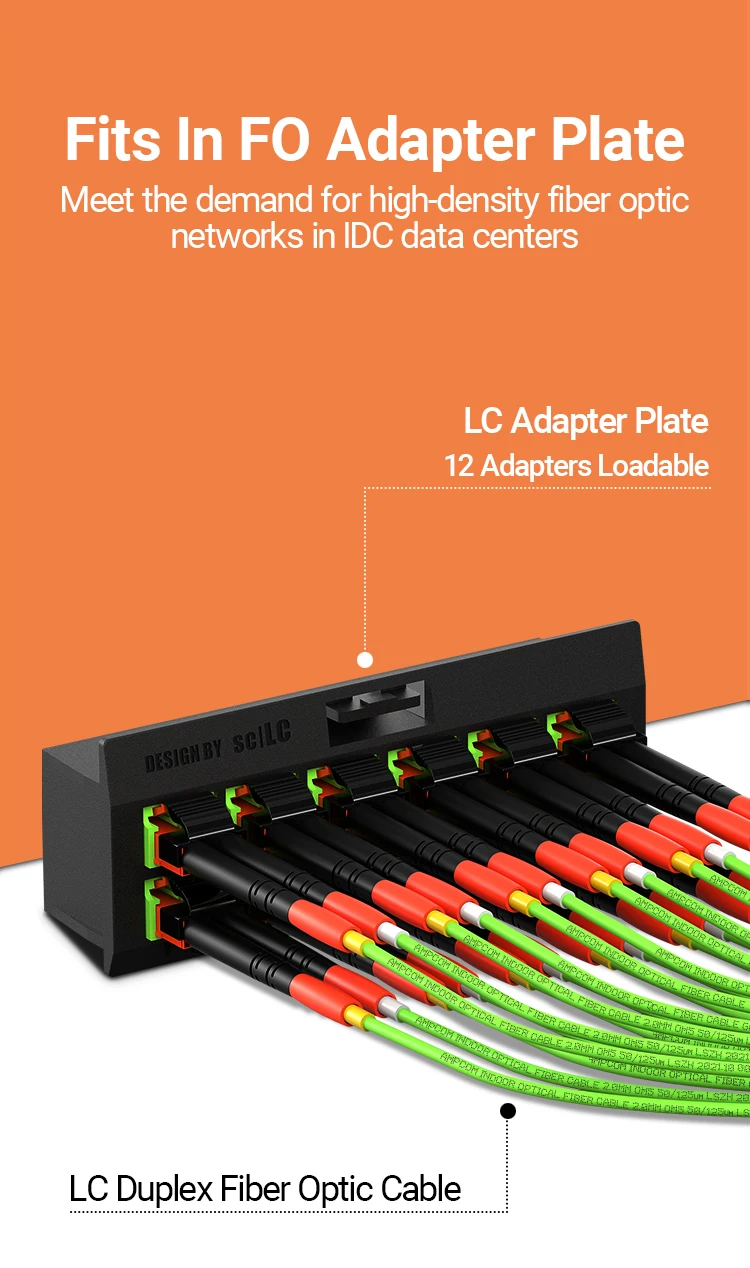

Fits In FO Adapter Plate
Meet the demand for high-density fiber optic networks in IDC data centers

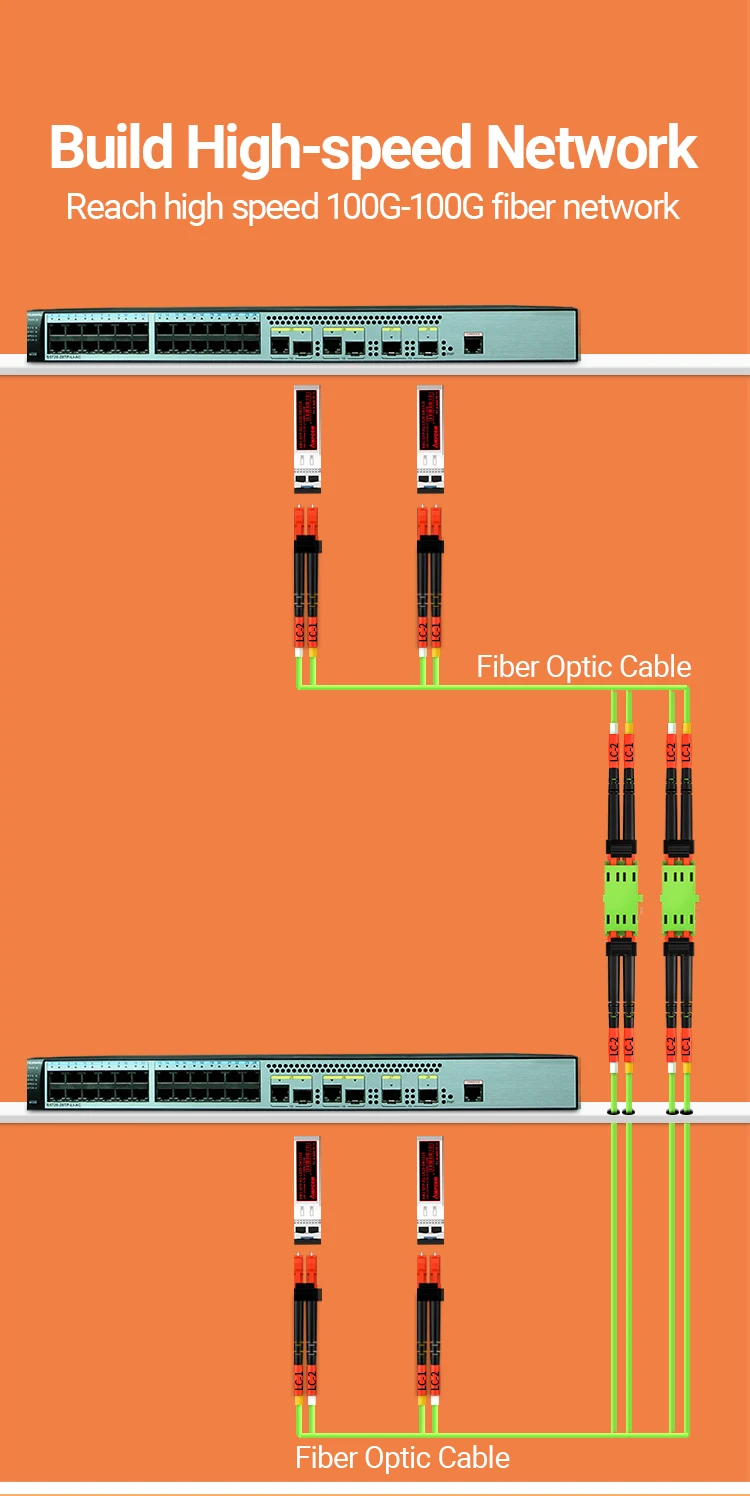

Advanced Fiber Optic Link
End-to-End communications with advanced fiber optic technologies

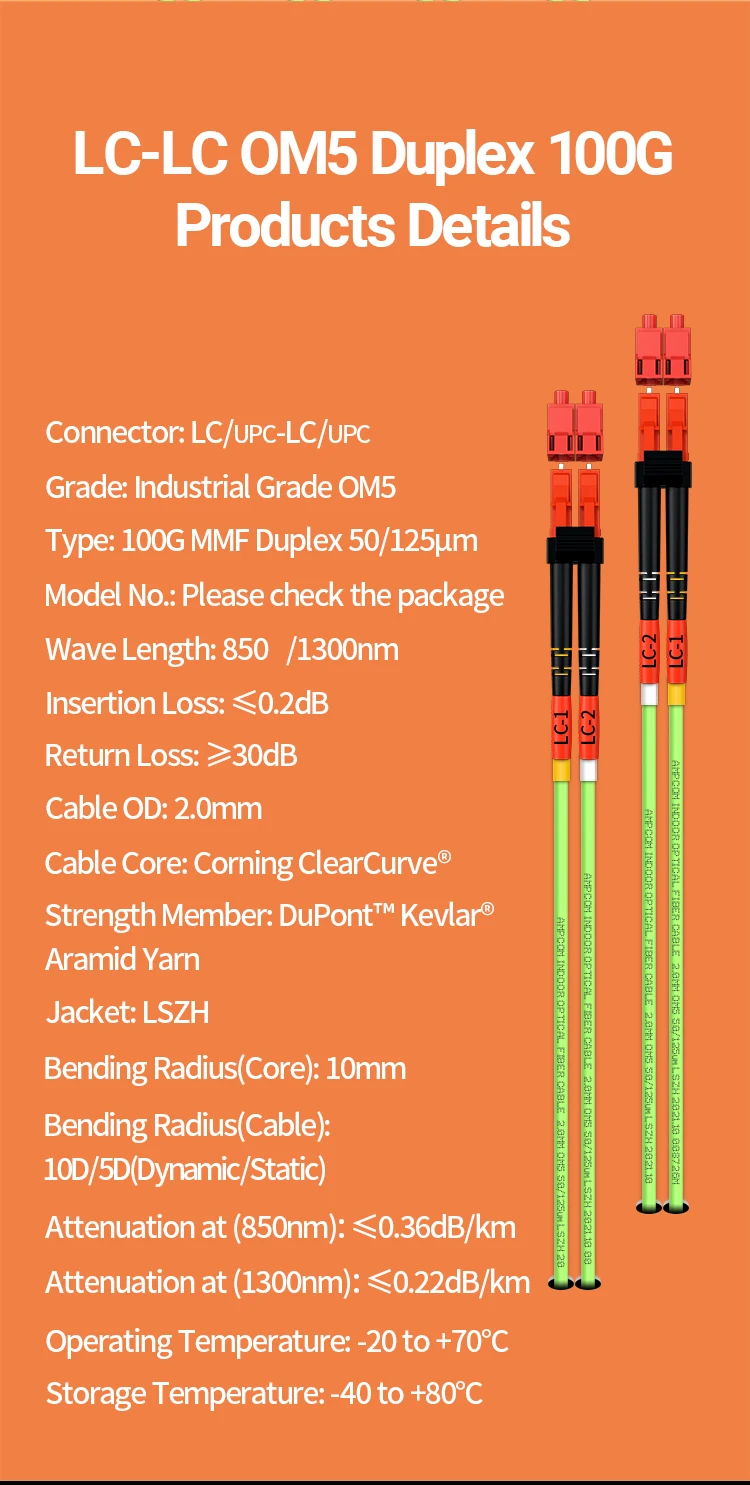

LC-LC OM5 MMF Duplex 100G Products Details
