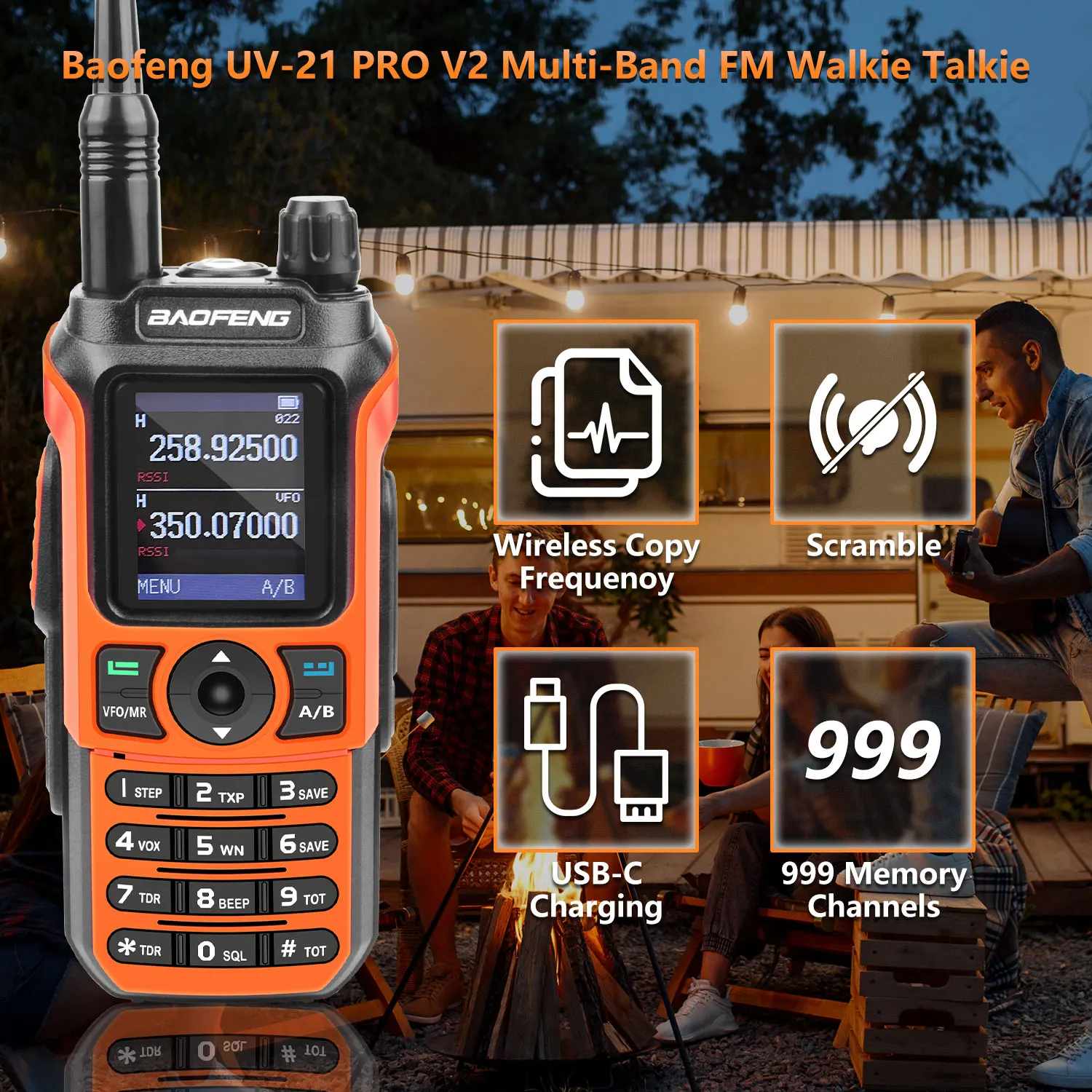

Baofeng UV-21 PRO V2 Walkie Talkie Multi-Band Amateur FM Air Band VOX Scrambler Two Way Radio UV-21Pro V2
Features:

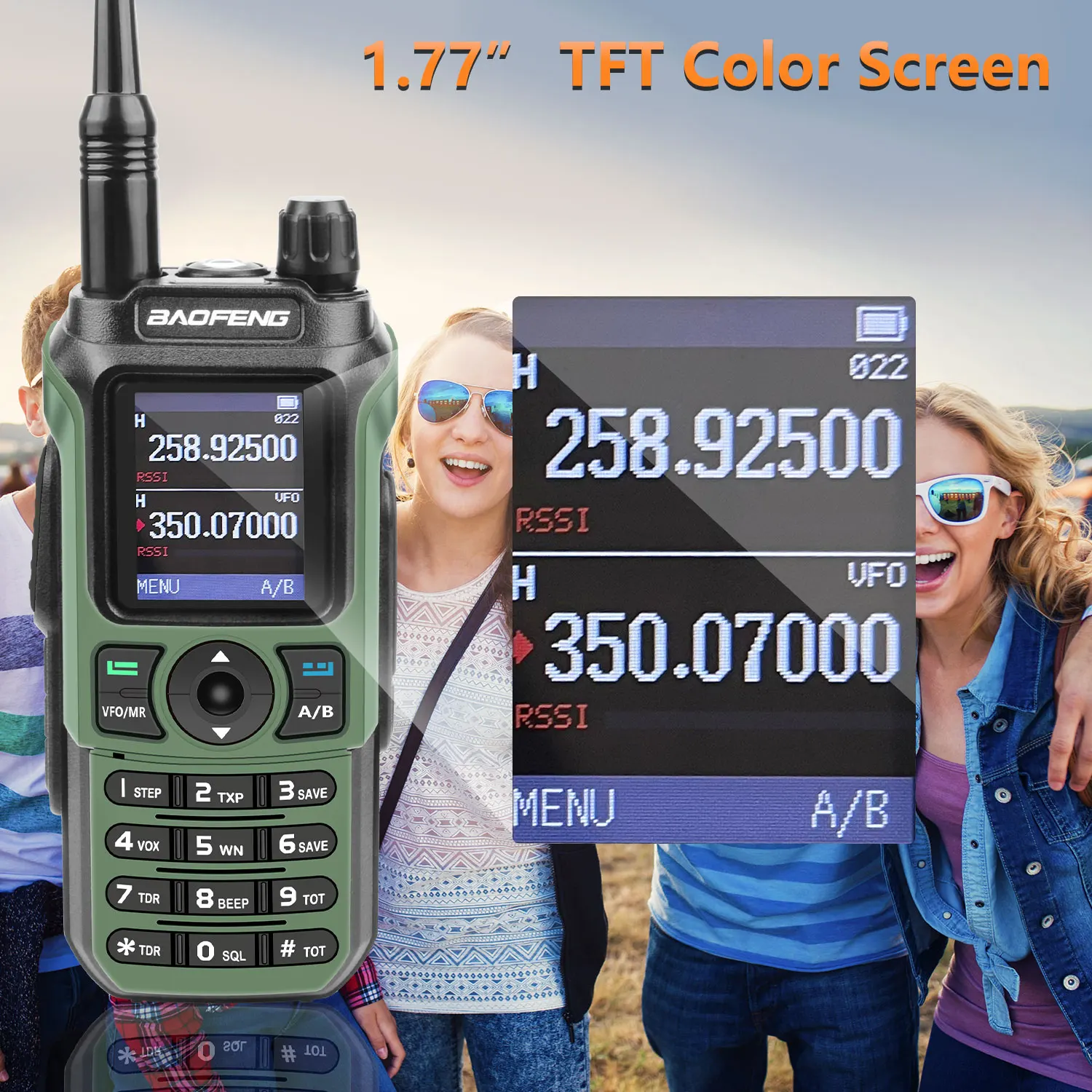

1-1.77”color Display Screen

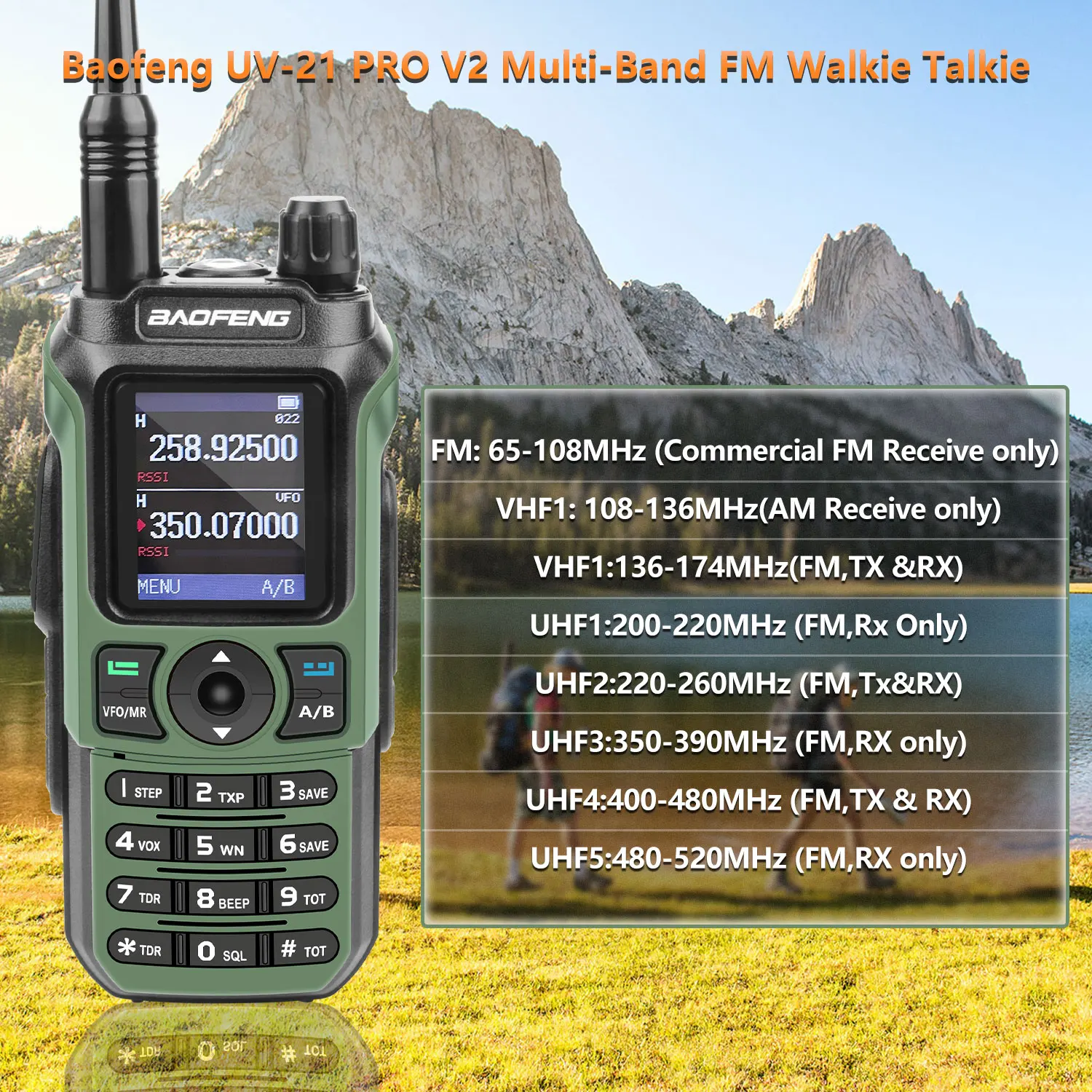

2-Frequency Range:
FM: 65-108MHz (Commercial FM Receive only)
VHF1: 108-136MHz(AM Receive only)
VHF1:136-174MHz(FM,TX &RX)
UHF1:200-220MHz (FM,Rx Only)
UHF2:220-260MHz (FM,Tx&RX)
UHF3:350-390MHz (FM,RX only)
UHF4:400-480MHz (FM,TX & RX)
UHF5:480-520MHz (FM,RX only)

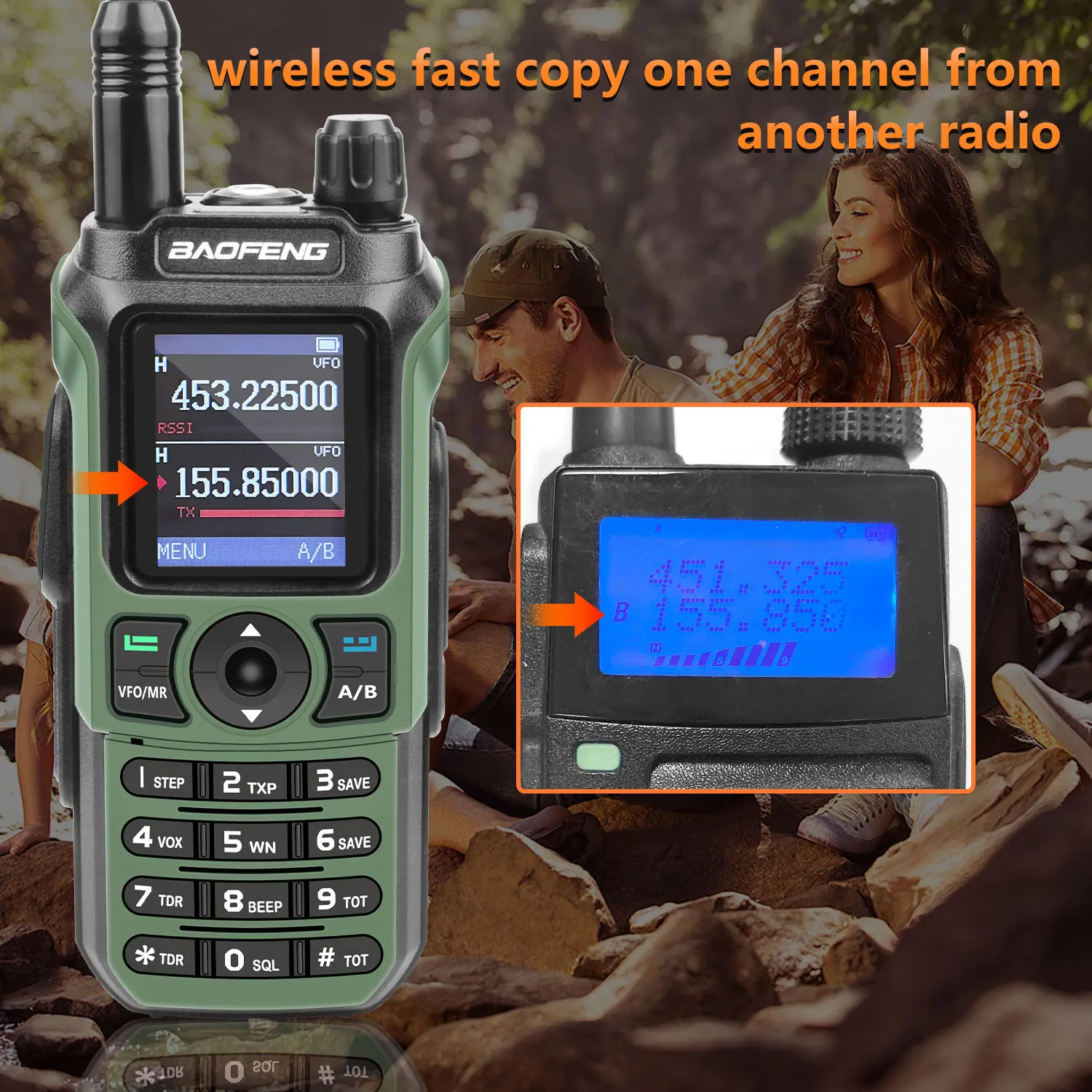

3-Wireless fast copy one channel from other radios

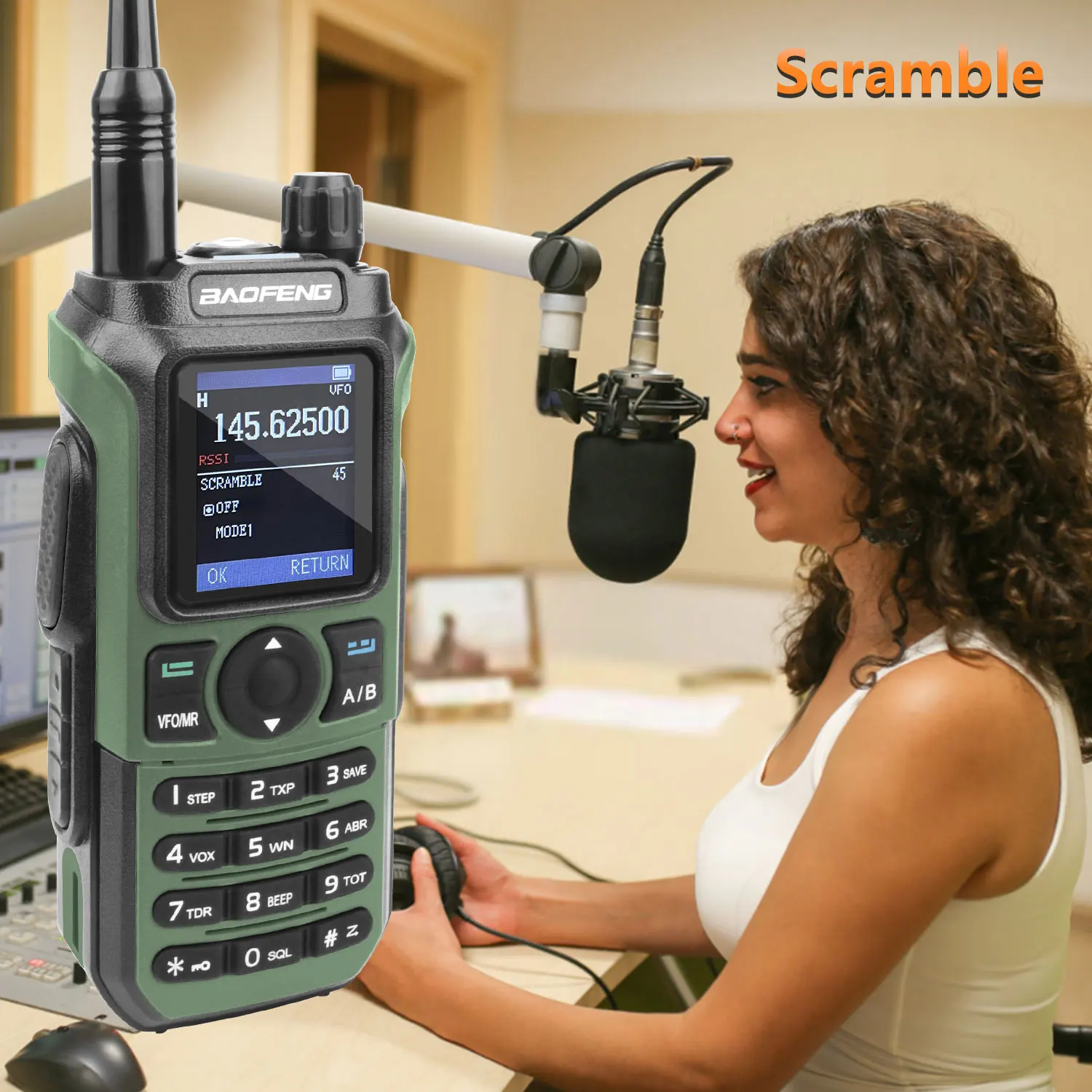

4-Scrambler

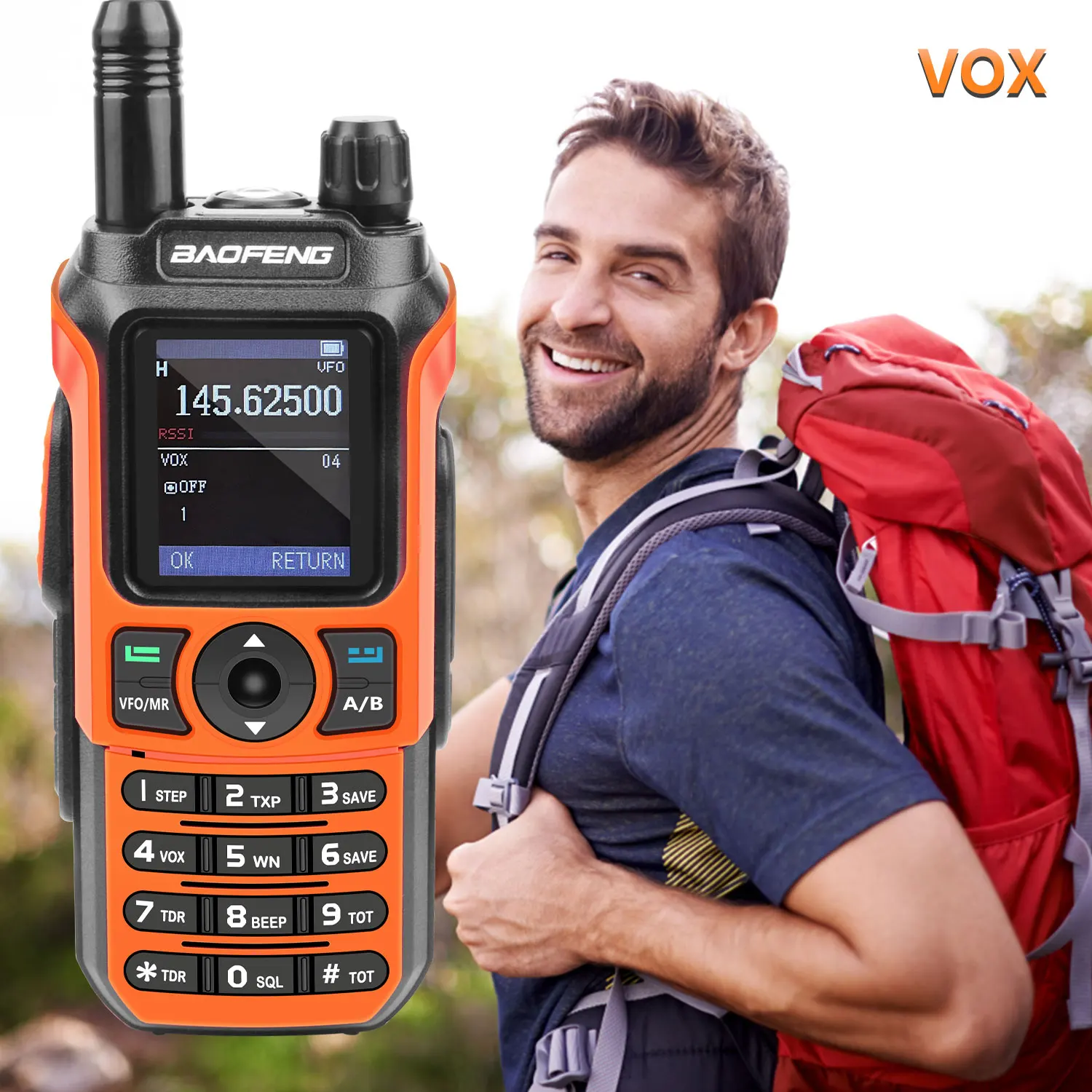

5-VOX

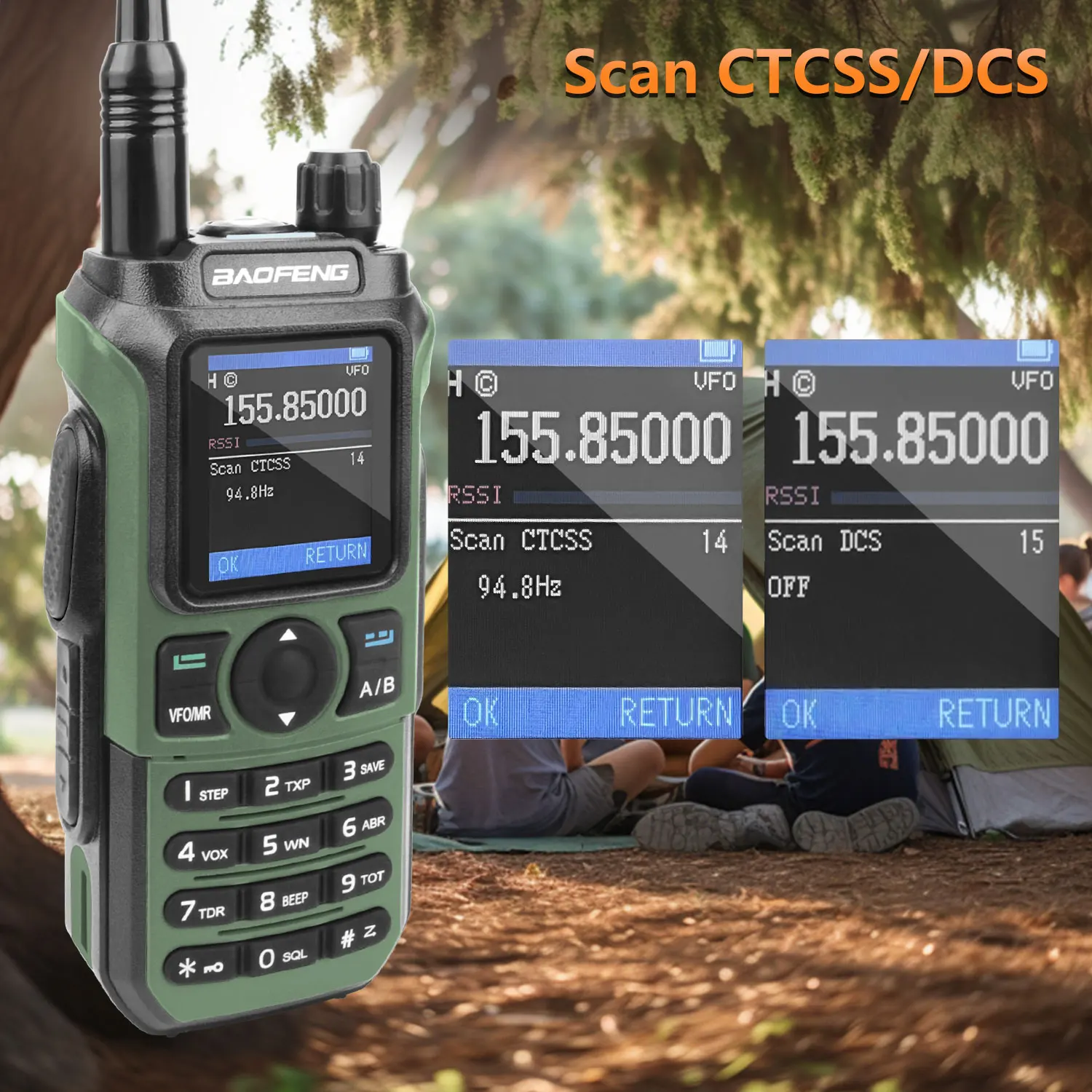

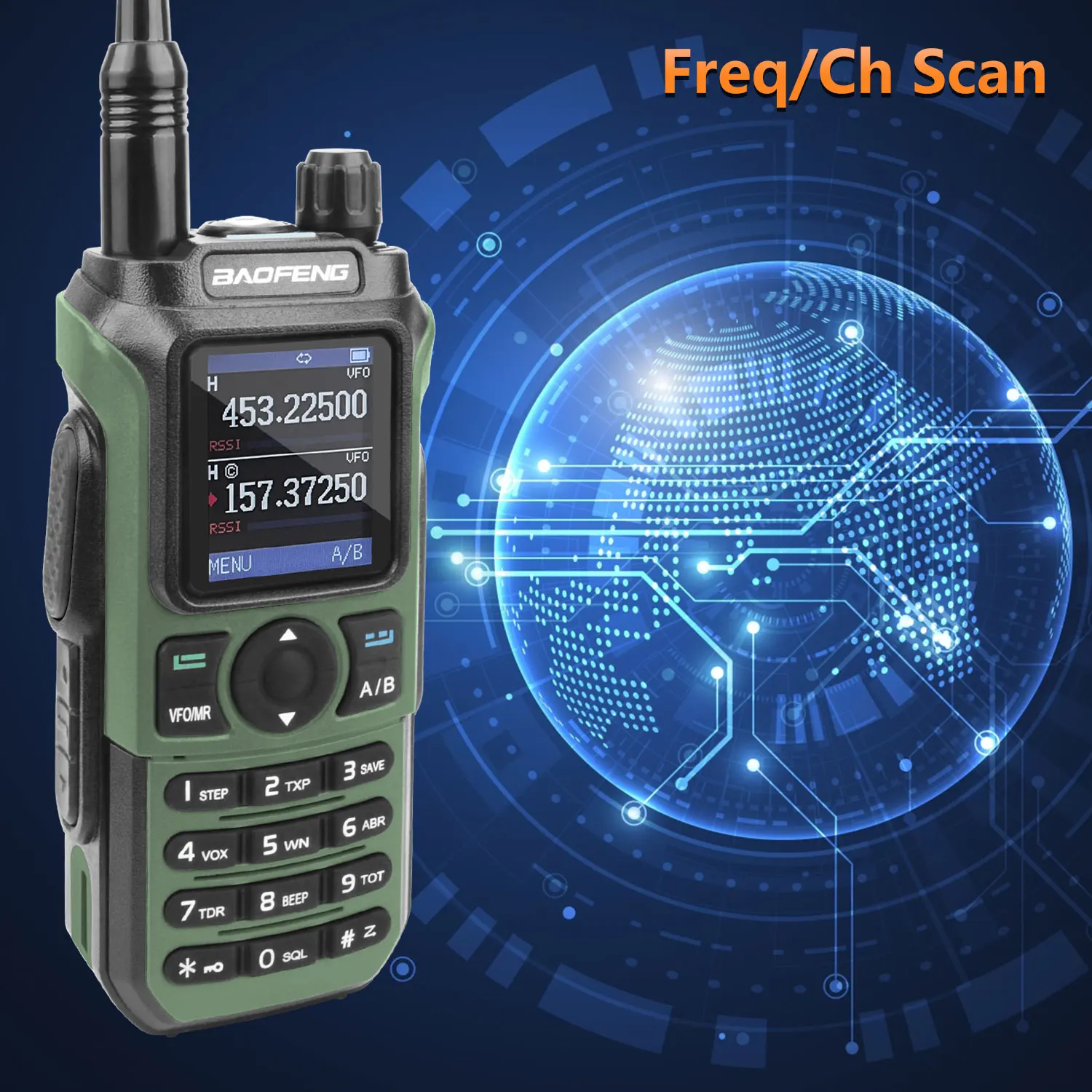

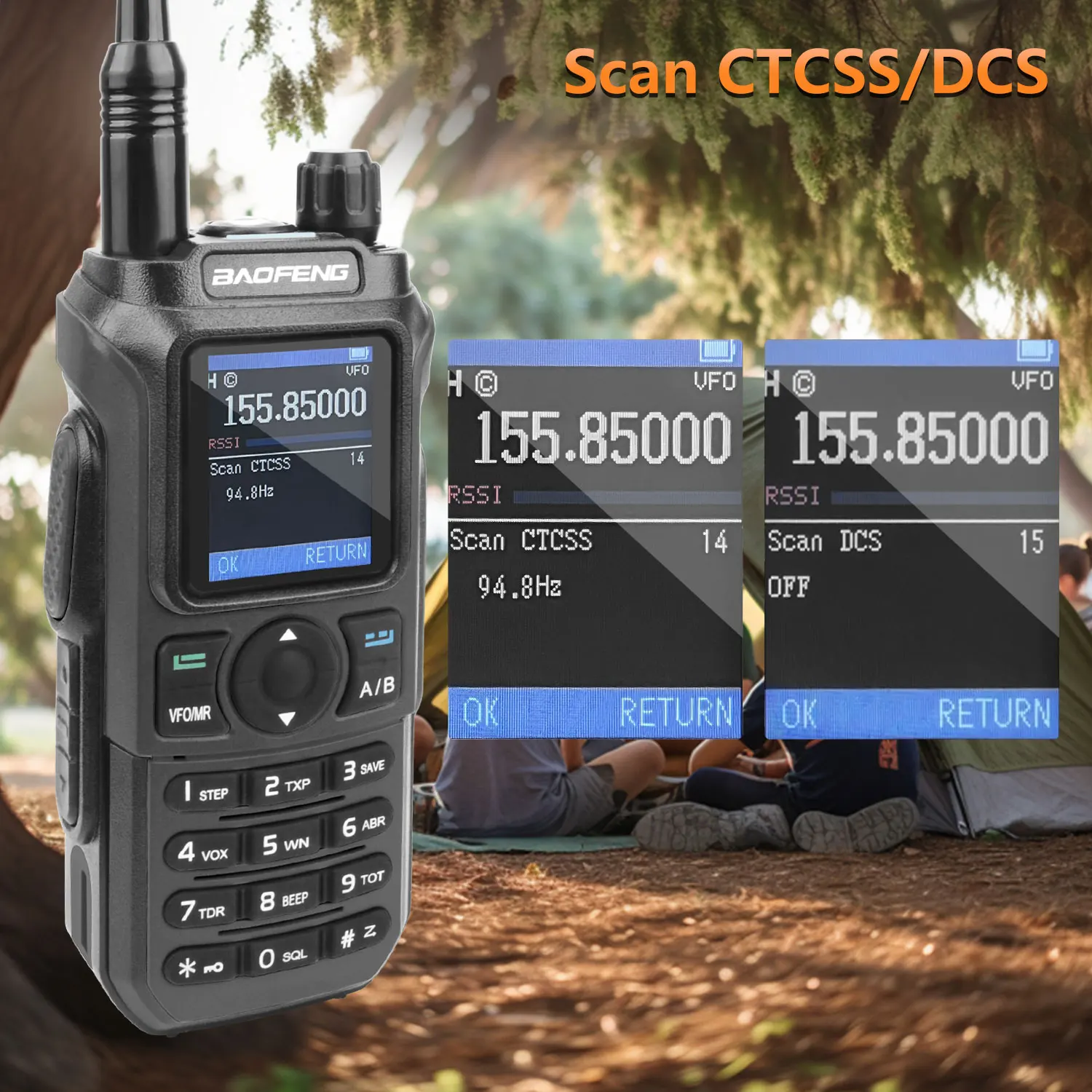

6-Channel Scan, Frequency Scan, and three scan and recovery methods: TO,CO,and SE

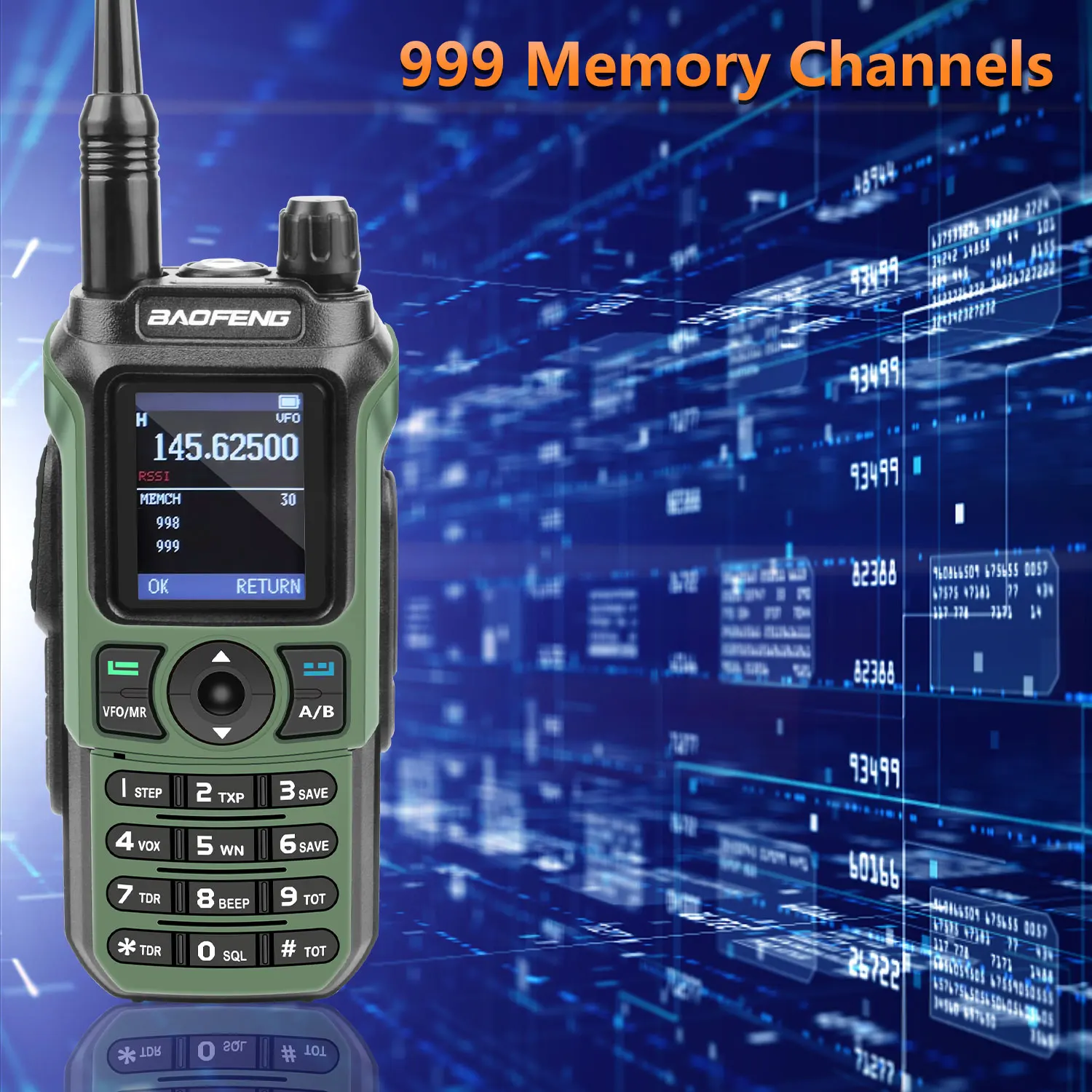

7-999 Memory Channels, 5W output Power

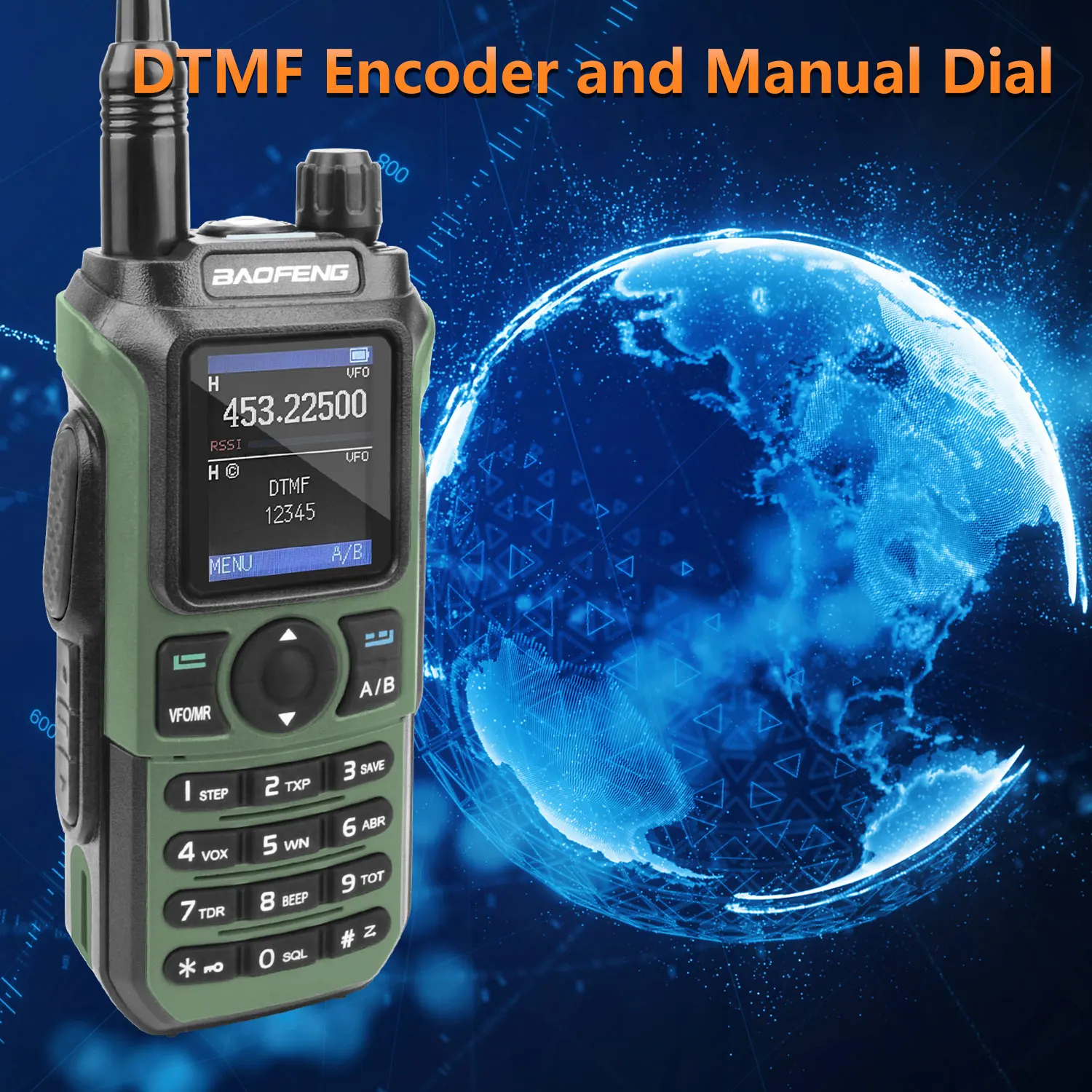

8-DTMF encoder and DTMF Manual Dial
9-Dual Watch/Dual Reception/Dual Band handheld Transceiver

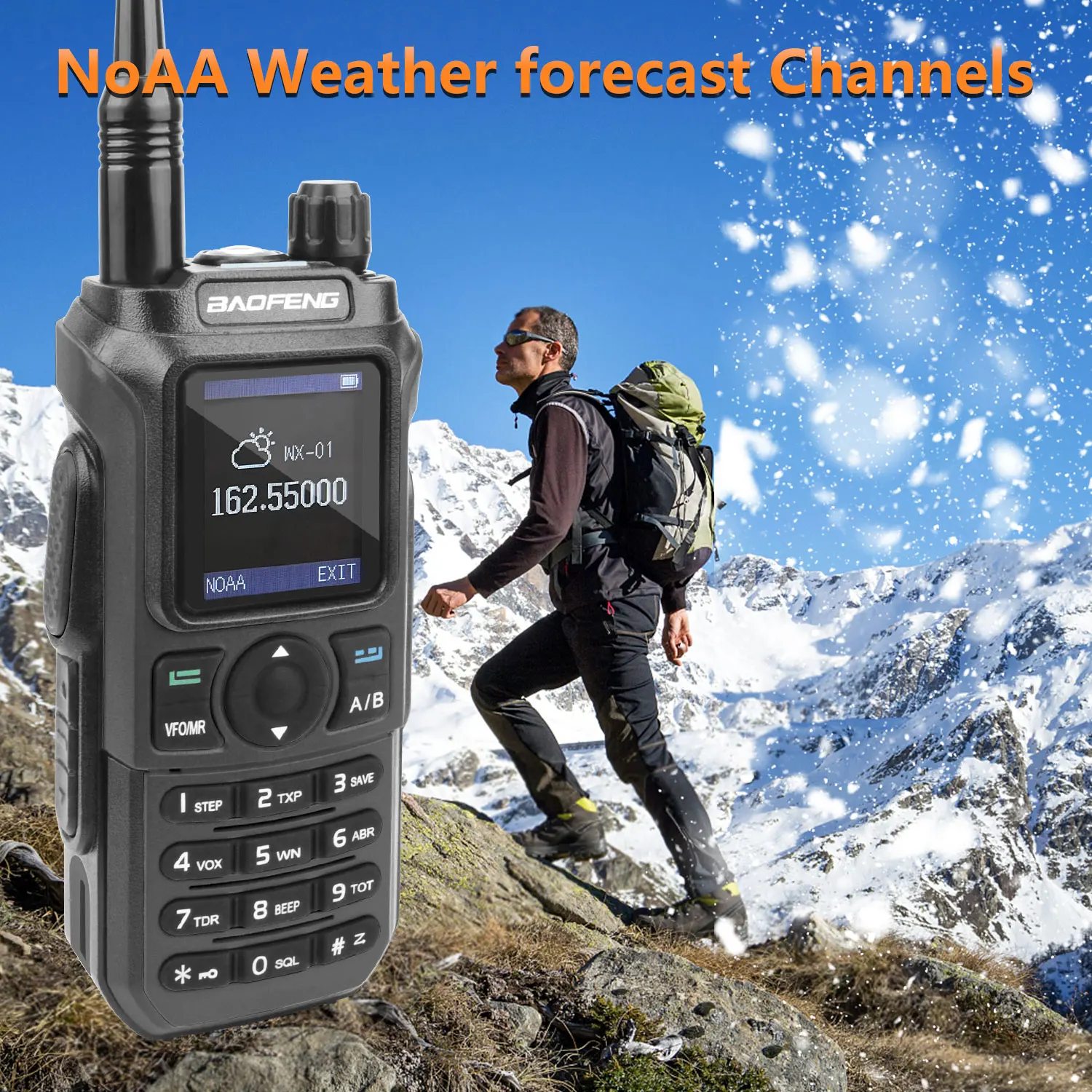

10-U.S.A/CA NOAA Weather Broadcast

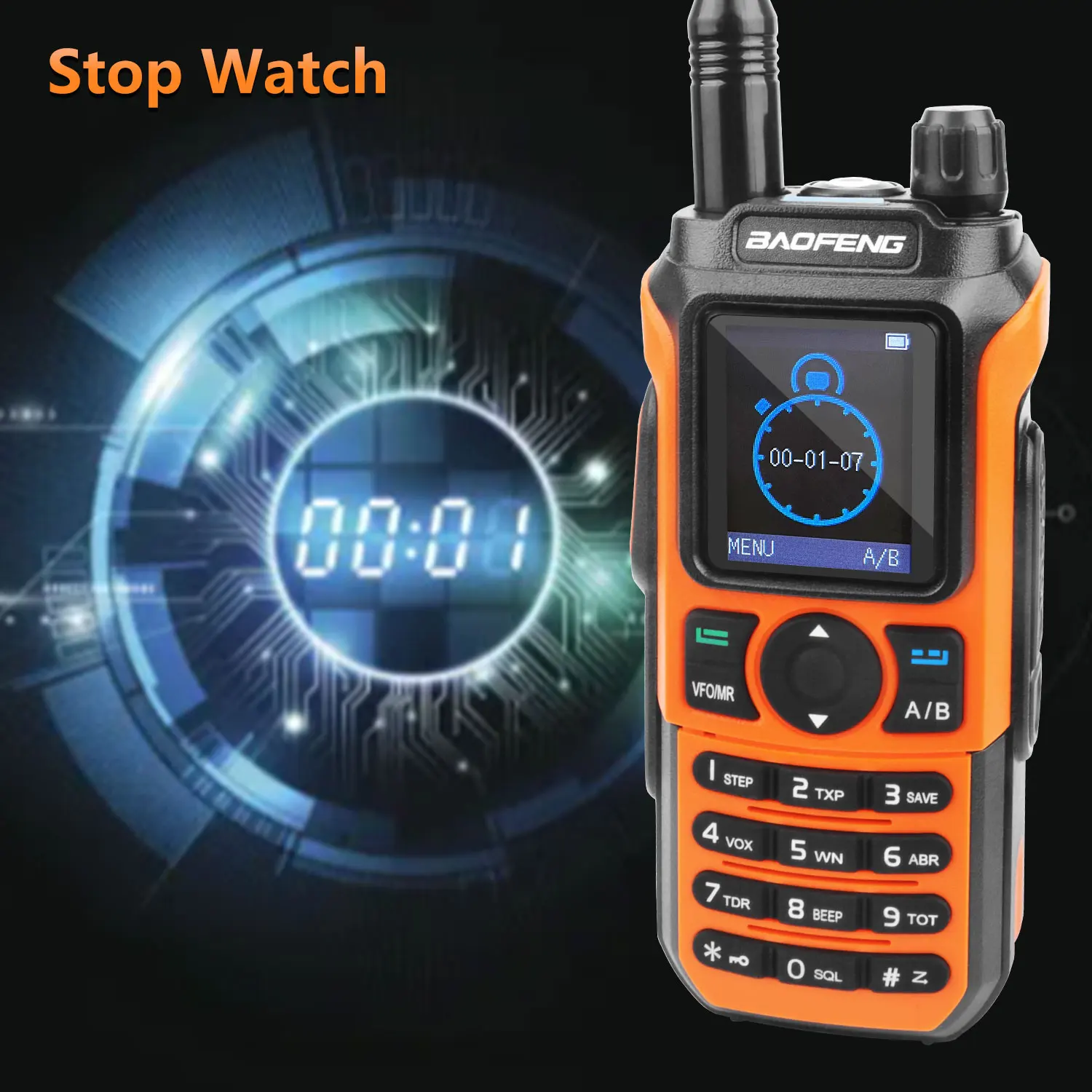

11-Stopwatch Function

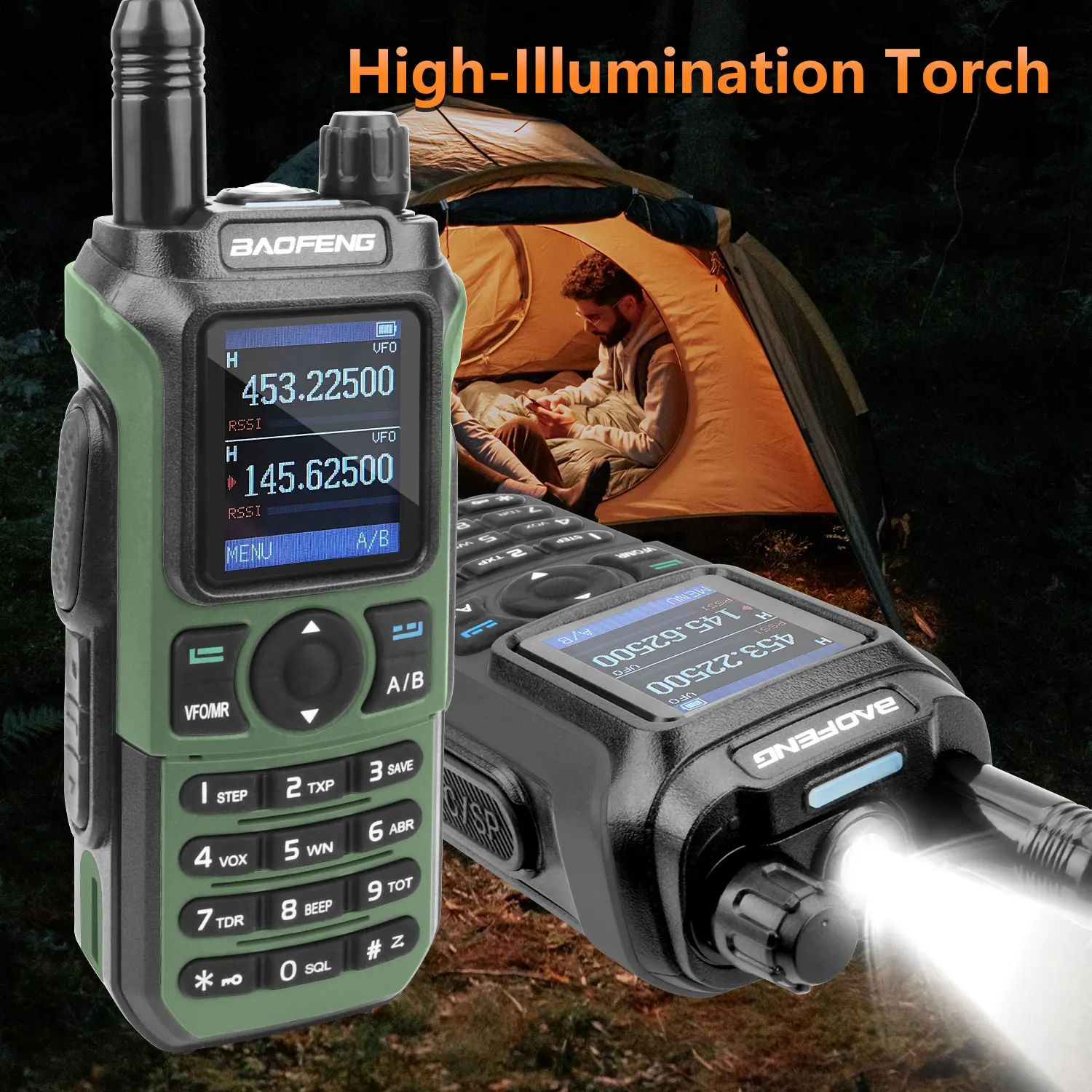

12-High illumination Flashlight
13-1800mAh Rechargeable Li-ion Battery Pack

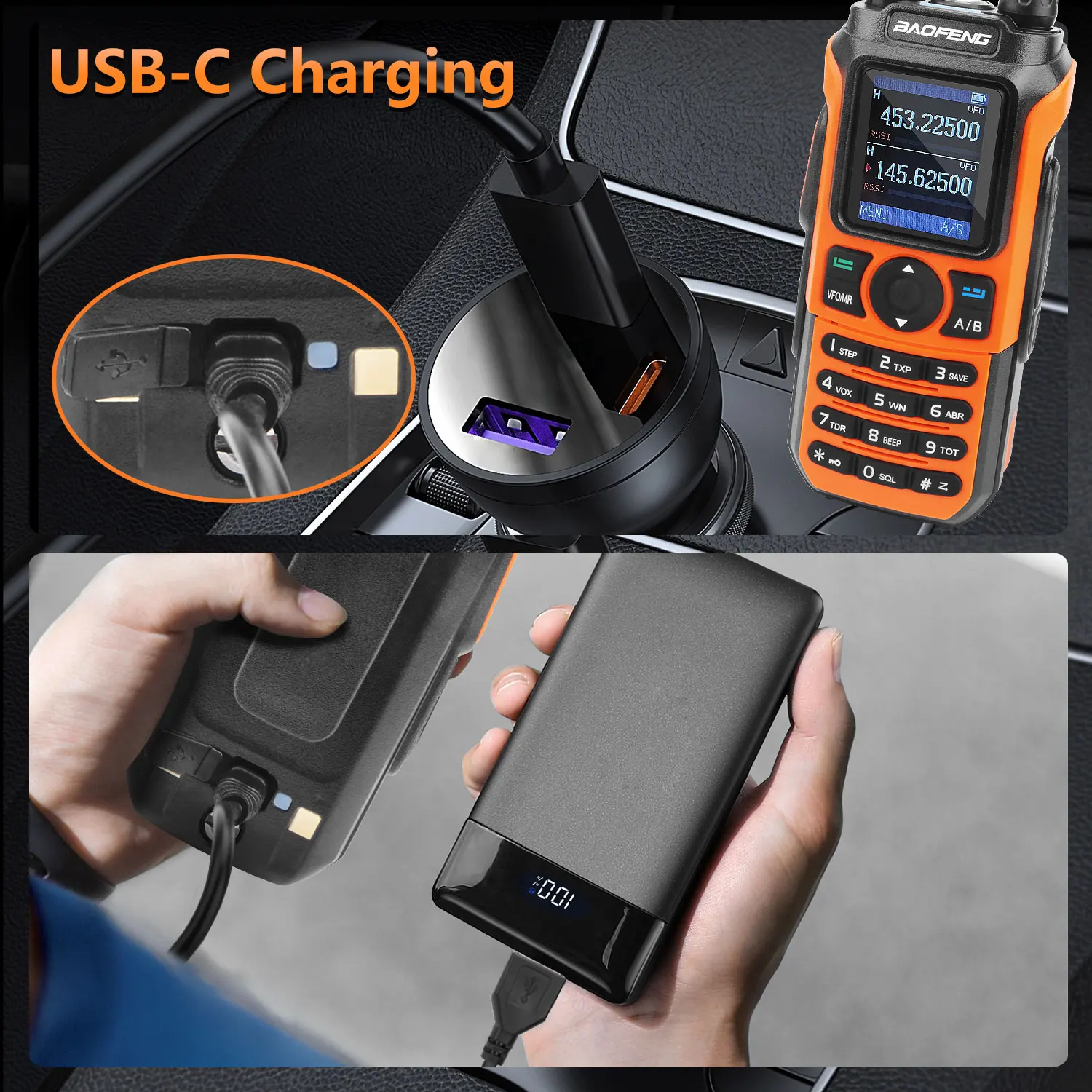

14-USB-C charging

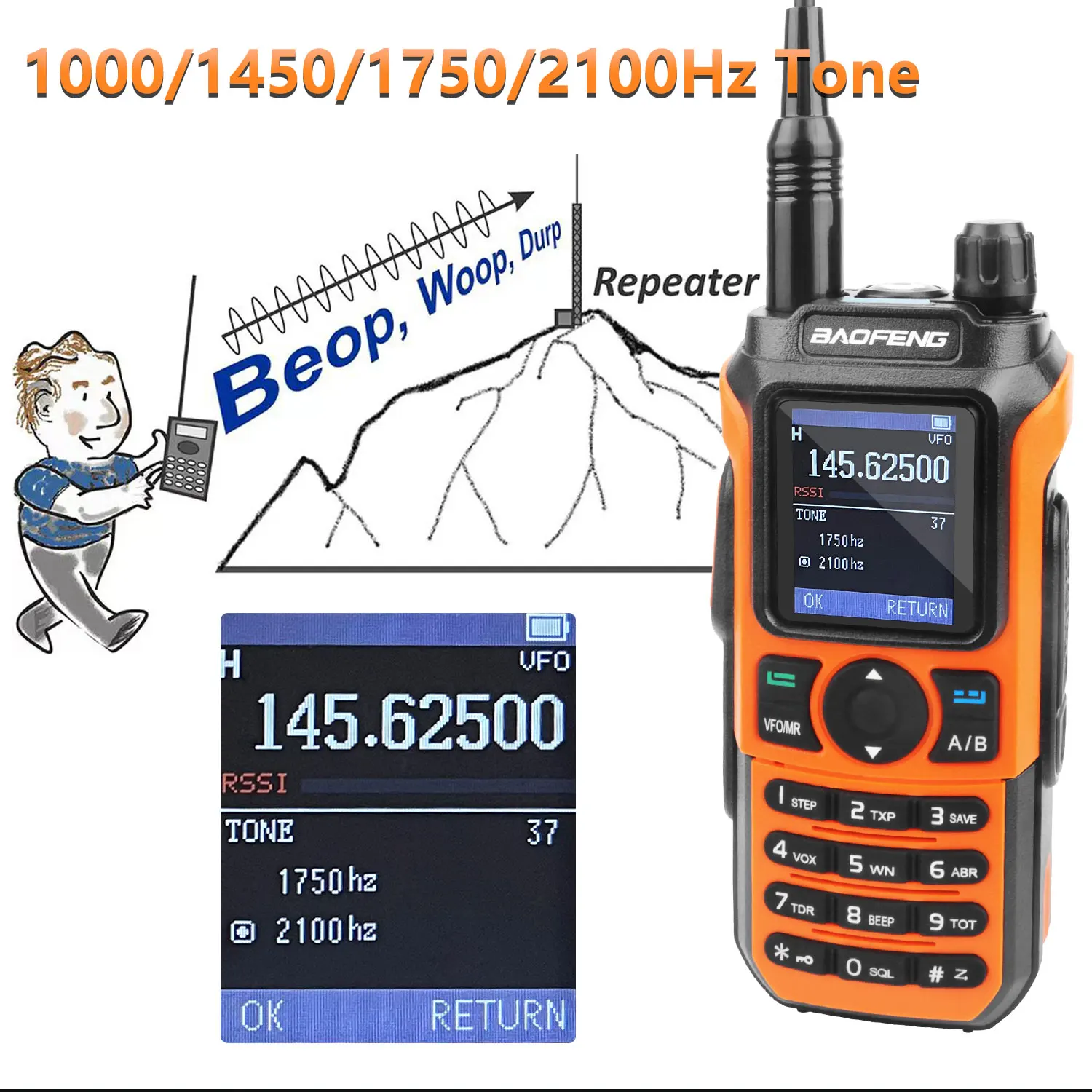

15-1000/1450/1750/2100Hz Tone
16-Roger Beep
Photos:
Technical Specifications:
|
General |
|
|
Channel Capacity |
999 |
|
Channel Spacing |
25.0KHz/12.5KHz |
|
Input Voltage |
7.4VDC |
|
Current Drain: Standby Receive Transmit |
45mA 380mA ≤1.6A(High power), ≤1.2A (Low power) |
|
Operating Temperature |
-10°cto 60°c |
|
Antenna Impedance |
50 ohm |
|
Radio Dimensions |
147mm*53mm*35mm(Antenna Not included) |
|
Radio weight |
260g (with Li-ON battery) |
|
Transmitter |
|
|
Frequency Range (TX) |
136-174MHz & 220-260MHz &400-480MHz |
|
RF Output Power |
5Watt |
|
Modulation |
16K ΦF3E/11K ΦF3E |
|
Spurious Emission |
-16dBm< 1GHz, -16dBm> 1GHz |
|
Frequency Stability |
±2.5ppm |
|
Audio Distortion |
≤5% |
|
FM Hum & Noise |
40dB |
|
Receiver |
|
|
Frequency Range(Rx) |
FM: 65-108MHz (RX) AM: 108-135.99750MHz (RX) VHF1: 136-174MHz (RX) VHF2:200-260MHz VHF3:350-390MHz UHF:400-520MHz |
|
Sensitivity:12dB SINAD |
-120dBM |
|
Adjacent Channel Selectivity |
-60dBm |
|
Intermodulation and rejection |
-70dBm |
|
Rated Audio Power Output |
0.75Wats 16ohm |
|
Rated Audio Distortion |
≤5% |
Note: All Specifications may be modified without prior notice or liability. Thank you!
Package Contains:
1× UV-21 PRO V2 Radio Body
1× 7.4V 1800mah Li-ion Battery Pack
1× SMA-Female Dual Band Antenna
1× Desktop Charger with Correct Adapter for your Country
1× USB-C Charging Cable
1× Belt Clip
1× Handstrap
1× ENG Manual
