VHF/UHF Six Bands
136-174MHz &220-260MHz & 400-480MHz &480-520MHz & FM: 65-108MHz AM: 108-136MHz
1.77 inch LCD Frequency Copy Two Way radio Ham Radio

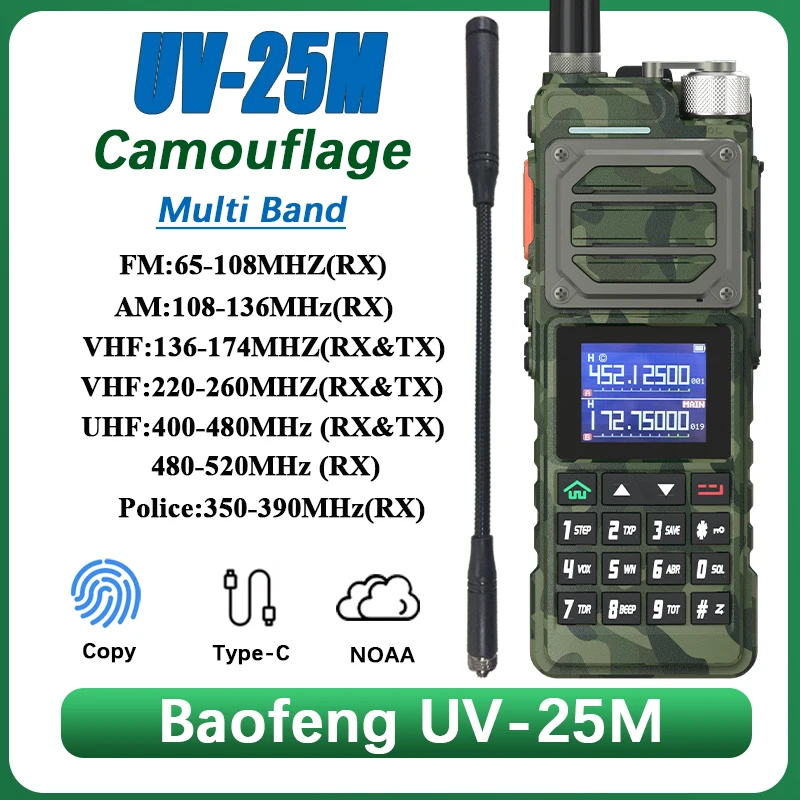

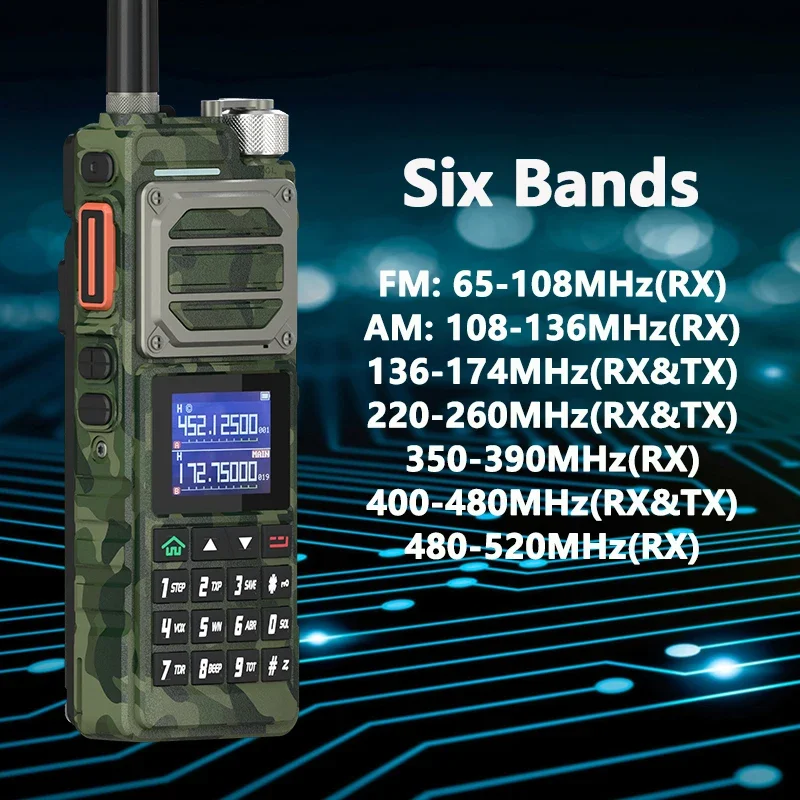

【Six-Band Frequency】
AM 108-136MHz(RX)
FM 65-108MHz(RX)
350-390MHz(RX)
136-174MHz(RX&TX)
220-260MHz(RX&TX)
400-480MHz(RX&TX)
480-520MHz(RX)
【Wireless Copy Frequency】
Quickly copy frequency in a short period of time,making it more convenient and efficient.
【Type-C Fast Charger】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-25 is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.
【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example,adding/deleting a memory channel,adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc

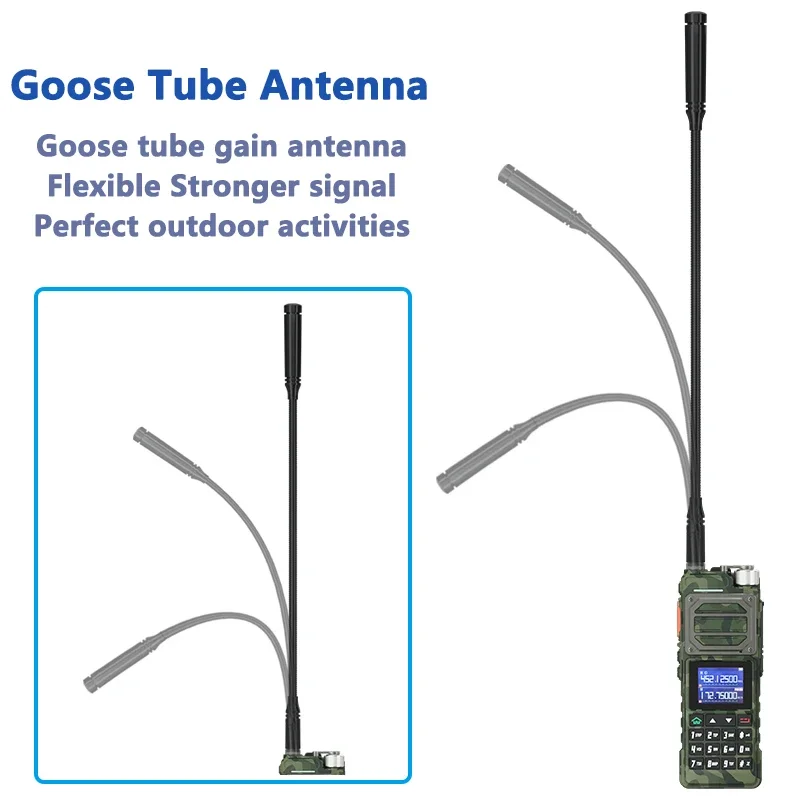

Goose tube gain antenna
FlexibleStronger signal
Perfect outdoor activities
*Frequency range: 108-136MHz(RX)65-108MHz(RX)350-390MHz(RX)136-174MHz(RX&TX)
220-260MHz(RX&TX)400-480MHz(RX&TX)480-520MHz(RX)
*One touch search frequency, easy pairing and grouping (copying channel configuration parameters)
Frequency step,selectable between 2.5K| 5.0K| 6.25K|10.0K|12.5K|20.0K |25.0K|50.0K
Frequency hopping and scramble functions to keep your call privacy confidential
*1.77" TFT large screen, full keyboard, fully open menu operation
*Channel scan,frequency scan, and three scan and recovery methods:TO,CO,and SE
*Broadcast FM radio receiver 65-108 MHz
*Up to 999 memory channels.
*Dual watch /Dual reception/ Dual-band handheld transceiver
*Power-on password management function
*High Capacity Lithium-Ion battery.
*DTMF encoder and DTMF manual dial
*Stopwatch function
*VOX (voice activated transmit).
*Display illumination programmable via keypad.
*Alarm function.
*Function beep on the keyboard.
*High, middle or low power selectable.
*Battery save function.
*Programmable repeater offset.
*Busy channel lock out.
*Transmission time-out timer.
*Ten (10) levels of Squelch adjustment.
*Two (2) pins for Kenwood accessory port
*LED flashlight.
*End of transmission tone, aka"Roger Beep"
*Support NOAA weather reception function in the United States and Canada
Channel Capacity:999
Channel Spacing:25.0 KHz/12.5 KHz
Input Voltage:7.4 VDC
Battery Life: 5% TX, 5% RX, 90% Standby
Li-ON: 10 hours @ 5 watts
Current Drain: Stand-by:45 mA
Receive: 200 mA
Transmit:1.6 A @ High Power,1 A @ Low Power
Operating temperature:-10˚C to 60˚C
Antenna Impedance:50Ω

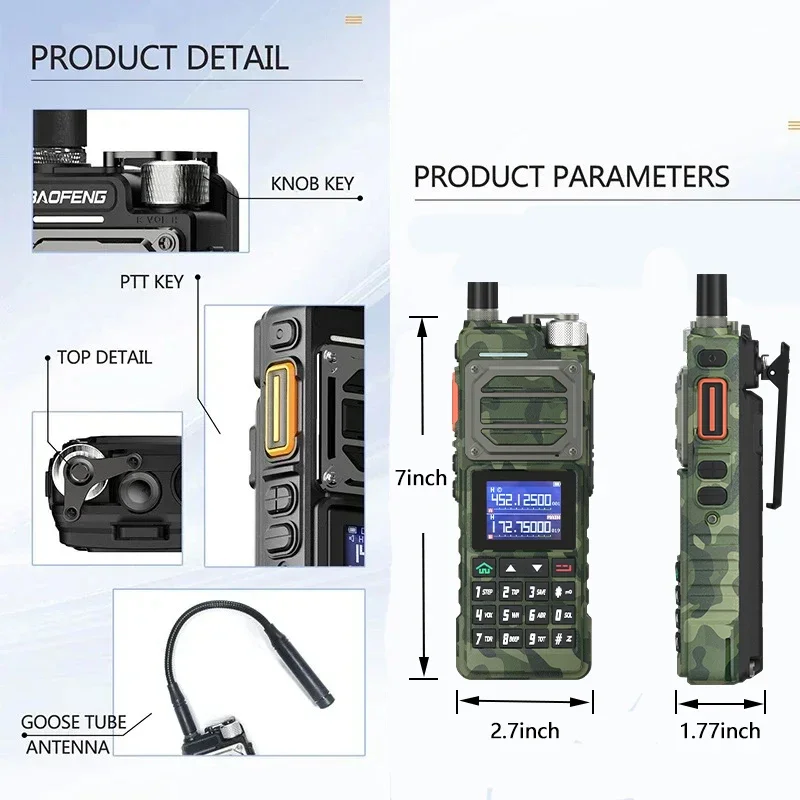

Radio Dimensions:170mm X 70mm X 45mm (not including antenna)
TRANSMITTER
Frequency Range (TX):136 – 174 MHz/220-260MHz/400 – 480 MHz FM: 65-108MHz (RX) AM: 108-136MHz(RX) Police:350-390MHz(RX)
RF Output Power:10 Watts Max
Modulation:16K0F3E/11K0F3E
Spurious and Harmonics:-36dBm<1GHz -30dBm>1GHz
Frequency Stability:±2.5 ppm
Audio Distortion:≤5%
FM Hum & Noise:40 dB
RECEIVER
Frequency Range:136 – 174 MHz/220-260MHz/400 – 480 MHz
Sensitivity: 12 dB Sinad-120 dBm
Adjacent Channel Selectivity:-60 dBm
Intermodulation and Rejection:-70 dBm
Rated Audio Power Output :0.75 Watts @ 16 Ohms
Rated Audio Distortion:≤5%

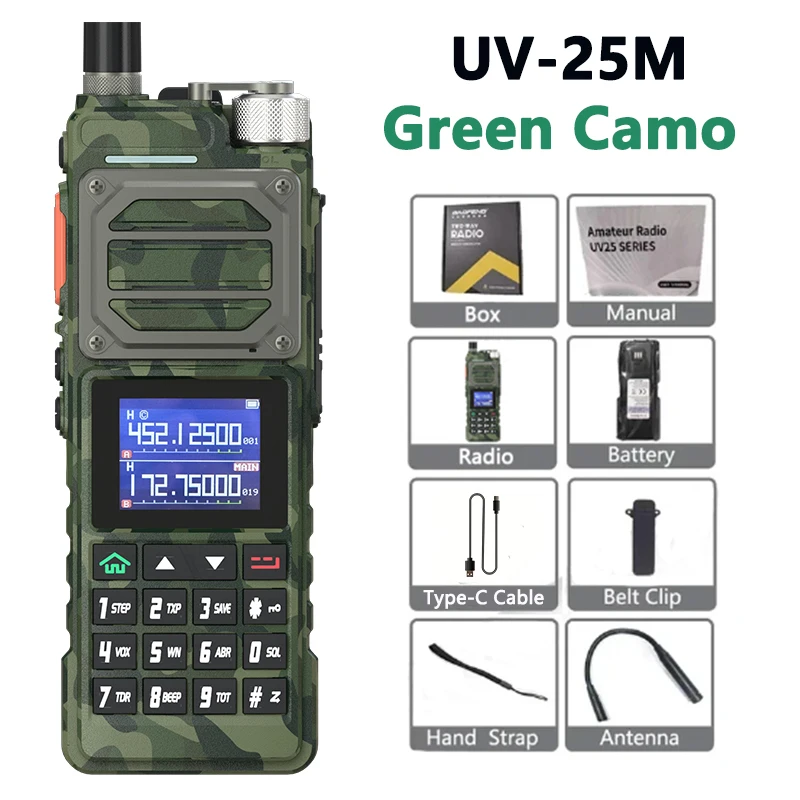

Package include:
1x Radio
1x Goose Tube Antenna
1x Li-ion Battery
1x Belt Clip
1x Type-C Charging Cable
1x User Manual
1x Hand Strap
Note:We will send you the item of your choice. (Please check your selected carefully before placing your order)
