Model

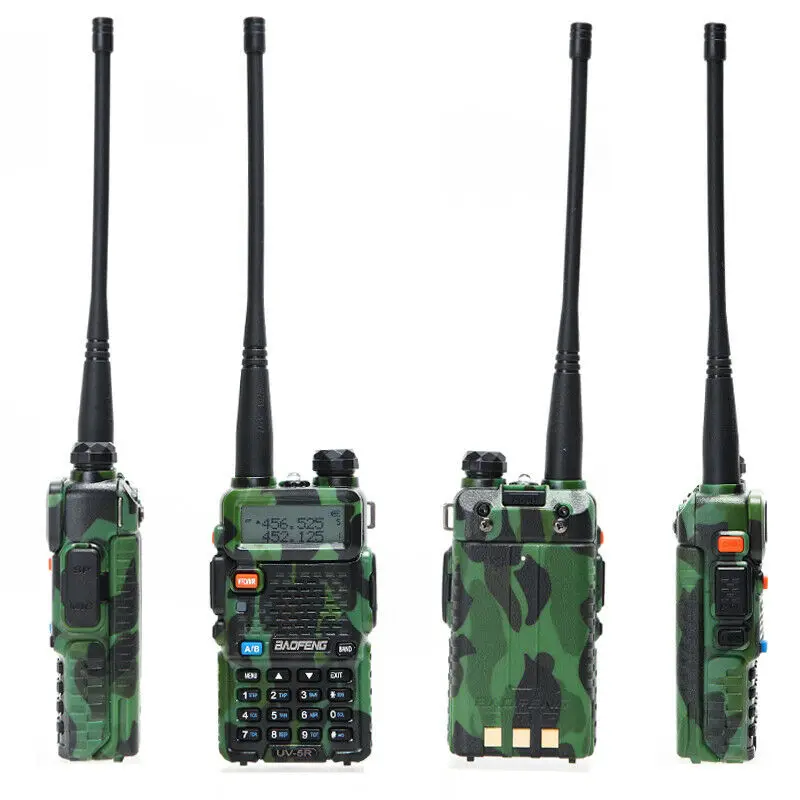

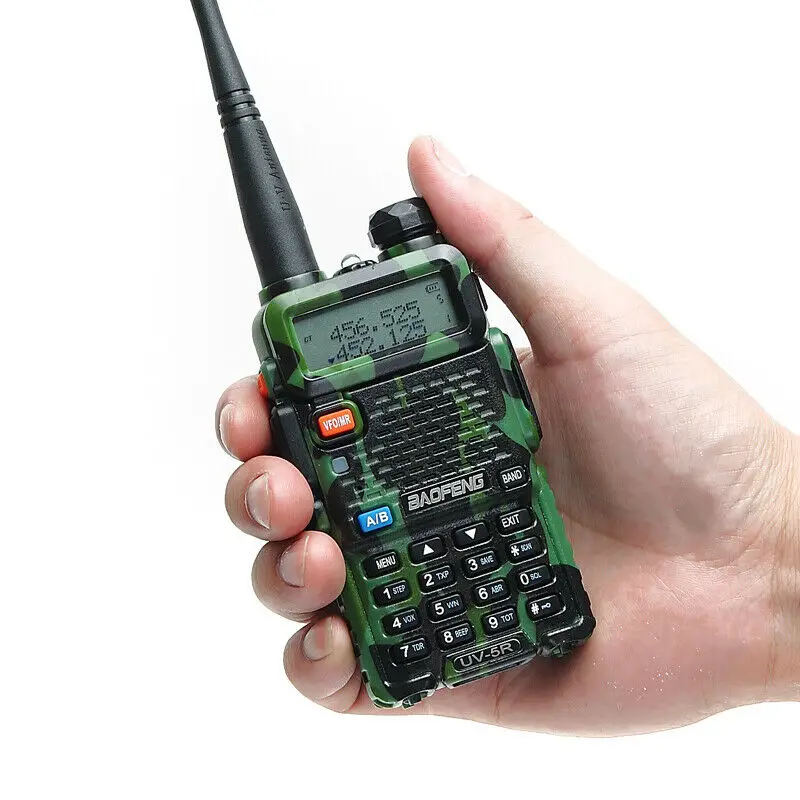

Pofung UV-5R,baofeng UV 5R

Color

Black

Dual band / dual display / dual standby

A/B band independent operation( UV UU VU VV )

128 groups channels storage

Shortcut menu operation mode

VFO & Memory channels scan

Emergency Alarm

Time-out Timer (TOT)

0~9 grades VOX selectable

PTT & ANI ID

FM radio and 25 stations storage

Voice companding

50 CTCSS/105 DCS

High/Low TX power selectable

DTMF function

Wide/Narrow Band(25kHz/12.5kHz)

Yes

VOX function

Yes

Busy channel lock-out(BCLO)

Yes

Busy lockout function

Yes

Frequency step

Yes

Scanning function

Yes

Monitor function

Yes

Time-out Timer (TOT) function

Yes

LCD display

Yes

Dual display

Yes

Battery voltage display function

Yes

Channel name display and editing functions

Yes

Signal strength indicator

Yes

Keypad lock function

Yes

Built-in Led torch

Yes

FM radio

Yes

Wire clone function

Yes

Emergency alarm function

Yes

Low battery alarm

Yes

Power saving function

Yes

High/Low TX power selectable

Yes

Tone end of transmission

Yes

Chinese and English voice prompt

Yes

PC software programmable

Yes

Basic Descriptions

Rated Voltage

7.4V DC10%

Output power

<=5W

Channel

128CH

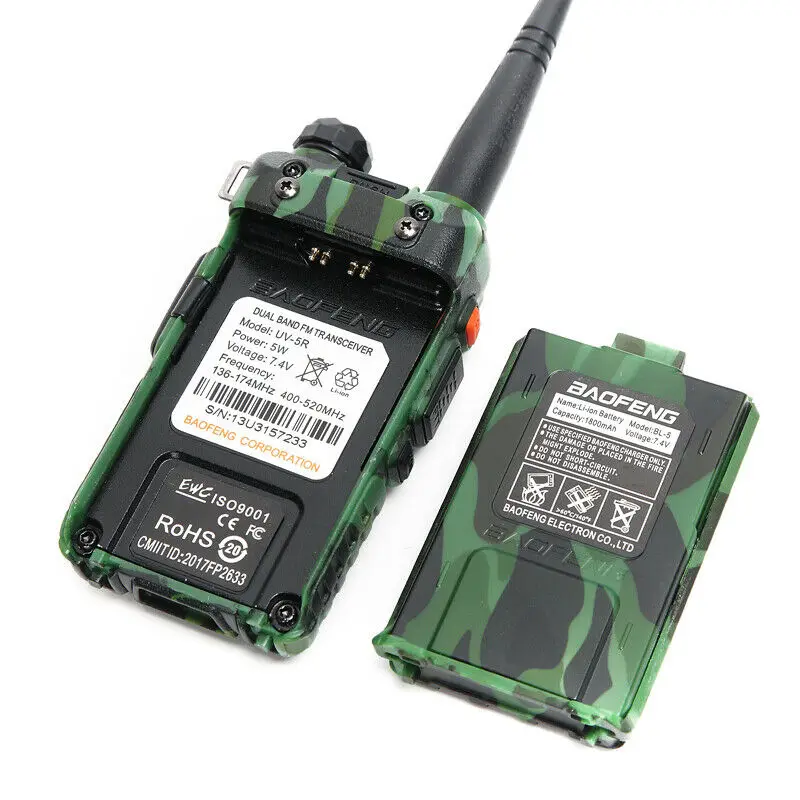

Battery type

Li-ion battery

Battery capacity

1800mAh

Working temperature

-20+50C

Antenna Impedance

50ohm

Weight

190g (Not Antenna)

Dimension ( LxWxH )

110x58x32mm (Not Antenna )

Specification

Frequency range

UHF:400-520MHz + VHF:136-174MHz

Frequency stability

2.5ppm

Carrier wave tolerance

5ppm

Modulation

16k F3E / 11k F3E

Max frequency deviation

< 5kHz(Wide) < 2.5kHz(Narrow)

Modulation character

6 dB per fold frequency patch

Emission current

< 1.6A(5W)

CTCSS / DCS

0.50.1kHz(Wide) 0.30.1kHz(Narrow)

Sensitivity

< 0.16 µV(12dB SINAD)

Silent sensitivity

< 0.2 µV

Intermediation Distortion

<10%

Inter modulation

60dB

Audio output

1000mW

Adjacent channel selectivity( wide/narrow)

<-65dB(Wide) <-60dB(Narrow)
