Description

Baofeng UV-5RH Pro GPS
Six-Band / AM FM Falling Alarm

NOAA DTMF Type-C Charging Two Way Radio

Note:UV-5RH PRO MAX GPS and UV-5RH Pro radios are just different labels, the radios have the same function and configuration.The label attached to the walkie-talkie is shipped randomly.

★【6 Bands Frequency】

FM:65-108 MHz (Only RX)

AM:108-136 MHz (Only RX)
VHF:136-174 MHz (TX/RX)

VHF:220-260 MHz (RX)
Police:350-370 MHz (Only RX)
UHF:400-480MHz(TX&RX)
UHF:480MHz-520MHz(RX)
*144-146mhz,430-440mhz(applicable to user in EU countries and regions)

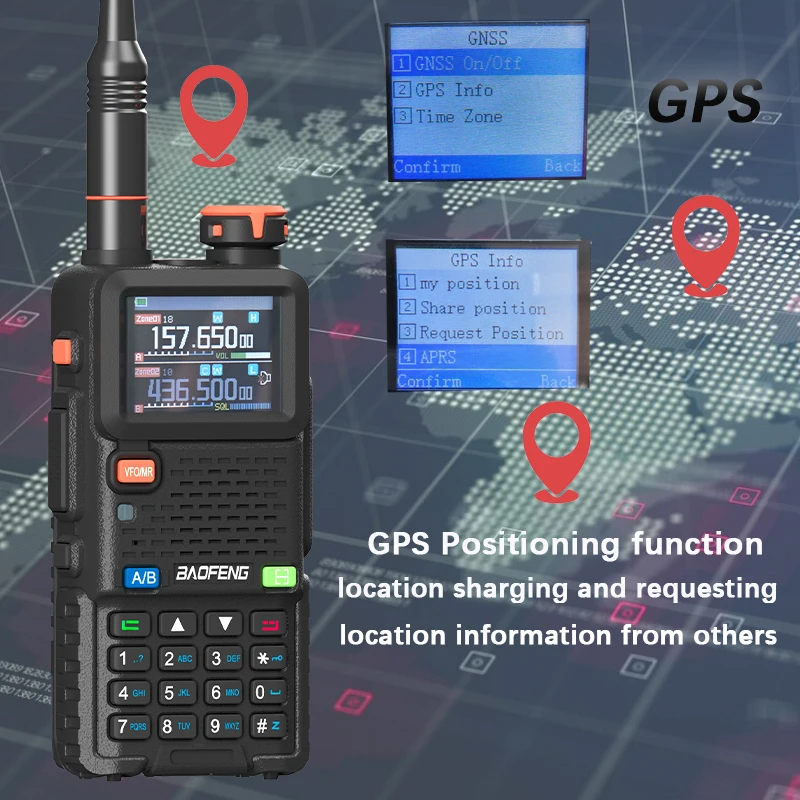

★【Support GPS Positioning information】

The GPS mode allows you to view your current location in real-time, prevent getting lost, and more conveniently find your teammates.

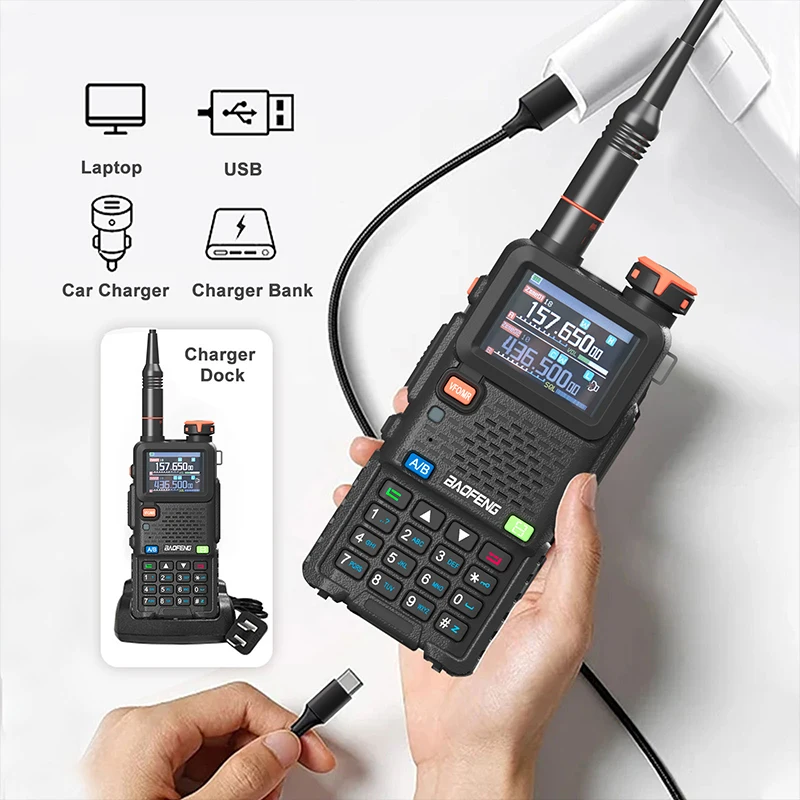

★【Type-C USB Charging】

Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH Pro GPS is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit..

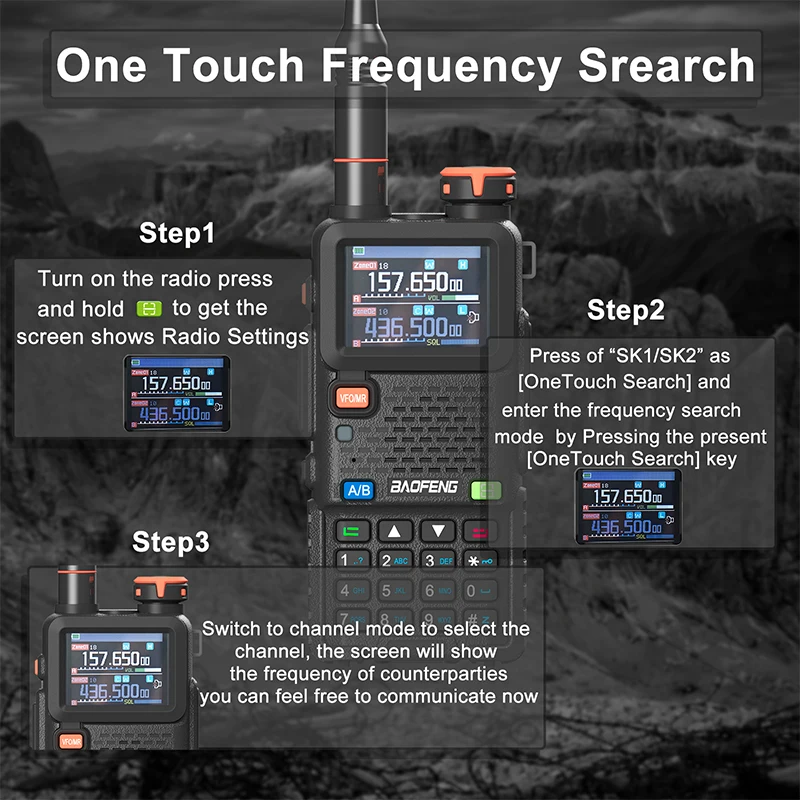

★【One Touch Search Frequency】

Press the menu button go to the main Menu-Radio Settings- Press of "SK1/SK2" as [OneTouch Search], and enter the frequency search mode by Pressing the present[OneTouch Search] key.When using the function,this unit will act as a receiver. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.

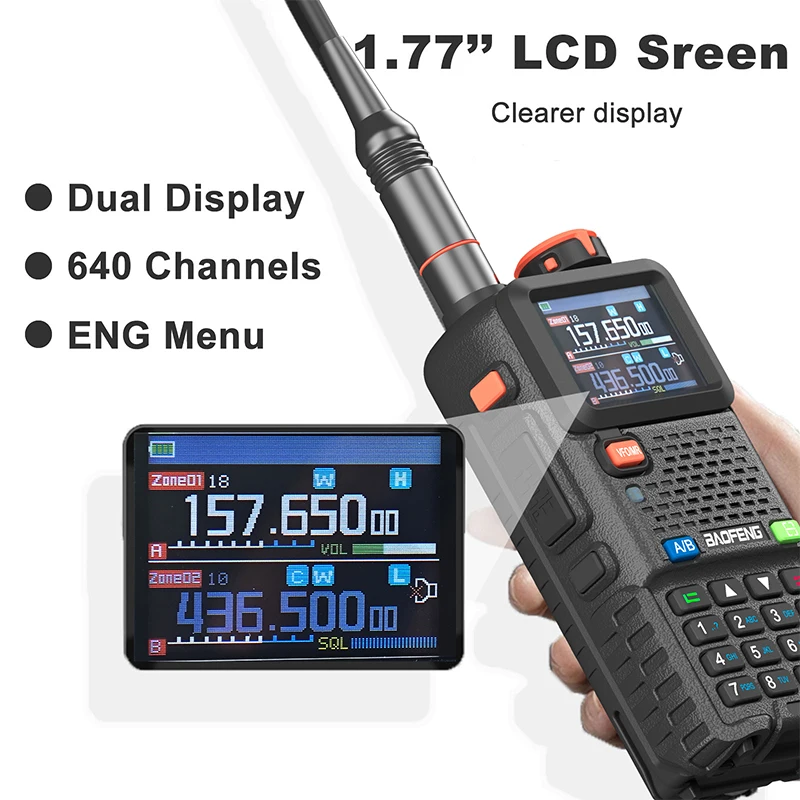

★【Built-in display】

New trend black technology 1.77-inch high-definition large screen display.
All display function menus on the display. Such as VOX/FM/CT etc.

★【PC & Manual Programmable】

Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.

1. 1.77" TFT large Screen,full keyboard,fully open menu operation
2. High or low power selectable
3. Type-C Charging
4. VOX(voice activated transmit)
5. Built in CTCSS/DCS tones
6. VFO scan range setting
7. Cross band reception

8. Analog signaling DTMF,2TONE,5TONE,BDC1200 codecs
9. NOAA Weather Channels

10. GPS Positioning function,location sharging and requesting location information from others
11. 10 zones storage, Up to 640 named memory channels
12. One Touch search frequency
13.
Roger Beep (End Transmission Tone)
14. No Flashlight

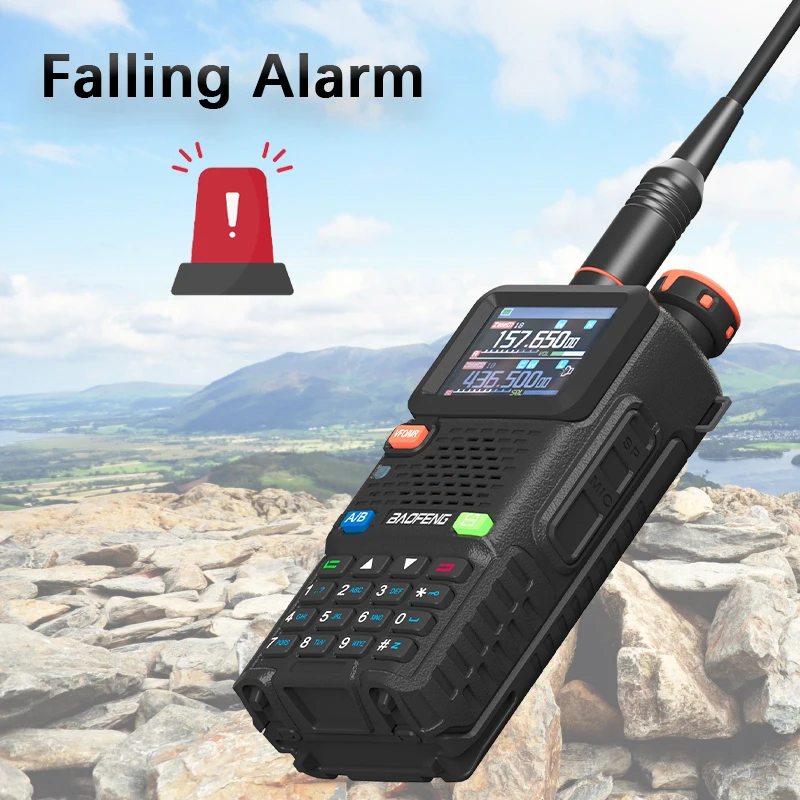

15. Falling Alarm/Man down

16. Skip Frequency
17.
TO/CO/SE Scan Resume method
18.
Backlight Duration
19.
Adjustable Screen Brightness
20. Dual Watch
21.
Repeater Access Tone 1000/1450/1750/2100Hz
22.
One Touch call
23.
SOS



General

Channel Capacity

640

Channel Spacing

25.0KHz/12.5KHz

Input Voltage

7.4VDC

Operating Temperature

-10°cto 60°c

Antenna Impedance

50 ohm

Radio Dimensions

135mm*63mm*39mm(Antenna Not included)

Radio weight

290g (with Li-ON battery)

Transmitter

Frequency Range (TX)

136-174MHz &400-480MHz

Modulation

16K ΦF3E/11K ΦF3E

Spurious Emission

-16dBm< 1GHz, -16dBm> 1GHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

FM Hum & Noise

40dB

Receiver

Frequency Range

FM:65-108MHz

AM:108-136MHz

VHF1: 136-174MHz

1.25M :220-260MHz

Police:350-390MHz

UHF:400-520MHz

Sensitivity:12dB SINAD

-120dBM

Adjacent Channel Selectivity

-60dBm

Intermodulation and rejection

-70dBm

Rated Audio Distortion

≤5%

Note: All Specifications may be modified without prior notice or liability. Thank you!

1× Radio

1× Battery

1× Antenna

1× Charger base

1× Belt Clip

1× Handstrap

1× ENG Manual

1× Box
(Other Accessories depend on your choice)
