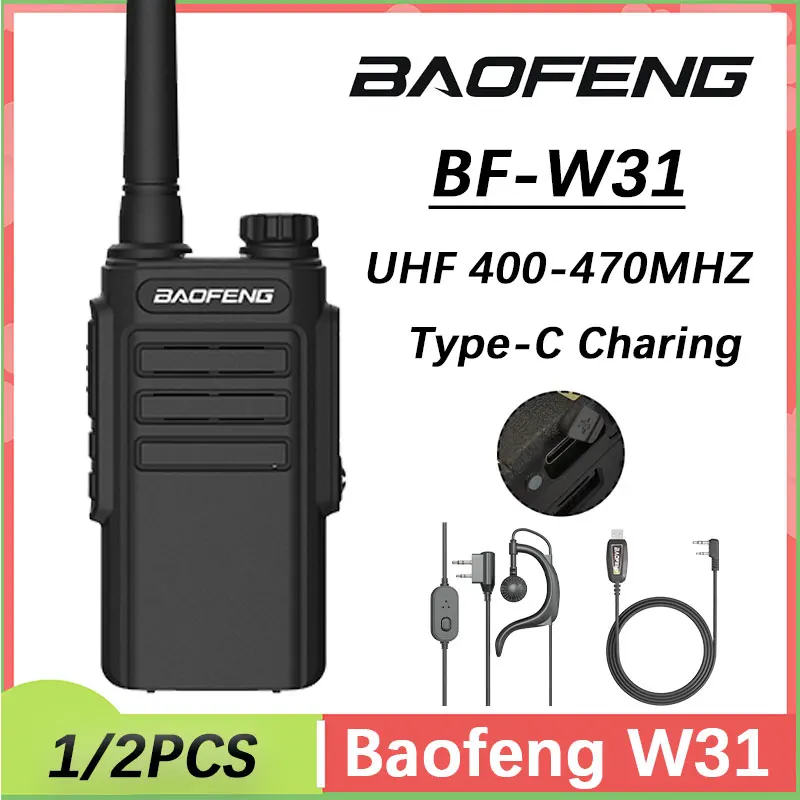

Baofeng W31/WP31 Mini Walkie Talkie
400-470mhz Portable Handheld Radio
with Type-C Port Long Range Communicator Radio
MP31 Pro
400-470mhz Portable Handheld Radio
with Type-C Port Long Range Communicator Radio
MP31 Pro
■ Important Tips:
To help you make better use of the product, be sure to observe the following instructions:
1. Do not use any unauthorized or damaged accessory.
2. Keep the product at least 2.5 centimeters away from your body during transmission.
3. Do not keep the product receiving at high volume for a long time.
4.For vehicles with an air bag, do not place the product in the area over the air bag or in the air bag deployment area.
5. Keep the product and its accessories out of reach of children and pets.
6. Please operate the product within the specified temperature range.
7. Continuous transmission for a long time may lead to heat accumulation within the product. In this case, please keep it at a
proper location for cooling.
8. Handle the product with care.
9. Do not disassemble, modify or repair the product and its accessories without authorization.
To help you make better use of the product, be sure to observe the following instructions:
1. Do not use any unauthorized or damaged accessory.
2. Keep the product at least 2.5 centimeters away from your body during transmission.
3. Do not keep the product receiving at high volume for a long time.
4.For vehicles with an air bag, do not place the product in the area over the air bag or in the air bag deployment area.
5. Keep the product and its accessories out of reach of children and pets.
6. Please operate the product within the specified temperature range.
7. Continuous transmission for a long time may lead to heat accumulation within the product. In this case, please keep it at a
proper location for cooling.
8. Handle the product with care.
9. Do not disassemble, modify or repair the product and its accessories without authorization.

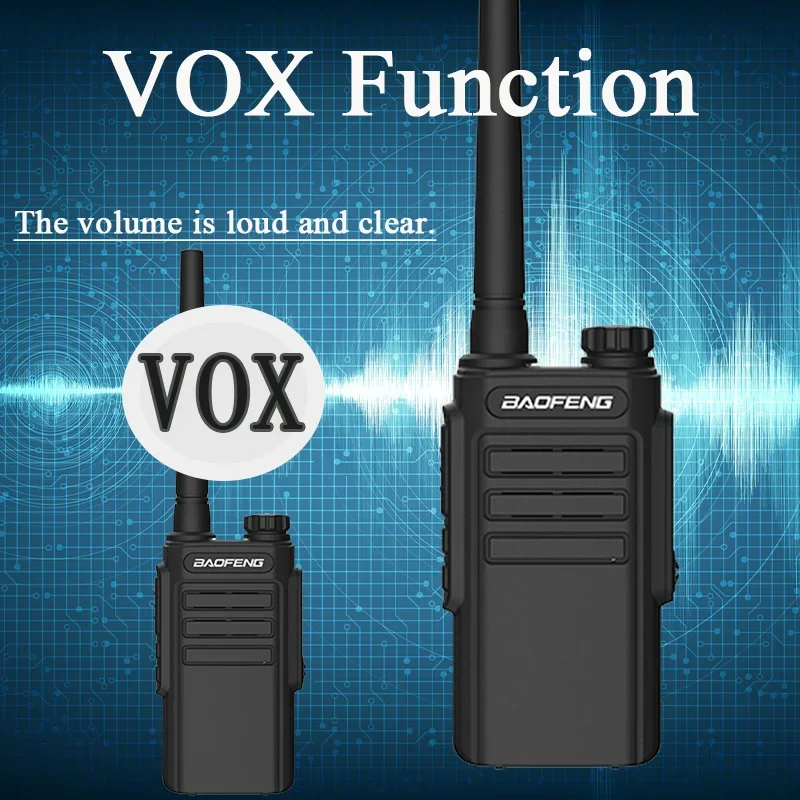

■ VOX:
The VOX feature enables hands free conversations without using PTT: just speak in the direction of the microphone and the
communication will be automatically activated. The VOX sensitivity can be adjusted in 5 different levels (1…5)through the
programming software:
Level 2 is set by default and has the lowest VOX sensitivity, 5 is the lowest one.
With the programming software you can enable/disable the VOX feature and select the sensitivity levels.
CPS programming path: Edit > Vox> VOX Level
The VOX feature enables hands free conversations without using PTT: just speak in the direction of the microphone and the
communication will be automatically activated. The VOX sensitivity can be adjusted in 5 different levels (1…5)through the
programming software:
Level 2 is set by default and has the lowest VOX sensitivity, 5 is the lowest one.
With the programming software you can enable/disable the VOX feature and select the sensitivity levels.
CPS programming path: Edit > Vox> VOX Level

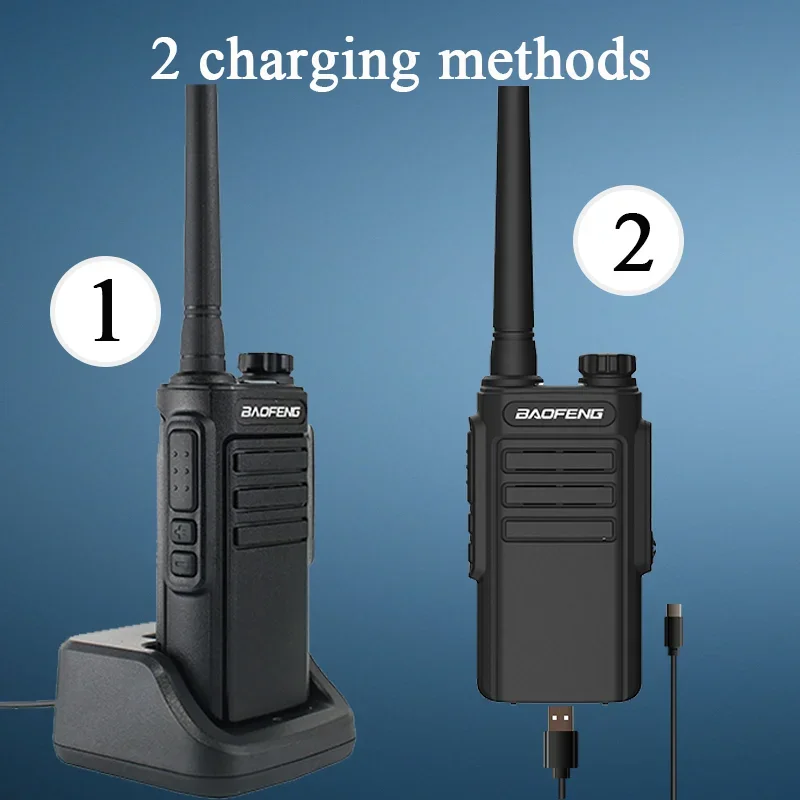

■ Using the Charging Base:
(1) Put the charging stand on the table, and place the radio or spare lithium battery in the charging stand.
(2) Charge the battery for 6 hours.
Note:
·Use only the supplied batteries,charger, and AC adapter or approved accessories.
Charge time may vary depending on the battery life remaining.
.The batteries must be installed for the unit to operate, even if the unit is also connected to external power.
lf battery power is low, you cannot operate the radio even using external power. Allow the batteries to charge before using.
*If you try to transmit while power is low, the radio will automatically turn off.
Warning: Do not charge alkaline batteries. The radio will not be used for a long time, please take out and keep the battery properly.
(1) Put the charging stand on the table, and place the radio or spare lithium battery in the charging stand.
(2) Charge the battery for 6 hours.
Note:
·Use only the supplied batteries,charger, and AC adapter or approved accessories.
Charge time may vary depending on the battery life remaining.
.The batteries must be installed for the unit to operate, even if the unit is also connected to external power.
lf battery power is low, you cannot operate the radio even using external power. Allow the batteries to charge before using.
*If you try to transmit while power is low, the radio will automatically turn off.
Warning: Do not charge alkaline batteries. The radio will not be used for a long time, please take out and keep the battery properly.
■ Using the Type-CUSB Charger
The Type-C USB charger is a handy port that allows you to conveniently charge your Li-ion battery pack.
1. Make sure your radio is turned OFF.
2. Plug the Type-C USB cable into the Type-C USB charging port on your battery. The other end of the data line is connected to the output port of the power bank or the adapter of the mobile phone.
3. An empty battery will be fully charged in 4 hours.
Note:
●lt is recommended to power OFF your radio while charging.However, if power is turned on while charging, you may not be
able to transmit a message if the battery is completely empty.
●For optimal battery life, remove the radio from the charger within 6 hours. Do not store the radio while connected to the charger.
The Type-C USB charger is a handy port that allows you to conveniently charge your Li-ion battery pack.
1. Make sure your radio is turned OFF.
2. Plug the Type-C USB cable into the Type-C USB charging port on your battery. The other end of the data line is connected to the output port of the power bank or the adapter of the mobile phone.
3. An empty battery will be fully charged in 4 hours.
Note:
●lt is recommended to power OFF your radio while charging.However, if power is turned on while charging, you may not be
able to transmit a message if the battery is completely empty.
●For optimal battery life, remove the radio from the charger within 6 hours. Do not store the radio while connected to the charger.
■ Using a Headset:
You can use a headset (#480_5R) for more private communications. To use a headset, lift the rubber cover from over the
headset jack, and then plug in the headset.

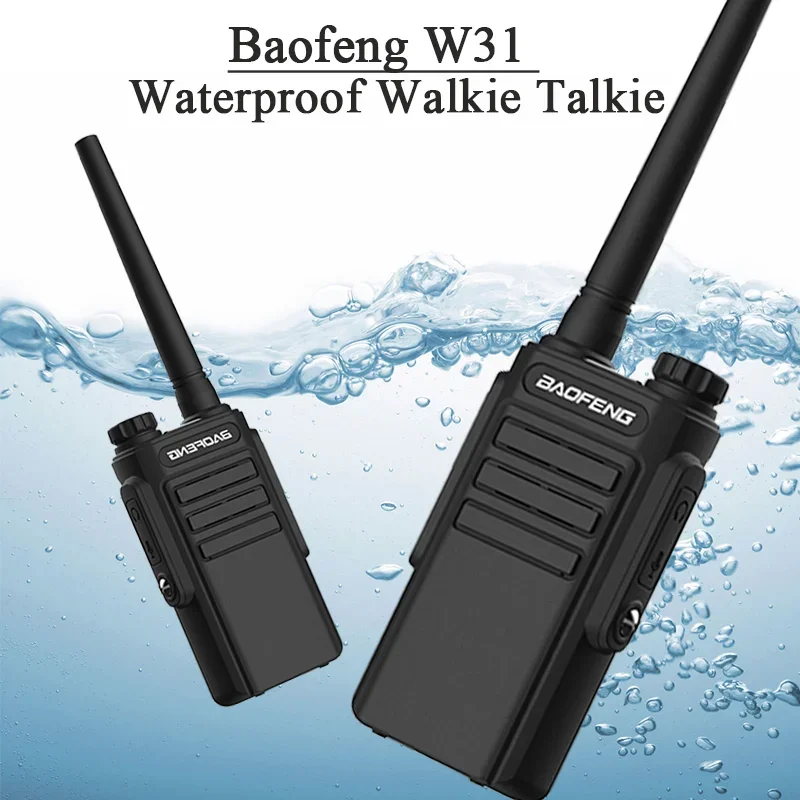

Important: Your radio is not submersible or waterproof when using a headset jack. When you remove the headset, be sure
to fully press the jack cover into place to restore its waterproof capability.
■ External Speaker/Microphone Jack:
Each radio can be used with an optional external speaker/microphone or headset, freeing your hands for other tasks. To use
an optional speaker / microphone or headset:
(1) Open the rubber cap on the side of the radio.
(2) Insert the plug(s) into the SPK/MIC jacks.
(3) Place the ear bud into your ear, and adjust the Microphone into your desired position.
You can use a headset (#480_5R) for more private communications. To use a headset, lift the rubber cover from over the
headset jack, and then plug in the headset.
Important: Your radio is not submersible or waterproof when using a headset jack. When you remove the headset, be sure
to fully press the jack cover into place to restore its waterproof capability.
■ External Speaker/Microphone Jack:
Each radio can be used with an optional external speaker/microphone or headset, freeing your hands for other tasks. To use
an optional speaker / microphone or headset:
(1) Open the rubber cap on the side of the radio.
(2) Insert the plug(s) into the SPK/MIC jacks.
(3) Place the ear bud into your ear, and adjust the Microphone into your desired position.
Main features:
●400-470MHz Transceiver
●Output power:≤2W/≤0.5W
●16 Channels
●Channel monitor
●Channel scan
●260 Sub-codes (50 CTCSS Codes & 210 DCS codes)
●Vocal tuning
●Battery save
●Battery low alert
●TOT (Time out timer)
●2pin Kenwood accessory jack
●Micro USB connector for charging
●Up to 5 km range
●Li-lon 1500mAh battery pack
●Battery Life: up to 18 hours (under typical use conditions)
Note: *Range may vary depending on environmental and/or topographical conditions.

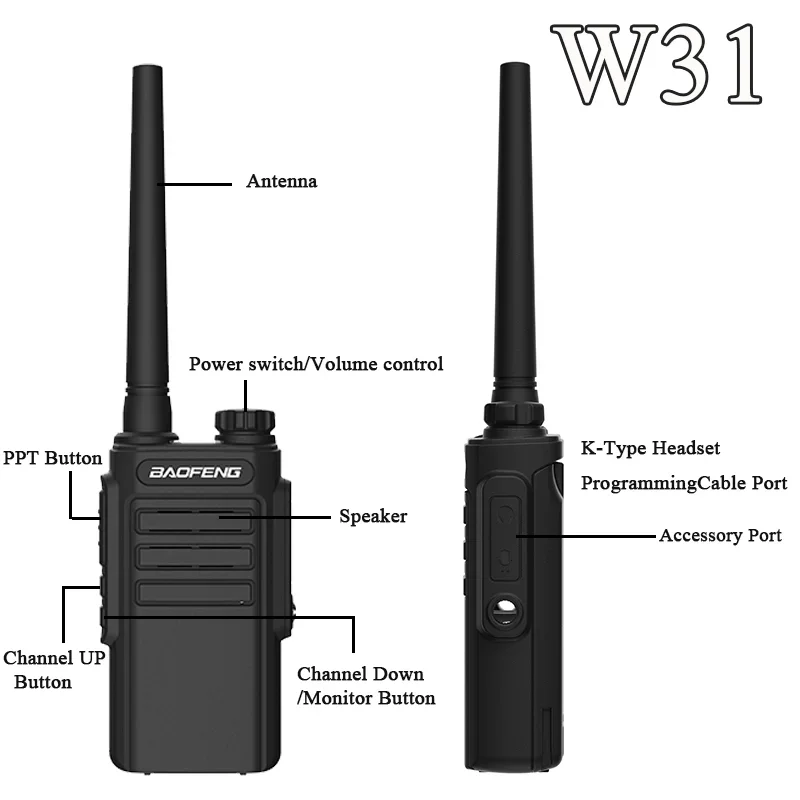

Power on/off and volume adjustment
Rotate the Power/olume knob clockwise to turn the radio on. Rotate the control clockwise /counter-clockwise to adjust the
volume level as you prefer. To turn the radio off, rotate the control counter-clockwise till hearing a mechanical “click”.
Channel selection
ln standby mode, directly press the Channel Up(+)/ Down(-) key to step down or down to select the channel.When the
voice prompt function is turned on, the corresponding channel is broadcast by voice.
Transmission
To communicate, all radios in your group must be set to the same channel. Briefly press theChannel Down (-) to enable the
Monitor feature in order to make sure that the frequency is not busy, and then press the [PTT] key. Release the [PTT] key to
receive. Only one user at a time can talk during radio communications. Therefore, it is important not to transmit when you
are receiving a communication and use the transmission mode sparingly to allow other users to talk. Transmission consumes
a significant amount of energy and should therefore be used sparingly to prolong the battery life. lf you are unable to contact
a station that you have no problems in receiving, the station may be using CTCSS tones or DCS codes.
Monitor
The Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are too weak to keep the Squelch
permanently opened. Hold down the Channel Down (-) to enable such function.
Scan
To enable the Scan function, all 16 channels must be programmed. lf you turn on the radio on channel 16, the scanning will
automatically start. Whenever any signal is detected, the scanning will stop on a busy channel. If the PTT is pressed, you will
transmit on the latest busy channel. Channel 16 is the priority channel; therefore if you don’t pick up any signal when you
press PTT, the radio will transmit on channel 16.
On the 16th channel, press and hold the PTT+Channel Down (-) to turn on the radio and turn the scanning function on or
off.
General Part:
Frequency Range: 400-470MHz
Working temperature: -10℃t0+40℃
Operation Voltage: DC 3.7 V±10%
Operation Mode: Simplex

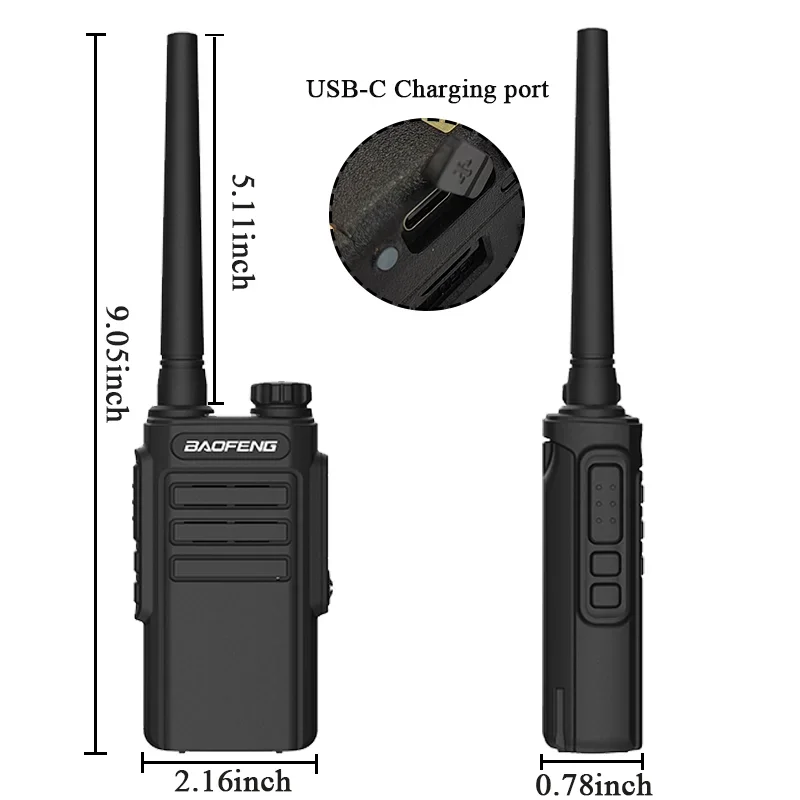

Dimensions: 136mmx56mmx28mm(without Antenna)
Weight: 130g (Battery pack included)
Antenna Impedance: 50ohm
Transmitter Part:
RF Output Power: 2W/0.5W
FM Modulation: [email protected]
Adjacent Channel Power: 60dB @ 12.5KHz
Transmission current: ≤1000mA
Receiver Part:
Receive Sensitivity: 0.25μV (12dB SINAD)
Adjacent Channel Selectivity: ≥[email protected]
Inter Modulation and Rejection: ≥[email protected]
Conducted Spurious Emission: ≤[email protected]
Rated Audio Power Output: 0.75W @8 ohms
Receive current: ≤380mA
Rated Audio Distortion: ≤5%
Package Includes:
●Output power:≤2W/≤0.5W
●16 Channels
●Channel monitor
●Channel scan
●260 Sub-codes (50 CTCSS Codes & 210 DCS codes)
●Vocal tuning
●Battery save
●Battery low alert
●TOT (Time out timer)
●2pin Kenwood accessory jack
●Micro USB connector for charging
●Up to 5 km range
●Li-lon 1500mAh battery pack
●Battery Life: up to 18 hours (under typical use conditions)
Note: *Range may vary depending on environmental and/or topographical conditions.
Power on/off and volume adjustment
Rotate the Power/olume knob clockwise to turn the radio on. Rotate the control clockwise /counter-clockwise to adjust the
volume level as you prefer. To turn the radio off, rotate the control counter-clockwise till hearing a mechanical “click”.
Channel selection
ln standby mode, directly press the Channel Up(+)/ Down(-) key to step down or down to select the channel.When the
voice prompt function is turned on, the corresponding channel is broadcast by voice.
Transmission
To communicate, all radios in your group must be set to the same channel. Briefly press theChannel Down (-) to enable the
Monitor feature in order to make sure that the frequency is not busy, and then press the [PTT] key. Release the [PTT] key to
receive. Only one user at a time can talk during radio communications. Therefore, it is important not to transmit when you
are receiving a communication and use the transmission mode sparingly to allow other users to talk. Transmission consumes
a significant amount of energy and should therefore be used sparingly to prolong the battery life. lf you are unable to contact
a station that you have no problems in receiving, the station may be using CTCSS tones or DCS codes.
Monitor
The Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are too weak to keep the Squelch
permanently opened. Hold down the Channel Down (-) to enable such function.
Scan
To enable the Scan function, all 16 channels must be programmed. lf you turn on the radio on channel 16, the scanning will
automatically start. Whenever any signal is detected, the scanning will stop on a busy channel. If the PTT is pressed, you will
transmit on the latest busy channel. Channel 16 is the priority channel; therefore if you don’t pick up any signal when you
press PTT, the radio will transmit on channel 16.
On the 16th channel, press and hold the PTT+Channel Down (-) to turn on the radio and turn the scanning function on or
off.
General Part:
Frequency Range: 400-470MHz
Working temperature: -10℃t0+40℃
Operation Voltage: DC 3.7 V±10%
Operation Mode: Simplex
Dimensions: 136mmx56mmx28mm(without Antenna)
Weight: 130g (Battery pack included)
Antenna Impedance: 50ohm
Transmitter Part:
RF Output Power: 2W/0.5W
FM Modulation: [email protected]
Adjacent Channel Power: 60dB @ 12.5KHz
Transmission current: ≤1000mA
Receiver Part:
Receive Sensitivity: 0.25μV (12dB SINAD)
Adjacent Channel Selectivity: ≥[email protected]
Inter Modulation and Rejection: ≥[email protected]
Conducted Spurious Emission: ≤[email protected]
Rated Audio Power Output: 0.75W @8 ohms
Receive current: ≤380mA
Rated Audio Distortion: ≤5%
NOTE: All specifications may be modified without prior notice or liability

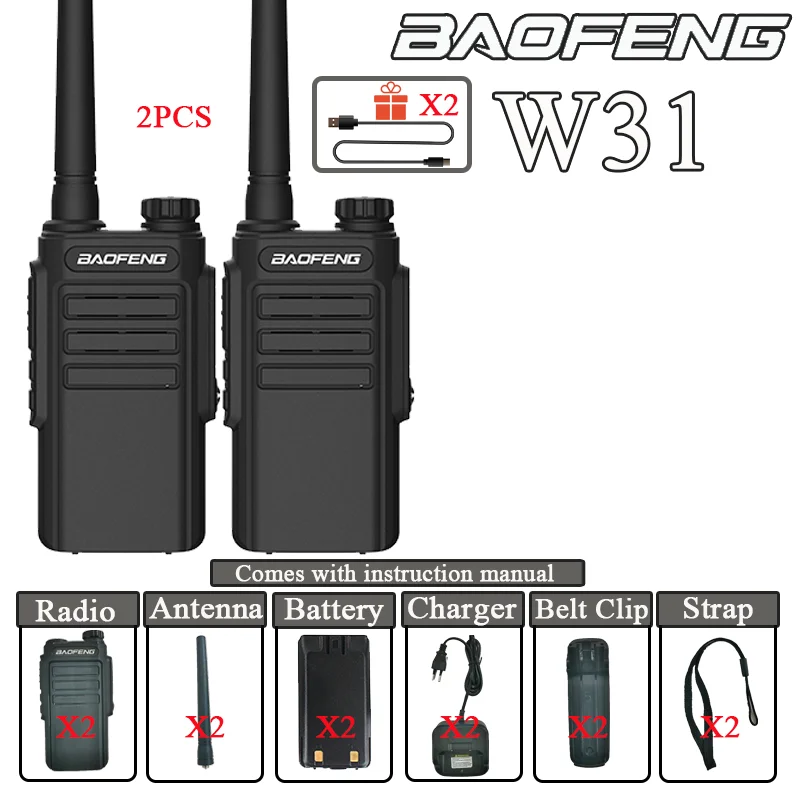

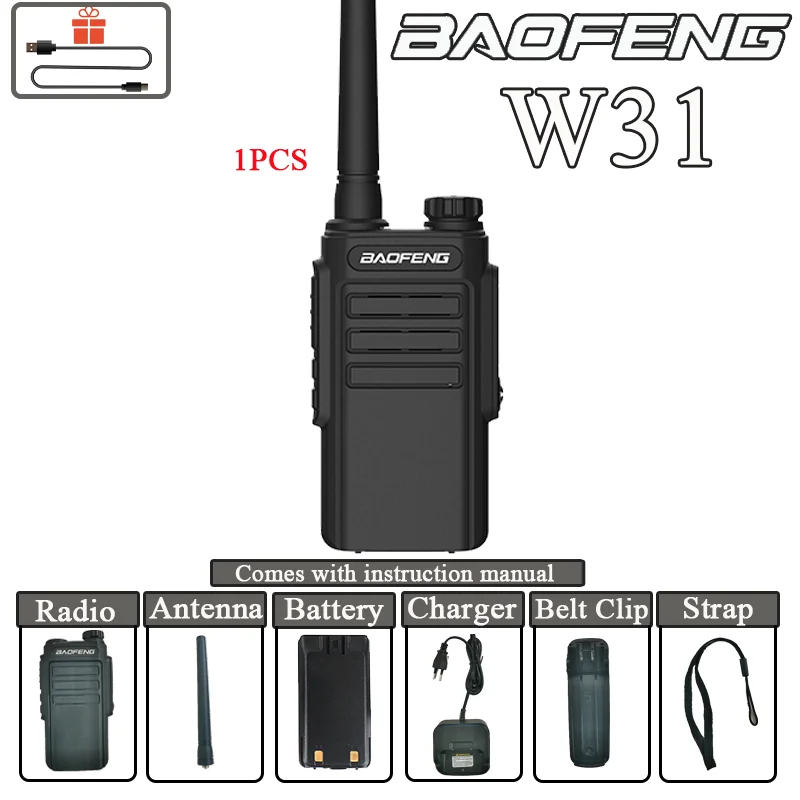

Package Includes:
1 X Radio
1 X Li-ion battery
1 X Belt clip
1 X Sling
1 X Charger Base
1 X USB Cable
1 X Manual
or
2 X Radio
2 X Li-ion battery
2 X Belt clip
2 X Sling
2 X Charger Base
2 X USB Cable
2 X Manual
Notice:
We will ship according the option you choose.If you select and buy extra accessories,we will send out together
