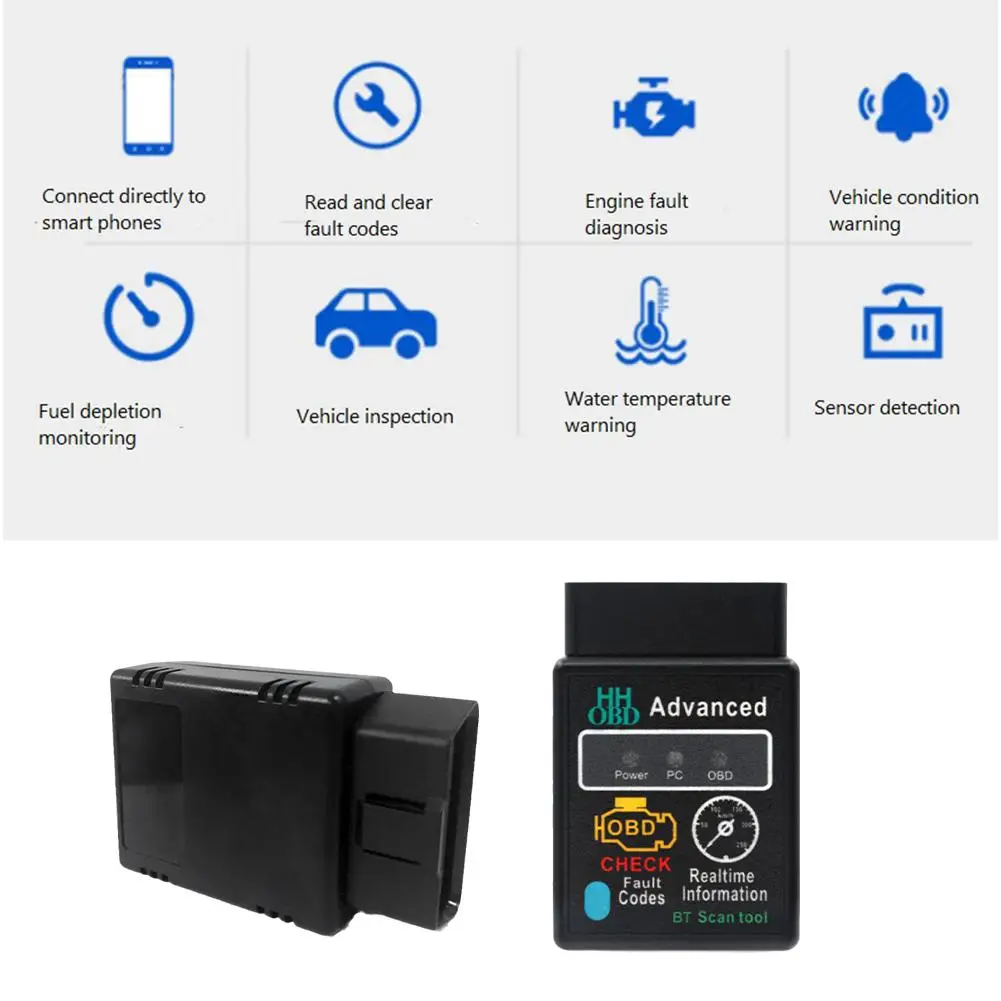

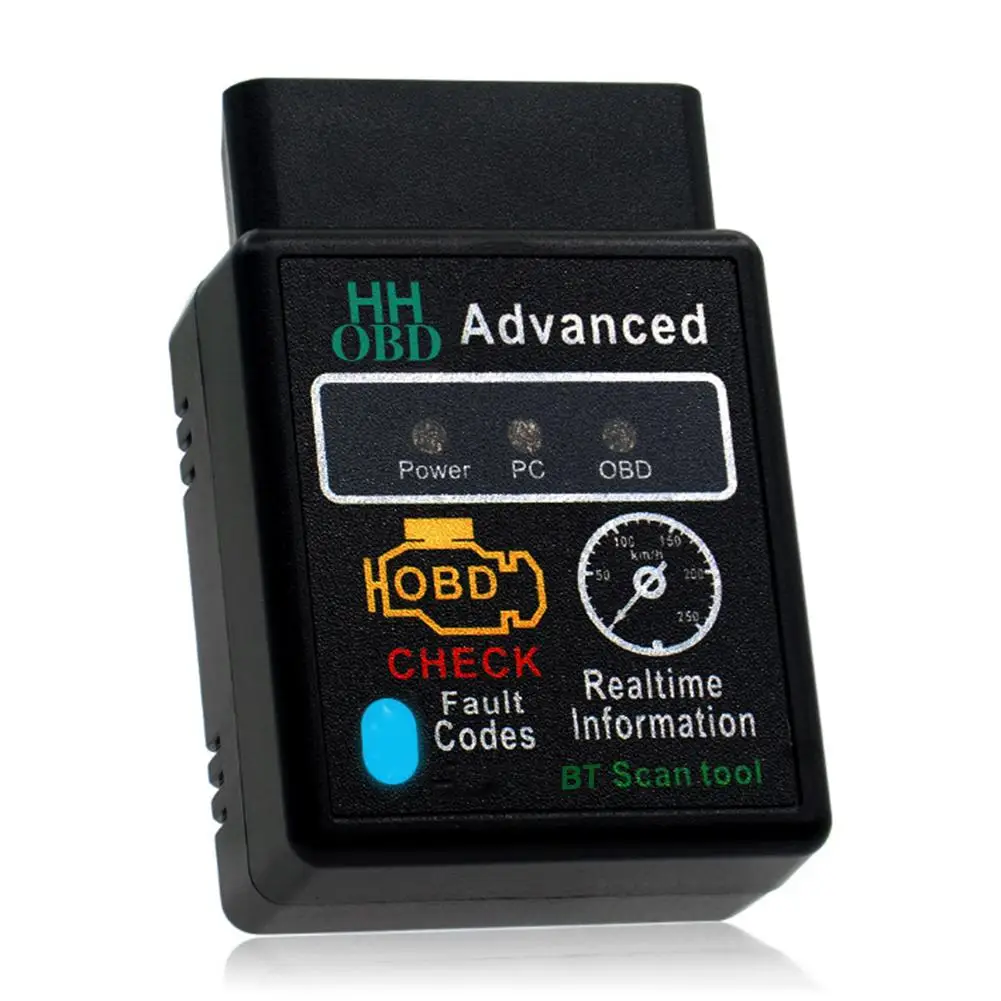

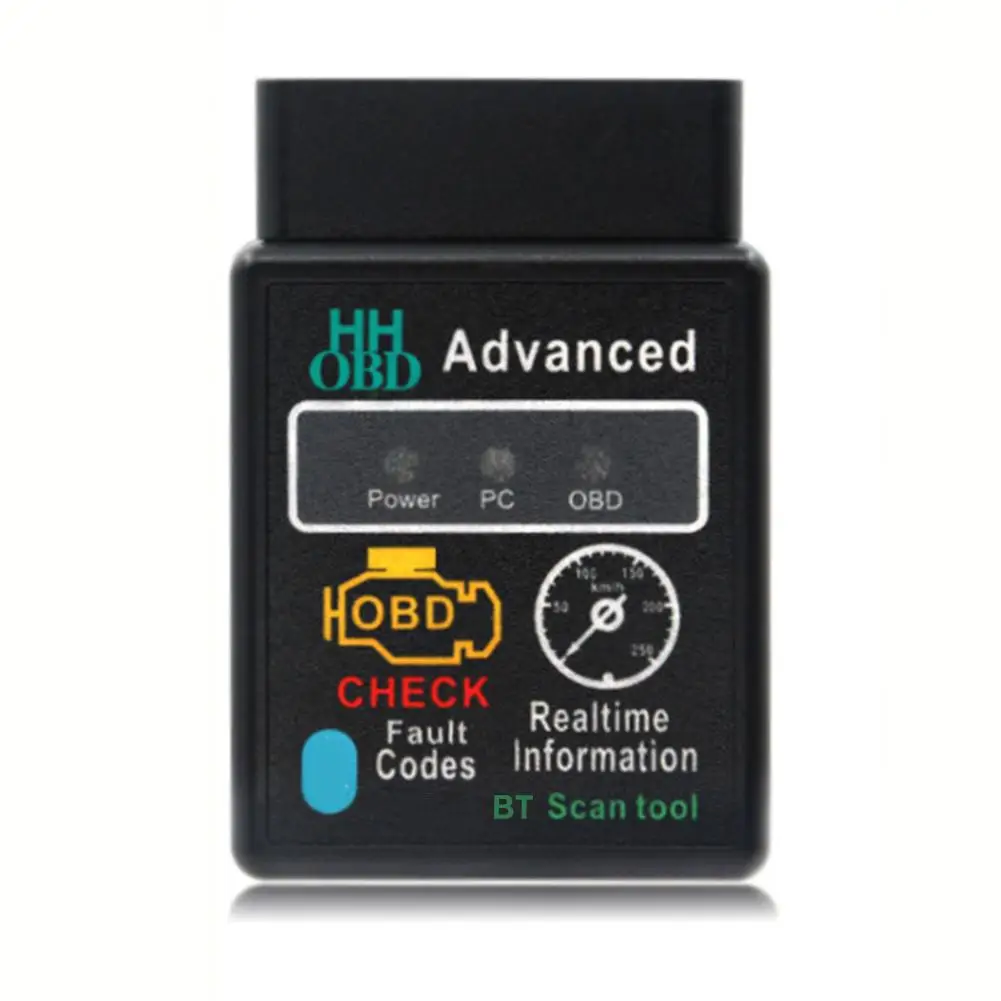

Car OBD2 Scanner Elm327 V1.5 Code Reader OBDII Diagnostic Tool
Specification
Category:V1.5 Auto fault
Material: ABS

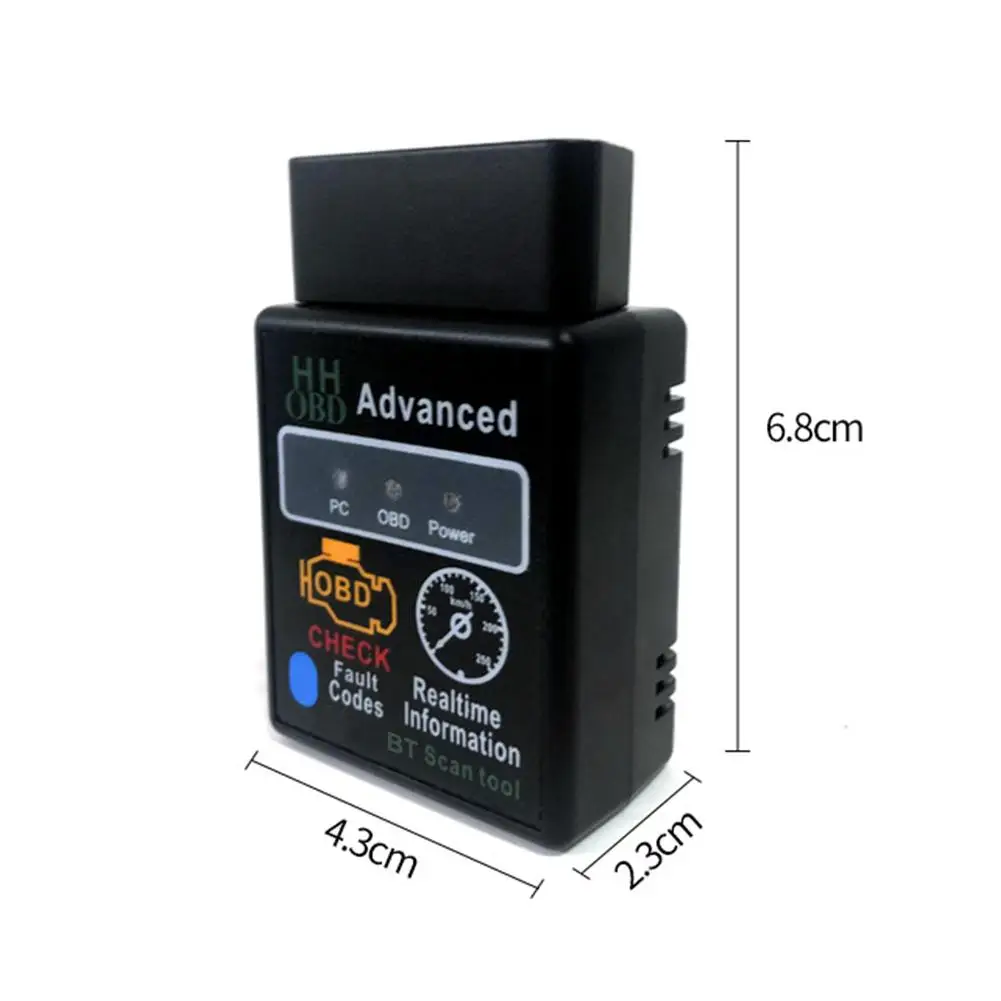

Size: about 6.5*4.5cm
Communication: for Bluetooth 5.1
Support system: IOS, Android, Symbian, Windows
Working voltage: 9v16v
Working temperature: -40℃65℃
Package includes: 1*OBD2 Bluetooth V1.5 car scanner (with teaching QR code on the back of the box)
Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian, Windows PC
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Basic functions
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL (‘Check Engine’ light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Fuels System status
7: Fuels System Status
8: Vehicle Speed
9: Short Term Fuels Trim
10: Long Term Fuels Trim
11: Manifold Pressure
12: Timing Advance
13: Air Temperature
14: Air Flow Rate
15: Fuels Pressure
16: Oxygen sensor voltages / associated short term fuels trims
17: Many others
