Category:V1.5 Auto fault detector

Material: ABS

Size: about 6.5*4.5cm

Communication: for Bluetooth 5.1

Support system: IOS, Android, Symbian, Windows

Working voltage: 9v~16v

Working temperature: -40℃~65℃

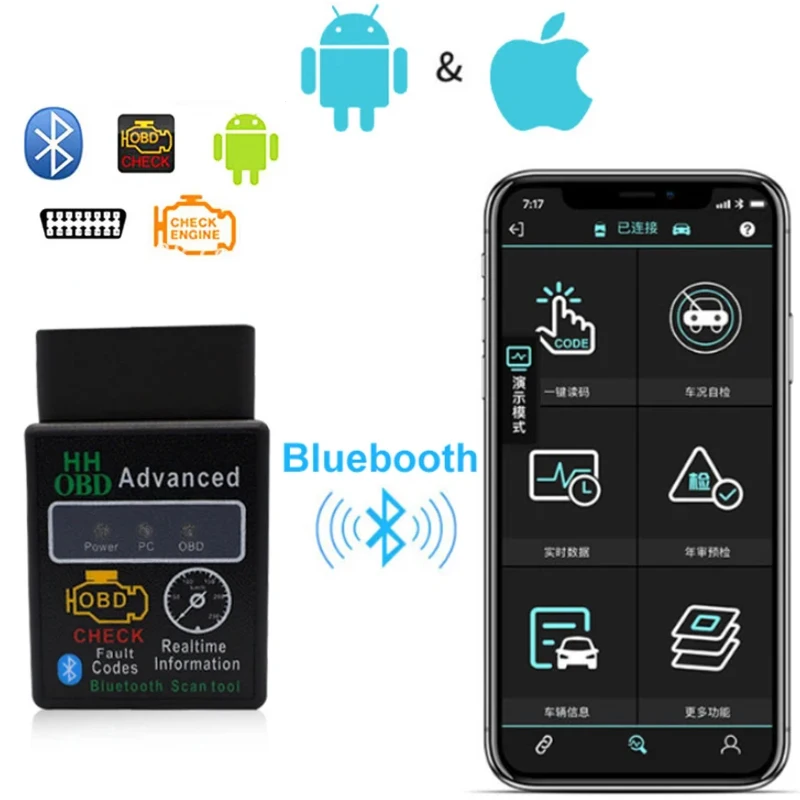

Package includes: 1*OBD2 Bluetooth V1.5 car scanner (with teaching QR code on the back of the box)

 Compatible systems:

Software support platform: Windows XP, Windows 7/8, Android, Symbian, Windows PC

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Basic functions

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ('Check Engine' light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuels System Status

8: Vehicle Speed

9: Short Term Fuels Trim

10: Long Term Fuels Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuels trims

17: Fuels System status

18: Fuels Pressure
19: Many others
