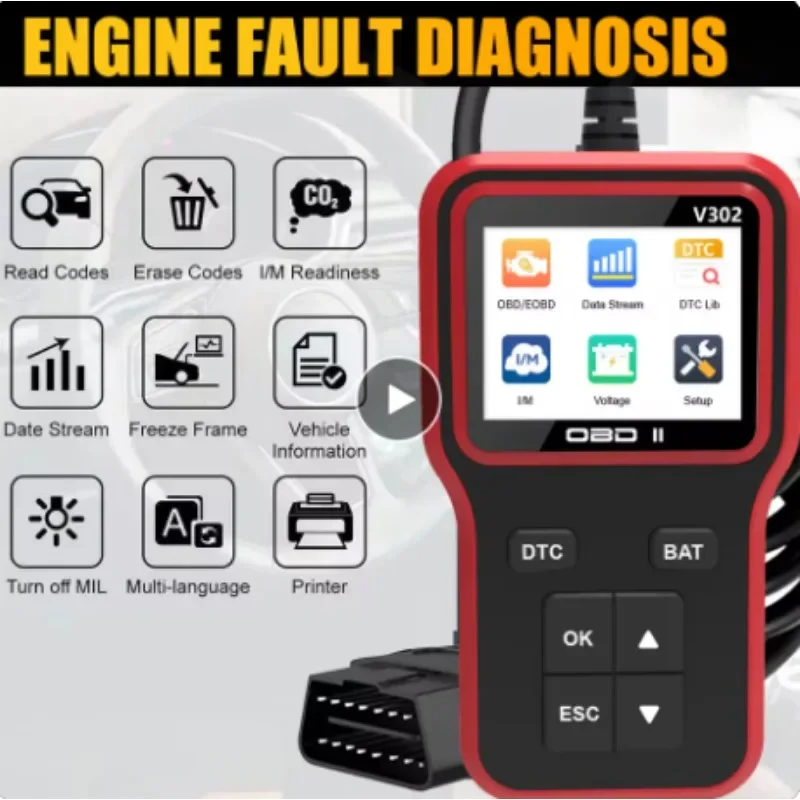

This is a gasoline car code reader, which supports five standard OBD II/EOBD protocols. Plug and play, can quickly read the car's fault information and vehicle parameters, it is a wider function of the fault diagnosis instrument.
2. The main functions
Support new standard OBD II/EOBD protocols
Support car battery voltage test
Gasoline Reading Model Support
Clearing the missing vehicle code

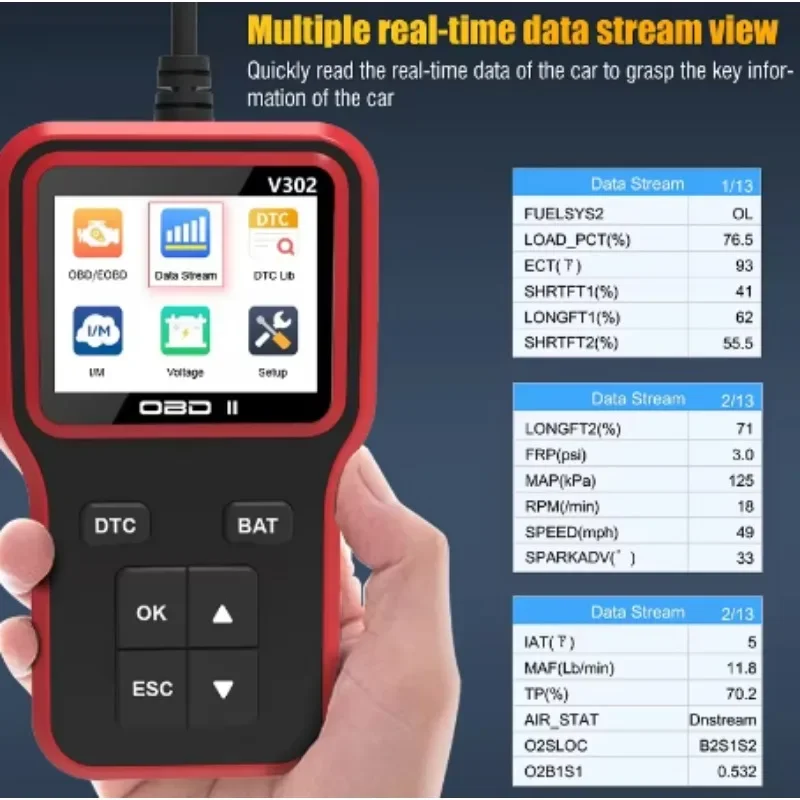

Stream Reading Data
Freezing Frame Information
Checking MIL Status
Read vehicle information
Oxygen Sensor Test
Fuel evaporation (mode 8) test
Support fault code information query
Support data stream playback function

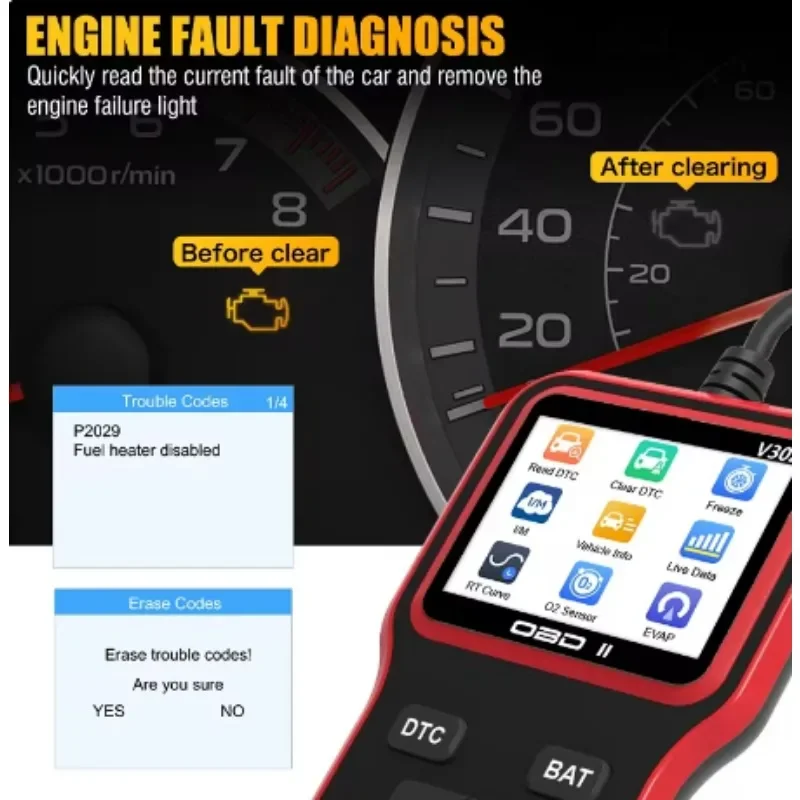

View/delete failed code
Data flows and freezes the information in the frame
Support eight languages English, English, Italian, Dutch, French, Spanish, Chinese, Russian.
3. Support agreement:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (ID 29bit, 250 Kbaud)
4. Product Parameters
Working Voltage: 12V
Working Current: 51mA
Operating environment: -30~70°C
Storage Temperature: -30~70°C
Dimensions: 152*87.5*22mm
5. Product Accessories
Host Accessories * 1 Manual * 1
6. Product Operation Instructions
When you need to inspect a car, directly plug this product into the car's OBD connector to start the inspection.
7. Matters needing attention
1. Do not use abrasive cleaners to clean this product.
2. Do not let this product be forgotten or near the source of fire.
3. Do not expose this product to the right sunlight for a long time.
4. Do not attempt to disarm this product to make any modifications,
Because it contains no maintenance components.
5. Do not use this product in the room.
6. If you do not plan to use this product for a long time, please store it in dry environment to avoid extreme temperature and dust.
