CF-E314NV2 3-5KM Long Distance Transmission 300Mbps 2.4GHz Outdoor Wireless Bridge WiFi CPE Access Point Dual 2*14dBi Antenna Nanostation
Note: 3-5KM requires 2pcs CPE be set point to point as wifi bridge(No obstacles), 1pc CPE can not reach this distance. It is recommended that you order 2 pieces
Feature:
CF-E314NV2 is an outdoor long-distance transmission wireless bridge, suitable for wireless signal transmission in security monitoring projects. It supports a transmission distance of 3-5KM and a wireless transmission rate of 300Mbps. Suitable for monitoring project transmission in scenic spots, ports, oil fields, construction sites, etc.

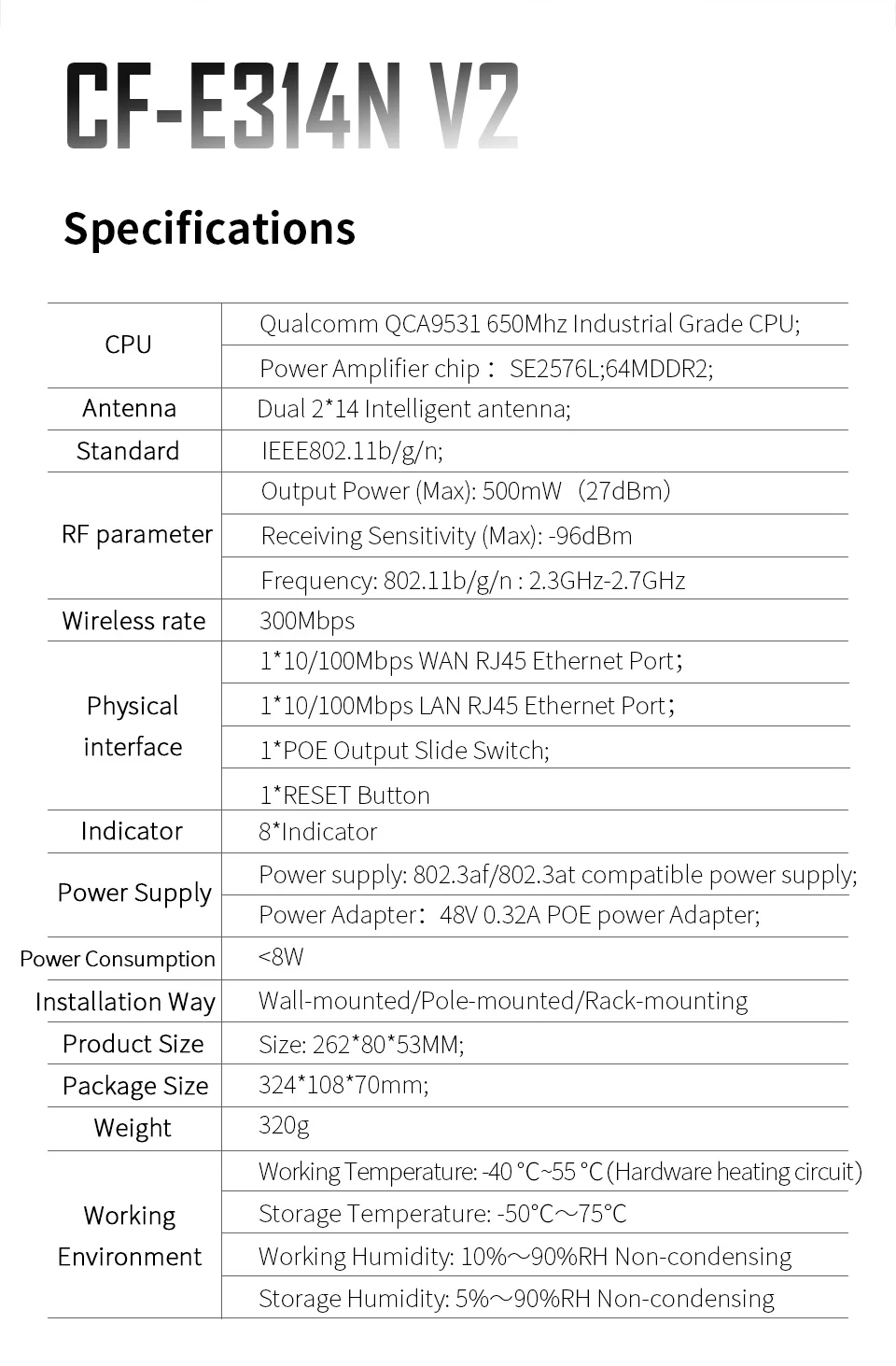

Specifications:
1. Adopts Qualcomm QCA9531 650Mhz industrial-grade CPU, built-in PA, strong signal, high-speed transmission
2. Supports 2.3GHz-2.7GHz, wide frequency selection can avoid a large number of 2.4GHz same frequency interference
3. IEEE802.11b/g/n Wireless Standard
4. 300Mbps wireless transmission rate
5. The transmission distance in the open range can reach 3-5KM.(2pcs Set Point to  Point)
6. Built-in 2*14dBi high-gain antennas, wide transmission and reception rate
7. IP65 protection level, waterproof, lightning protection, high temperature resistance. Uutdoor safety protection, also suitable for wind, frost, rain and snow weather conditions
8. Suppport 48V POE power supply(configured with 48V POE Adapter)
9. Support AP/Wireless Client/Repeater Working Modes
10. 1 10/100Mbps WAN RJ45 port; 1 10/100Mbps LAN RJ45 port
High Power Outdoor  WiFi Transmission Bridge
WiFi Transmission/ Security Monitoring/ Outdoor WiFi Coverage/ WiFi Amplifier
8 Advantages Quality Assurance
1. 2*14dbi Antenna
2. Professional Outdoor Protection
3. Qualcomm Chip High Quality
4. Built-in Amplifier Power Chipset
5. WDS Technology
6. Easy Set-up
7. No Crack WiFi Hide SSID
8. Four Modes Multi Functions
Comprehensive protection to against severe outdoor environments
Precise structural design provides the ability to handle different kinds of rugged surroundings
Lighting Protection/ Waterproof/ Dustproof/ Antifreeze/ High-Temperature Resistant/ Antioxidant/ Resistance to extrusion/ Shockproof
Low Temperature Protection
lt can support work and start up under low temperature.
Qualcomm Chip Perfect Performance
As Qualcomm's global strategic partner, COMFAST productsall use Qualcomm chipset, because we believe that QUALCOMM holds the high performance highland around the world.
High Gain Antenna, Long distance stability
Ensure stable transmission, no delay, no stagnation.

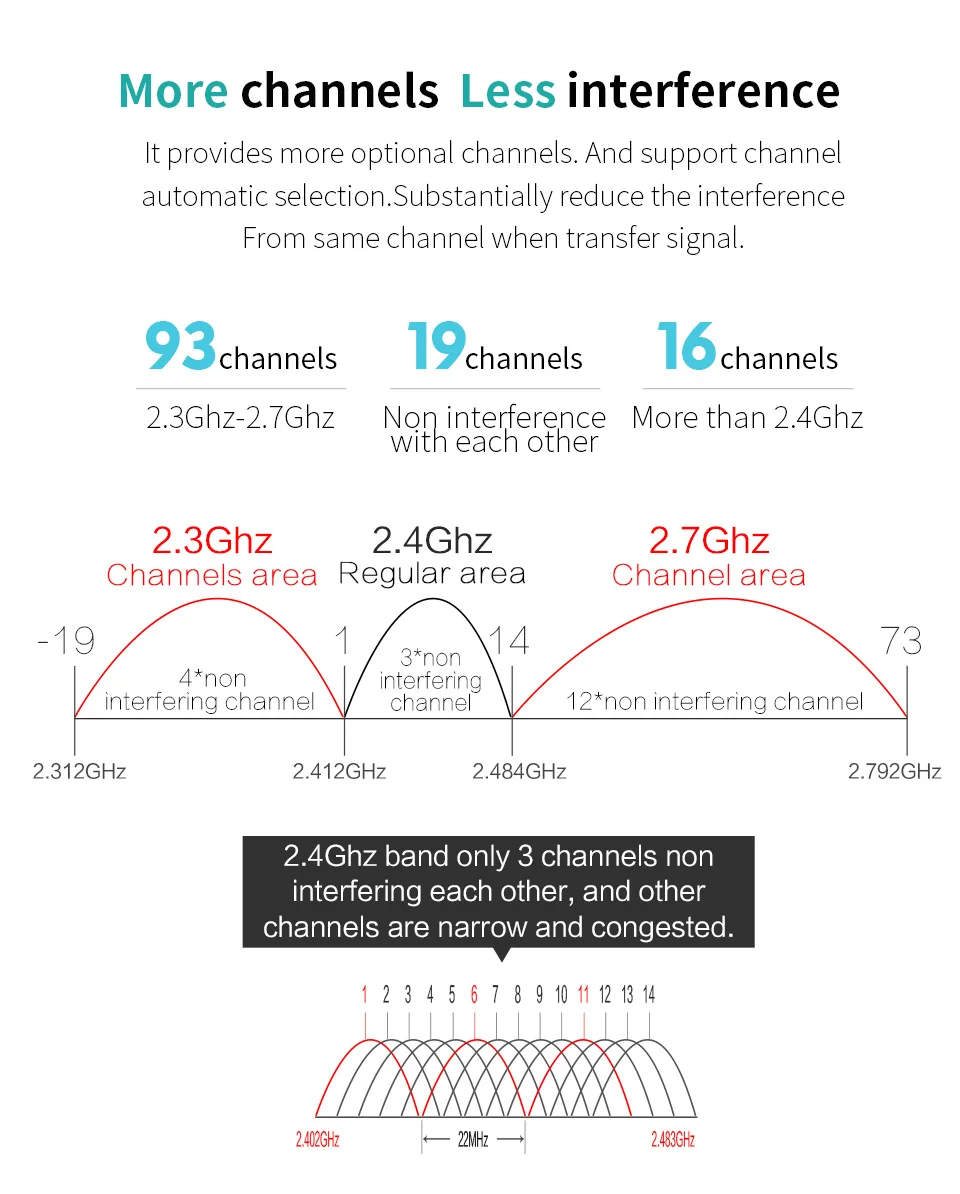

More channels Less interference
lt provides more optional channels. And support channel automatic selection. Substantially reduce the interference. From same channel when transfer signal. (2.4GHz band only 3 channels non interfering each other, and other channels are narrow and congested.)
48VPOE Power Supply, Reduce network costs
Toggle the switch to the left, connect a networkcable to supply power to the surveillance camera, and realize view transmission, saving engineering cost and power supply troubles!
No external power supply required/ Only one network cable/ Safe and simple
Hidden SSID Safety WiFi
Support SSID hiding, solve network problems, and ensure project stability
Powerful Sinmax Software OS
SINMAX is a multifunctional software OS and it is very easy to do settings up
Applicable scene
Elevator/ Community/ Driving school/ Factory/ Scenic spot/ Site

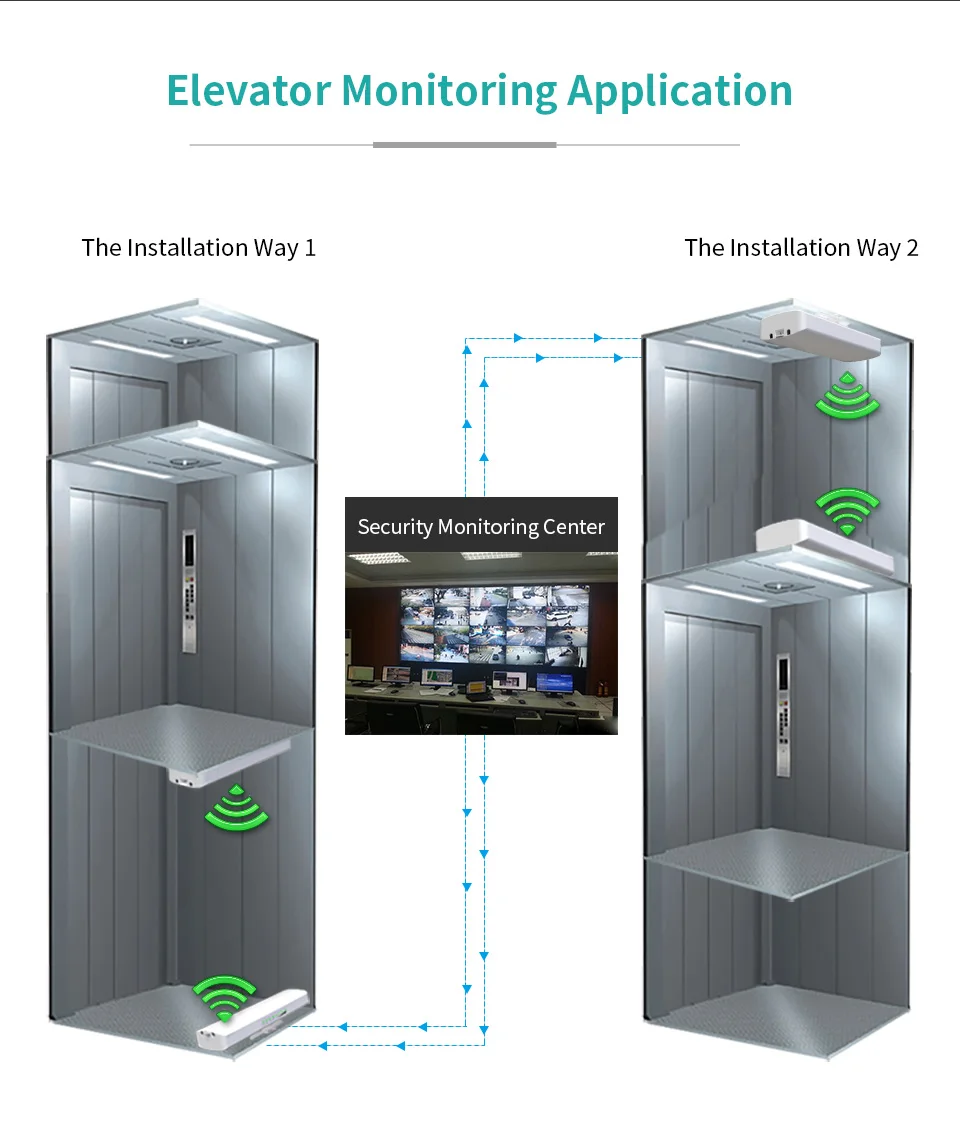

Elevator Monitoring Application
Connect Application Diagram

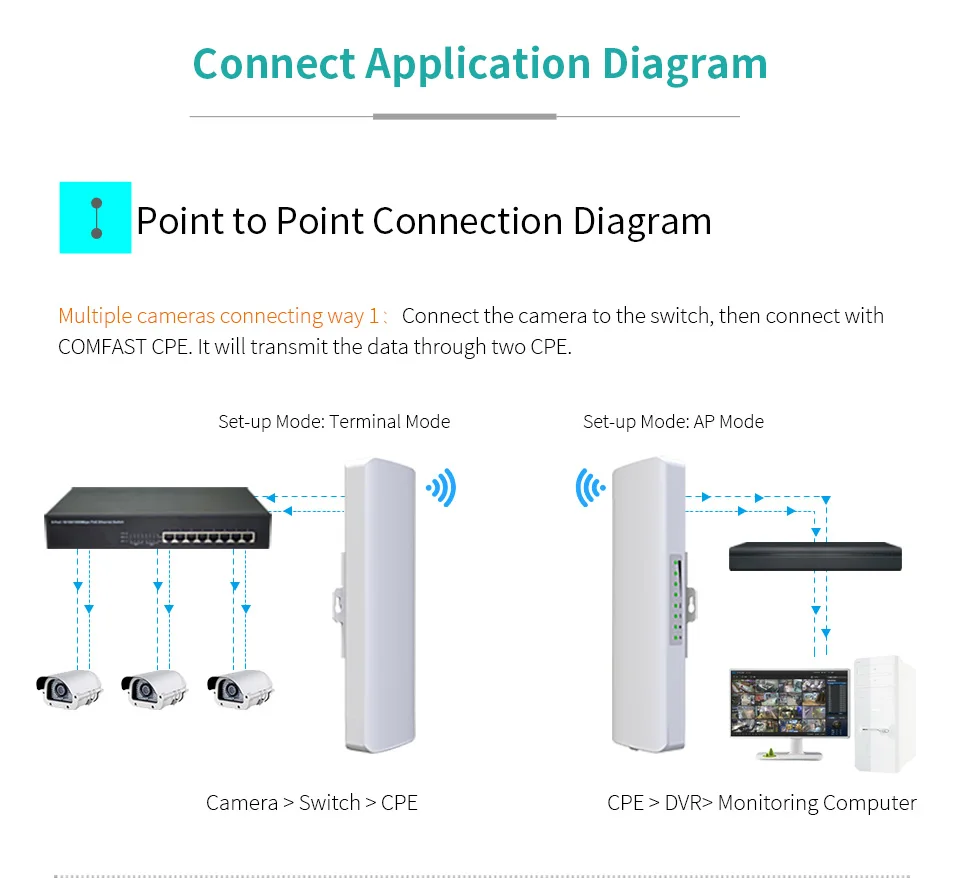

Point to Point Connection Diagram
Multiple cameras connecting way 1: Connect the camera to the switch, then connect withCOMFAST CPE.lt will transmit the data through two CPE.

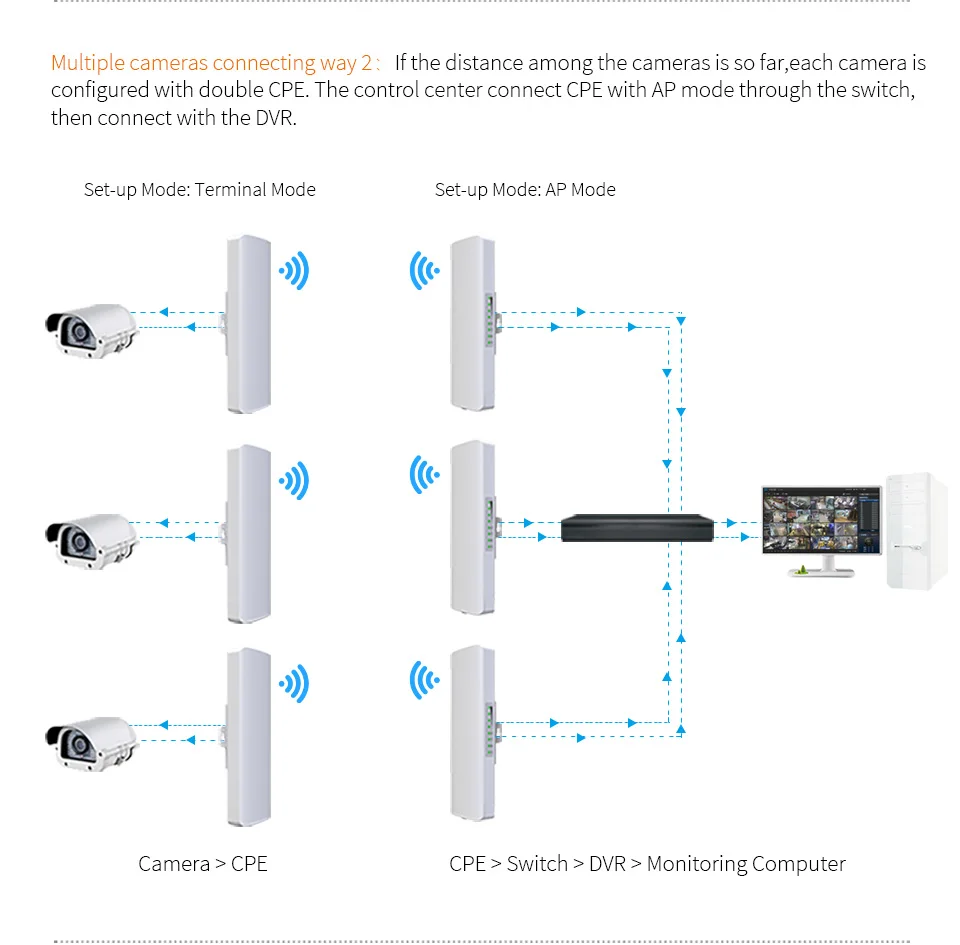

Multiple cameras connecting way 2: lf the distance among the cameras is so far,each camera isconfigured with double cPE.The control center connect CPE with AP mode through the switch,then connect with the DVR.

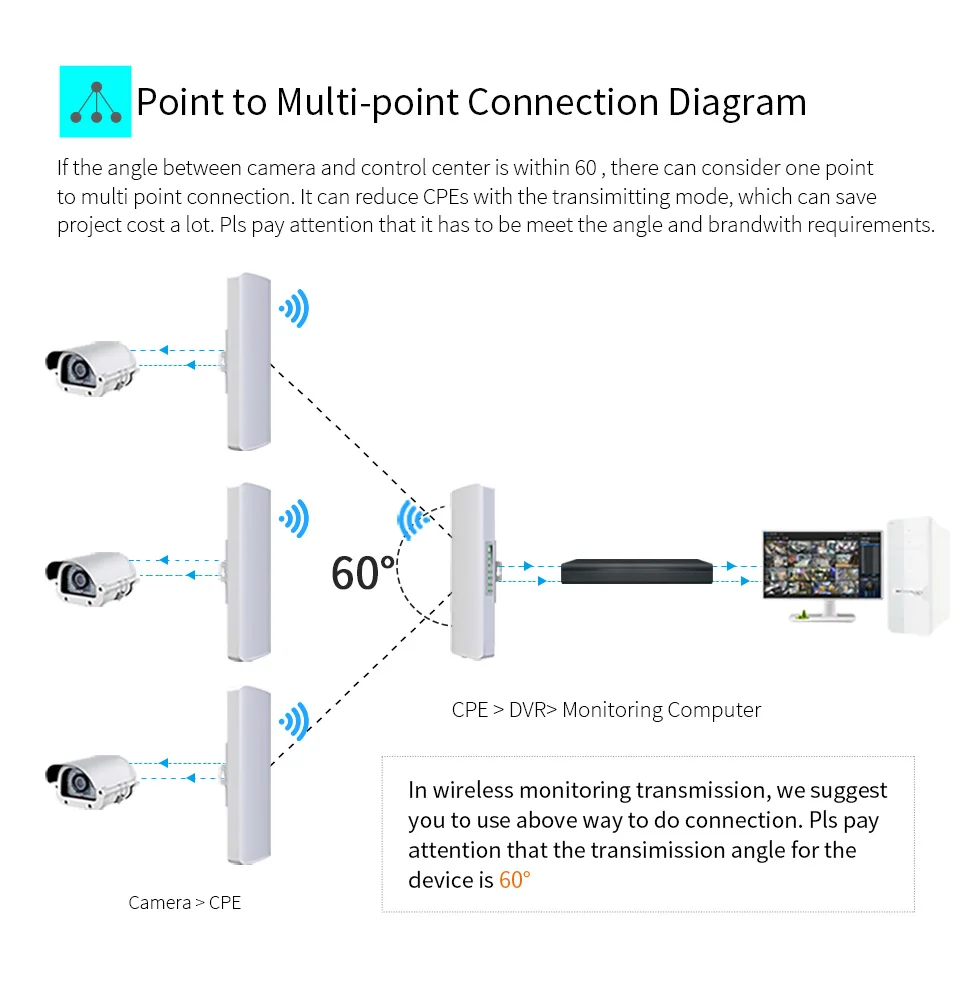

Point to Multi-point Connection Diagram
lf the angle between camera and control center is within 60 , there can consider one pointto multi point connection. It can reduce CPEs with the transimitting mode, which can save project cost a lot. Pls pay attention that it has to be meet the angle and brandwith requirements. (In wireless monitoring transmission, we suggest you to use above way to do connection.Pls pay attention that the transmission angle for the device is 60°)

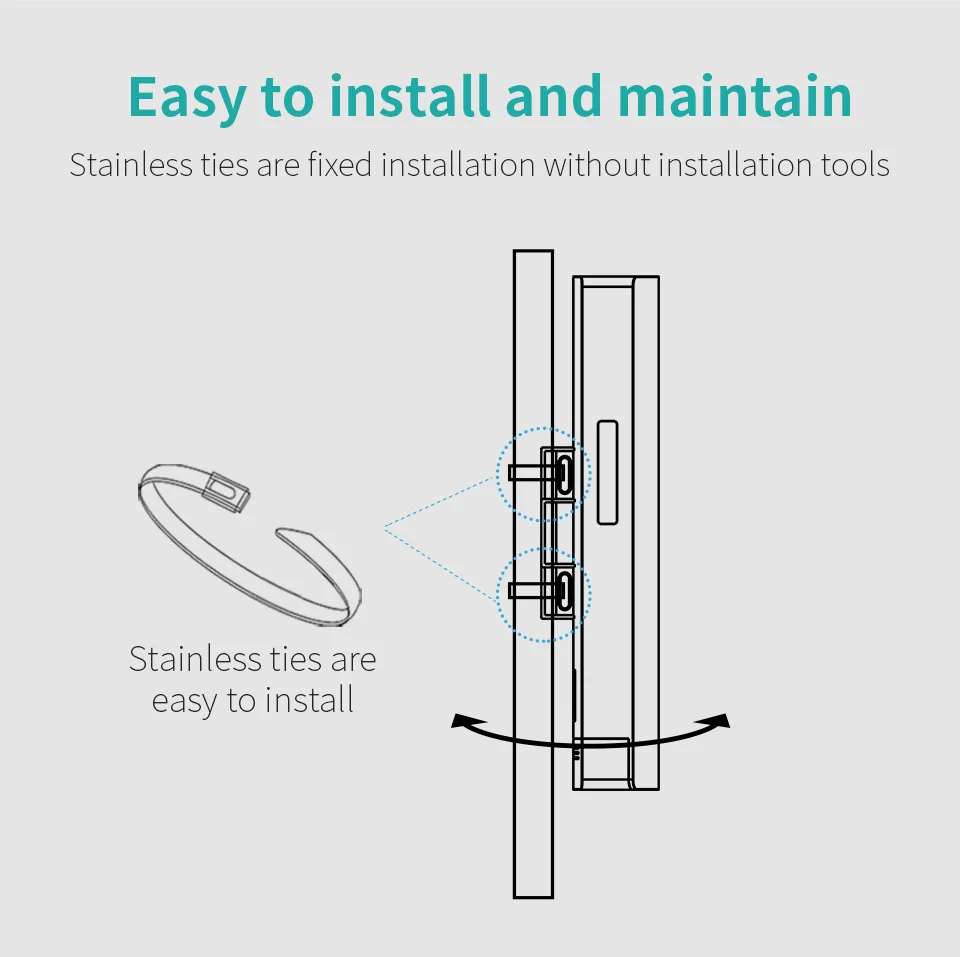

Easy to install and maintain
Stainless ties are fixed installation without installation tools

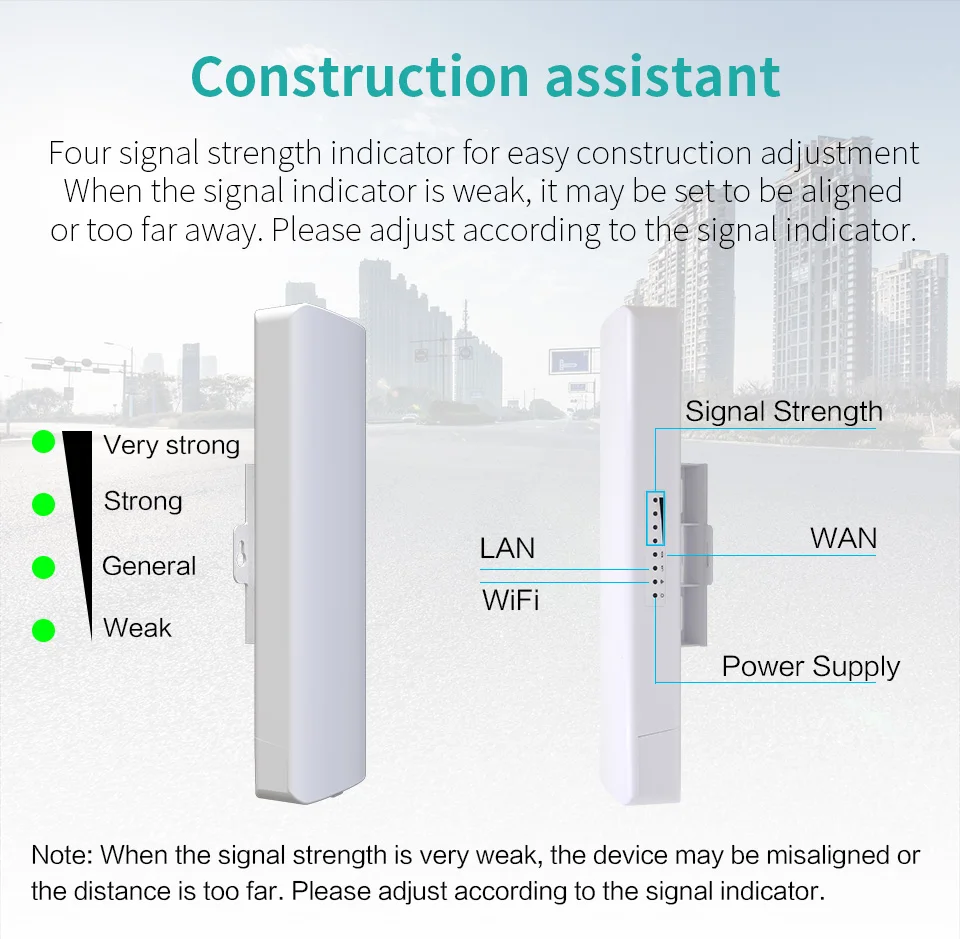

Construction assistant
Four signal strength indicator for easy construction adjustment When the signal indicator is weak, it may be set to be alignedor too far away. Please adjust according to the signal indicator. (Note: When the signal strength is very weak, the device may be misaligned or the distance is too far. Please adjust according to the signal indicator.)

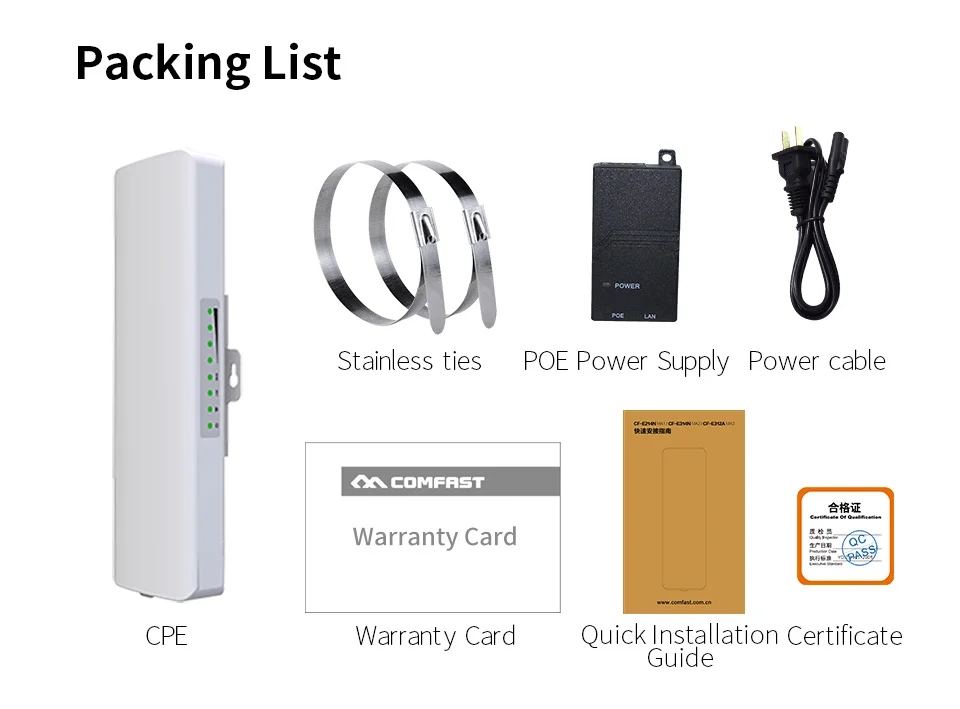

Packing List
CPE; Stainless ties; POE Power Supply Power cable; Quick Installation Certificate; Guide; Warranty Card
FAQ
Q1. Does it support APP management?
A: No, our device is managed through the HTTP WEB page, and the default address is 192.168.10.1.
Q2. How many pieces of CPE are included in the package?
A: There are 2 options in the link, if you need 2pcs CPE, please order "2pcs Cheaper" option.
(Note: Long distance wireless transmission requires at least 2pcs CPE)
Q3. Can the coverage of the antenna reach 3KM?
A: No, this is a directional antenna, and 3KM is a directional transmission distance, which can only be achieved if two CPEs are set to point-to-point wireless bridge mode and there are no obstacles in between. Other modes cannot refer to this distance.
Q4. Why the transmission distance is less than 3KM?
A: The transmission distance is affected by many factors such as weather, local network conditions, buildings, trees, etc., so it may not be able to reach 3KM, I hope you can understand.
Q5: What power supply are supported?
A: This CPE equipped with 48V 0.32A POE power supply, supporting 802.3af/802.3at compatible power supply.
Q6. The CPE is not powered, power light is off.
Power POE—connected with CPE WAN port
CPE Lan Port—connected with laptop
